sensor AUDI TT 2013 Owner´s Manual

14 Instrum ent s and w arn ing /indic ato r light s
11111 Check engine oil leve l
lill C?page19
111!!1111 Engine oil sensor malfunction
liflll¢page19
Battery voltage too high or too low
C?page 19
Low fuel level
¢page 20
• Windsh
ield washer fluid level low ¢ page20
J:J
Defective light bulb
¢page 20
•
USA model s: Defective brake light
¢ page 20
II
Canada model s: Defective brake
light¢
page 20
II
Dynamic headlight range control*
defective ¢
page 20
Ill
Adaptive Light* defective
¢page20
m
Light/rain sensor defective (automat-
ic headlights)* defective¢
page 21
B
Audi magnetic ride
¢page 21
fJ
Rear spoiler./
¢ page 21
•
USA model s: Speed warning 1
¢page 74
~
Canada mod els : Speed warning 1
¢ page 74
•
USA models: Speed warning 2
¢page 74
•
Canad a model s: Speed warning 2
¢ page 74
~£1
Electro-mechanical power assist
¢page 17
Other indi cato r ligh ts
II
II
RUI E
•
•
Turn s ignals
¢ page 21
USA models: Cruise control acti­
vated ¢
page 21
Canada model s: Cruise control
act ivated ¢
page 21
]!High beam
IIC?page44
BRAKE/ ((D) Brake system
This warning/indicator Light illuminates when
the brake fluid level is too low or when there
is a malfunction in the ABS, or when the park­
ing brake is set.
If the - (USA models)/ . (Canada
models) symbo l flashes in the display with the
parking brake released, there is a malfunction
in the brake system . In addition to the sym­
bol, one of two messages appears in the dis­
play:
Stop veh icle and chec k bra ke fl uid le vel
Stab ilization pr ogram and AB S fau lt! See
O wne r's man ual
"' Pull off the road and stop the veh icle .
"' Obta in profess ional assistance.
USA models: if there is a malfunct ion in the
ABS system, the
11:S warning/ind icator light
i lluminates along with the -system
malfunction warning/indicator light¢,&. .
Canada models: if there is a malfunction in
the ABS system , the
tlJ warning/indicator
li ght illum inates together with the. brake
system malfunction warn ing/indicato r light
¢ .&. .
The light 1111 (USA)/ . (Canada) illum i-
nates when the ignition is turned on.
It goes
out afte r the eng ine has been sta rted and the
parking brake is fully re leased. This indicates ..,.

Instrument s and warnin g/indic ator ligh ts 19
A WARNING ,~ ~
Driv ing with bad brakes can cause a coll i­
sion and serious personal injury .
- If the warning light
liJ and the warning
light
11111> w ith the message Brak e
pad s!
comes on in the instrument cluster
display, immediately contact your au­
tho rized Aud i dealer or qualified work­
shop to have a ll brake pads chec ked or
replaced if necessary.
EPC Electronic power control
This warning/indicator light monitors the
electronic power control.
The ~ warn ing/ indicator light (Electron ic
Power Control) illuminates when you switch
on the ignition as a function check .
(D Tips
If this warning/indicator light illuminates
while you are dr iving, then there is a mal­
function in the engine elect ron ics. Have
t he malfunction co rrected as soon as pos­
sible by you r autho rized Aud i dea ler o r
qualif ied workshop .
~ Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) is part
of the On-Board Diagnostic (OBD II) system.
The symbol
l\l lights up when the ignition is
turned on and will turn off after the engine
h as started and has settled at constant idle
speed . Th is ind icates that the MIL is working
properly .
The warning light illuminates when there is a
malfunct ion i n the engine electronic system.
Contact your author ized Audi dealer and have
the ma lfunction corrected.
An imp roperl y closed fuel filler cap ma y also
c au se th e MIL light to illum inat e
<:::>page 178.
For more informat ion c:::> page 30.
1) - : USA mod els only
!'1 Engine speed limitation
App lies to veh icles: w ith eng ine speed limitatio n
(II Do not exc eed max . engin e speed of
XXXX rpm
The Ill symbol illum inates when there is an
engine contro l ma lf u nction . The indicator
li ght ~ in the instrume nt cl uster a lso illumi­
na tes. The engi ne speed is l imited to the
speed displayed in the driver in format ion sys­
tem. Keep in mind that the engine speed wi ll
not exceed the val ue disp layed in the driver in­
format ion system, for example when down­
shifting.
P lease go to an au thorized A udi dealer or oth ­
er qualified wo rkshop to have the malfunctio n
repaired.
'.!2::. Checking the engine oil level
II Please add ma x. 1 qt of engine oil!
If the II symbo l comes on, add 1 quart ( 1 li­
ter) of oil at the next opportunity
<=>page 185.
~~. Engine oil sensor defective
If the II symbol illum inates, contact your
authorized Aud i dea ler and have the oil sensor
inspected .
0 Battery voltage low
(•) Low battery charge : battery will be
c harg ed whil e driving
If the indicator l ight turns on and the mes­
sage appears, there may be limited starting
ability.
If this message turns off afte r a little while,
the battery charged enough while d rivi ng .
If the message does not turn off, have yo ur
authorized Aud i dea ler or qualified workshop
correct the malfunction .

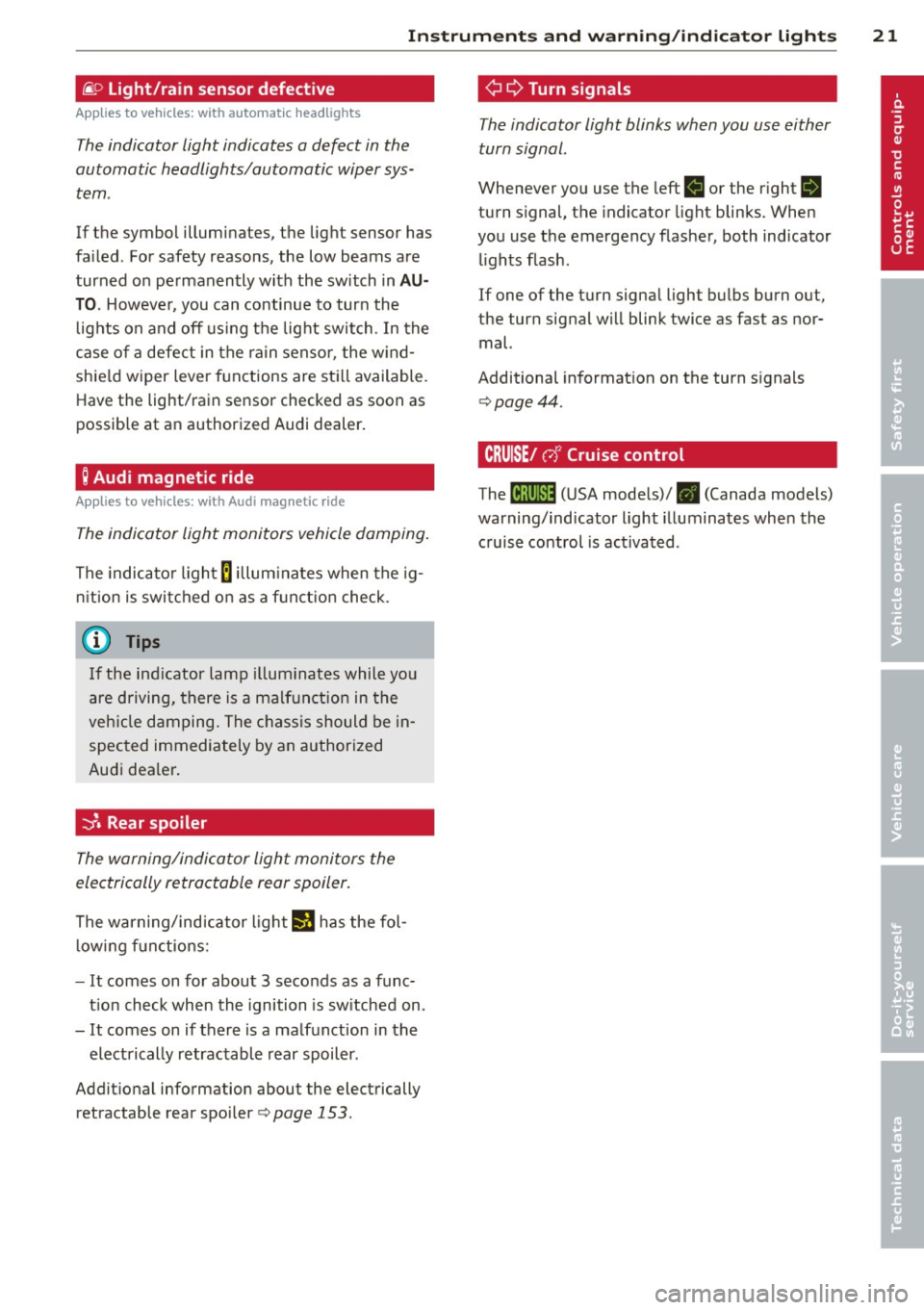

Instrument s and warnin g/indic ator ligh ts 21
@:> Light/rain sensor defective
Applies to vehicles: with a utomat ic head lights
The indicator light indicates a defect in the
automatic headlights/automatic wiper sys­
tem .
If the symbol illuminates, the light sensor has
failed . For safety reasons, the low beams are
turned on permanently with the switch in
A U­
TO . However , you can continue to turn the
lights on and off using the light switch . In the
case of a defect in the rain sensor, the w ind­
shie ld wiper lever functions are sti ll available.
Have the light/rain sensor checked as soon as
possible at an authorized Audi dealer.
; Audi magnetic ride
App lies to vehicles: with Audi magnetic ride
The indicator light monitors vehicle damping .
The indicato r light B illum inates when the ig­
n it ion is switched o n as a funct ion check.
(j) Tips
If the ind icator lamp illum inates while you
are driving, there is a malfunct ion in the
veh icle damping. The chass is should be in­
spected immediately by an authorized
Audi dea ler .
:::/, Rear spoiler
The warning/indicator light monitors the
electrically retractable rear spoiler.
The warning/indicator light l'J has the fol­
l owing f un ctions:
- It comes on for about 3 seconds as a func­
t ion check when the ignition is sw itched on .
- It comes on if there is a malfunction in the
electrically retractable rear spoiler .
Addit ional information about the electrically
retractable rear spo iler
¢ page 153.
¢ Q Turn signals
The indicator light blinks when you use either
turn signal .
Whenever you use the left II or the r ight II
turn s ignal, the indica tor light blinks. When
you use the emergency flasher, both indicator lights flash .
If one of the turn signa l light bulbs burn out,
the turn signal will blink twice as fast as nor­
mal.
Additional informat ion on the turn signals
¢ page 44.
CRUISE/ 0" Cruise control
The tB;(l)~i# (USA models)/ . (Canada models)
warning/indicator light illuminates when the
cruise control is act ivated .

42 Clear vision
Clear vision Lights
Switching the headlights on and off
Fig . 39 Instr ument panel: l ight sw itch
Fig. 40 Instr ument pane l: ligh t switch w ith dayti me
running lights (DR L)
The light switch must not be overturned past
the stops in
either direct ion.
Switching on automatic headlight
control*
• Turn the light switch to AUTO* ¢ fig. 39.
Switching on the side marker lights
• Turn the light switch to :;oo:.
Switching on the headlights and high
beam
• Turn the light switch to tD .
• Push the high beam lever forward towards
the instrument panel¢
page 44.
Switching off the lights
• Turn the light switch to 0.
The head lights only work when the ignition is
switched on. While start ing the engine or
when switching off the ignition, the head- lights
will go off and only the side ma rker
lights will be on.
Daytime running lights (DRL) (USA
models)
T he daytime running lights can be turned on
or off using this function. If the function is ac­
tive, the daytime ru nning lights are turned on
automatica lly when the ign it ion is switched
on.
T he daytime running lights are activated
only
when the light switch is at the AUTO* or DRL *
position.
Daytime running lights (Canada models
only)
The daytime running lights are activated only
when the light switch ¢ fig. 39 is either at the
0 or the :;oo: pos ition.
T he daytime r unning lights funct ion cannot be
turned off.
Automatic headlight control*
In the switch position AUTO the automatic
headlight control
is turned on. The low
beams are turned on automatically through a
light sensor as soon as amb ient b rightness
(e .g. when driving into a tunnel) falls below a
value preset at the factory. When ambient
brightness increases aga in, the low beams are
turned off again automatically ¢.&..
In the
AUTO position the low beams are
switched off automatically when the ignition
is turned off .
Light Sensor Malfunction*
In the event of a light sensor malfunction, the
driver is notified in the instrument cluster dis­
play:
El Automatic headlights/automatic wipers
defective
For safe ty reasons the low beams are turned
on permanently with the switch in
AUTO* .
However , you can conti nue to turn the lights
on and off using the light switch. Have the
Ill>-

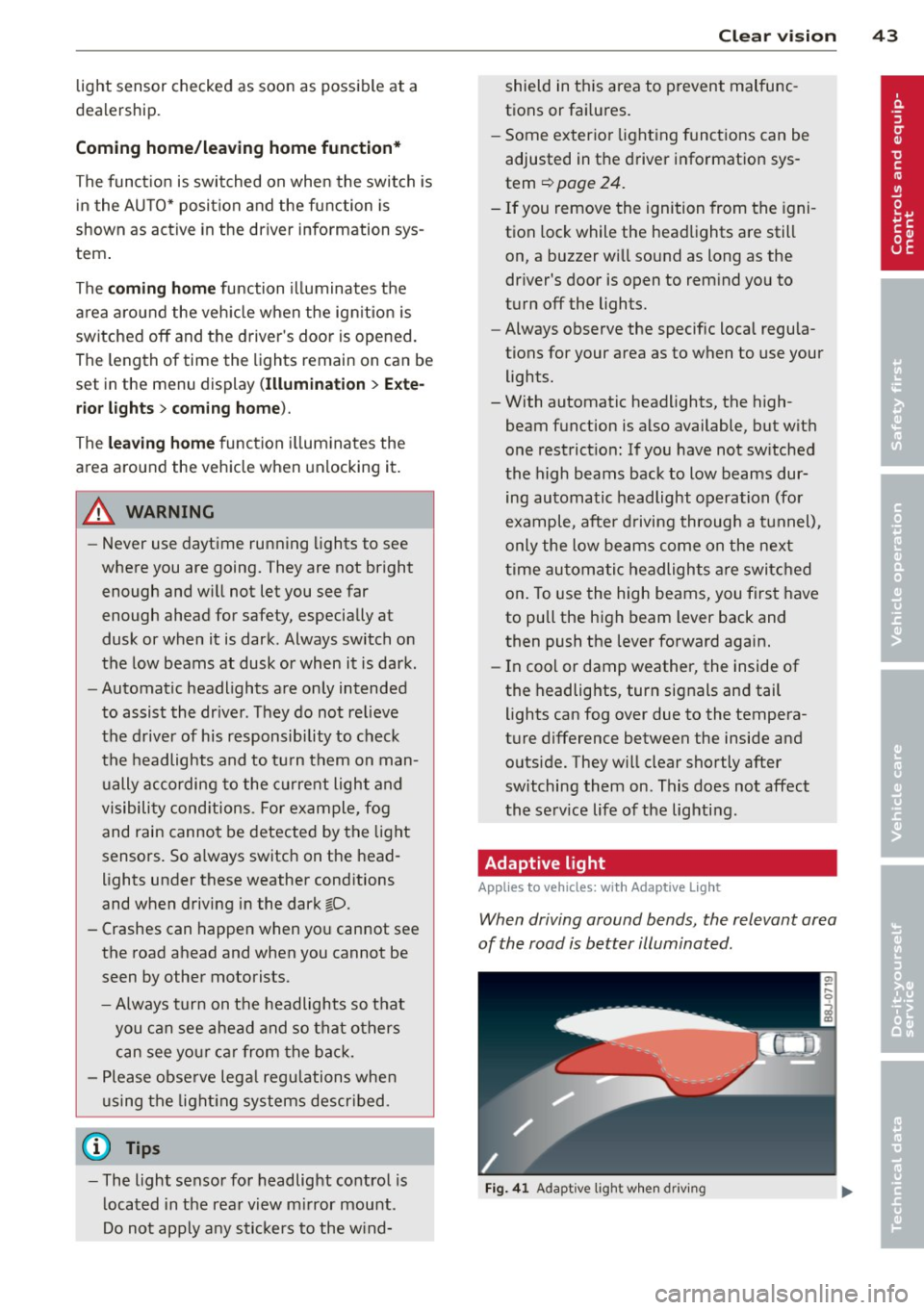

light sensor ch ecked as soon as possible at a
deal ership.
Com ing home /leaving home function *
The functio n is switched on when the switch is
i n the AU TO* posi tion and the function is
shown as active in the driver information sys­
tem .
The
coming hom e function illuminates the
a rea aro und the veh icle when the ign ition is
switched off and the driver 's door is opened.
The length of time the lights remain on can be
set in the menu display
( Illumin ation > Exte­
rior lights > coming hom e).
The leaving home func tion i llum inates the
area around the vehicle when unlocking it.
A WARNING
- Never use dayt ime running lights to see
where you are going. They are not bright
enough and w ill not let you see far
enough ahead for safety, especially at
dusk or when it is dark . Always switch on
the low beams at dusk or when it is dark.
- Automatic headlights are only intended
to assist the dr ive r. T hey do not relieve
the driver of his responsibility to check
the headlights and to tu rn them on man­
ually acco rding to the c urrent light and
visibili ty cond itions. For example, fog
and rain cannot be detected by the light
sensors . So a lways switch on the head­
lights under these weather cond itions
and when driving in the dark
io .
-Crashes can happen when yo u cannot see
the road ahead and when you cannot be
seen by other motorists .
- Always tur n on t he headlights so that
you can see ahead and so that o thers
c a n see yo ur ca r from the ba ck.
- Please obse rve lega l regu lations whe n
us ing the light ing systems descr ibed .
(D Tips
-The light sensor for headlight control is
l ocated in the rear v iew m irror mount .
Do not apply a ny stic kers to the w ind-
Clear vis ion 43
shield in th is area to p revent malfunc ­
tions or fai lures.
- Some exter io r light ing funct ions can be
adjusted in the d river informat ion sys­
tem
~ page 24.
- If you remove the ignition from the igni ­
tion lock while the headlights are still
on, a buzzer w ill sound as long as the
dr iver's door is open to rem ind you to
t u rn off the lights.
- Always observe the specific loca l regula ­
tions for your area as to when to use your
lights.
- With automatic headlights, the high­
beam function is also available, but w it h
one restrict ion:
If you have not sw itched
t he high beams back to low beams dur­
ing automatic headlight operation (fo r
example, afte r d riving throug h a tunnel),
only the low be ams come on the next
t ime au tomatic headlights are switched
on. To use the high beams, you firs t have
to pull the high beam lever back and
then push the leve r forward again.
- In coo l or damp weather, the inside of
the headlights, turn signals and tail
lights can fog over due to the tempera­
ture difference between the inside and
outside. They w ill clear shortly after
sw itching them on. This does not affect
the se rv ice life of t he lig hti ng .
Adaptive light
Applies to veh icles: w ith Adaptive light
When driving around bends, the relevant area
of the road is better illuminated .
Fig. 4 1 Adapt ive li ght w hen driv ing

44 Clear vis ion
The benefit o f adaptive light is that the curve
and the edge of the road are better illuminat­
ed
c::> fig. 41. The adaptive light is controlled
automatically, depend ing on vehicle speed
and steering wheel angle.
When driving around bends, the head lights
are controlled according to steering wheel an ­
g le. So that there is no black area ahead of the
vehicle, the two main beams pivot at different
angles.
@ Tips
The system works above a speed of about
6 mph (10 km/h).
Front fog lights
Use the light switch to turn on the front fog
lights.
Fi g. 4 2 Fog light act ivation : light switc h position on
veh icles WITHOUT sensor light
Switching on the f ront fog lights }D
0
0
en ~ ci. a,
"'
.. Do not turn the light switch -'ti.-c::> fig . 42 to-
ward the fog light symbol
iD.
.. Turn the light switch to ;oo: or to io.
.. Pull the light switch to the first stop@.
When the front fog lights are on, the symbol
}D next to the light switch will i lluminate.
(D Tips
With the switch in AUTO front fog lights
cannot be turned on in addit io n.
Turn signals and high beam lever
The lever on the left side of the steering col­
umn is used to operate the turn signals and
the high beam as well as the headlight flash­
er.
t
'
Fi g. 4 3 Tu rn signal and high beam lever
The turn signa l and hig h beam lever has the
following functions:
Turn signals ¢¢ CD@
.. Push the leve r up as far as it can go to t urn
on t he right tu rn s ignal or down to tu rn on
the left tu rn s ignal
~ fig. 43 .
.. Move the lever briefly unti l you meet resist­
ance and release it to flash three times .
.,. Move the lever (up or down) until you meet
resistance and hold it there to determine
the flashing time for the turn signals.
High beam gD @
.,. Push the lever forward to sw itch on the high
beam .
.. Pull the lever back towards you to switch off
the high beam .
Headlight fla sher gD ©
.,. Pull the lever toward the steering wheel to
use t he headlight flasher.
Not es on thes e features
- The turn signals on ly work w ith the ignition
sw itched on . The indica to r l ights
II or Bin
the instrument cluster c::> page 12 also blink.
- After you have t urned a co rner, the turn s ig -
na l switches off au toma tic ally.
- The
high beam wo rks on ly when the head-
lights are o n. The indicator light
Bl in the .,..

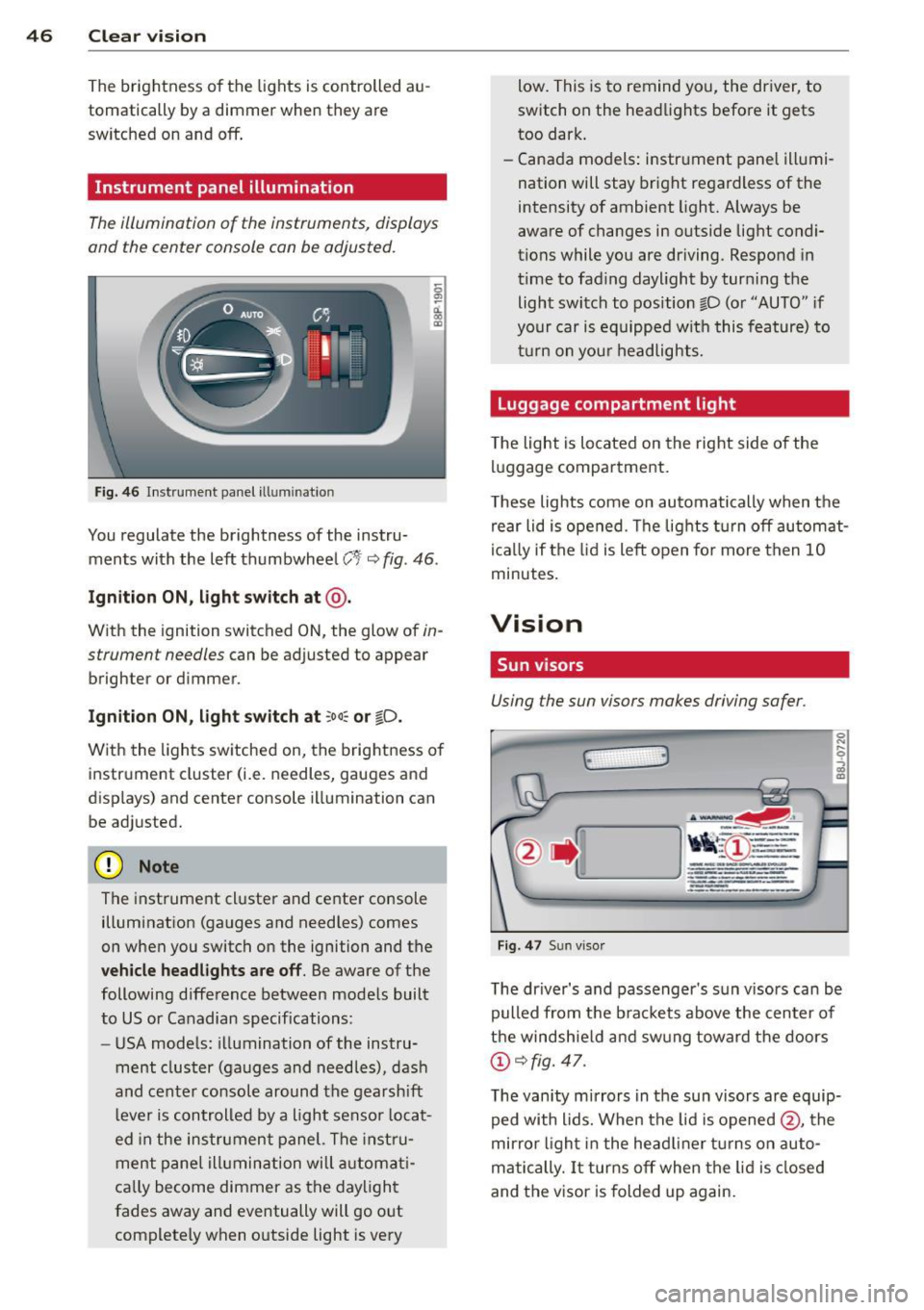

46 Clear vision
The brightness of the lights is controlled au­
tomatically by a dimmer when they are
switched on and
off.
Instrument panel illumination
The illumination of the instruments , displays
and the center console can be adjusted.
Fig. 46 Instrument panel ill um inat io n
0 ~ d. 00 m
You regulate the brightness of the instru­
ments with the left thumbwheel
C t<=:> fig . 46 .
Ignition ON, light switch at@ .
With the ignition switched ON, the glow of in­
strument needles
can be adjusted to appear
brighter or dimmer.
Ignition ON, light switch at ~oo:c or io.
With the lights switched on, the brightness of
instrument cluster (i.e. needles, gauges and
displays) and center console illumination can
be adjusted.
(D Note
The instrument cluster and center console
illumination (gauges and needles) comes
on when you switch on the ignition and the
vehicle headlights are off. Be aware of the
following difference between models built
to US or Canadian specifications :
- USA models: illumination of the instru­
ment cluster (gauges and needles), dash
and center console around the gearshift
lever is controlled by a light sensor locat­
ed in the instrument panel. The instru­
ment panel illumination will automati­
cally become dimmer as the daylight
fades away and eventually will go out
completely when outside light is very low.
This is to remind you, the driver, to
switch on the headlights before it gets
too dark.
- Canada models: instrument panel illumi­
nation will stay brig ht regardless of the
intensity of ambient light. Always be
aware of changes in outside light condi­
tions while you are driving. Respond in
time to fading daylight by turning the
light switch to position fD (or "AUTO" if
your car is equipped with this feature) to
turn on your headlights.
Luggage compartment light
The light is located on the right side of the
luggage compartment.
These lights come on automatically when the
rear lid is opened. The lights turn
off automat­
ically if the lid is left open for more then 10
minutes.
Vision
, Sun visors
Using the sun visors makes driving safer .
(· 3
Fig. 47 Sun visor
The driver's and passenger's sun visors can be
pulled from the brackets above the center of
the windshield and swung toward the doors
(!)<=:>fig. 47.
The vanity mirrors in the sun visors are equip­
ped with lids. When the lid is opened
@, the
mirror light in the headliner turns on auto­
matically. It turns
off when the lid is closed
and the visor is folded up again.

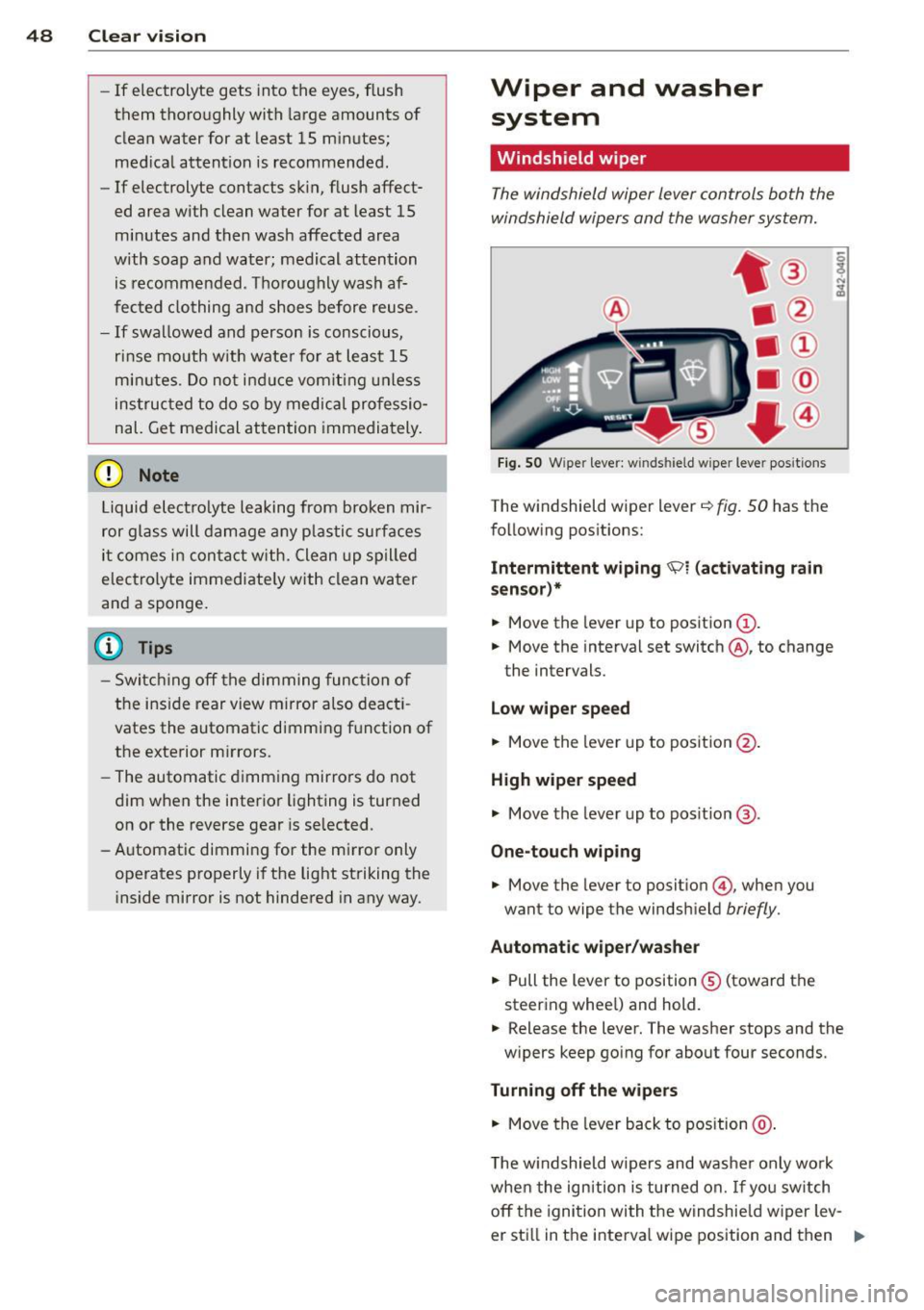

48 Clear vis ion
- If electrolyte gets into the eyes, flush
them thoroughly with large amounts of
clean water for at least 15 m inutes;
med ica l attent ion is recommended .
- If electrolyte contacts skin, flush affect­
ed area with clean water for at least 15
minutes and then wash affected area
with soap and water; medical attention
is recommended . Tho roughly wash af­
fected clothing and shoes before reuse.
- If swallowed and person is conscious,
rinse mouth w it h wate r fo r at least 15
min utes . Do no t induc e vom iting unle ss
instructed to do so by medic al professio­
nal. Get medical at tention immediately.
Liquid elect ro lyte lea king from broken mir­
ror glass will damage any p lastic surfaces
i t comes in contact w ith. Clean up spilled
e lectro lyte immediate ly with clean water
and a sponge.
(D} Tips
- Switch ing off the dimming func tion of
the inside rear view mirror also deact i­
vates the automatic dimmi ng f unction of
the exterior m irrors.
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is se lected .
- Automatic dimmi ng for the m irror only
operates properly i f th e light striking the
i nside mirror is not hindered in any way.
Wiper and washer
system
Windshield wiper
The windshield wiper lever controls both the
windshield wipers and the washer system.
F ig . 50 W ipe r leve r: win ds hield w ipe r leve r posit io ns
The windshield wiper lever~ fig. 50 has the
following pos itions:
Intermittent wiping \91 (activating r ain
sensor)*
.,. Move the lever up to position(!).
.,. Move the interval set switch @, to change
the intervals.
Low wiper speed
.,. Move the lever up to pos it ion @.
High wiper speed
.,. Move the lever up to pos it ion @.
One-touch wiping
.,. Move the lever to posit ion @, when you
wan t to wipe the winds hield
briefly.
Automat ic wiper/wa sher
.,. Pull the lever to position ® (toward the
steering whee l) and hold .
.,. Release the lever. The washer stops and the
w ipers keep go ing for about four seconds.
Turning off the wipers
.,. Move the leve r back to position @.
T he w indshield wipers and washe r only wo rk
whe n the ign ition is turned on. If you sw itch
off the ignition with the windshie ld w iper lev -
er sti ll in the interva l wipe posit ion and then
Ill>

come back a while later and drive off, the rain
sensor will reactivate itself after the vehicle
speed has exceeded 4 mph (6 km/h).
The rain sensor* is only activated with the
wiper lever set to position(!). When it starts
to rain, the rain sensor will automatically acti­
vate the intermittent wiping mode.
To reduce the sensitivity of the sensor, move
switch @ down. To increase the sensitivity,
move the switch up. The higher you adjust the
sensitivity, the faster the sensor will react
when it senses moisture on the windshield. The pauses between wiper turns depend not
only on the sensitivity setting, but on the ve­
hicle speed as well.
During brief stops, e.g . at a red light, wiper
motion will automatically be reduced to the
next lower speed . Wipers already turning at
low speed change to intermittent wiping.
When the ignition is turned on, the washer
jets are heated .
A WARNING
-Wiper blades are crucial for safe driving!
Only when they are in good condition are
they able to clear the windows properly
to provide uncompromising visibility.
Worn or damaged wiper blades are a
safety hazard
r=;, page 51, Replacing
windshield wiper blades!
- The light/rain sensor* is only designed to
assist and support the driver.
It remains
entirely the driver's responsibility to
monitor outside weather conditions and
to manually activate the wipers as soon
as rain or drizzle reduces visibility
through the windshield.
- The windshield must not be treated with
water-repellent materials. They can in­
crease glare under poor visibility condi­
tions such as wetness, darkness, or when
the sun is low on the horizon. In addi­
tion, they can cause the windshield wip­
ers to chatter.
Clear vision 49
@ Note
In freezing or near freezing conditions:
- Always check that the wiper blades are
not frozen to the glass before you turn
the wipers on. Loosen a wiper blade
which is frozen in place before operating
the wipers to prevent damage to the
wiper blade or the wiper motor.
- Do not use the wipers to clear a frosted
window. Using the wipers as a conven­ ient ice scraper will destroy the wiper
blades .
- Before you take your vehicle to an auto­
matic car wash, make sure you have the
windshield wiper system switched off (lever in position
0), otherwise the wind­
shield wiper system could get damaged
in the car wash if it should suddenly
come on.
@ Tips
-The windshield wipers are switched off
when the ignition is turned off. Activate
the windshield wipers after the ignition
is switched back on by moving the wind­
shield wiper lever to any position.
- Worn or dirty windshield wiper blades
cause smearing, which can affect the op­
eration of the light/rain sensor*. Check
the condition of your windshield wiper
blades regularly.
-The rain sensor is part of the interval
wiping system. Turning off the ignition
will also deactivate the rain sensor. To re­
activate the sensor, switch off the inter­
val wiping function, then switch it back
on again.
-Applies to vehicles with light/rain sen­
sor: When the wipers are switched on
manually and in rain conditions, the au­
tomatic headlights* turn on
r=;, page 42,
Switching the headlights on and off
or
off during the day when the wipers are
no longer operating. The automatic
headlights* function is available in this
case only when the light switch is in the
"AUTO" position¢
page 42, fig. 39.

78 On the road
Audi magnetic ride
Applies to vehicles: with mag netic r ide
Damping can be adjusted to the driver's pref­
erence and it adapts automatically to the cur­
rent driving situation.
Fig. 77 Cente r console: Switch for Audi magnetic r ide
.,. Press the switch ~ fig . 77 to turn spo rt set-
t ing o n or off.
Aud i magnetic ride is an electron ically con­
trolled damp ing system . Th is chassis system
assists the driver by adapting to the par ticular
situatio n th rough imper cep tible con trol p roc­
esses. The
damping provides individual mod u­
l ation of damping forces. For example, with
dampi ng cha racterist ics set to p rovide greater
comfort, damping is set somewhat harder for
a brief period only as required, when rounding
a curve and when braking.
Standard setting
Select the standard sett ing if you prefer a sus­
pension setting emphasizing comfort.
Sport setting
Select the sport setti ng if you prefe r a sporty
suspe nsio n setting . The LED in the sw itch
8
comes on to indicate spo rt setting .
@ Tips
The w arning/indicator light 8 in the in stru ­
ment cluster comes on in the even t of a
malfunction . Drive to the closest au thor ­
ized Audi dealer as soon as possible and
have the malfunction repaired.
Sport mode
Applies to vehicles: wit h Sport but ton
F ig . 7 8 Button in th e ce nte r console
.,. To switch sport mode on, press the button
in th e cente r console. The indicator light
t ur ns on .
.,. To swi tch spor t mo de off, press the bu tto n
in the center co nsole again. The indicator
light turns on .
A mo re agile and spo rty d riv in g style is po ssi­
ble when driving the vehicle in "sport mode".
T his mode affec ts thrott le response and the
sound of the engine and the damping charac ­
teristics of the Audi magnetic ride for dynamic
s uspension tuning .
@ Tips
If there is a malfunct ion in the retracta ble
rear spoiler* or the Audi magnetic ride*, it
may not be poss ible to activate sport
mode.
Acoustic parking system
Rear acoustic park assist
Applies to vehicles: wit h 4-channel acoustic park assist
Acous tic park assist gives a warning about
obstacles behind the vehicle.
Description
T he rea r acousti c park ass ist (4-cha nnel
a coustic park ass ist) determines the distance
of the vehicle from an obstacle using ultra­
son ic sensors. The sensors are in the rear
bumper. The volume a nd the pitch of the
