AUDI TT COUPE 2016 Owners Manual

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
Opening/closing a selection menu
Push the control knob toward t he left to open the
selection menu c::> page 96.
Press the IBACKI b utton@ c::> page 95, fig. 90 to
retur n to the fun ction one level up. Or : pus h the
con trol
kno b to the rig ht to close the sele ct io n
menu.
Opening/closing the options menu
Push the control knob to the right to open the
options menu r::;;;page 97.
Press
the IBACKI button@ r::;;; page 95, fig. 90 to
retu rn to the function one level up. Or : push the
control knob t o the left to close the options
menu.
Displaying the input field*
Push the control knob up to reach th e beginning
of a list in the central area/inpu t field.
Switching to speller input*
W hen th e inp ut fie ld is already open, switch di­
rect ly
to the speller in the input fie ld by pushing
the control knob up again ¢page 99.
On the map
Requirement: a map must be disp laye d
r::;;;page 139, fig. 120.

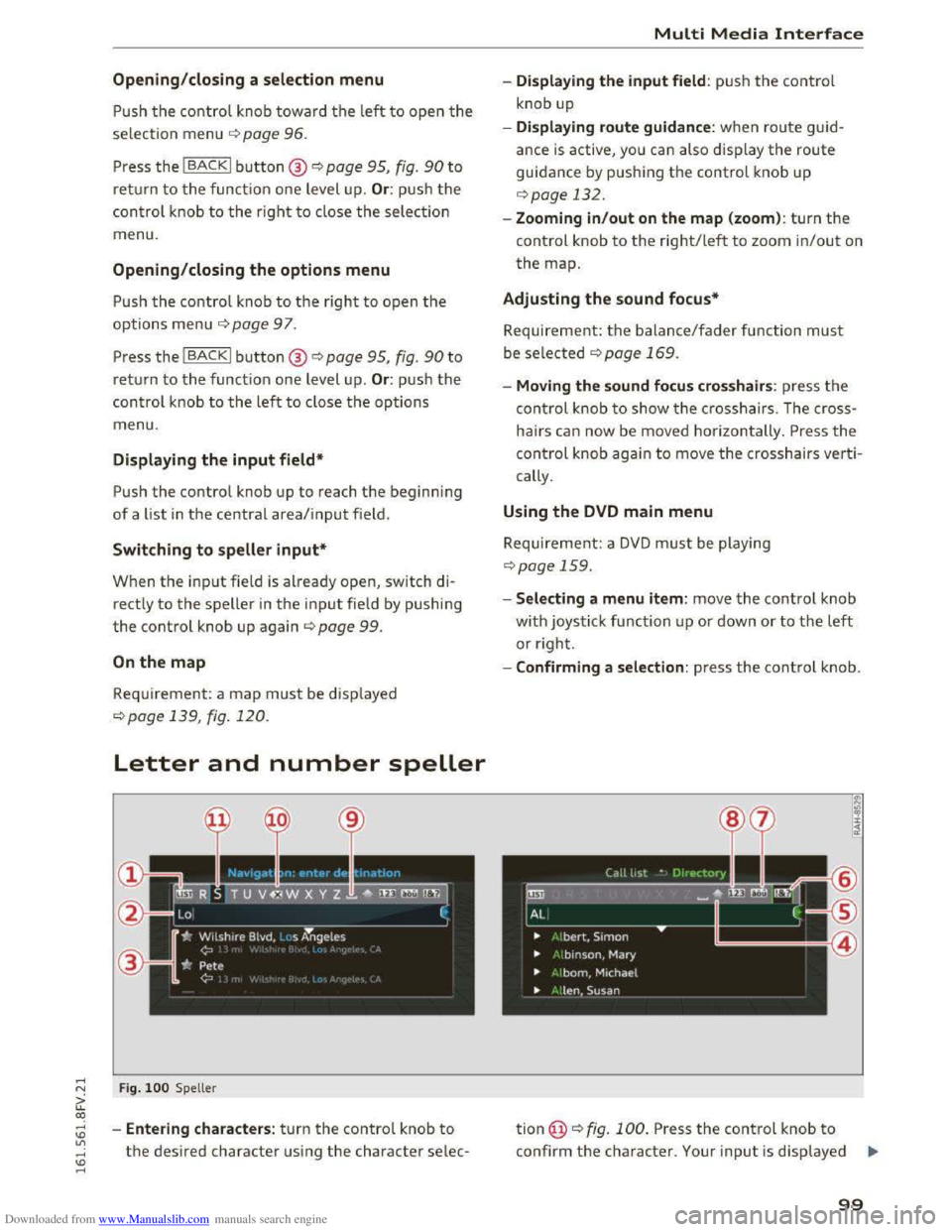

Letter and number speller
Fig. 1 0 0 Spell er
-Entering ch aracters: tu rn the control knob to
the desired character using the character selec -
Multi Media Interface
-Displaying the input field : push the contro l
knob up
- Displaying
route guidance: w hen route guid ­
ance is active , yo u can also displ ay the route
guidance by pushing the control knob up
c::> page 132.
-
Zooming in/out on the map (zoom): turn the
control knob to the right/lef t to zoom in/out on
the map.
Adjusting the sound focus*
Requireme nt: the balance/fader function must
be
selected c::> page 169.
- Moving the sound focus crosshairs: press th e
co
ntrol knob t o sh ow the crossh airs. The cro ss­
h air s can now
be move d horizon tally . Press the
control knob again to move the crosshairs verti­
cally .
Using the DVD main menu
Requireme nt: a DVD must be playing
c::>page 159.
-Selecting a menu item: move the control knob
w i
th joystick function up or down or to the left
or right.
- Confirming a
selection: press the contro l knob .
tion@r;:;;; fig. 100. Press the control knob to
confirm th e cha racter. Your input is disp layed ..,.
99

Downloaded from www.Manualslib.com manuals search engine Multi Media Interface
in the input fie ld @ . When you have entered all
of the characters, select and confirm I LISTI(!).
Or: push the control knob down.
- Deleting characters : turn the speller to and press and hold the control knob down. Or:
press the right control button and select and
confirm Clear input field.
- Ente ring special cha
racters: select and con­
firm
I !&?I@ , laou 10orI123 I@ . Select and
confirm the desired special character (for ex­
ample, a hyphen or period) with the number
speller.
-Input assistance: in some cases such as in navi­
gation, an input is suggested based on logical
Symbol/Description Explanation
deduction of possibilities to complete your in­
put. You can select this suggestion by pushing
the control knob up .
- Results list: in some cases, such as in the direc­
tory,
the system switches automatically to the
results list based on l ogical deduction@ . Se­
lect and confirm a suggestion from the list.

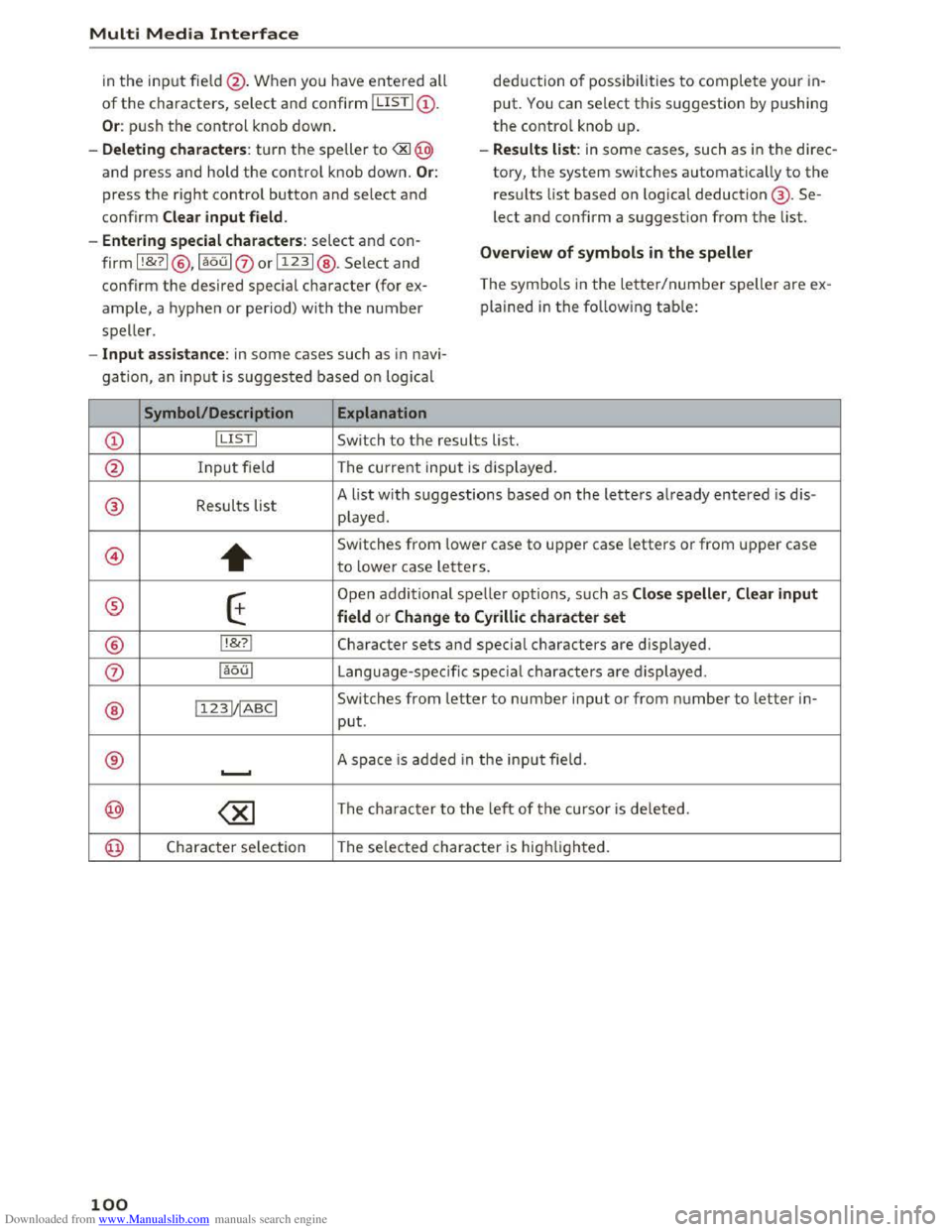

Overview of symbols in the speller
The symbols in the letter/number speller are ex­
plained
in the fo llowing table:
CD ! LISTI Switch to the results list.
@ Input fie ld The current input is displayed.
® Results list
A list with suggestions based on the letters already entered is dis -
played .
@
+
Switches from lower case to upper case letters or from upper case
to lower case letters.
® E
Open additional spelle r options, such as Close speller , Clear input
field
or Change to Cyrilli c character set
® lt&?I Character sets and special characters are displayed .
0 iaoul Language-sp ecific special characters are displayed.
11231/IABCI Switches from letter to number input or from number to letter in-
® put.
® ............. A space is added i n the input fie ld .
@ @ Character selection The selected character is high lighted.
100

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
Multi Media Interface
Menus and symbols
I~ :c
'~
Fig. 101 Menus and symbols
Symbol/Description Explanation
CD Selected text Selected function
@ TMC TMC/online traffic information reception ¢page 142
Network coverage for the active data connection¢ page 127
2G: GSM network
3G: UMTS network
® 2G/3G/LTE* LTE: LTE network
When a data connection is established, the symbol for an active da-
ta connection appears in the status line on the Infotainment system
display ¢ page 12 7
Signal
strength for the active data connection, or
@
Data connection signal PIN: enter the PIN (SIM)
strength bars* PUK: enter the PUK
SIM: insert the SIM card~ page 121
® Importing process Import/update the contacts in the directory or the call lists
® Battery Battery charge level for the connected cell phone
(j) Check boxes ~
Activate and deactivate specific functions by pressing the control
knob
® Arrow Access information by pressing the control knob
® Roaming Leave the mobile network for the connected cell phone or the in-
serted SIM card
@ Importing process Importing audio/video files to the Juk
ebox ¢page 151
@ Bluetooth* Bluetooth device connected¢ page 152 or¢ page 110
@ Scroll bars
Display of longer lists
Additional
functions for selection
@ Input field Information that can be changed using the letter/number speller
~page 99
101

Downloaded from www.Manualslib.com manuals search engine Multi Media Interface
Symbol/Description Explanation
@>
Cell phone signal Cell phone network signal strength for a connected cell phone
strength bars* ¢ page 110
@ Selection list Settings for the selected function that are accessed by pressing the
control knob
Free text search
Using the free text search, you can select the or­
der that the search terms are entered in the in­
put field.
Fig. 102 Input suggestion
The free text search is available in the Vehicle,
Media , Telephone, Navigation
and Audi con­
nect* menus.
Opening free text search
... Select: I MENU I button >desired menu item
(such as Telephone) .
... If necessary, push the control knob up to open
the input field Free text search for an entry
... Enter one or more search terms in any order in­
to the input field at the same time. The individ­
ual search terms must be separated by spaces
when entering.
Depending on the input, an input suggestion@
is displayed. Additional
entries that contain the
entered search term are listed In the results list
@.
Ifthe desired term is sti ll not displayed, enter
additional letters until it is disp layed.
It is often enough just to enter the first letters of
the search term in order for it to display in the re­
sults list. Write, for example in the Telephone
menu, the initials of the contact being searched
separated by a space.
102
Selecting the input suggestion
Requirement: an input suggestion must be dis­
played .
... MMI touch input*: press the control knob .
.,. Speller input: push the control knob up.
Selecting an entry from the results list
... MMI touch input* : turn the control knob down­
ward. Select and confirm an entry from the list .
... Speller input: select and confirm I LISTI. Or:
push the control knob down. Se lect and con­
firm an entry from the list.

Downloaded from www.Manualslib.com manuals search engine • Telephone
• Audi connect
• Navigation
• Directory
• Radio
•Media
· Sound
•
Help
• Help Speech dialog system
• Help Telephone
• Help Audi connect
• Help Navigation
• Help Map
• Help Radio
·Help Media
TEbEP:HONE
• Enter number
•Delete number I correc tion
• Directory
• Call (XY)
·business I private I land line I mobile
NAVIG:ATI0N
• N avigate to CXYl
·Business address I Private address
• Start I cancel route guidance
· Directory
• Last destinations
• N avigation favorites
· Drive
home
• Enter address
• Enter country I town I street I state
• Exclude routt I Exclude route for (XY) km Im
·Map
• Day map I Night map
Voice recognition system
• Favorites
• Call (XY)
• Enter number
• Redial
• Read new text message
• Navigate to (XY)
• Enter address/destination
• Onhne destinations
• Cancel route guidance
·Map
• Line (XY)
• Next page I previous page
• Cancel
•
No. l meant ()(Y)
• Correction
• Call
lost
• Redial
• Call mailbox
• Enter PIN I delete PIN
•
Telephone favorites
• Exclude next route section I Exclude
nex t
street
• Route list
• Calculate alternative routes
· Online destinations
• Special destination
• 20 driving position map/ 20 north position map/ 30 map I Destination map I Overview map
• Audi connect
• Travel information I Parking Information
•
Fuel prices
·Weather
RADIO
• Radio presets
• Last stations
•FM
• FM I AM I SIRIUS XM
• Station (XY) I Frequency (XY)
• T raffic announcement on I off

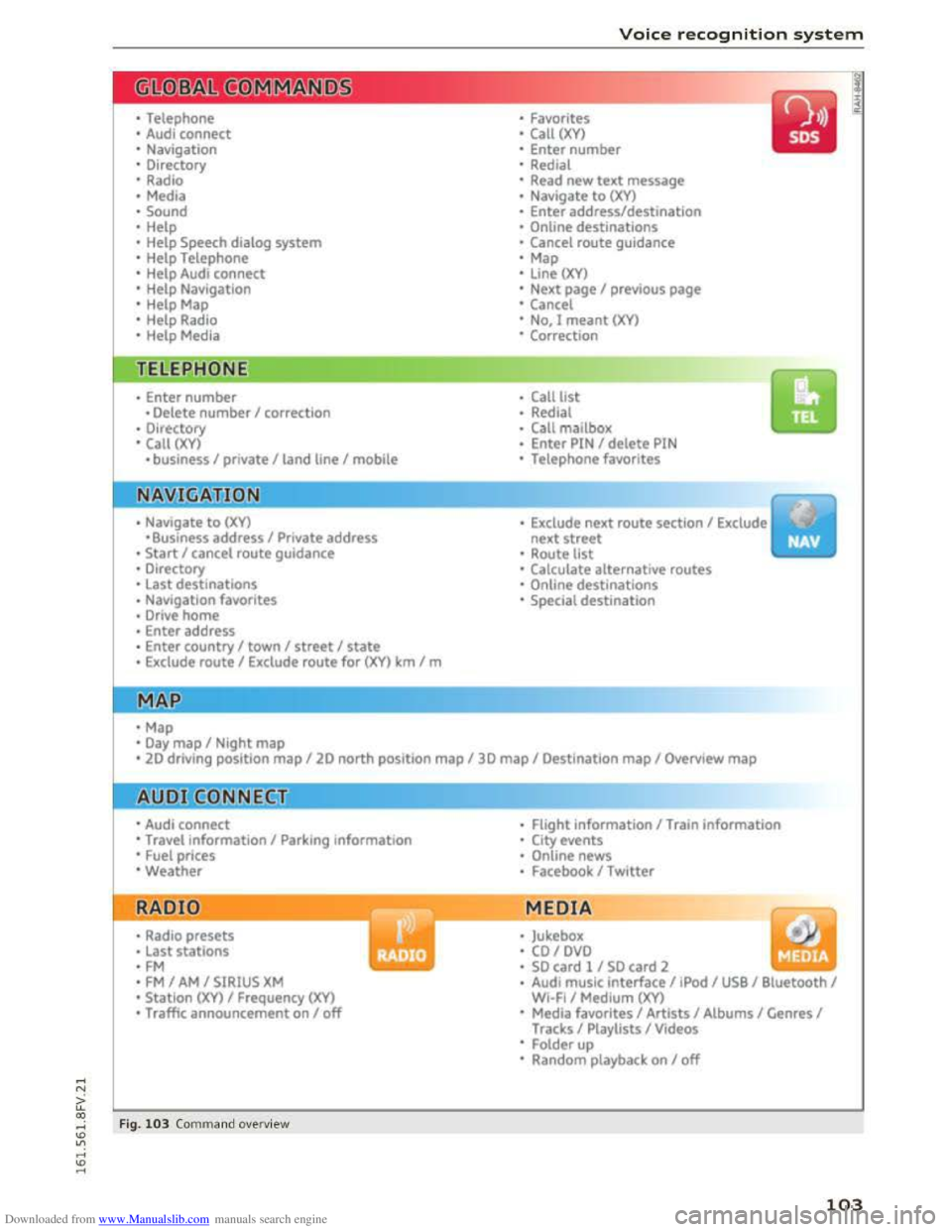

Fig. 103 Comm and ove rvie w
• Flight Information I Train information
• City events
• Online news
• Facebook I Twl tter
MEDIA
y • Jukebox
• CO I DVD
• SO card l / SD card 2
· Audi music interface I !Pod I USB I Bluetooth I
WI-Fi I Medium (XV)
• Media favorites I Artists I Albums I Genres I
Tracks I Playlists I Videos
• Folder up
· Random playback on I off
103

Downloaded from www.Manualslib.com manuals search engine Voice recognition system

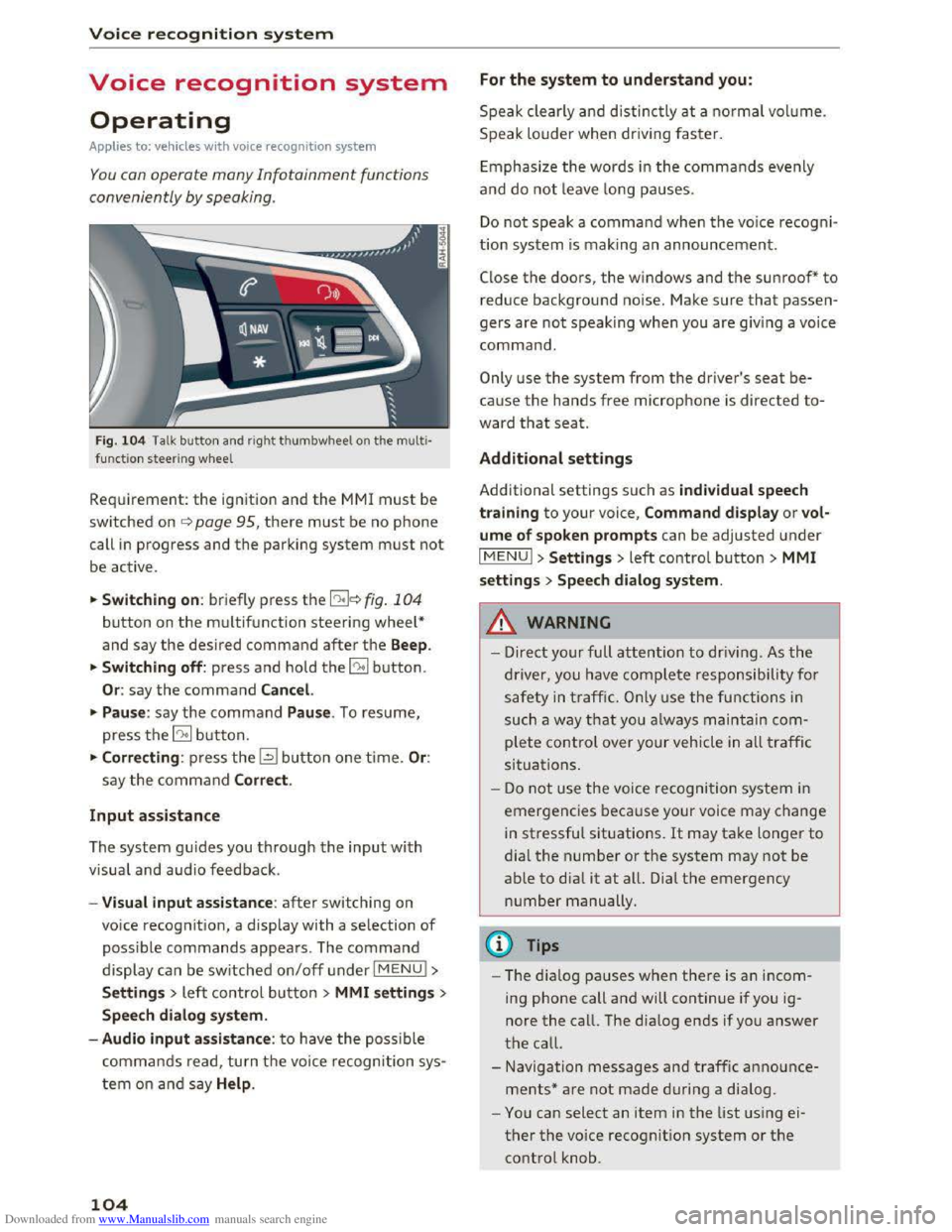

Voice recognition system
Operating
Applies to: vehicles with voice recogn ition system
You con operate many Infotainment functions
conveniently by speaking .
Fig. 10 4 Talk button and right thumbwheel on th e multi·
functi o n steer ing whee l
Requirement: the ignition and the MM! must be
switched on i::> page 95, there must be no phone
call in progress and the parking system must not
be active .
.. S
witching on: briefly press the 12!]c:> fig . 104
button on the multifunction steering wheel*
and say the desired command after the Beep.
..
Switching off: press and hold the 5:1 b utton.
Or : say the command Cancel.
.. Pause: say the command Pause . To resume,
press the 10°1 b utton.
.. Corre cting: press the~ button one time. Or:
say the command Correct.
Input assistance
The system gu ides you through the input with
visual
and audio feedback.
- Visual
input assistance: after switching on
voice
recognition, a display with a selection of
possible commands appears. The command
display can be switched on/off under I MENU!>
S ettings> left control bu tton > MMI settings>
Speech dialog system.
- Audio
input assistance: to have the possible
commands read, turn t h e voice recognition sys­
tem on a nd say Help .
104
For the system to understand you:
Speak clearly and distinc tly at a normal vol ume.
Speak louder when driving faster.
E
mphasiz e the words in the commands evenly
and do not leave long pauses.
Do not speak a command when the voice recogni ·
tion system is making an announcement.
Close the doors, the windows and the sunroof* to
reduce background noise. Make sure that passen­
gers are not speaking when you are giving a voice
command.
Only use the system from the driver's seat be­
cause the hands free microphone is directed to·
ward that seat.
Additional settings
Additional settings such as individual speech
tra ining to your voice, Command display or v ol­
ume of spoken prompts can be adjusted under
IMENUI >Settings> left control button> MMI
settings > Speech dialog system .
.&. WARNING
- Direct your full attention to driv ing . As the
driver, you have complete responsibility for
safety in traffic. O nly use the functions in
such a way th
at yo u always maintain com­
plete control over your vehicle in all traffic
situations.
-
Do not use the voice recognition system in
emergencies beca use your voice may change
in stressful situations. It may take longer to
dial the number or the system may not be
able to dia l it at all. Dial th e emergency
number manually.
@Tips
- The dia log pauses when ther e is an incom­
ing phone call and will continue if you ig­
nore the call. The dialog ends if you answer
the call.
- Navigation messages and traffic announce·
ments* are not made during a dialog.
-
You can select an item in the list using ei­
ther the voice recognition system or the
control knob.

Downloaded from www.Manualslib.com manuals search engine Voice recognition system

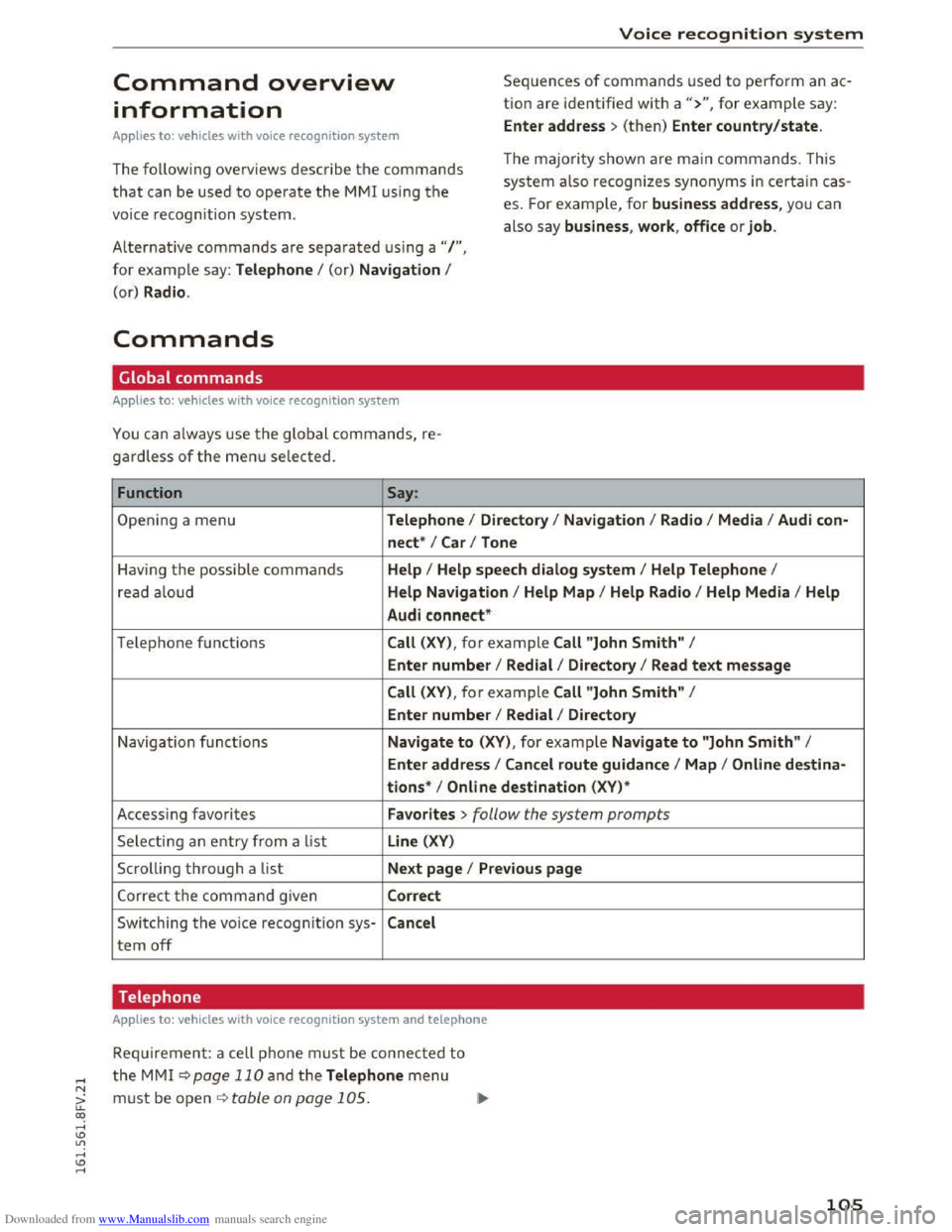

Command overview
information
Sequences of commands used to perform an ac ­
tion are identified w ith a">", for example say :
Applies to: vehicles with voice recognition system Enter address > (then) Enter country/state.
The follow ing ove rviews describe the commands
that can be used to operate the M MI using the
voice recognition system. T
he maj
o rit y s hown are m ain commands. T his
system a lso recognizes synonyms in certain cas­
es. For example, for business address, you can
also say business , work , office or job.
Alternative commands are separated using a"/ ",
for example say: Telephone I (or) Navigation I
(or) Radio .
Commands
Global commands
Applies to: vehicles with voice recognition system
You can always use the global commands, re ­
gardless of the menu selected.
Function
Say:
Open ing a menu Telephone I Directory I Navigation I Radio I Media I Audi con-
nect *
I Car I Tone
Having the possible commands Help I Help speech dialog system I Help Telephone I
read aloud Help Navigation I Help Map I Help Radio I Help Media I Help
Audi
connect *
Telephone functio ns Call (XV) , for example Call "John Smith" I
Enter number I Redial I Directory I Read text message
Call (XV), for example Call "John Smith" I
Enter number I Redial I Directory
Navigation fu nc tions Navigate to (XV) , for example Navigate to "John Smith" I
Enter address I Cancel route guidance I Map I Online destina-
tion s*
I Online destination (XV)*
Access ing favorites Favorites > follow the system prompts
Selecting an e ntry from a list Line (XV)
Scrolling through a list Ne xt page I Previous page
Correct the co m mand given Correct
Switching the voice recognitio n sys-Cancel
tern off
Telephone
Applies to: vehicles with voice recognition system and telephone
Requirem en t: a cell pho ne m ust be c o nnected to
the M MI r::!vpage 110 and the Telephone menu
must be open r::!v table on page 105. ~
105

Downloaded from www.Manualslib.com manuals search engine Voice recognition system

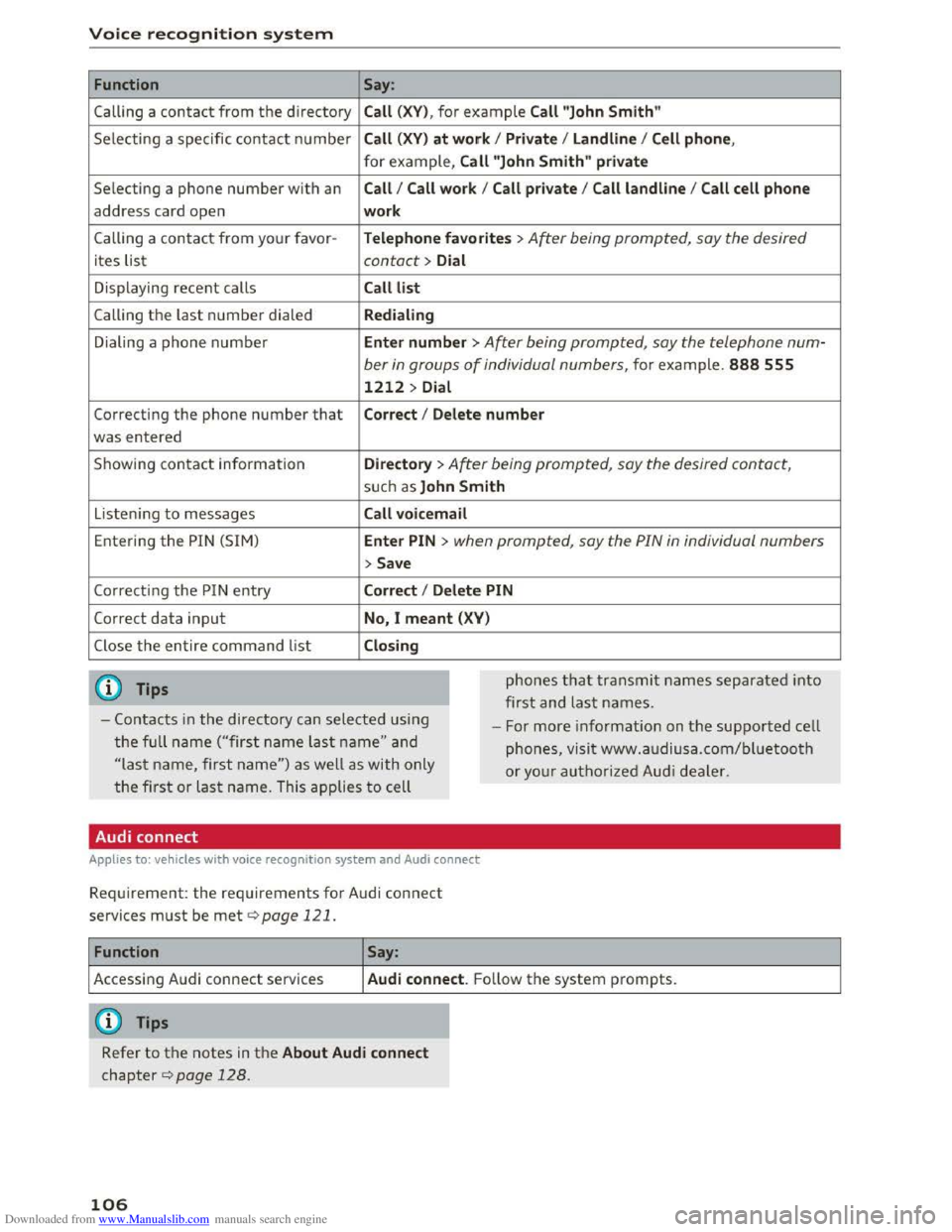

Function
Calling a contact from the directory
Selecting a specific
contact number
Selecting a
phone number with an
address card open
Calling a contact from your favor -
ites list
Displaying
recent calls
Calling the last number dialed
Dialing a
phone number
Correcting the phone number that
was entered
Showing contact information
Listening to messages
Entering the PIN (SIM)
Corre cti ng the P IN entry
Correct data input
Close the entire command list
@ Tips
Say:
Call (XV), for example Call "John Smith"
Call
(XV) at work I Private I Land line I Cell phone,
for example, Call "John Smith" private
Call I Call work I Call private I Call land line I Call cell phone
work
Teleph o
ne favorites >After being prompted, say the desired
contact > Dial
Call list
Redialing
Enter
number > After being prompted, say the telephone num-
ber in groups of individual numbers, for example. 888 555
1212 > Dial
Correct I Delete number
Directory > After being prompted, say the desired contact,
su ch as John Smith
Call voic email
Ente r PIN > when prompted, say the PIN in individual numbers
>Save
Corr ect I Dele te PIN
No, I
meant (XV)
Clo sing
phones that transmit names separated into
first and last names.
-Contacts in the dire ctory can selected using
the full name ("first name last name" and
"las t name, first name") as well as with only
the first or last name. This applies to cell -
For
more information on the supported cell
phones, visit www.a udiusa.com/bluetooth
or yo ur authorized Audi dealer .
Audi connect
Applies to: vehicles with voice recognition system and Audi connect
Requirement: the requirements for Audi connect
services must be met c::>page 121.
Function Say:
Accessing Audi connect services Audi connect. F o llow the system prompts.
(D Tips
Refer to the notes in the About Audi connect
chapter c::> page 128.
106

Downloaded from www.Manualslib.com manuals search engine Voice recognition system

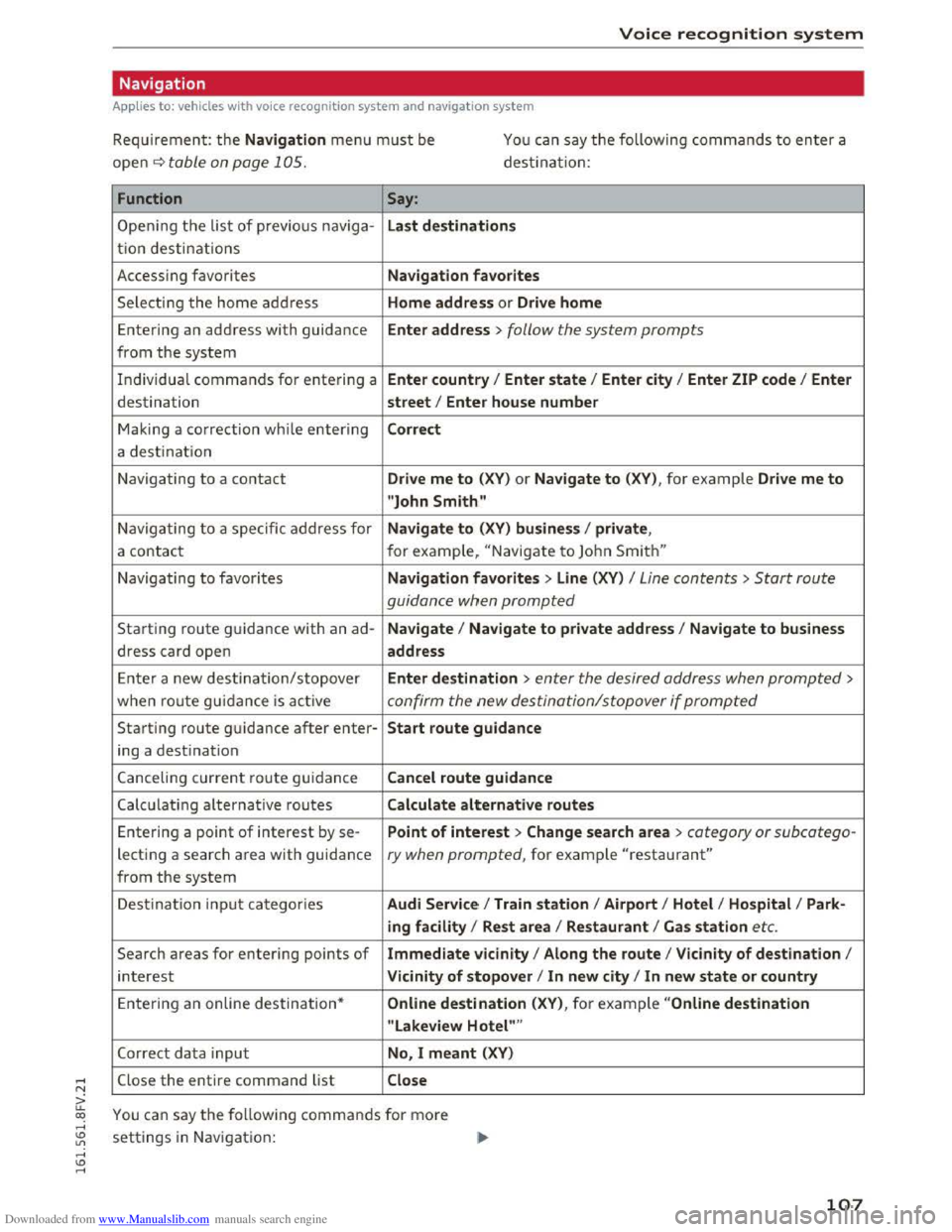

Navigation
Applies to: vehicles with voice recognition system and navigation system
Requirement: the Navigati on m en u m ust be
ope n
~table on page 105.
You can say the following commands to enter a
destina tion:
Function Say:
Ope ning the lis t
of previous nav iga-Las t de stination s
t io n
destinations
Access ing favorites Navigation favorites
Sele c
ting the home a dd ress Home address or Drive home
Entering
an address with guidance Enter address > follow the system prompts
from the system
Individua l commands
for entering a Enter country I Enter state I Enter city I Enter ZIP code I Enter
destination street I Ente r house number
Making a
correction while entering Correct
a destinati on
Navigating
to a contact Drive me to (XV) or Navigate to (XV), for example Drive me to
"John Smith"
Navigating to a specific address for Navigate to (XV ) business I private ,
a contac t f
or example, "N avigate to John Smit h "
N avigating to favorites Navigation favorites > Line (XV) I Line contents >Start route
guidanc e when
prompted
Starting route g uidance with an ad-
Navigate I Navigate to private address I Navigate to business
dress card open address
E
nter a new des tination/stopover Enter destination > enter the desired address when prompted>
when ro ute gu idan ce is active confirm the new destination/stopover if prompted
Starting route g uidance after enter-Sta rt route guidance
ing a
destination
C anceling current route gui dance Cancel route guidance
Calculat ing alterna
tive routes Calcul ate alternative routes
Entering a
point of interest by se- Point of interest > Change search area > category or subcotego-
lecting a search area with guidance ry when prompted, for example "restaurant"
from the system
Destination in pu t categor ies Audi Service I Train station I Airport I Hotel I Hospital I Park ·
ing facility I Rest area I Restaurant I Gas station etc.
Search areas for entering points of Immediate vicinity I Along the route I Vicinity of destination I
interest Vicinity of stopover I In new city I In new state or country
E
nter ing an online des tination* Online destination (XV), for example "Online destination
" Lakeview
Hotel" "
Correct data input No, I meant (XV)
Close
the entire command list Close
You can say the following commands for more
settings in Nav igation :
107

Downloaded from www.Manualslib.com manuals search engine Voice recognition system

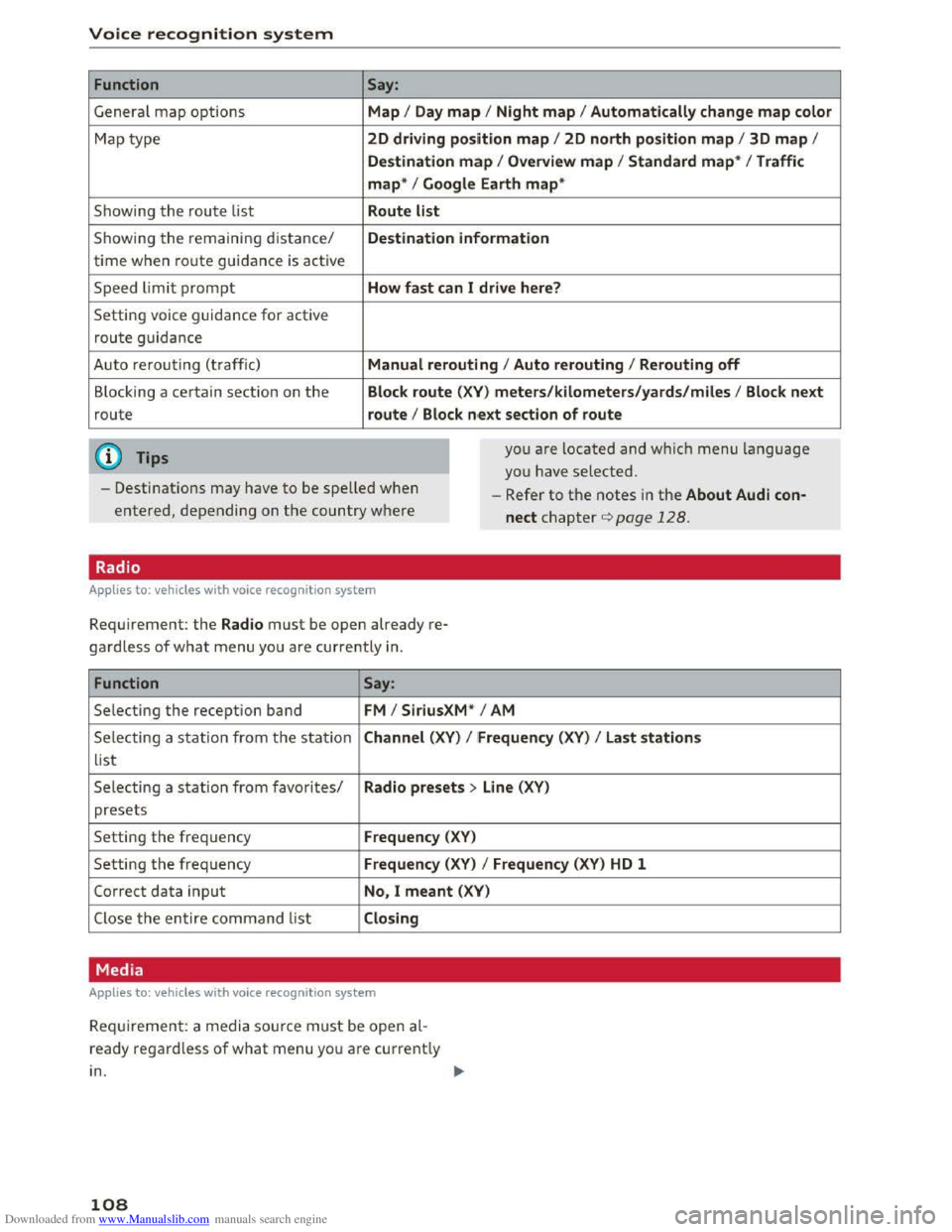

Function
General map options
Map type
Showing
the route list
Showing the remaining distance/
time when route guidance is active
Speed
limit prompt
Setting voice guidance for active
route guidance
Auto rerouting
(traffic)
B locking a certain section on
the
route
@ Tips
Say:
Map I Day map I Night map I Automatically change map color
2D driving position map I 2D north position map I 3D map I
Destination map I Overvi ew map I Stand ard map* I Traffic
map* I Google Earth map*
Route li
st
Destin ation information
How fast
can I drive here?
Manual rerouting
I Auto rerouting I Rerouting off
Block route (XV) mete rs / kilomete rs /yards/miles I Block next
route I Block nex t sect ion of route
you are located and which menu language
you have
selected.
- Destinations may have
to be spelled when
entered, depending on
the country where -
Refe r
to the notes in the About Audi con­
nect chapter¢ page 128.
Radio
Applies to: vehicles with vo ice recogn ition system
Requirement: the Radio must be open already re­
gardless of what menu you are currently in.
Function Say:
Selecting the reception band FM I SiriusXM * I AM
Selecting a station from t h e s ta tion Channel (XV) I !Frequenc y (XV) I Last station s
list
Selecting a station from favorites/ Radio presets > Line (XV)
presets
Setting
the frequency Frequenc y (XV)
Setting the frequency Frequency (XV) I Frequency (XV) HD 1
Correct data input No, I meant (XV)
Close the entire command list Closing
Media
Applies to: vehicles with vo ice recogn it ion syste m
Requ ir emen t: a media source must be open al­
ready regard l
ess of what menu you are current ly
in.
108
