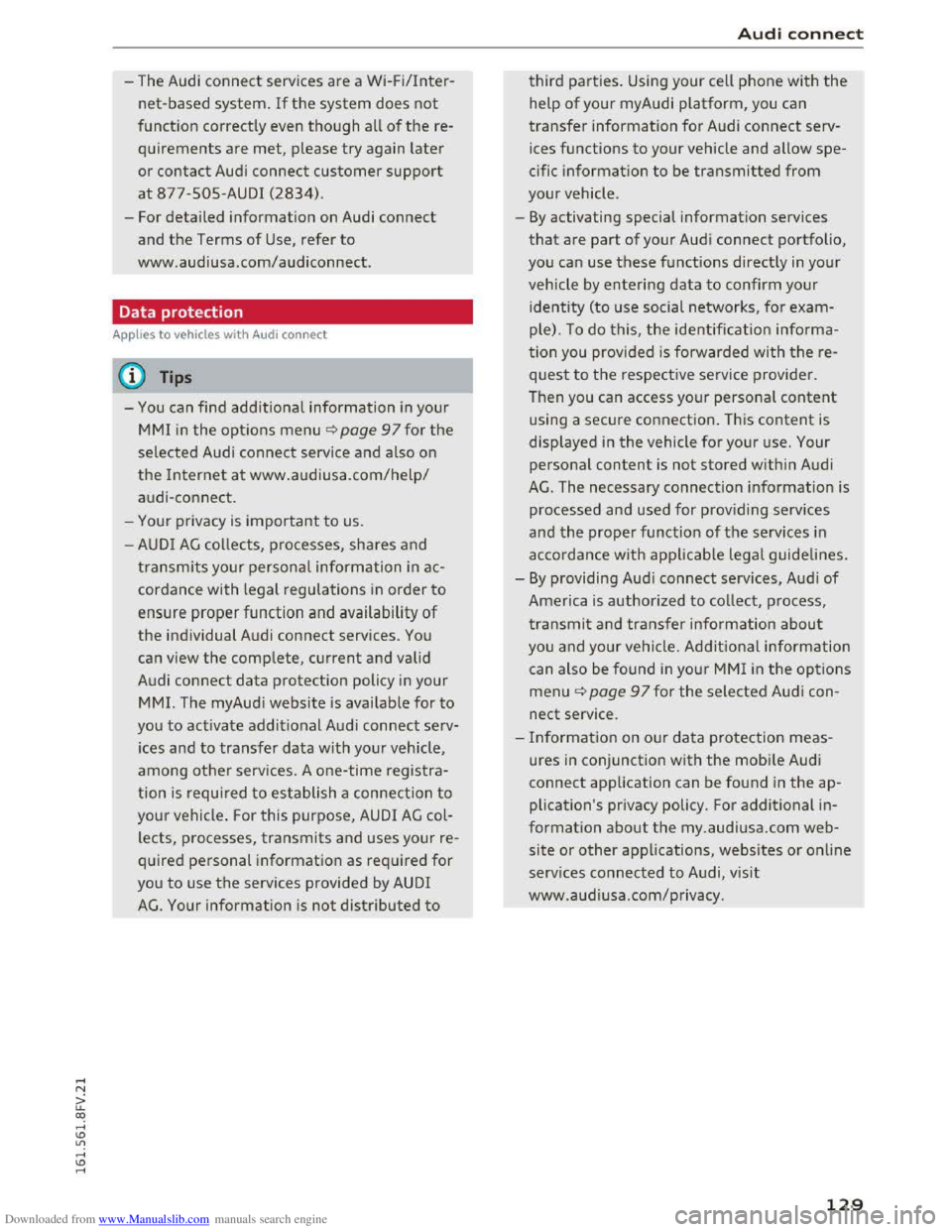

AUDI TT COUPE 2016 Owners Manual

Downloaded from www.Manualslib.com manuals search engine -The Audi connect services are a Wi-Fi/Inter­
net-based system. If the system does not
function correctly even though all of the re­
quirements are
met, please try again later
or contact Audi connect customer support
at 877-505-AUDI (2834).
- For detailed
information on Audi connect
and
the Terms of Use, refer to
www.audiusa.com/audiconnect.
Data protection
Applies to vehicles with Aud i connect
(j) Tips
-You can find additional information in your
MMI in the options menu¢ page 97 for the
selected Audi connect service and also on
the Internet at www.audiusa.com/help/
au di-connect.
- Your privacy
is important to us.
-
AUDI AG collects, processes, shares and
transmits your personal information in ac­
cordance
with legal regulations in order to
ensure proper function and availability of
the individual Audi connect services. You
can view the complete, current and valid
Audi connect data protection policy in
your
MMI. The myAudi website is available for to
you to activate additional Audi connect serv­
ices and
to transfer data with your vehicle,
among
other services. A one-time registra­
tion is required to establish a connection to
your vehicle. For this purpose, AUDI AG col­
lects, processes,
transmits and uses your re­
quired personal
information as required for
you to use the services provided by AUDI
AG. Your information is not distributed to
Audi connect
third parties. Using your cell phone with the
help of your myAudi platform, you can
transfer information for Audi connect serv­
ices functions
to your vehicle and allow spe­
cific
information to be transmitted from
your vehicle .
-
By activating special information services
that are part of your Audi connect portfolio,
you can use these functions directly in your
vehicle by entering data to confirm your
identity (to use social networks, for exam­
ple).
To do this, the identification informa­
tion you provided is forwarded with the re­
quest
to the respective service provider.
Then you
can access your personal content
using a secure connection. This content is
displayed in the vehicle for your use. Your
personal
content is not stored within Audi
AG. The necessary connection information is
processed and used
for providing services
and
the proper function of the services in
accordance
with applicable legal guidelines.
-
By providing Audi connect services, Audi of
America is authorized to collect, process,
transmit and transfer information about
you and your vehicle. Additional information
can also be found in your MMI in the options
menu¢ page 97 for the selected Audi con­
nect service.
-
Information on our data protection meas­
ures in conjunction
with the mobile Audi
connect application
can be found in the ap­
plication's privacy policy. For
additional in­
formation about the my.audiusa.com web­
site
or other applications, websites or online
services connected
to Audi, visit
www.audiusa.com/privacy .
129

Downloaded from www.Manualslib.com manuals search engine Audi connect

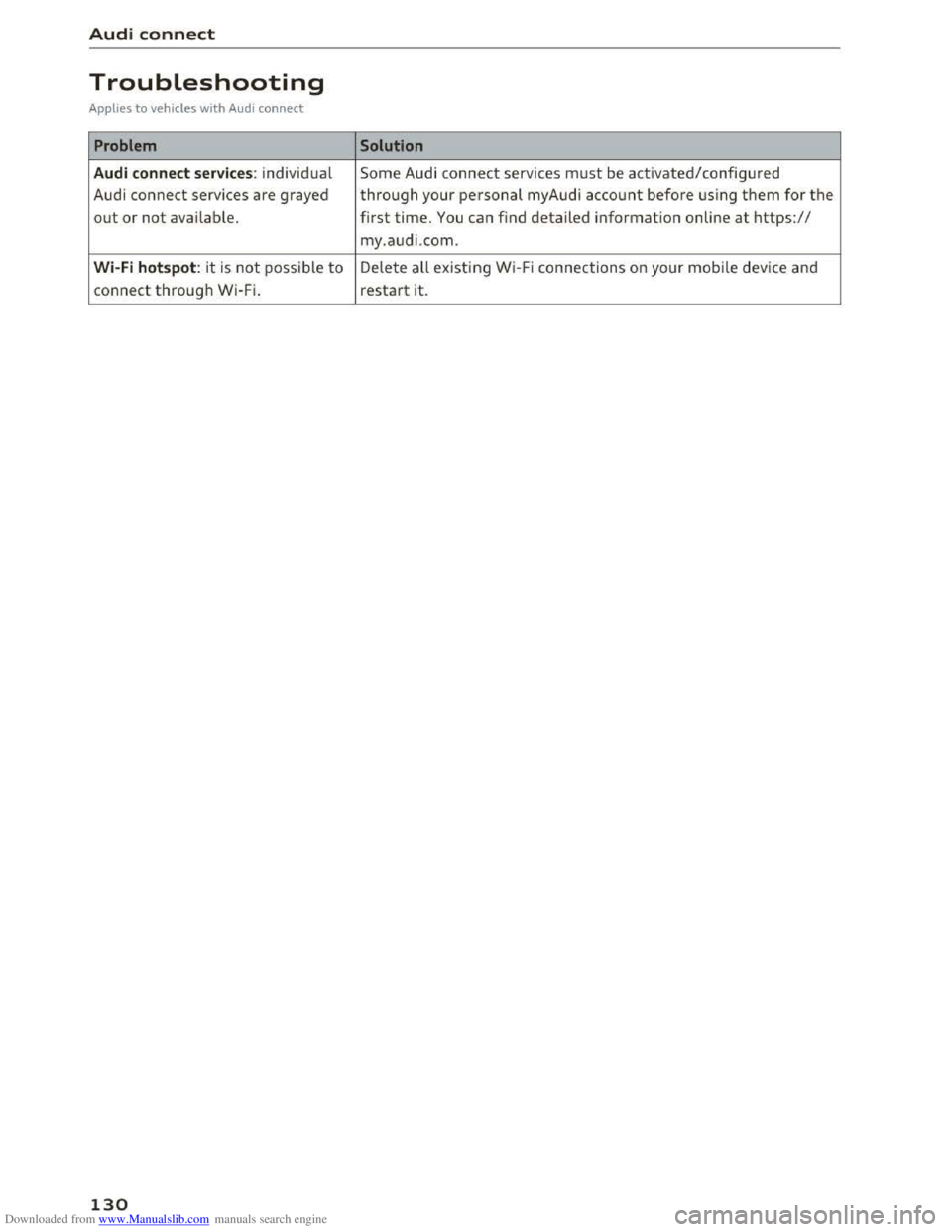

Troubleshooting
Applies to vehicles with Audi connect
Problem Solution
Audi connect serv
ices: individ ua l Some Audi connect services must be act ivated/config ured
Audi connect servi
ces are grayed through your pe1rsonal myAudi account before using them for the
out or not availab le. first time. You can find detailed informatio n online at https://
my.audi .com .
Wi-Fi hotspot: it is not possible to Delete all existing Wi-Fi connections on your mobile device and
connect throug h W i-Fi. restart
it.
130

Downloaded from www.Manualslib.com manuals search engine ..... N

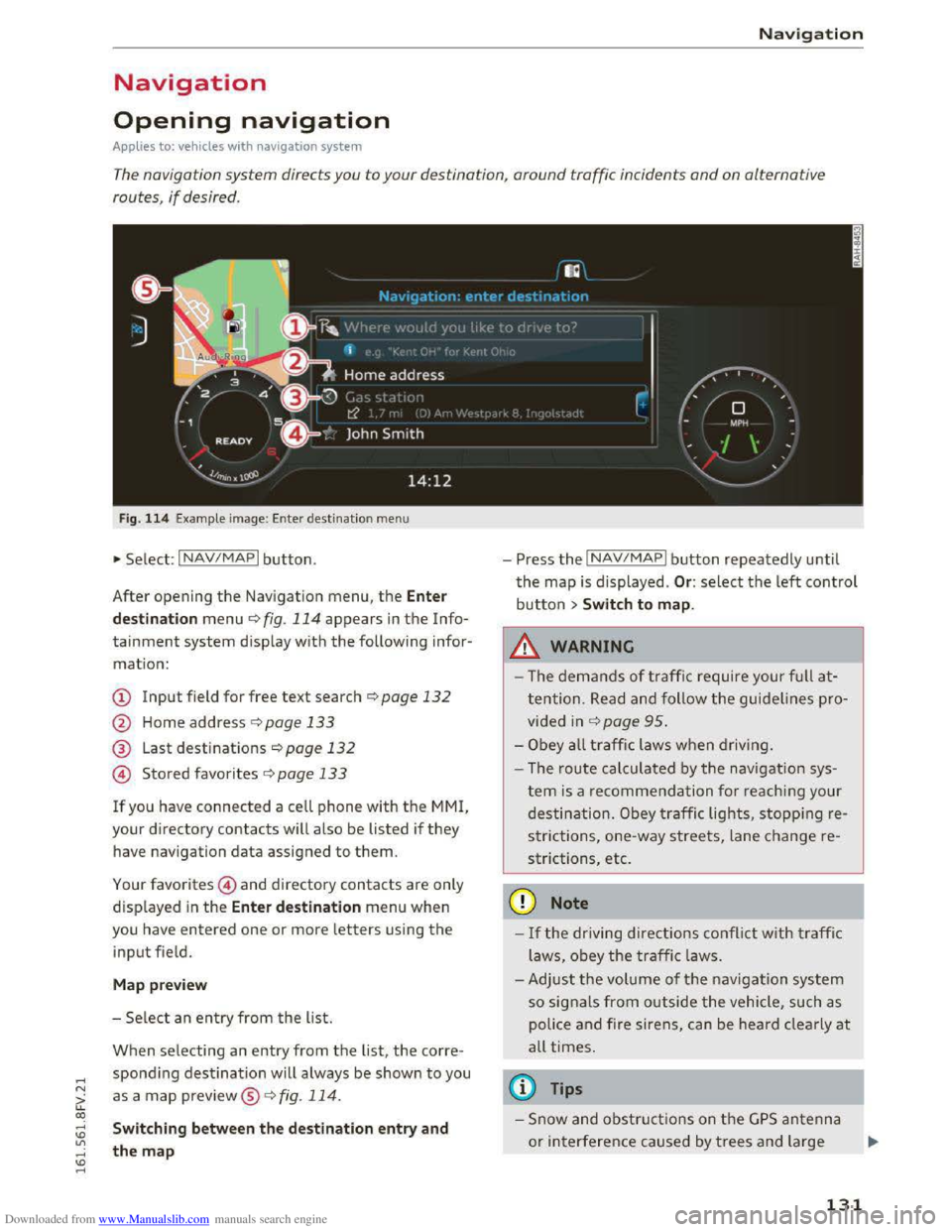

Navigation
Opening navigation
Applies to: veh icles with navigation system
Nav igation
The navigation system directs you to your destination, around traffic incidents and on alternative
routes, if desired.
Fig. 114 Example image: Enter destination menu
•Select: INAV/MAPI button.
After opening
the Navigation menu, the Enter
d
est ina tion menu ¢ fig. 114 appears in the Info­
tainment system display with the following infor­
mation:
CD Input field for free text search¢ page 132
@ Home address r:!;> page 133
® Last destinations¢ page 132
@ Stored favorites C>page 133
If you have connected a cell phone with the MMI,
your directory contacts w ill also be listed if they
have navigation data assigned to them.
Your favorites@) and directory contacts are only
displayed
in the Ente r de stination menu when
you have entered one or more letters using the
input field.
M ap pre view
- Se lect an entry from the list.
When selecting an entry from the list, the corre­
spondi ng destination will always be shown to you
as a map preview®~ fig. 114.
Switching between the destination entry and
the map
- Press the INAV/MAPI button repeatedly until
the map is displayed . Or: select the left control
button > Swit ch to map .
_&.WARNING
-The demands of traffic require your ful l at­
tention. Read and follow the guidelines pro­
vided in r:!;>page 95.
-Obey a ll traffic laws when driving.
- The r
oute calculated by the navigation sys-
tem is a recommendation fo r reaching your
destination. Obey traffic lights, stopping re­
s trictions, one-way streets, lane change re ­
strictions, etc.
CD Note
-If the driving directions conflict with traffi c
laws, obey
the traffic laws.
- Adjust th e
volume of th e navigation system
so signals from outside the vehicle, such as
police
and fire siren s, can be heard cle arly at
all times.
@ Tips
-Snow and obstru ct ions on the G PS antenna
or interference caused by trees and large
- 1
131

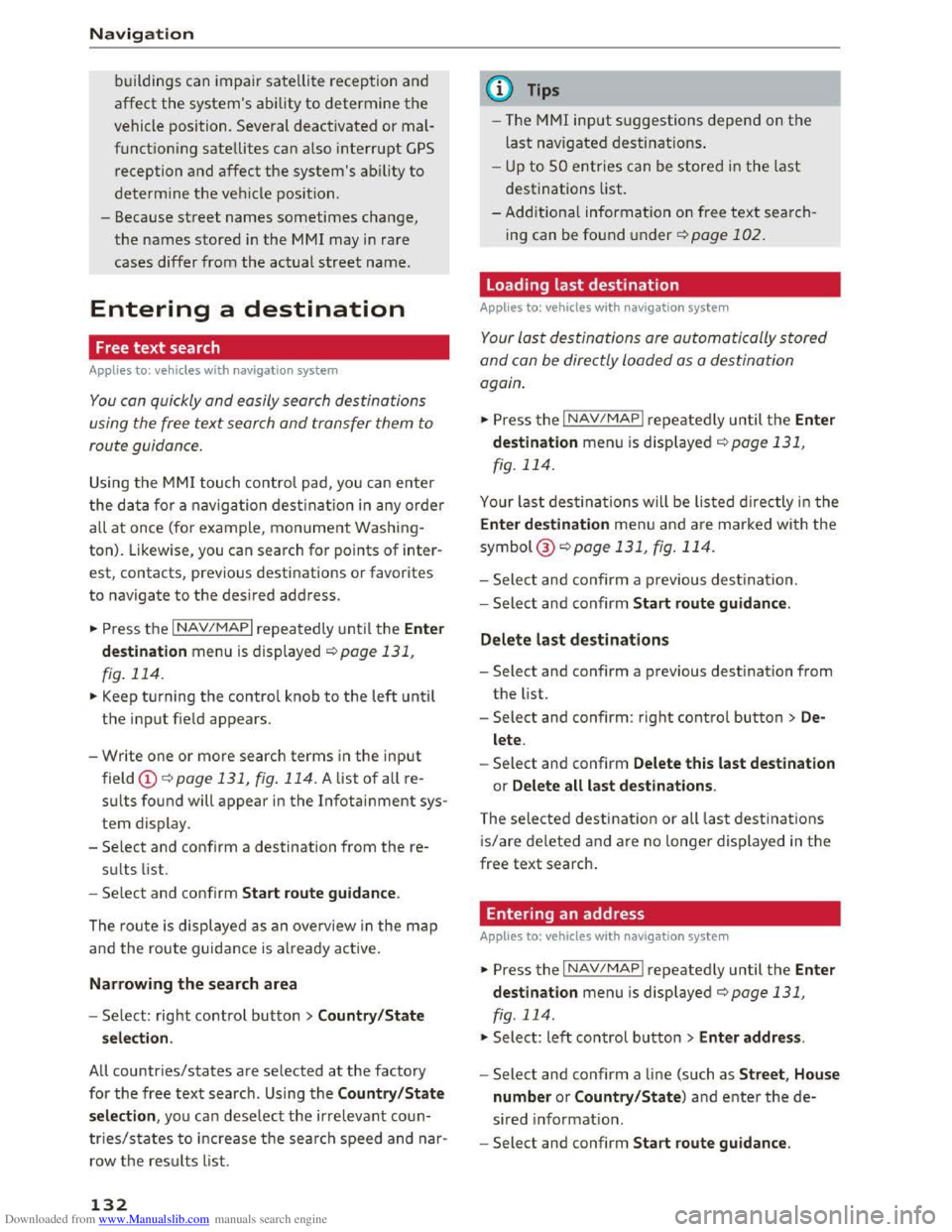

Downloaded from www.Manualslib.com manuals search engine Navigation
buildi ngs can impair satellite reception and
affect the system's ability to determine the
vehicle position. Several deactivated or mal­
function ing satel lites can also interrupt GPS
reception and affect the system's ability to
determi ne the vehicle position.
- Because
street names sometimes change,
the names stored in the MMI may in rare
cases differ from the actual street name.
Entering a destination
Free text search
Applie s to: vehi cles with naviga tion syst em
You can quickly and easily search destinations
using the free
text search and transfer them to
route guidance.
Using the MMI touch control pad, yo u can enter
the data fo r a naviga tion destination in any order
all at once (for example, monument Washing­
ton). Likewise, you can
search for points of inter­
est, contacts, previous destinations or favorites
to navigate to the desired address.
.,.. Press the I NAV/MAPI repeatedly until the Enter
destination
menu is displayed ¢page 131,
fig. 114.
.. Keep turning the control knob to the left unti l
the input field appears.
-Write one or more search terms i n the input
field ©¢ page 131, fig. 114. A list of all re ­
sults found will appear in the Infotainment sys­
tem display.
-
Select and confirm a destination from the re-
sults list.
-
Select and confirm Start route guidan ce .
The route is displayed as an ove rview in the m ap
and the route guidance is already active.
Narrowing the search area
-Se lect: right control button > Country /State
selection .
All countries/states are selected at the factory
for the free text search. Using the Country/State
selection ,
you can deselect the irre leva nt coun­
tries/states to i ncrease th e search speed and nar­
row th e res u
lts list.
132
(D Tips
- The MMI input suggestions depend on the
last navigated destinations.
-
Up to SO entries can be stored in the last
destinations list.
- Additional
information on free text search ­
ing can be found
under¢ page 102.
Loading last destination
Applies to: vehicles with nav igation syst e m
Your Last destinations are automatically stored
and can be directly loaded as a destination
ogoin .
.,.. Press the I NAV/MAPI repeatedly un til the Enter
destination
menu i s displayed ¢ page 131,
fig. 114.
Your last destina tions will be listed directly in the
Ente r destination menu and are marked wit h the
symbol @¢page 131, fig. 114.
- Sele ct and confirm a prev ious destina tion.
-
Select and confirm Start route guidance .
Delete last destinations
-Select and confirm a previous destination from
the list .
-
Select and confirm : right control button >De·
lete .
-Select and confirm Delete this la st destination
or Delete all last destinations .
The selected destination or all last destinations
is/are deleted and are no longer displayed in the
free text search .
Entering an address
Applies to: vehicles with navig ation syste m
.. Press the I NAV/MAPI repeatedly until the Enter
destination
menu i s displayed¢ page 131,
fig. 114.
.. Select: left control button > Ent er address .
-Select and confirm a line (such as Street , House
number
or Country /State ) and enter the de­
sired information.
-Select and confirm Start route guidance .

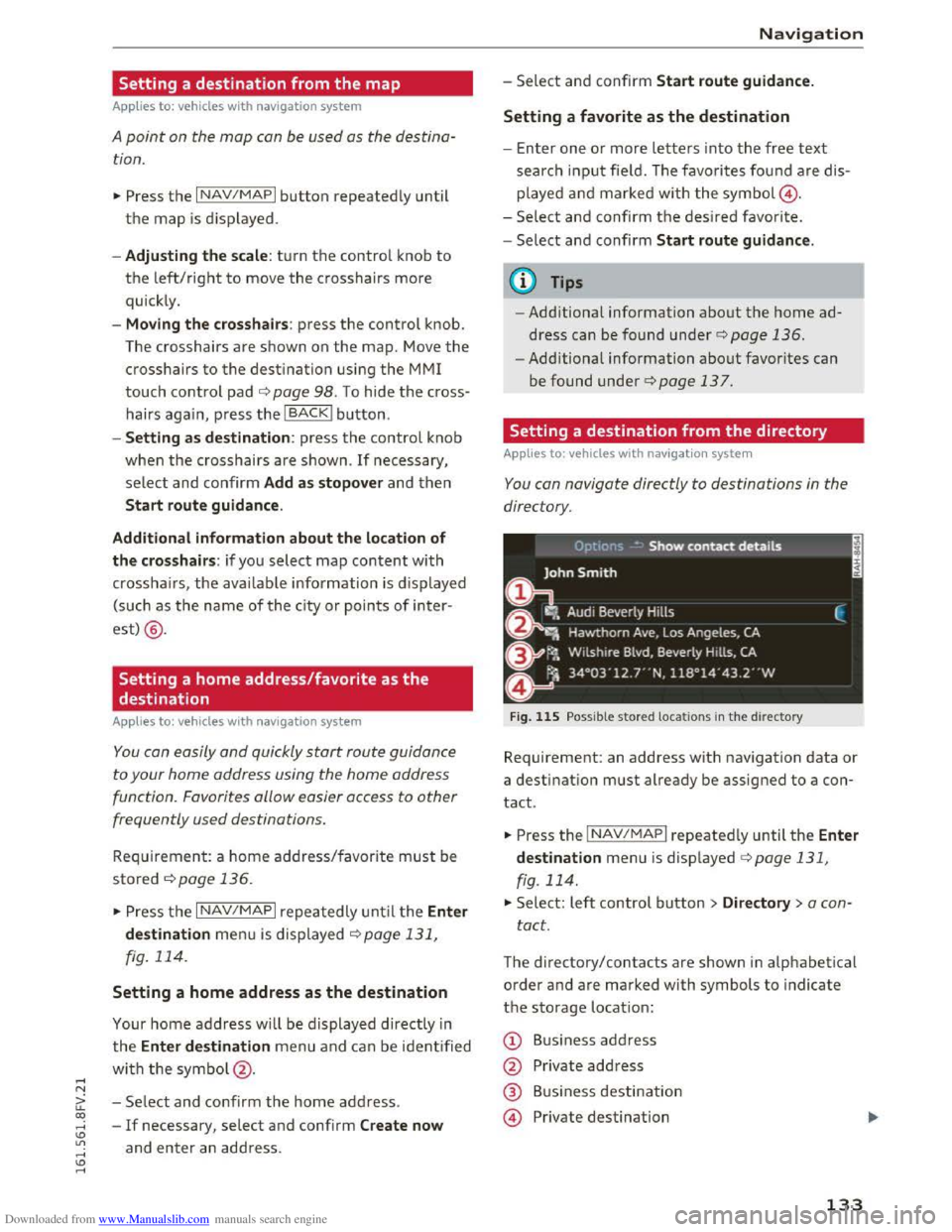

Downloaded from www.Manualslib.com manuals search engine Setting a destination from the map
Applies to: vehicles with nav igation system
A point on the map can be used as the destina­
tion .
.. Press the I NAV/MAPI button repeatedly until
the map is displayed.
- Adju sting the scale: tu rn the control knob to
the left/right to move the crosshairs more
quickly.
- Mo ving the crosshairs: press the control knob.
The crosshairs
are shown on the map. Move the
crosshairs to the destination using the MMI
touch control pad i::> page 98. To hide the cross ­
hairs
agai n, press the IBACKI button.
-Setting as desti nat ion: press the control knob
when the crosshairs are shown. If necessary,
select and confirm Add as stopo ver and then
Start route guidance .
A dditional information about the lo
cation of
the crosshair s : if you select map content with
crosshairs , the avai lable information is displayed
(such
as the name of the c ity or points of inter­
est)@ .
Setting a home address/favorite as the
destination
Applies to: vehicles with nav igation system
You can easily and quickly start route guidance
to your
home address using the home address
function. Favorites allow easier access to
other
frequently used destinations.
Requirement: a home address/favorite must be
stored i::>page 136.
.. Press th e I NAV/MAPI repeatedly until the Enter
d estination
menu is displayed ¢page 131,
fig . 114.
Setting a home address as the destination
Your home address will be displayed directly in
the Enter destination menu and can be identified
with
the symbol@ .
-
Select and confirm the home address.
-
If necessary , select and confirm Create now
and enter an address.
Navigation
-Select and confirm Start route guidance.
Setting a favorite as
the destination
-Enter one or more letters into the free text
search inp ut fie ld. The favo rites found are dis ­
p layed
and marked with the symbol@ .
-
Select and confirm the desired favorite.
-
Select and confirm Sta rt route guidance .
@ Tips
-Add itional information about the home ad­
dress can be found under i::> page 136.
-Add itional information about favorites can
be found under¢ page 137.
Setting a destination from the directory
Applies to: vehicles with navigat ion system
You can navigate directly to destinations in the
directory.
Fig. 115 Possib le stored locations in the direct ory
Requirement: an address with nav igation data or
a destination must already be assigned to a con­
tact.
.. Press the INAV/MAPI repeatedly until the Enter
destination
menu i s disp layed i::> page 131,
fig. 114 .
.. Select: left control button > Directory > a con­
tact.
The directory/contacts are shown in alphabetical
order a nd are marked with symbols to indicate
the storage location:
@ Bus iness address
@ Private address
@ Bus iness destination
© Private destination
133

Downloaded from www.Manualslib.com manuals search engine Navigation
-Select and confirm an address or a destination.
When you have selected a destination, the
route guidance can be started directly.
-
Check the address input again when selecting
an address.
- T
hen select and confirm Start route guidan ce .
Addit ional directory functions in the n avigation
sys t
em can be found under ¢page 137.
@ Tips
-Addresses that have been imported from
your cell phone into the MM! can also be
used as a destination.
-
If a contact is grayed out in the directory,
this contact has neither a destination nor an
address assigned to them.
Entering a point of interest
Applies to: vehicles with navigation system
F i
g. 116 Ente rin g a point of interest
.. Press the I NAV/MAPI repeatedly until the Ent er
de stination
menu is displayed ¢page 131,
fig. 114.
.. Select: left control button > Point s of interest.
-
Cha nging the sea rc h are a : select and confirm
Search a rea > a search area from the list.
-Searching fo r a p oin t of inter est in a specifi c
categor
y: select Sele ct category. Select and
confirm a category such as Restaurants.
The following search categories are avai lable:
In immediate vi cinity: points of interest can be
selected from different categories. The points of
interest are l isted starting from the immediate
vicin ity of the veh icle up to a rad ius of approxi­
mately 125 miles (200 km).
134
Along th e r oute : points of interest along the
route can only be selected during active route
guidance. The points of interest are located di­
rectly
along or in the immediate vicin ity of the
calculated route.
I n v icinity of dest ination/Vicinity of stopo ver:
the points of interest can likewise be selected
from different categories in the vic inity of the
destination or stopover. For example, you can
search for a hotel or park ing lot at the destina ­
tion.
In new city: enter the name of the desired city.
Points of interest can be selected from various
categories. This function allows you to search for
po i
nts of interest in any city regardless of the ac­
tive
route guidance or the vehicle posi tion .
(D Tips
-Additional information on myAudi points of
interest* can be found in the Audi connect
operating manual under www.audi.com/
myaudi.
- Distances
to po ints of interest are displayed
as a straight-line distance (open arrow)
from your current location . The actual d is­
tanc e from your current location to the
point of interest is updated automatically
(solid arrow) . The list of found points of in­
terest is not resorted when this happens .
- T
here may be entries in the list that cannot
be displayed completely due to their length.
If you select these list entries using the con­
t r
ol knob, detailed information about the
selected list entry will be shown automati­
cally
after several seconds.
Point of interest on line search
Applies to: vehicles with navigat ion system and Audi connect
You can search for points of interes t on the In­
ternet.
Requi rement: the requirements for Audi connect
services must be met ¢page 121 .
.. Press the I NAV /MAP I repeatedly until the Ente r
destination
menu is displayed ¢page 131,
fig. 114.

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I ,....,
"' ,....,

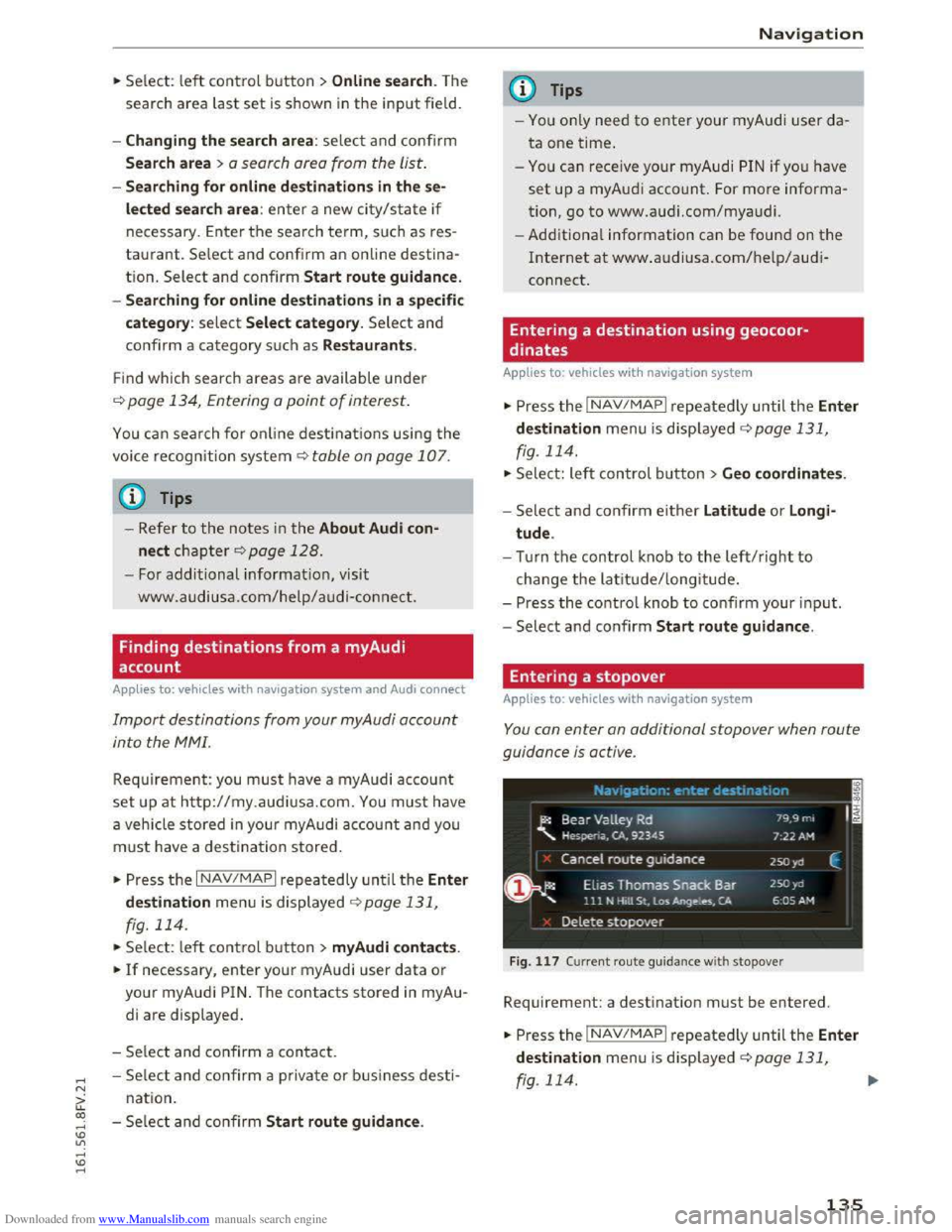

.. Select: left control button > Online search. The
search
area last set is shown in the input field.
- Changing the search area: select and confirm
Sear ch area > o search area from the list.
-Sear ching for online destination s in these­
lec ted se arch area: enter a new city/state if
necessary.
Enter the search term, such as res­
taurant. Se lect and confi rm an online destina­
t ion. Select and confirm Sta rt route guidance.
- Searching for online destination s in a specific
category :
select Select category. Select and
confirm a category such as Restaurants .
Find which search areas are available under
9 page 134, Entering a point of interest .
You ca n search for online destina tions using the
voice recogni tion system 9 table on page 107.
@ Tips
- Refer to the notes in the About Audi con­
nect chapte r 9 page 128.
-For additional information, visit
www.audiusa.com/help/audi-co nnect.
Finding destinations from a myAudi
account
Applies to: vehicles with nav igation system and Audi connect
Import destinations from your myAudi account
into the MM!.
Req uirement: you must have a myAudi account
set up at http://my.audiusa .com. You must have
a vehicle
stored in your myAudi accou nt and you
must have a destination stored .
.. Press the I NAV/MAPI repeatedly until the Ent er
de stination
menu is displayed ¢page 131,
fig. 114 .
.. Select: left control button > myAudi contacts .
.. If necessary, enter your myAud i user data or
your myAudi PIN. The contacts stored in myAu­
di are displayed.
- Se l
ect and confirm a contact.
-Select and confirm a private or bu siness desti-
na tion .
- Se l
ect and co nfirm Start route guidance .
Navigation
(D Tips
-You only need to e nter your myAudi user da­
ta one time.
-
You can rece ive your myAudi PIN if yo u have
set up a myAu di account. For more informa ­
tion, go to www.audi.com/myaudi.
-Add itional information can be found on the
Internet at www .a udiusa.com/help/audi­
connect.
Entering a destination using geocoor­
dinates
Applies to: vehicles with navigat ion system
"" Press the I NAV /MAP I repeatedly until the Enter
destination
menu i s disp layed ¢ page 131,
fig. 11 4.
.. Select: left control button > Geo coordinates.
-Select and confirm either Latitude or Longi­
tude .
-Turn the control knob to the left/right to
change the latitude/longitude.
-Press the control knob to confirm your in put.
-
Select and confirm Start route guidance .
Entering a stopover
Applies to: vehicles with navigat ion system
You can enter an additional stopover when route
guidance is active .
Fig. 117 Cu rren t ro u te guida nce with stopover
Requirement: a destination must be entered.
.. Press the I NAV /MAP I repeatedly until the Enter
destination
menu is disp layed ¢ page 131,
rg. 114. ~
135

Downloaded from www.Manualslib.com manuals search engine Navigation

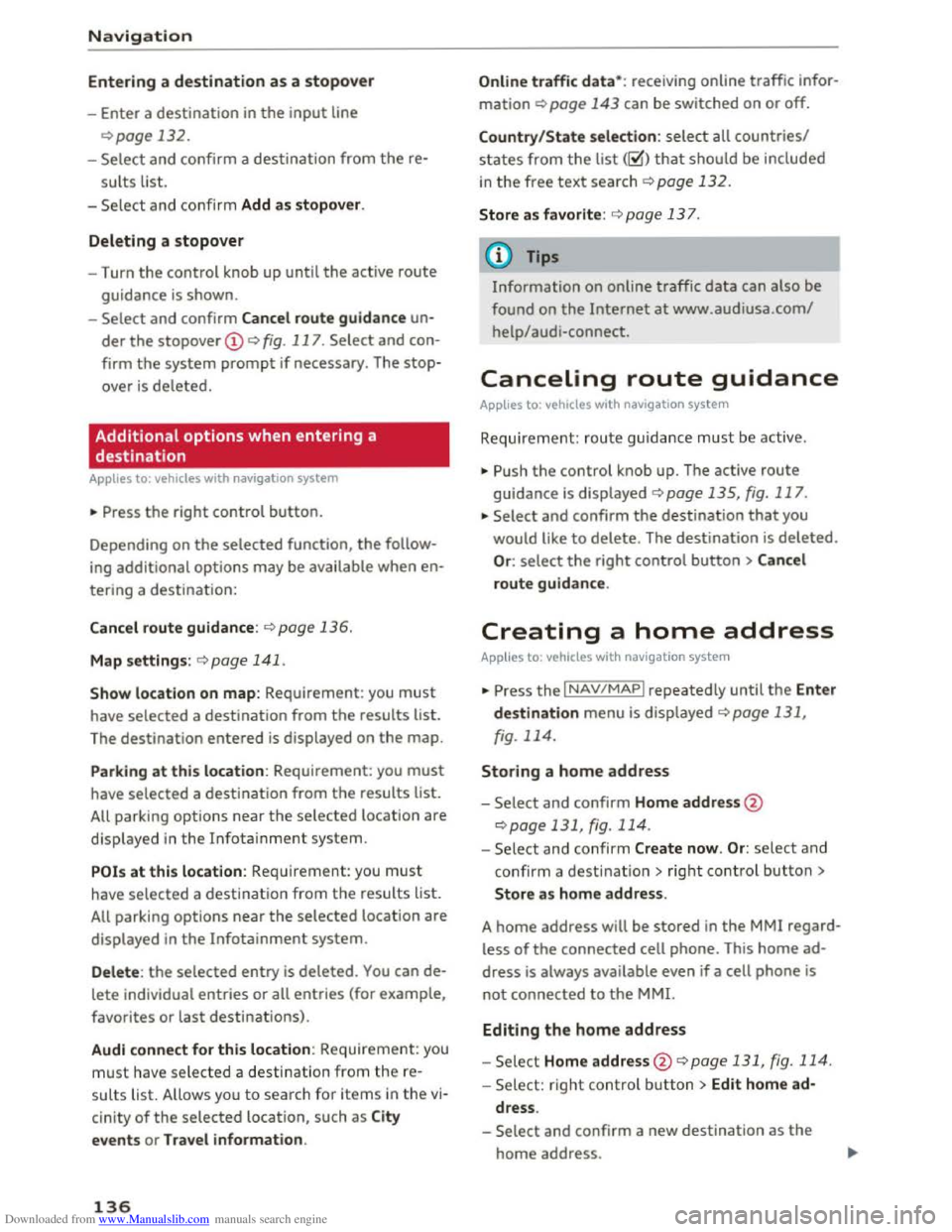

Entering a destination as a stopover
-Enter a destination in the input line
¢page 132.
-Select and confirm a destination from the re­
sults list.
-
Se lect and conf irm Add as stopover.
Deleting a stopover
- Turn the control knob up until the active route
guidance
is shown.
-
Select and confirm Cancel route guidance un­
der the stopover @¢ fig. 117. Select and con­
firm
the system prompt if necessary. The stop­
over is deleted.
Additional options when entering a
destination
Applies to: vehicles with navigation system
.,. Press the right control button.
Depending on the selected function, the follow­
ing additional options may be available when en­
tering a destination:
Cancel route guidance:¢ page 136.
Map settings: <=>page 141.
Show location on map: Requirement : you must
have selected a destination from the results list.
The destination
entered is displayed on the map.
Parking
at this location : Requirement: you must
have selected a destination from the results list.
All parking options near the selected location are
displayed
in the Infotainment system.
POi s at this location : Requirement: you must
have selected a destination from the results list.
All parking options near the selected location are
displayed
in the Infotainmen t system.
Delete: the selected entry is deleted. You can de­
lete individual entries or all entries (for example,
favorites
or last destinations).
Audi c
onnect for this location : Requirement : you
must have selected a destination from the re­
sults list. Allows you to search for items in the vi­
cinity of the selected location, such as City
events or T ra vel information.
136
Online tra ffic data*: receiving on line traffic infor­
mation ¢page 143 can be switched on or off.
Country /State selection: select all countries/
states from the list ([;1) that should be included
in the free text search <=>page 132.
Store as favorite : ¢page 13 7.
Information on
on line traffic data can also be
found on
the Internet at www.audiusa.com/
help/audi-connect.
Canceling route guidance
Applies to: vehicles with navigation system
Requirement: route guidance must be active.
.,. Push the control knob up. The active route
guidance
is displayed ¢ page 135, fig. 117 .
.,. Select and confirm the destination that you
would like
to delete. The destination is deleted.
Or: select the right control button > Can cel
route guidance.
Creating a home address
Applies to: vehicles with navigation system
.,. Press the INAV/MAPI repeatedly until the Enter
destination menu is displayed¢ page 131,
fig. 114.
Storing a home address
- Select and confirm Home address@
¢page 131, fig. 114.
-Select and confirm Create now. Or: select and
confirm a destinatio n > rig ht control button >
Store as home address.
A home
address will be stored in the MMI regard­
less
of the connected cell phone. This home ad­
dress is always available even if a cell phone is
not connected to the MMI.
Editing the home address
-Select Home address@¢page 131, fig. 114.
-Select: right control button > Edit home ad-
dress.
-
Select and confirm a new destination as the
home address.

Downloaded from www.Manualslib.com manuals search engine ...... N
> u. CX> ...... u:>
"' ...... u:> ......

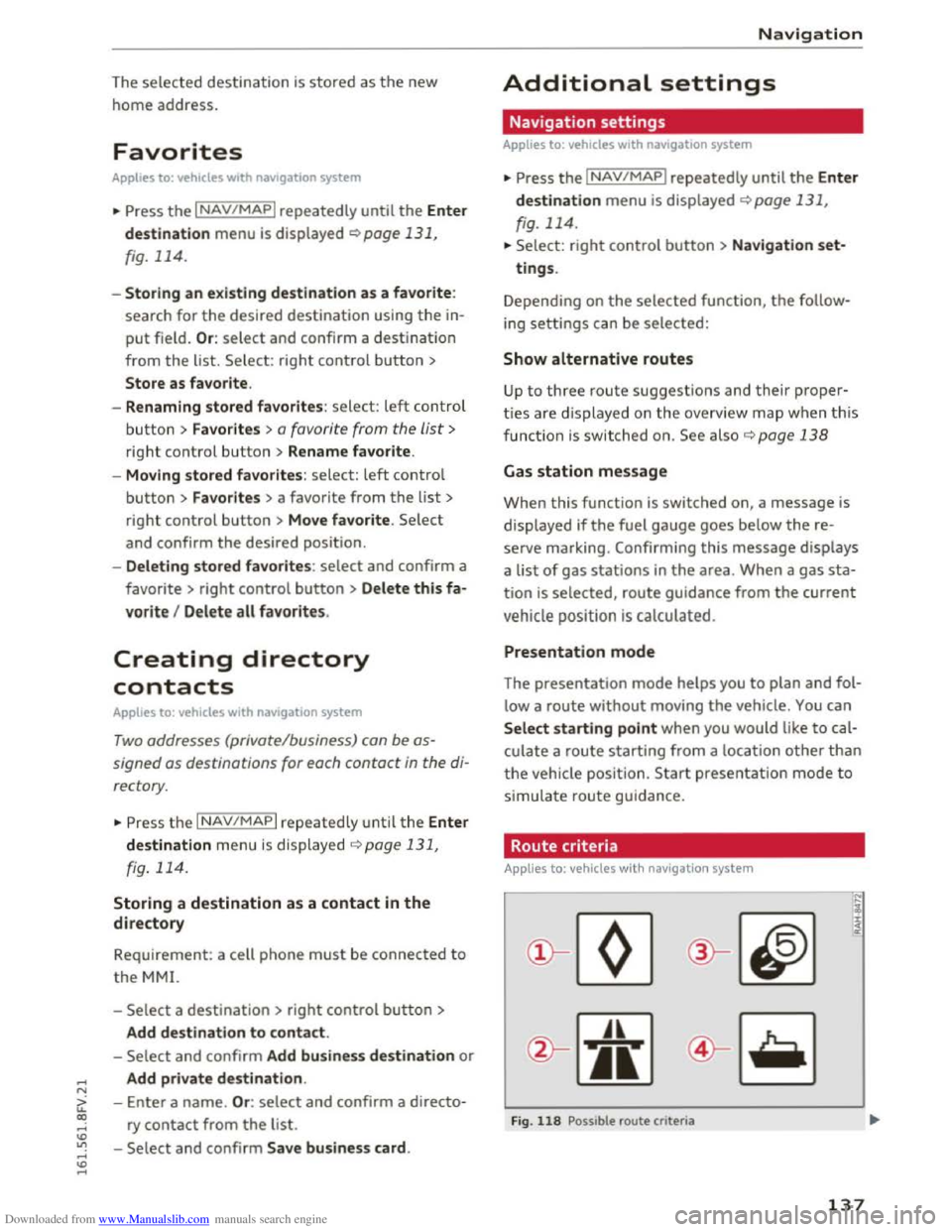

The selected destination is stored as the new
home
address.
Favorites
Applies to: vehicles with navigation system
... Press the INAV/MAPI repeatedly until the Enter
destination menu is displayed<:> page 131,
fig. 114.
-Storing an existing destination as a favorite:
search for
the desired destination using the in­
put field. Or : select and confirm a destination
from the list. Select: right control button>
Store as favorite .
-
Renaming stored favorites: select: left control
button > Favorites > a favorite from the list>
right control button> Rename favorite.
- Moving
stored favorites: selec t: left contro l
button > Favorites > a favorite from the list >
right control button> Move favorite . Select
and confirm
the desired position.
- Deleting
stored favorites: select and confirm a
favorite> right control button> Delete this fa­
vorite I Delete all favor ites.
Creating directory
contacts
Applies to: vehicles with navigation system
Two addresses (private/business) can be as­
signed as destinations for each contact in the di­
rectory.
... Press t h e I NAV/MAPI repeatedly until the Enter
destination menu is displayed r:!) page 131,
fig. 114.
Storing a destination as a contact in the
directory
Requirement: a cell phone must be connec ted to
the MMI.
- Select a destination> right control button>
Add destination to contact.
-
Select and confirm Add business destination or
Add private destination .
- Enter a
name. Or: select and confirm a directo­
ry contact from the list .
-
Select and confirm Save business card.
Navigation
Additional settings
Navigation settings
Applies to: vehicles with navigation system
... Press the I NAV/MAPI repeatedly until the Enter
destination menu is displayed <:>page 131,
fig. 114.
... Select: right control button > Navigation set-
tings.
Depending on
the selected function, the follow­
ing settings can be selected:
Show alternative routes
Up to three route suggestions and their proper­
ties are displayed on the overview map when this
functi on is switched on. See also r:!) page 138
Gas station message
When this function is switched on, a message is
displayed if the fuel gauge goes below the re­
serve marking. Confirming this message displays
a list
of gas stations in the area. When a gas sta­
tion is selected, route guidance from the current
vehicle position is calculated .
Presentation mode
The presentation mode helps you to plan and fol­
low a route without moving the vehicle. You can
Select starting point when you would like to cal­
culate a route starting from a location other than
the veh icle position. Start presentation mode to
simulate route guidance .
Route criteria
Applies to: vehicles with nav igat ion syste m
)(
Fig. 118 Possible route criteria
N
i :c <( cc
137

Downloaded from www.Manualslib.com manuals search engine Navigation

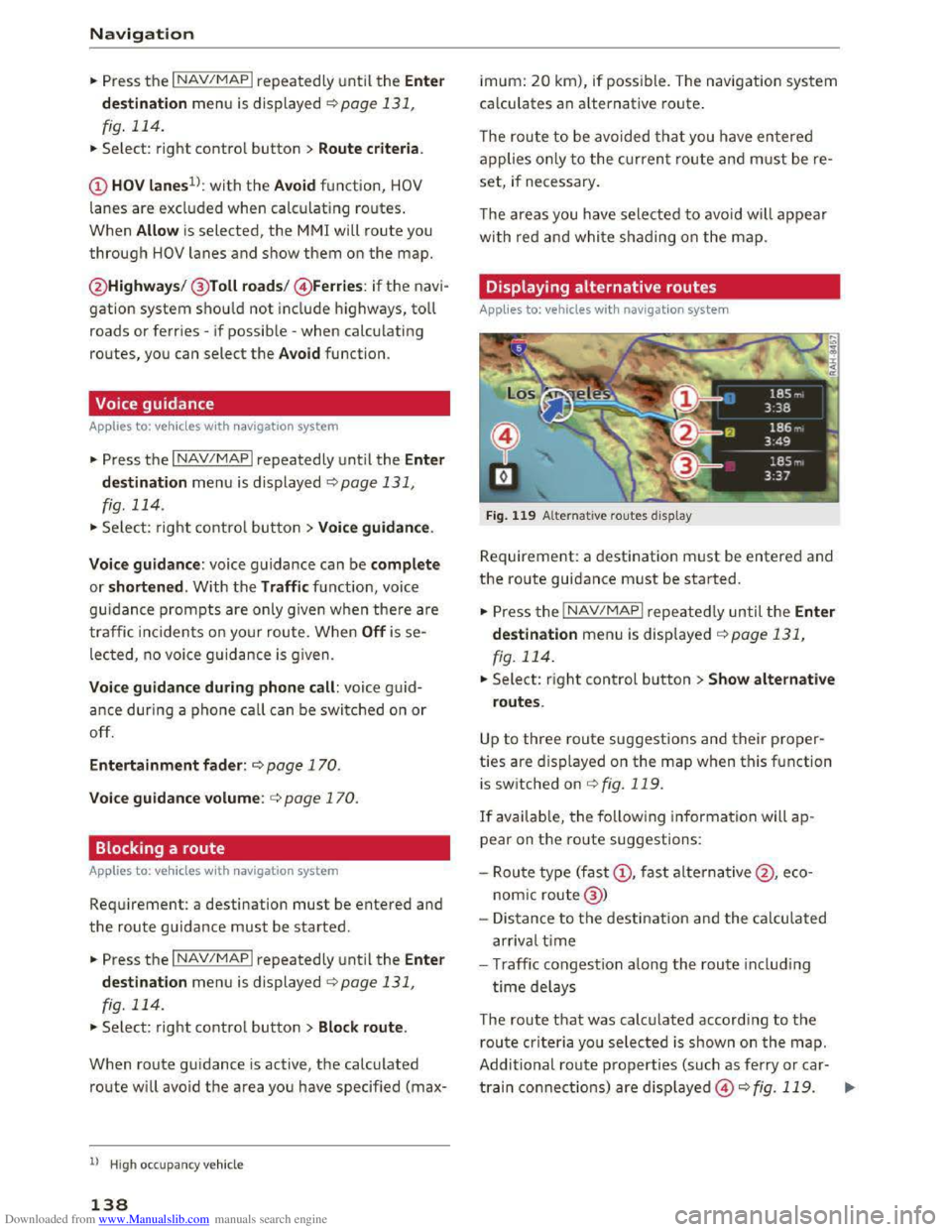

... Press the I NAV/MAPI repeatedly until the Enter
destination
menu is displayed c::> page 131,
fig. 114.
... Select: right control button > Route criteria.
(!)HOV lanesn: with the Avoid function, HOV
lanes are excluded when calculating routes.
When Allow is selected, the MMI will route you
through HOV lanes and show them on the map.
@Highways / @ Toll roads /@ Ferries : if the navi­
gation system should not include highways, toll
roads or ferries -if possible -when calculating
routes, you can select the Avoid function.
Voice guidance
Applies to: vehicles with navigation system
... Press the I NAV/MAPI repeatedly until the Enter
destination
menu is displayed c::> page 131,
fig. 114.
... Select: right control button > Voice guidance .
Voice guidance:
voice guidance can be complete
or shortened. With the Traffic function, voice
gu
idance prompts are only given when there are
traffic incidents on your route. When Off is se­
lec ted, no voice guidance is given .
Voice guidance during phone call: voice guid­
ance during a phone call can be switched on or
off.
Entertainment fader: c::> page 170.
Voice guidance volume: c::> page 170.
Blocking a route
App lies to: vehicles with navigation system
Requirement: a destination must be entered and
the route guidance must be started.
... Press the I NAV/MAPI repeatedly until the Enter
destination
menu is displayed c::> page 131,
fig. 114.
... Select: right control button > Block route .
When route guidance is active, the calculated
route will avoid the area you have specified (max-
l) Hig h oc cupancy vehicle
138
imum: 20 km), if possible. The navigation system
calculates an alternative route.
The
route to be avoided that you have entered
applies only to the c urrent route and must be re­
set, if necessary.
The
areas you have selected to avoid will appear
with red and white shading on the map.
Displaying alternative routes
Applies to: vehicles with navigation system
Fig. 119 Alternative routes display
Requirement: a destination must be entered and
the route guidance must be started.
... Press the I NAV /MAP I repeated Ly until the Enter
destination
menu is displayed r::!>page 131,
fig. 114 .
... Select: right control button >Show alternative
routes.
Up to three route suggestions and their proper­
ties are displayed on the map when this function
is
switched on c::>fig. 119.
If available, the following information will ap­
pear on the ro ute suggestions:
-
Route type (fast(!), fast alternative@ , eco­
nomic route@ )
- Distance
to the destination and the calculated
arrival time
- Traffic congestion a long the route includ ing
time delays
The route that was calculated according to the
route criteria you selected is shown on the map.
Additional
route properties (such as ferry or car-
train connections) are d isplayed@r::!> fig. 119. .,..
