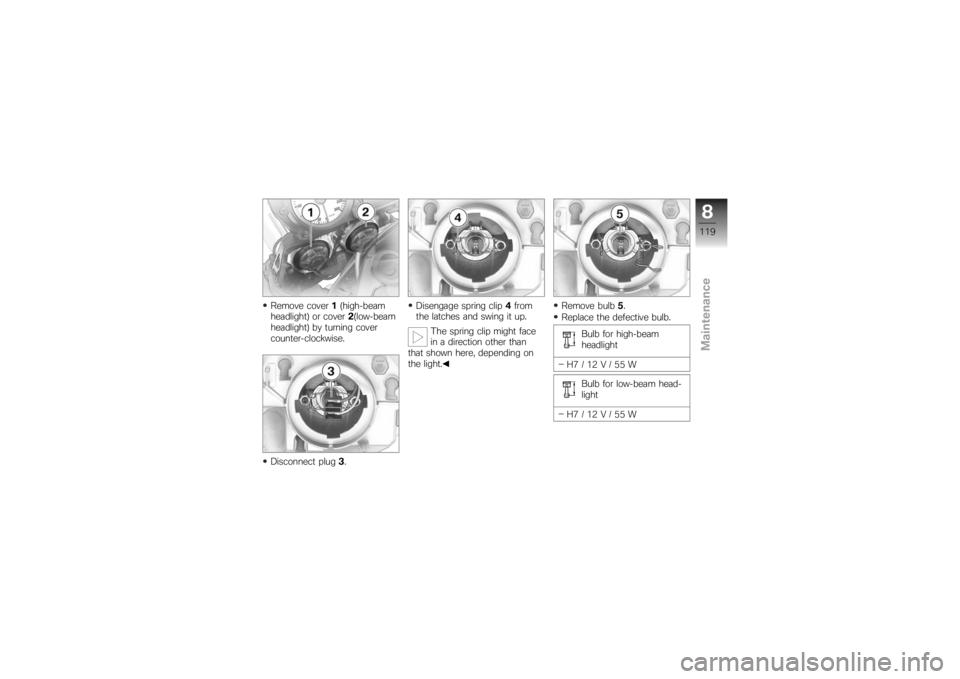

Remove cover1(high-beam
headlight) or cover 2(low-beam
headlight) by turning cover
counter-clockwise.
Disconnect plug 3. Disengage spring clip
4from
the latches and swing it up.
The spring clip might face
in a direction other than
that shown here, depending on
the light. Remove bulb
5.
Replace the defective bulb.
Bulb for high-beam
headlight
H7/12V/55W Bulb for low-beam head-
light
H7/12V/55W
8119zMaintenance

Install bulb5. When installing,
make sure that tab 6is point-
ing up.
Engage spring retainer 4in the
catches. Connect plug
3.
Install cover 1(high-beam
headlight) or cover 2(low-beam
headlight) by turning cover
clockwise.
Replacing parking-light
bulb
If it is not standing firmly,
the motorcycle could topple
in the course of the operations
described below.
Always make sure that the
motorcycle is stable and firmly
supported.
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
Switch off the ignition.

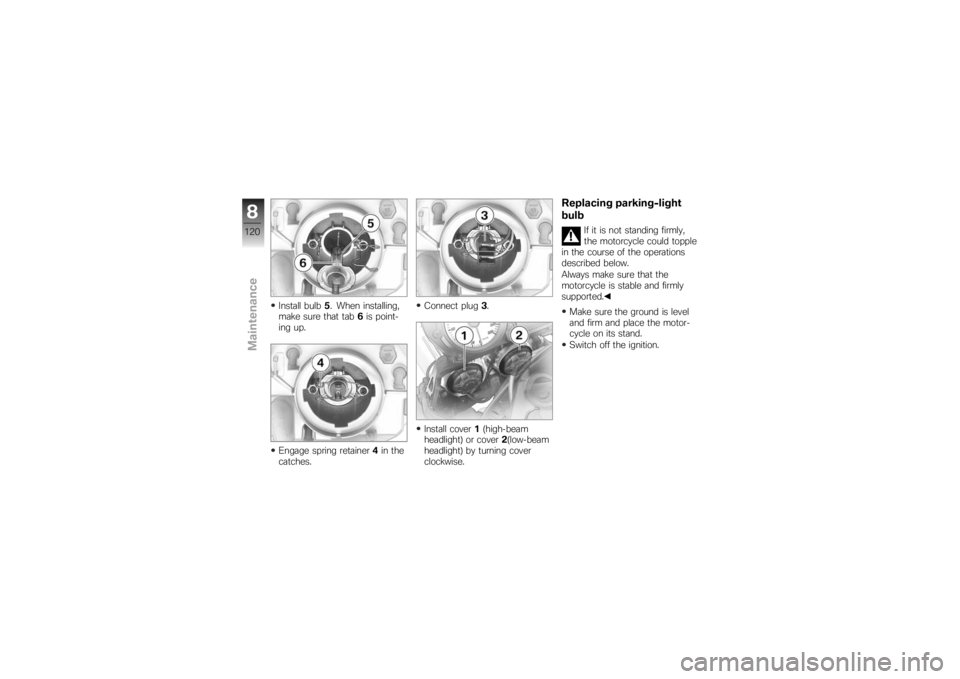

8120zMaintenance

Remove securing screws1
from both sides of the bulb
housing.
Pull the bulb housing forward
to remove it and tilt it slightly
down. Remove bulb holder
2from the
headlight housing by turning it
counter-clockwise.
Remove bulb 3from the bulb
holder.
Replace the defective bulb.
Bulb for parking light
W5W / 12 V / 5 W Insert bulb
3into the bulb
socket.
Turn the bulb socket clock-
wise to install it in the headlight
housing.
8121zMaintenance

The headlight cable could
catch in the steering if it is
not routed correctly.
Use the appropriate retaining
clips to secure electric wires at
the back of the headlight.
Push the bulb housing into
mounts 4on the frame. Install securing screws
1at
both sides of the bulb hous-
ing.
Replacing brake light and
rear light bulb
If it is not standing firmly,
the motorcycle could topple
in the course of the operations
described below.
Always make sure that the
motorcycle is stable and firmly
supported.
Make sure the ground is level
and firm and place the motor-
cycle on its stand. Switch off the ignition.
Remove the seat ( 66)

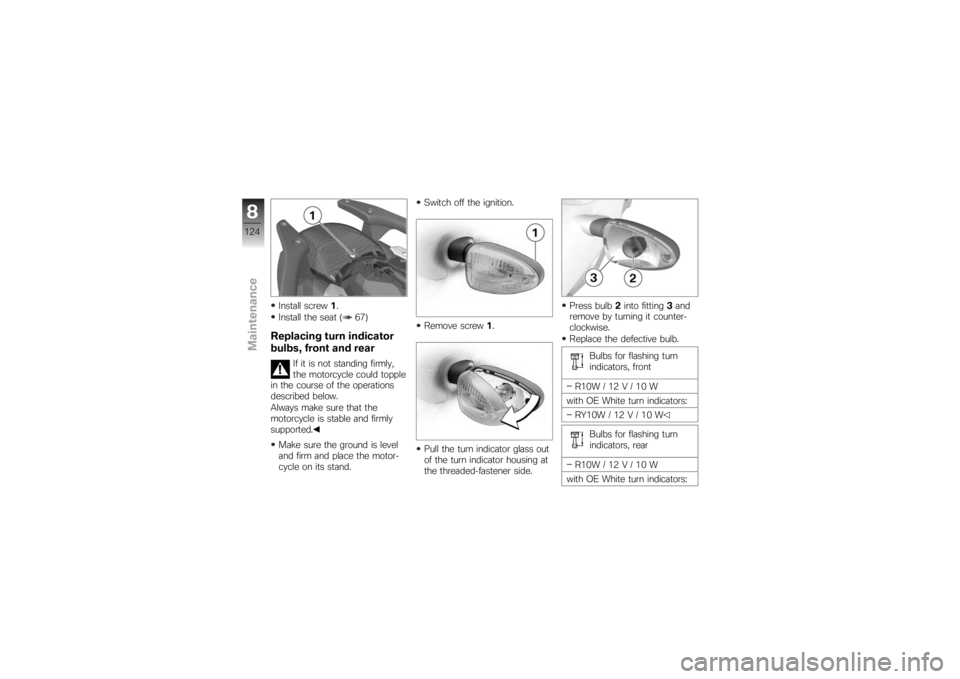

Remove screw
1.
Pull the bulb housing to the
rear until it is clear of holders 2.
8122zMaintenance

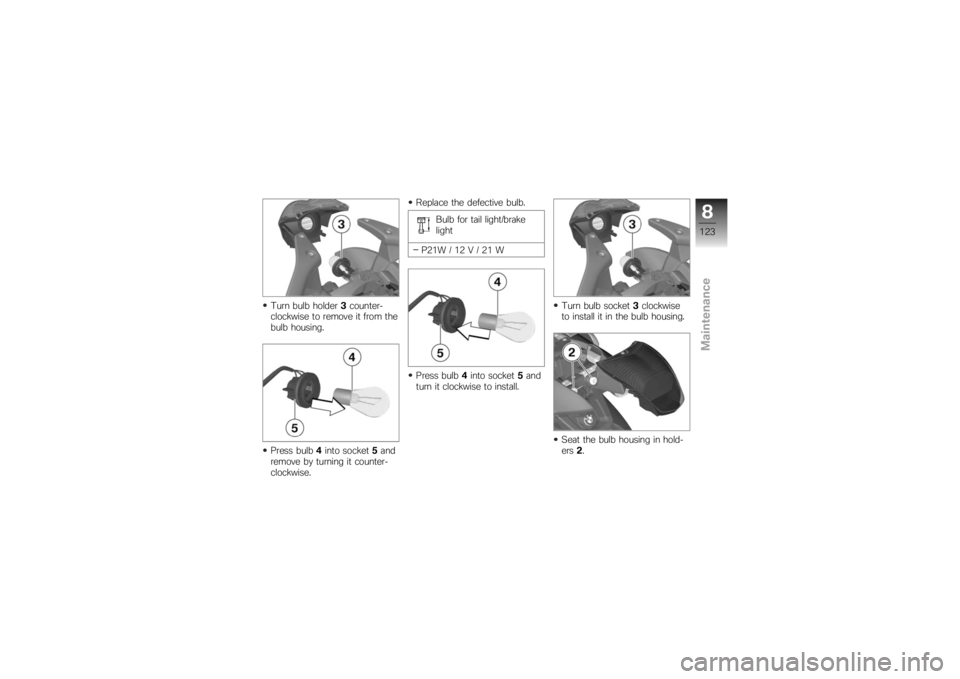

Turn bulb holder3counter-
clockwise to remove it from the
bulb housing.
Press bulb 4into socket 5and
remove by turning it counter-
clockwise. Replace the defective bulb.
Bulb for tail light/brake
light
P21W / 12 V / 21 W
Press bulb 4into socket 5and
turn it clockwise to install. Turn bulb socket
3clockwise
to install it in the bulb housing.
Seat the bulb housing in hold-
ers 2.
8123zMaintenance

Install screw1.
Install the seat ( 67)Replacing turn indicator
bulbs, front and rear
If it is not standing firmly,
the motorcycle could topple
in the course of the operations
described below.
Always make sure that the
motorcycle is stable and firmly
supported.
Make sure the ground is level
and firm and place the motor-
cycle on its stand. Switch off the ignition.
Remove screw
1.
Pull the turn indicator glass out
of the turn indicator housing at
the threaded-fastener side. Press bulb
2into fitting 3and
remove by turning it counter-
clockwise.
Replace the defective bulb.
Bulbs for flashing turn
indicators, front
R10W / 12 V / 10 W
with OE White turn indicators: RY10W / 12 V / 10 W
Bulbs for flashing turn
indicators, rear
R10W / 12 V / 10 W
with OE White turn indicators:
8124zMaintenance

Bulbs for flashing turn
indicators, rear
RY10W / 12 V / 10 W
Turn bulb 2clockwise to install
it in bulb socket 3. Position the bulb housing on
the turn indicator housing.
Install screw
1.
Jump starting
The wires leading to the
power socket do not have
a load-capacity rating adequate
for jump-starting the engine. Ex-
cessively high current can lead
to a cable fire or damage to the
vehicle electronics.
Do not use the on-board socket
to jump-start the engine of the
motorcycle.
Touching live parts of the
ignition system with the
engine running can cause electric
shock.
Do not touch parts of the igni-
tion system when the engine is
running.
A short-circuit can res-
ult if the crocodile clips
of the jump leads are accident-
ally brought into contact with the
motorcycle.
Use only jump leads fitted with
8125zMaintenance

fully insulated crocodile clips at
both ends.Jump-starting with a donor-
battery voltage higher than
12 V can damage the vehicle
electronics.
Make sure that the battery of the
donor vehicle has a voltage rating
of 12 V.
When jump-starting the engine,
do not disconnect the battery
from the on-board electrical
system.
Remove the battery-compart-
ment cover ( 128)
Run the engine of the donor
vehicle during jump-starting.
Begin by connecting one end
of the red jump lead to the
positive terminal of the dis-
charged battery and the other
end to the positive terminal of
the donor battery.
Then connect one end of the
black jump lead to the negative terminal of the donor battery,
and the other end to the neg-
ative terminal of the discharged
battery.
Start the engine of the vehicle
with the discharged battery
in the usual way; if the en-
gine does not start, wait a few
minutes before repeating the
attempt in order to protect the
starter motor and the donor
battery.
Allow both engines to idle for a
few minutes before disconnect-
ing the jump leads.
Disconnect the jump lead from
the negative terminals first,
then disconnect the second
lead from the positive termin-
als.
Install the battery-compartment
cover ( 129)
BatteryMaintenance instructionsCorrect upkeep, recharging and
storage will prolong the life of
the battery and are essential if
warranty claims are to be con-
sidered.
Compliance with the points be-
low is important in order to max-
imise battery life:
Keep the surface of the battery
clean and dry
Do not open the battery
Do not top up with water
Be sure to read and comply
with the instructions for char-
ging the battery on the follow-
ing pages
Do not turn the battery upside
down
If the battery is not discon-
nected, the on-board elec-
tronics (e.g. clock, etc.) gradually
drain the battery. This can cause
the battery to run flat. If this hap-
8126zMaintenance

pens, warranty claims will not be
accepted.
If the motorcycle is to be out of
use for more than four weeks,
disconnect the battery or con-
nect a suitable trickle charger to
the battery.BMW Motorrad has de-
veloped a float charger spe-
cially designed for compatibility
with the electronics of your mo-
torcycle. Using this charger, you
can keep the battery charged
during long periods of disuse,
without having to disconnect the
battery from the motorcycle's
on-board systems. You can ob-
tain additional information from
your authorised BMW Motorrad
dealer.
Charging battery when
connected
Charging the connected
battery directly at the bat-
tery terminals can damage the
vehicle electronics.
Always disconnect the battery
from the on-board circuits be-
fore recharging it with a charger
connected directly to the battery
posts.
Only chargers suitable for
this mode of charging can
be used to recharge the battery
via the on-board socket. Unsuit-
able chargers could cause dam-
age to the motorcycle's on-board
electrics.
Use BMW chargers with the
part numbers 71 60 7 688 864
(220 V) or, as applicable,
71 60 7 688 865 (110 V). If
you are in doubt, disconnect
the battery from the on-board systems and connect the charger
directly to the battery.
If you switch on the igni-
tion and the multifunction
display and telltale lights fail to
light up, the battery is completely
flat. Attempting to charge a com-
pletely flat battery via the on-
board socket can cause damage
to the motorcycle's electronics.
If a battery has discharged to the
extent that it is completely flat, it
has to be disconnected from the
on-board circuits and charged
with the charger connected dir-
ectly to the battery posts.
Charge via the power sock-
et, with the battery connected
to the motorcycle's on-board
electrical system. The motorcycle's on-board
electronics know when the
battery is fully charged. The
on-board socket is switched off
when this happens.
8127zMaintenance

Comply with the operating in-
structions of the charger.If you are unable to charge
the battery through the on-
board socket, you may be using
a charger that is not compatible
with your motorcycle's electron-
ics. If this happens, disconnect
the battery from the on-board
systems and connect the charger
directly to the battery.Charging battery when
disconnectedCharge the battery using a
suitable charger.
Comply with the operating in-
structions of the charger.
Once the battery is fully
charged, disconnect the
charger's terminal clips from
the battery terminals.
The battery has to be re-
charged at regular intervals
in the course of a lengthy period
of disuse. See the instructions for caring for your battery. Al-
ways fully recharge the battery
before restoring it to use
Removing battery-
compartment cover
If it is not standing firmly,
the motorcycle could topple
in the course of the operations
described below.
Always make sure that the
motorcycle is stable and firmly
supported.
Make sure the ground is level
and firm and place the motor-

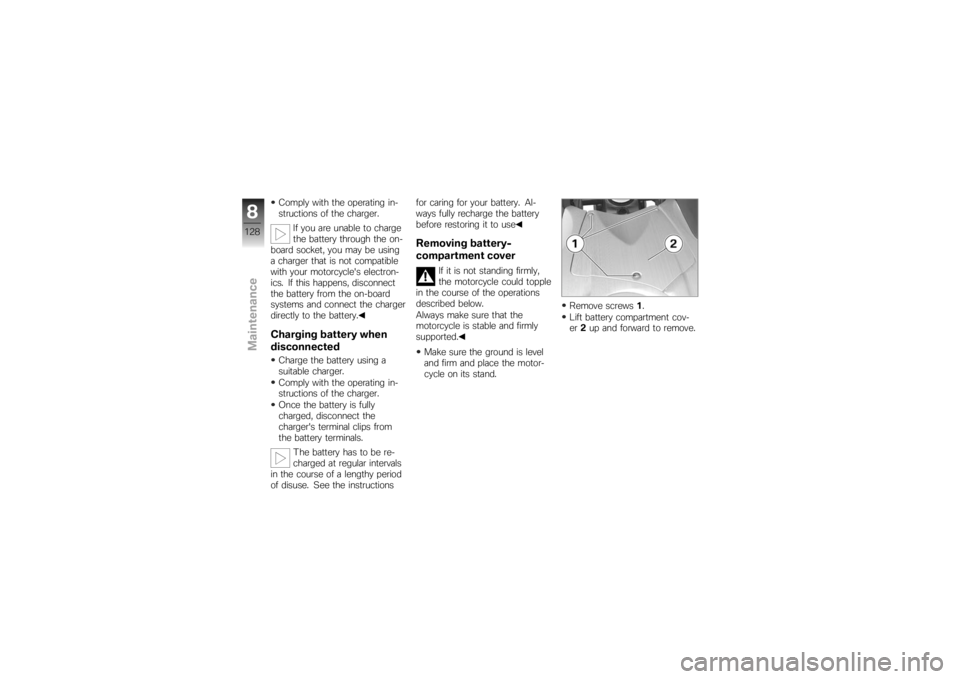

cycle on its stand. Remove screws
1.
Lift battery compartment cov-
er 2up and forward to remove.
8128zMaintenance
