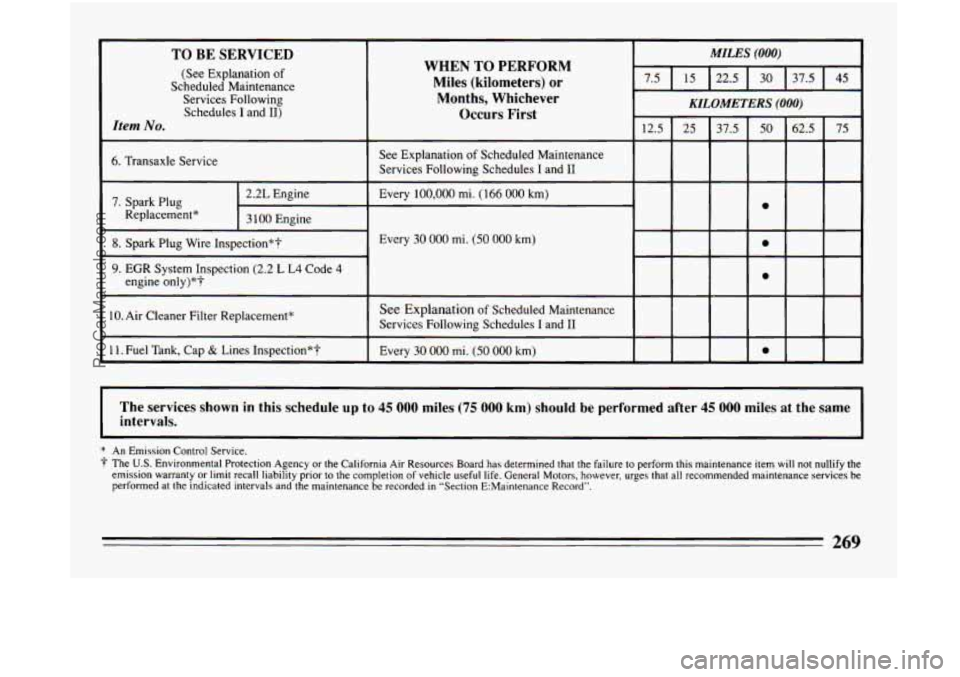

BUICK CENTURY 1994 Owners Manual

TO BE SERVICED
(See Explanation of
Scheduled Maintenance Services Following Schedules I and
11)
Item No.
I
6. Transaxle Service
7. Spark Plug
Replacement*
I 8. Spark Plug Wire Inspection*?
I
9. EGR System Inspection (2.2 L L4 Code 4
engine only)*?
I
10. Air Cleaner Filter Replacement”
I 1 1. Fuel Tank, Cap & Lines Inspection*?
WHEN TO PERFORM
Miles (kilometers) or
Months, Whichever Occurs First
I MILES (000) I .,
I KILOMETERS (000)
See Explanation of Scheduled Maintenance
Services Following Schedules
I and I1
Every
100,000 mi. ( 166 000 km)
Every
30 000 mi. (50 000 km)
See Explanation of Scheduled Maintenance
Services Following Schedules I and I1
Every
30 000 mi. (50 000 km)
50 75 62.5
a
a
a
a
The services shown in this schedule up to 45 000 miles (75 000 km) should be performed after 45 000 miles at the same
intervals.
* An Emission Control Service.
? The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the
emission warranty or limit recall liability prior to the completion of vehicle useful life. General Motors, however, urges that all recommended maintenance services be
performed at the indicated intervals and the maintenance be recorded in “Section E:Maintenance Record”.
269
ProCarManuals.com

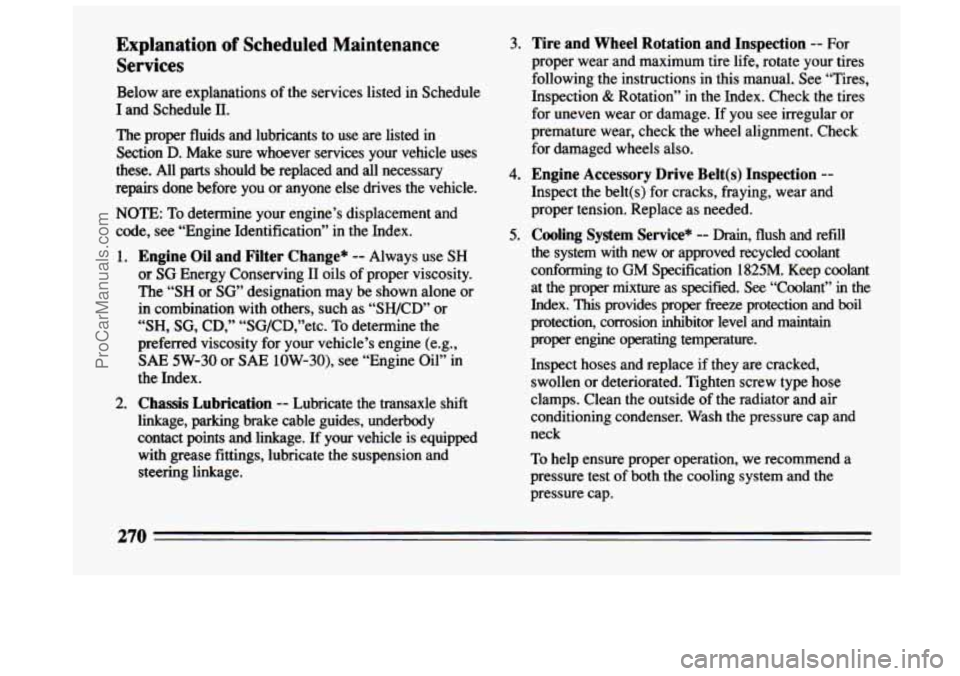

Explanation of Scheduled Maintenance
Services
Below are explanations of the services listed in Schedule
I and Schedule
11.
The proper fluids and lubricants to use are listed in
Section D. Make sure whoever services your vehicle uses
these. All parts should
be replaced and all necessary
repairs done before you or anyone else drives the vehicle.
NOTE: To determine your engine’s displacement and
code, see “Engine Identification” in the Index.
1. Engine Oil and Filter Change* -- Always use SH
or SG Energy Conserving I1 oils of proper viscosity.
The
“SH or SG’ designation may be shown alone or
in combination with others, such as “SH/CD’ or
“SH, SG, CD,” “SG/CD,”etc. To determine the
preferred viscosity for your vehicle’s engine (e.g.,
SAE 5W-30 or SAE 10W-30), see “Engine Oil” in
the Index.
2. Chassis Lubrication -- Lubricate the transaxle shift
linkage, parking brake cable guides, underbody
contact points and linkage. If your vehicle is equipped with grease fittings, lubricate the suspension and steering linkage. 3.
Tire and Wheel Rotation and Inspection -- For
proper wear and maximum tire life, rotate your tires
following the instructions in this manual. See “Tires,
Inspection
& Rotation” in the Index. Check the tires
for uneven wear or damage. If you see irregular or
premature wear, check the wheel alignment. Check
for damaged wheels also.
4. Engine Accessory Drive Belt(s) Inspection --
Inspect the belt(s) for cracks, fraying, wear and
proper tension. Replace as needed.
5. Cooling System Service* -- Drain, flush and refill
the system with new or approved recycled coolant
conforming to GM Specification 1825M. Keep coolant
at the proper mixture as specified.
See “Coolant” in the
Index.
This provides proper freeze protection and boil
protection, corrosion inhibitor level and maintain
proper engine operating temperature.
Inspect hoses and replace if they are cracked,
swollen or deteriorated. Tighten screw type hose
clamps. Clean the outside of the radiator and air
conditioning condenser. Wash the pressure cap and
neck
To help ensure proper operation, we recommend a
pressure test
of both the cooling system and the
pressure cap.
270
ProCarManuals.com

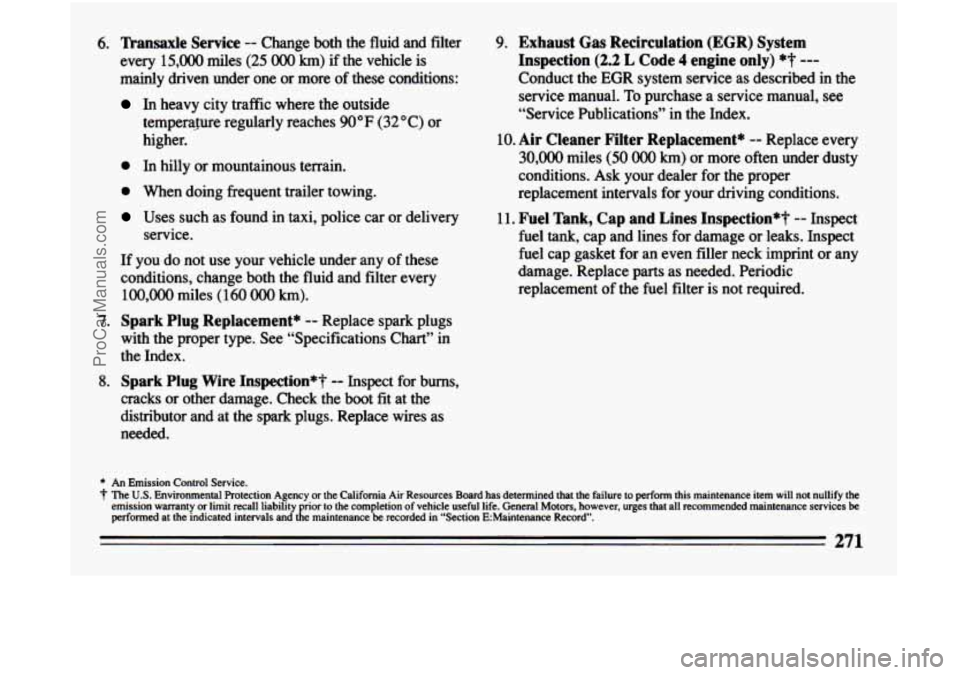

6. ’Ikande Service -- Change both the fluid and filter
every 15,000 miles
(25 0oO km) if the vehicle is
mainly driven under one or more of these conditions:
In heavy city traffic where the outside
temperature regularly reaches
90°F (32 “C) or
higher.
0 In hilly or mountainous terrain.
0 When doing frequent trailer towing.
Uses such as found in taxi, police car or delivery
service.
9. Exhaust Gas Recirculation (EGR) System
Inspection
(2.2 L Code 4 engine only) *? ---
Conduct the EGR system service as described in the
service manual.
To purchase a service manual, see
“Service Publications” in the Index.
10. Air Cleaner Filter Replacement* -- Replace every
30,000 miles (50 0o0 km) or more often under dusty
conditions. Ask your dealer for the proper
replacement intervals for your driving conditions.
11.
Fuel Tank, Cap and Lines Inspection*? -- Inspect
fuel
tank, cap and lines for damage or leaks. Inspect
fuel cap gasket for an even filler neck imprint
or any
damage. Replace parts as needed. Periodic replacement
of the fuel filter is not required.
If you
do not use your vehicle under any of these
conditions, change both the fluid and filter every 100,OOO miles (160 OOO km).
7. Spark Plug Replacement* -- Replace spark plugs
with the proper type. See “Specifications Chart”
in
the Index.
8. Spark Plug Wire Inspection*’f’ -- Inspect for bums,
cracks or other damage. Check the boot fit at the
distributor and at the spark plugs. Replace wires as
needed.
* An Emission Control Service.
The
U.S. Environmental Protection Agency or the California Air Resources Board has determined that the fail\
ure to perform this maintenance item will not nullify the
emission warranty or limit recall liability prior to the completion of vehicle useful life. General Motors, however, urges that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded in “Section E:Maintenance Record”.
271
ProCarManuals.com

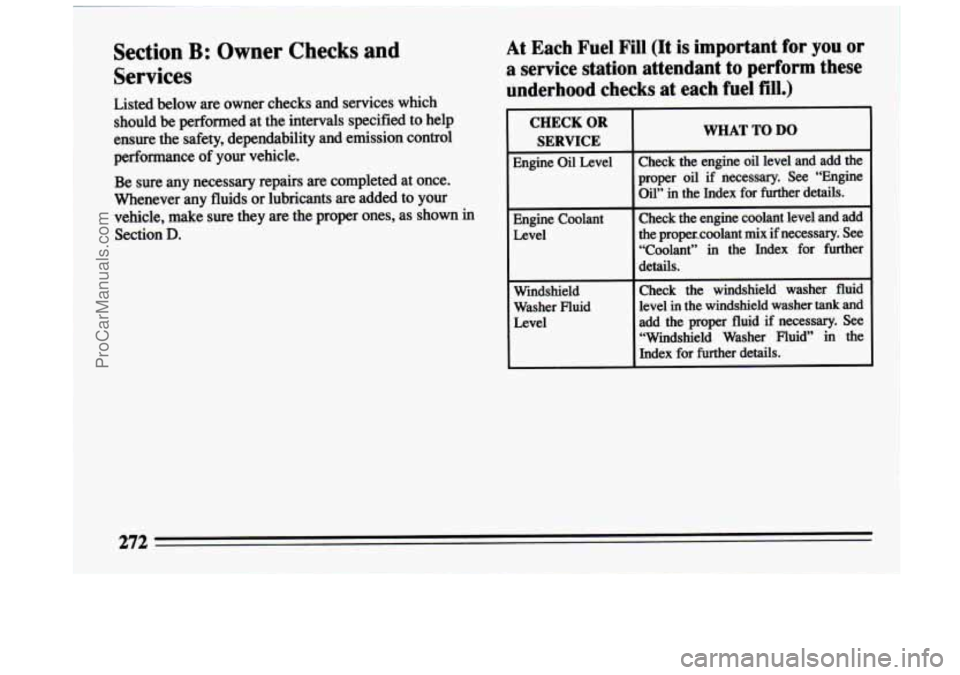

Section B: Owner Checks and
Services
Listed below are owner checks and services which should
be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids
or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in Section
D.
At Each Fuel Fill (It is important for you or
a service station attendant to perform these
underhood checks at each fuel fill.)
WHAT TO DO
~
Engine Oil Level
Engine Coolant Level
Windshield
Washer Fluid Level Check the engine oil level and add the
proper oil if necessary. See “Engine
Oil” in the Index for further details.
Check the engine coolant level and add
the propexcoolant mix if necessary. See “Coolant” in the Index for further
details.
Check the windshield washer fluid
level in the windshield washer
tank and
add the proper fluid if necessary. See “Windshield Washer Fluid” in the
Index for further details.
272
ProCarManuals.com

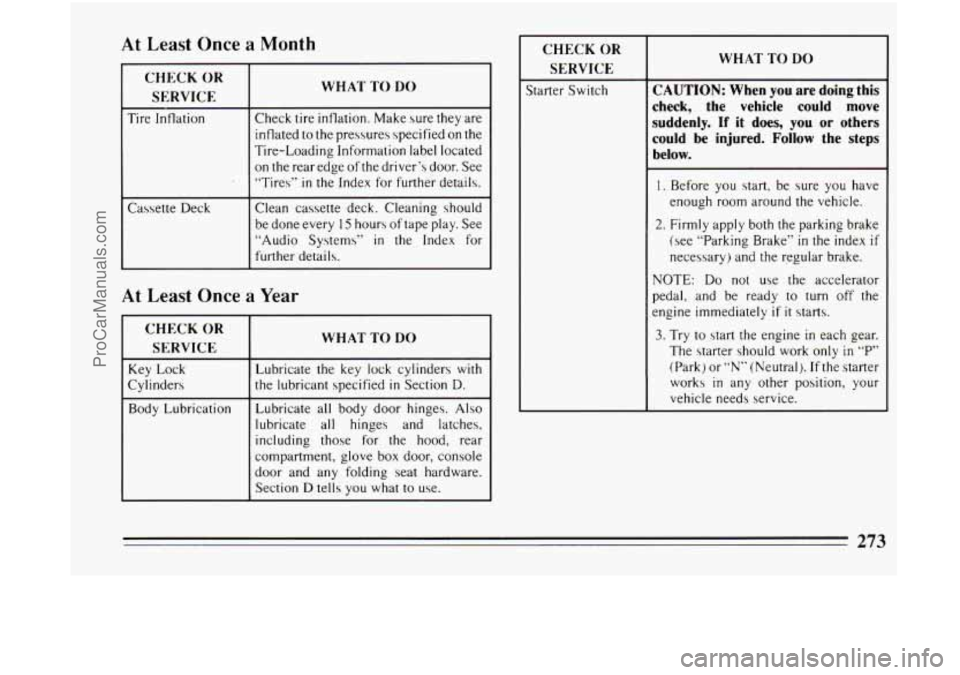

At Least Once a Month
WHAT TO DO
Check tire inflation. Make sure they are
inflated
to the pressures specified on the
Tire-Loading Information label located
on the rear edge of the driver’s door. See
“Tires”
in the Index for further details.
Cassette Deck Clean
cassette deck. Cleaning should
be done every
15 hours of tape play. See
“Audio Systems”
in the Index for
further details.
At Least Once a Year
CHECK OR
SERVICE
Key Lock
Cylinders
L
Body Lubrication
WHAT TO DO
Lubricate the key lock cylinders with
the lubricant specified in Section D.
Lubricate all body door hinges. Also
lubricate all hinges and latches,
including those for the hood, rear
compartment, glove box door, console
door and any folding seat hardware.
Section
D tells you what to use.
CHECK OR
SERVICE
Starter Switch
WHAT TO DO
CAUTION: When you are doing this
check, the
vehicle could move
suddenly. If it does, you or others
could
be injured. Follow the steps
below.
1. Before you start, be sure you have
enough room around the vehicle.
2. Firmly apply both the parking brake
(see “Parking Brake”
in the index if
necessary) and the regular brake.
NOTE: Do
not use the accelerator
pedal, and be ready
to turn off the
engine immediately
if it starts.
3. Try to start the engine in each gear.
The starter should work
only in “P”
(Park) or
“N” (Neutral). If the starter
works
in any other position, your
vehicle needs service.
273
ProCarManuals.com

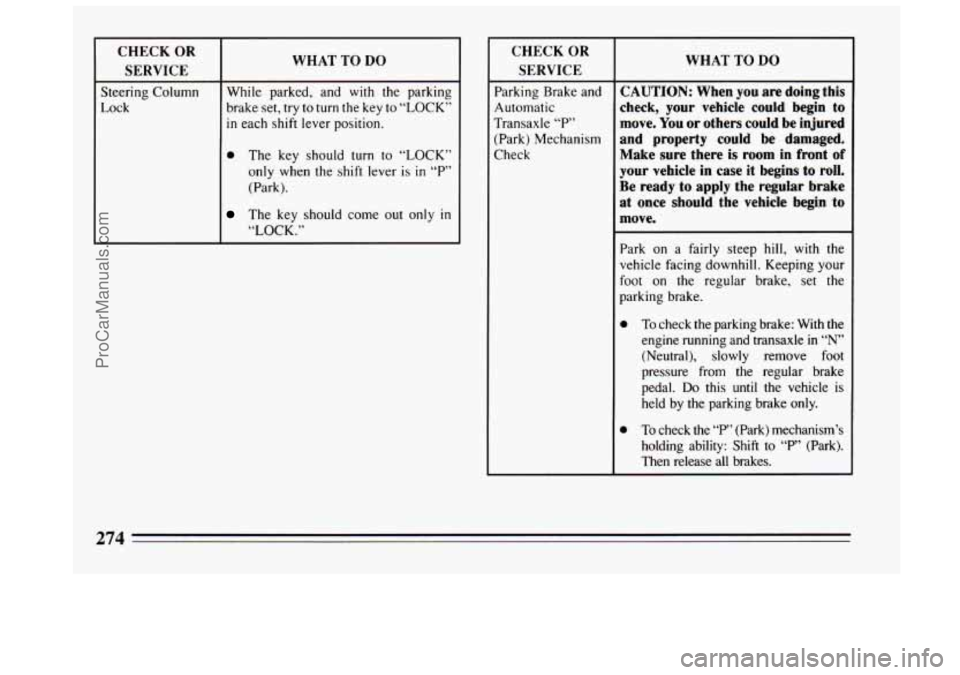

WHAT TO DO
Steering Column brake set,
try to turn the key to “LOCK”
Lock While parked,
and with the parking
in each shift lever position.
0 The key should turn to “LOCK”
only when the shift lever is
in “P’
(Park).
The key should come out only in
“LOCK.”
CHECK OR
SERVICE
Parking Brake and
Automatic
Transaxle
“P’
(Park) Mechanism
Check
WHAT TO DO
CAUTION: When you are doing this
check, your vehicle could begin to
move. You or others could be injure&
and property could be damaged.
Make sure there is room in front of
your vehide in case it begins to roll.
Be ready to apply the regular brake
at once should the vehicle begin to
move.
Park on a fairly steep hill, with the
vehicle facing downhill. Keeping your
foot on
the regular brake, set the
parking brake.
0 To check the parking brake: With the
engine running and transaxle
in “N”
(Neutral), slowly remove foot
pressure from the regular brake
pedal.
Do this until the vehicle is
held by the parking brake only.
0 To check the “P’ (Park) mechanism’s
holding ability:
Shift to “P” (Park).
Then release all brakes.
274
ProCarManuals.com

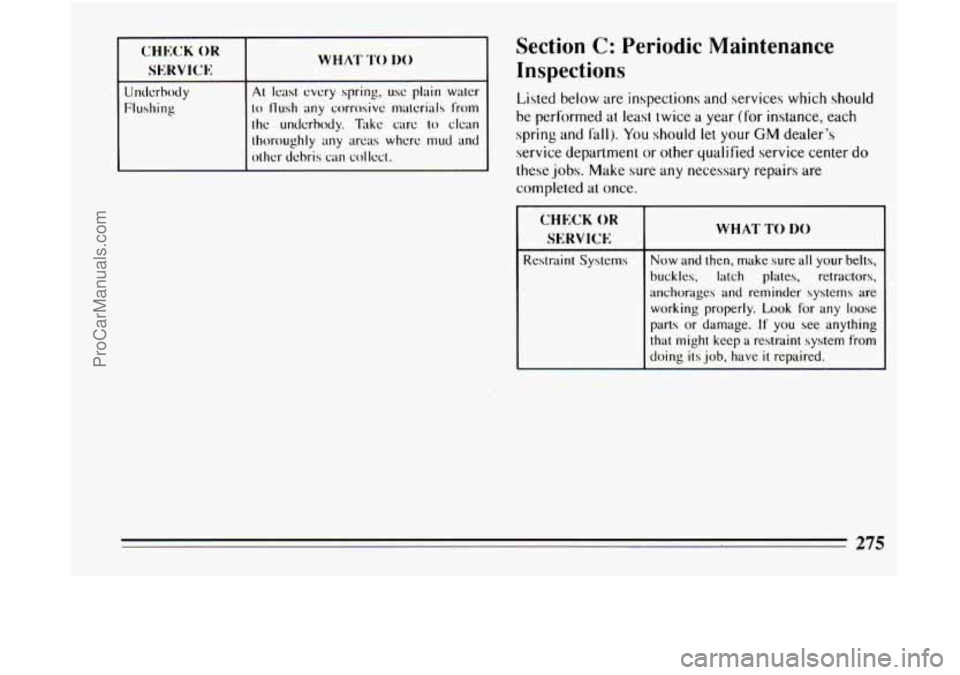

I CHKCKOH I
SKHVICK
Unclcrbody
Flushing At least cvcry spring, use plain walcr
to [’lush any corrosive matcrials from
[he undcrbody. Take care lo clean
thoroughly any
ilrcas whcrc mud and
other debris can collect.
Section C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year
(for instance, each
spring and
111). You should let your GM dealer’s
service department
or other qualified service center do
these jobs. Make sure any necessary repairs are
completed
at once.
CHKCK OR
SKRVICK
Restraint Systems
WHAT TO DO
Now and then, make sure all your belts,
buckles, latch plates, retractors,
anchorages and reminder systems are
working properly. Look for any loose
parts
or damage. If you see anything
that might keep a restraint system from
doing itsjob, have
it repaired.
275
ProCarManuals.com

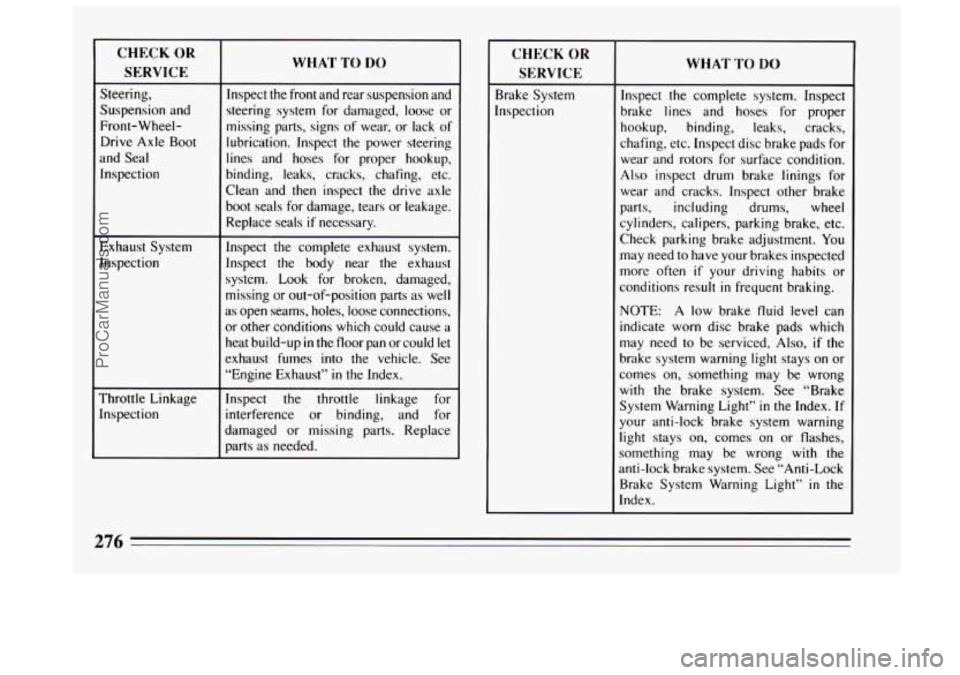

CHECK OR SERVICE
Steering, Suspension and
Front-Wheel-
Drive Axle Boot
and Seal
Inspection
Exhaust System
Inspection
Throttle Linkage
Inspection
WHAT TO DO
Inspect the front and rear suspension and
steering system
for damaged, loose or
missing parts, signs of wear, or lack of
lubrication. Inspect the power steering
lines and hoses for proper hookup,
binding, leaks, cracks, chafing, etc.
Clean and
then inspect the drive axle
boot seals
for damage, tears or leakage.
Replace seals if necessary.
Inspect the complete exhaust system.
Inspect the body near the exhaust
system. Look for broken, damaged,
missing or out-of-position parts as
well
as open seams, holes, loose connections,
or other conditions which could cause a
heat build-up
in the floor pan or could let
exhaust fumes into the vehicle. See
“Engine Exhaust”
in the Index.
Inspect the throttle linkage for
interference
or binding, and for
damaged
or missing parts. Replace
parts as needed.
CHECK OR
SERVICE
Brake System
Inspection
WHAT TO DO
Inspect the complete system. Inspect
brake lines and hoses for proper
hookup, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for
wear and rotors for surface condition.
Also inspect drum bmke linings for
wear and cracks. Inspect other brake
parts, including drums, wheel
cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You
may need to have your brakes inspected
more often if your driving habits or
conditions result
in frequent braking.
NOTE: A low brake fluid level can
indicate worn disc brake pads which
may need
to be serviced, Also, if the
brake system warning
light stays on or
comes on, something may be wrong
with the brake system. See “Brake
System Warning Light”
in the Index. If
your anti-lock brake system warning
light stays on, comes on
or flashes,
something may be wrong with
the
anti-lock brake system. See “Anti-Lock
Brake System Warning Light”
in the
Index.
276
ProCarManuals.com

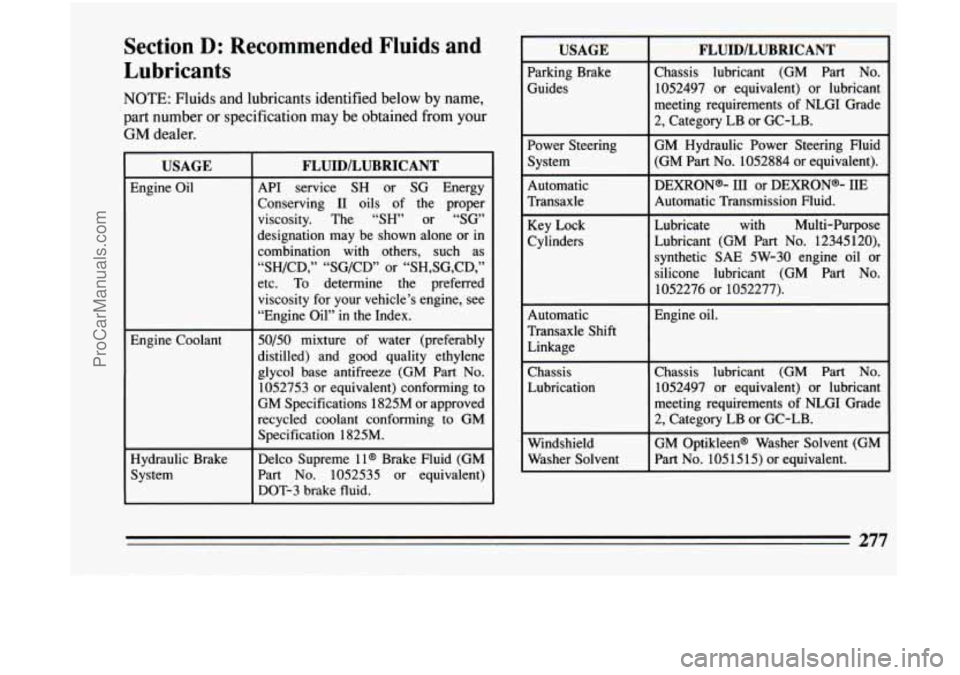

Section D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number
or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake
System
FLUID/LUBRICANT
API service SH or SG Energy
Conserving
I1 oils of the proper
viscosity. The
“SH” or “SG’
designation may be shown alone or in
combination with others, such as
“SH/CD,” “SG/CD’ or “SH,SG,CD,”
etc.
To determine the preferred
viscosity for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of water (preferably
distilled) and good quality ethylene
glycol base antifreeze (GM Part
No.
1052753 or equivalent) conforming to
GM Specifications 1825M or approved
recycled coolant conforming to GM
Specification 1825M.
Delco Supreme 11
Q Brake Fluid (GM
Part
No. 1052535 or equivalent)
DOT-3 brake fluid.
USAGE
Parking Brake
Guides
Power Steering
System
Automatic
Transaxle
Key Lock
Cylinders
Automatic
Transaxle Shift
Linkage
Chassis
Lubrication
Windshield
Washer Solvent
~ ~~~ - -_ - -~
FLUIDlLUBRICANT
Chassis lubricant (GM Part No.
1052497 or equivalent) or lubricant
meeting requirements of NLGI Grade
2, Category LB or GC-LB.
GM Hydraulic Power Steering Fluid
(GM Part
No. 1052884 or equivalent).
DEXRONQ- III or DEXRONB- IIE
Automatic Transmission Fluid.
Lubricate with Multi-Purpose
Lubricant (GM Part
No. 12345120),
synthetic SAE 5W-30 engine oil or
silicone lubricant (GM Part
No.
1052276 or 1052277).
Engine oil.
Chassis lubricant (GM Part
No.
1052497 or equivalent) or lubricant
meeting requirements of NLGI Grade
2, Category LB or GC-LB.
GM Optikleena Washer Solvent (GM
Part No. 1051515) or equivalent.
277
ProCarManuals.com

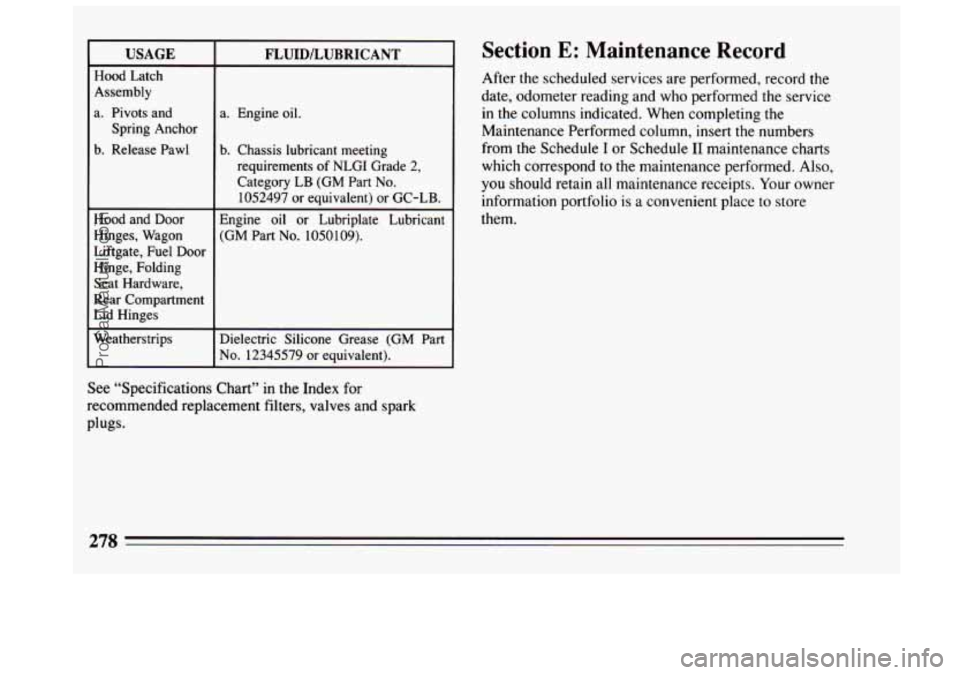

USAGE
Hood Latch
Assembly
a. Pivots and
b. Release Pawl
Spring
Anchor
Hood and
Door
Hinges, Wagon
Liftgate, Fuel Door
Hinge, Folding
Seat Hardware,
Rear Compartment
Lid Hinges
Weatherstrips
FLUID/LUBRICANT I
a. Engine oil.
b. Chassis lubricant meeting
requirements of NLGI Grade
2,
Category LB (GM Part No.
1052497 or equivalent) or GC-LB.
Engine oil or Lubriplate Lubricant
(GM Part
No. 1050109).
Dielectric Silicone Grease
(GM Part
No. 12345579 or equivalent).
See “Specifications Chart” in the Index for
recommended replacement filters, valves and spark
plugs.
Section E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the columns indicated. When completing the
Maintenance Performed column, insert the numbers
from the Schedule
I or Schedule I1 maintenance charts
which correspond
to the maintenance performed. Also,
you should retain all maintenance receipts. Your owner
information portfolio is a convenient place to store
them.
ProCarManuals.com
