CADILLAC DEVILLE 1996 7.G Workshop Manual

Downloaded from www.Manualslib.com manuals search engine A CAUTION: ' '
A child in a child restraint in the center front seat
can be badly injured
by the right front passenger
air
bag if it inflates. Never secure a child restraint
in the center front seat. It's always better to
secure a child restraint in the rear seat.
You may,
however, secure a forward-facing child restraint
in the right front passenger seat, but only with
the seat moved all the
way back.
Wherever you install
it, be sure to secure the child
restraint properly.
Keep
in mind that an unsecured child restraint'can move
around in a collision
or sudden stop and injure people
in the vehicle. Be sure to properly secure any child
restraint in your vehicle
-- even when no child is in it.
Top Strap
If your child restraint has a top strap, it should be
anchored.
If you need to have an anchor installed, you
can ask your Cadillac dealer to put it in for you. If you
want to install an anchor yourself, your dealer can tell
you
how to do it.
1-36

Downloaded from www.Manualslib.com manuals search engine c
For cars first sold in Canada, child restraints with a top
strap must
be anchored according to Canadian law.
Your dealer can obtain the hardware kit
and install it for
you, or you may install it yourself using the instructions
provided in the kit.
Use the tether hardware
kit available from the dealer.
The hardware and installation instructions were
specifically designed for this vehicle.
Securing a Child Restraint in a Rear
Outside Seat Position
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
1.
2.
3.
c
c
Put the restraint on the seat. Follow the instructions
for the child- restraint.
Secure the child in the child restraint
as the
instructions say.
Pick
up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-37

Downloaded from www.Manualslib.com manuals search engine Tilt the latch plate to adjust the belt if needed.
If the shoulder belt goes in front of the child's face or
neck, put it behind the child restraint.
. ." . -4
4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
-38

Downloaded from www.Manualslib.com manuals search engine c
c
c
t
b
L
5. To tighten the belt, pull up on the shoulder belt while
6. Push and pull the child restraint in different
you push down on the child restraint.
directions to
be sure it
is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all
the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
Securing a Child Restraint in the Center
Rear Seat Position
You’ll be using the lap belt.
A CAUTION:
A child in a child restraint in the center front seat
can be badly injured by the right front passenger
air bag
if it inflates. Never secure a child restraint
in the center front seat.
It’s always better to
secure a child restraint in the rear seat. You may,
however, secure a forward-facing child restraint
in the right front passenger seat, but only with
the seat moved all the
way back.
See the earlier part about
the top strap if the child
restraint has one.
1-39

Downloaded from www.Manualslib.com manuals search engine .. .
..
1. Make the belt as long as possible by tilting the latch
2. Put the restraint on the seat. Follow the instmctions
plate and pulling it along the belt.
for the child restraint.
3. Secure the child in the child restraint as the
instructions say.
4. Run the vehicle’s safety belt through or ar0~-;.:1 the
restraint. The child restraint instructions
will .;::?.ow
you how.
..
5. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if
you ever had to.
6. To tighten the belt, pull its free end while you push
down
on the child restraint.

Downloaded from www.Manualslib.com manuals search engine c
c
c
7. Push and pull the child restraint in different Securing a Child Restraint in the Right
directions to be sure it is secure. If it isn’t, secure the Front Seat Position
restraint in a different place in th.e vehicle and
contact the child restraint maker for their advice
about how
to attach the child restraint properly.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It
will be ready to work for an adult or larger
child passenger.
Your vehicle has
a right front passenger air bag. Never
put a rear-facing child restraint in this seat. Here’s why:
A CAUTION:
A child in a rear-facing child restraint can be
seriously injured if the right front passenger’s air bag inflates. This
is because the back of a
rear-facing child restraint would be very close to
the inflating
air bag. Always secure a rear-facing
child restraint in the rear seat.
c 1-41

Downloaded from www.Manualslib.com manuals search engine You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
1.
2.
3.
4.
Because your vehicle has a right front passenger air
bag, always move the seat as far back as it will go
before securing a forward-facing child restraint. (See “Seats”
in the Index.)
Put the restraint on the seat. Follow the instructions
for the child restraint.
Secure the child in the child restraint as the
instructions say.
Pick
up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will
show you how.
If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint. 5. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if
you ever had to.
1-42

Downloaded from www.Manualslib.com manuals search engine i
P
1
I
6. Pull the rest of the lap belt all the way out of the
retractor to set the lock. 7. To tighten the belt, feed the lap belt back into the
8. Push and pull the child restraint in different
retractor while you push
down on the child restraint.
directions to be sure it
is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt
and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
1-43

Downloaded from www.Manualslib.com manuals search engine Larger Children If you have the choice, a child should sit next to a
window
so the child can wear a lap-shoulder belt and
get the additional restraint a shoulder belt can provide.
Accident statistics show that children are safer
if they
are restrained
in the rear seat. But they need to use the
safety belts properly.
Children who aren’t buckled up can be thrown out in
Children.who aren’t. buckled up can strike other
a crash.
people
who are.
Children
who have outgrown child restraints should
wear the vehicle’s safety belts.
1-44
S

Downloaded from www.Manualslib.com manuals search engine r
i
I"
r
I
f'
r
I
~,, , ~ =~ -.i.-- - -- -_

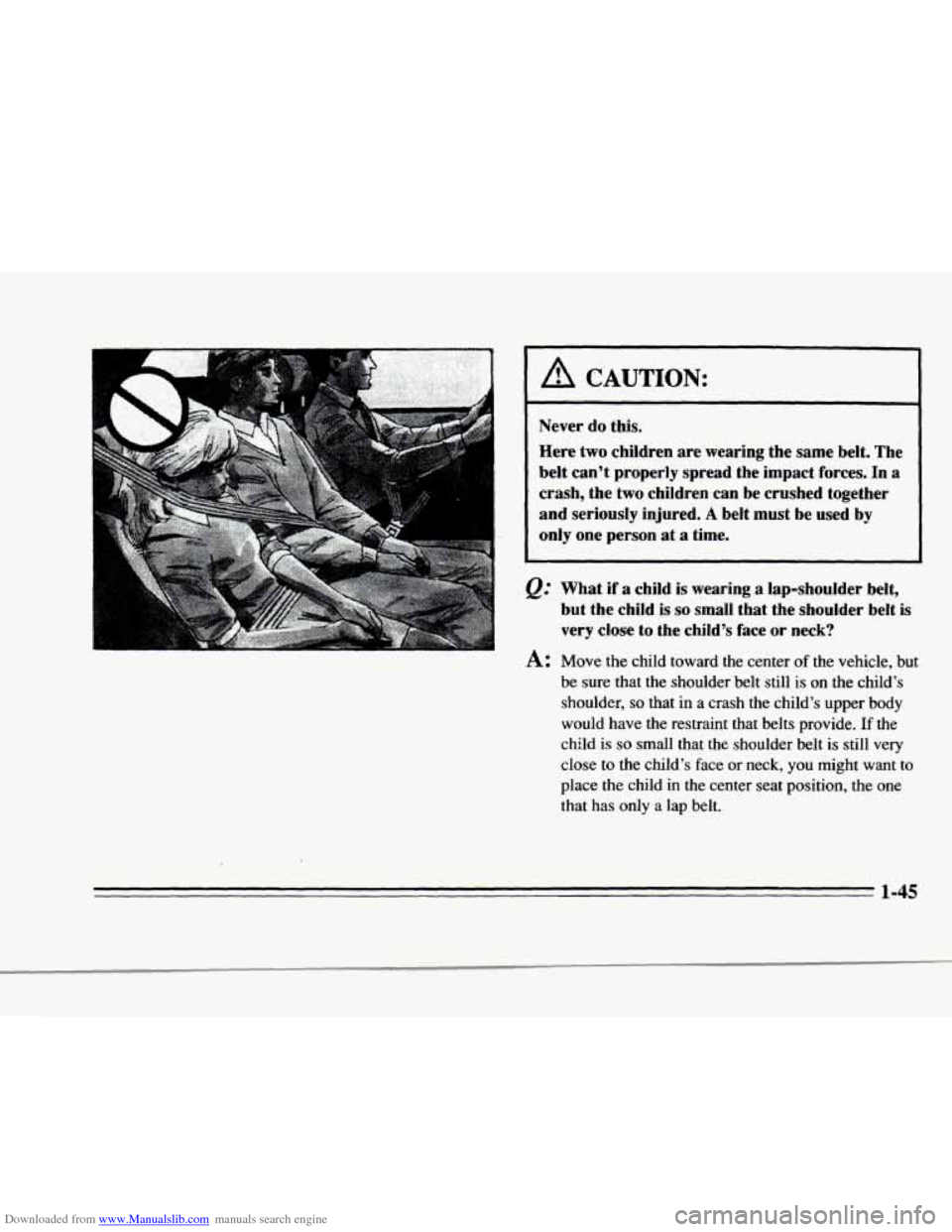

A CAUTION:
Never do this.
Here
two children are wearing the same belt. The
belt can't properly spread the impact forces. In a
crash, the
two children can be crushed together
and seriously injured.
A belt must be used by
only one person at
a time.
@ What if a child is wearing a lap-shoulder belt,
but the child is
so small that the shoulder belt is
very close to the child's face or neck?
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still
is on the child's
shoulder, so that in a crash the child's upper body
would have the restraint that belts provide.
If the
child is
so small that the shoulder belt is still very
close
to the child's face or neck, you might want to
place the child in the center seat position, the one
that has only a
lap belt.
1-45
