ignition CADILLAC ESCALADE 2021 Owner's Manual

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/11/21
INTRODUCTION 5
1.Driver Information Center (DIC)
0132.
2. Air Vents 0225.
3. Turn Signal Lever. See Turn and
Lane-Change Signals 0153.
Exterior Lamp Controls 0149.
4. Tap Shift Controls (If Equipped). See Manual Mode 0255.
5. Instrument Cluster 0114.
6. Driver Monitoring Camera. See Super Cruise 0283 (If Equipped).
7. Windshield Wiper/Washer 0105.
Rear Window Wiper/Washer 0107.
8. Infotainment. See Overview0158.
9. Light Sensor. See Automatic
Headlamp System 0152.
10. Dual Automatic Climate Control
System 0220.
Heated and Ventilated Front Seats
0 48 (If Equipped).
11. USB Ports. See USB Port0169.
12. Storage Compartment.
13. Infotainment Controls. See Overview 0158.
14. Hazard Warning Flashers 0153. 15.
Wireless Charging 0111.
16. Shift Lever. See Automatic
Transmission 0251.
17. Automatic Vehicle Hold (AVH) 0263.
Stop/Start Disable Button. See
Stop/Start System 0247.
Lane Keep Assist (LKA) 0324 (If
Equipped).
18. ENGINE START/STOP Button. See Ignition Positions 0245.
19. Steering Wheel Controls 0104.
20. Horn 0104.
21. Steering Column Adjustment. See Steering Wheel Adjustment 0104.
22. Hood Release. See Hood0365.
23. Cruise Control 0271 (If Equipped).
Adaptive Cruise Control (Advanced)
0 274 (If Equipped).
Super Cruise 0283 (If Equipped).
Forward Collision Alert (FCA) System
0 313 (If Equipped).
Heated Steering Wheel 0104 (If
Equipped).
24. Instrument Panel Illumination
Control 0154. 25. Data Link Connector (DLC) (Out of
View). See Malfunction Indicator
Lamp (Check Engine Light) 0122.
26. Trailer Brake Control. See Towing
Equipment 0338 (If Equipped).
27. Electric Parking Brake 0261.
28. Four-Wheel Drive 0256 (If
Equipped).
Four Corner Air Suspension System
0 268 (If Equipped).
Driver Mode Control 0266

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
8 KEYS, DOORS, AND WINDOWS
The remote key functions may work
up to 60 m (197 ft) away from the
vehicle.
Other conditions can affect the
performance of the remote key. See
Remote Keyless Entry (RKE) System
07.
Q:Press to lock all doors.
If enabled, the turn signal lamps flash
once on the second press to indicate
locking has occurred. If enabled, the
horn chirps when
Qis pressed again
within three seconds. See Vehicle
Personalization 0138. Pressing
Qarms the alarm system.
See Vehicle Alarm System 028.
If equipped with auto mirror folding,
pressing and holding
Qfor
one second will fold the mirrors,
if enabled. See Vehicle Personalization
0 138.
K:Press once to unlock the driver
door and the fuel door. If
Kis pressed
again within three seconds, all
remaining doors unlock. The interior
lamps may come on and stay on for
20 seconds or until the ignition is
turned on.
If enabled, the turn signal lamps flash
twice to indicate unlocking has
occurred. If enabled, the exterior
lamps may turn on. See Vehicle
Personalization 0138.
Pressing
Kon the remote key disarms
the alarm system. See Vehicle Alarm
System 028.
If equipped with auto mirror folding,
pressing and holding
Kfor
one second will unfold the mirrors,
if enabled. See Vehicle Personalization
0 138. If equipped with the remote window
open feature, press and hold
Kon the
remote key for about three seconds to
open all windows. If equipped with
the remote window close feature,
press and hold
Qfor about
three seconds to close all windows.
The vehicle must be off and the
remote window operation feature
must be enabled. See Vehicle
Personalization 0138.
b:Press twice to open or close the
liftgate. Press once to stop the liftgate
from moving.
c: Press twice to open the liftglass.
7:Press and release to initiate
vehicle locate. The turn signal lamps
flash and the horn sounds three times.
Press and hold
7for more than
three seconds to activate the panic
alarm. The turn signal lamps flash
and the horn sounds repeatedly for
30 seconds. The alarm turns off when
the ignition is turned on or
7is
pressed again. The ignition must be
off for the panic alarm to work.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
KEYS, DOORS, AND WINDOWS 15
remote start before engine running
has completed or the vehicle is
turned on.
3. Press the brake pedal and turn the ignition on to drive the vehicle.
Additional Engine Run Time
Remote start can be used for up to
30 minutes of total engine run time.
After two remote starts of 15 minutes,
or multiple shorter time starts
totaling 30 minutes have been used,
the vehicle must be started and then
turned off before the remote start can
be used again.
Canceling a Remote Start
To cancel a remote start, do any of
the following:
.PressSonce. The parking lamps
will turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then
back off. Conditions in Which Remote Start
Will Not Work
The remote start will not operate if
any of the following occur:
.The ignition is in any mode other
than off.
.A remote key is in the vehicle.
.The hood is not closed.
.The hazard warning flashers are on.
.There is an emission control system
malfunction.
.The engine coolant temperature is
too high.
.The oil pressure is low.
.The 30 minutes of engine run time
have been used.
.The vehicle is not in P (Park).
Door Locks
{Warning
Unlocked doors can be dangerous.
.Passengers, especially children,
can easily open the doors and
fall out of a moving vehicle. The
doors can be unlocked and
(Continued)
Warning (Continued)
opened while the vehicle is
moving. The chance of being
thrown out of the vehicle in a
crash is increased if the doors are
not locked. So, all passengers
should wear seat belts properly
and the doors should be locked
whenever the vehicle is driven.
.Young children who get into
unlocked vehicles may be unable
to get out. A child can be
overcome by extreme heat and
can suffer permanent injuries or
even death from heat stroke.
Always lock the vehicle whenever
leaving it.
.Outsiders can easily enter
through an unlocked door when
you slow down or stop the
vehicle. Locking the doors can
help prevent this from
happening.
To lock or unlock the doors from
inside the vehicle:
.PressQorKon a power door lock
switch.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
18 KEYS, DOORS, AND WINDOWS
way closed and latches. Pull the
handle during a soft-close to cancel
the cinching and re-open the door.
Power Door Locks
PressQorKon the remote key. See
Remote Keyless Entry (RKE) System
Operation 07.
Q:Press to lock the doors. The
indicator light in the switch will
illuminate when locked.
K: Press to unlock the doors.
The fuel door is also locked or
unlocked using these features. Security Status indicator
A light on the upper surface of the
driver's door trim is used to indicate
vehicle security status.
This light will be OFF any time the
ignition is ON, except momentarily
when vehicle doors are locking.
Solid :
Indicates securing with doors
closed.
Fast Flash : Indicates securing with
doors open.
Slow Flash : Indicates battery
conserving secured state.
No light : Indicates unsecured state.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21

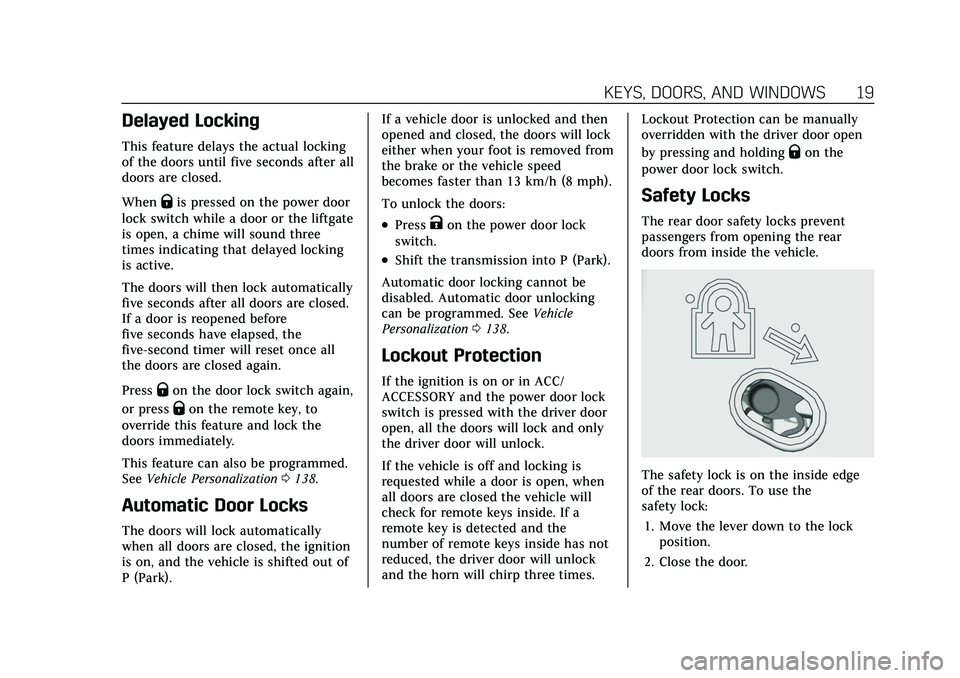

KEYS, DOORS, AND WINDOWS 19
Delayed Locking
This feature delays the actual locking
of the doors until five seconds after all
doors are closed.
When
Qis pressed on the power door
lock switch while a door or the liftgate
is open, a chime will sound three
times indicating that delayed locking
is active.
The doors will then lock automatically
five seconds after all doors are closed.
If a door is reopened before
five seconds have elapsed, the
five-second timer will reset once all
the doors are closed again.
Press
Qon the door lock switch again,
or press
Qon the remote key, to
override this feature and lock the
doors immediately.
This feature can also be programmed.
See Vehicle Personalization 0138.
Automatic Door Locks
The doors will lock automatically
when all doors are closed, the ignition
is on, and the vehicle is shifted out of
P (Park). If a vehicle door is unlocked and then
opened and closed, the doors will lock
either when your foot is removed from
the brake or the vehicle speed
becomes faster than 13 km/h (8 mph).
To unlock the doors:
.PressKon the power door lock
switch.
.Shift the transmission into P (Park).
Automatic door locking cannot be
disabled. Automatic door unlocking
can be programmed. See Vehicle
Personalization 0138.
Lockout Protection
If the ignition is on or in ACC/
ACCESSORY and the power door lock
switch is pressed with the driver door
open, all the doors will lock and only
the driver door will unlock.
If the vehicle is off and locking is
requested while a door is open, when
all doors are closed the vehicle will
check for remote keys inside. If a
remote key is detected and the
number of remote keys inside has not
reduced, the driver door will unlock
and the horn will chirp three times. Lockout Protection can be manually
overridden with the driver door open
by pressing and holding
Qon the
power door lock switch.
Safety Locks
The rear door safety locks prevent
passengers from opening the rear
doors from inside the vehicle.
The safety lock is on the inside edge
of the rear doors. To use the
safety lock:
1. Move the lever down to the lock position.
2. Close the door.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
KEYS, DOORS, AND WINDOWS 31
To keep the steering column from
binding, straighten the front wheels
before turning off the vehicle.
Immobilizer
SeeRadio Frequency Statement 0467.
Immobilizer Operation
This vehicle has a passive
theft-deterrent system.
The system does not have to be
manually armed or disarmed.
The vehicle is automatically
immobilized when the vehicle is
turned off.
The immobilization system is
disarmed when the ignition is turned
on or to ACC/ACCESSORY and a valid
remote key is present in the vehicle.
The security light, in the instrument
cluster, comes on if there is a problem
with arming or disarming the
theft-deterrent system.
The system has one or more remote
keys matched to an immobilizer
control unit in the vehicle. Only a
correctly matched remote key will
start the vehicle. If the remote key is
ever damaged, you may not be able to
start your vehicle.
When trying to start the vehicle, the
security light may come on briefly.
If the engine does not start and the
security light stays on, there is a
problem with the system. Turn the
ignition off and try again.
If the vehicle will not change ignition
modes (ACC/ACCESSORY, on, off), and
the remote key appears to be
undamaged, try another remote key.
Or, you may try placing the remote
key in the backup location. See
Remote Keyless Entry (RKE) System
Operation 07.
If the ignition modes will not change
with the other remote key or in the
backup location, the vehicle needs service. If the ignition does change
modes, the first remote key may be
faulty. See your dealer.
It is possible for the immobilizer
system to learn new or replacement
remote keys. Up to eight remote keys
can be programmed for the vehicle. To
program additional remote keys, see
“Programming Remote Keys to the
Vehicle
”under Remote Keyless Entry
(RKE) System Operation 07.
Do not leave the remote key or device
that disarms or deactivates the
theft-deterrent system in the vehicle.
Exterior Mirrors
Convex Mirrors
{Warning
A convex mirror can make things,
like other vehicles, look farther
away than they really are. If you cut
too sharply into the right lane, you
could hit a vehicle on the right.
Check the inside mirror or glance
over your shoulder before changing
lanes.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
KEYS, DOORS, AND WINDOWS 37
Power windows work when the
ignition is on, in ACC/ACCESSORY,
or when Retained Accessory Power
(RAP) is active. SeeRetained Accessory
Power (RAP) 0248.
Using the window switch, press to
open or pull to close the window.
The windows may be temporarily
disabled if they are used repeatedly
within a short time.
Window Lockout
This feature stops the rear passenger
window switches from working.
.Press2to engage the rear window
lockout feature. The indicator light
is on when engaged.
.Press2again to disengage.
Window Express Movement
All windows can be opened without
holding the window switch. Press the
switch down fully and quickly release
to express open the window.
If equipped, pull the window switch
up fully and quickly release to express
close the window.
Briefly press or pull the window
switch in the same direction to stop
that window’s express movement.
Window Automatic Reversal
System
The express-close feature will reverse
window movement if it comes in
contact with an object. Extreme cold
or ice could cause the window to
auto-reverse. The window will operate
normally after the object or condition
is removed.
Automatic Reversal System
Override
{Warning
If automatic reversal system
override is active, the window will
not reverse automatically. You or
others could be injured and the
window could be damaged. Before
using automatic reversal system
override, make sure that all people
and obstructions are clear of the
window path.
When the engine is on, override the
automatic reversal system by pulling
and holding the window switch if
conditions prevent it from closing.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
38 KEYS, DOORS, AND WINDOWS
Programming the Power
Windows
Programming may be necessary if the
vehicle battery has been disconnected
or discharged. If the window is unable
to express-up, program each
express-close window:1. Close all doors.
2. Turn the ignition on or to ACC/ ACCESSORY.
3. Partially open the window to be programmed. Then close it and
continue to pull the switch briefly
after the window has fully closed.
4. Open the window and continue to press the switch briefly after the
window has fully opened.
Remote Window Operation
If equipped with remote window open
feature, press and hold
"on the
remote key for about three seconds to
open all windows. If equipped with
remote window close feature, press
and hold
Qon the remote key for
three seconds to close all windows.
The vehicle must be off and the remote window operation must be
enabled. See
Vehicle Personalization
0 138.
Sun Visors
Pull the sun visor down to block glare.
Detach the sun visor from the center
mount to pivot to the side window
and, if equipped, extend along the rod.
Roof
Sunroof
If equipped, the ignition must be on
or in ACC/ACCESSORY, or Retained
Accessory Power (RAP) must be active
to operate the sunroof. See Ignition
Positions 0245 and
Retained Accessory Power (RAP) 0248. While the sunroof always operates in
express mode, movement can be
stopped by pressing the switch again.
The sunroof cannot be opened or
closed if the vehicle has an electrical
failure.
1. SLIDE Switch
2. Power Sunshade Switch
3. TILT Switch
Sunroof Operation:
.Press and releaseD(1) to
express-open to the fully open
position.
.Pull and releaseD(1) to
express-close.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21

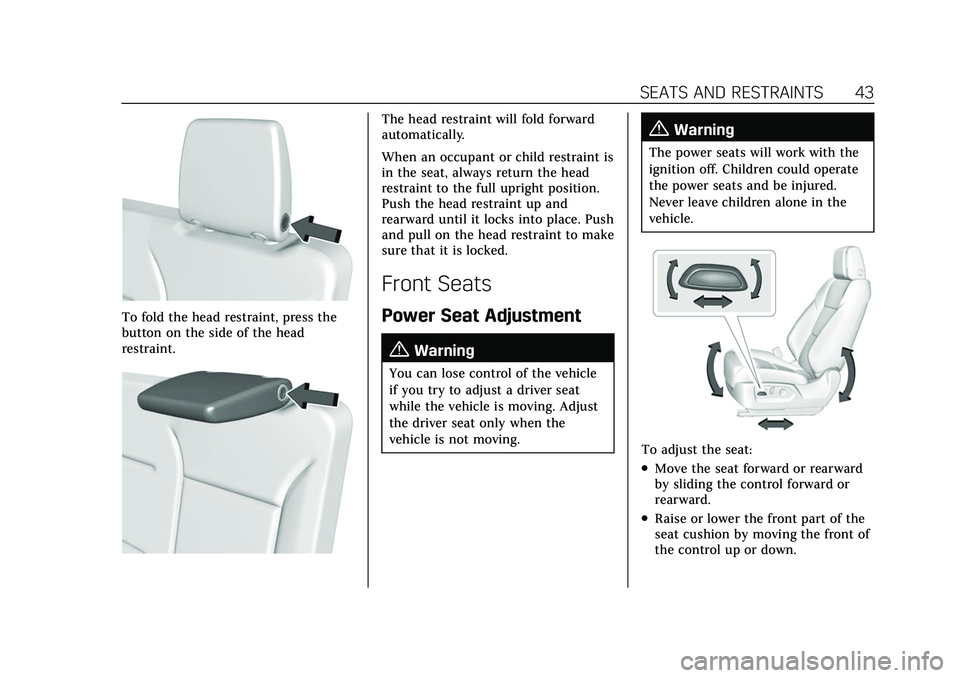

SEATS AND RESTRAINTS 43
To fold the head restraint, press the
button on the side of the head
restraint.
The head restraint will fold forward
automatically.
When an occupant or child restraint is
in the seat, always return the head
restraint to the full upright position.
Push the head restraint up and
rearward until it locks into place. Push
and pull on the head restraint to make
sure that it is locked.
Front Seats
Power Seat Adjustment
{Warning
You can lose control of the vehicle
if you try to adjust a driver seat
while the vehicle is moving. Adjust
the driver seat only when the
vehicle is not moving.
{Warning
The power seats will work with the
ignition off. Children could operate
the power seats and be injured.
Never leave children alone in the
vehicle.
To adjust the seat:
.Move the seat forward or rearward
by sliding the control forward or
rearward.
.Raise or lower the front part of the
seat cushion by moving the front of
the control up or down.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
46 SEATS AND RESTRAINTS
If equipped, memory seats allow two
drivers to save and recall their unique
seat positions for driving the vehicle,
and a shared exit position for getting
out of the vehicle. Other feature
positions may also be saved, such as
power mirrors and power steering
wheel, if equipped. Memory positions
are linked to remote key 1 or 2 for
automatic memory recalls.
Before saving, adjust all available
memory feature positions. Turn the
vehicle on and then press and release
SET; a beep will sound. Then
immediately press and hold 1, 2,
or
B(Exit) until two beeps sound. To
manually recall these positions, press
and hold 1, 2, or
Buntil the saved
position is reached. Follow the
instructions under “Saving Memory
Positions.”
The vehicle identifies the current
driver’s remote key number (1–8). See
Remote Keyless Entry (RKE) System
Operation 07. Only remote keys 1 and
2 can be used for automatic memory
recalls. A Driver Information Center
(DIC) welcome message indicating the
transmitter number may display for the first few ignition cycles following a
transmitter change. For Seat Entry
Memory to work properly, save the
positions to the memory button (1 or
2) matching the remote key number
displayed in the DIC welcome
message. Carry the linked remote key
when entering the vehicle.
Vehicle Personalization Settings
.To have the Seat Entry Memory
movement begin when the vehicle is
started, select the Settings menu,
then Vehicle, then Seating Position,
and then Seat Entry Memory. Select
On or Off. See
“Seat Entry Memory ”
later in this section.
.To begin Seat Exit Memory
movement when the vehicle is
turned off and the driver door is
opened, or when the vehicle is
turned off with the driver door
already opened, select the Settings
menu, then Vehicle, then Seating
Position, and then Seat Exit
Memory. Select On or Off. See “Seat
Exit Memory” later in this section.
.SeeVehicle Personalization 0138 for
additional setting information. Identifying Driver Number
To identify the driver number:
1. Move your remote key away from the vehicle.
2. Start the vehicle with another remote key. The DIC should display
the driver number for the other
remote key. Turn the vehicle off
and remove the remote key from
the vehicle.
3. Start the vehicle with the initial remote key. The DIC should display
the driver number of your
remote key.
Saving Memory Positions
Read these instructions completely
before saving memory positions.
To save preferred driving positions
1 and 2: 1. Turn the vehicle on or to ACC/ ACCESSORY with remote key 1
or 2.
A DIC welcome message may
indicate driver number 1 or 2.
2. Adjust all available memory features to the desired driving
position.
