CADILLAC LYRIC 2023 Service Manual

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
40 Seats and Restraints
To adjust the seat:
.Move the seat forward or
rearward by sliding the
control forward or rearward.
.Raise or lower the front part
of the seat cushion by
moving the front of the
control up or down.
.Raise or lower the entire
seat by moving the rear of
the control up or down.
To adjust the seatback, see
Reclining Seatbacks 040.
To adjust the lumbar support,
see Lumbar Adjustment 041.
Reclining Seatbacks
{Warning
Sitting in a reclined position
when the vehicle is in motion
can be dangerous. Even
when buckled up, the seat
belts cannot do their job.
The shoulder belt will not be
against your body. Instead, it
will be in front of you. In a
crash, you could go into it,
receiving neck or other
injuries.
The lap belt could go up
over your abdomen. The belt
forces would be there, not
at your pelvic bones. This
could cause serious internal
injuries.
For proper protection when
the vehicle is in motion, have
the seatback upright. Then
sit well back in the seat and
wear the seat belt properly.
Do not have a seatback
reclined if the vehicle is
moving.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Seats and Restraints 41
.Move the control back to
recline.
.Move the control forward to
raise.
Lumbar Adjustment
.Press and hold the front or
rear of the control to
increase or decrease lumbar
support.
.If equipped, press and hold
the top or bottom of the
control to raise or lower
lumbar support.
Uplevel Seat Adjustment
To adjust lumbar support,
if equipped:
.Rotate the center of the
control to scroll to lumbar
support on the infotainment
display.
.PressTorSto adjust
lumbar forward or rearward.
.Pressyorzto adjust
lumbar up or down.
Bolster Support
To adjust bolster support,
if equipped:
.Rotate the center of the
control to scroll to bolster
support on the infotainment
display.
.PressTorSto adjust the
bolster outward or inward.
Massage
If equipped, the vehicle must
be on to use the massage
feature.
To activate and adjust
massage:
.Rotate the center of the
control to scroll to massage
on the infotainment display.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
42 Seats and Restraints
.Pressyorzto adjust
massage type.
.TorSto adjust the
intensity.
.To turn massage off or to
activate massage at last
massage type and intensity
settings, press the center of
the control.
The massage feature will turn
off after approximately
20 minutes. Press the center
of the control to restart the
massage feature.
Memory Seats
Overview
If equipped, the memory seat
feature allows drivers to save
their unique driving positions
and a shared exit position. See
“Saving Seating Positions”
later in this section. The saved
positions can be recalled
manually by all drivers. See
“Manually Recalling Seating
Positions” later in this section.
Drivers with remote key 1 and
2 can also recall them
automatically. See “Auto Seat
Entry Memory Recall” or“Auto
Seat Exit Memory Recall” later
in this section. To enable
automatic recalls, turn on Seat
Entry Memory and/or Seat
Exit Memory. See “Enabling
Automatic Recalls” later in this
section. The memory recalls
may be cancelled at any time
during the recall. See “Cancel
Memory Seating Recalls” later
in this section. Identifying Driver Number
The vehicle identifies the
current driver by their remote
key number 1–8. The current
remote key number may be
identified by Driver
Information Center (DIC)
welcome message,
“You are
driver x for memory recalls.”
This message is displayed the
first few times the vehicle is
turned on when a different
remote key is used. For Seat
Entry Memory to work
properly, save positions to the
1 or 2 memory button
matching the driver number of
this welcome message. To aid
in identifying remote key IDs, it
is recommended to only carry
one remote key when entering
the vehicle. Perform the
following if the welcome
message is not displayed:
1. Move all remote keys away from the vehicle.
2. Turn the vehicle on with another remote key. A DIC
welcome message should

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Seats and Restraints 43
display indicating the driver
number of the other remote
key. Turn the vehicle off and
remove the other remote
key from the vehicle.
3. Turn the vehicle on with the initial remote key. The DIC
welcome message should
display the driver number of
the initial remote key.
Saving Seating Positions
Read these instructions
completely before saving
memory positions.
To save preferred driving
positions to 1 and 2: 1. Turn the vehicle on. A DIC welcome message may
indicate the driver number
of the current remote key.
See “Identifying Driver
Number” previously in this
section.
2. Adjust all available memory features to the desired
driving position.
3. Press and release SET; a chime will sound. 4. Immediately upon releasing
SET, press and hold
memory button 1 or
2 matching the current
driver’s remote key number
until two chimes sound.
If too much time passes
between releasing SET and
pressing 1 or 2, the two
chimes will not sound
indicating memory position
were not saved. Repeat
Steps 3 and 4 to try again.
5. Repeat Steps 1–4 for the other remote key 1 or 2
using the other 1 or
2 memory button.
It is recommended to save the
preferred driving positions to
both 1 and 2 if you are the only
driver.
To save the common exit
seating position to
Bthat is
used by all drivers for
Manually Recalling Seating
Positions and Auto Seat Exit
Memory Recall features,
repeat Steps 1–4 using
B, the
exit button. Manually Recalling Seating
Positions
Press and hold 1, 2, or
B
button until the recall is
complete, to recall the
positions previously saved to
that button.
Manual Memory recall
movement for 1, 2 or
B
buttons may be initiated and
will complete to the saved
memory position if the vehicle
is in or out of P (Park).
Enabling Automatic Recalls
.Seat Entry Memory moves
the driver seat to the
selected 1 or 2 position when
the vehicle is started. Select
Settings > Vehicle > Seating
Position > Seat Entry
Memory > ON or OFF. See
“Auto Seat Entry Memory
Recall”
later in this section.
.Seat Exit Memory moves the
driver seat to the preferred
exit position of the
Bbutton
when the vehicle is turned
off and the door is opened.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
44 Seats and Restraints
Select Settings > Vehicle >
Seating Position > Seat Exit
Memory > ON or OFF. See
“Auto Seat Exit Memory
Recall”later in this section.
Auto Seat Entry Memory
Recall
Seat Entry Memory will
automatically begin movement
to the seating positions of the
1 or 2 button corresponding to
the driver’s remote key
number 1 or 2 detected by the
vehicle when:
.The vehicle is turned ON.
.Seating positions have been
previously saved to the
same 1 or 2 button. See
“Saving Seating Positions”
previously in this section.
.Seat Entry Memory is
enabled. See “Enabling
Automatic Recalls”
previously in this section.
.The vehicle is in P (Park). Seat Entry Memory Recall will
continue if the vehicle is
shifted out of P (Park) prior to
reaching the saved memory
position.
If the saved memory seat
position does not
automatically recall, verify the
recall is enabled. See
“Enabling
Automatic Recalls” previously
in this section.
If the memory seat recalls to
the wrong position, the
driver’s remote key number 1
or 2 may not match the
memory button number
positions they were saved to.
Try the other remote key or
try saving the positions to the
other 1 or 2 memory button.
See “Saving Seating Positions”
previously in this section.
Automatic Seat Entry Memory
recalls are only available for
driver’s remote key numbers
1 and 2. Remote keys 3–8 will
not provide Seat Entry
Memory recalls. If equipped with Remote Auto
Parking, the seat will
automatically move to the
seating position saved to the 1
or 2 button corresponding to
the driver's remote key
number 1 or 2 after leaving a
parking space when you have
entered the vehicle, closed the
driver door, and applied the
brake pedal. See Automatic
Parking Assist (APA)
0262.
Auto Seat Exit Memory
Recall
Seat Exit Memory will begin
movement to the seating
position of the
B
button when:
.The vehicle is turned off and
the driver door is open or
opened within a short time.
.A seating position has been
previously been saved to the
Bmemory button. See
“Saving Seating Positions”
previously in this section.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Seats and Restraints 45
.Seat Exit Memory is enabled.
See“Enabling Automatic
Recalls” previously in this
section.
.The vehicle is in P (Park).
Seat Exit Memory recall will
continue if the vehicle is
shifted out of P (Park) prior to
reaching the saved memory
position.
Seat Exit Memory is not linked
to the driver’s remote key. The
seating position saved to
Bis
used for all drivers.
If equipped with Remote Auto
Parking, the seat will
automatically move to the
seating position saved to
B
after entering a parking space
when APA is activated, the
vehicle in is P (Park), and the
driver door is opened. See
Automatic Parking Assist
(APA) 0262.
Cancel Memory Seating
Recalls
.During any memory recall:
Press a power seat control Press SET memory button
.During Manual memory
recall:
Release 1, 2, or
Bmemory
button
.During Auto Seat Entry
Memory Recall:
Turn the vehicle off
Press SET, 1, 2, or
B
memory buttons
.During Auto Seat Exit
Memory Recall:
Press SET, 1, 2, or
B
memory buttons
Obstructions
If something has blocked the
seat while recalling a memory
position, the recall may stop.
Remove the obstruction and
try the recall again. If the
memory position still does not
recall, see your dealer.
Heated and
Ventilated Front
Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. To reduce the
risk of burns, use care when
using the seat heater,
especially for long periods of
time. Do not place anything
on the seat that insulates
against heat, such as a
blanket, cushion, cover,
or similar item. This may
cause the seat heater to
overheat. An overheated
seat heater may cause a
burn or may damage
the seat.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
46 Seats and Restraints

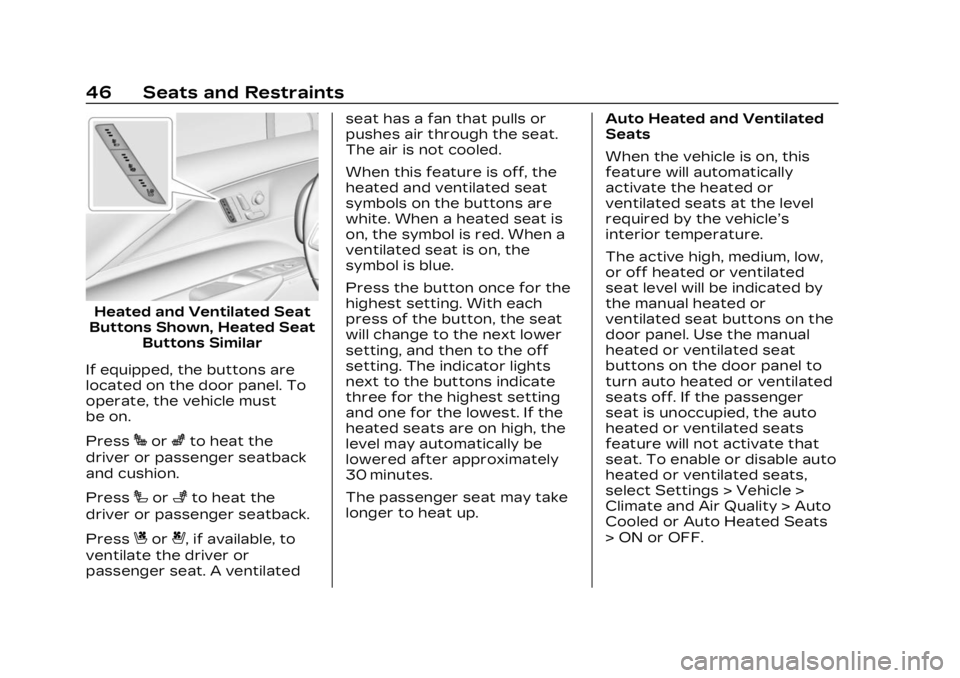

Heated and Ventilated Seat
Buttons Shown, Heated Seat Buttons Similar
If equipped, the buttons are
located on the door panel. To
operate, the vehicle must
be on.
Press
Jorzto heat the
driver or passenger seatback
and cushion.
Press
Ior+to heat the
driver or passenger seatback.
Press
Cor{, if available, to
ventilate the driver or
passenger seat. A ventilated seat has a fan that pulls or
pushes air through the seat.
The air is not cooled.
When this feature is off, the
heated and ventilated seat
symbols on the buttons are
white. When a heated seat is
on, the symbol is red. When a
ventilated seat is on, the
symbol is blue.
Press the button once for the
highest setting. With each
press of the button, the seat
will change to the next lower
setting, and then to the off
setting. The indicator lights
next to the buttons indicate
three for the highest setting
and one for the lowest. If the
heated seats are on high, the
level may automatically be
lowered after approximately
30 minutes.
The passenger seat may take
longer to heat up.
Auto Heated and Ventilated
Seats
When the vehicle is on, this
feature will automatically
activate the heated or
ventilated seats at the level
required by the vehicle’s
interior temperature.
The active high, medium, low,
or off heated or ventilated
seat level will be indicated by
the manual heated or
ventilated seat buttons on the
door panel. Use the manual
heated or ventilated seat
buttons on the door panel to
turn auto heated or ventilated
seats off. If the passenger
seat is unoccupied, the auto
heated or ventilated seats
feature will not activate that
seat. To enable or disable auto
heated or ventilated seats,
select Settings > Vehicle >
Climate and Air Quality > Auto
Cooled or Auto Heated Seats
> ON or OFF.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Seats and Restraints 47
Remote Start Heated and
Ventilated Seats
During a remote start, the
heated or ventilated seats,
if equipped, can be turned on
automatically. When it is cold
outside, the heated seats turn
on, and when it is hot outside
the ventilated seats turn on.
If the auto heated or
ventilated seats feature,
if equipped, is not turned on,
the heated or ventilated seats
may be canceled when the
vehicle is turned on.
If necessary, press the heated
or ventilated seat button to
use the heated or ventilated
seats after the vehicle is
started.
The heated or ventilated seat
indicator lights may turn on
during a remote start.
The temperature performance
of an unoccupied seat may be
reduced. This is normal.
To enable or disable remote
start heated or ventilated
seats, select Settings >Vehicle > Remote Lock,
Unlock, and Start > Remote
Start Auto Heat Seats or
Remote Start Auto Cool Seats
> ON or OFF. See Remote
Start
015.
Rear Seats
Rear Seat Reminder
The message REAR SEAT
REMINDER LOOK IN REAR
SEAT displays under certain
conditions indicating there
may be an item or passenger
in the rear seat. Check before
exiting the vehicle.
This feature will activate when
a second row door is opened
while the vehicle is on or up to
10 minutes before the vehicle
is turned on. There will be an
alert when the vehicle is
turned off. The alert does not
directly detect objects in the
rear seat; instead, under
certain conditions, it detects
when a rear door is opened and closed, indicating that
there may be something in the
rear seat.
The feature is active only once
each time the vehicle is turned
on and off, and will require
reactivation by opening and
closing the second row doors.
There may be an alert even
when there is nothing in the
rear seat; for example, if a
child entered the vehicle
through the rear door and left
the vehicle without the vehicle
being shut off.
The feature can be turned on
or off. Select Settings > Rear
Seat Reminder > ON or OFF.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
48 Seats and Restraints
Reclining the Seatback
To recline the seatback:
1. Pull the reclining seatbackhandle.
A tab near the seatback
handle raises when the
seatback is unlocked.
2. Move the seatback to the desired position, and then
release the handle to lock
the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.
Folding the Seatback
Either side of the seatback
can be folded for more cargo
space. Fold a seatback only
when the vehicle is not
moving.
Caution
Folding a rear seat with the
seat belts still fastened may
cause damage to the seat or
the seat belts. Always
unbuckle the seat belts and
return them to their normal
stowed position before
folding a rear seat. To fold the seatback:
1. Pull the handle on top of the
seatback to unlock it.
2. Fold the seatback forward. Repeat the steps to fold the
other seatback, if desired.
Raising the Seatback
{Warning
If either seatback is not
locked, it could move
forward in a sudden stop or
crash. That could cause
injury to the person sitting (Continued)

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Seats and Restraints 49
Warning (Continued)
there. Always push and pull
on the seatbacks to be sure
they are locked.
{Warning
A seat belt that is
improperly routed, not
properly attached,
or twisted will not provide
the protection needed in a
crash. The person wearing
the belt could be seriously
injured. After raising the rear
seatback, always check to
be sure that the seat belts
are properly routed and
attached, and are not
twisted.
To raise a seatback: 1. Lift the seatback up and push it rearward to lock it in
place. A tab near the seatback
handle retracts when the
seatback is locked in place.
2. Push and pull the top of the seatback to be sure it is
locked into position.
3. Repeat the steps to raise the other seatback,
if necessary.
When the seat is not in use, it
should be kept in the upright,
locked position.
Folding the Second Row
Seats from the
Cargo Area
To fold the seat from the
cargo area, if equipped: 1. Make sure that there is nothing under, in front of,
or on the seat.
2. Press the switch on the side trim of the cargo area to
fold the second row
seatback.
The left switch folds the left
seatback, and the right
switch folds the right
seatback.
Heated Rear Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. See the
Warning under Heated and
Ventilated Front Seats 045.
