CADILLAC SEVILLE 1993 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine USING F0AM;TYPE CLEANER ON FDMC
0
0
0
0
0 0
0
0
0
0

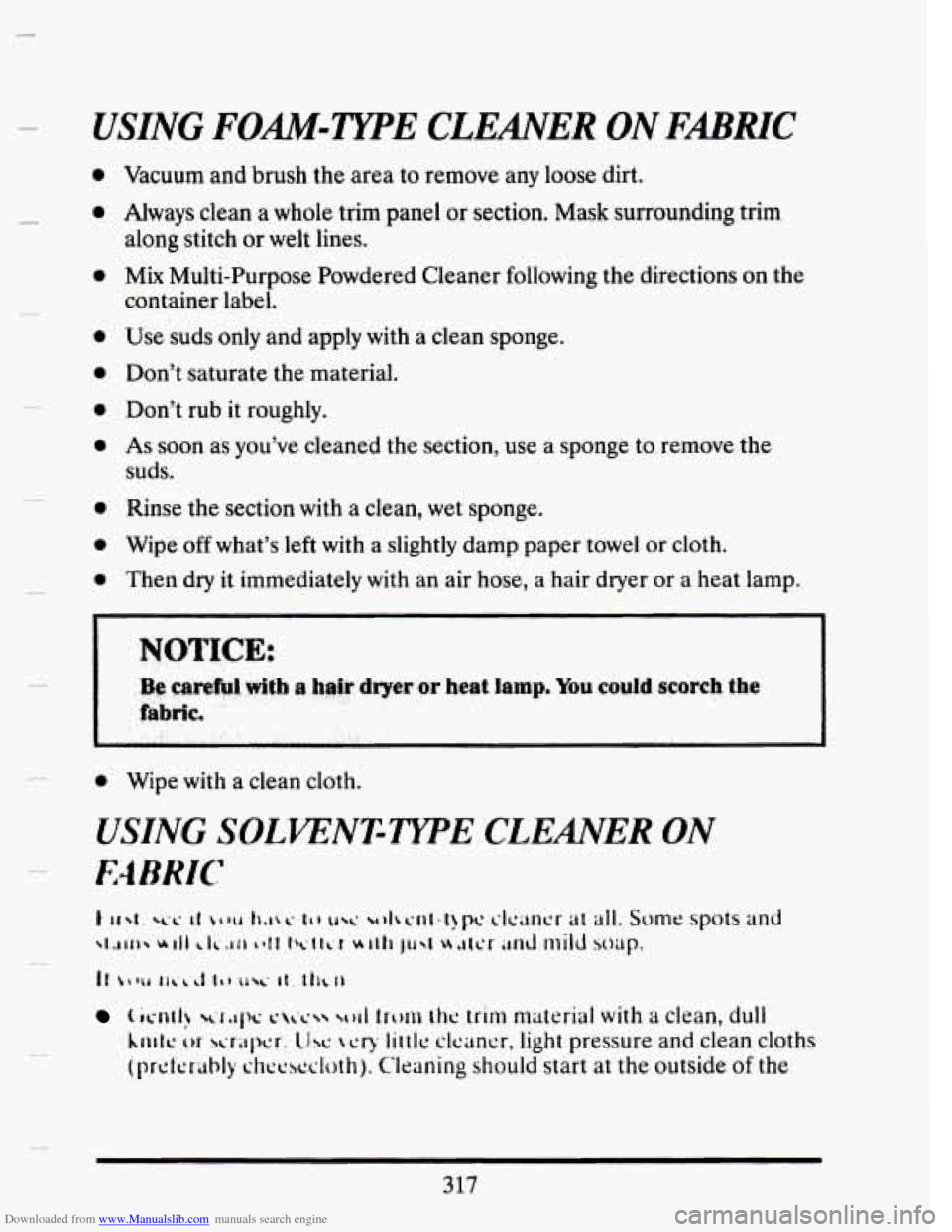

Vacuum and brush the area to remove any loose dirt.
Always clean
a whole trim panel or section. Mask surrounding trim
along stitch or welt lines.
Mix Multi-Purpose Powdered Cleaner following the directions on the
container label.
Use suds
only and apply with a clean sponge.
Don't saturate the material.
Don't rub it roughly.
As soon as you've cleaned the section, use a sponge to remove the
suds.
Rinse the section with a clean, wet sponge.
Wipe off what's
left with a slightly damp paper towel or cloth.
Then
dry it immediately with an air hose, a hair dryer or a heat lamp.
__ 0 Wipe with a clean cloth.
USING SOLVENT-TYPE CLEANER ON
~CII~I) u'r.ipc' CW\ WII !rem rhc trim material with a clean, dull
htc or 3cr;lpcr. lhc wry little cleaner, light pressure and clean cloths
(prclcrably checsccloth). Cleaning should start at the outside of the
317

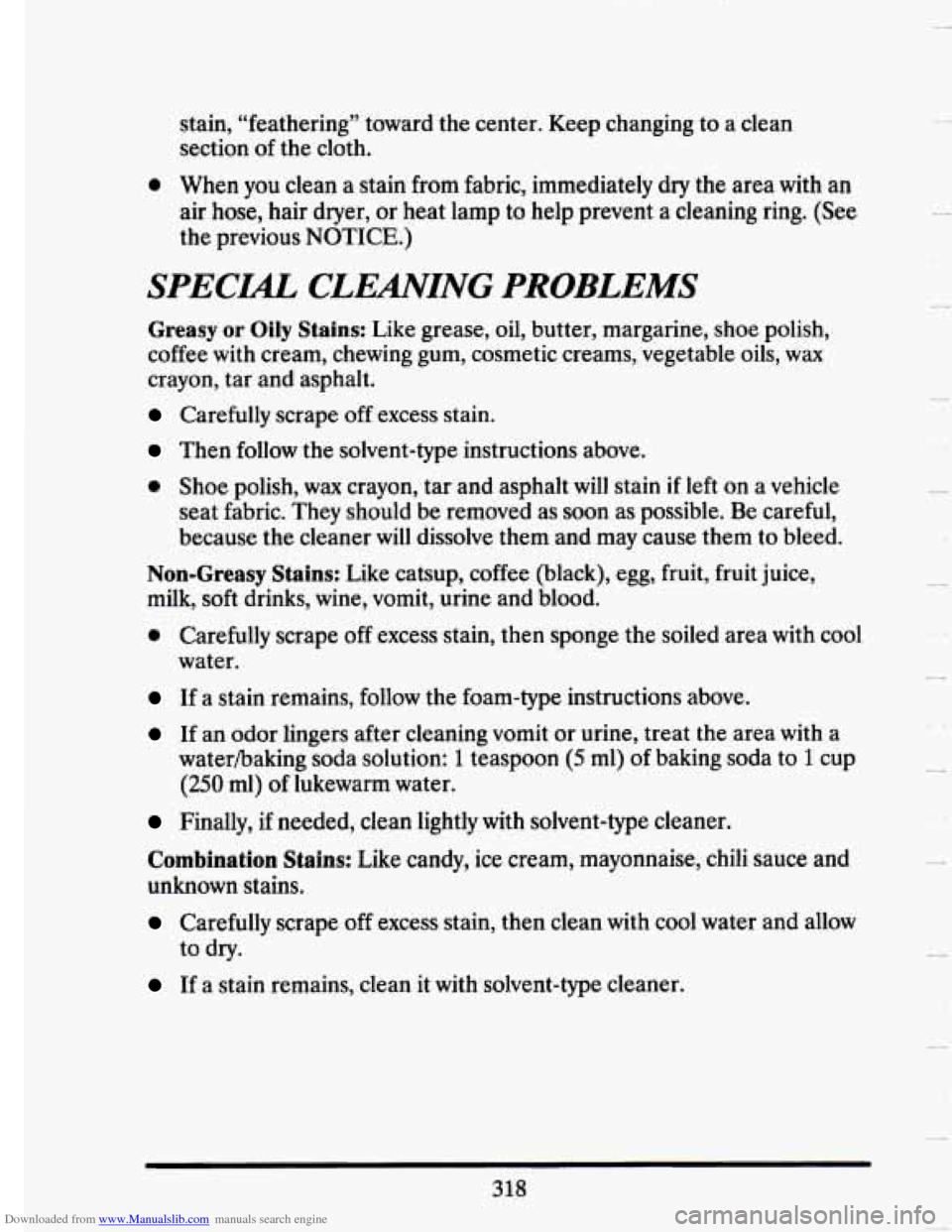

Downloaded from www.Manualslib.com manuals search engine stain, “feathering” toward the center. Keep changing to a clean
section of the cloth.
0 When you clean a stain from fabric, immediately dry the area with an
air hose, hair dryer, or heat lamp to help prevent a cleaning ring. (See
the previous
NOTICE.)
-
SPECIAL CLEANING PROBLEMS
Greasy or Oily Stains: Like grease, oil, butter, margarine, shoe polish,
coffee
with cream, chewing gum, cosmetic creams, vegetable oils, wax
crayon, tar and asphalt.
Carefully scrape off excess stain.
Then follow the solvent-type instructions above.
0 Shoe polish, wax crayon, tar and asphalt will stain if left on a vehicle
seat fabric. They should be removed
as soon as possible. Be careful,
because the cleaner will dissolve them and may cause them to bleed.
Non-Greasy Stains: Like catsup, coffee (black), egg, fruit, fruit juice,
milk, soft drinks, wine, vomit, urine and blood.
0 Carefully scrape off excess stain, then sponge the soiled area with cool
water.
If a stain remains, follow the foam-type instructions above.
If an odor lingers after cleaning vomit or urine, treat the area with a
waterbaking soda solution:
1 teaspoon (5 ml) of baking soda to 1 cup
(250 ml) of lukewarm water.
Finally, if needed, clean lightly with solvent-type cleaner.
Combination Stains: Like candy, ice cream, mayonnaise, chili sauce and
unknown stains.
Carefully scrape off excess stain, then clean with cool water and allow
If a stain remains, clean it with solvent-type cleaner.
to
dry.
318
Y
3

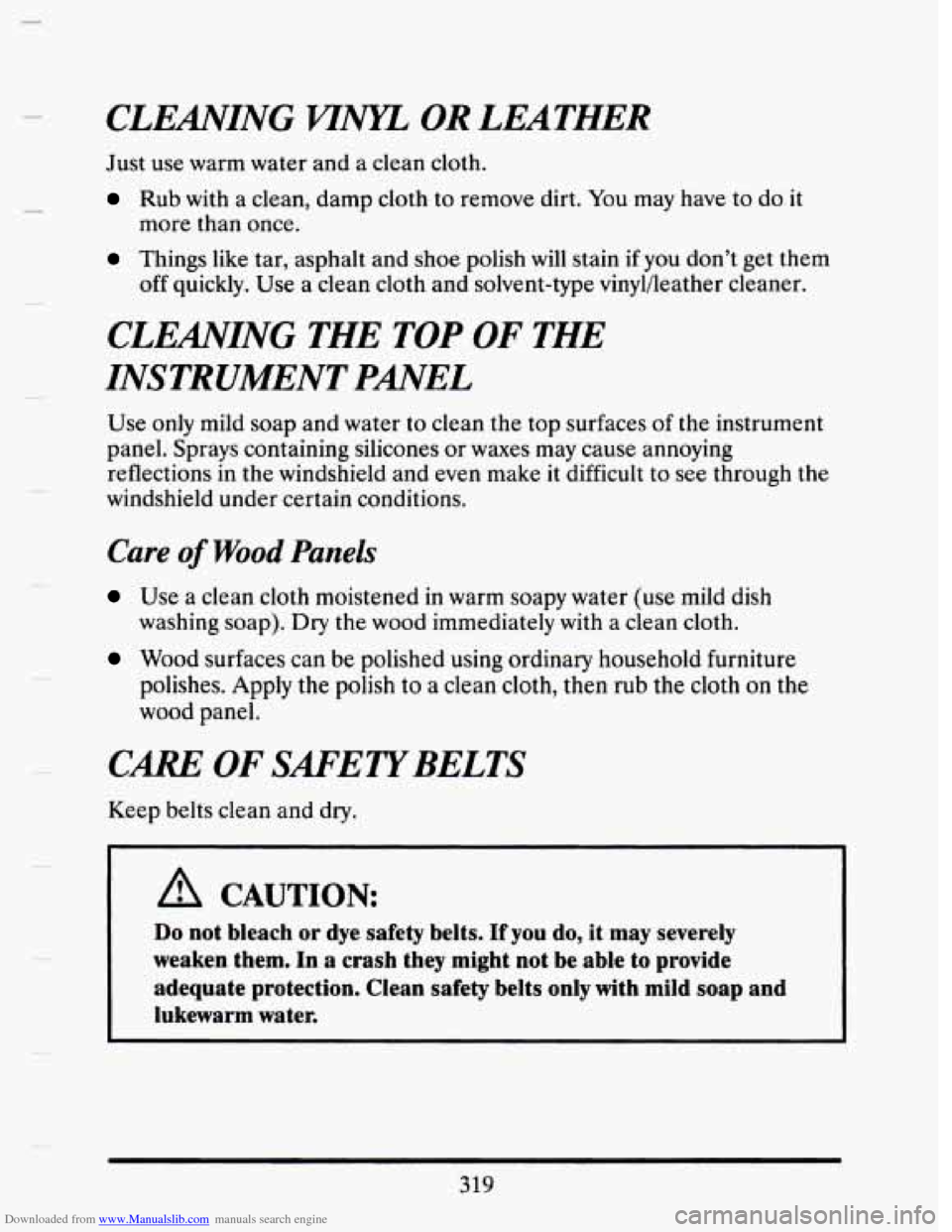

Downloaded from www.Manualslib.com manuals search engine CLENVING WNIZ OR LEATHER
Just use warm water and a clean cloth.
Rub with a clean, damp cloth to remove dirt. You may have to do it
more than once.
Things like tar, asphalt and shoe polish will stain if you don’t get them
off quickly. Use a clean cloth and solvent-type vinyl/leather cleaner.
CLEANING THE TOP OF THE
INSTRUMENT PmEL
Use only mild soap and water to clean the top surfaces of the instrument
panel. Sprays containing silicones
or waxes may cause annoying
reflections in the windshield and even make it difficult to see through the
windshield under certain conditions.
Care of Wood Panels
Use a clean cloth moistened in warm soapy water (use mild dish
washing soap).
Dry the wood immediately with a clean cloth.
Wood surfaces can be polished using ordinary household furniture
polishes. Apply the
polish to a clean cloth, then rub the cloth on the
wood panel.
CARE OF SAFETYBELTS
Keep belts clean and dry.
A CAUTION:
Do not bleach or dye safety belts. If you do, it may severely
weaken them.
In a crash they might not be able to provide
adequate protection. Clean safety belts only with mild soap and
lukewarm water.
319

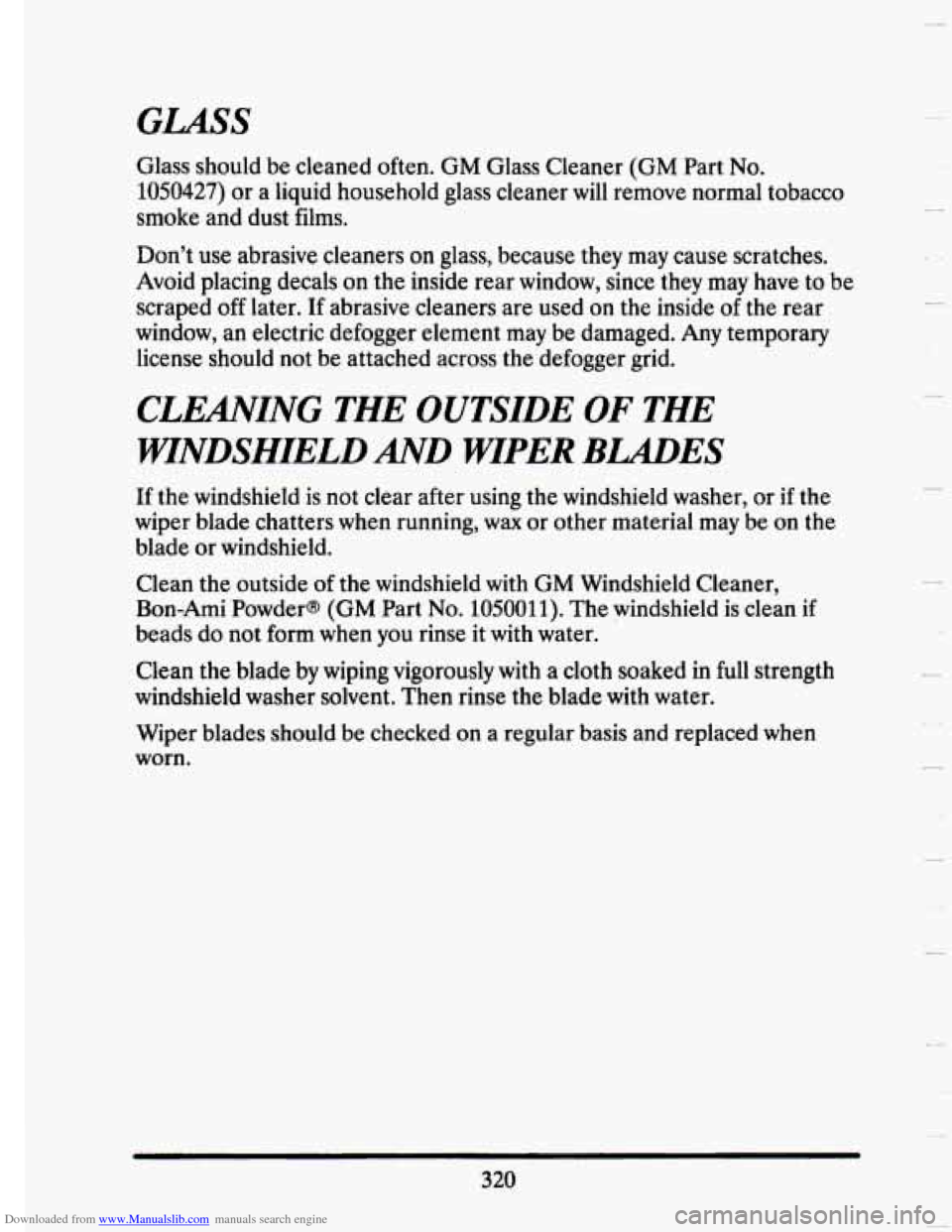

Downloaded from www.Manualslib.com manuals search engine GLASS
Glass should be cleaned often. GM Glass Cleaner (GM Part No.
1050427) or a liquid household glass cleaner will remove normal tobacco
smoke and dust films.
Don’t use abrasive cleaners
on glass, because they may cause scratches.
Avoid placing decals
on the inside rear window, since they may have to be
scraped
off later. If abrasive cleaners are used on the inside of the rear
window, an electric defogger element may be damaged. Any temporary
license should not be attached across the defogger grid.
CLEANING THE OUTSIDE OF THE
WINDSHIELD AND
WIPER BLADES
If the windshield is not clear after using the windshield washer, or if the
wiper blade chatters when running,
wax or other material may be on the
blade or windshield.
Clean the outside
of the windshield with GM Windshield Cleaner,
Bon-Ami Powders (GM Part No. 1050011). The windshield is clean if
beads do not form when you rinse it with water.
Clean the blade by wiping vigorously with a cloth soaked in
full strength
windshield washer solvent. Then rinse the blade with water.
Wiper blades should be checked
on a regular basis and replaced when
worn.
320

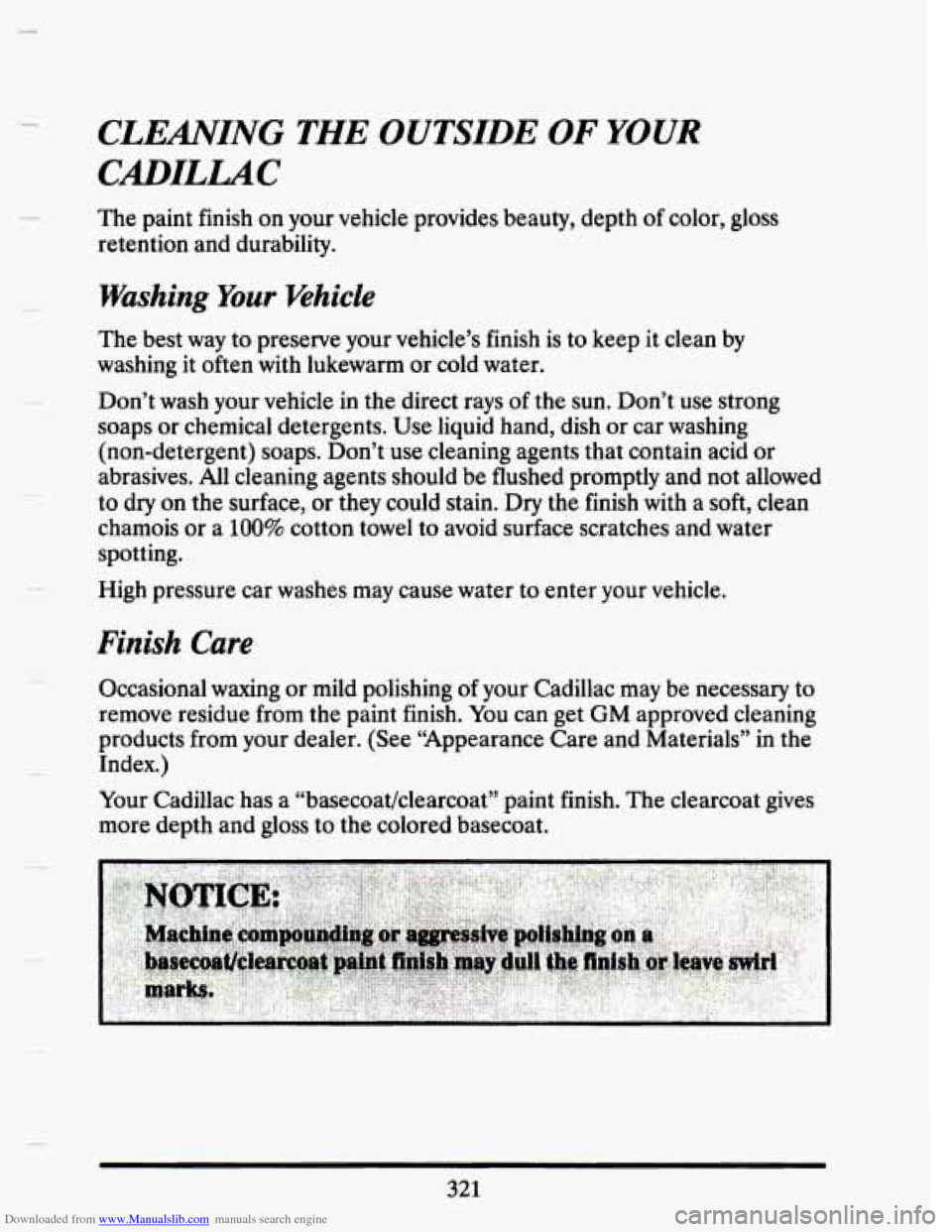

Downloaded from www.Manualslib.com manuals search engine CLEMING THE OUTSIDE OF YOUR
CXDILUC
The paint finish on your vehicle provides beauty, depth of color, gloss
retention and durability.
Washing Your Vehicle
The best way to preserve your vehicle’s finish is to keep it clean by
washing it often with lukewarm or cold water.
Don’t wash your vehicle in the direct rays of the sun. Don’t use strong
soaps or chemical detergents. Use liquid hand, dish or car washing
(non-detergent) soaps. Don’t use cleaning agents that contain acid or
abrasives. All cleaning agents should be flushed promptly and not allowed
to dry on the surface, or they could stain. Dry the finish with a soft, clean
chamois or a
100% cotton towel to avoid surface scratches and water
spotting.
High pressure car washes may cause water to enter your vehicle.
Finish Care
Occasional waxing or mild polishing of your Cadillac may be necessary to
remove residue from the paint finish. You can get GM approved cleaning
products from your dealer. (See “Appearance Care and Materials” in the
Index.)
Your Cadillac has a “basecoat/clearcoat” paint finish. The clearcoat gives
more depth and gloss to the colored basecoat.
321

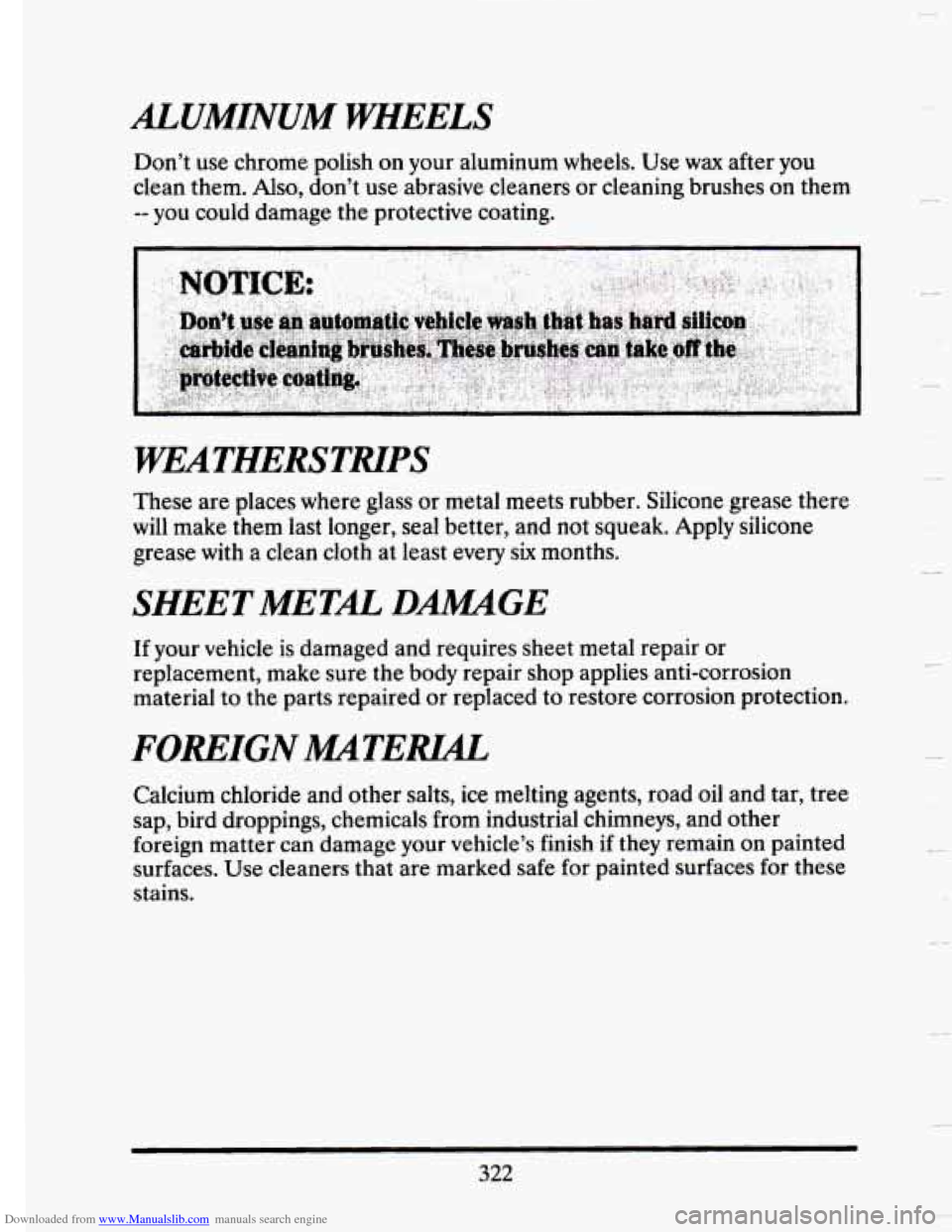

Downloaded from www.Manualslib.com manuals search engine ALUMINUM WHEELS
Don’t use chrome polish on your aluminum wheels. Use wax after you
clean them.
Also, don’t use abrasive cleaners or cleaning brushes on them
-- you could damage the protective coating.
WEATHERSTMPS
c
These are places where glass or metal meets rubber. Silicone grease there
will make them last longer, seal better, and not squeak. Apply silicone
grease
with a clean cloth at least every six months.
SHEET METAL DAlMAGE
If your vehicle is damaged and requires sheet metal repair or
replacement, make sure the body repair shop applies anti-corrosion
material to the parts repaired or replaced to restore corrosion protection.
FOREIGNIMATERUL,
Calcium chloride and other salts, ice melting agents, road oil and tar, tree
sap, bird droppings, chemicals from industrial chimneys, and other
foreign matter can damage your vehicle’s finish
if they remain on painted
surfaces.
Use cleaners that are marked safe for painted surfaces for these
stains.
322

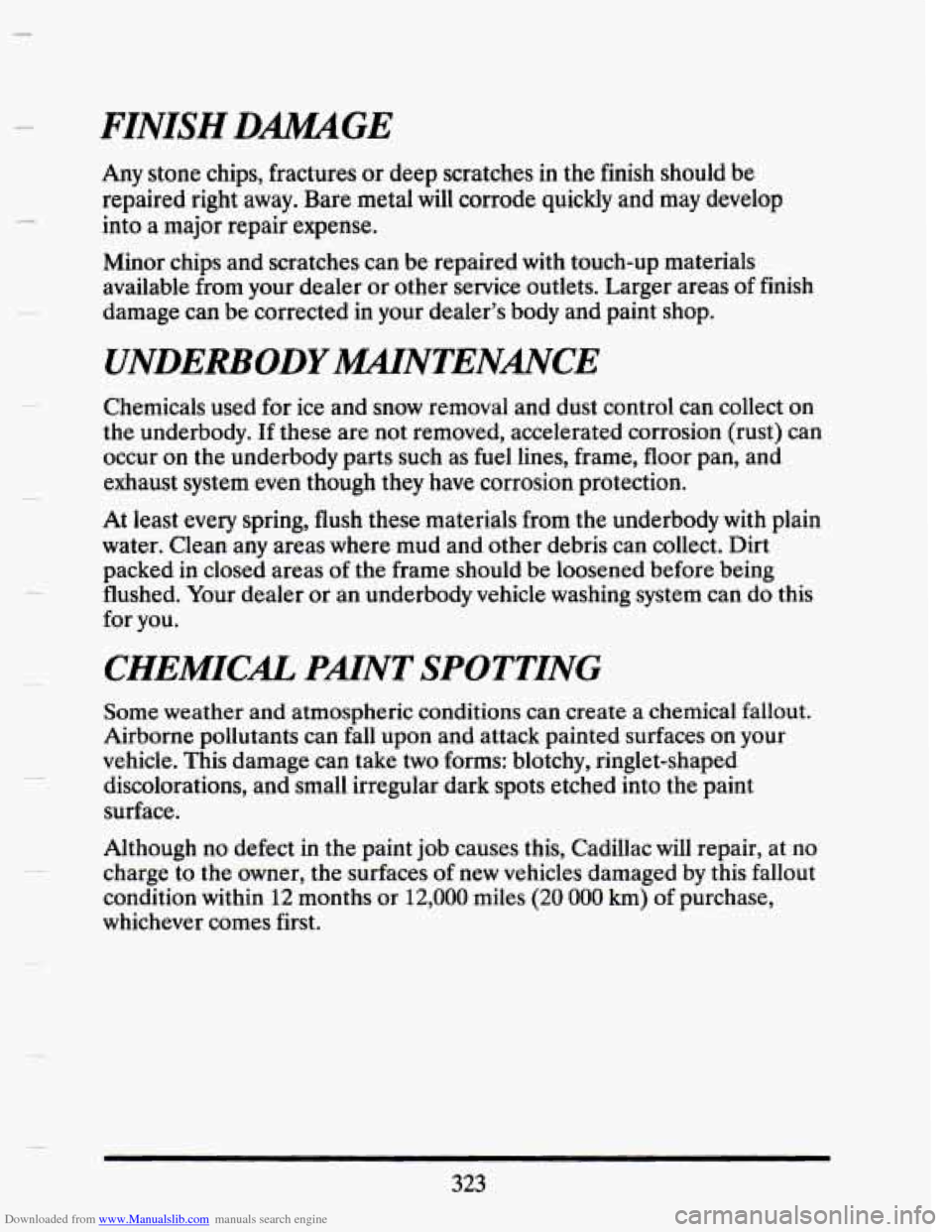

Downloaded from www.Manualslib.com manuals search engine FINISH DMGE
Any stone chips, fractures or deep scratches in the finish should be
repaired right away. Bare metal will corrode quickly and may develop
into
a major repair expense.
Minor chips and scratches can be repaired with touch-up materials
available from your dealer or other service outlets. Larger areas
of finish
damage can be corrected in your dealer’s body and paint shop.
UNDERBODY2MAINTENANCE
Chemicals used for ice and snow removal and dust control can collect on
the underbody. If these are not removed, accelerated corrosion (rust) can
occur
on the underbody parts such as fuel lines, frame, floor pan, and
exhaust system even though they have corrosion protection.
At least
every spring, flush these materials from the underbody with plain
water. Clean any areas where mud and other debris can collect. Dirt
packed
in closed areas of the frame should be loosened before being
flushed. Your dealer or an underbody vehicle washing system can do this
for you.
CHEMICAL PMNT SPOTTING
Some weather and atmospheric conditions can create a chemical fallout.
Airborne pollutants can fall upon and attack painted surfaces on your
vehicle. This damage can take
two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into the paint
surface.
Although no defect in the paint job causes this, Cadillac will repair, at no
charge
to the owner, the surfaces of new vehicles damaged by this fallout
condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever comes first.
323

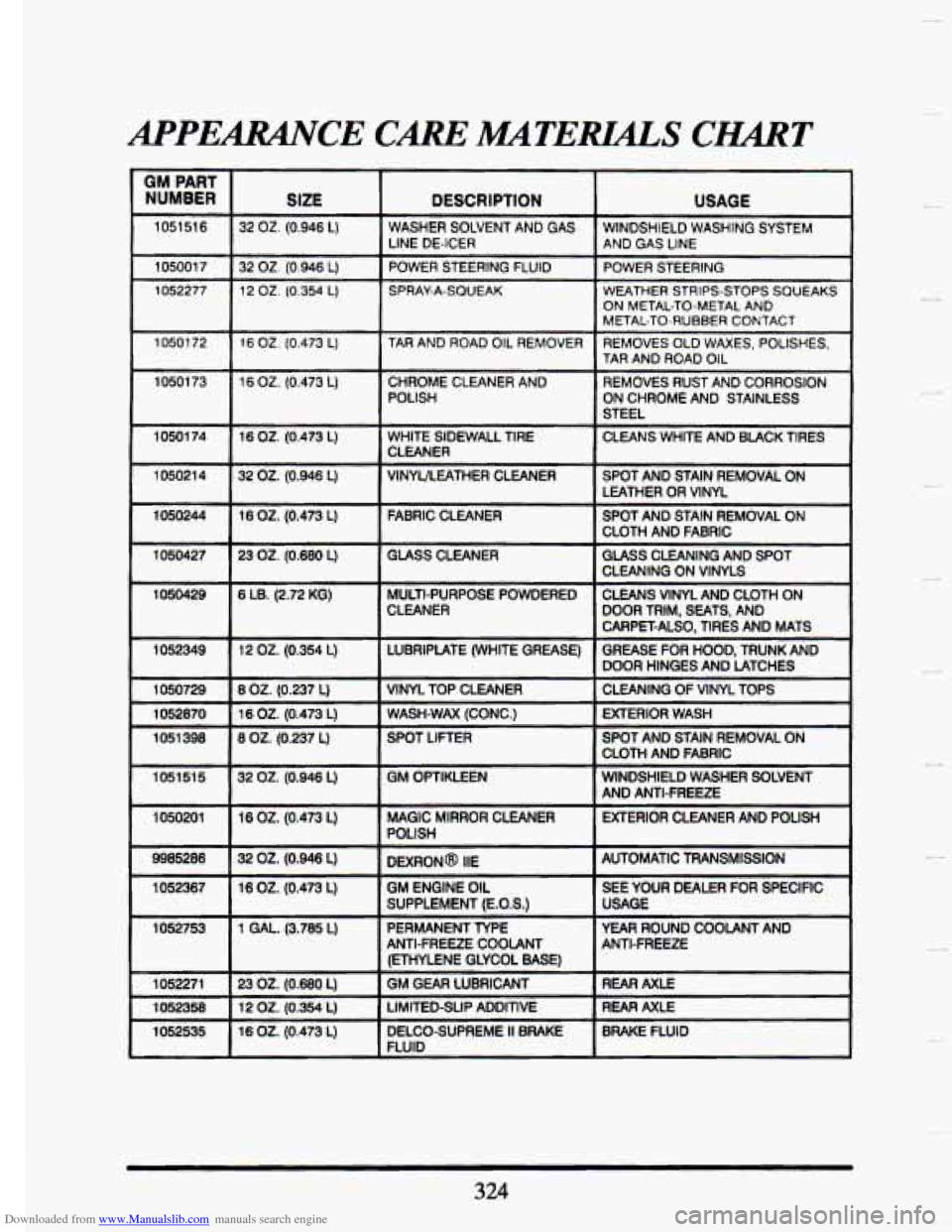

Downloaded from www.Manualslib.com manuals search engine MPERACE CAREIMATERL4LS ClYART
NUMBER
I 1050017 I 32 OZ. 10.946 Ll
1052277 12 02. (0.354 L)
10501 72 16 02. (0.473 L)
1050173 16 02. (0.473 L)
10501 74
32
OZ. (0.946 L) 1050214 16
OZ. (0.473 L)
1050244
6
LB. (2.72 KG) 1050429 23
02. (0.660 L) 1050427 16
OZ. (0.473 L)
1052349
8 OZ. (0.237 L) 1050729 12
02. (0.354 L)
+
1052870 16 OZ. (0.473 L)
1051
398 8 OZ. (0.237 L)
1 105151 5 I 32 02. (0.946 L)
+
1052367 16 02. (0.473 L)
1052753 1 GAL. (3.785 L)
1052271 I 23 02. (0.680 L)
1052358 I 12 OZ. 10.354 LI
I 1052535 I 16 OZ. (0.473 L)
DESCRIPTION
WASHER SOLVENT AND GAS
LINE DE-ICER
POWER STEERING FLUID SPRAY-A-SQUEAK
TAR AND ROAD OIL REMOVER
USAGE
WINDSHIELD WASHING SYSTEM AND GASCINE
POWER STEERING
WEATHER STRIPS-STOPS SQUEAKS ON METAL-TO-METAL AND METAL-TO-RUBBER CONTACT
REMOVES OLD WAXES, POLISHES,
I TAR AND ROAD OIL
CHROME CLEANER AND
I REMOVES RUST AND CORROSION
POLISH ON CHROMEAND STAINLESS I STEEL
WHITE SIDEWALL TIRE CLEANS WHITE AND BLACK TIRES
CLEANER
VINYULEATHER CLEANER
SPOT AND STAIN REMOVAL
ON FABRIC CLEANER SPOT AND STAIN REMOVAL
ON
. ___
LEATHER OR VINYL
CLOTH AND FABRIC
I
GLASS CLEANER I GLASS CLEANING AND SPOT I CLEANING ON VINYLS
MULTI-PURPOSE POWDERED
I CLEANS VINYL AND CLOTH ON
CLEANER
I DOOR TRIM, SEATS, AND
CARPET-ALSO. TIRES AND MATS
DOOR HINGES AND LATCHES
WASH-WAX (CONC.) EXTERIOR WASH
I CLOTH AND FABRIC
GM OPTIKLEEN
f WINDSHIELD WASHER SOLVENT
MAGIC MIRROR CLEANER
POLISH AND ANTI~FREEZE
EXTERIOR CLEANER AND POLISH
I
DEXRONQ HE I AUTOMATIC TRANSMISSION
GM ENGINE OIL
(ETHYLENE GLYCOL BASE) ANTI-FREEZE
ANTI-FREEZE COOLANT
YEAR ROUND COOLANT AND PERMANENT TYPE
USAGE
SUPPLEMENT (E.O.S.) SEE YOUR DEALER
FOR SPECIFIC
GM GEAR LUBRICANT
REAR AXLE
LIMITEDSLIP ADDITIVE I REAR AXLE
DELCO-SUPREME II BRAKE I BRAKE FLUID
324
I

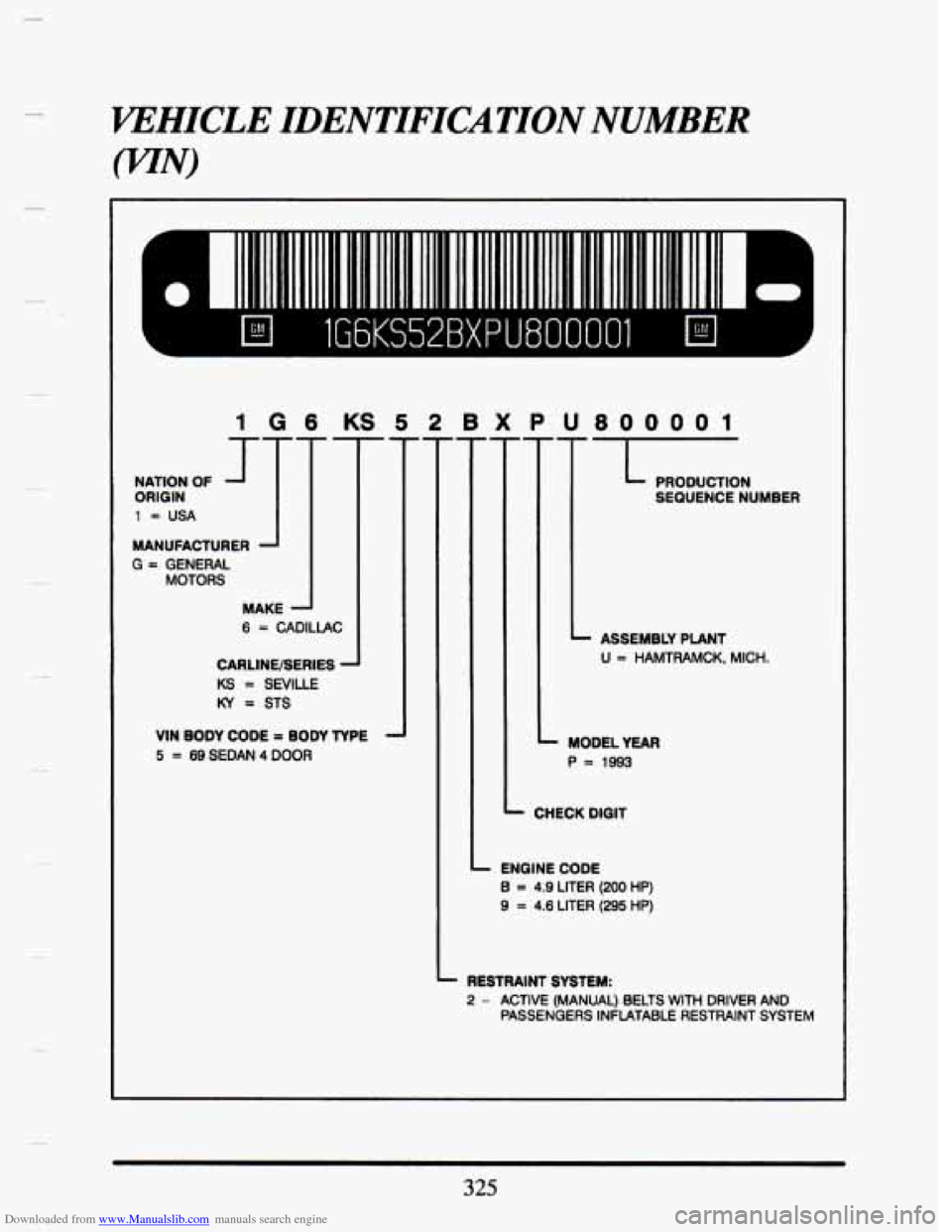

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION NUMBER
EI lG6KS52BXPU800001 EI
1G 6 KS 5 2 BX P U800001
G = GENERAL
MOTORS
6 = CADILLAC
CARLINE/SERIES
KS = SEVILLE
KY = STS
VIN BODY CODE
= BODY TYPE -
5 = 69 SEDAN 4 DOOR
PRODUCTION
SEQUENCE NUMBER
ASSEMBLY PLANT U
= HAMTRAMCK, MICH.
- MODELYEAR
P = 1993
- CHECK DIGIT
- ENGINE CODE
B
= 4.9 LITER (200 HP)
9 = 4.6 LITER (295 HP)
- RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH DRIVER AND
PASSENGERS INFLATABLE RESTRAINT SYSTEM
325

Downloaded from www.Manualslib.com manuals search engine This is the legal identifier for your Cadillac. It appears on a plate in the

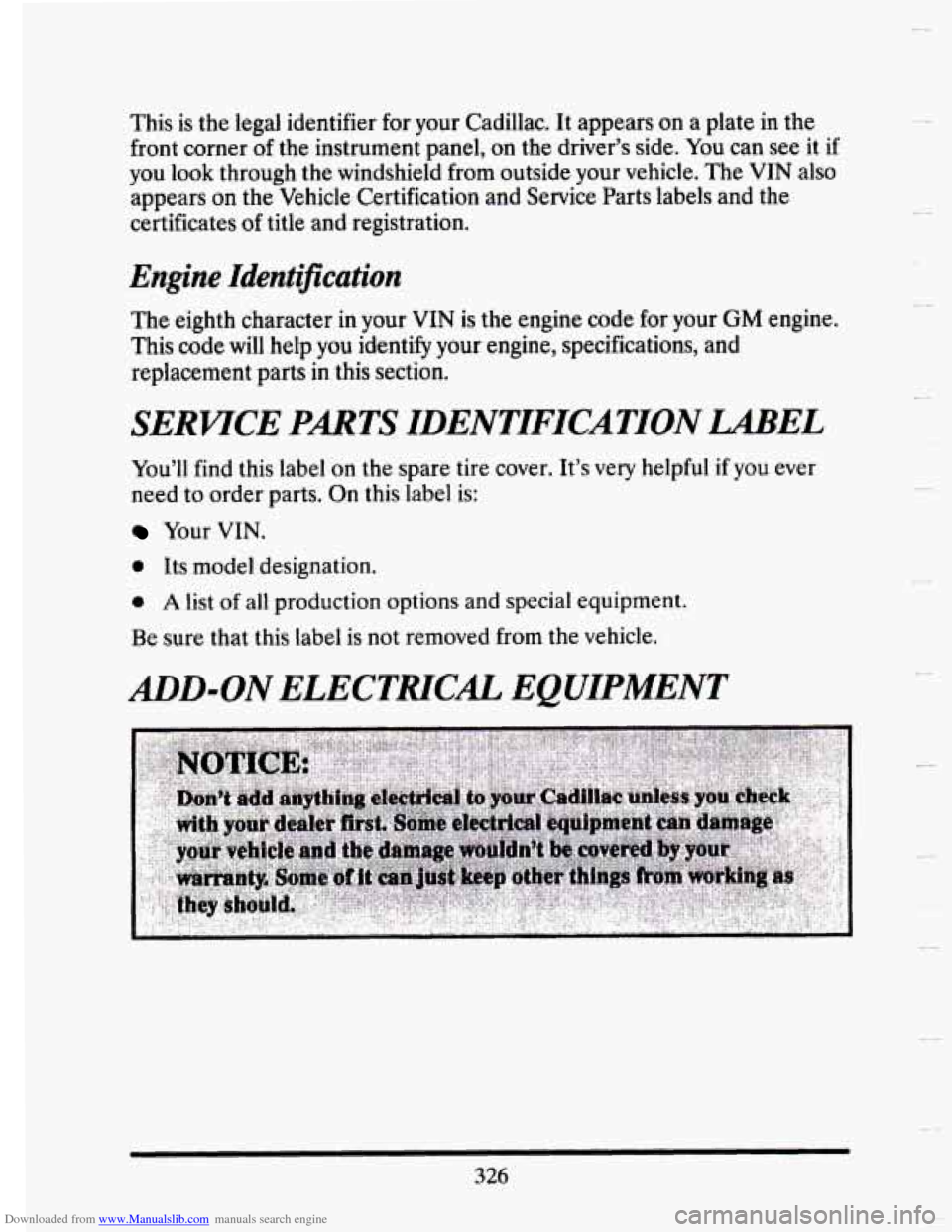

front corner
of the instrument panel, on the driver’s side. You can see it if
you look through the windshield from outside your vehicle. The VIN also
appears
on the Vehicle Certification and Service Parts labels and the
certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code for your GM engine.
This code will help
you identify your engine, specifications, and
replacement
parts in this section.
SERWCE PARTS IDENTIFICATION LABEL
You’ll find this label on the spare tire cover. It’s very helpful if you ever
need to order parts. On this label is:
Your VIN.
0 Its model designation.
0 A list of all production options and special equipment.
Be sure that this label
is not removed from the vehicle.
ADD-ON ELECTRlcAL EQUIPMENT
326
