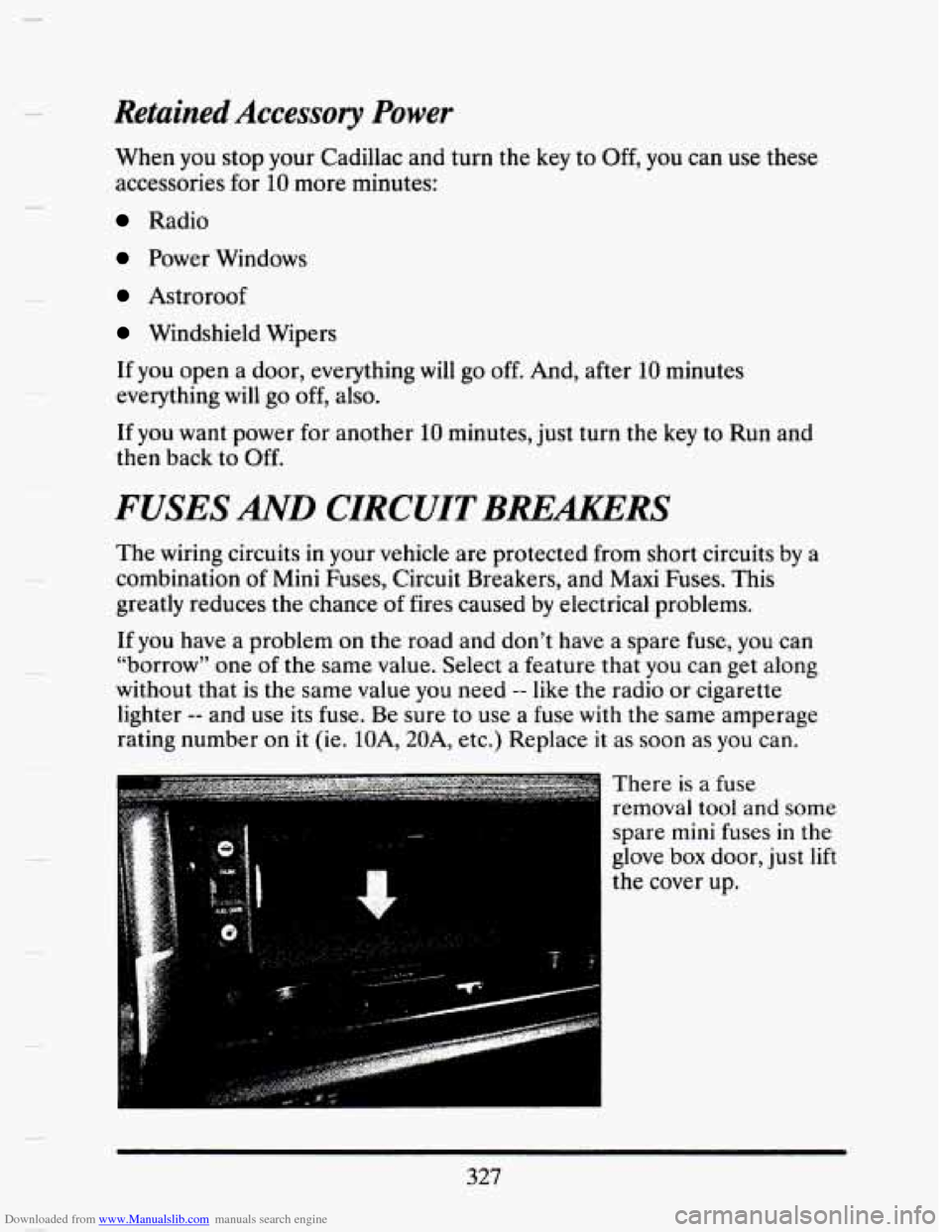

When you stop your Cadiliac and turn the key to Off, you can use these
accessories for
10 more minutes:
Radio
Power Windows
Astroroof
Windshield Wipers
If
you open a door, everything will go off. And, after 10 minutes
everything will go
off, also.
If you want power for another
10 minutes, just turn the key to Run and
then back to Off.
FUSES AlvD CIRCUIT BREAKERS
The wiring circuits in your vehicle are protected from short circuits by a
combination of Mini Fuses, Circuit Breakers, and Maxi Fuses. This
greatly reduces the chance
of fires caused by electrical problems.
If
you have a problem on the road and don’t have a spare fuse, you can
“borrow”
one of the same value. Select a feature that you can get along
without that is the same value
you need -- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
lOA, 20A, etc.) Replace it as soon as you can.
- There is a fuse
removal
tool and some
spare mini fuses in the
glove
box door, just lift
the cover up.
327

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block
.-- I---- -
Maxi Fuses/Relay Center

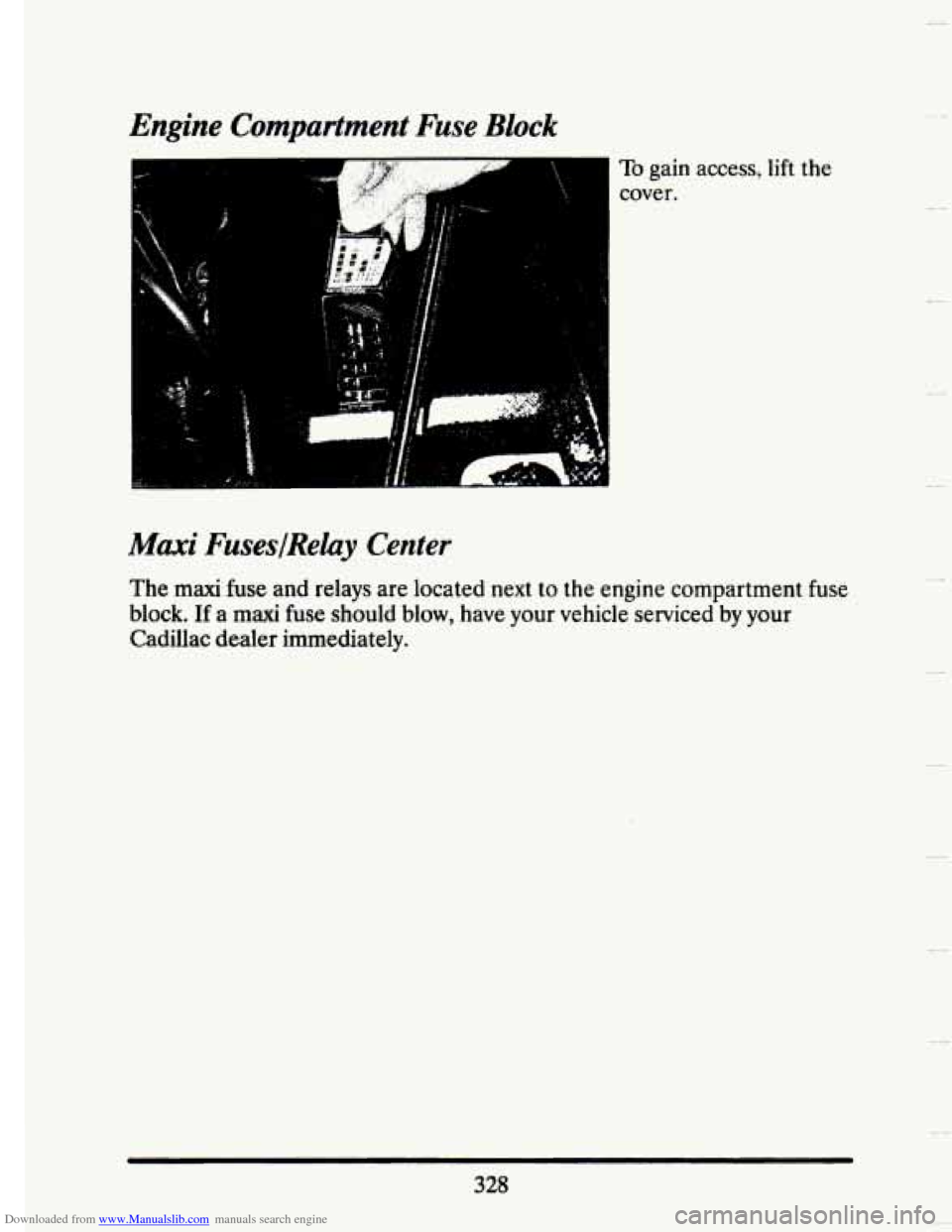

To gain access, lift the
cover.
The
maxi fuse and relays are located next to the engine compartment fuse
block.
If a maxi fuse should blow, have your vehicle serviced by your
Cadillac dealer immediately.
328

Downloaded from www.Manualslib.com manuals search engine c
P
___.__ HDIP Lo HDLP HI R H'C HI IGN 3 COOL FAN TRANSECS
i I

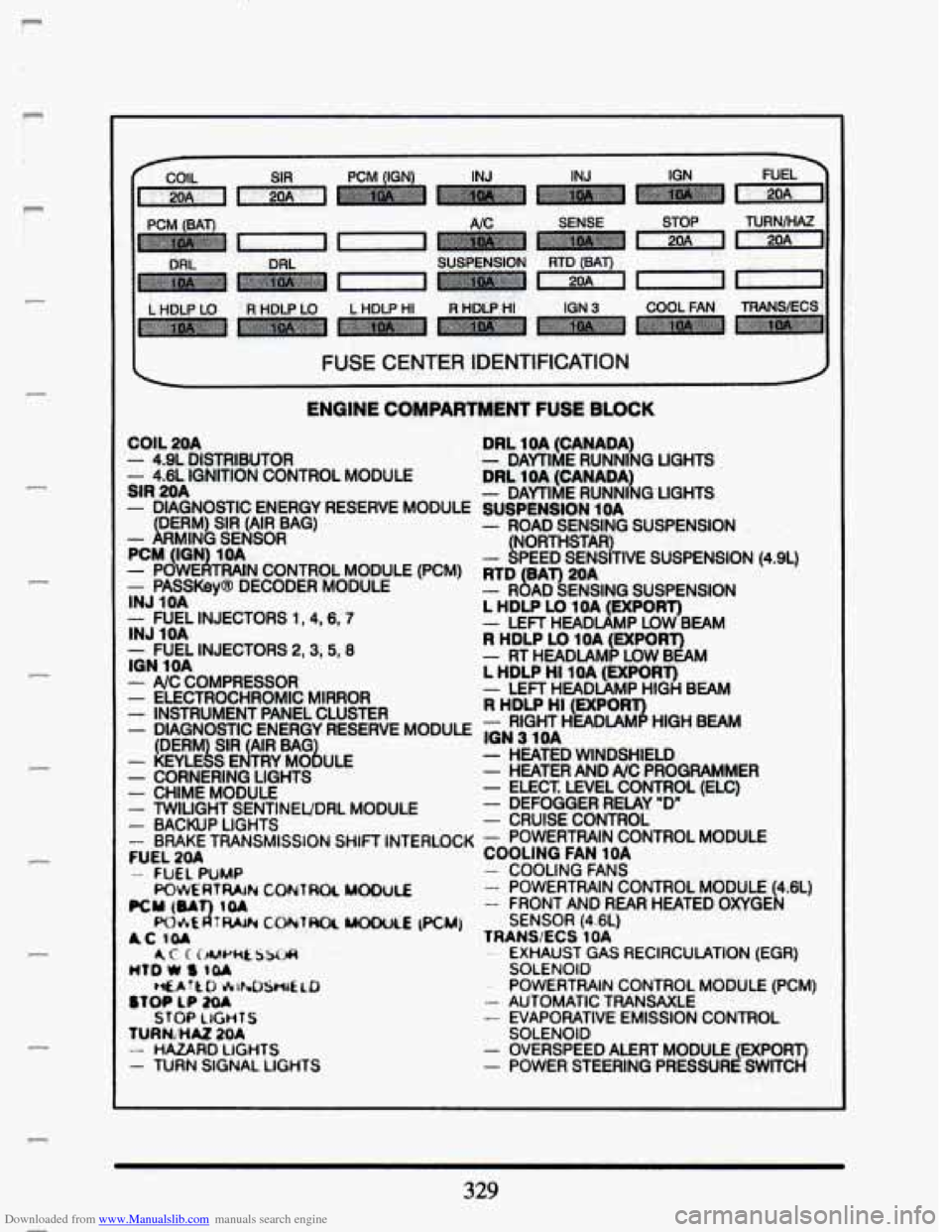

I FUSE CENTER IDENTIFICATION J
ENGINE COMPARTMENT FUSE BLOCK
COIL 20A - 4.9L DISTRIBUTOR - 4.6L IGNtTION CONTROL MODULE SIR 2OA
- DIAGNOSTIC ENERGY RESERVE - - - - - - -
LF4 DERM) SIR (AIR BAG) - MlNG SENSOR
PCM (IO 1.OA - POWE Y TRAIN CONTROL MODUL
INJ IOA - PASSKeyS DECODER MODULE MODULE
.E (PCM)
--FUEL INJECTORS 1,4,6,7 INJ 1OA - FUEL INJECTORS 2,3,5,8 ION 1OA - A/C COMPRESSOR - ELECTROCHROMIC MIRROR - INSTRUMENT PANEL CLUSTER - DIAGNOSTIC ENERGY RESERVE MODULE
- KEYLE &Pi S E TRY MO b ULE - CORNERING LIGHTS - CHIME MODULE - TWILIGHT SENTINEUDRL MODULE - BACKUP LIGHTS - BRAKE TRANSMISSION SHIFT INTERLOCK
- FUEL PUMP
(DERM SIR AIR BAG
FUEL
20A
PCU(&A IOA
AC IOI
MID W 8 101
$TOP LP ;Ku
fURNiHA2 20A
FQWERTWN CONTROL MOWlE
MI&€ a 7RAIFI CONTRO( uOMKE (PCM)
AC CCEUYellS3uA
HfArtO &NISH&AO
STOP LIGHTS
- HAZARD LIGHTS - TURN SIGNAL LIGHTS
DRL 1OA (CANADA)
DRL
10A (CANADA)
SUSPENSION 1OA
- DAYTIME RUNNING LIGHTS
- DAYTIME RUNNING LIGHTS
- ROAD SENSING SUSPENSION
- LNORTHSTW PEED SENSITIVE SUSPENSION (4.9L)
- R 6 AD SENSING SUSPENSION
- LEFT HEADIAMP LOW BEAM
- RT HEADLAMP LOW BEAM
- LEFT HEADIAMP HIGH BEAM
- RIGHT HEADIAMP HIGH BEAM
- HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER
- ELECT. LEVEL CONTROL (ELC) - DEFOGGER RELAY "D"
- CRUISE CONTROL
- POWERTRAIN CONTROL MODULE
- COOLING FANS
- POWERTRAIN CONTROL MODULE 4.6L)
- FRONT AND REAR HEATED OXYGE L
RTD BAT) 20A
L HDLP LO 1OA (EXPORT)
R HDLP LO 1OA (EXPORT)
L HDLP HI 1OA (EXPORT)
R HDLP HI (EXPORT)
ION 3 1OA
COOLING FAN 1OA
SENSOR (4.6L) TRANSIECS 1 OA
SOLENOID -- EXHAUST GAS RECIRCULATION (EGR)
- POWERTRAIN CONTROL MODULE (PCM) - AUTOMATIC TRANSAXLE - EVAPORATIVE EMISSION CONTROL
- OVERSPEED ALERT MODULE (EXPOR
- POWER STEERING PRESSURE SWITC 3
SOLENOID
329
I
F

Downloaded from www.Manualslib.com manuals search engine I
e
LH MAXI@ FUSE BLOCK
FUSE 1 (50 AMP)
- RETAINED ACCESSORY POWER (RADIOMIIPERS)
- STARTER
- TRUNK COMR FUSE AI 1
- ENGINE COME FUSES Al, A3, A5, A?, A9,
All,A13
FUSE 2 (60 AMP)
U.S.A./CANADA Z49lSAUDI
- TRUNK COMP FUSES C1, C3, C5, C7, C9, C11
- ROAD SENSING SUSPENSION FUSE 2 EXPORT EXCEPT SAUDI (Sa AMP)
- ROAD SENSING SUSPENSION
- REAR FOG LIGHT (EXPORT)
- TRUNK COMF! FUSES C1, C3, C5, C7, C9, Cll, C13
CIRCUIT BREAKER 3 (30 AMP)
- FUEL DOOR RELEASE
- TRUNK RELEASE
- LEFT AND RIGHT POWER SEAT
- LEFT AND RIGHT LUMBAR CONTROL
- KEYLESS ENTRY MODULE
- POWER DOOR LOCKS
- HORNS
FUSE 4 (30 AMP)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL
- RAPtIUUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASSWB DECODER MODULE
- THEFT DETERRENT
FUSE 5 (60 AMP)
- LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER
- LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP)
- RETAINED ACCESSORY POWER
(SUNROOFtPOWER WINDOWS)
- ENGINE COW FUSES C7, Dl, 03, D5
- TRUNK COW FUSES Al, A3, A5, A7
RH MAXI@ FUSE BLOCK
FUSE 1 (40 AMP)
- TURN/HAZ STOP LP
- PARK LIGHTS
FUSE 2 (30 AMP)
- DELCO-BOSE@ SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
CIRCUIT BREAKER 3 (30 AMP)
- FLASH TO PASS FEATURE
- DAYTIME RUNNING LIGHT (DRL)
- HEADLIGHTS
FUSE 4 (40 AMP) HAVAC BLOWER
- HVAC POWER MODULE
- A/C COMPRESSOR
FUSE 5 (SO AMP) ABS
FUSE
6 (50 AMP) COOLING FANS
- ANTILOCK BRAKE PRESSURE VALVE
- COOLING FANS
330

Downloaded from www.Manualslib.com manuals search engine Rear Compartment Fuse Block
'1
L

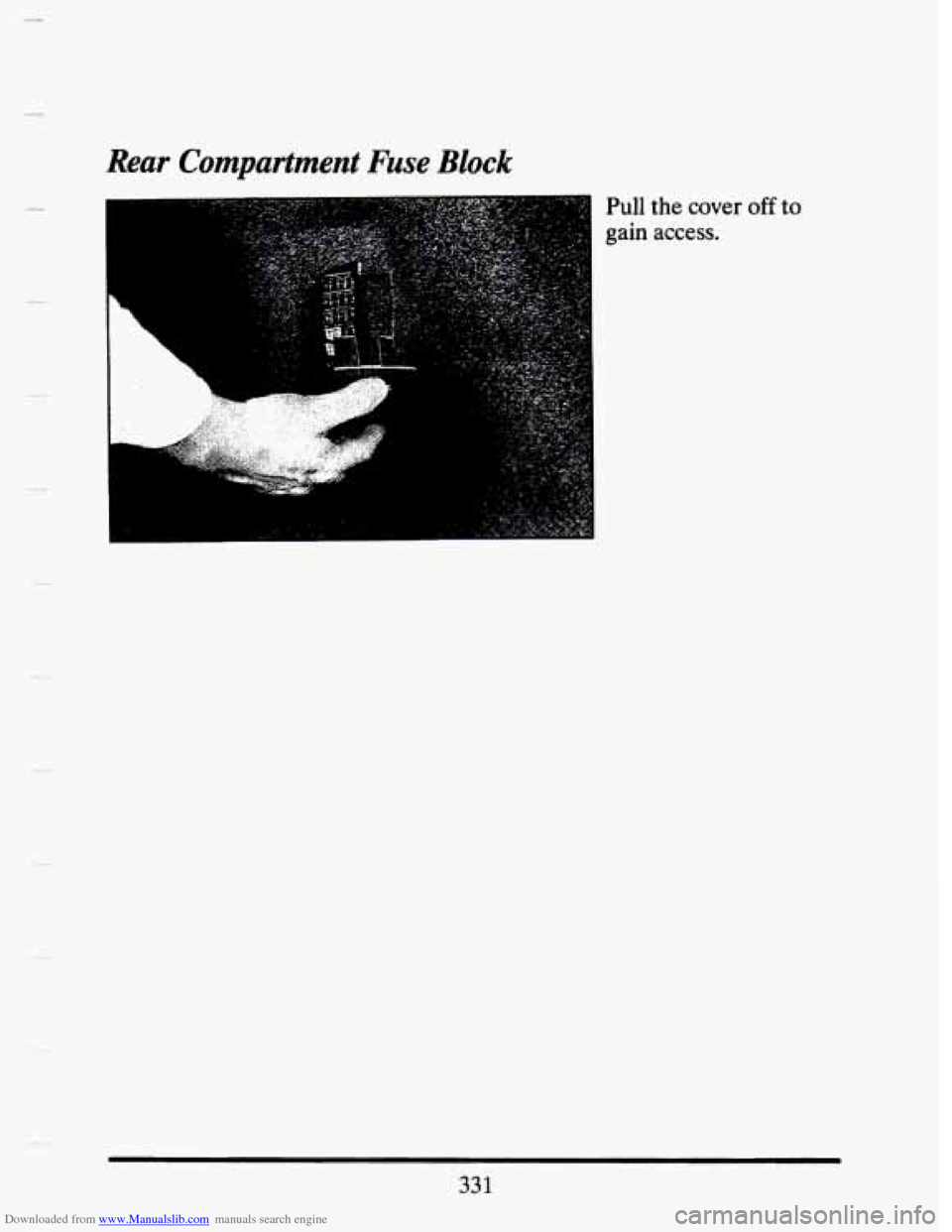

Pull the cover off to
gain access.
331

Downloaded from www.Manualslib.com manuals search engine L PRK LP R PRK LP R HTD SEAT L HTD S

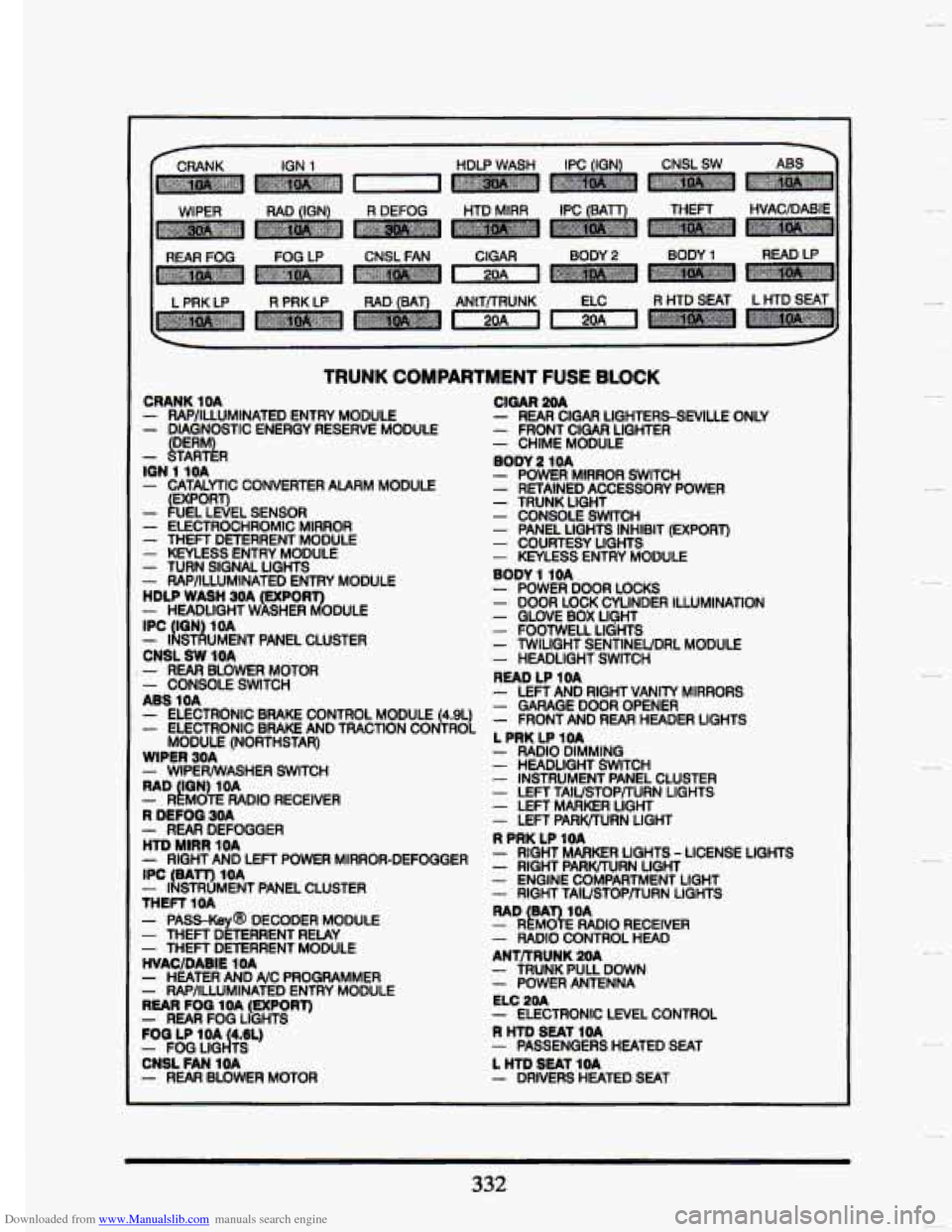

TRUNK COMPARTMENT FUSE BLOCK
CRANK 1OA - RAPIILLUMINATED ENTRY MODULE - DIAGNOSTIC ENERGY RESERVE MODULE
- L?.FTLR
IGN 3 IOA-. - CATALYTIC CONVERTER ALARM MODULE
- PPORT) UEL LEVEL SENSOR - ELECTROCHROMIC MIRROR - THEFT DETERRENT MODULE - KEYLESS ENTRY MODULE - TURN SIGNAL LIGHTS - RAP/ILLUMINATED ENTRY MODULE
- HEADLIGHTW k3 SHEA ODULE HDLP WASH 3OA EXPOR
IPC IGN 1OA
CNSL SW 1OA
- ILsdUMENT PANEL CLUSTER
. - REAR BLOWER MOTOR - CONSOLE SWITCH
- ELECTRONIC BRAKE CONTROL MODULE 4.9L) ABS 10A
- EECmONlC BRAKE AND mcmN CON(tROL
MODULE (NORTHSTAR)
WIPER 30A
RAD IGN) 1OA
R DEFOG 30A - REAR DEFOGGER HtD MIRR 1OA - RIGHT AND LEFT POWER MIRROR-DEFOGGER IPC BATT) 1OA
THEFT 1
OA
- WIPERWASHER SWITCH
- RLMOTE RADIO RECEIVER
- IhMENT PANEL CLUSTER
- PASS-ky@ DECODER MODULE - THEFT DETERRENT RELAY - THEFT DETERRENT MODULE HVACIDABIE 1 OA - HEATER AND NC PROGRAMMER - RAPALLUMINATED ENTRY MODULE REAR FOG 1 OA (EXPORT) - REAR FOG LIGHTS FOG LP 10A 4.6L)
CNSL FAN 1OA - FOG LIGk
- REAR BLOWER MOTOR
CIGAR 2OA - REAR CIGAR LIGHTERSSNILLE - FRONT CIGAR LIGHTER - CHIME MODULE
- POWER MIRROR SWITCH - RETAINED ACCESSORY POWER - TRUNK LIGHT - CONSOLE SWITCH - PANEL LIGHTS INHlBtT (EXPORT) - COURTESY UQHTS - KEYLESS ENTRY MODULE
BODY 2 1OA
ONLY
BODY 1 1OA - POWER DOOR LOCKS - DOOR LOCK CYLINDER ILLUMINATION - GLOVE BOX LIGHT - FOOTWELL LIGHTS - TWILIGHT SENTINEUDRL MODULE - HEADLIGHT SWITCH
- LEFT AND RIGHT VANITY MIRRORS - GARAGE DOOR OPENER - FRONT AND REAR HEADER LIGHTS
- RADIO DIMMING - HEADLIGHT SWITCH - INSTRUMENT PANEL CLUSTER - LEFT TAIUSTOPflURN LIGHTS - LEFT MARKER LIGHT - LEFT PARKITURN LIGHT
READ LP 1OA
L PRK LP 1OA
R PRK LP 1OA - RIGHT MARKER LIGHTS - LICENSE LIQI - RIGHT PARWTURN LIGHT - ENGINE COMPARTMENT LIGHT - RIGHT TAIUSTOP/TURN LIGHTS ITS
- REM& RADIO RECEIVER RAD EA 1OA
- RADIO CONTROL HEAD
ANTRRUNK
POA - TRUNK PULL DOWN - POWER ANTENNA
ELC
20A - ELECTRONIC LEVEL CONTROL
R HTD SEAT 1OA - PASSENGERS HEATED SEAT
L HTD SEAT 1OA - DRIVERS HEATED SEAT
332
I

Downloaded from www.Manualslib.com manuals search engine Headlights
i

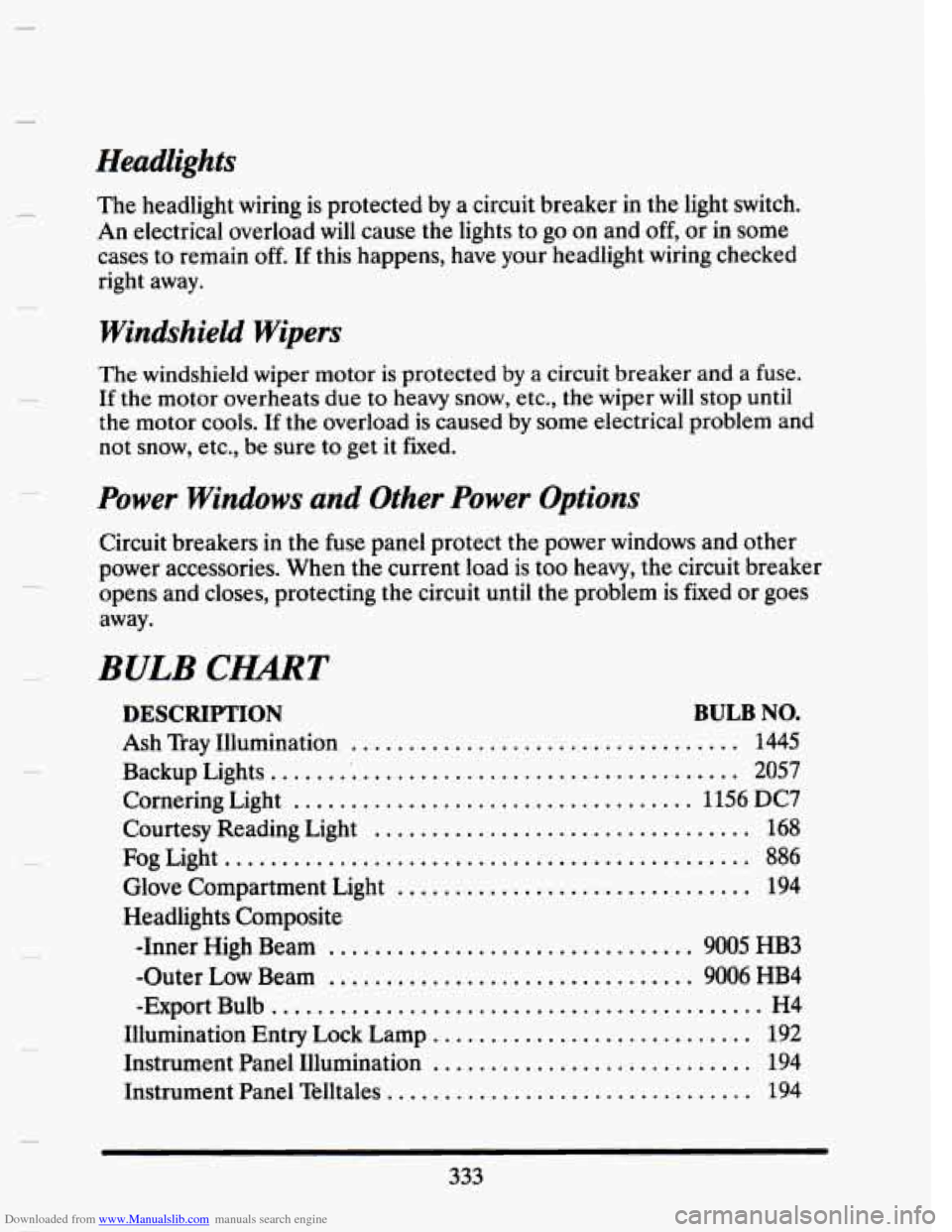

The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload will cause the lights to
go on and off, or in some
cases
to remain off. If this happens, have your headlight wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the motor overheats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload is caused by some electrical problem and
not snow, etc.,
be sure to get it fixed.
rower Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy, the circuit breaker
opens and closes, protecting the circuit until the problem is fixed or goes
away.
BULB CIT
DESCRIPTION BULB NO.
Ash Tray Illumination .................................. 1445
Backup Lights. ......................................... 2057
Cornering Light ................................... 1156 DC7
Courtesy Reading Light ................................. 168
Fog Light.. ............................................ 886
Glove Compartment Light ............................... 194
Headlights Composite
-Inner High Beam
................................ 9005 HB3
-Outer
Low Beam ................................ 9006 HB4
-Export Bulb ........................................... H4
Illumination Entry Lock Lamp ............................ 192
Instrument Panel Illumination ............................ 194
Instrument Panel Telltales ................................ 194
333

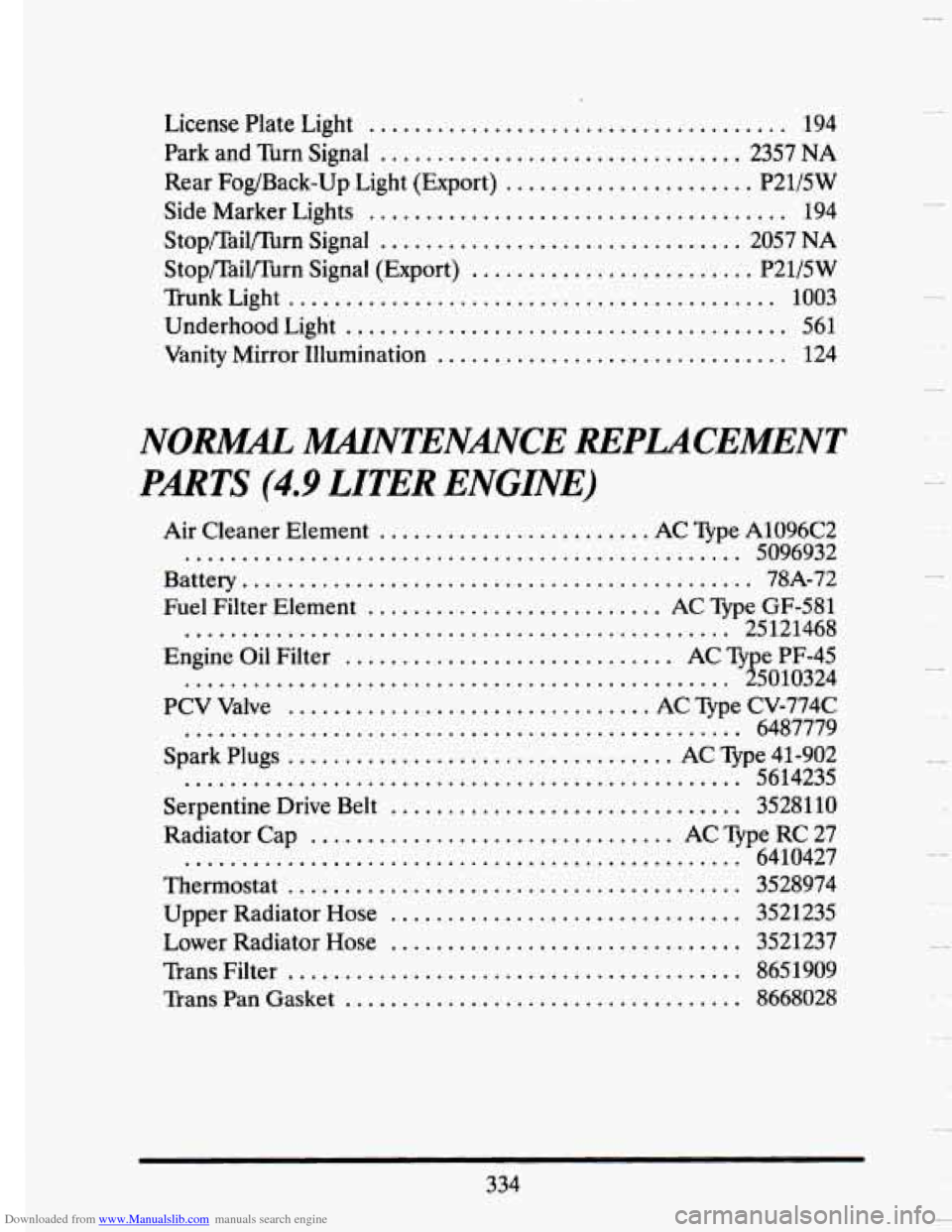

Downloaded from www.Manualslib.com manuals search engine License Plate Light ...................................... 194
Park and Tbrn Signal ................................ 2357 NA
Rear Fog/Back-Up Light (Export)
...................... P21/5W
Side Marker Lights ..................................... 194
StopmailPurn Signal ................................ 2057 NA
Stopmailmurn Signal (Export) ......................... P21/5W
Trunk Light ........................................... 1003
Underhood Light ....................................... 561
Vanity Mirror Illumination ............................... 124
NOR", IMANTENmCE REPLACEMENT
PARTS (4.9 LITER ENGINE)
Air Cleaner Element ........................ AC Type AlU96C2
................................................. 5096932
Batte ............................................... 78A-72
Fuel Filter Element .......................... AC Type GF-581
................................................ 25121468
Engine Oil Filter ............................. AC Ty e PF-45
PCV Valve ................................ AC Type CV-774C
................................................. 6487779
Spark Plugs .................................. AC Type 41-902
................................................. 5614235
Serpentine Drive Belt ............................... 3528110
Radiator Cap ................................ AC Type RC 27
................................................. 6410427
Thermostat ........................................ 3528974
Upper Radiator Hose ................................ 3521235
Lower Radiator Hose ............................... 3521237
Trans Filter ........................................ 8651909
TransPanGasket ................................... 8668028
................................................ f 5010324
334
Y

Downloaded from www.Manualslib.com manuals search engine .
.
.
.
.
.
.
.
.
.
.
.

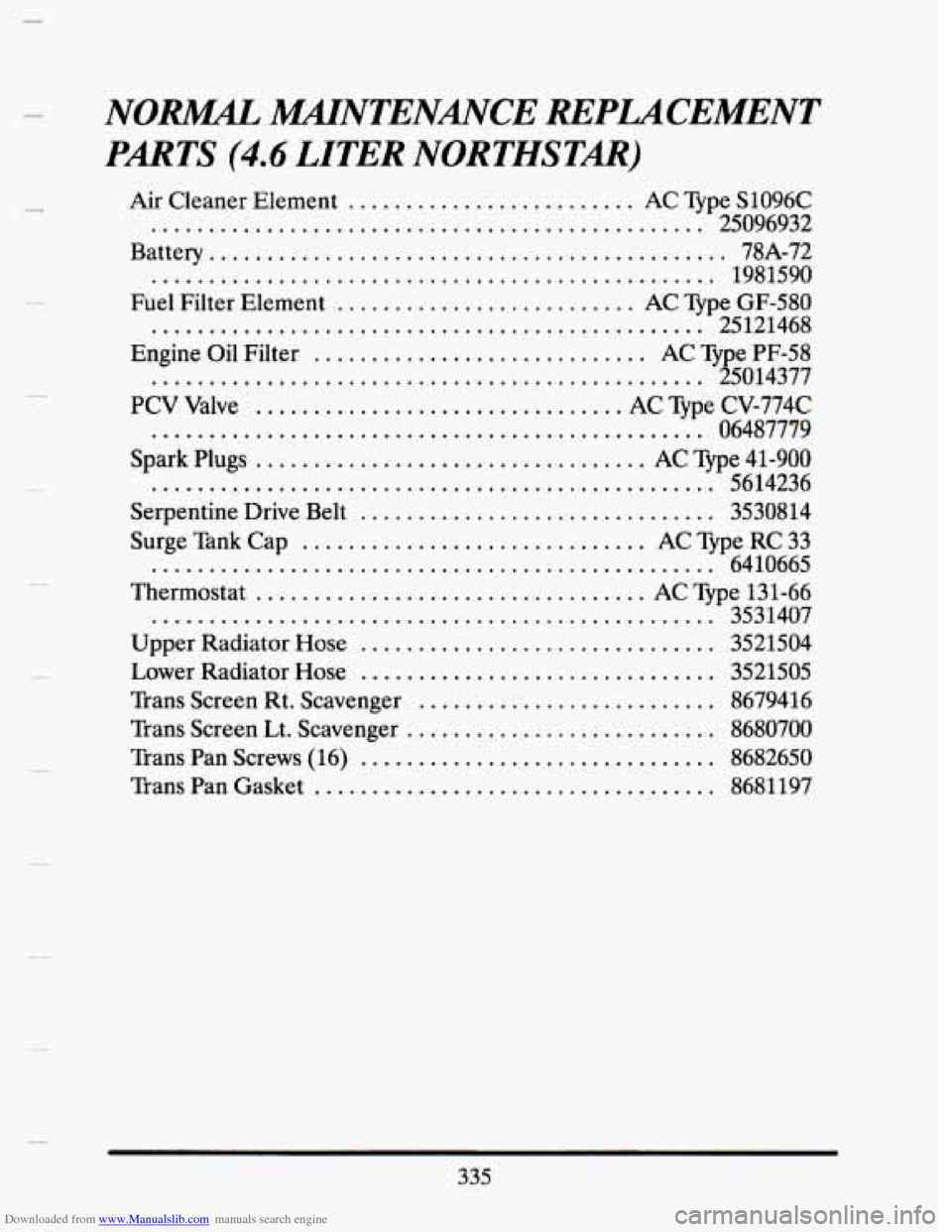

NO= lMAlNTENMCE REPUCEMENT
PARTS
(4.6 LITER NORTHSTAR)
Air Cleaner Element ......................... AC Type S1096C
................................................ 25096932
Battery ............................................. 78A-72
................................................. 1981590
Fuel Filter Element .......................... AC Type GF-580
................................................ 25121468
Engine Oil Filter ............................. AC Type PF-58
................................................ 25014377
PCV
Valve ................................ AC Type CV-774C
................................................ 06487779
Spark Plugs .................................. AC Type 41-900
................................................. 5614236
Serpentine Drive Belt ............................... 3530814
Surge Tank Cap .............................. AC Type RC 33
................................................. 6410665
Thermostat .................................. AC Type 131-66
................................................. 3531407
Upper Radiator Hose ............................... 3521504
Lower Radiator Hose ............................... 3521505
Trans Screen Rt . Scavenger .......................... 8679416
Trans Screen Lt . Scavenger ........................... 8680700
Trans Pan Screws (16) ............................... 8682650
Trans Pan Gasket ................................... 8681197
.
335
.

Downloaded from www.Manualslib.com manuals search engine SPECIFICATIONS

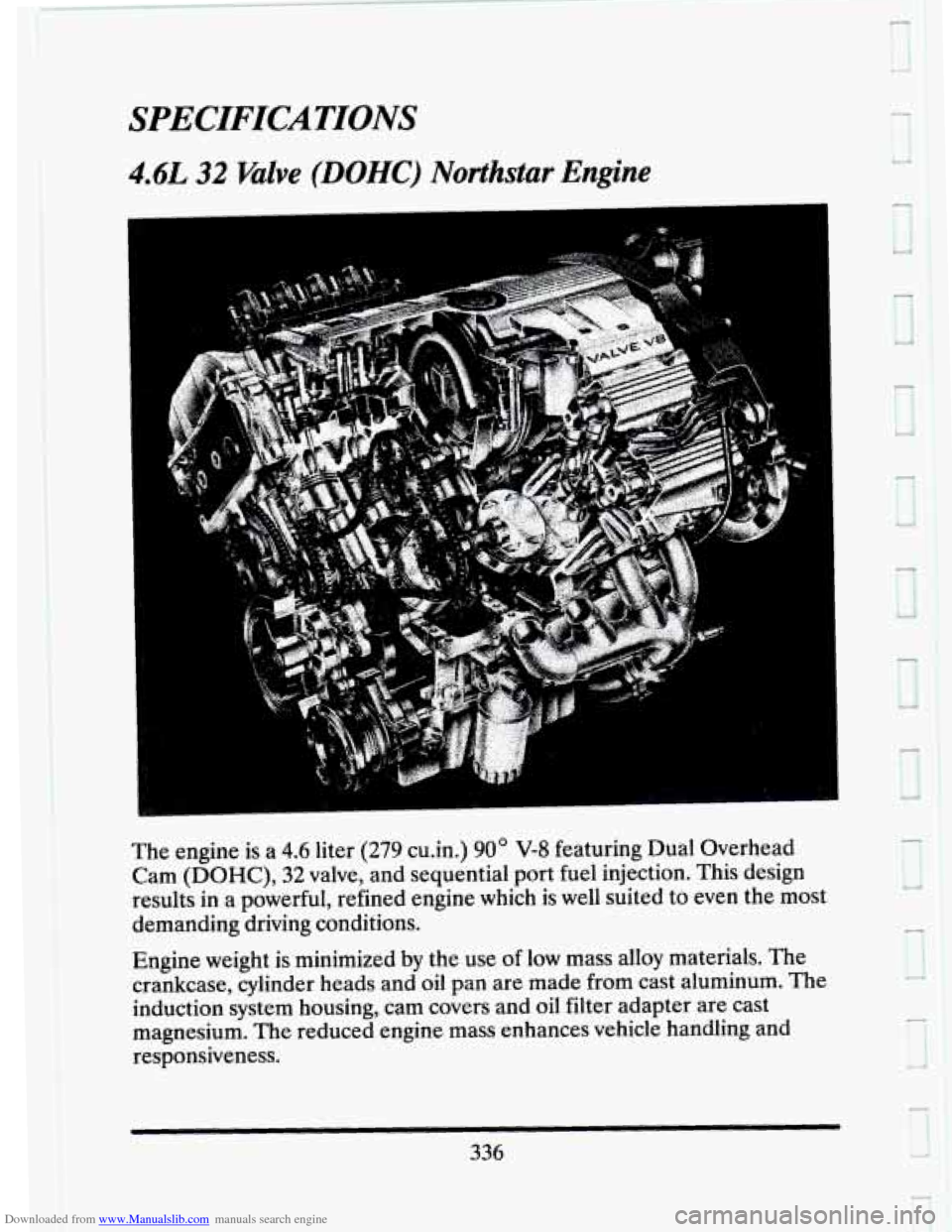

4.6L 32 Valve (DOHC) Northstar Engine
The engine is a 4.6 liter (279 cu.in.) 90' V-8 featuring Dual Overhead
Cam (DOHC),
32 valve, and sequential port fuel injection. This design
results in a powerful, refined engine which is well suited to even the most
demanding driving conditions.
Engine weight is minimized
by the use of low mass alloy materials. The
crankcase, cylinder heads and oil pan are made from cast aluminum. The
induction system housing, cam covers and
oil filter adapter are cast
magnesium. The reduced engine mass enhances vehicle handling and
responsiveness.
336
19
n
1
