CHERY TIGGO 2009 Service Repair Manual

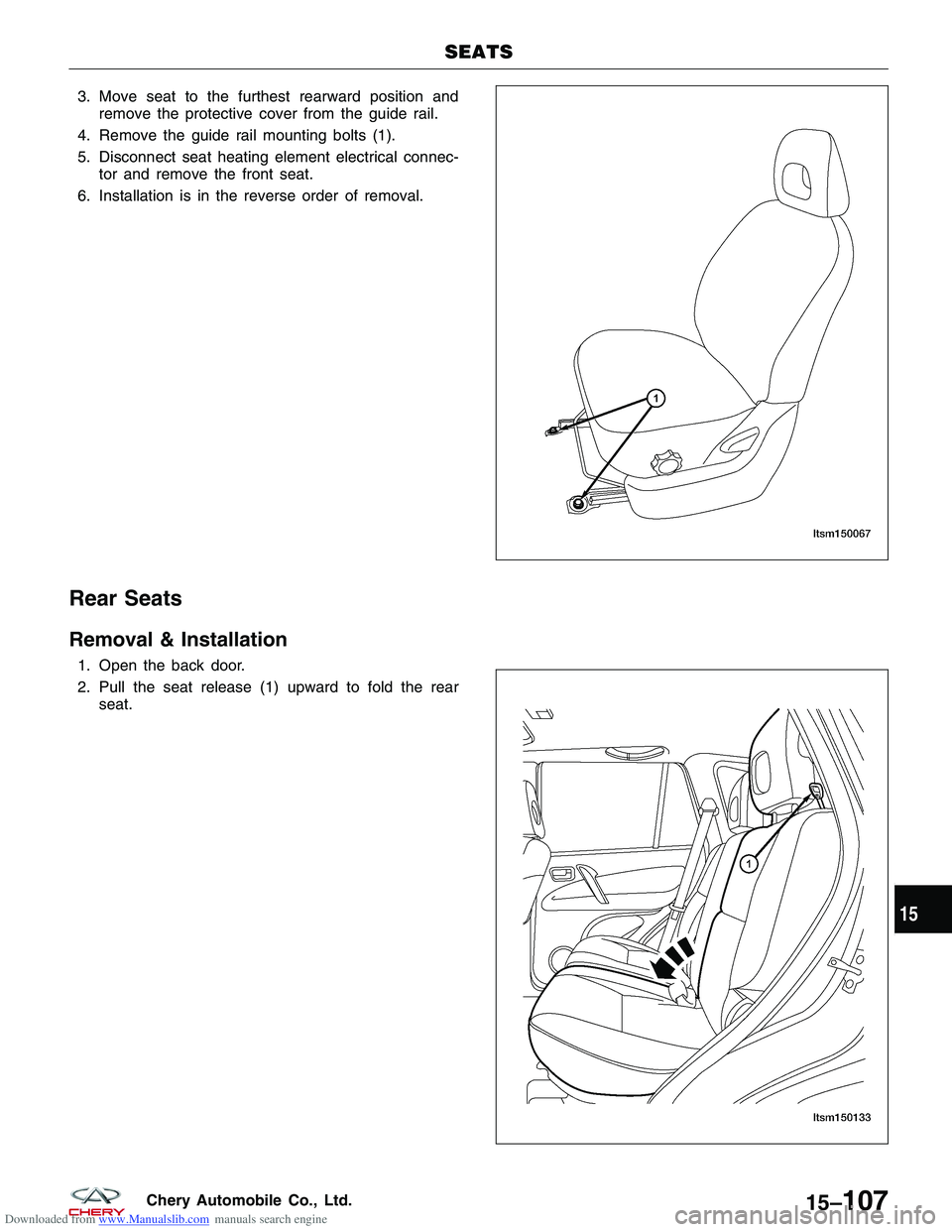

Downloaded from www.Manualslib.com manuals search engine 3. Move seat to the furthest rearward position andremove the protective cover from the guide rail.
4. Remove the guide rail mounting bolts (1).
5. Disconnect seat heating element electrical connec- tor and remove the front seat.
6. Installation is in the reverse order of removal.
Rear Seats
Removal & Installation
1. Open the back door.
2. Pull the seat release (1) upward to fold the rear seat.
SEATS
LTSM150067
LTSM150133
15
15–107Chery Automobile Co., Ltd.

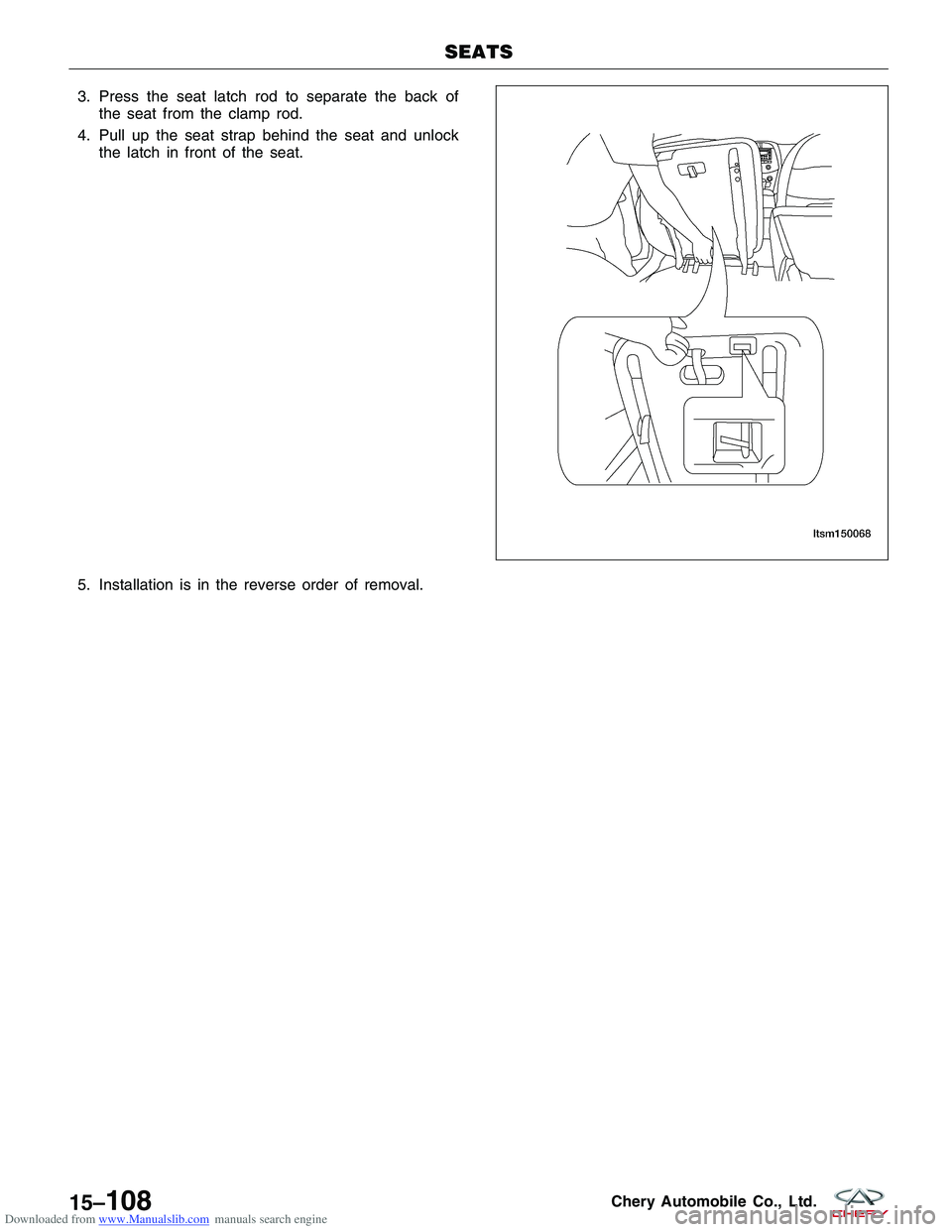

Downloaded from www.Manualslib.com manuals search engine 3. Press the seat latch rod to separate the back ofthe seat from the clamp rod.
4. Pull up the seat strap behind the seat and unlock the latch in front of the seat.
5. Installation is in the reverse order of removal.
SEATS
LTSM150068
15–108Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Heated Seat Switch
Removal & Installation

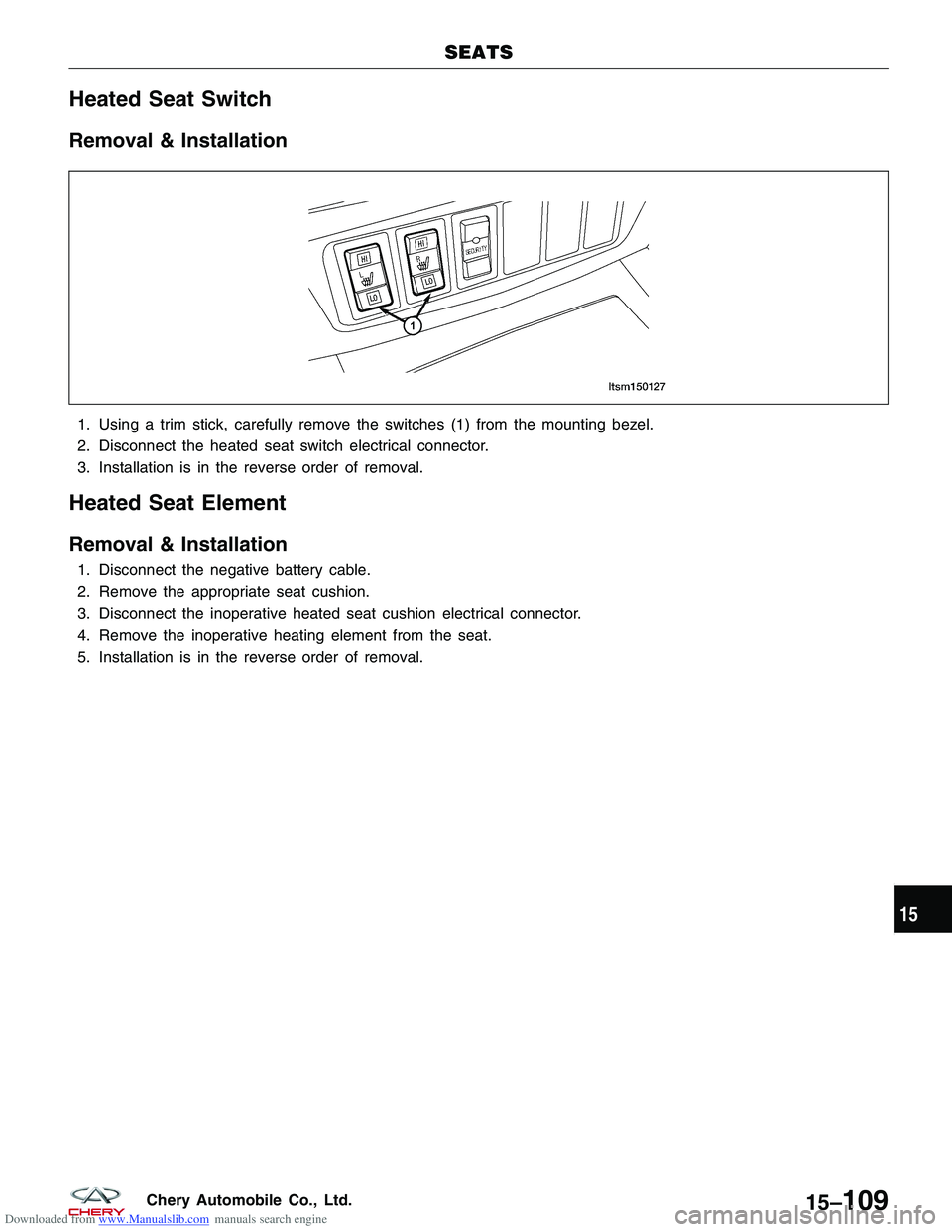

1. Using a trim stick, carefully remove the switches (1) from the mounting bezel.
2. Disconnect the heated seat switch electrical connector.
3. Installation is in the reverse order of removal.
Heated Seat Element
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the appropriate seat cushion.
3. Disconnect the inoperative heated seat cushion electrical connector.
4. Remove the inoperative heating element from the seat.
5. Installation is in the reverse order of removal.
SEATS
LTSM150127
15
15–109Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine IMMOBILIZER CONTROL MODULE

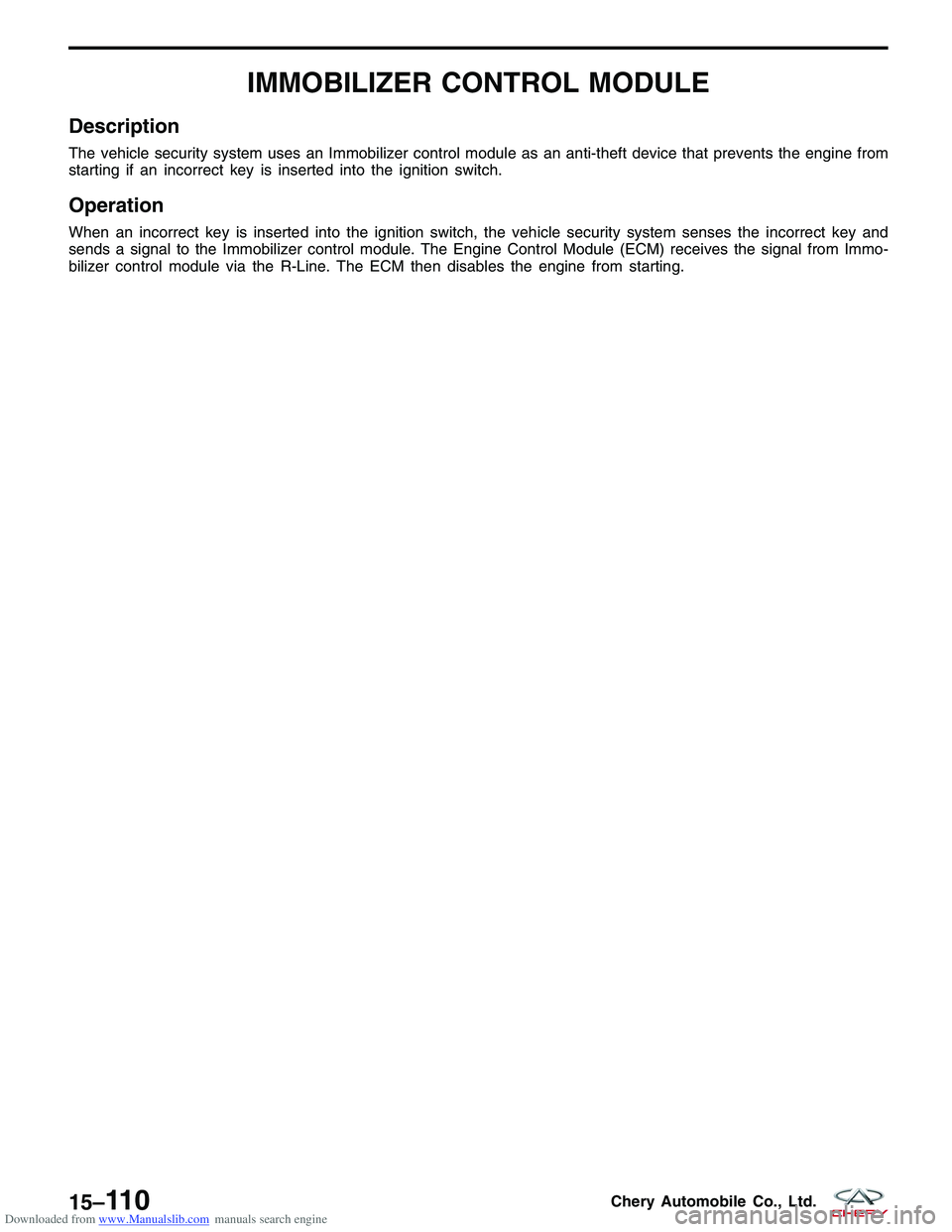

Description
The vehicle security system uses an Immobilizer control module as an anti-theft device that prevents the engine from
starting if an incorrect key is inserted into the ignition switch.
Operation
When an incorrect key is inserted into the ignition switch, the vehicle security system senses the incorrect key and
sends a signal to the Immobilizer control module. The Engine Control Module (ECM) receives the signal from Immo-
bilizer control module via the R-Line. The ECM then disables the engine from starting.
15–11 0Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics

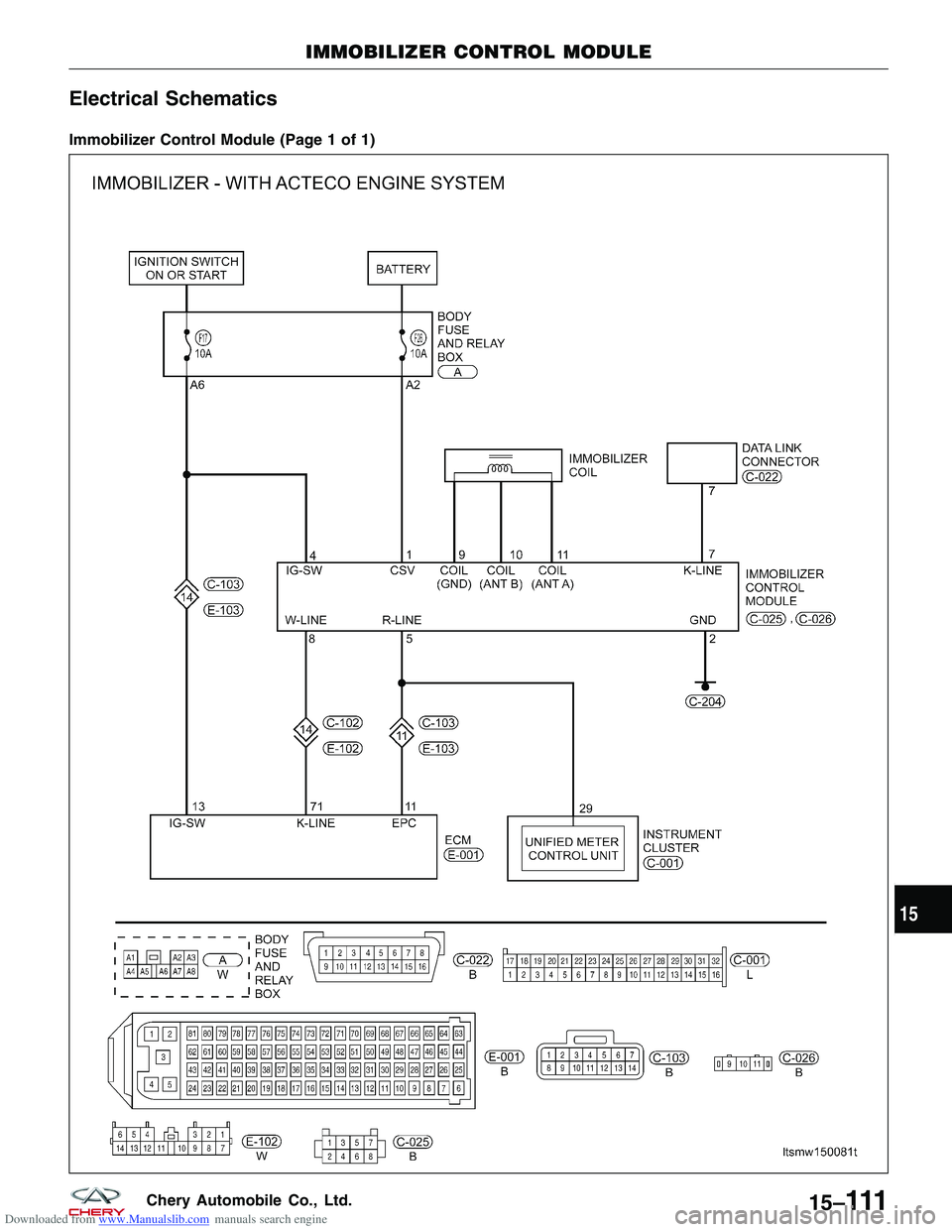

Immobilizer Control Module (Page 1 of 1)
IMMOBILIZER CONTROL MODULE
LTSMW150081T
15
15–111Chery Automobile Co., Ltd.

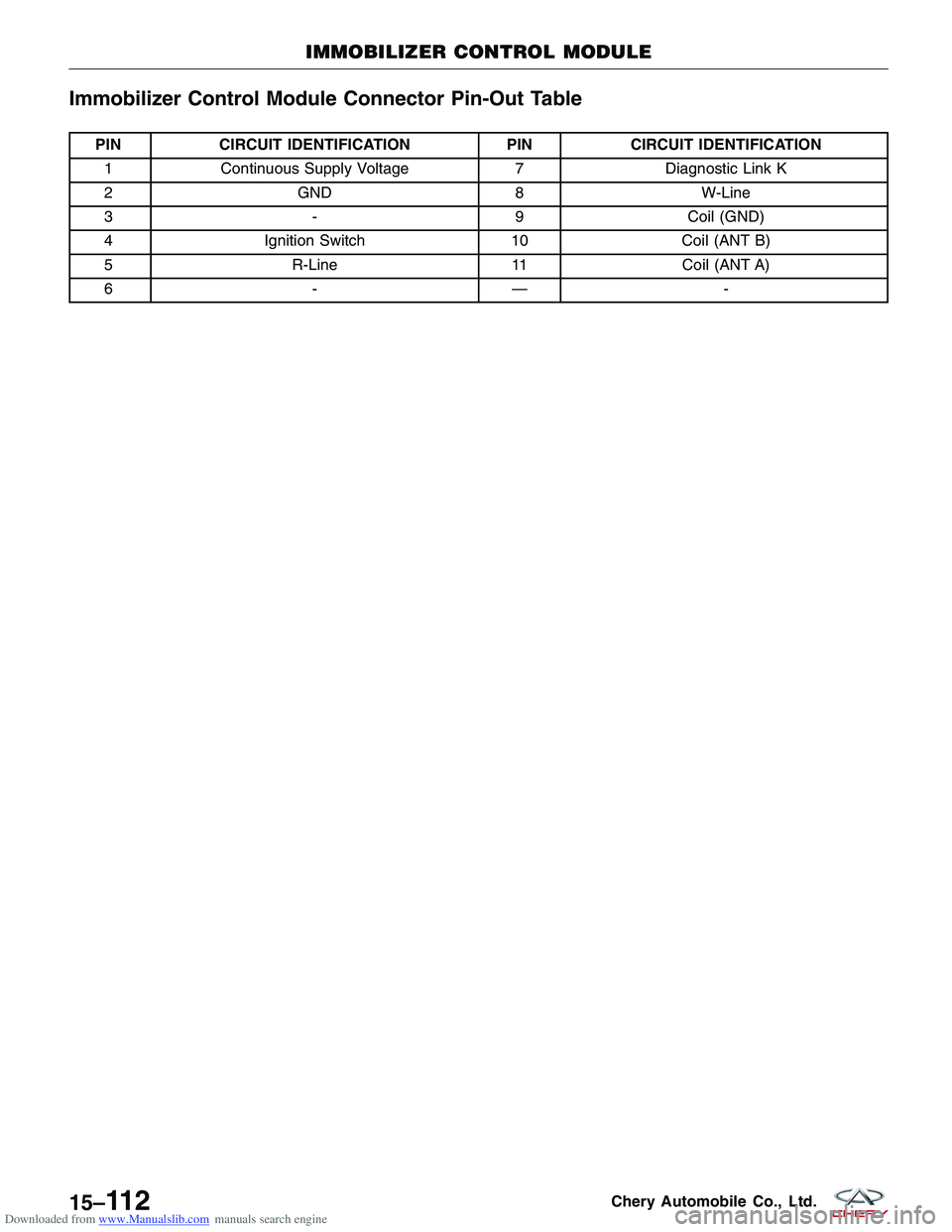

Downloaded from www.Manualslib.com manuals search engine Immobilizer Control Module Connector Pin-Out Table
PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
1 Continuous Supply Voltage 7Diagnostic Link K
2 GND 8W-Line
3 -9Coil (GND)
4 Ignition Switch 10Coil (ANT B)
5 R-Line 11Coil (ANT A)
6-—-
IMMOBILIZER CONTROL MODULE
15–11 2Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
Diagnostic Help
1. The X-431 scan tool connects to the Data Link Connector (DLC) and communicates with the vehicle electronicmodules through the class two serial data circuit.
2. Confirm that the malfunction is current and carry-out the diagnostic tests and repair procedures.
3. If the DTC cannot be deleted, it is a current fault.
4. Use a digital multimeter to perform voltage readings on electronic systems.
5. Refer to any Technical Bulletins that issued.
6. Visually inspect the related electrical wiring harness.
7. Inspect and clean all Immobilizer control module grounds that are related to the DTC.
8. If numerous trouble codes were set, use the electrical schematic and look for any common ground circuits or voltage supply circuits that may apply to the DTC.
Intermittent DTC Troubleshooting
If the failure is intermittent, perform the following:
•Check for loose connectors.
• Look for any chafed, pierced, pinched, or partially broken wires.
• Monitor the scan tool data relative to this circuit.
• Wiggle the related electrical wiring harness and connectors while looking for an interrupted signal on the
affected circuit.
• If possible, try to duplicate the conditions under which the DTC set.
• Look for the data to change or for the DTC to reset during the wiggle test.
• Look for broken, bent, pushed out or corroded terminals.
• Inspect the sensor and mounting area for any condition that would result in an incorrect signal, such as dam-
age or foreign material.
• A data recorder, and/or oscilloscope should be used to help diagnose intermittent conditions.
Ground Inspection
Ground connections are very important to the proper operation of electrical and electronic circuits. Ground connec-
tions are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can become an unwanted
resistance. This added resistance can alter the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drastically
affect an electronically controlled circuit. A poor or corroded ground can effect the circuit. Perform the following when
inspecting a ground connection:
1. Remove the ground bolt or screw.
2. Inspect all mating surface for tarnish, dirt, rust, etc.
3. Clean as required to assure good contact.
4. Reinstall bolt or screw securely.
5. Inspect for add-onaccessories which may be interfering with the ground circuit.
6. If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the wires are clean, securely fastened and providing a good ground path. If multiple wires are crimped to one eyelet, make
sure no excess wire insulation has been crimped creating a bad ground.
Diagnostic Tools
•Diagnostic Scan Tool X-431
• Digital Multimeter
• Jumper Wire
15
15–11 3Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Trouble Code (DTC) List
Immobilizer Control Module DTC List
DTCDTC DEFINITION
B1000 ECU Defect, Internal Errors
B3040 Communication Error On W-Line, ECM Doesn’t Answer On Challenge Or Response
Requests
B3042 W-Line Short Circuit To Ground
B3043 W-Line Short Circuit To Battery
B3045 DWA Line Short Circuit To Ground Or Open Circuit, DWA Line Malfunction
B3048 DWA Line Short Circuit To Battery
B3050 Relay Extern Line Short Circuit To Ground Or Open Circuit, Relay Extern Line
Malfunction
B3053 Relay Extern Line Short Circuit To Battery
B3055 No Transponder Modulation Or No Transponder
B3056 No Transponder Fix Code Programmed
B3057 No Security Code Programmed
B3060 Unprogrammed Transponder Fix Code Received
B3061 Disturbed Or No Challenge / Response Transponder Communication
B3077 Read-Only Transponder Detected
DIAGNOSIS & TESTING
15–11 4Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Remote Keyless Entry (RKE) Inoperative
No Response From Remote Keyless Entry (RKE) Transmitter
1.CHECK BATTERY
• Check battery of the RKE transmitter.
Is the battery voltage of the RKE transmitter normal?
Ye s>>Go to the next step.
No
>>This concern has been caused by the transmitter battery.
Go to step 4.
2.CHECK THE IGNITION LOCK CYLINDER CONDITION
• Check the ignition lock cylinder for proper operation.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the ignition lock cylinder key switch.
3.PERFORM THE RKE TRANSMITTER MATCH PROCEDURE
• Close all the doors.
• Insert the ignition key into the ignition switch which has lost synchronization in LOCK position.
• Press any button on the RKE transmitter within 5 seconds.
• Pull the ignition key out of the ignition switch.
• Try to operate the RKE transmitter.
Does the RKE transmitter operate properly?
Ye s>>Erase all codes before returning the vehicle to the customer.
No
>>Go to the next step.
DIAGNOSIS & TESTING
15
15–11 5Chery Automobile Co., Ltd.

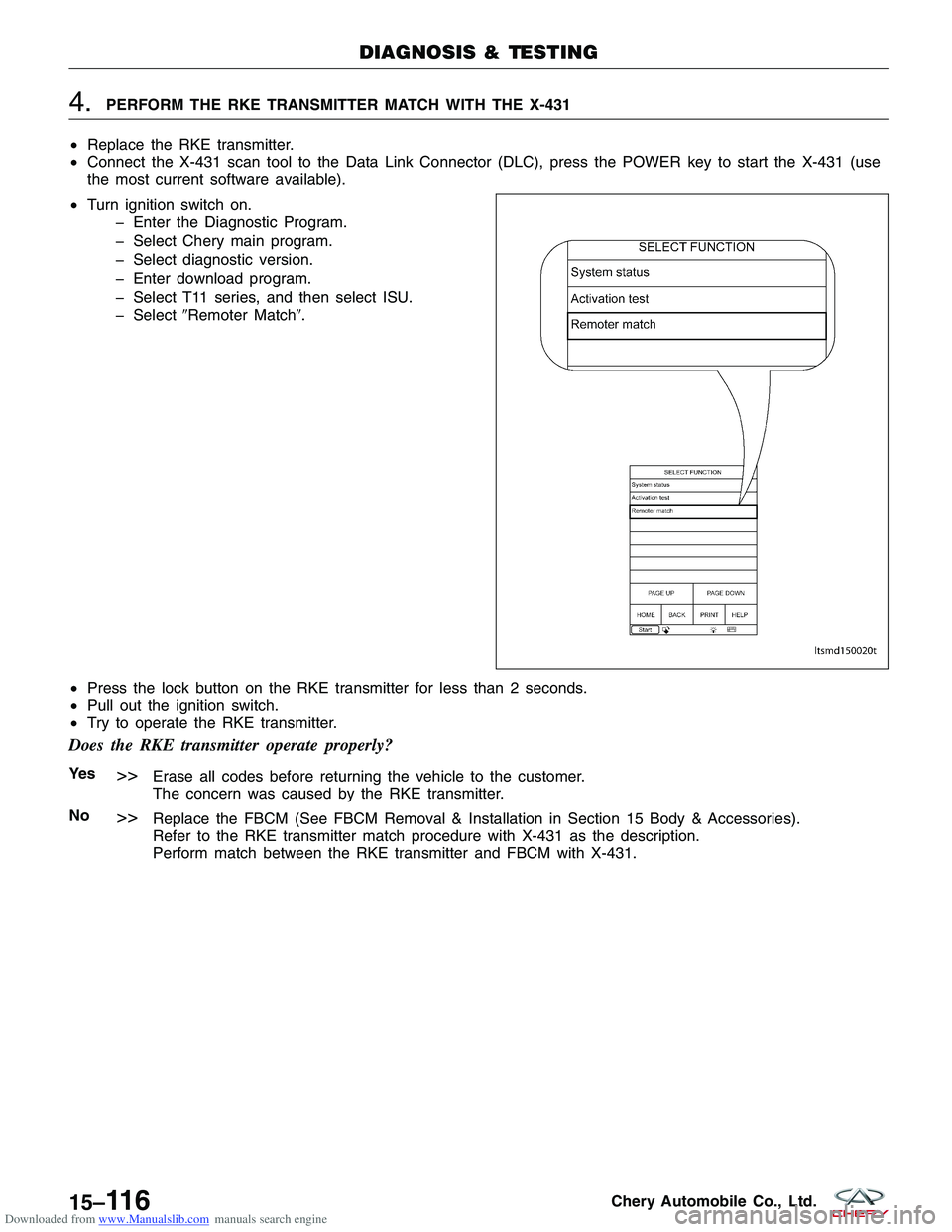

Downloaded from www.Manualslib.com manuals search engine 4.PERFORM THE RKE TRANSMITTER MATCH WITH THE X-431
• Replace the RKE transmitter.
• Connect the X-431 scan tool to the Data Link Connector (DLC), press the POWER key to start the X-431 (use
the most current software available).
• Turn ignition switch on.
Enter the Diagnostic Program.
Select Chery main program.
Select diagnostic version.
Enter download program.
Select T11 series, and then select ISU.
Select Remoter Match.
• Press the lock button on the RKE transmitter for less than 2 seconds.
• Pull out the ignition switch.
• Try to operate the RKE transmitter.
Does the RKE transmitter operate properly?
Ye s>>Erase all codes before returning the vehicle to the customer.
The concern was caused by the RKE transmitter.
No
>>Replace the FBCM (See FBCM Removal & Installation in Section 15 Body & Accessories).
Refer to the RKE transmitter match procedure with X-431 as the description.
Perform match between the RKE transmitter and FBCM with X-431.
DIAGNOSIS & TESTING
LTSMD150020T
