CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine BODY DIMENSIONS
Description
•All measurements should be made from the bare metal, remove trim and bumper covers as necessary.
• Repair the badly damaged areas before taking measurements for underbody alignment.
• Monitor the upper body structure for excessive stress or movement while making any corrections to the under-
body structure.
• Remove all the necessary glass to prevent breakage.
• All dimensions are shown in millimeters (mm).
15
15–147Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Front Body Structure
Dimension of Engine Compartment (Units: mm)
BODY DIMENSIONS
LTSM150032
15–148Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Dimension of Body Openings
Dimension of body, Left-Right.
Uppercase letters indicate the right side of the body, lowercase letters indicate the left side of the body (Rear view).
BODY DIMENSIONS
LTSM150002
15
15–149Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine BODY DIMENSIONS
LTSM150003
15–150Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Front Structure
Dimension of Front Structure (Units: mm)
Body dimension, Left-Right
BODY DIMENSIONS
LTSM150001
15
15–151Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine NOTE :
Uppercase letters indicate the left side of the body. Lowercase letters indicate the right side of the body (view from
the rear of the vehicle).
S/NCONTROL
DIMENSION (mm) DESCRIPTION
AB=PQ 1485.8 Diagonal distance
of front windshield
CD 733.2Distance of front
windshield at Y0
IJ 1491.6Center distance
between the right
end of upper
cover of the lower
beam of front
windshield and
the installation
hole of front
fender
EH 736.1Center distance
between the
upper cover hole
of the lower beam
of front windshield
and the
installation hole of
front fenderS/N
CONTROL
DIMENSION (mm) DESCRIPTION
FH 270.7 Center distance
between the hole
of front shock
absorber and the
installation hole of
front fender
FG 1126.8Center distance
between the holes
of left/right front
shock absorber
LM 952.8Center distance
between the holes
of left/right engine
suspension
KE 690.5Center distance
between the
upper cover hole
of front windshield
beam and the
installation hole of
radiator
BODY DIMENSIONS
LTSM150001
15–152Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Frame
Body Frame Dimensions (Units: mm)
BODY DIMENSIONS
LTSM150004
15
15–153Chery Automobile Co., Ltd.

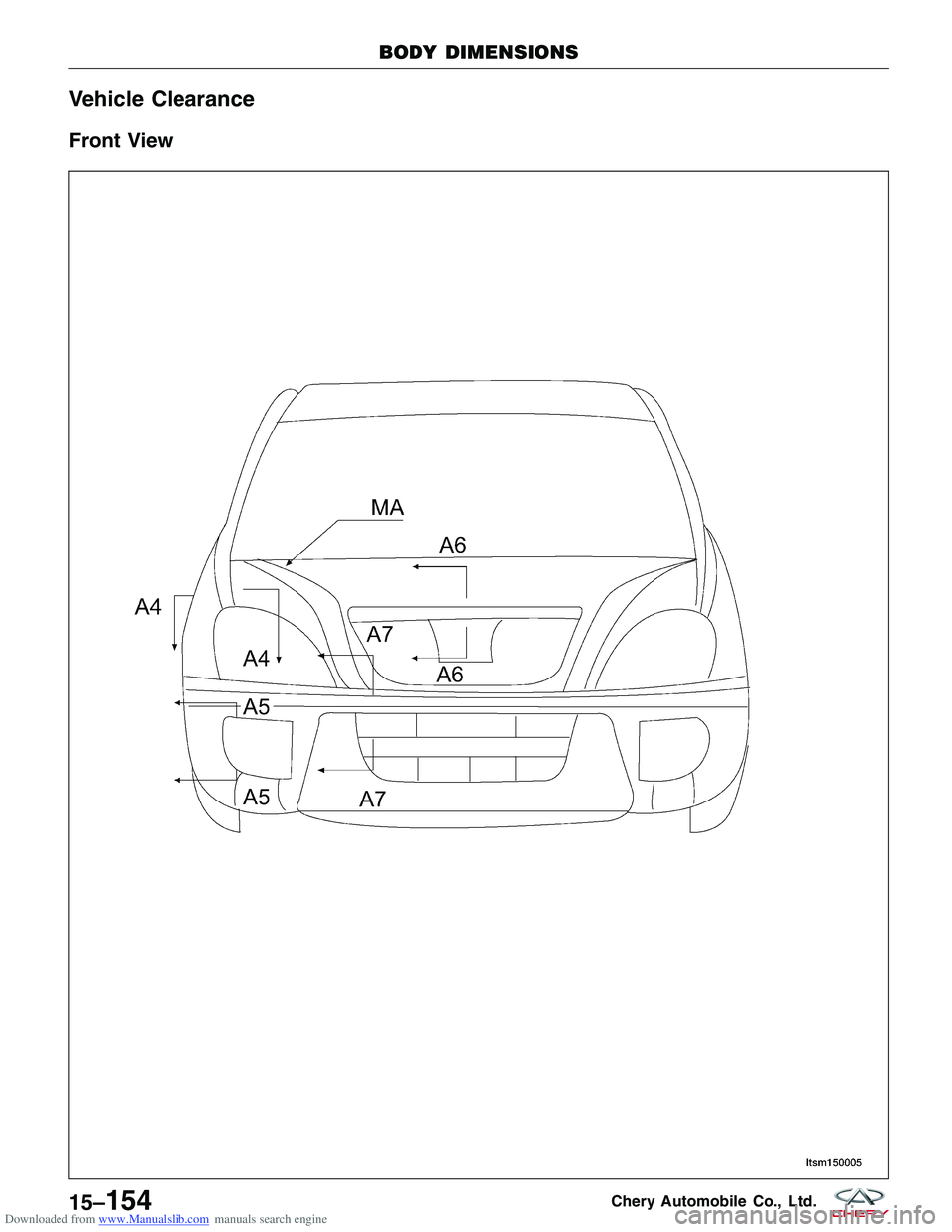

Downloaded from www.Manualslib.com manuals search engine Vehicle Clearance
Front View
BODY DIMENSIONS
LTSM150005
15–154Chery Automobile Co., Ltd.

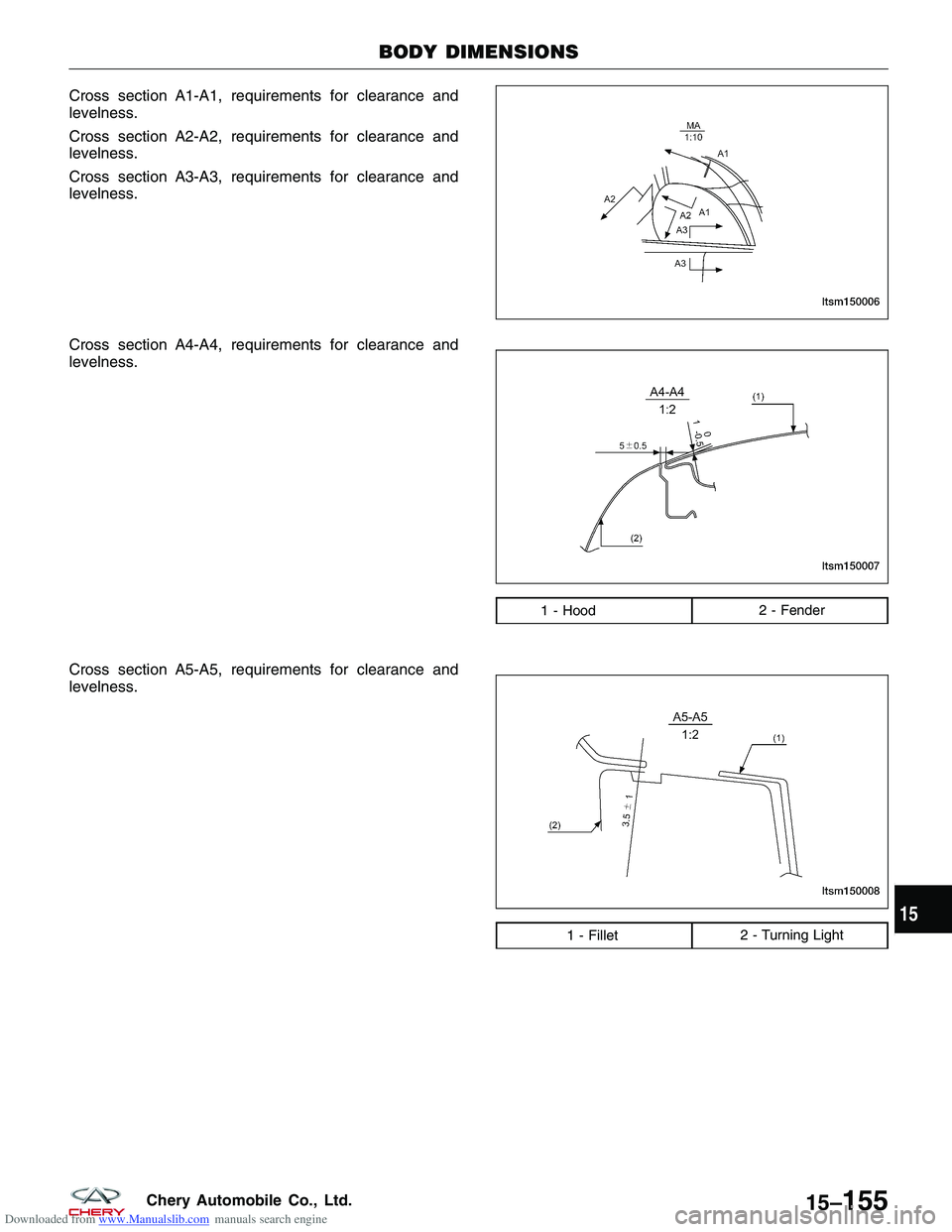

Downloaded from www.Manualslib.com manuals search engine Cross section A1-A1, requirements for clearance and
levelness.
Cross section A2-A2, requirements for clearance and
levelness.
Cross section A3-A3, requirements for clearance and
levelness.
Cross section A4-A4, requirements for clearance and
levelness.
Cross section A5-A5, requirements for clearance and
levelness.
1 - Hood2 - Fender
1 - Fillet2 - Turning Light
BODY DIMENSIONS
LTSM150006
LTSM150007
LTSM150008
15
15–155Chery Automobile Co., Ltd.

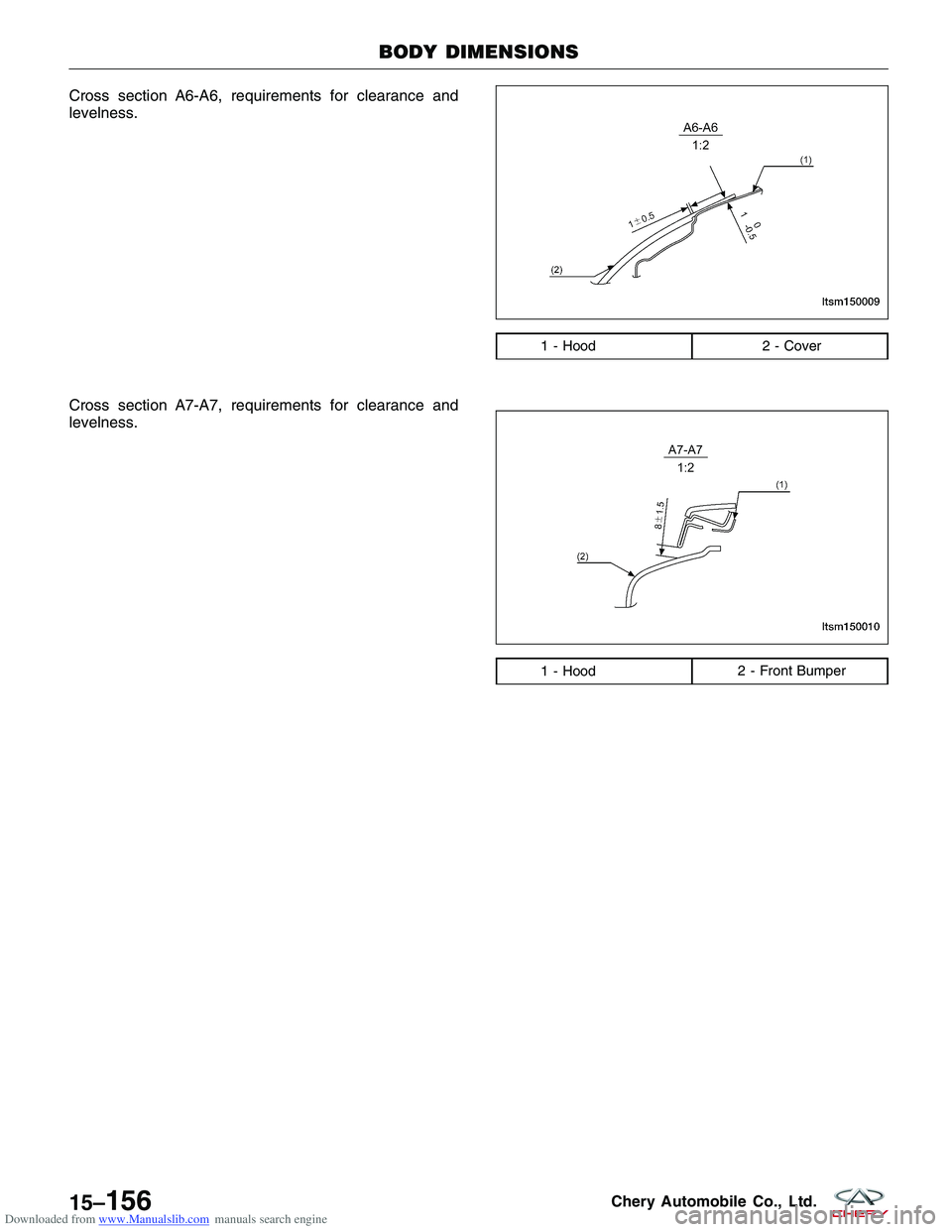

Downloaded from www.Manualslib.com manuals search engine Cross section A6-A6, requirements for clearance and
levelness.
Cross section A7-A7, requirements for clearance and
levelness.
1 - Hood2 - Cover
1 - Hood2 - Front Bumper
BODY DIMENSIONS
LTSM150009
LTSM150010
15–156Chery Automobile Co., Ltd.
