CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics

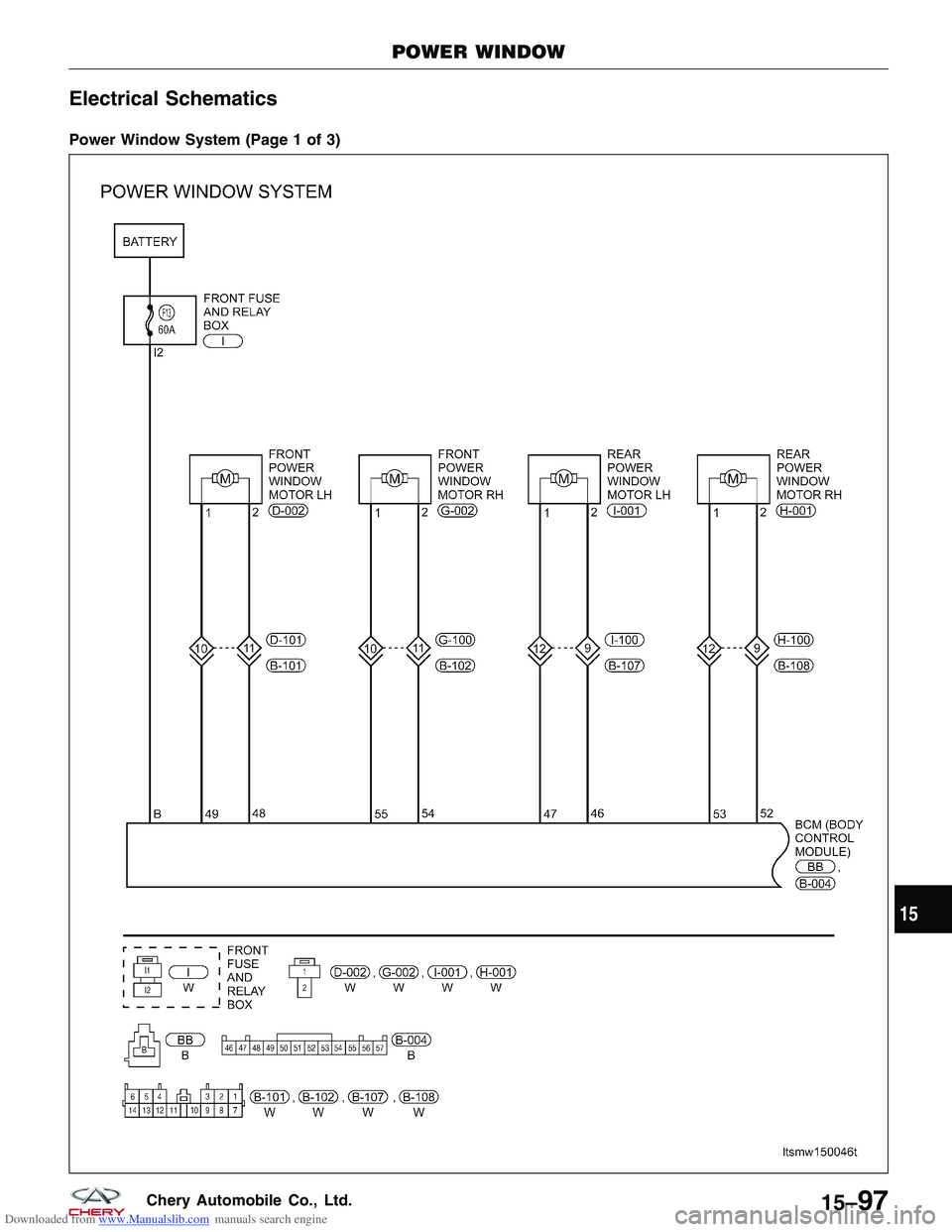

Power Window System (Page 1 of 3)
POWER WINDOW
LTSMW150046T
15
15–97Chery Automobile Co., Ltd.

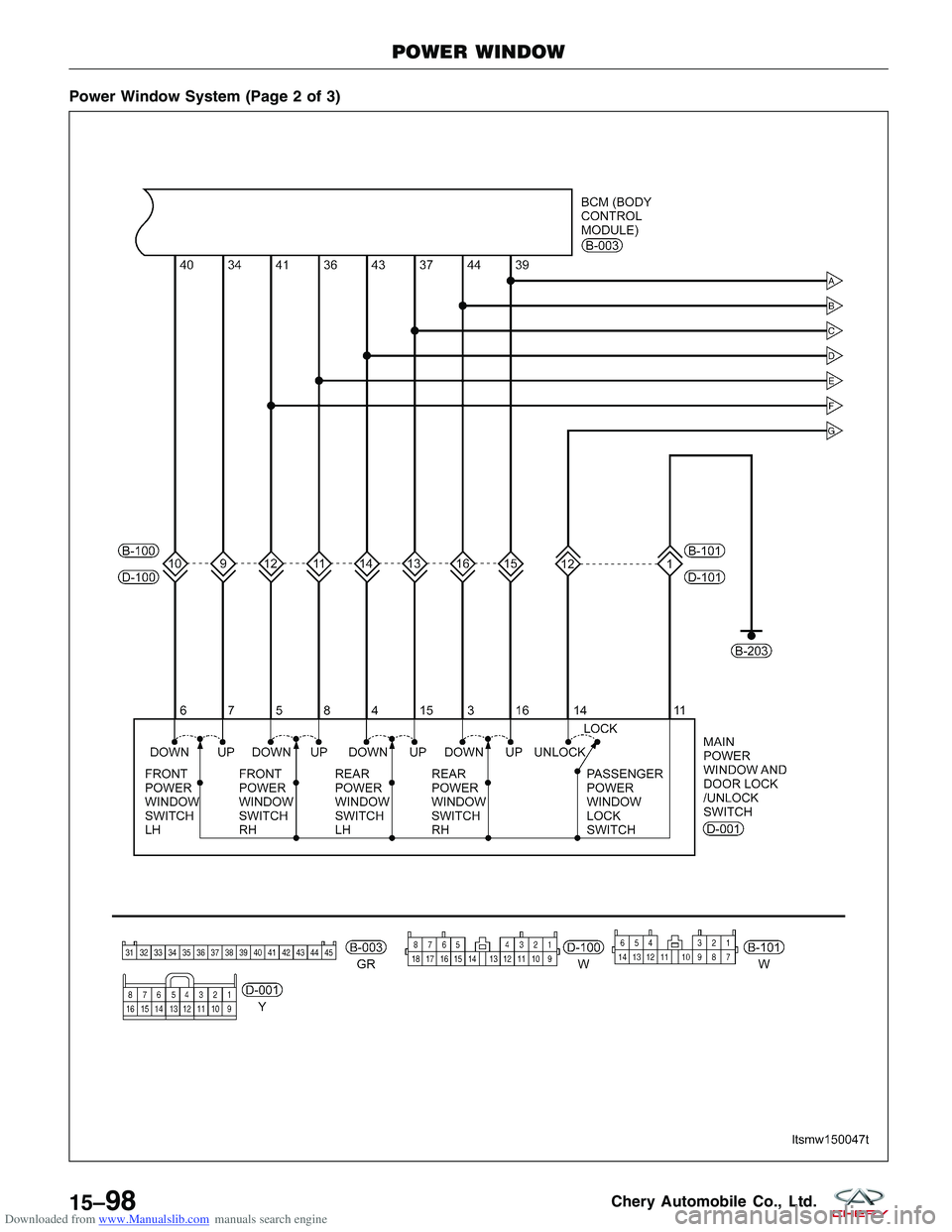

Downloaded from www.Manualslib.com manuals search engine Power Window System (Page 2 of 3)
POWER WINDOW
LTSMW150047T
15–98Chery Automobile Co., Ltd.

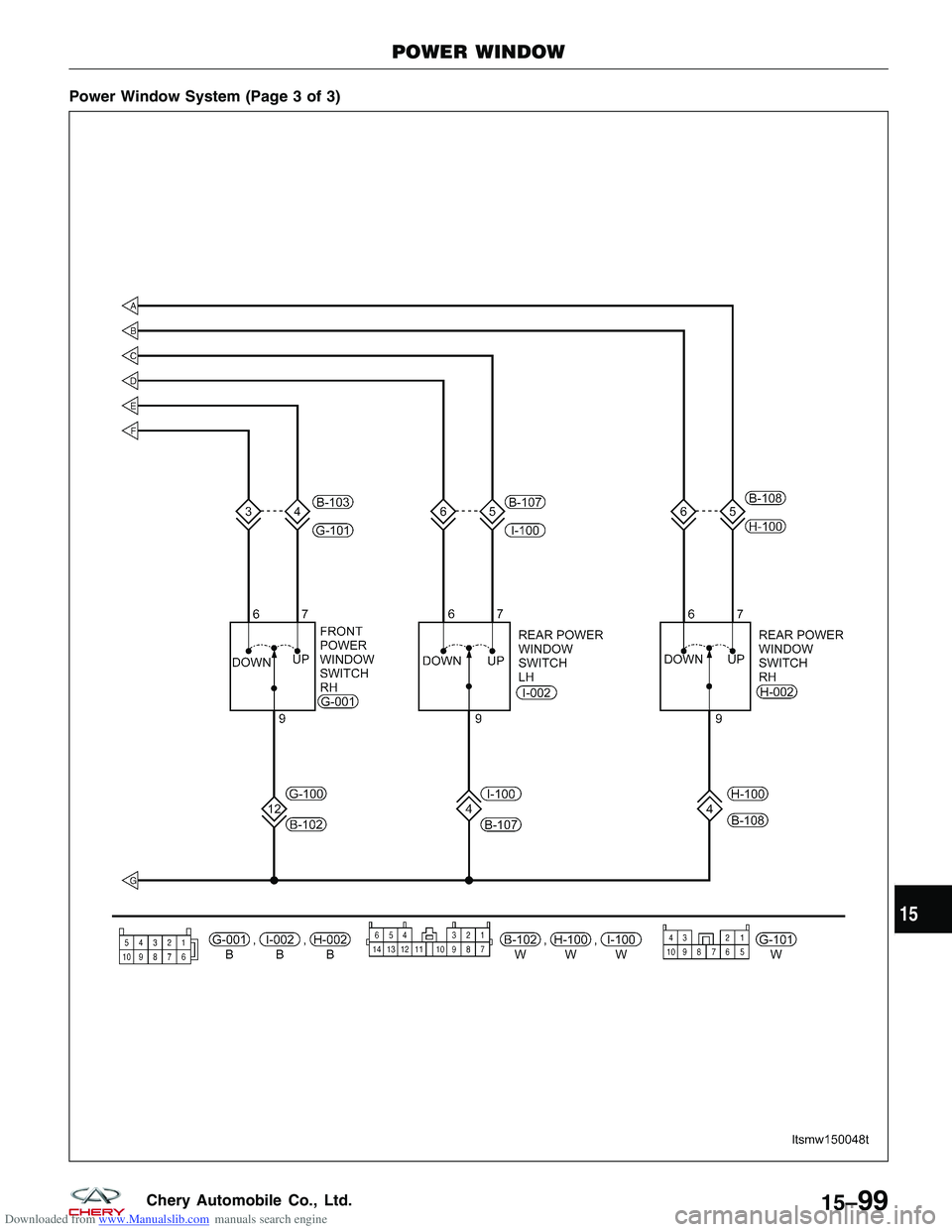

Downloaded from www.Manualslib.com manuals search engine Power Window System (Page 3 of 3)
POWER WINDOW
LTSMW150048T
15
15–99Chery Automobile Co., Ltd.

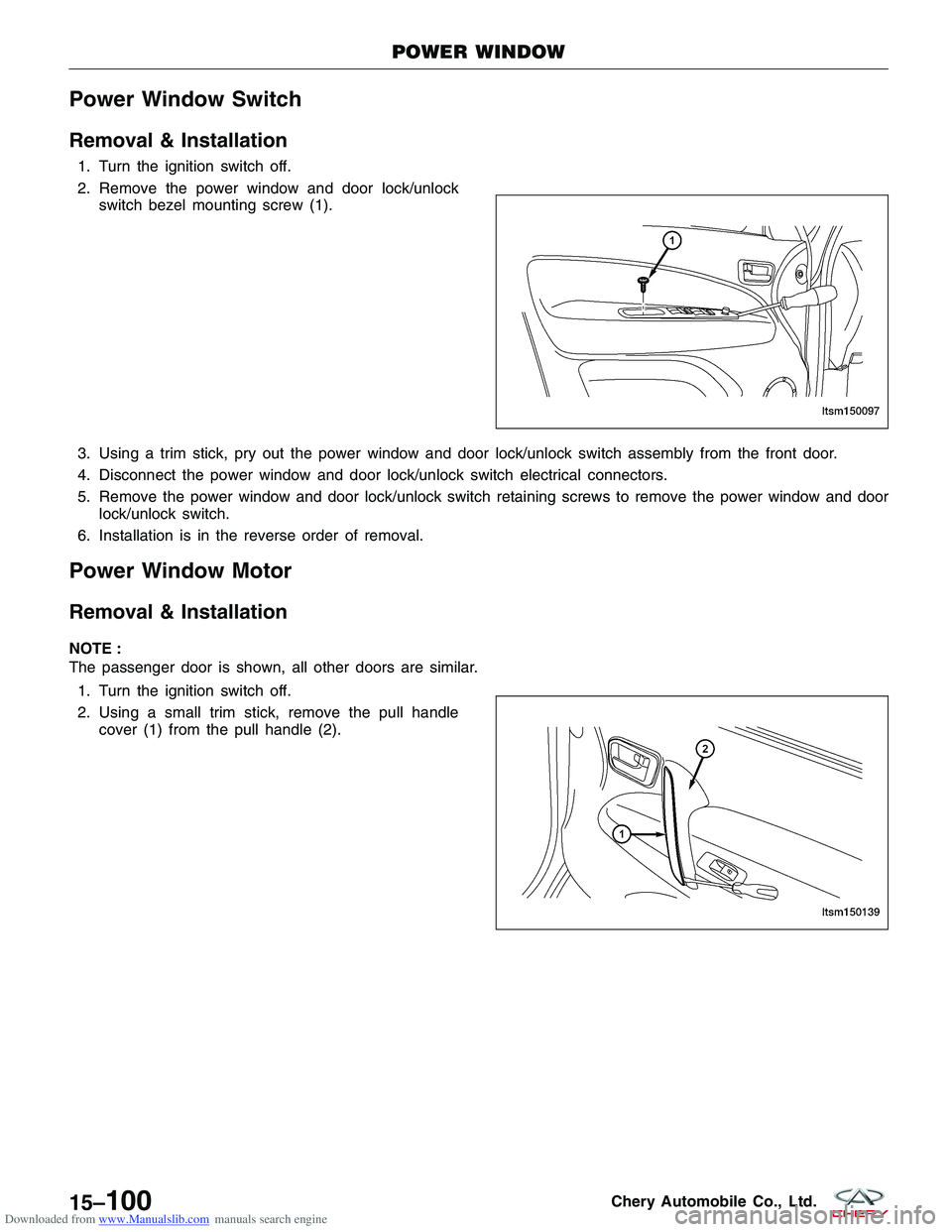

Downloaded from www.Manualslib.com manuals search engine Power Window Switch
Removal & Installation
1. Turn the ignition switch off.
2. Remove the power window and door lock/unlockswitch bezel mounting screw (1).
3. Using a trim stick, pry out the power window and door lock/unlock switch assembly from the front door.
4. Disconnect the power window and door lock/unlock switch electrical connectors.
5. Remove the power window and door lock/unlock switch retaining screws to remove the power window and door lock/unlock switch.
6. Installation is in the reverse order of removal.
Power Window Motor
Removal & Installation
NOTE :
The passenger door is shown, all other doors are similar.
1. Turn the ignition switch off.
2. Using a small trim stick, remove the pull handle cover (1) from the pull handle (2).
POWER WINDOW
LTSM150097
LTSM150139
15–100Chery Automobile Co., Ltd.

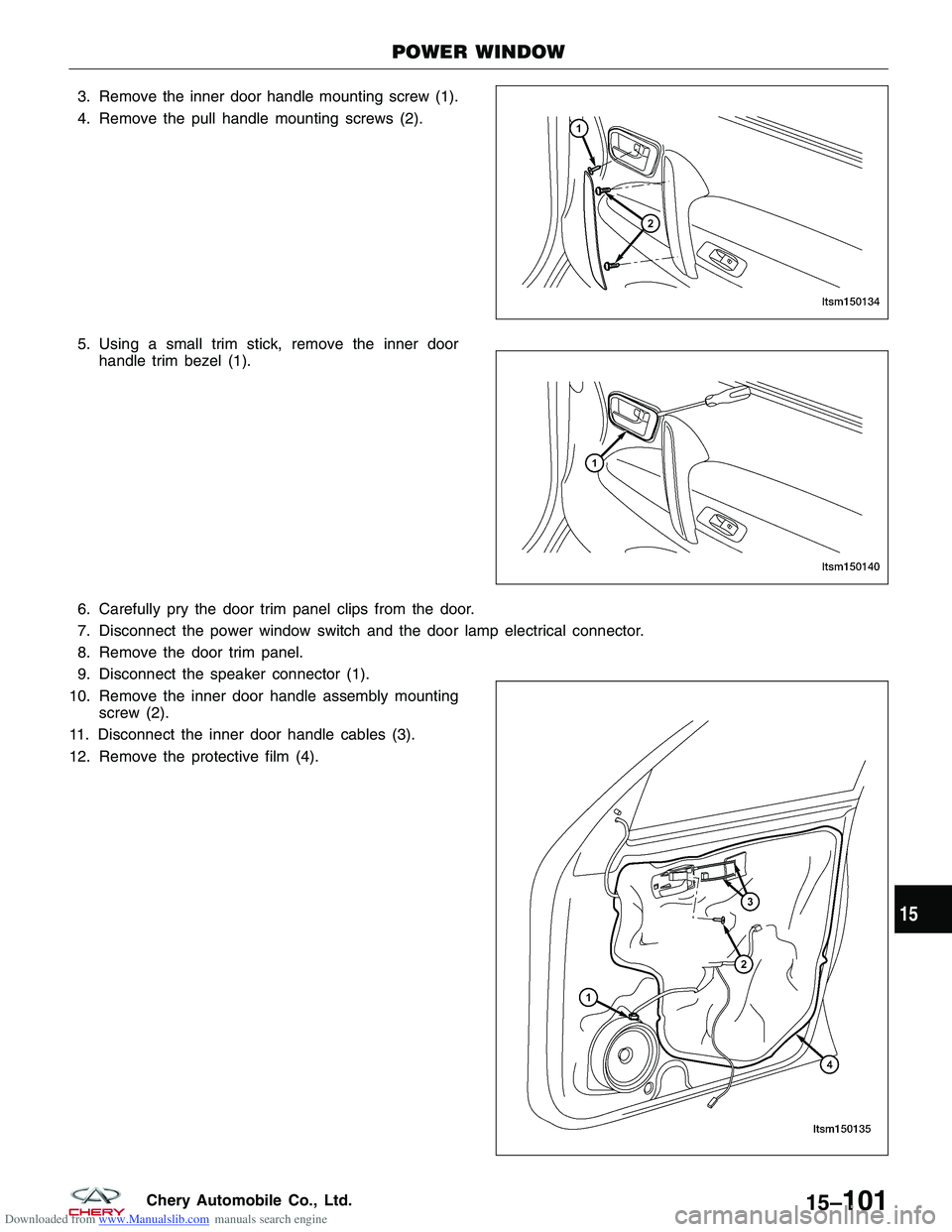

Downloaded from www.Manualslib.com manuals search engine 3. Remove the inner door handle mounting screw (1).
4. Remove the pull handle mounting screws (2).
5. Using a small trim stick, remove the inner doorhandle trim bezel (1).
6. Carefully pry the door trim panel clips from the door.
7. Disconnect the power window switch and the door lamp electrical connector.
8. Remove the door trim panel.
9. Disconnect the speaker connector (1).
10. Remove the inner door handle assembly mounting screw (2).
11. Disconnect the inner door handle cables (3).
12. Remove the protective film (4).
POWER WINDOW
LTSM150134
LTSM150140
LTSM150135
15
15–101Chery Automobile Co., Ltd.

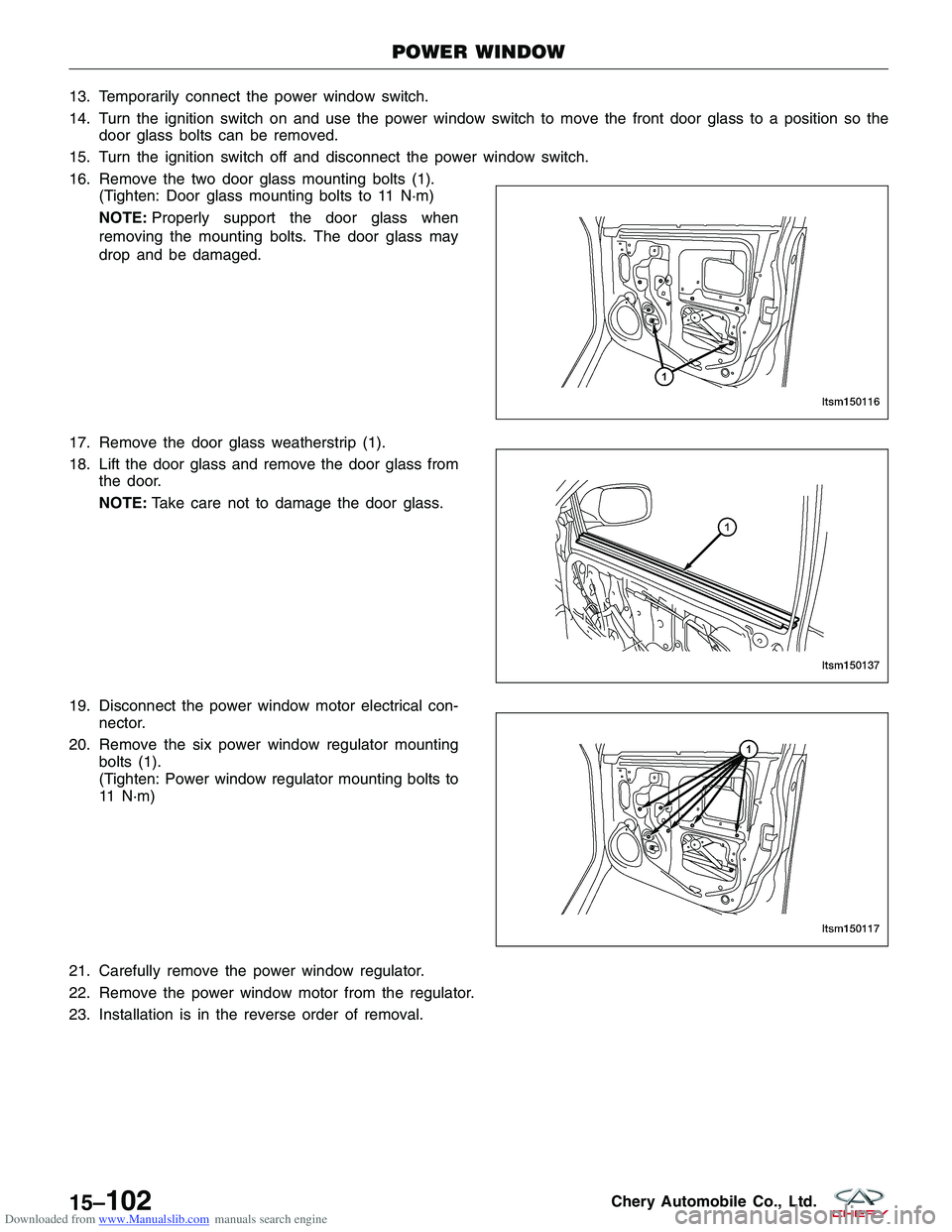

Downloaded from www.Manualslib.com manuals search engine 13. Temporarily connect the power window switch.
14. Turn the ignition switch on and use the power window switch to move the front door glass to a position so thedoor glass bolts can be removed.
15. Turn the ignition switch off and disconnect the power window switch.
16. Remove the two door glass mounting bolts (1). (Tighten: Door glass mounting bolts to 11 N·m)
NOTE: Properly support the door glass when
removing the mounting bolts. The door glass may
drop and be damaged.
17. Remove the door glass weatherstrip (1).
18. Lift the door glass and remove the door glass from the door.
NOTE: Take care not to damage the door glass.
19. Disconnect the power window motor electrical con- nector.
20. Remove the six power window regulator mounting bolts (1).
(Tighten: Power window regulator mounting bolts to
11 N·m)
21. Carefully remove the power window regulator.
22. Remove the power window motor from the regulator.
23. Installation is in the reverse order of removal.
POWER WINDOW
LTSM150116
LTSM150137 LTSM150117
15–102Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Power Window Motor Inspection
1. Using the following table, apply battery voltage to the specified connector terminals.
2. Verify that the motor operates smoothly when voltage is applied in each direction.
3. If the test results are not as specified, replace the motor.
MEASURING CONDITIONOPERATIONAL
DIRECTION INSPECTION DIAGRAM
Battery positive (+) to terminal – 1
Battery negative (-) to terminal – 2 Clockwise rotation
Battery positive (+) to
terminal – 2
Battery negative (-) to terminal – 1 Counterclockwise rotation
POWER WINDOW
15
15–103Chery Automobile Co., Ltd.

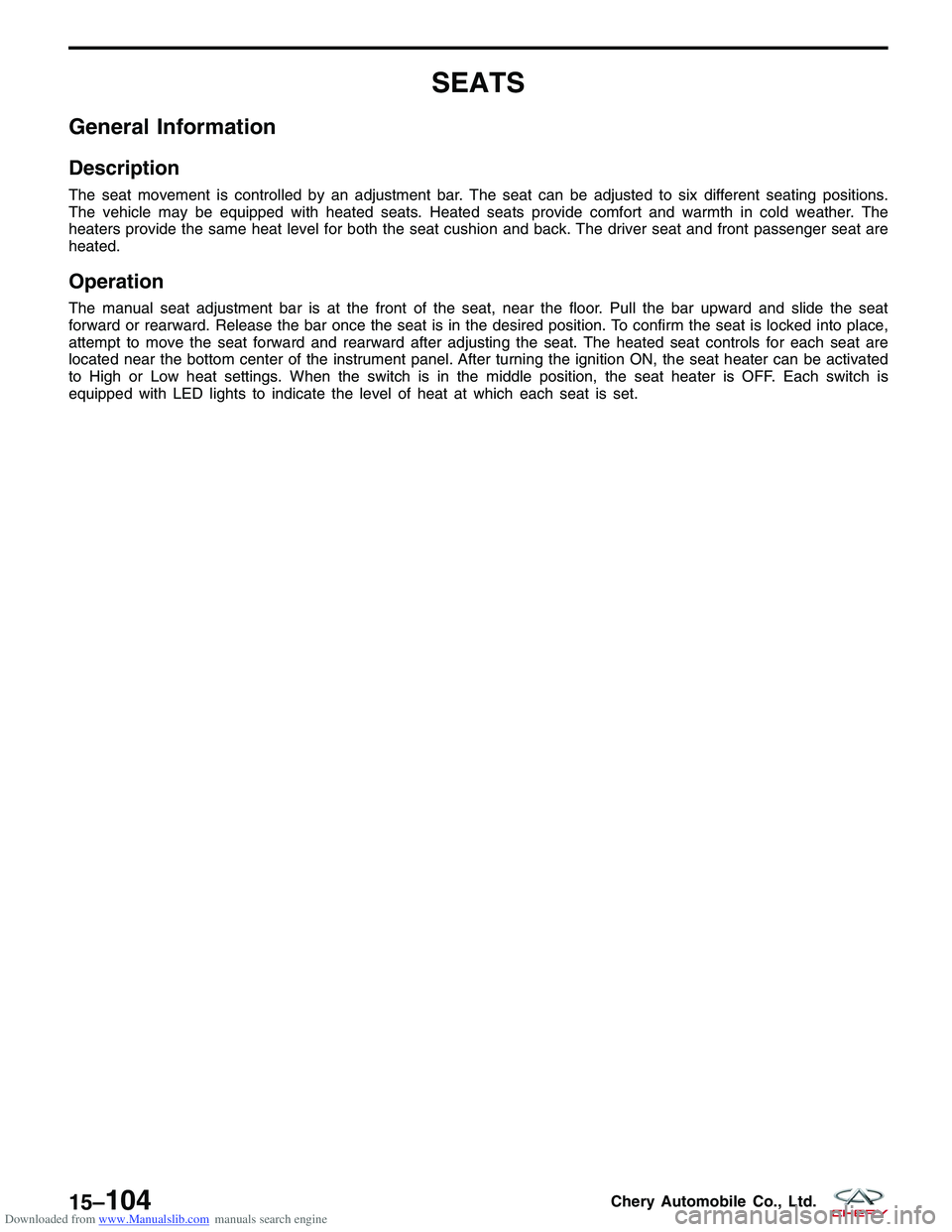

Downloaded from www.Manualslib.com manuals search engine SEATS
General Information
Description
The seat movement is controlled by an adjustment bar. The seat can be adjusted to six different seating positions.
The vehicle may be equipped with heated seats. Heated seats provide comfort and warmth in cold weather. The
heaters provide the same heat level for both the seat cushion and back. The driver seat and front passenger seat are
heated.
Operation
The manual seat adjustment bar is at the front of the seat, near the floor. Pull the bar upward and slide the seat
forward or rearward. Release the bar once the seat is in the desired position. To confirm the seat is locked into place,
attempt to move the seat forward and rearward after adjusting the seat. The heated seat controls for each seat are
located near the bottom center of the instrument panel. After turning the ignition ON, the seat heater can be activated
to High or Low heat settings. When the switch is in the middle position, the seat heater is OFF. Each switch is
equipped with LED lights to indicate the level of heat at which each seat is set.
15–104Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics

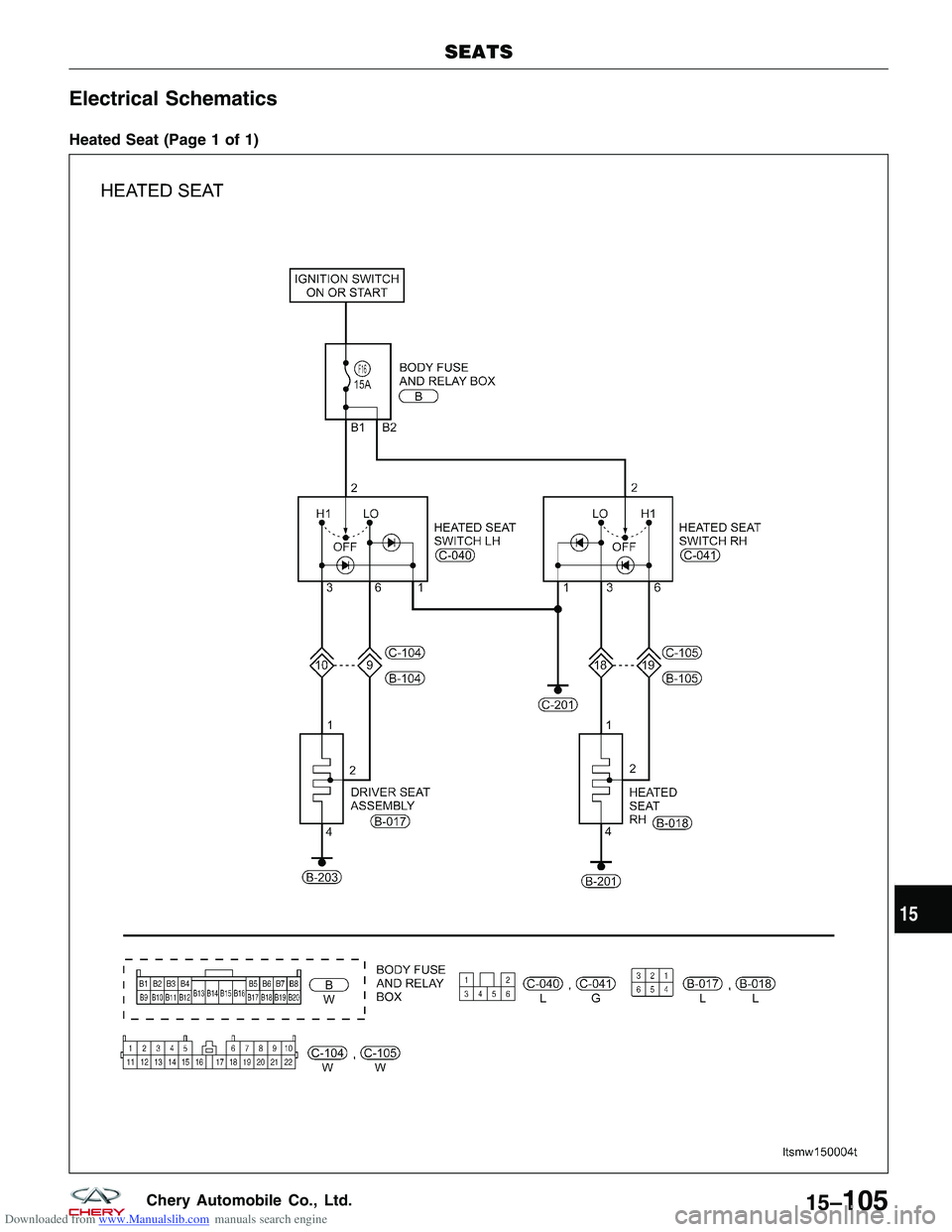

Heated Seat (Page 1 of 1)
SEATS
LTSMW150004T
15
15–105Chery Automobile Co., Ltd.

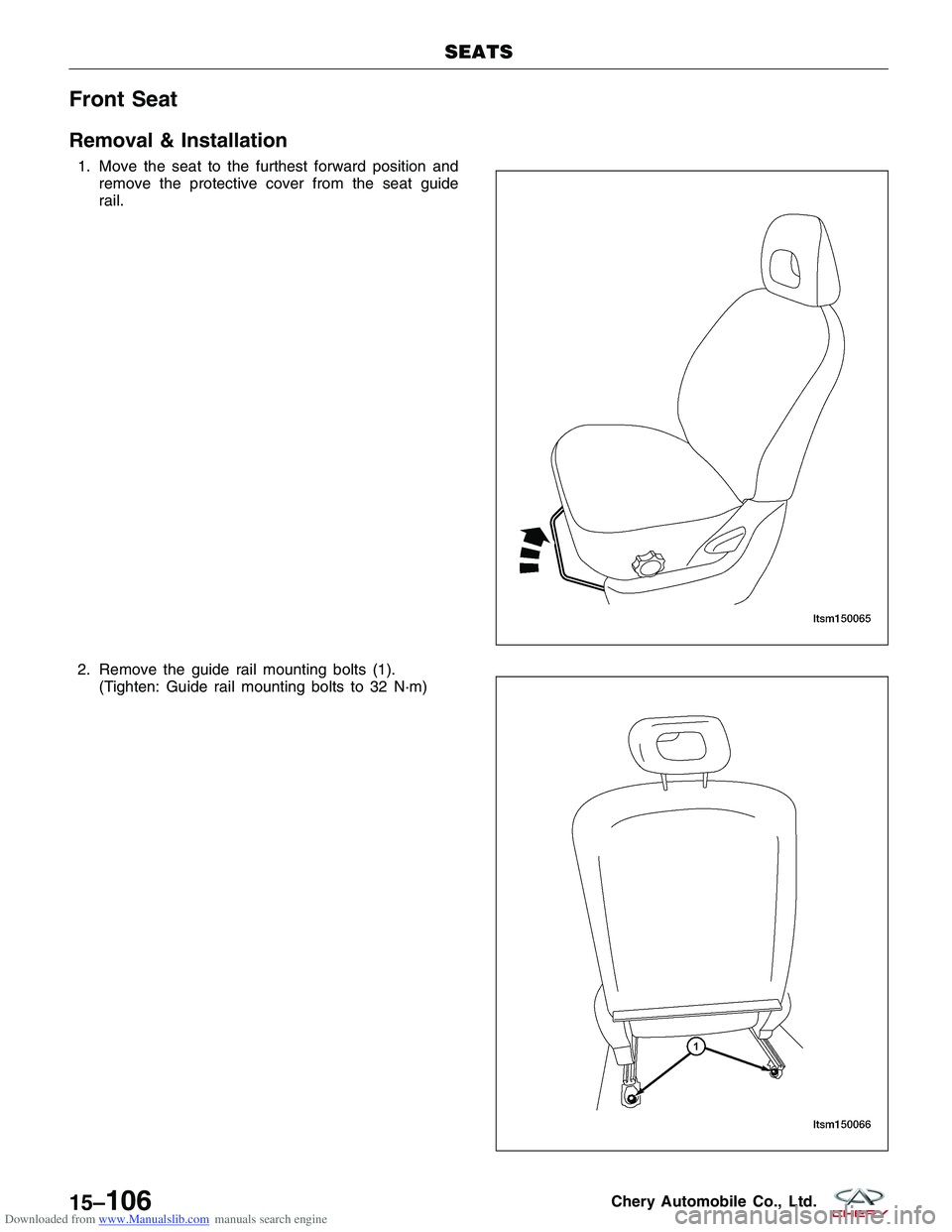

Downloaded from www.Manualslib.com manuals search engine Front Seat
Removal & Installation
1. Move the seat to the furthest forward position andremove the protective cover from the seat guide
rail.
2. Remove the guide rail mounting bolts (1). (Tighten: Guide rail mounting bolts to 32 N·m)
SEATS
LTSM150065
LTSM150066
15–106Chery Automobile Co., Ltd.
