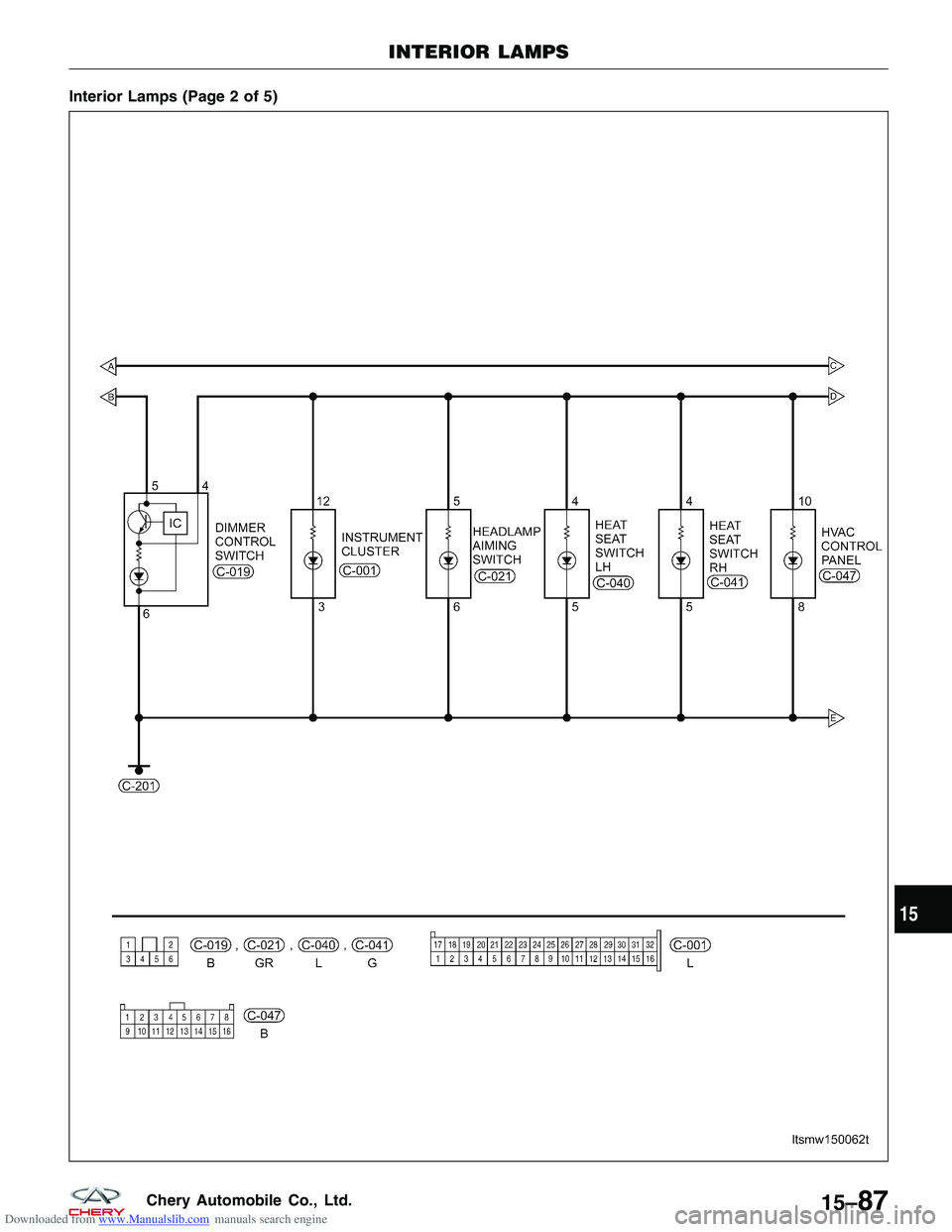

Downloaded from www.Manualslib.com manuals search engine Interior Lamps (Page 2 of 5)
INTERIOR LAMPS
LTSMW150062T
15
15–87Chery Automobile Co., Ltd.

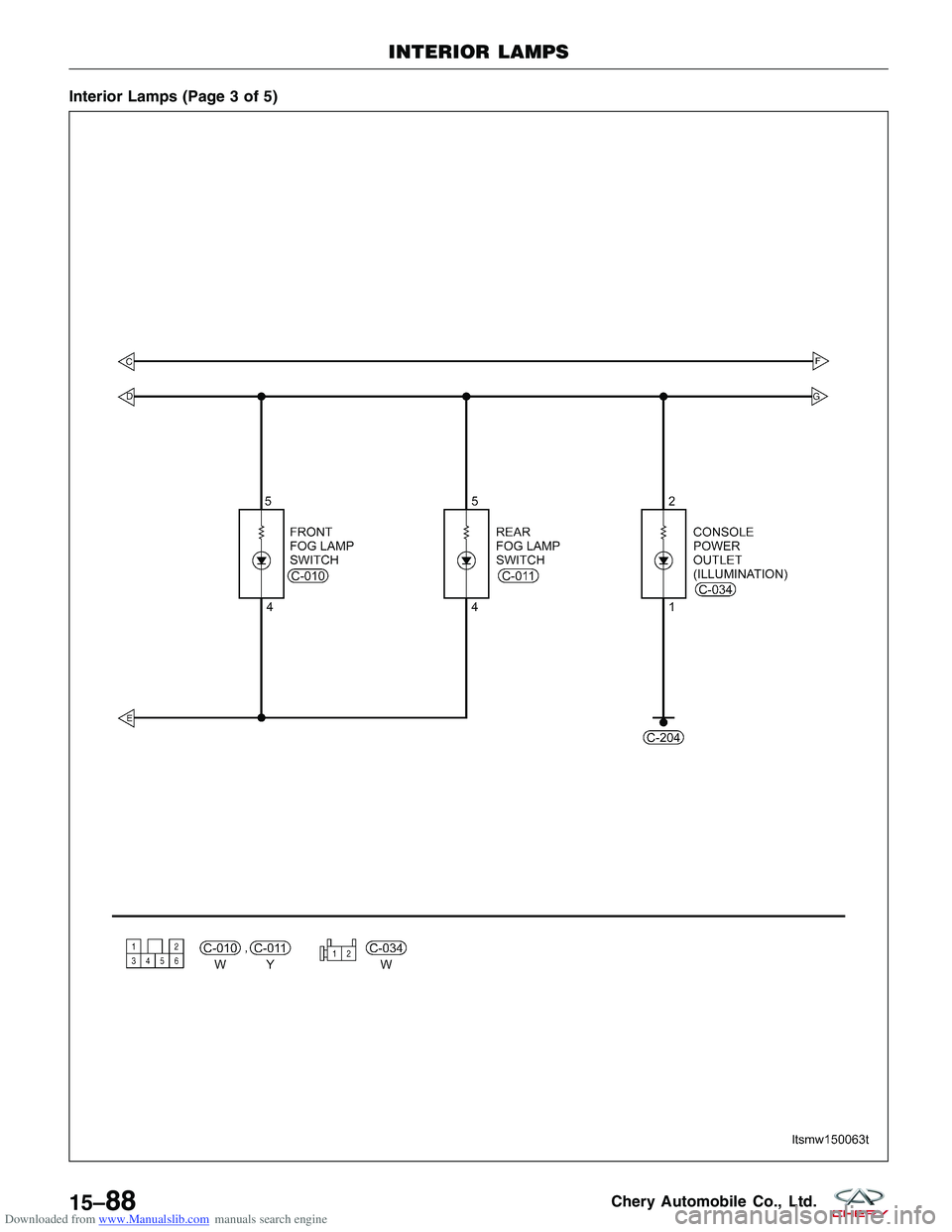

Downloaded from www.Manualslib.com manuals search engine Interior Lamps (Page 3 of 5)
INTERIOR LAMPS
LTSMW150063T
15–88Chery Automobile Co., Ltd.

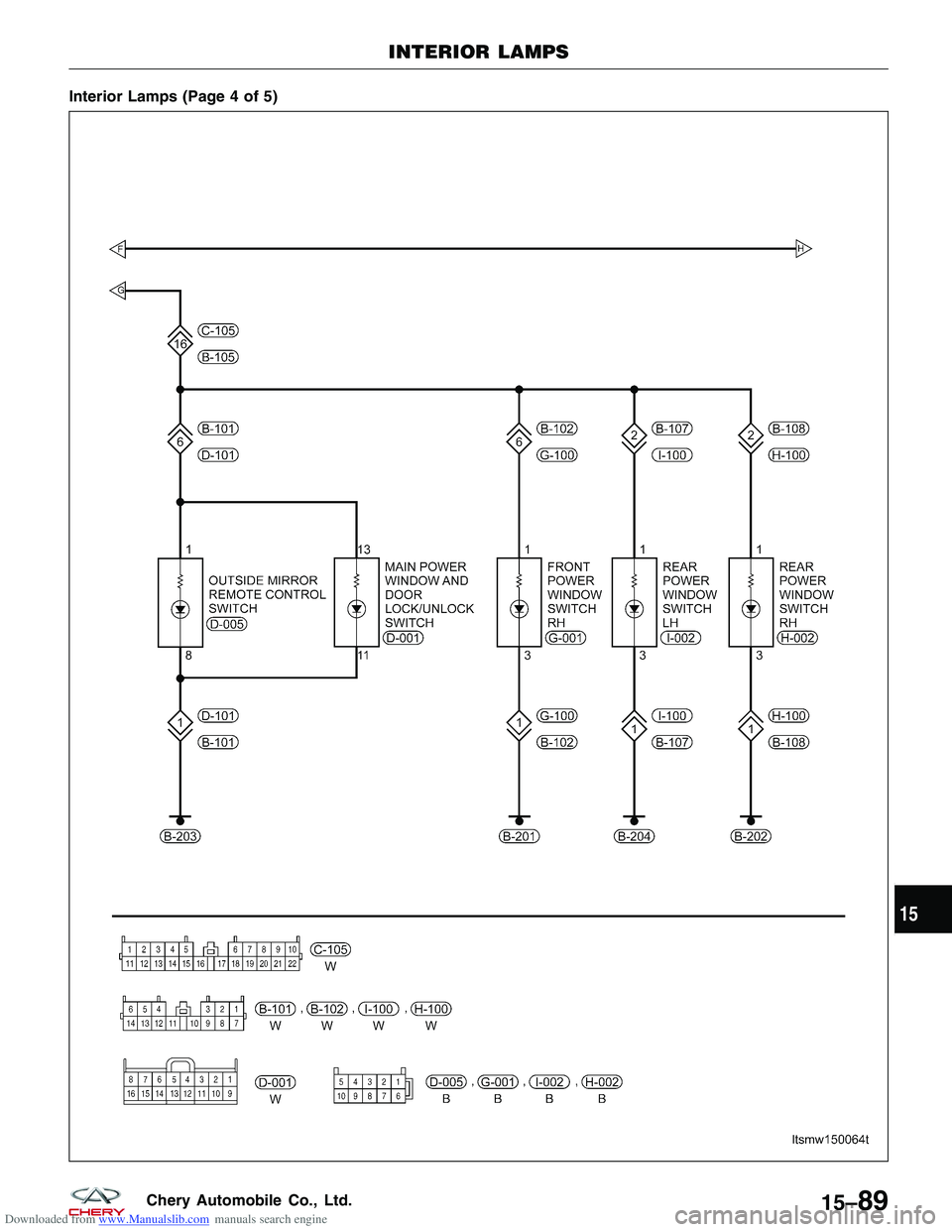

Downloaded from www.Manualslib.com manuals search engine Interior Lamps (Page 4 of 5)
INTERIOR LAMPS
LTSMW150064T
15
15–89Chery Automobile Co., Ltd.

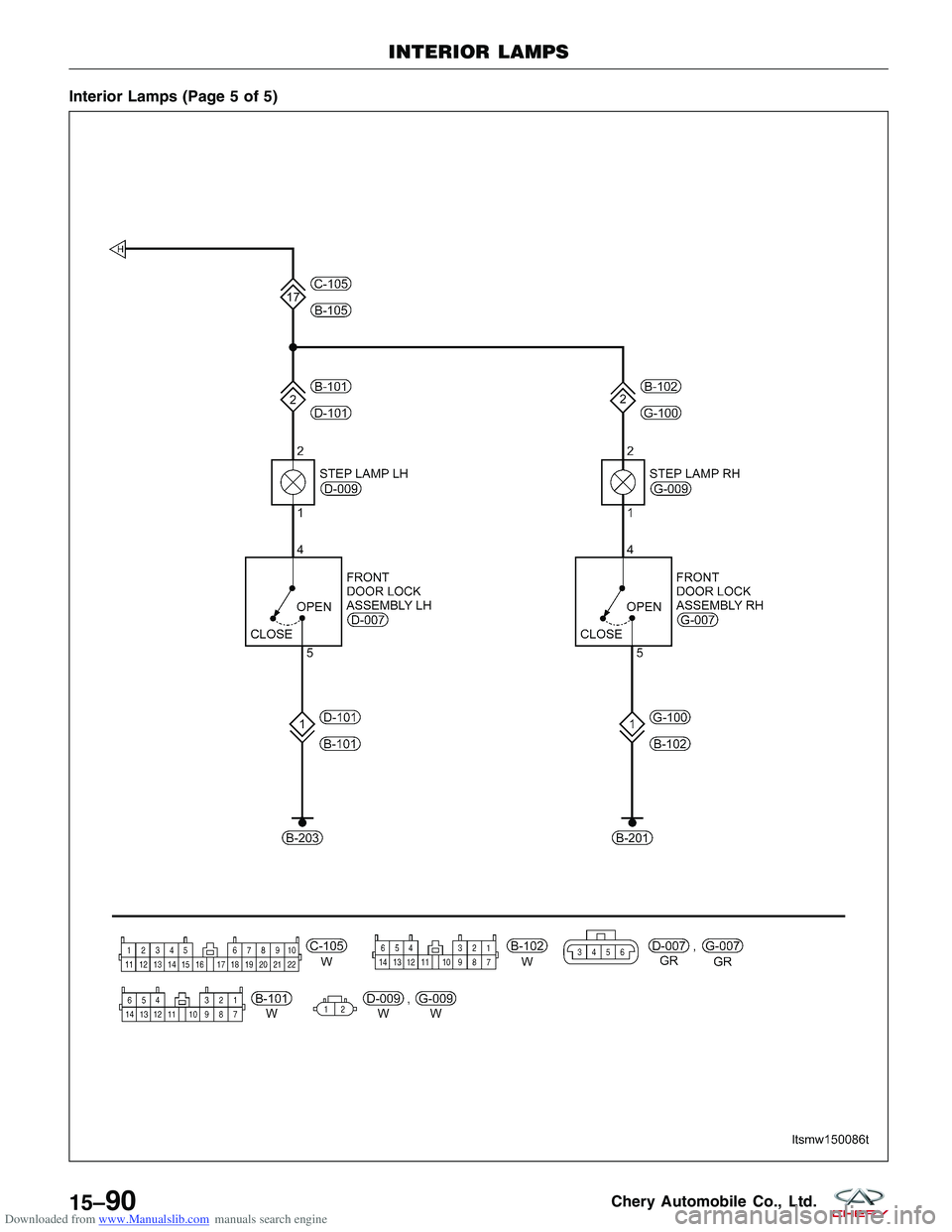

Downloaded from www.Manualslib.com manuals search engine Interior Lamps (Page 5 of 5)
INTERIOR LAMPS
LTSMW150086T
15–90Chery Automobile Co., Ltd.

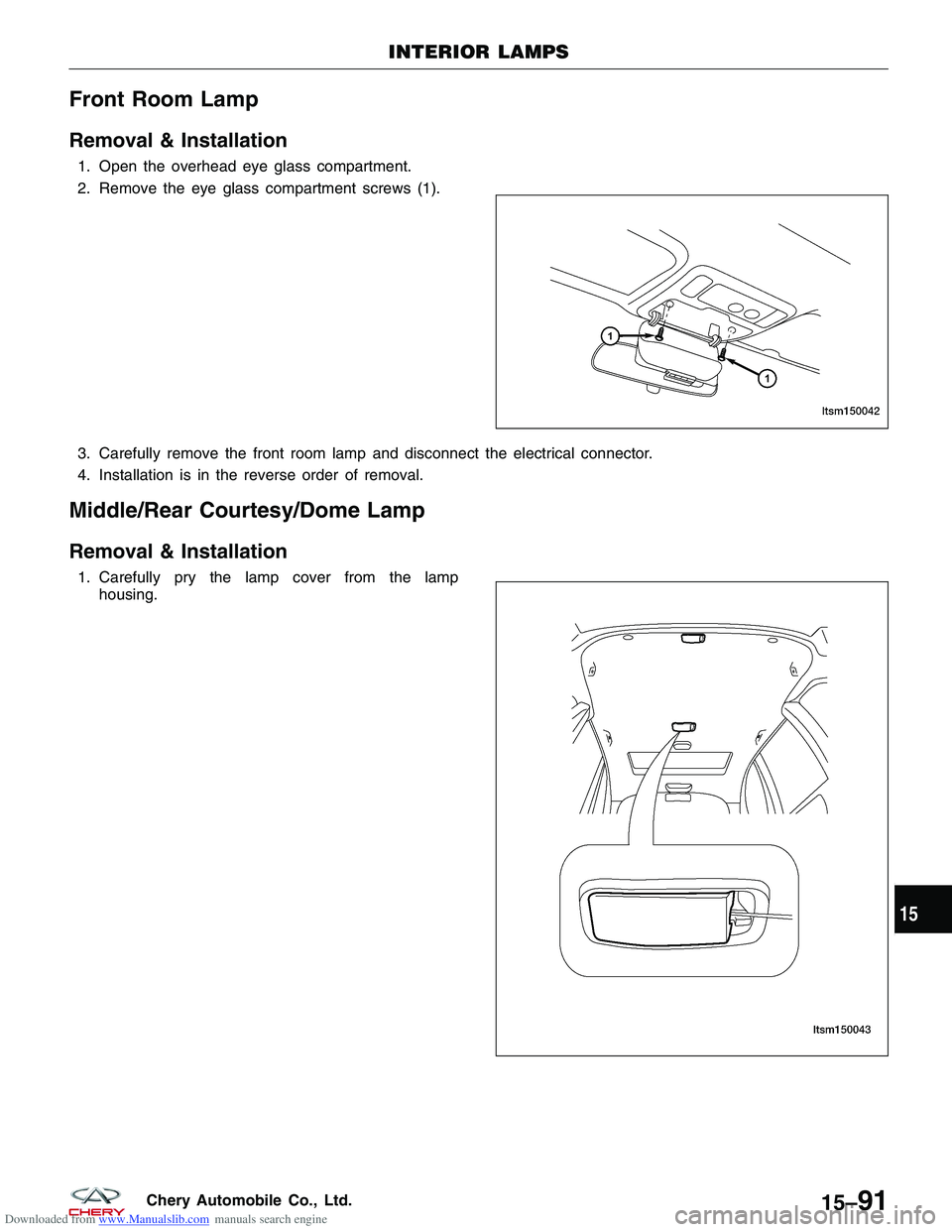

Downloaded from www.Manualslib.com manuals search engine Front Room Lamp
Removal & Installation
1. Open the overhead eye glass compartment.
2. Remove the eye glass compartment screws (1).
3. Carefully remove the front room lamp and disconnect the electrical connector.
4. Installation is in the reverse order of removal.
Middle/Rear Courtesy/Dome Lamp
Removal & Installation
1. Carefully pry the lamp cover from the lamphousing.
INTERIOR LAMPS
LTSM150042
LTSM150043
15
15–91Chery Automobile Co., Ltd.

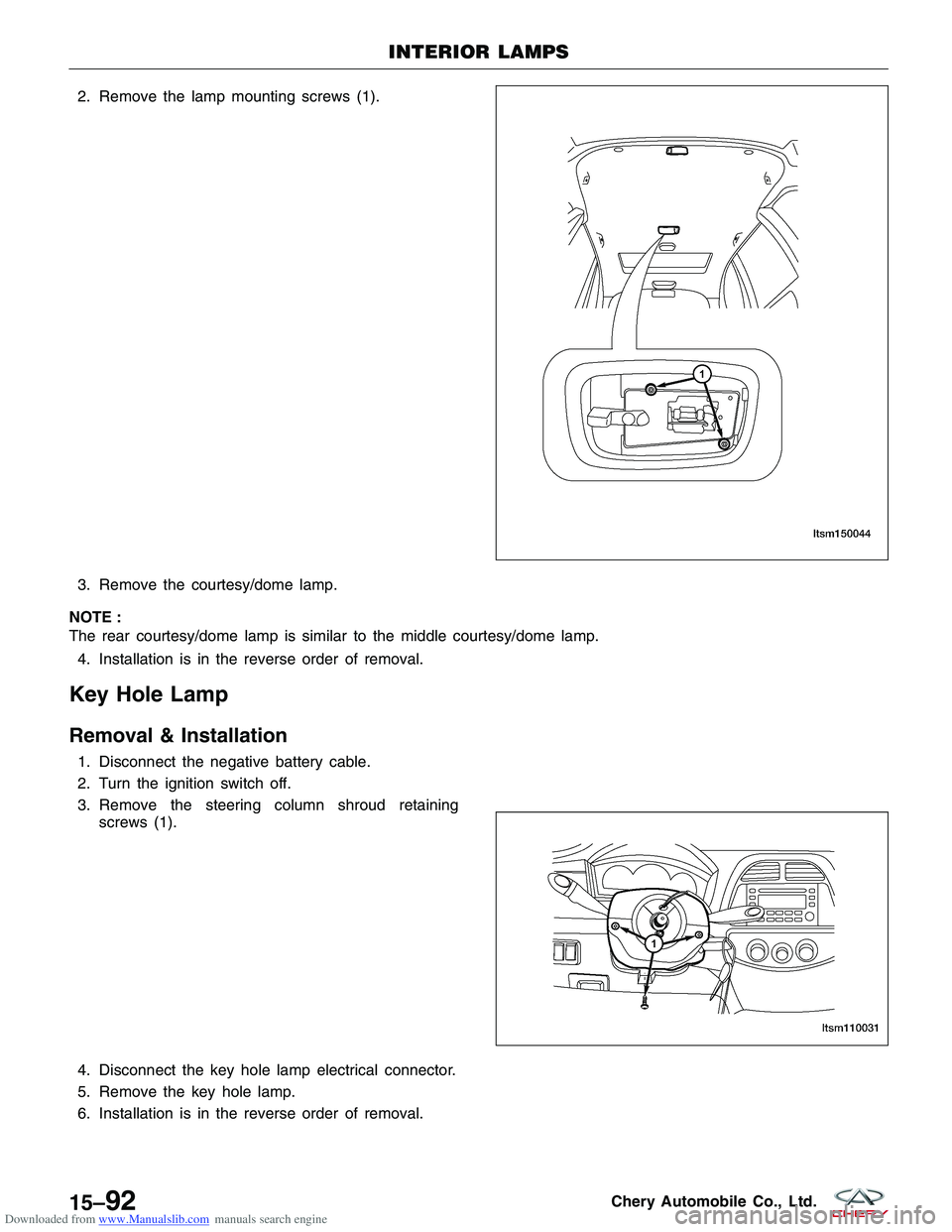

Downloaded from www.Manualslib.com manuals search engine 2. Remove the lamp mounting screws (1).
3. Remove the courtesy/dome lamp.
NOTE :
The rear courtesy/dome lamp is similar to the middle courtesy/dome lamp. 4. Installation is in the reverse order of removal.
Key Hole Lamp
Removal & Installation
1. Disconnect the negative battery cable.
2. Turn the ignition switch off.
3. Remove the steering column shroud retaining screws (1).
4. Disconnect the key hole lamp electrical connector.
5. Remove the key hole lamp.
6. Installation is in the reverse order of removal.
INTERIOR LAMPS
LTSM150044
LTSM110031
15–92Chery Automobile Co., Ltd.

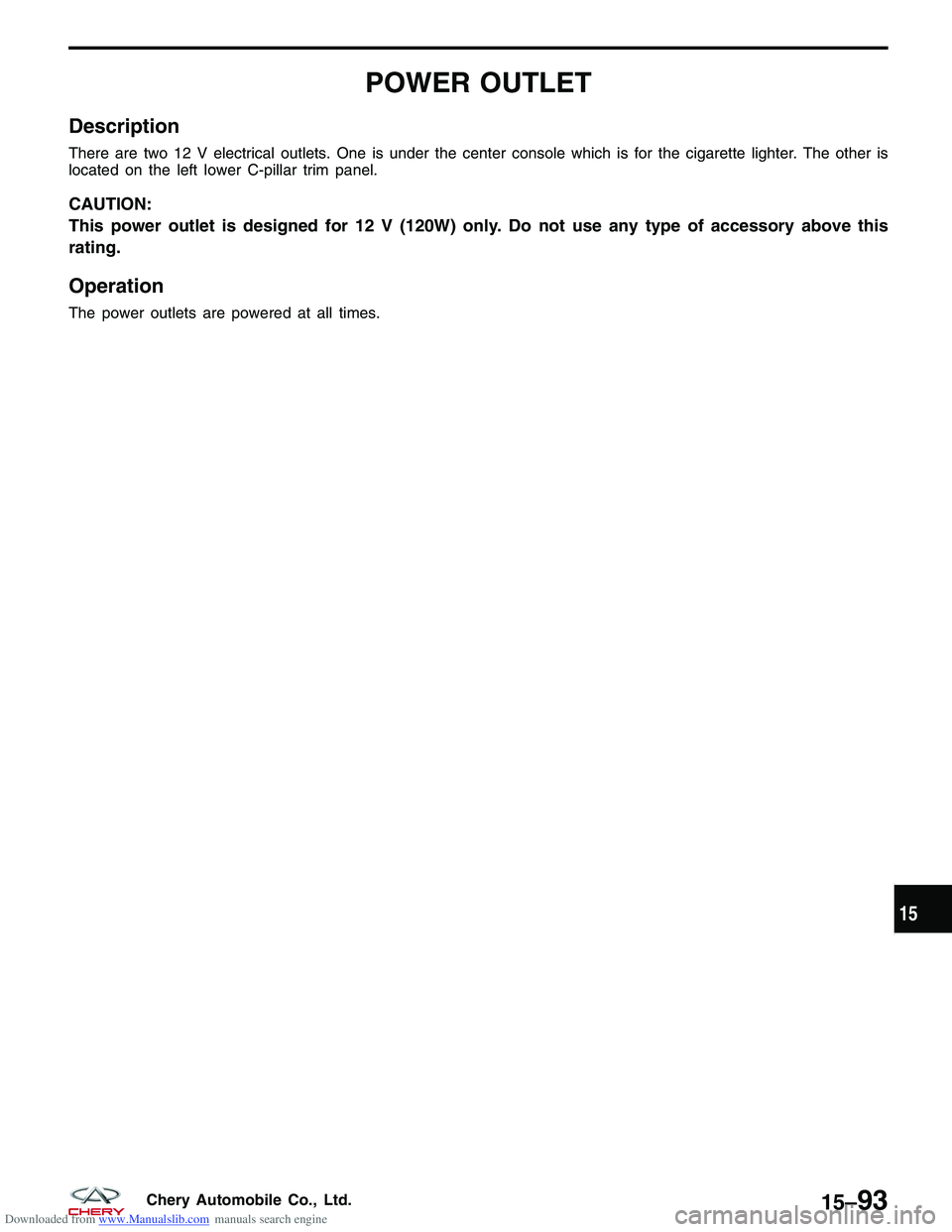

Downloaded from www.Manualslib.com manuals search engine POWER OUTLET
Description
There are two 12 V electrical outlets. One is under the center console which is for the cigarette lighter. The other is
located on the left lower C-pillar trim panel.
CAUTION:
This power outlet is designed for 12 V (120W) only. Do not use any type of accessory above this
rating.
Operation
The power outlets are powered at all times.
15
15–93Chery Automobile Co., Ltd.

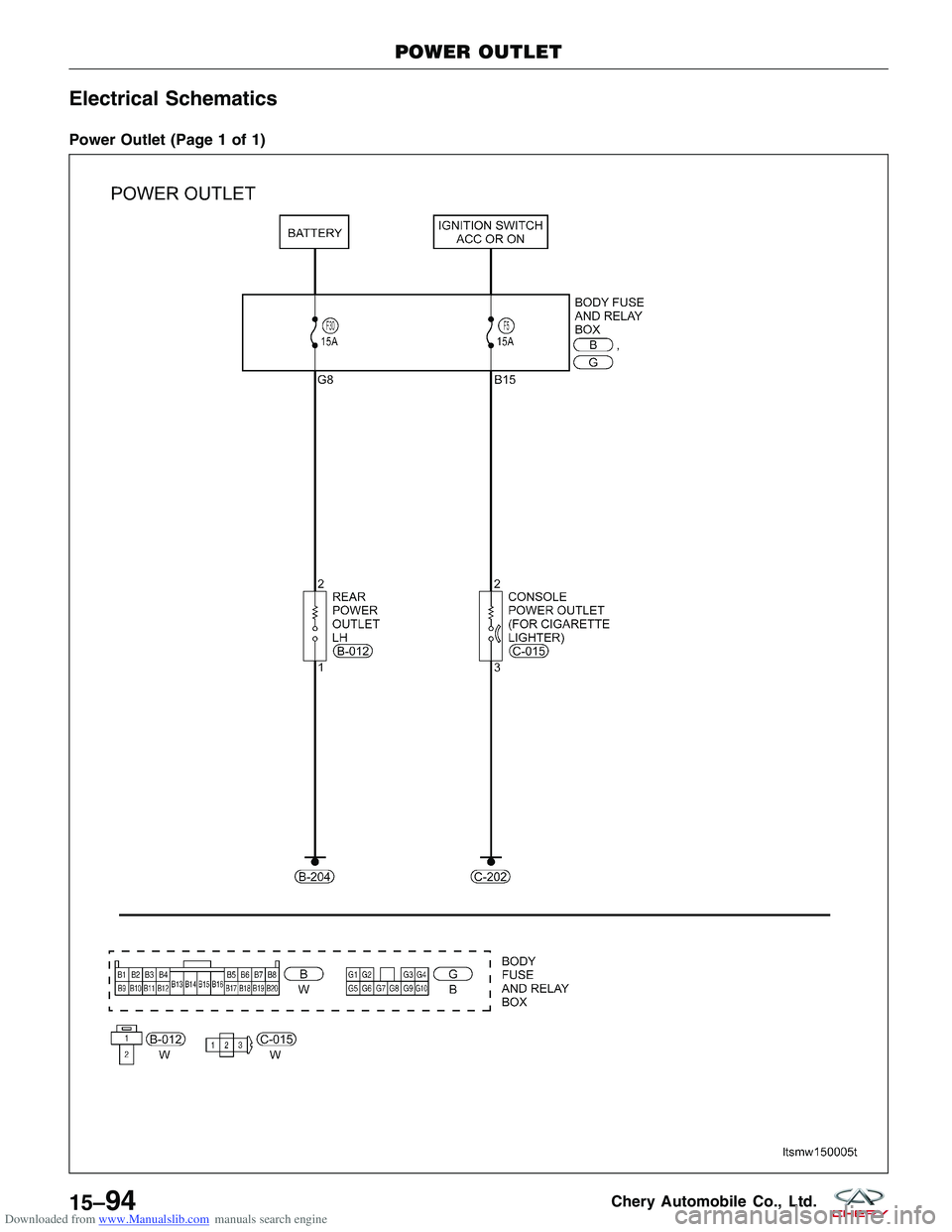

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Power Outlet (Page 1 of 1)
POWER OUTLET
LTSMW150005T
15–94Chery Automobile Co., Ltd.

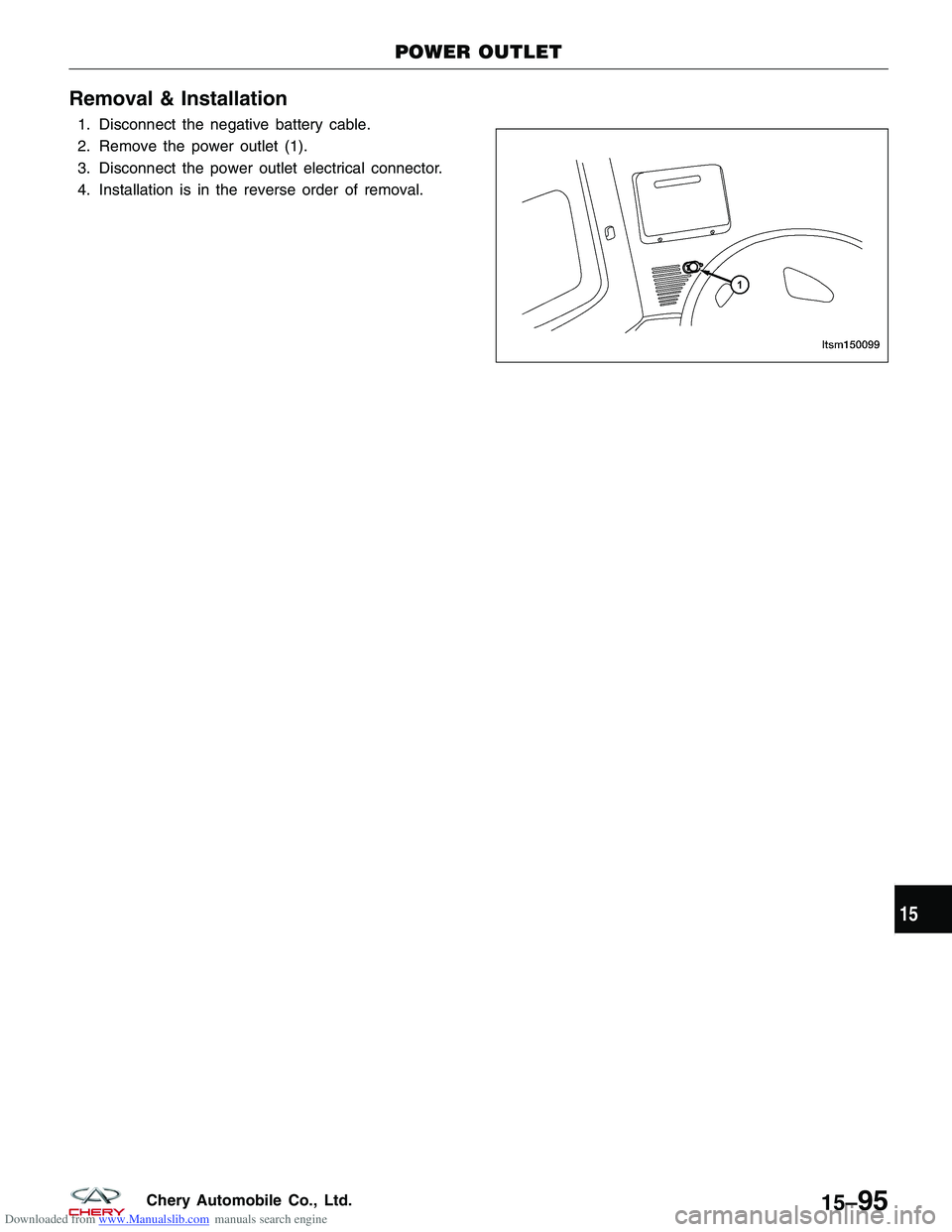

Downloaded from www.Manualslib.com manuals search engine Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the power outlet (1).
3. Disconnect the power outlet electrical connector.
4. Installation is in the reverse order of removal.
POWER OUTLET
LTSM150099
15
15–95Chery Automobile Co., Ltd.

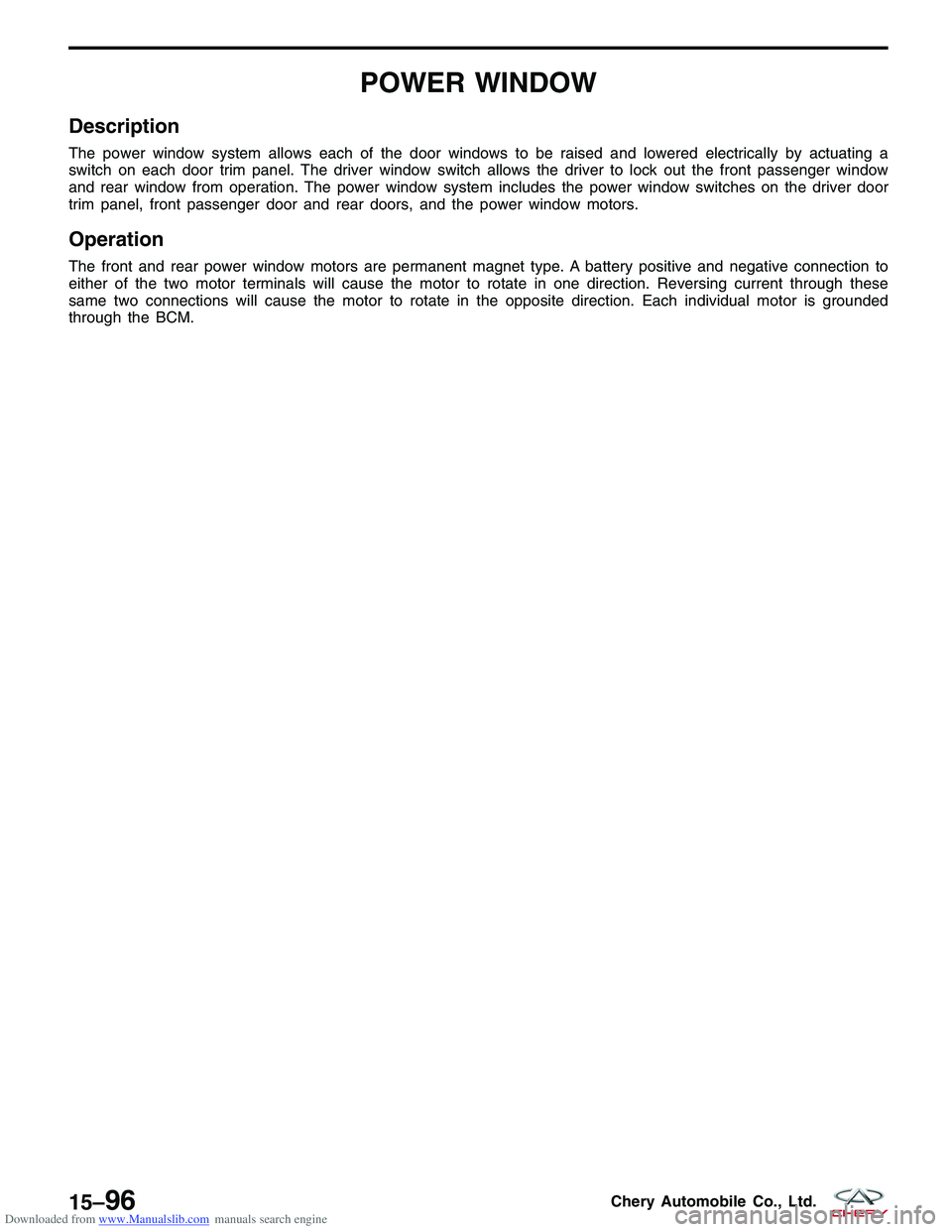

Downloaded from www.Manualslib.com manuals search engine POWER WINDOW
Description
The power window system allows each of the door windows to be raised and lowered electrically by actuating a
switch on each door trim panel. The driver window switch allows the driver to lock out the front passenger window
and rear window from operation. The power window system includes the power window switches on the driver door
trim panel, front passenger door and rear doors, and the power window motors.
Operation
The front and rear power window motors are permanent magnet type. A battery positive and negative connection to
either of the two motor terminals will cause the motor to rotate in one direction. Reversing current through these
same two connections will cause the motor to rotate in the opposite direction. Each individual motor is grounded
through the BCM.
