ECM TERMINAL NO.ITEMCONDITIONDATA (DC VOLTAGE)
19 Air flow sensor •
Engine is running
• Warm-up condition
• Idle 0-1V
• Engine is running: 3,000
RPM 6-9V
74 Air flow sensor •
Engine is running
• Warm-up condition
• Idle
2.2 - 3.2 V
• Engine is running: 2,500
RPM
On Board Diagnostic Logic
• Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
12 Air flow sensor Engine speed is
above 500 RPM Sensor output
frequency is below 3 HZ for 4 seconds. •
Air flow sensor
• Harness or
connectors
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on and record and erase DTC.
• Start engine and keep the engine speed above 500 RPM and select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 03 Electronic Engine Controls for more information.
NOTE :
Before performing the following procedure, make sure that the ECM connection is in good condition.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK GROUND CONNECTION
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 03 Electronic Engine Con-
trols).
• Inspect the ground connection E-208 (See Vehicle Wiring Harness Layout - Engine Room Harness (With Mit-
subishi 2.4L Engine) in Section 16 Wiring).
Is the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground connection.
DIAGNOSIS & TESTING
03
03–477Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 2.CHECK AIR FLOW SENSOR ELECTRICAL CONNECTOR
• Turn ignition switch off.
• Disconnect the air flow sensor electrical connector.
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector as necessary.
3.CHECK AIR FLOW SENSOR POWER SUPPLY CIRCUIT
• Turn ignition switch on.
• Check supply voltage between air flow sensor ter-
minal 4 and ground in the air flow sensor electrical
connector E-058.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to step 5.
No
>>Go to the next step.
4.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Front fuse and relay box H3
Fuse 22, Fuse 12
Harness open or short between air flow sensor and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning parts.
5.CHECK MAF SENSOR REFERENCE VOLTAGE
• Check reference voltage between air flow sensor terminal 7 and ground in the air flow sensor electrical connec-
tor E-058.
• 4.8 - 5.2 V should exist.
Is the check result normal?
Ye s>>Go to step 7.
No
>>Go to the next step.
DIAGNOSIS & TESTING
LTSMD030004
03–478Chery Automobile Co., Ltd.

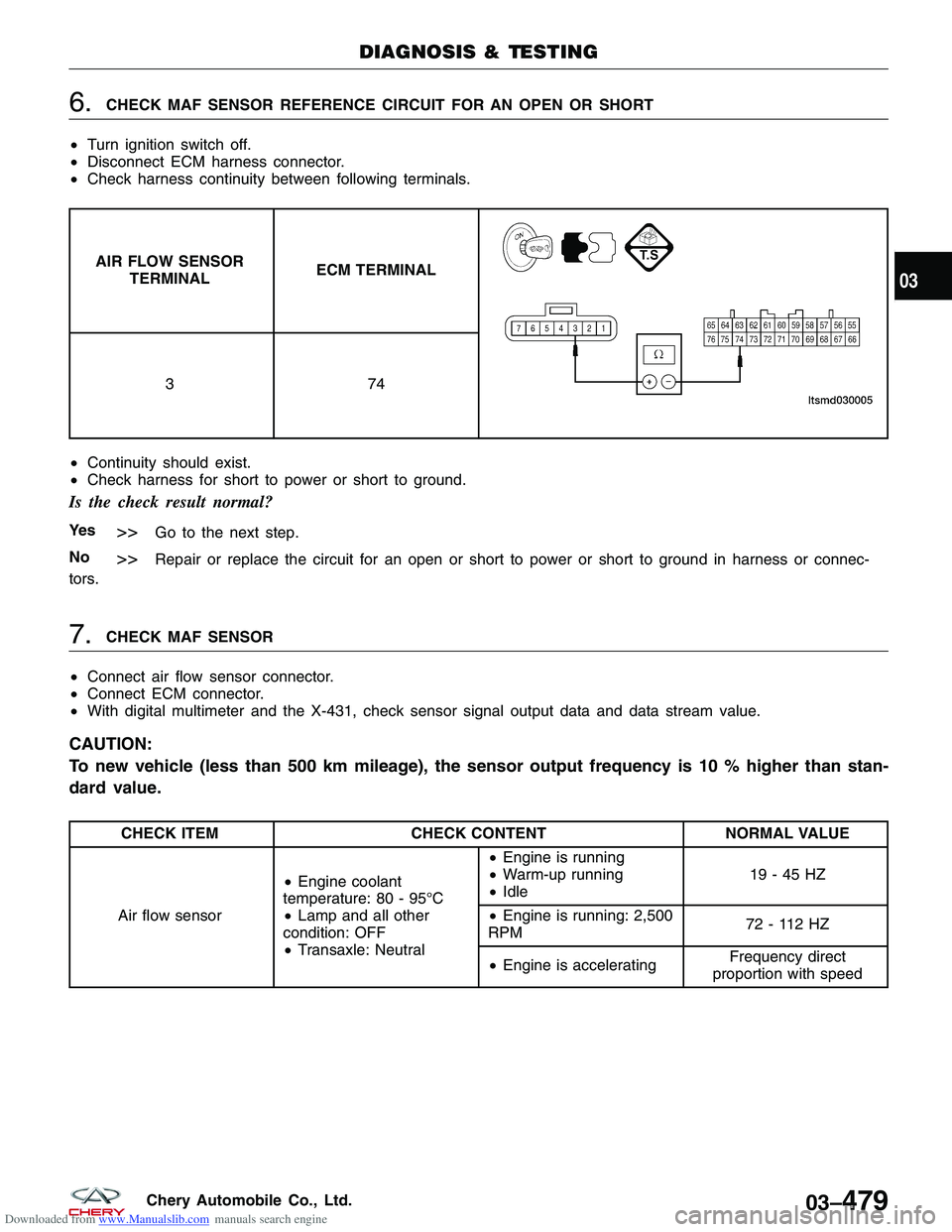

Downloaded from www.Manualslib.com manuals search engine 6.CHECK MAF SENSOR REFERENCE CIRCUIT FOR AN OPEN OR SHORT
• Turn ignition switch off.
• Disconnect ECM harness connector.
• Check harness continuity between following terminals.
AIR FLOW SENSOR
TERMINAL ECM TERMINAL
37
4
• Continuity should exist.
• Check harness for short to power or short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to power or short to ground in harness or connec-
tors.
7.CHECK MAF SENSOR
• Connect air flow sensor connector.
• Connect ECM connector.
• With digital multimeter and the X-431, check sensor signal output data and data stream value.
CAUTION:
To new vehicle (less than 500 km mileage), the sensor output frequency is 10 % higher than stan-
dard value.
CHECK ITEM CHECK CONTENT NORMAL VALUE
Air flow sensor •
Engine coolant
temperature: 80 - 95°C
• Lamp and all other
condition: OFF
• Transaxle: Neutral •
Engine is running
• Warm-up running
• Idle 19-45HZ
• Engine is running: 2,500
RPM 72 - 112 HZ
• Engine is accelerating Frequency direct
proportion with speed
DIAGNOSIS & TESTING
03
03–479Chery Automobile Co., Ltd.

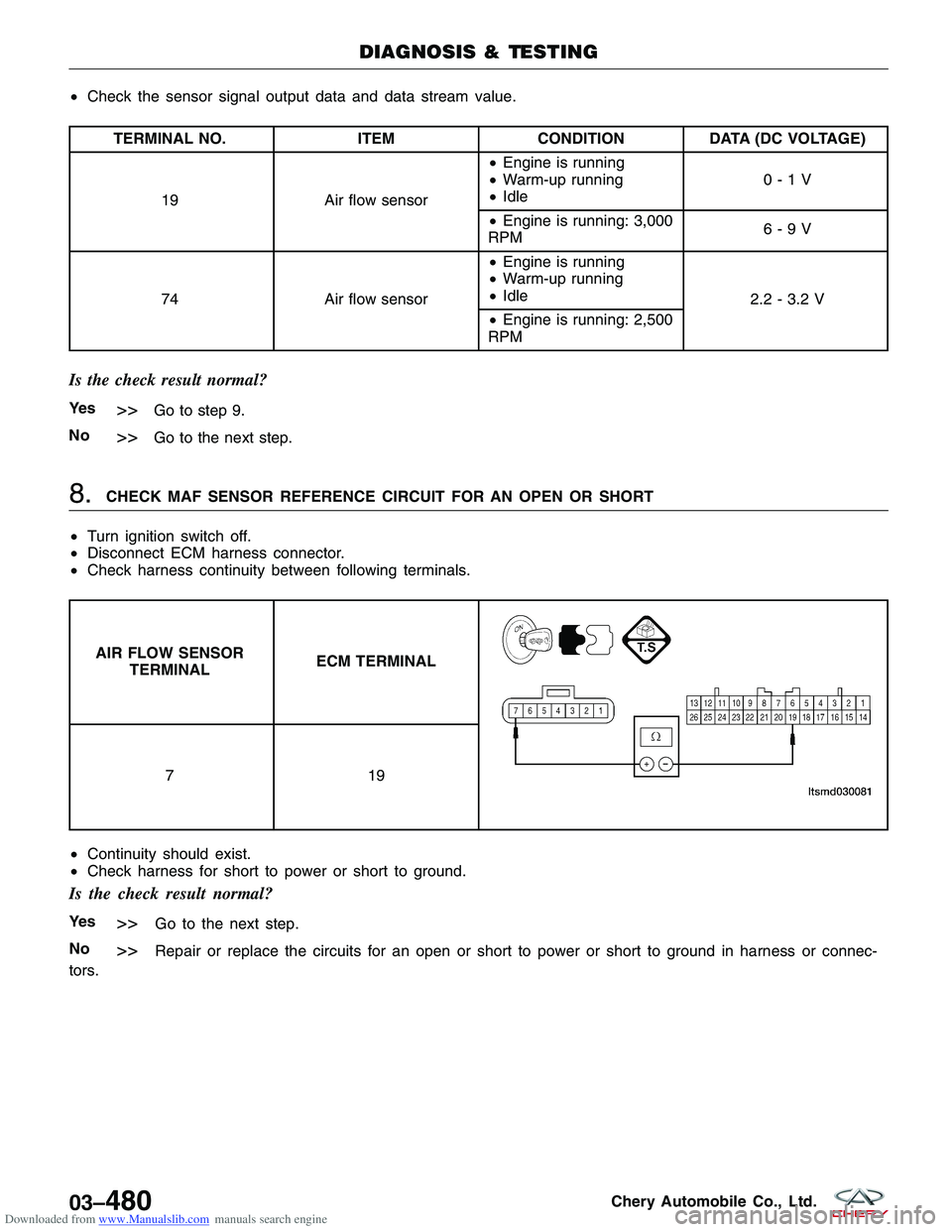

Downloaded from www.Manualslib.com manuals search engine •Check the sensor signal output data and data stream value.
TERMINAL NO. ITEMCONDITIONDATA (DC VOLTAGE)
19 Air flow sensor •
Engine is running
• Warm-up running
• Idle 0-1V
• Engine is running: 3,000
RPM 6-9V
74 Air flow sensor •
Engine is running
• Warm-up running
• Idle
2.2 - 3.2 V
• Engine is running: 2,500
RPM
Is the check result normal?
Ye s>>Go to step 9.
No
>>Go to the next step.
8.CHECK MAF SENSOR REFERENCE CIRCUIT FOR AN OPEN OR SHORT
• Turn ignition switch off.
• Disconnect ECM harness connector.
• Check harness continuity between following terminals.
AIR FLOW SENSOR
TERMINAL ECM TERMINAL
71
9
• Continuity should exist.
• Check harness for short to power or short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuits for an open or short to power or short to ground in harness or connec-
tors.
DIAGNOSIS & TESTING
03–480Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 13 - Air Temperature Sensor
DIAGNOSIS & TESTING
LTSMW030013T
03–482Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Check reference values between ECM terminals and ground under the following conditions:
ECM TERMINALNO. ITEM
CONDITION DATA (DC
VOLTAGE)
56 Intake Air
Temperature (IAT) sensor Ignition switch: ON IAT: 0°C
3.2 - 3.8 V
IAT: 20°C 2.3 - 2.9 V
IAT: 40°C 1.5 - 2.1 V
IAT: 80°C 0.4 - 1.0 V
76 Sensor (GND) Ignition switch on 0 V
On Board Diagnostic Logic
• Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
13 Air temperature
sensor •
Ignition switch ON
position for 60
seconds
• Engine: Running •
Signal output is
over 4.6 V for 4
seconds
continuously
(amount to -45°C
intake air
temperature).
• Signal output is
below 0.2 V for 4
seconds
continuously
(amount to 125°C
intake air
temperature). •
Intake Air
Temperature (IAT)
sensor
• Harness or
connectors
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the ECM.
• Start engine and warm it to normal operating temperature, then select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 03 Electronic Engine Controls for more information.
NOTE :
Before performing the following procedure, make sure that the ECM connection is in good condition.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
03
03–483Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK GROUND CONNECTION
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 03 Electronic Engine Con-
trols).
• Inspect the ground connection E-208 (See Vehicle Wiring Harness Layout - Engine Room Harness (With Mit-
subishi 2.4L Engine) in Section 16 Wiring).
Is the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground connection.
2.CHECK INTAKE AIR TEMPERATURE (IAT) SENSOR ELECTRICAL CONNECTOR
• Turn ignition switch off.
• Disconnect the IAT sensor (IAT sensor is built-into)
(1) electrical connector.
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
3.CHECK THE INTAKE AIR TEMPERATURE (IAT) SENSOR POWER SUPPLY CIRCUIT
• Turn ignition switch on.
• Check supply voltage between IAT sensor terminal
6 and ground in the IAT sensor electrical connector
E-058.
• 4.5 - 4.9 V should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair the circuit for an open or short to
power or short to ground in harness or
connectors.
If the circuit is normal, go to the next
step.
DIAGNOSIS & TESTING
LTSMD030078
LTSMD030006
03–484Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4.CHECK IAT SENSOR GROUND CIRCUIT FOR AN OPEN OR SHORT
• Turn ignition switch off.
• Disconnect ECM harness connector.
• Check harness continuity between following terminals.
A/T SENSOR
TERMINAL ECM
TERMINAL CONTINUITY
57
6Yes
• Continuity should exist.
• Check harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair circuit for an open or short to power or short to ground in harness or connectors.
5.CHECK IAT SENSOR
• Check resistance between MAF sensor terminal 5 and 6 under the following conditions:
IAT°C RESISTANCE K
20°C 2.3 - 3.0
80°C 0.30 - 0.42
• Connect IAT sensor connector.
• Connect ECM connector.
• Turn ignition switch on.
• Check sensor signal output.
TERMINAL NO. ITEM CONDITION DATA (DC
VOLTAGE)
56 IAT sensor Ignition switch: ON IAT: 0°C
3.2 - 3.8 V
IAT: 20°C 2.3 - 2.9 V
IAT: 40°C 1.5 - 2.1 V
IAT: 80°C 0.4 - 1.0 V
76 Sensor (GND) Ignition switch: ON 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace IAT sensor.
DIAGNOSIS & TESTING
03
03–485Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 14 - Throttle Position Sensor
DIAGNOSIS & TESTING
LTSMW030014T
03
03–487Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Check reference values between ECM terminals and ground under the following conditions:
ECM TERMINALNO. ITEM
CONDITION DATA (DC
VOLTAGE)
65 Regulated sensor
supply
Ignition switch: ON -
Approximately 5 V
68 Throttle Position
(TP) sensor TP is in idle position 0.3 - 1.0 V
TP is full opening 4.5 - 5.5 V
71 Idle position switch Adjust TP to idle
position 0-1V
TP is ajar Above 4 V
76 Sensor (GND) -Approximately 0 V
On Board Diagnostic Logic
• Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
14 Throttle position
sensor Ignition switch on for
60 seconds or after
engine start •
Idle position
switch is in ON
position and output
is over 2 V for 4
seconds
continuously.
• Signal output is
below 0.2 V for 4
seconds
continuously. •
Throttle Position
Sensor (TPS) or
misalignment
• Harness or
connectors
• Idle position switch
ON position is not
normal
• Idle position switch
signal circuit shorted
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the ECM.
• Start engine and warm it to normal operating temperature, then select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 03 Electronic Engine Controls for more information.
NOTE :
Before performing the following procedure, make sure that the ECM connection is in good condition.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
03–488Chery Automobile Co., Ltd.
