CHEVROLET AVEO 2002 Service Repair Manual

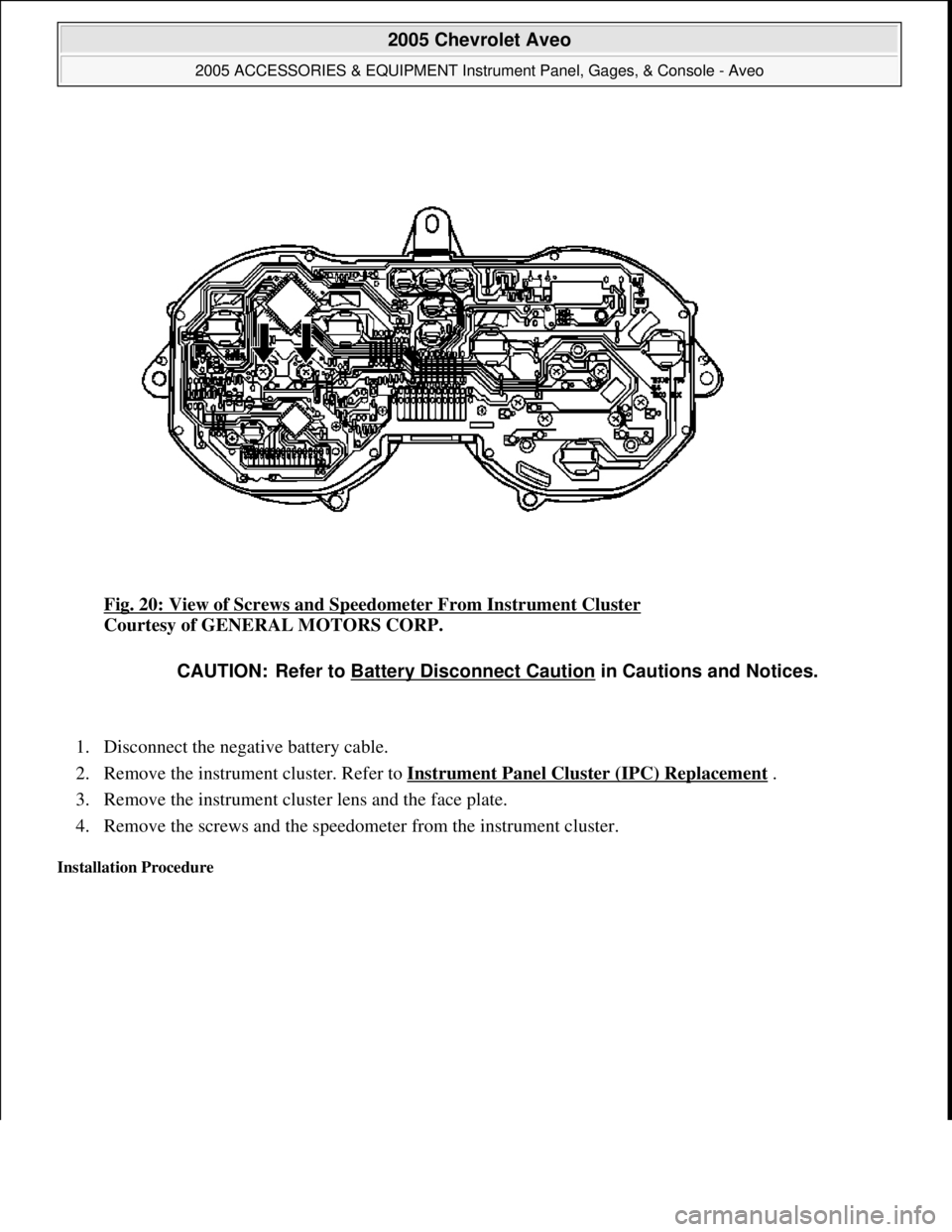

Fig. 20: View of Screws and Speedometer From Instrument Cluster
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
.
3. Remove the instrument cluster lens and the face plate.
4. Remove the screws and the speedometer from the instrument cluster.
Installation Procedure
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 48 © 2005 Mitchell Repair Information Company, LLC.

Fig. 21: View of Screws and Speedometer From Instrument Cluster
Courtesy of GENERAL MOTORS CORP.
1. Install the speedometer to the instrument cluster with the screws.
2. Install the instrument cluster lens and the face plate.
3. Install the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
.
4. Connect the negative battery cable.
FUEL GAGE REPLACEMENT
Removal Procedure
NOTE: Refer to Fastener Notice in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 49 © 2005 Mitchell Repair Information Company, LLC.

Fig. 22: View of Screws and Fuel Gage From Cluster Assembly
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
.
3. Remove the instrument cluster lens and the face plate.
4. Remove the screws and the fuel gage from the cluster assembly.
Installation Procedure
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 50 © 2005 Mitchell Repair Information Company, LLC.

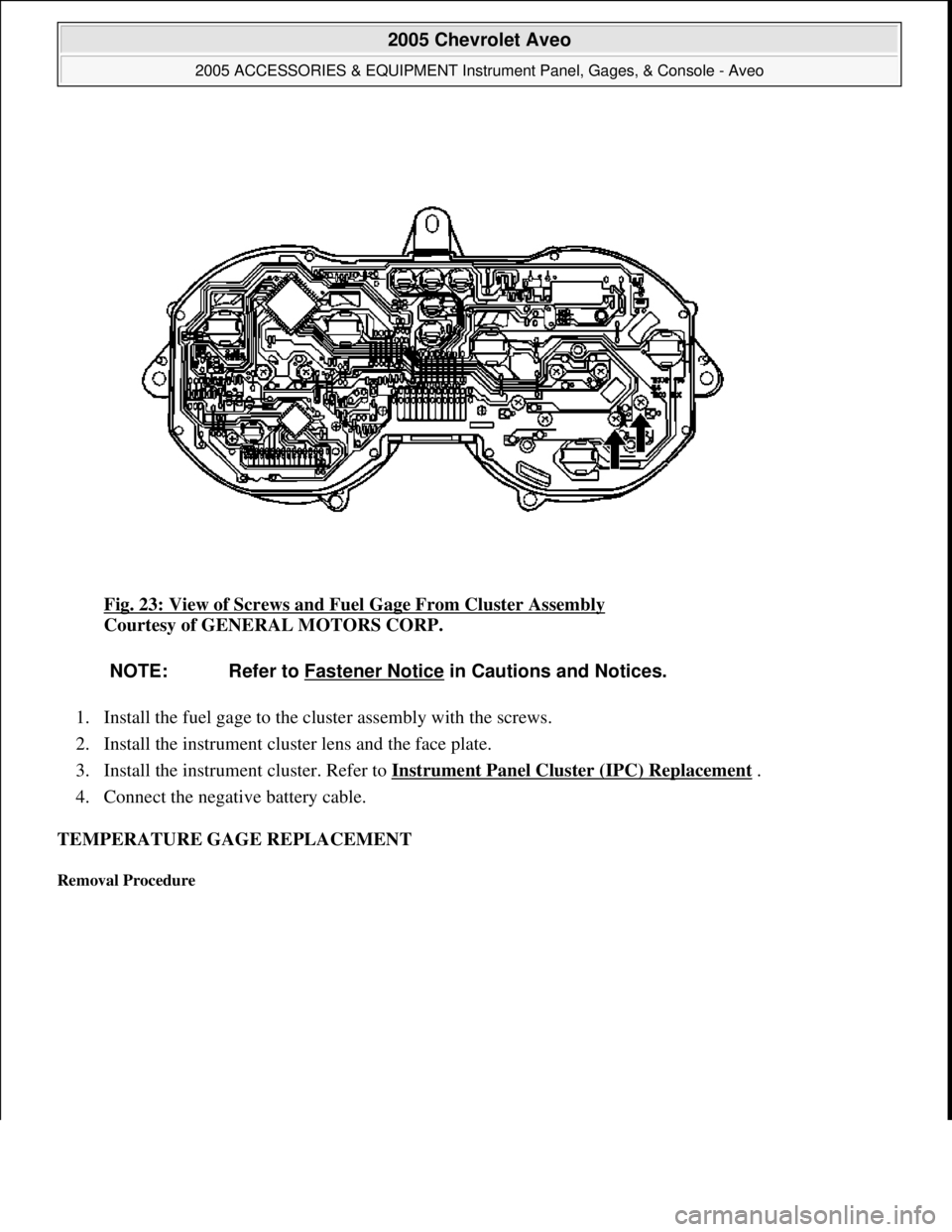

Fig. 23: View of Screws and Fuel Gage From Cluster Assembly
Courtesy of GENERAL MOTORS CORP.
1. Install the fuel gage to the cluster assembly with the screws.
2. Install the instrument cluster lens and the face plate.
3. Install the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
.
4. Connect the negative battery cable.
TEMPERATURE GAGE REPLACEMENT
Removal Procedure
NOTE: Refer to Fastener Notice in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 51 © 2005 Mitchell Repair Information Company, LLC.

Fig. 24: View of Screws and Temperature Gage From Cluster Assembly
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
.
3. Remove the instrument cluster lens and the face plate.
4. Remove the screws and the temperature gage from the cluster assembly.
Installation Procedure
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 52 © 2005 Mitchell Repair Information Company, LLC.

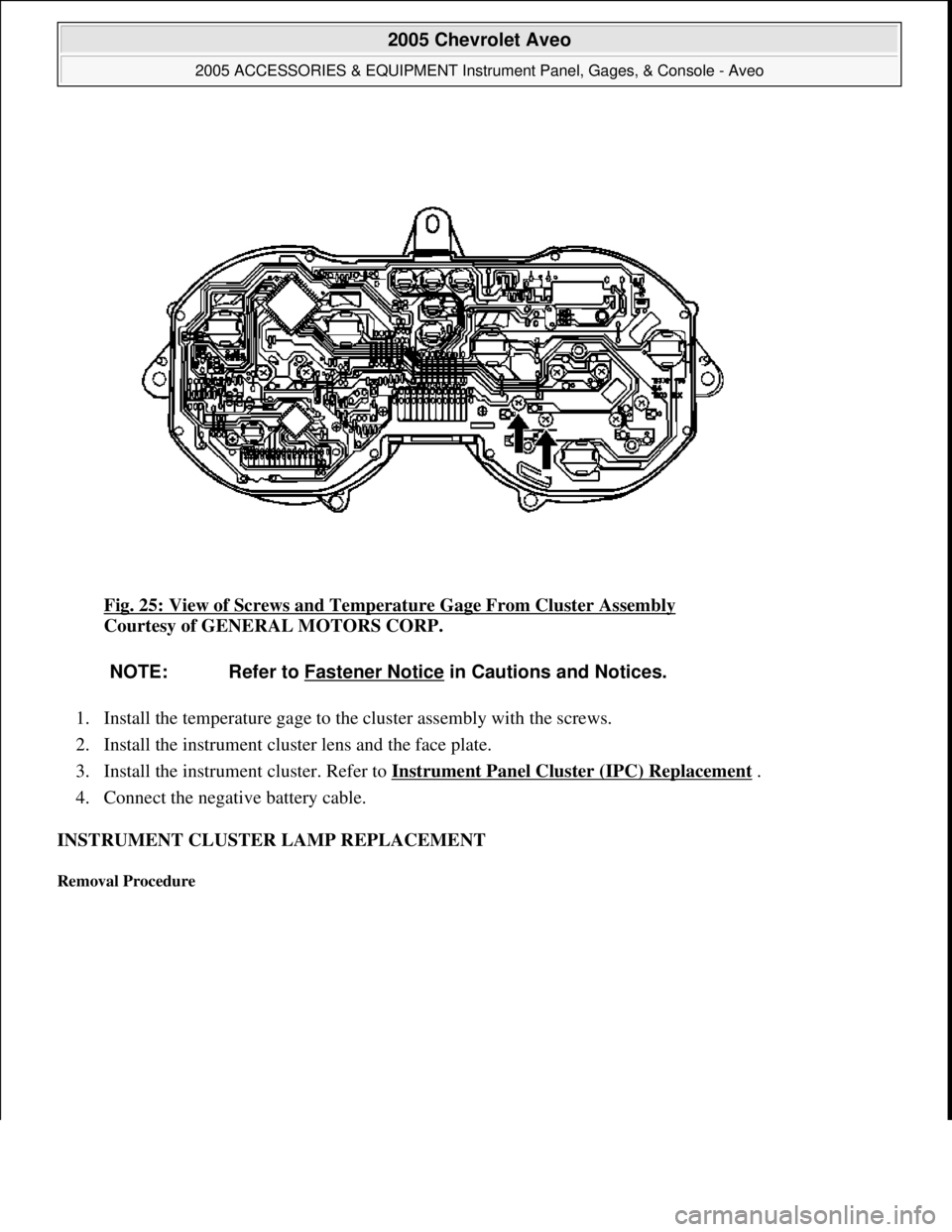

Fig. 25: View of Screws and Temperature Gage From Cluster Assembly
Courtesy of GENERAL MOTORS CORP.
1. Install the temperature gage to the cluster assembly with the screws.
2. Install the instrument cluster lens and the face plate.
3. Install the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
.
4. Connect the negative battery cable.
INSTRUMENT CLUSTER LAMP REPLACEMENT
Removal Procedure
NOTE: Refer to Fastener Notice in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 53 © 2005 Mitchell Repair Information Company, LLC.

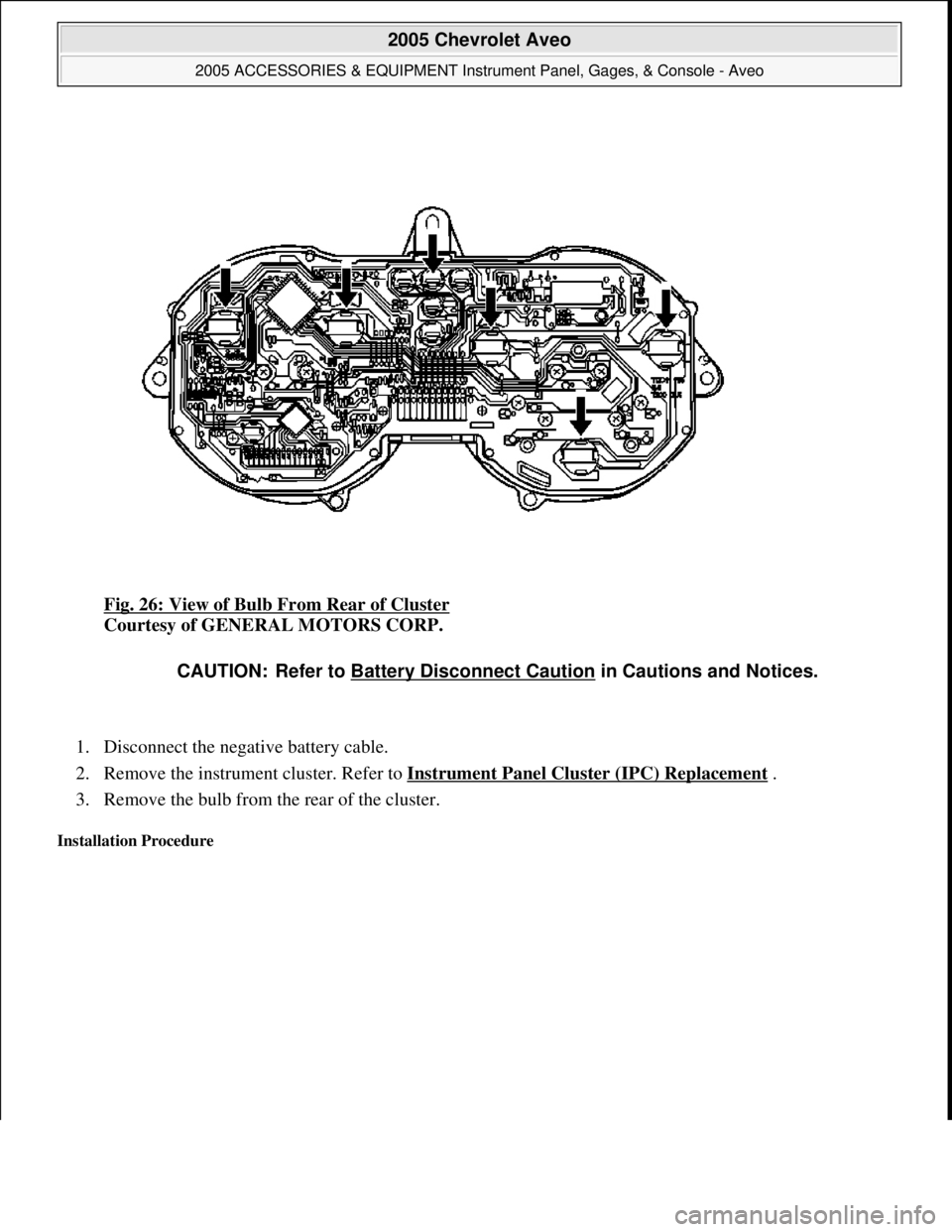

Fig. 26: View of Bulb From Rear of Cluster
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
.
3. Remove the bulb from the rear of the cluster.
Installation Procedure
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 54 © 2005 Mitchell Repair Information Company, LLC.

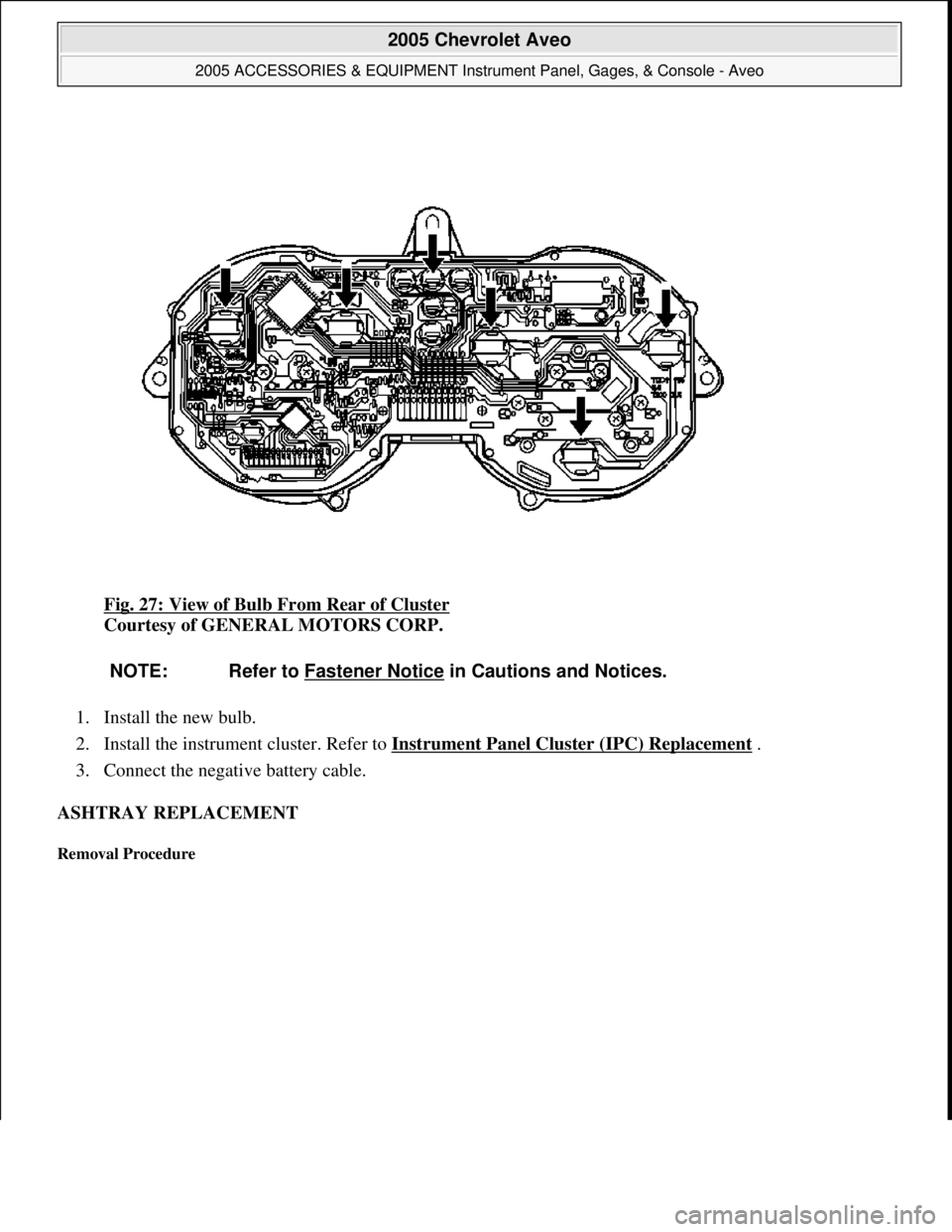

Fig. 27: View of Bulb From Rear of Cluster
Courtesy of GENERAL MOTORS CORP.
1. Install the new bulb.
2. Install the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
.
3. Connect the negative battery cable.
ASHTRAY REPLACEMENT
Removal Procedure
NOTE: Refer to Fastener Notice in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 55 © 2005 Mitchell Repair Information Company, LLC.

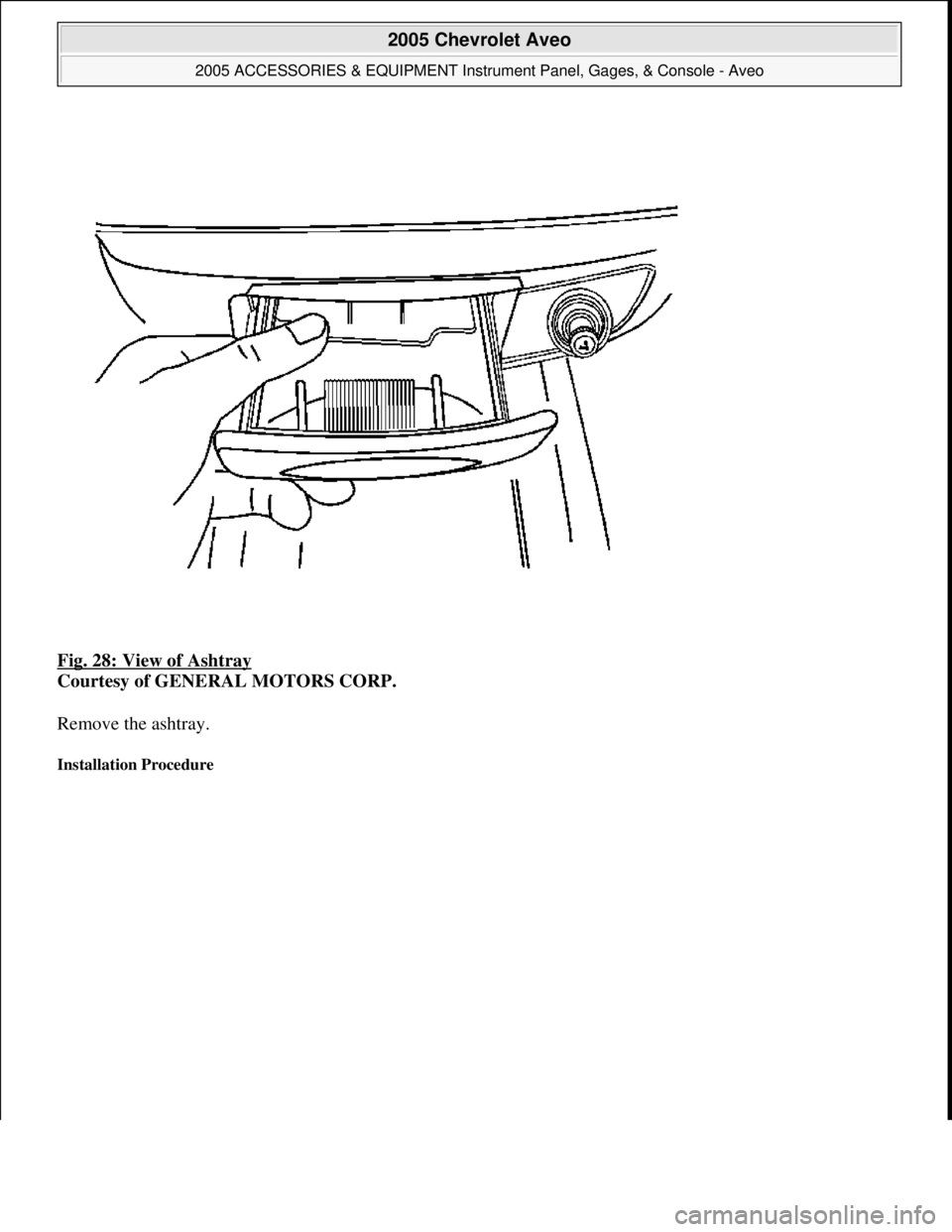

Fig. 28: View of Ashtray
Courtesy of GENERAL MOTORS CORP.
Remove the ashtray.
Installation Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 56 © 2005 Mitchell Repair Information Company, LLC.

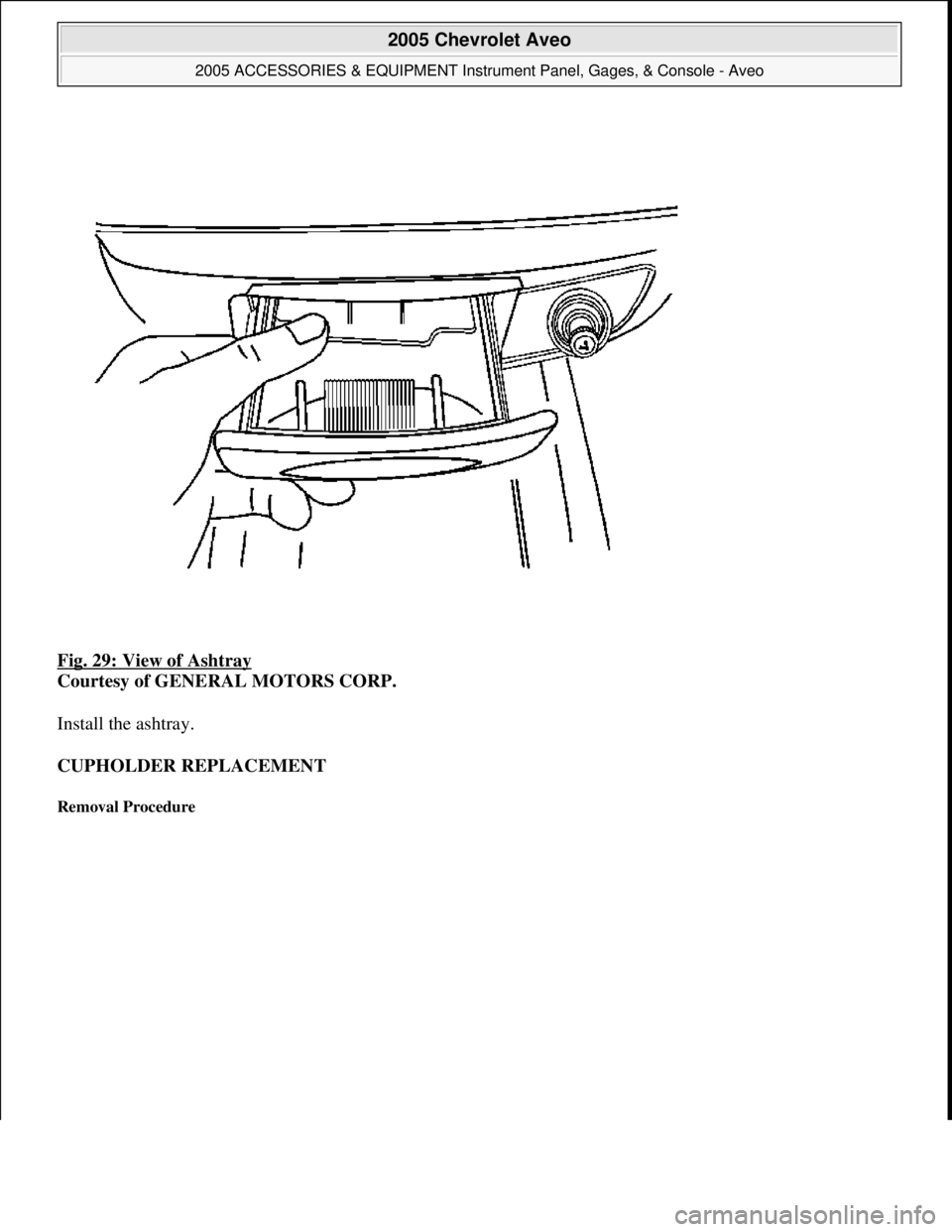

Fig. 29: View of Ashtray
Courtesy of GENERAL MOTORS CORP.
Install the ashtray.
CUPHOLDER REPLACEMENT
Removal Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 57 © 2005 Mitchell Repair Information Company, LLC.
