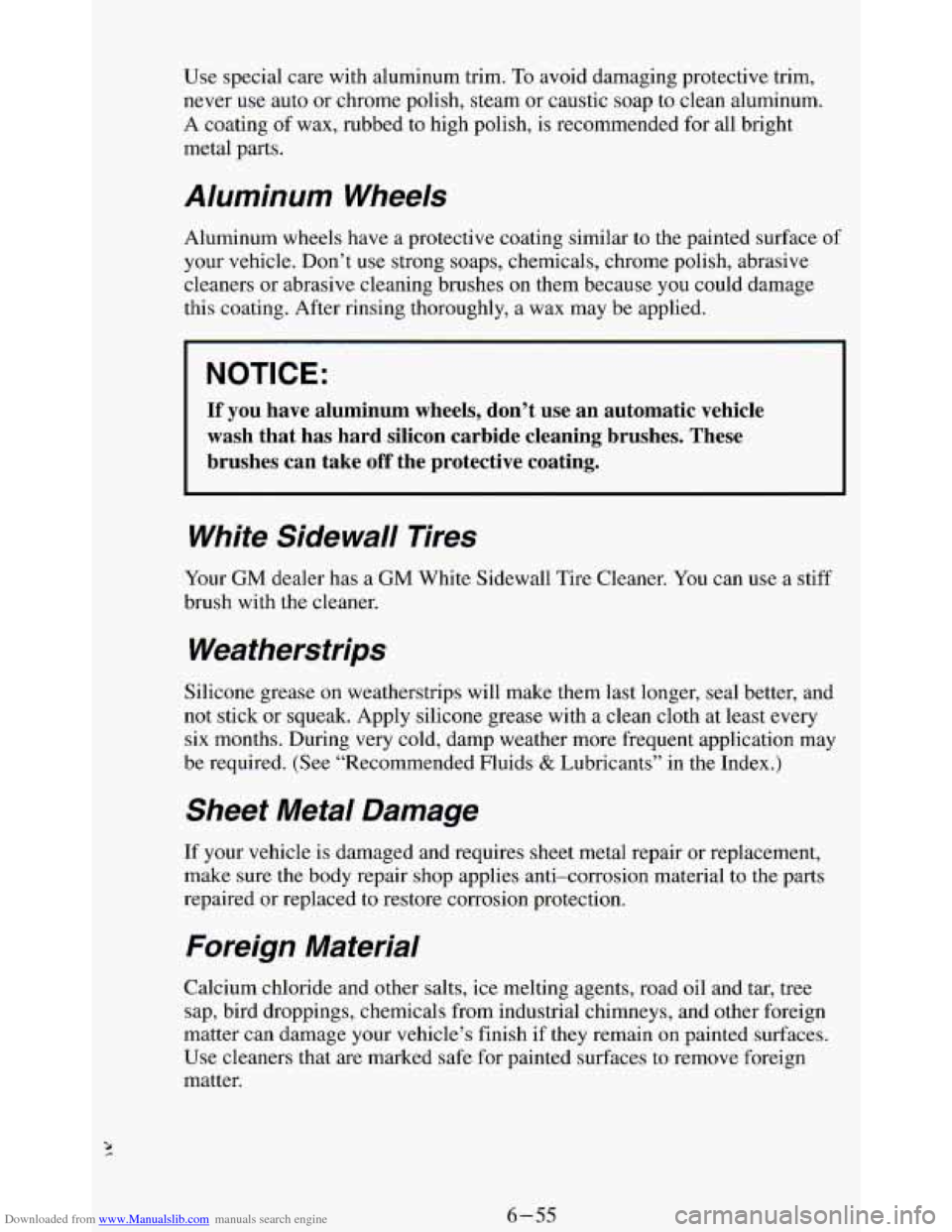

CHEVROLET BLAZER 1994 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Use special care with aluminum trim. To avoid damaging protective trim,
never use auto or chrome polish, steam or caustic soap to clean aluminum.
A coating of wax, rubbed to high polish, is recommended for all bright
metal parts.
Aluminum Wheels
Aluminum wheels have a protective coating similar to the painted surface of
your vehicle. Don’t use strong soaps, chemicals, chrome polish, abrasive
cleaners or abrasive cleaning brushes on them because you could damage
this coating. After rinsing thoroughly, a wax may be applied.
I NOTICE:
If you have aluminum wheels, don’t use an automatic vehicle
wash that has hard silicon carbide cleaning brushes. These
brushes can take
off the protective coating.
White Side wa// Tires
Your GM dealer has a GM White Sidewall Tire Cleaner. You can use a stiff
brush with the cleaner.
Weatherstrips
Silicone grease on weatherstrips will make them last longer, seal better, and
not stick or squeak. Apply silicone grease with a clean cloth at least every
six months. During very cold, damp weather more frequent application may
be required. (See “Recommended Fluids
& Lubricants” in the Index.)
Sheet Metal Damage
If your vehicle is damaged and requires sheet metal repair or replacement,
make sure the body repair shop applies anti-corrosion material to the parts
repaired
or replaced to restore corrosion protection.
Foreign Material
Calcium chloride and other salts, ice melting agents, road oil and tar, tree
sap, bird droppings, chemicals from industrial chimneys, and other foreign
matter can damage your vehicle’s finish if they remain on painted surfaces.
Use cleaners that are marked safe for painted surfaces to remove foreign
matter.
4
6-55

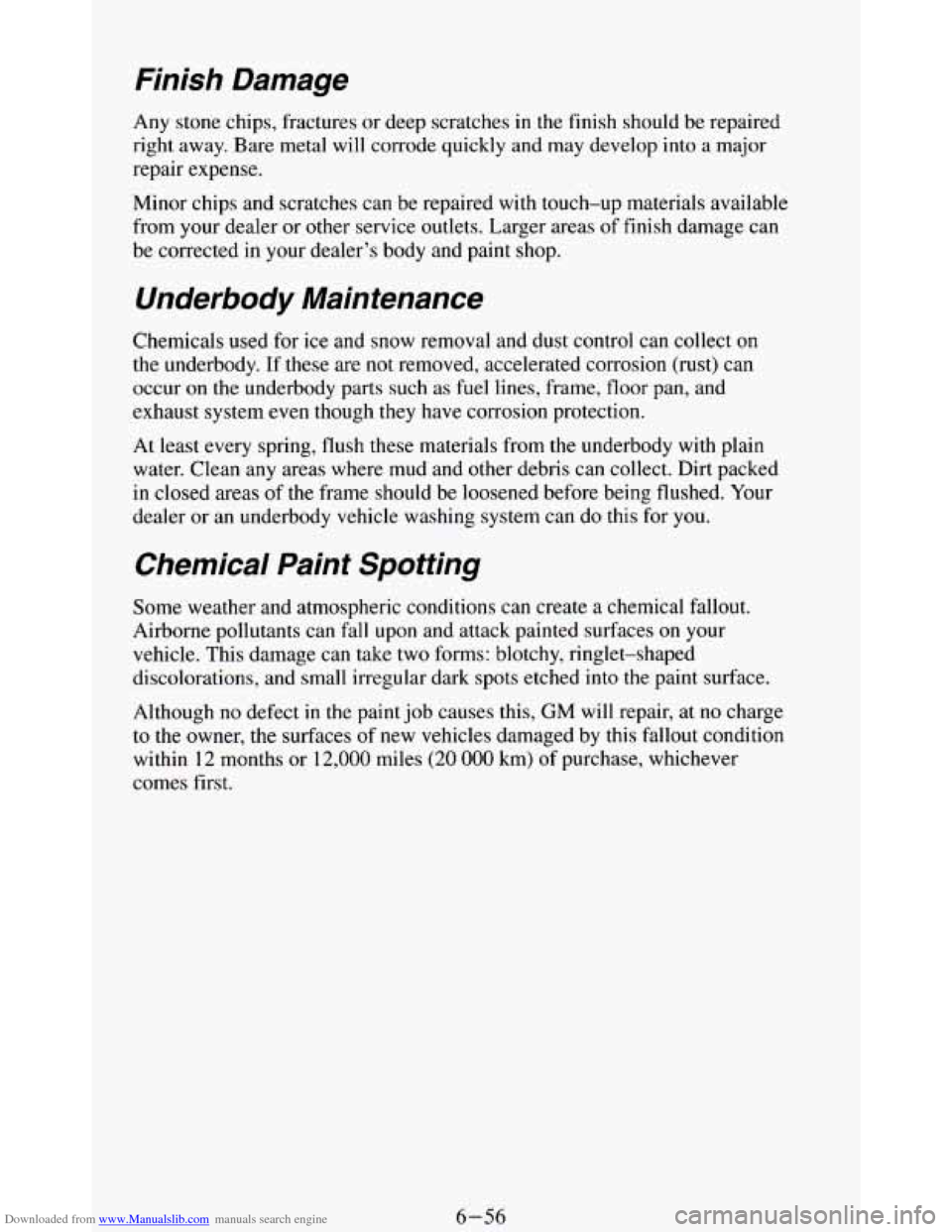

Downloaded from www.Manualslib.com manuals search engine Finish Damage
Any stone chips, fractures or deep scratches in the finish should be repaired
right away. Bare metal will corrode quickly and may develop into a major
repair expense.
Minor chips and scratches can be repaired with touch-up materials available
from your dealer or other service outlets. Larger areas
of finish damage can
be corrected in your dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust control can collect on
the underbody. If these are not removed, accelerated corrosion (rust) can
occur
on the underbody parts such as fuel lines, frame, floor pan, and
exhaust system
even though they have corrosion protection.
At least every spring,
flush these materials from the underbody with plain
water. Clean any areas where mud and other debris can collect. Dirt packed
in closed areas of the frame should be loosened before being flushed. Your
dealer or an underbody vehicle washing system can do this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a chemical fallout.
Airborne pollutants can fall upon and attack painted surfaces
on your
vehicle. This damage can take two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into the paint surface.
Although
no defect in the paint job causes this, GM will repair, at no charge
to the owner, the surfaces of new vehicles damaged by this fallout condition
within 12 months or 12,000 miles (20
000 km) of purchase, whichever
comes first.
6-56

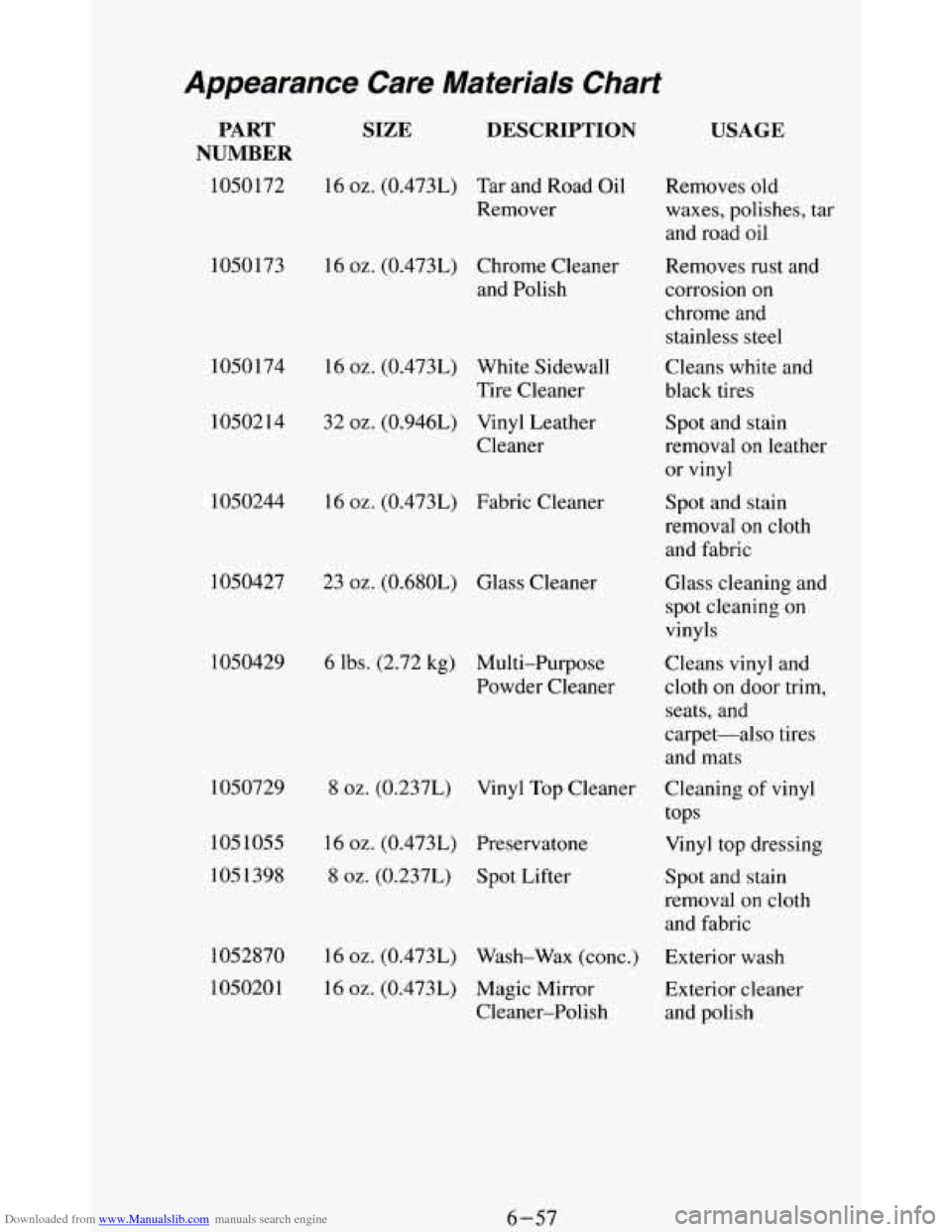

Downloaded from www.Manualslib.com manuals search engine SIZE DESCRIPTION PART
NUMBER
1050172 16 oz. (0.473L) Tar and Road Oil
Remover
1050173 16
oz. (0.4731) Chrome Cleaner
and Polish
1050174 16
oz. (0.473L) White Sidewall
1050214 32
oz. (0.946L) Vinyl Leather
Tire
Cleaner
Cleaner
1050244 16
oz. (0.473L) Fabric Cleaner
1050427 23
oz. (0.680L) Glass Cleaner
1050429
6 lbs. (2.72 kg) Multi-Purpose
Powder Cleaner
1050729
USAGE
Removes old
waxes, polishes, tar
and road oil
Removes rust and
corrosion on
chrome and
stainless steel
Cleans white and
black tires
Spot and
stain
removal on leather
or
vinyl
Spot and stain
removal on cloth
and fabric
Glass cleaning and
spot cleaning on
vinyls
Cleans
vinyl and
cloth
on door trim,
seats, and
carpet-also tires
and mats
8 02. (0.237L) Vinyl Top Cleaner Cleaning of vinyl
tops
105 1055
16 oz. (0.473L) Preservatone
105 1398
8 oz. (0.237L) Spot Lifter
Vinyl top dressing
Spot and stain
removal
on cloth
and fabric
1052870 16
oz. (0.473L) Wash-Wax (conc.)
Exterior wash
1050201
16 oz. (0.473L) Magic Mirror
Exterior cleaner
Cleaner-Polish and polish
6-57

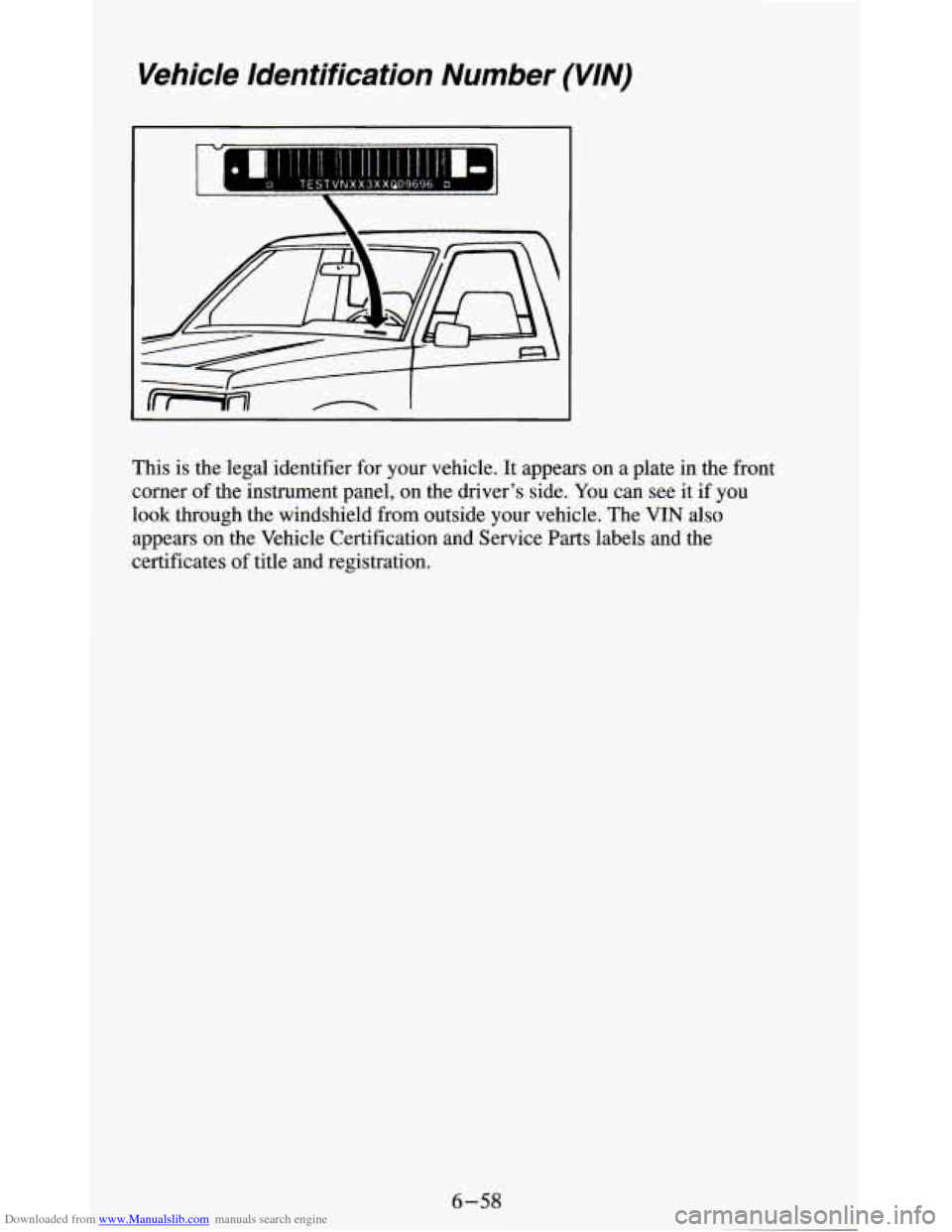

Downloaded from www.Manualslib.com manuals search engine Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on a plate in the front
corner of the instrument panel, on the driver’s side.
You can see it if you
look through the windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts labels and the
certificates of title and registration.
6-58

Downloaded from www.Manualslib.com manuals search engine Engine Identification
The eighth character in your VIN is the engine code. This code will help
rou identify your engine, specifications, and replace-?nt parts.
i
on
6-59

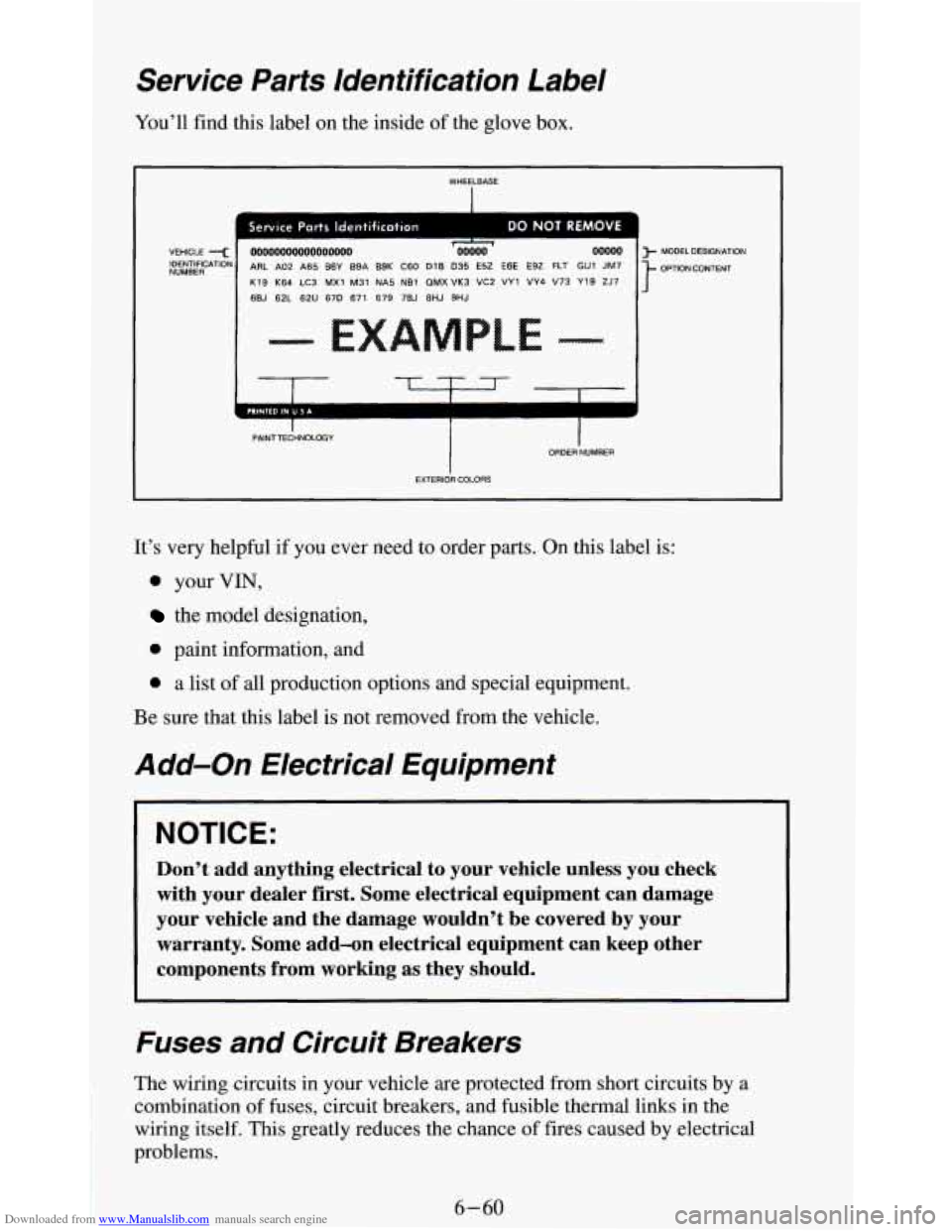

Downloaded from www.Manualslib.com manuals search engine Service Parts Identification Label
You’ll find this label on the inside of the glove box.
WHEELBASE
I
1 Service Parts Identification DO NOT REMOVE ? I VEHICLE < IDENTIFICATION
NUMBER
I I
1 PAINTTECHNOLOGY ORDER NUMBER
I i 0000000000000oO00 ’ OOOOO 00000 ARL AD2 A65 B6Y B9A B9K C60 D1B D36 E52 E6E E92 FLT GU1 JM7
K19 K64 LC3 MX1
M31 NA5 NB1 QMXVK3 VC2 VYI VY4 V73 Y19 ZJ7
6BJ 62L 62U 67D 671 679 7BJ 8HJ
9HJ
MODEL DESIGNATION
OPTlON CONTENT
EXTERIORCOLORS
It’s very helpful if you ever need to order parts. On this label is:
0 your VIN,
the model designation,
0 paint information, and
0 a list of all production options and special equipment.
Be sure that this label is
not removed from the vehicle.
Add-on Lxtrical Equipment
NOTICE:
-
Don’t add anything electrical to your vehicle unless you check
with your dealer first. ,Some electrical equipment can damage
your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other
components from working as they should.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from short circuits by a
combination of fuses, circuit breakers, and fusible thermal links in the
wiring itself. This greatly reduces the chance of fires caused by electrical
problems.
6-60

Downloaded from www.Manualslib.com manuals search engine Headlights
The headlight wiring is protected by a circuit breaker in the light switch. An
electrical overload will cause the lights to go on and off. If this happens,
have your headlight wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse. If
the motor overheats due to heavy snow, etc., the wiper will stop until the
motor cools. If the overload is caused by some electrical problem and not
snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy, the circuit breaker
opens and closes, protecting the circuit until the problem
is fixed.
Trailer Wiring Harness
The optional seven-wire trailer wiring harness is protected by an in-line
fuse in the battery feed wire. This fuse is near the junction block. See
“Trailer Wiring Harness” in the
Features & Controls section.
Fuse Block
The fuse block is in
the instrument panel
on the driver’s side.
Remove the cover
with a screwdriver and
then you
can remove
fuses with a fuse
extractor.
6-61

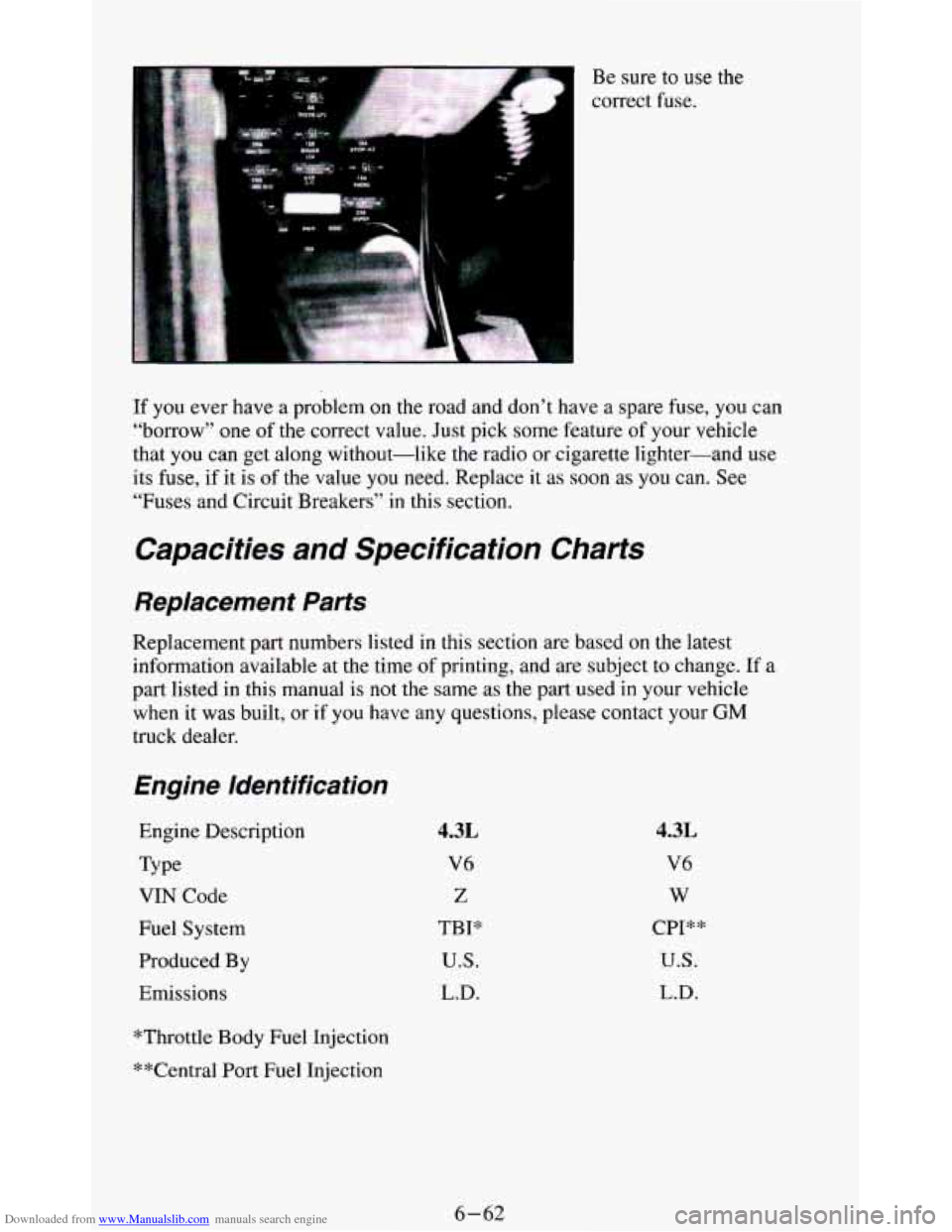

Downloaded from www.Manualslib.com manuals search engine Be sure to use the
correct fuse.
If you ever have a problem on the road and don’t have a spare fuse, you can
“borrow”
one of the correct value. Just pick some feature of your vehicle
that you can get along without-like
the radio or cigarette lighter-and use
its fuse, if it is
of the value you need. Replace it as soon as you can. See
“Fuses and Circuit Breakers”
in this section.
Capacities and Specification Charts
Replacement Parts
Replacement part numbers listed in this section are based on the latest
information available at the time
of printing, and are subject to change. If a
part listed in this manual is
not the same as the part used in your vehicle
when it was built,
or if you have any questions, please contact your GM
truck dealer.
Engine Identification
Engine Description
Type
VIN Code
Fuel System
Produced By
Emissions
4.3L
V6
Z
TBP
U.S.
L.D.
4.3L
V6
w
CPI**
U.S.
L.D.
*Throttle Body Fuel Injection
**Central Port Fuel Injection
6-62

Downloaded from www.Manualslib.com manuals search engine Wheel Nut Torque
DESCRIPTION
Base or Optional Wheel
Cooling System Capacity
ENGINE
4.3L
4.3L
VIN CODE
Z
W
TORQUE
95 ft. lbs. (130 Nom)
QUANTITY*
12.1 Quarts (1 1.5 Liters)
12.1 Quarts (1 1.5 Liters)
*All quantities are approximate. After refill, the level MUST be checked.
Crankcase Capacity
ENGINE
4.3L
4.3L
VIN
CODE
Z
w
QUANTITY*
Without Filter QUANTITY*
With Filter
4 Quarts (3.8 Liters) 4.5 Quarts (4.3 Liters)
4 Quarts (3.8 Liters) 4.5 Quarts (4.3 Liters)
*All quantities are approximate. After refill, the level MUST be checked.
Do not overfill.
Fuel Tank Capacity
TYPE
Standard Tank
*All quantities are approximate.
Lamp and Bulb Data
EXTERIOR LAMPS
Headlamps (Halogen)
Backup Lamp
License Lamp
Tail and Stop Lamps
Marker Lamp (Front)
Marker Lamp (Rear)
Parking and Signal Lamp
CHMSL Assembly
QUANTITY*
20 Gallons (76 Liters)
QUANTITY
2
2
1
1 Unit
TRADE NO.
H6054
1156 67
2057
194
194
2057
See GM Dealer
6-63

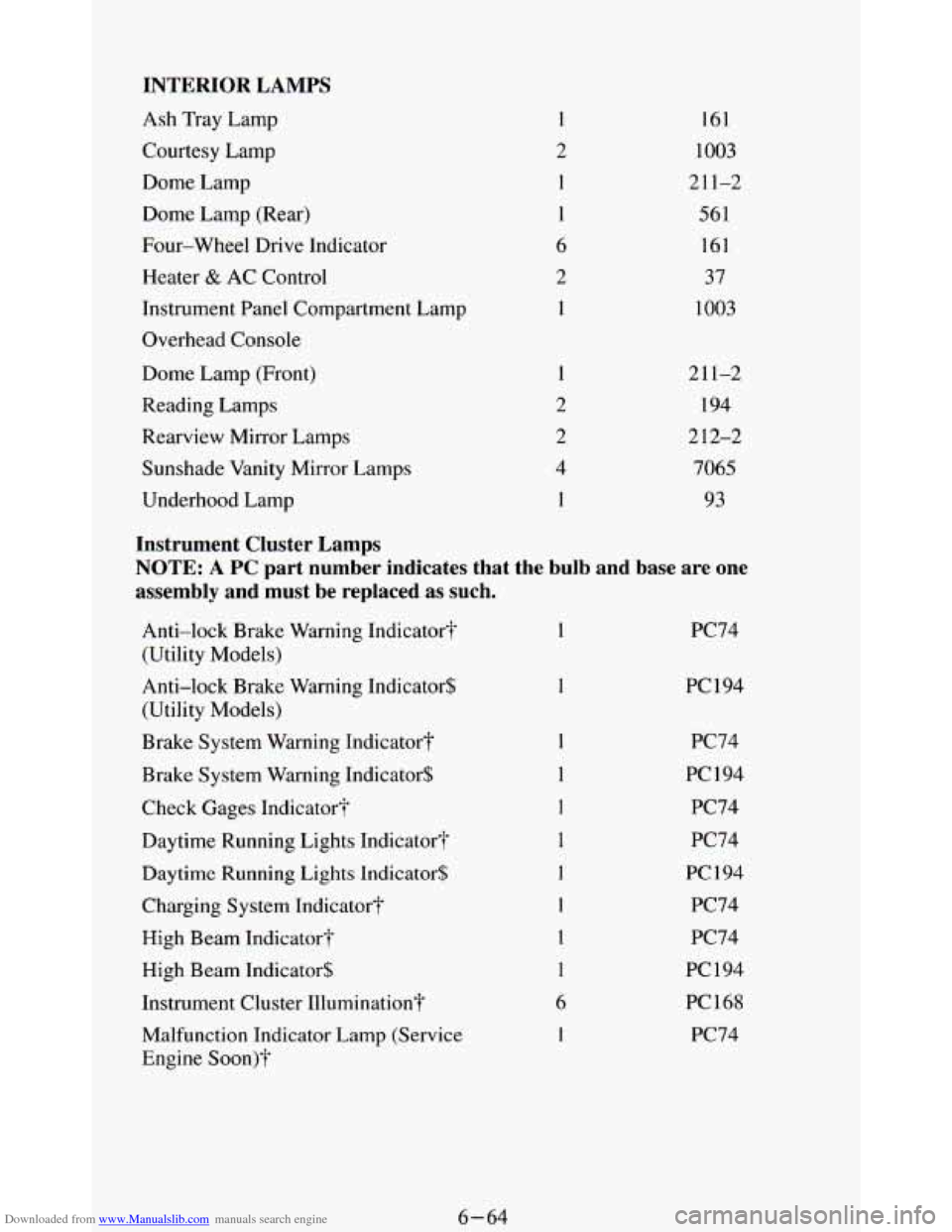

Downloaded from www.Manualslib.com manuals search engine INTERIOR LAMPS
Ash Tray Lamp
Courtesy Lamp
Dome Lamp Dome Lamp (Rear)
Four-wheel Drive Indicator
Heater
& AC Control
Instrument Panel Compartment Lamp
Overhead Console
Dome Lamp (Front)
Reading Lamps
Rearview Mirror Lamps
Sunshade Vanity Mirror Lamps
Underhood Lamp
161
1003
21 1-2
561
161
37
1003
211-2 194
2 12-2
7065 93
Instrument Cluster Lamps
NOTE:
A PC part number indicates that the bulb and base are one
assembly and must be replaced as
such.
Anti-lock Brake Warning Indicator?
(Utility Models)
Anti-lock Brake Warning Indicator$
(Utility Models)
Brake System Warning Indicator?
Brake System Warning Indicator$
Check Gages Indicator?
Daytime Running Lights Indicator’f
Daytime Running Lights Indicator$
Charging System Indicator?
High Beam Indicator?
High Beam Indicator$
Instrument Cluster Illumination?
Malfunction Indicator Lamp (Service
Engine Soon)?
1
1
1
1
1
I
1
1
1
6
1
PC74
PC 194
PC74
PC 194
PC74
PC74
PC 194
PC74
PC74
PC 194
PC168 PC74
