CHEVROLET BOLT EV 2017 User Guide

11

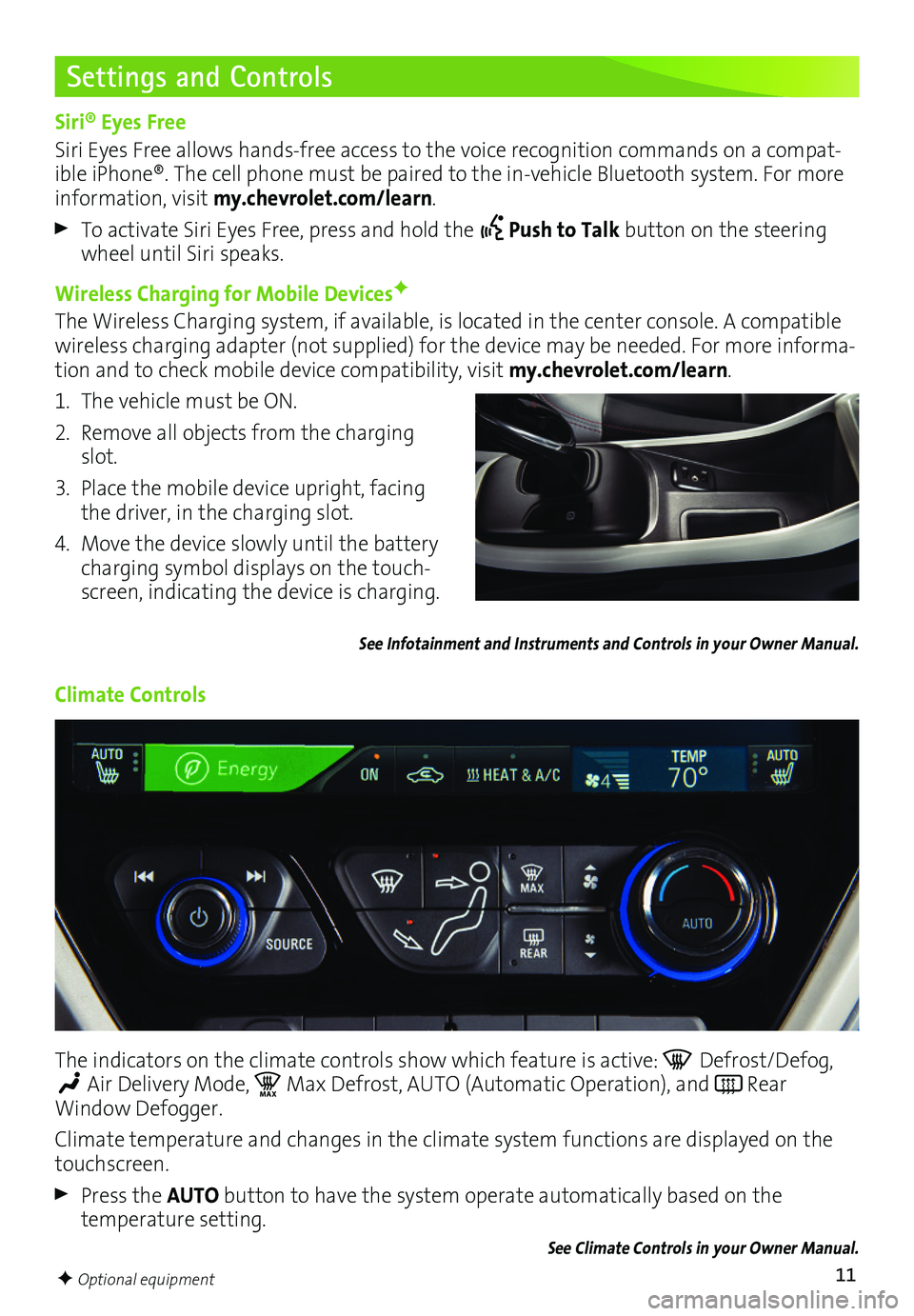

Settings and Controls
Siri® Eyes Free
Siri Eyes Free allows hands-free access to the voice recognition commands on a compat-ible iPhone®. The cell phone must be paired to the in-vehicle Bluetooth system. For more information, visit my.chevrolet.com/learn.
To activate Siri Eyes Free, press and hold the Push to Talk button on the steering wheel until Siri speaks.
Wireless Charging for Mobile DevicesF
The Wireless Charging system, if available, is located in the center console. A compatible wireless charging adapter (not supplied) for the device may be needed. For more informa-tion and to check mobile device compatibility, visit my.chevrolet.com/learn.
1. The vehicle must be ON.
2. Remove all objects from the charging slot.
3. Place the mobile device upright, facing the driver, in the charging slot.
4. Move the device slowly until the battery charging symbol displays on the touch-screen, indicating the device is charging.
See Infotainment and Instruments and Controls in your Owner Manual.
Climate Controls
The indicators on the climate controls show which feature is active: Defrost/Defog,
Air Delivery Mode, MA XMax Defrost, AUTO (Automatic Operation), and Rear Window Defogger.
Climate temperature and changes in the climate system functions are displayed on the touchscreen.
Press the AUTO button to have the system operate automatically based on the temperature setting.
See Climate Controls in your Owner Manual.
F Optional equipment

12

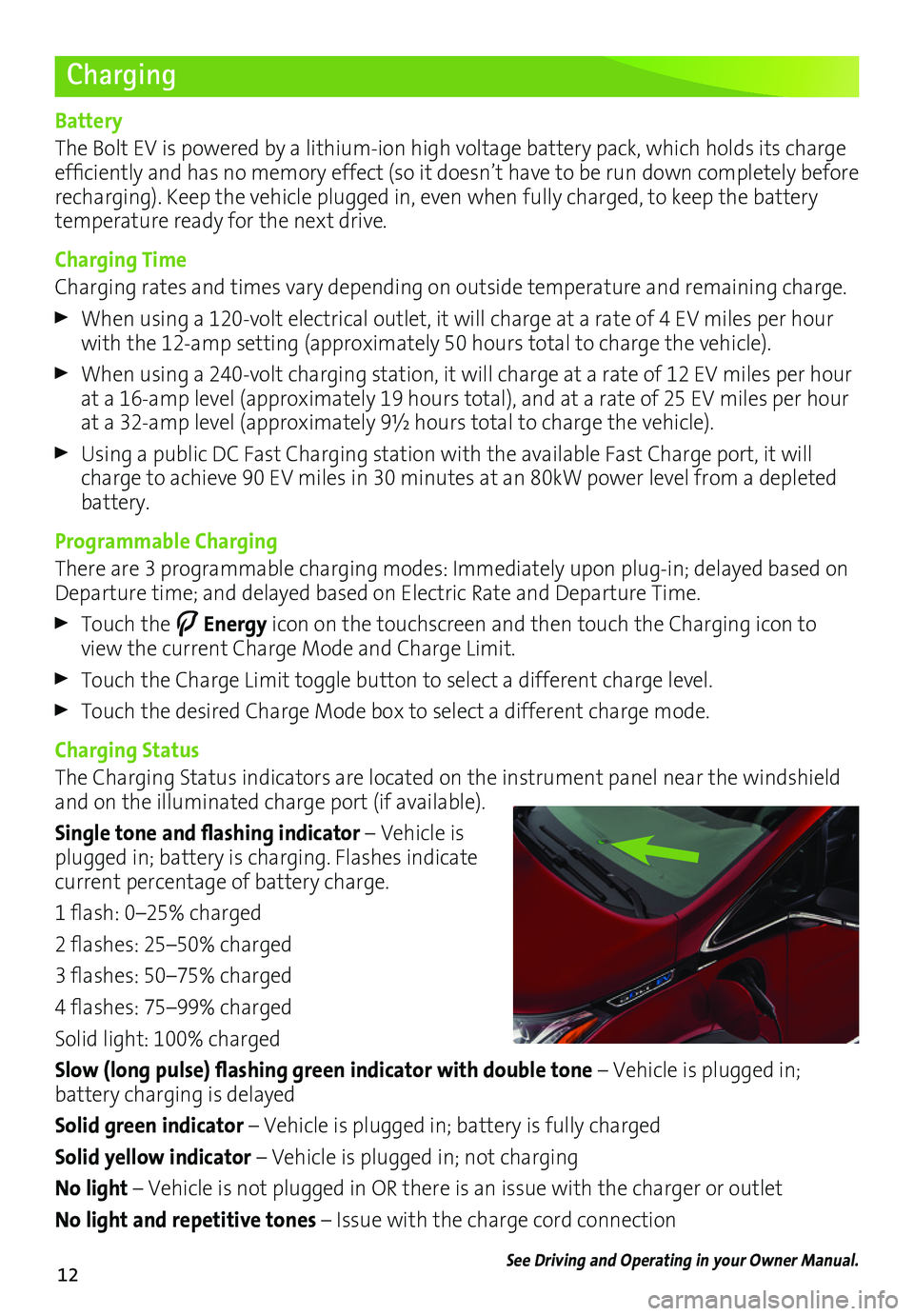

Charging
Battery
The Bolt EV is powered by a lithium-ion high voltage battery pack, which holds its charge efficiently and has no memory effect (so it doesn’t have to be run down completely before recharging). Keep the vehicle plugged in, even when fully charged, to keep the battery temperature ready for the next drive.
Charging Time
Charging rates and times vary depending on outside temperature and remaining charge.
When using a 120-volt electrical outlet, it will charge at a rate of 4 EV miles per hour with the 12-amp setting (approximately 50 hours total to charge the vehicle).
When using a 240-volt charging station, it will charge at a rate of 12 EV miles per hour at a 16-amp level (approximately 19 hours total), and at a rate of 25 EV miles per hour at a 32-amp level (approximately 9½ hours total to charge the vehicle).
Using a public DC Fast Charging station with the available Fast Charge port, it will charge to achieve 90 EV miles in 30 minutes at an 80kW power level from a depleted battery.
Programmable Charging
There are 3 programmable charging modes: Immediately upon plug-in; delayed based on Departure time; and delayed based on Electric Rate and Departure Time.
Touch the Energy icon on the touchscreen and then touch the Charging icon to view the current Charge Mode and Charge Limit.
Touch the Charge Limit toggle button to select a different charge level.
Touch the desired Charge Mode box to select a different charge mode.
Charging Status
The Charging Status indicators are located on the instrument panel near the windshield and on the illuminated charge port (if available).
Single tone and flashing indicator – Vehicle is plugged in; battery is charging. Flashes indicate current percentage of battery charge.
1 flash: 0–25% charged
2 flashes: 25–50% charged
3 flashes: 50–75% charged
4 flashes: 75–99% charged
Solid light: 100% charged
Slow (long pulse) flashing green indicator with double tone – Vehicle is plugged in;
battery charging is delayed
Solid green indicator – Vehicle is plugged in; battery is fully charged
Solid yellow indicator – Vehicle is plugged in; not charging
No light – Vehicle is not plugged in OR there is an issue with the charger or outlet
No light and repetitive tones – Issue with the charge cord connection
See Driving and Operating in your Owner Manual.

13
Charging
Start Charging
The provided 120-volt portable charge cord is located under the storage floor in the cargo area and can be used to charge the vehicle when a 240V charging station is not available.
1. With the vehicle parked, turn off the vehicle and select the Charging button at the
bottom of the Energy Summary screen.
2. Review the selected Charge Mode and Charge Limit. Select the Charge Limit toggle button if an increased charging limit is desired. Use the 8-amp charge limit until a qualified electrician inspects your home’s electrical circuit capacity, or if the electrical circuit or outlet capacity is not known.
Note: The charge level selection returns to the 8-amp setting each time the vehicle is driven.
3. Plug the charge cord into an electrical
outlet. DO NOT PLUG INTO AN EXTENSION CORD. Charge cord indicators should be green. Where possible, secure the charge cord to the wall.
4. Press and release the rear edge of the charge port door, located just in front of the driver’s door, to open it. Plug the charge cord into the charge port.
5. The Charge Status indicator on top of the instrument panel will illuminate green and a tone will sound when properly connected.
6. Periodically check the electrical outlet/plug while charging. Discontinue use if the electrical outlet/plug is hot and have the electrical outlet serviced by a qualified electrician.
If the vehicle is locked with the RKE trans-mitter, the charge cord theft alert is armed
automatically after 30 seconds.
Note: When the theft alert is armed, the alarm will sound when the plug is disconnected from the vehicle. To change charge cord theft alert options, go to Energy in the Vehicle Settings menu.
To temporarily override a delayed charge event, remove and reconnect the charge cord to the vehicle within 5 seconds. It will begin charging immediately.
See Driving and Operating in your Owner Manual.

14
Charging

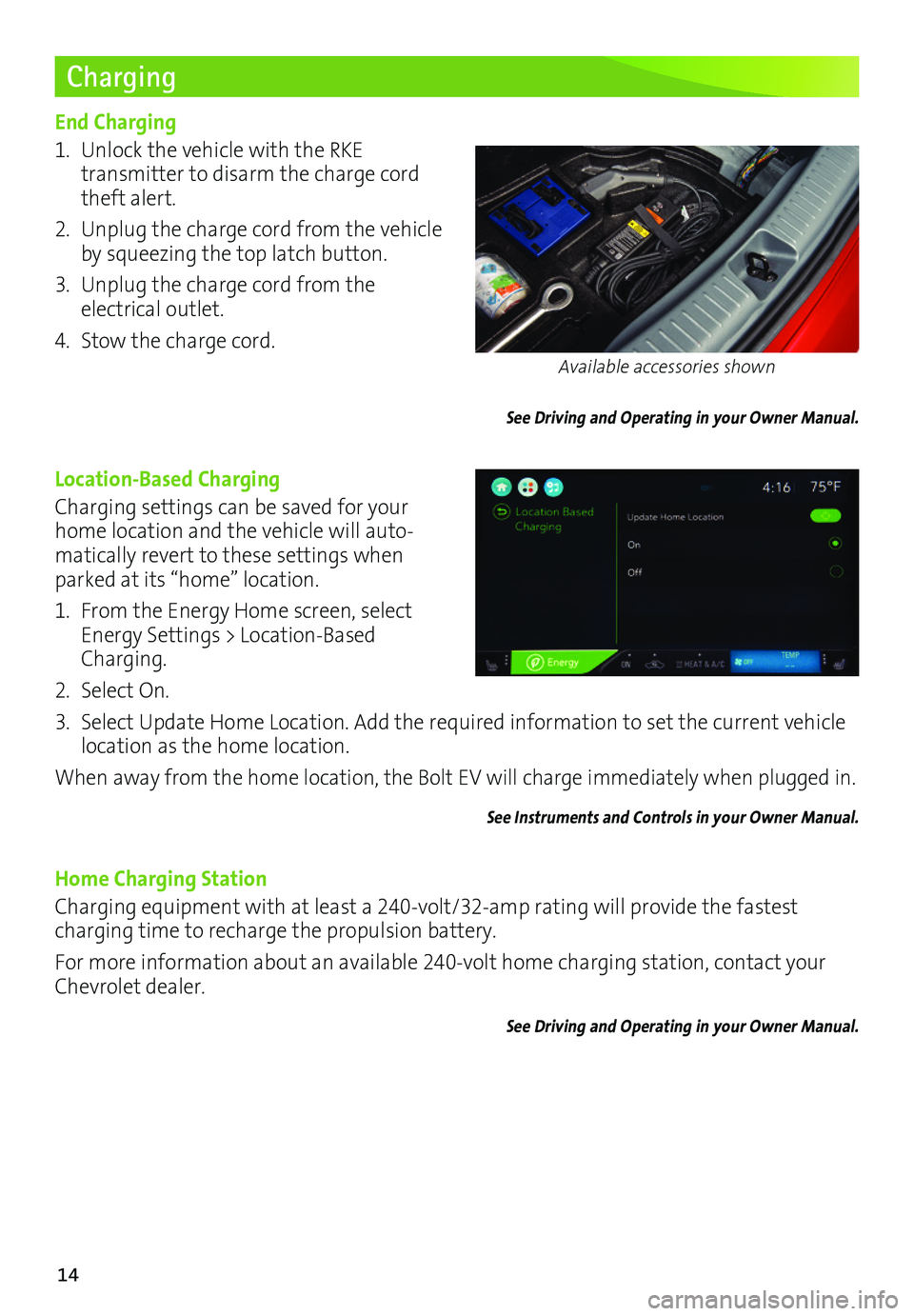

End Charging
1. Unlock the vehicle with the RKE
transmitter to disarm the charge cord theft alert.
2. Unplug the charge cord from the vehicle by squeezing the top latch button.
3. Unplug the charge cord from the electrical outlet.
4. Stow the charge cord.
See Driving and Operating in your Owner Manual.
Location-Based Charging
Charging settings can be saved for your home location and the vehicle will auto-matically revert to these settings when parked at its “home” location.
1. From the Energy Home screen, select Energy Settings > Location-Based Charging.
2. Select On.
3. Select Update Home Location. Add the required information to set the current vehicle location as the home location.
When away from the home location, the Bolt EV will charge immediately when plugged in.
See Instruments and Controls in your Owner Manual.
Home Charging Station
Charging equipment with at least a 240-volt/32-amp rating will provide the fastest charging time to recharge the propulsion battery.
For more information about an available 240-volt home charging station, contact your Chevrolet dealer.
See Driving and Operating in your Owner Manual.
Available accessories shown

15

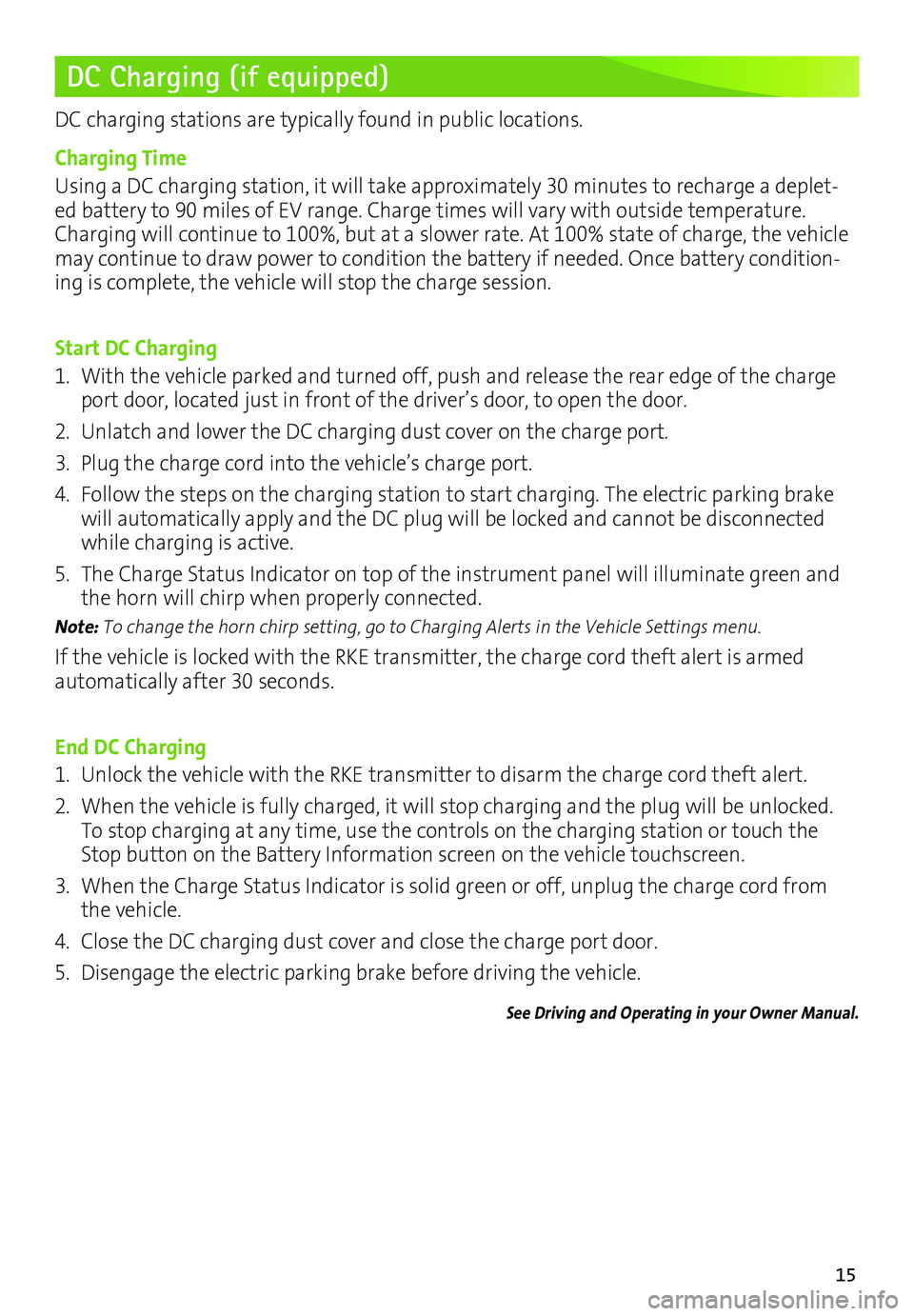

DC Charging (if equipped)
DC charging stations are typically found in public locations.
Charging Time
Using a DC charging station, it will take approximately 30 minutes to recharge a deplet-ed battery to 90 miles of EV range. Charge times will vary with outside temperature. Charging will continue to 100%, but at a slower rate. At 100% state of charge, the vehicle may continue to draw power to condition the battery if needed. Once battery condition-ing is complete, the vehicle will stop the charge session.
Start DC Charging
1. With the vehicle parked and turned off, push and release the rear edge of the charge port door, located just in front of the driver’s door, to open the door.
2. Unlatch and lower the DC charging dust cover on the charge port.
3. Plug the charge cord into the vehicle’s charge port.
4. Follow the steps on the charging station to start charging. The electric parking brake will automatically apply and the DC plug will be locked and cannot be disconnected while charging is active.
5. The Charge Status Indicator on top of the instrument panel will illuminate green and the horn will chirp when properly connected.
Note: To change the horn chirp setting, go to Charging Alerts in the Vehicle Settings menu.
If the vehicle is locked with the RKE transmitter, the charge cord theft alert is armed
automatically after 30 seconds.
End DC Charging
1. Unlock the vehicle with the RKE transmitter to disarm the charge cord theft alert.
2. When the vehicle is fully charged, it will stop charging and the plug will be unlocked. To stop charging at any time, use the controls on the charging station or touch the Stop button on the Battery Information screen on the vehicle touchscreen.
3. When the Charge Status Indicator is solid green or off, unplug the charge cord from the vehicle.
4. Close the DC charging dust cover and close the charge port door.
5. Disengage the electric parking brake before driving the vehicle.
See Driving and Operating in your Owner Manual.

16

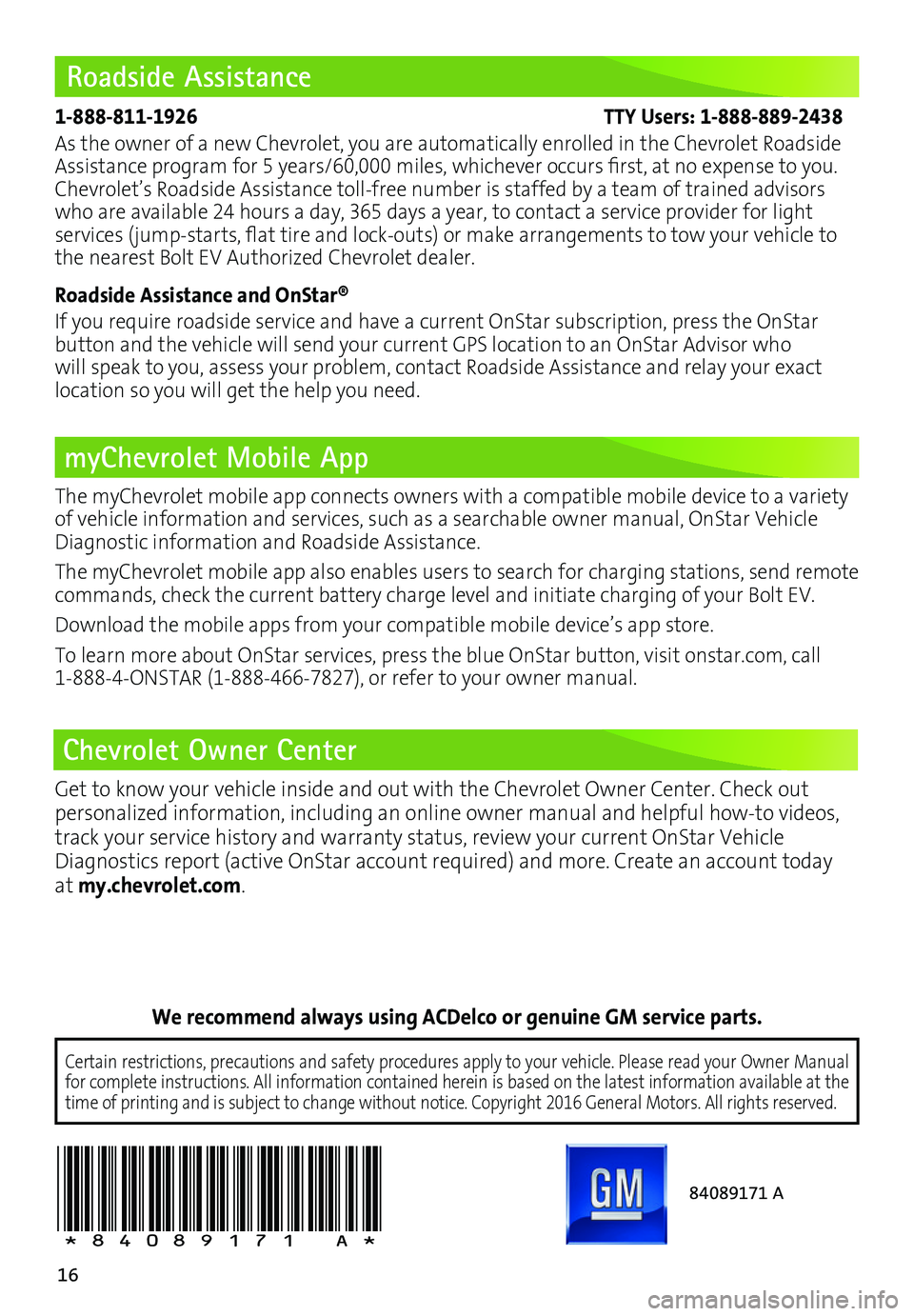

Roadside Assistance
myChevrolet Mobile App
Chevrolet Owner Center
1-888-811-1926 TTY Users: 1-888-889-2438
As the owner of a new Chevrolet, you are automatically enrolled in the Chevrolet Roadside Assistance program for 5 years/60,000 miles, whichever occurs first, at no expense to you. Chevrolet’s Roadside Assistance toll-free number is staffed by a team of trained advisors who are available 24 hours a day, 365 days a year, to contact a service provider for light
services (jump-starts, flat tire and lock-outs) or make arrangements to tow your vehicle to the nearest Bolt EV Authorized Chevrolet dealer.
Roadside Assistance and OnStar®
If you require roadside service and have a current OnStar subscription, press the OnStar
button and the vehicle will send your current GPS location to an OnStar Advisor who will speak to you, assess your problem, contact Roadside Assistance and relay your exact
location so you will get the help you need.
!84089171=A!
Certain restrictions, precautions and safety procedures apply to your ve\
hicle. Please read your Owner Manual for complete instructions. All information contained herein is based on \
the latest information available at the time of printing and is subject to change without notice. Copyright 2016 General Motors. All rights reserved.
We recommend always using ACDelco or genuine GM service parts.
The myChevrolet mobile app connects owners with a compatible mobile device to a variety of vehicle information and services, such as a searchable owner manual, OnStar Vehicle Diagnostic information and Roadside Assistance.
The myChevrolet mobile app also enables users to search for charging sta\
tions, send remote commands, check the current battery charge level and initiate charging of your Bolt EV.
Download the mobile apps from your compatible mobile device’s app store.
To learn more about OnStar services, press the blue OnStar button, visit onstar.com, call 1-888-4-ONSTAR (1-888-466-7827), or refer to your owner manual.
84089171 A
Get to know your vehicle inside and out with the Chevrolet Owner Center. Check out
personalized information, including an online owner manual and helpful how-to videos, track your service history and warranty status, review your current OnStar Vehicle Diagnostics report (active OnStar account required) and more. Create an account today at my.chevrolet.com.
