F
9. Check the headlamp aim indicators. The horizontal
indicator (A) should be on
0 (zero). If the vehicle is
level, the vertical indicator
(B) should also be on 0
(zero). If the vehicle isn’t level, check the vertical
aim
on a level surface as soon as you can. If either
indicator doesn’t read
0 (zero), adjust the headlamp
aim. See “Adjusting Headlamp Aim” in the Index.
If your vehicle is damaged in an accident and the
headlamp aim seems to be affected,
see your
Chevrolet dealer. Headlamps on damaged vehicles
may require recalibration
of the horizontal aim by
your Chevrolet dealer.
Headlamp Aiming
Your vehicle has the 55 x 135 mini-quad headlamp
system. These headlamps have horizontal and vertical
aim indicators. The aim has been pre-set at the factory
and should need
no further adjustment.
If your vehicle
is damaged in an accident and the
headlamp aim seems to be affected, see your
Chevrolet dealer. Headlamps on damaged vehicles
may require recalibration of the horizontal aim
by
your Chevrolet dealer.
To check the aim, the vehicle should be properly
prepared as follows:
0 The vehicle must have all four tires on a perfectly
level surface.
0 The vehicle should not have any snow, ice or mud
attached to it.
0 There should not be any cargo or loading of the
vehicle, except it should have
a full tank of gas and
one person or 160 lbs.
(75 kg) on the driver’s seat.
0 Tires should be properly inflated.
0. The horizontal indicator should read “0.”
6-40

Downloaded from www.Manualslib.com manuals search engine NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to follow these instructions
could cause damage to headlamp parts.
State inspection stations will allow a vertical reading of
plus 0.76 degrees or minus 0.76 degrees from the center
of the bubble.
It
is recommended that the upper limit not exceed plus
0.4 degrees from the center of the bubble. Other drivers
may flash their high beams at you if your adjustment is
much above plus
0.4 degrees.
If you find that the headlamp aiming needs adjustment,
follow these steps:
To adjust the aim of your headlamps:
1. Move your vehicle to a level surface. Use a spirit level
to be sure. Be sure to remove any items that are not
part of your original equipment from the trunk and
passenger areas. No one should be seated in the vehicle
and your
fuel tank should be about half full. Check to
be sure your tires are at the correct pressure. There are four
headlamps. Each
one has its own
vertical and horizontal aim position indicator. Each
indicator has its own aiming screw.
A. Vertical Indicator
B. Horizontal Indicator
C. Vertical Aiming Screw
D. Horizontal Aiming Screw
6-41

Downloaded from www.Manualslib.com manuals search engine J

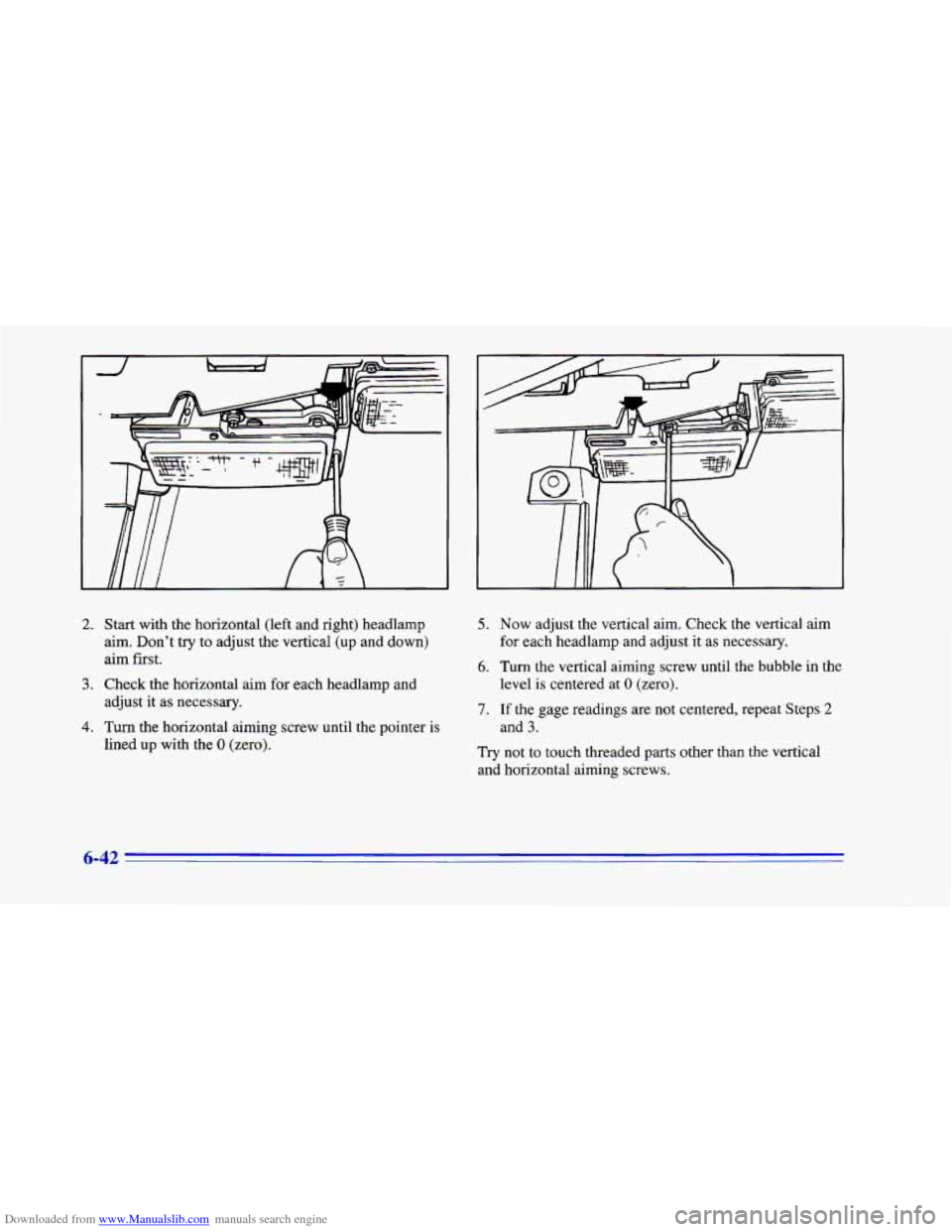

2.
3.
4.
Start with the horizontal (left and right) headlamp
aim, Don’t try to adjust the vertical (up and down)
aim first.
Check the horizontal aim for each headlamp and
adjust it
as necessary.
Turn the horizontal aiming screw until
the pointer is
lined up with the
0 (zero).
5. Now adjust the vertical aim. Check the vertical aim
6. Turn the vertical aiming screw until the bubble in the
for each headlamp
and adjust it as necessary.
level is centered at
0 (zero).
7. If the gage readings are not centered, repeat Steps 2
Try not to touch threaded parts other than the vertical
and horizontal aiming screws.
and
3.
6-42

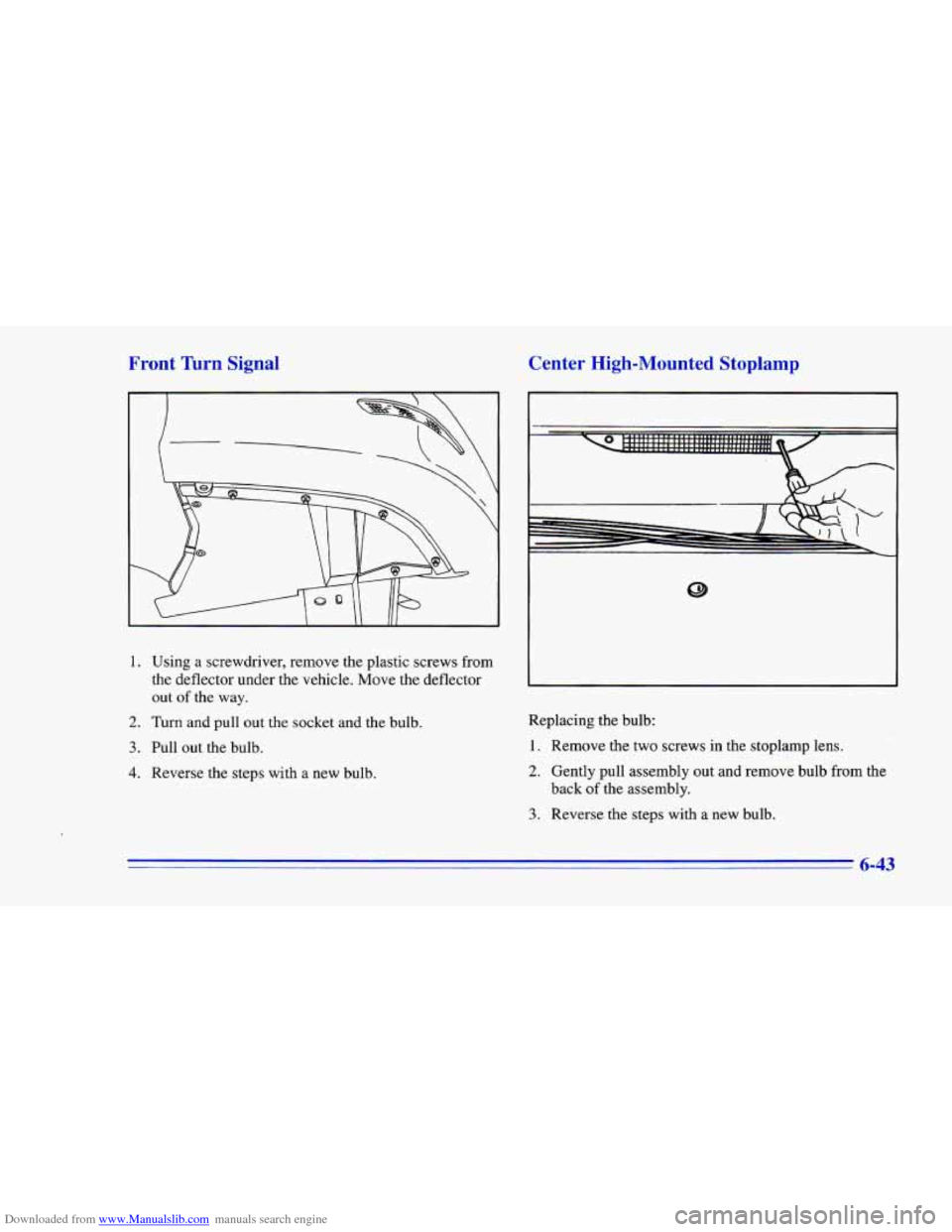

Downloaded from www.Manualslib.com manuals search engine Front Turn Signal Center High-Mounted Stoplamp
1. Using a screwdriver, remove the plastic screws from
the deflector under the vehicle. Move the deflector
out of the way.
2. Turn and pull out the socket and the bulb.
3. Pull out the bulb.
4. Reverse the steps with a new bulb. Replacing the
bulb:
1. Remove the two screws in the stoplamp lens.
2. Gently pull assembly out and remove bulb from the
3. Reverse the steps with a new bulb.
back
of the assembly.
6-43

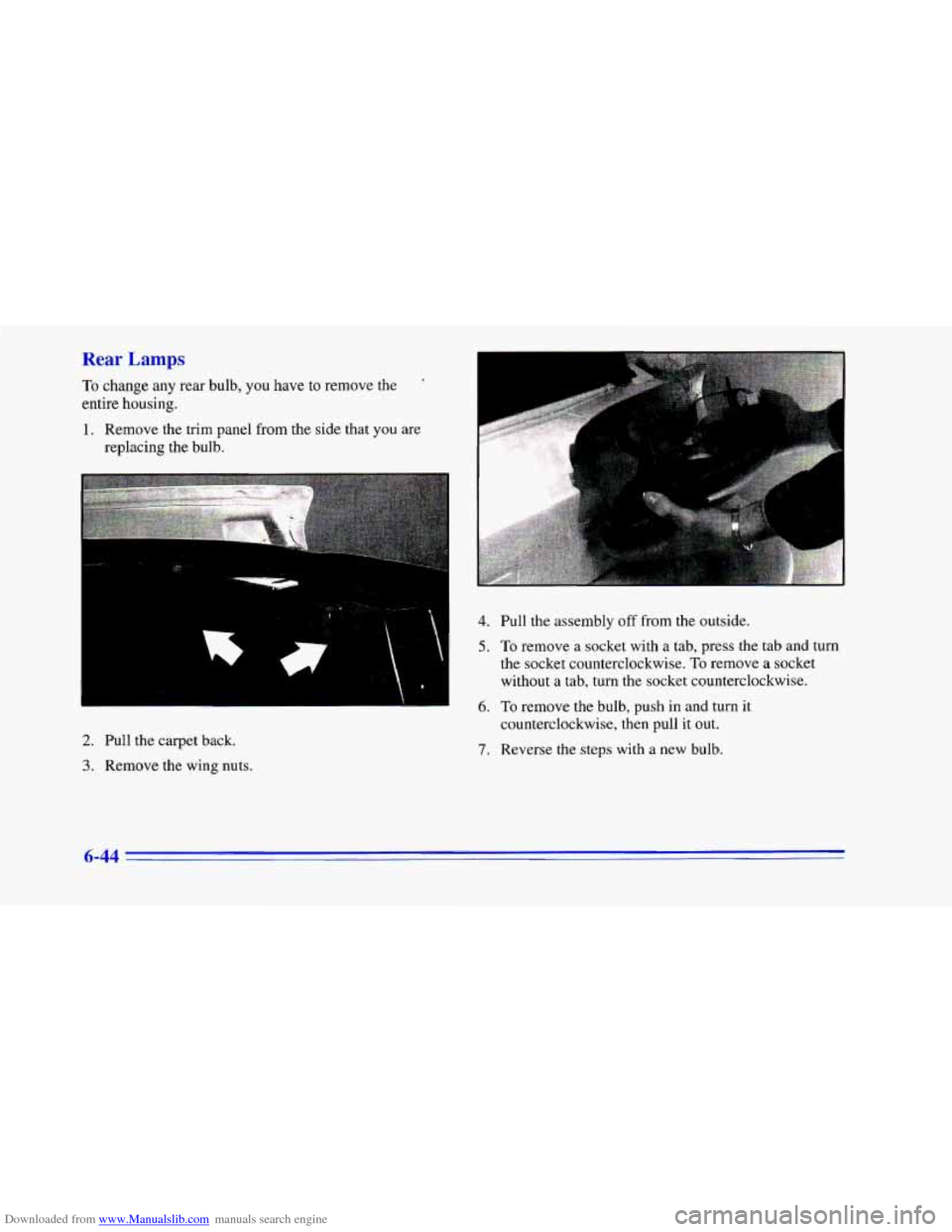

Downloaded from www.Manualslib.com manuals search engine Rear Lamps
To change any rear bulb, you have to remove the
entire housing.
1. Remove the trim panel from the side that you are
replacing the bulb.
2. Pull the carpet back.
3. Remove the wing nuts.
4. Pull the assembly off from the outside.
5. To remove a socket with a tab, press the tab and turn
the socket counterclockwise.
To remove a socket
without
a tab, turn the socket counterclockwise.
6. To remove the bulb, push in and turn it
counterclockwise, then pull
it out.
7. Reverse the steps with a new bulb.
6-44

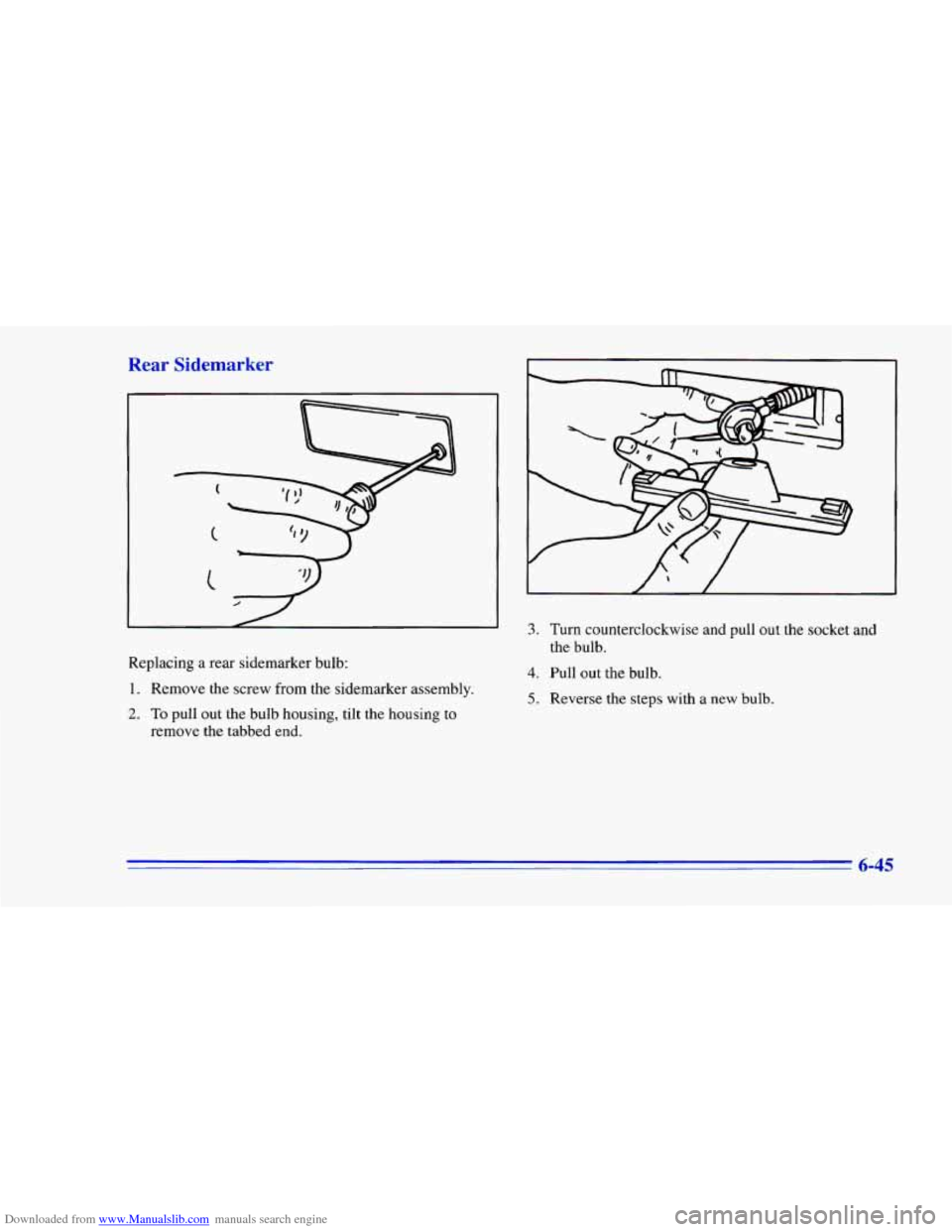

Downloaded from www.Manualslib.com manuals search engine Rear Sidemarker
Replacing a rear sidemarker bulb:
1. Remove the screw from the sidemarker assembly.
2. To pull out the bulb housing, tilt the housing to
remove the tabbed end.
3. Turn counterclockwise and pull out the socket and
4. Pull out the bulb.
the bulb.
5. Reverse
the steps w ith a new bulb.
6-45

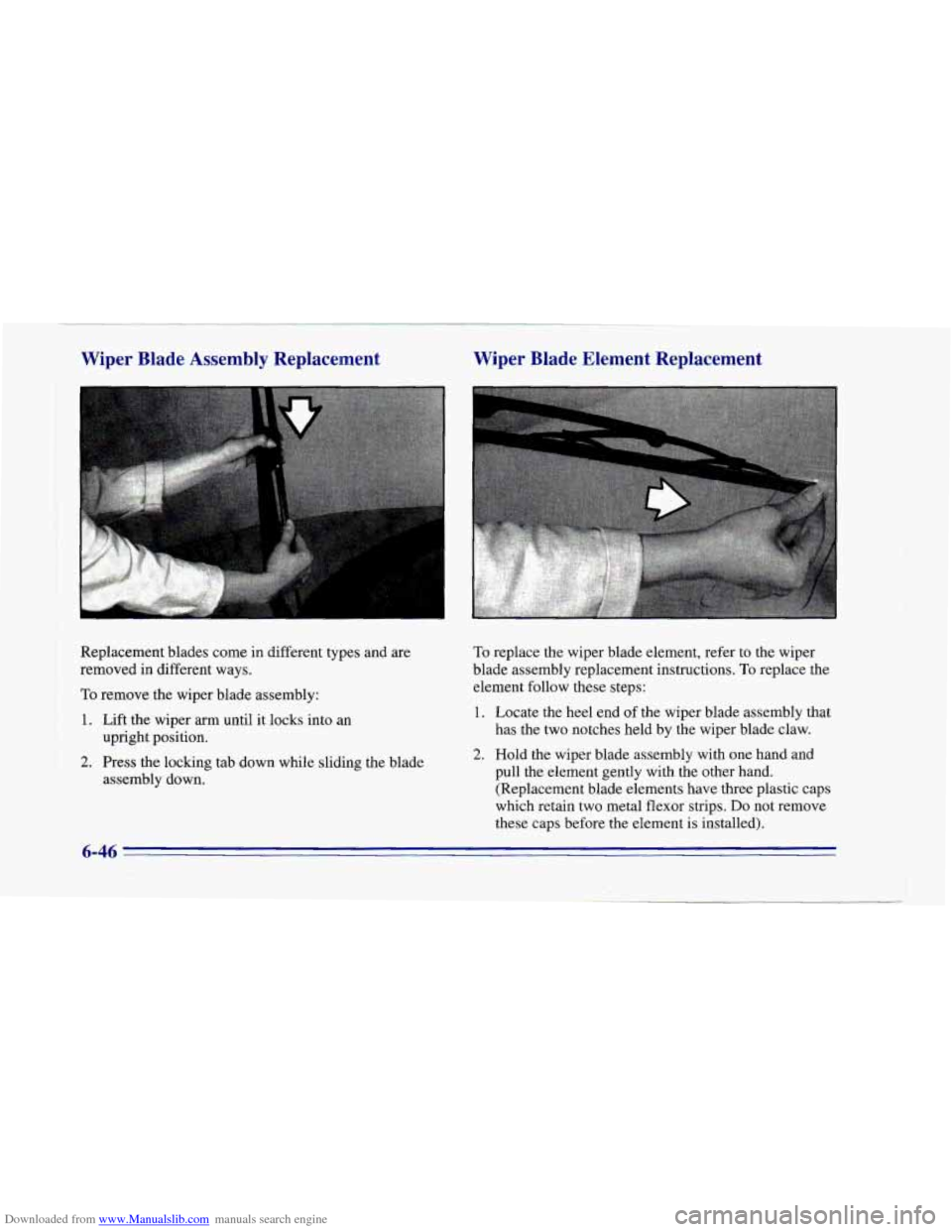

Downloaded from www.Manualslib.com manuals search engine Wiper Blade Assembly Replacement Wiper Blade Element Replacement
Replacement blades come in different types and are
removed in different ways.
To remove the wiper blade assembly:
1. Lift the wiper arm until it locks into an
2. Press the locking tab down while sliding the blade
upright position.
assembly down.
To replace the wiper blade
element, refer to the wiper
blade assembly replacement instructions.
To replace the
element follow these steps:
1. Locate the heel end of the wiper blade assembly that
has the two notches held
by the wiper blade claw.
2. Hold the wiper blade assembly with one hand and
pull the element gently with the other hand.
(Replacement blade elements have three plastic caps
which retain two metal flexor strips.
Do not remove
these caps before the element is installed).
6-46

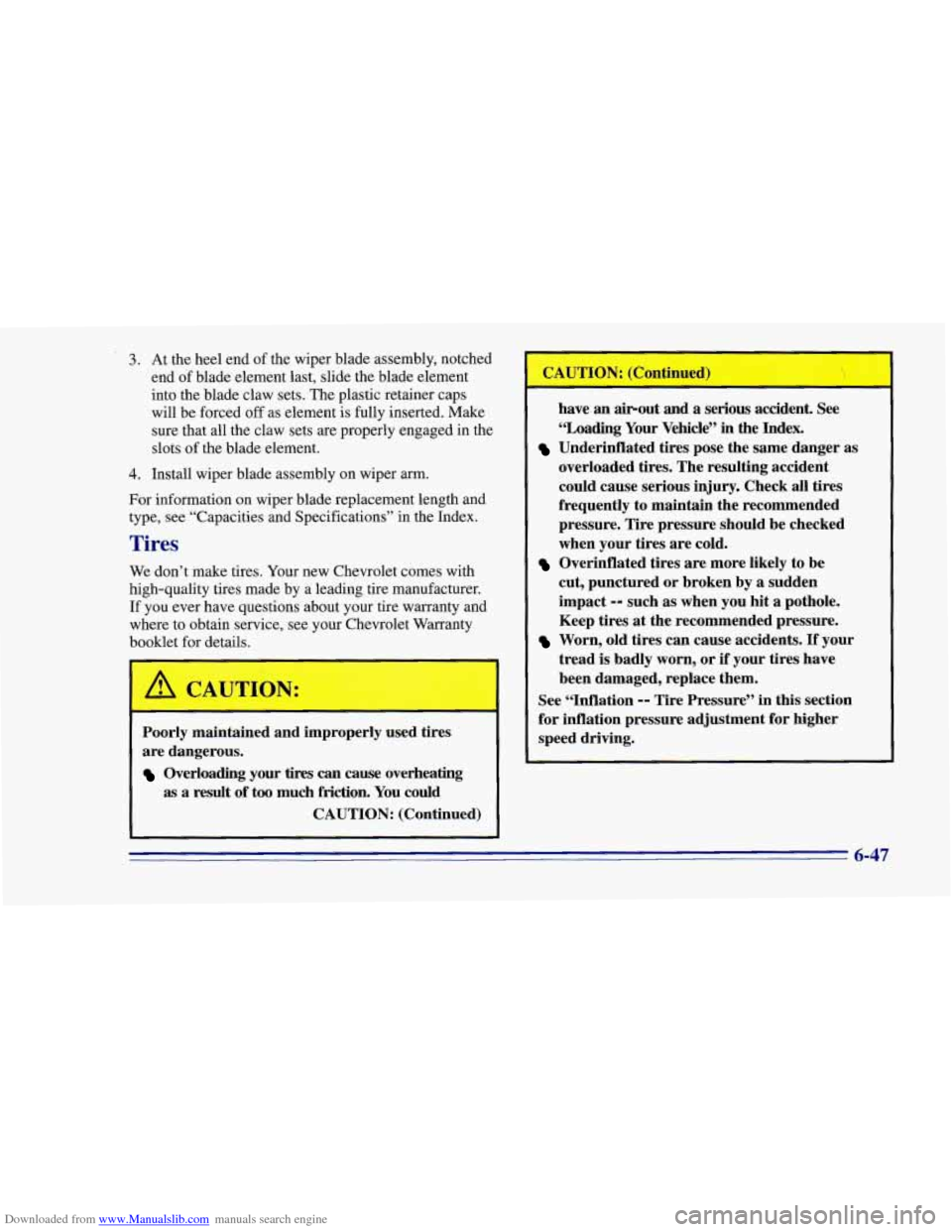

Downloaded from www.Manualslib.com manuals search engine 3. At the heel end of the wiper blade assembly, notched
end of blade element last, slide the blade element
into the blade claw sets. The plastic retainer caps
will be forced
off as element is fully inserted. Make
sure that all the claw sets are properly engaged in the
slots of the blade element.
4. Install wiper blade assembly on wiper arm.
For information on wiper-blade replacement length and
type, see “Capacities and Specifications” in the Index.
Tires
We don’t make tires. Your new Chevrolet comes with
high-quality tires made by a leading tire manufacturer.
If you ever have questions about your tire warranty and
where to obtain service, see your Chevrolet Warranty
booklet for details.
Poorly maintained and improperly used tires
are dangerous.
Overloading your tires can cause overheating
as a result of too much friction. You could
CAUTION: (Continued)
PA TTi
-
have an air-out and a serious accident. See
“Loading Your Vehicle” in the Index.
Underinflated tires pose the same danger as
overloaded tires. The resulting accide&
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
cut, punctured or broken by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents. If your
tread is badly worn, or
if your tires have
been damaged, replace them.
See “Inflation
-- Tire Pressure” in this section
for inflation pressure adjustment for higher
speed driving.
Overinflated tires are more likely to be
6-47

Downloaded from www.Manualslib.com manuals search engine Inflation -- Tire Pressure
The Tire-Loading Information label, located on the
driver’s door,
,shows the correct inflation pressures for
your tires when they’re cold. “Cold” means your vehicle\

has been
sitting for at least three hours or driven no
more than
1 mile (1.6 km).
If you’ll be driving at speeds higher than 100 mph (160 km/h)
where it is legal, raise the cold inflation pressure of each tire
to
35 psi (240 Ea). When you end this very high-speed
driving, reduce the cold inflation pressures to those listed on
the Tire-Loading Information label.
NOTICE:
Don’t let anyone tell you that underinnation or
overinflation
is all right. It’s not. If your tires
don’t have enough,
air (underinflation), you can
get the following:
Too much flexing.’
0 Too much heat
0 Tire overloading ‘
0 Bad wear
NOTICE: (Continued) NOTICE: (Continued)
Bad
handling
0 Bad fuel economy.
If your tires have too much air (overinflation),
you can
get the following:
Unusual wear
0 Bad handling
0 Rough ride
0 Needless damage from road hazards.
When
to Check
Check your tires once a month or more.
Don’t forget your compact spare tire.
It should be at
60 psi (420 kPa).
6-48

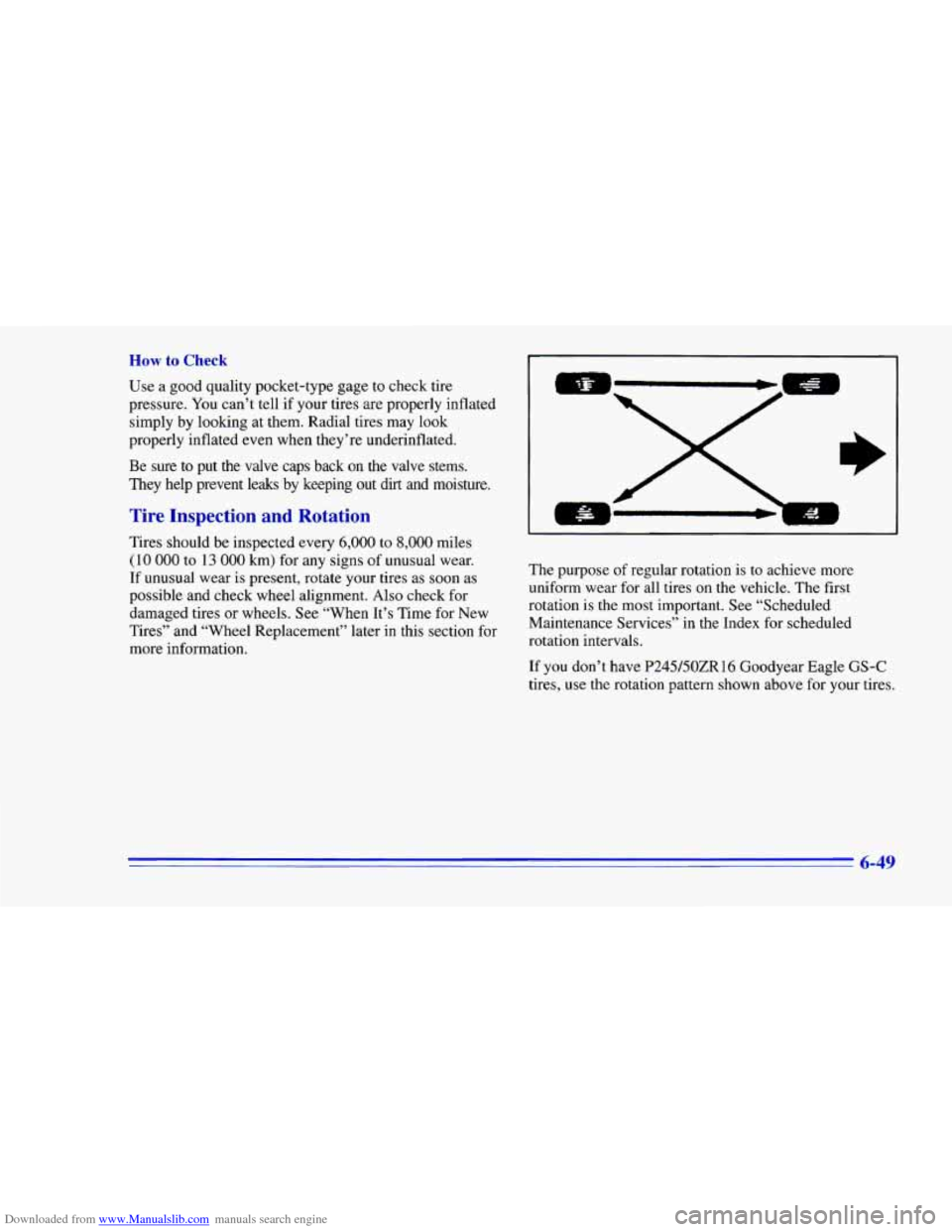

Downloaded from www.Manualslib.com manuals search engine How to Check
Use a good quality pocket-type gage to check tire
pressure.
You can’t tell if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they’re underinflated.
Be sure to put
the valve caps back on the valve stems.
They help prevent leaks
by keeping out dirt and moisture.
Tire Inspection and Rotation
Tires should be inspected every 6,000 to 8,000 miles
(10 000 to 13 000 km) for any signs of unusual wear.
If unusual wear is present, rotate your tires as soon as
possible and check wheel alignment. Also check for
damaged tires or wheels. See “When It’s Time for New
Tires” and “Wheel Replacement” later in this section for
more information. The purpose of regular rotation is to achieve more
uniform wear for all tires
on the vehicle. The first
rotation is the most important. See “Scheduled Maintenance Services” in the Index for scheduled
rotation intervals.
If you don’t have
P245/5OZR16 Goodyear Eagle GS-C
tires, use the rotation pattern shown above for your tires.
