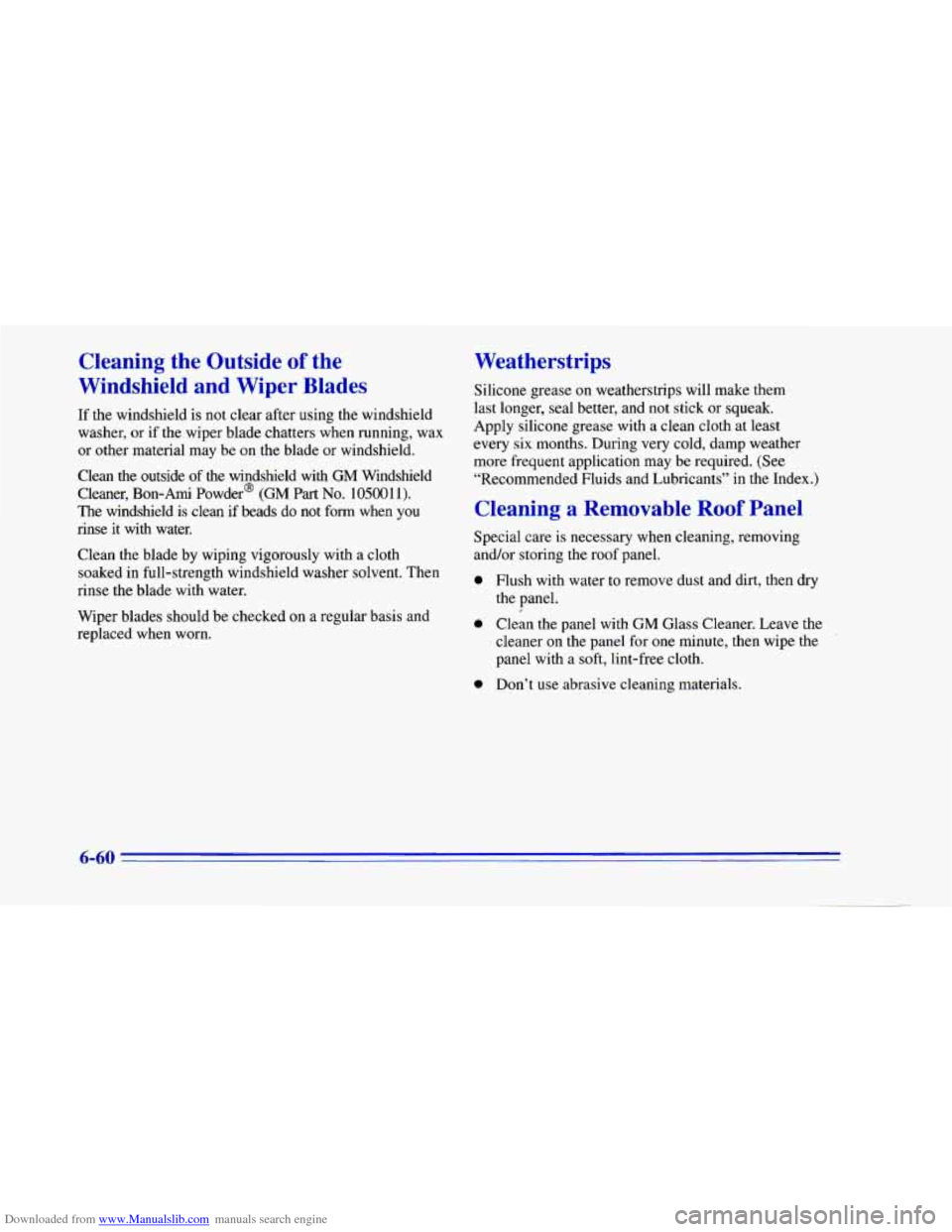

Downloaded from www.Manualslib.com manuals search engine Cleaning the Outside of the
Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer, or if the wiper blade chatters when running, wax
or other material may be on the blade
or windshield.
Clean the outside of the windshield with
GM Windshield
Cleaner, Bon-Ami Powder@
(GM Part No. 1050011).
The windshield is clean if beads do not form when you
rinse it with water.
Clean the blade by wiping vigorously with a cloth
soaked in full-strength windshield washer solvent. Then
rinse the blade with water.
Wiper blades should be checked on a regular basis and
replaced when worn.
Weatherstrips
Silicone grease on weatherstrips will make them
last longer, seal better, and not stick
or squeak.
Apply silicone grease with a clean cloth at least
every six months. During very cold, damp weather
more frequent application may be required. (See
“Recommended Fluids and Lubricants” in the Index.)
Cleaning a Removable Roof Panel
Special care is necessary when cleaning, removing
and/or storing the roof panel.
0 Flush with water to remove dust and dirt, then dry
the panel.
0 Clean the panel with GM Glass Cleaner. Leave the
cleaner
on the panel for one minute, then wipe the
panel with a soft, lint-free cloth.
*
0 Don’t use abrasive cleaning materials.
6-60

Downloaded from www.Manualslib.com manuals search engine Cleaning the Outside of Your Chevrolet

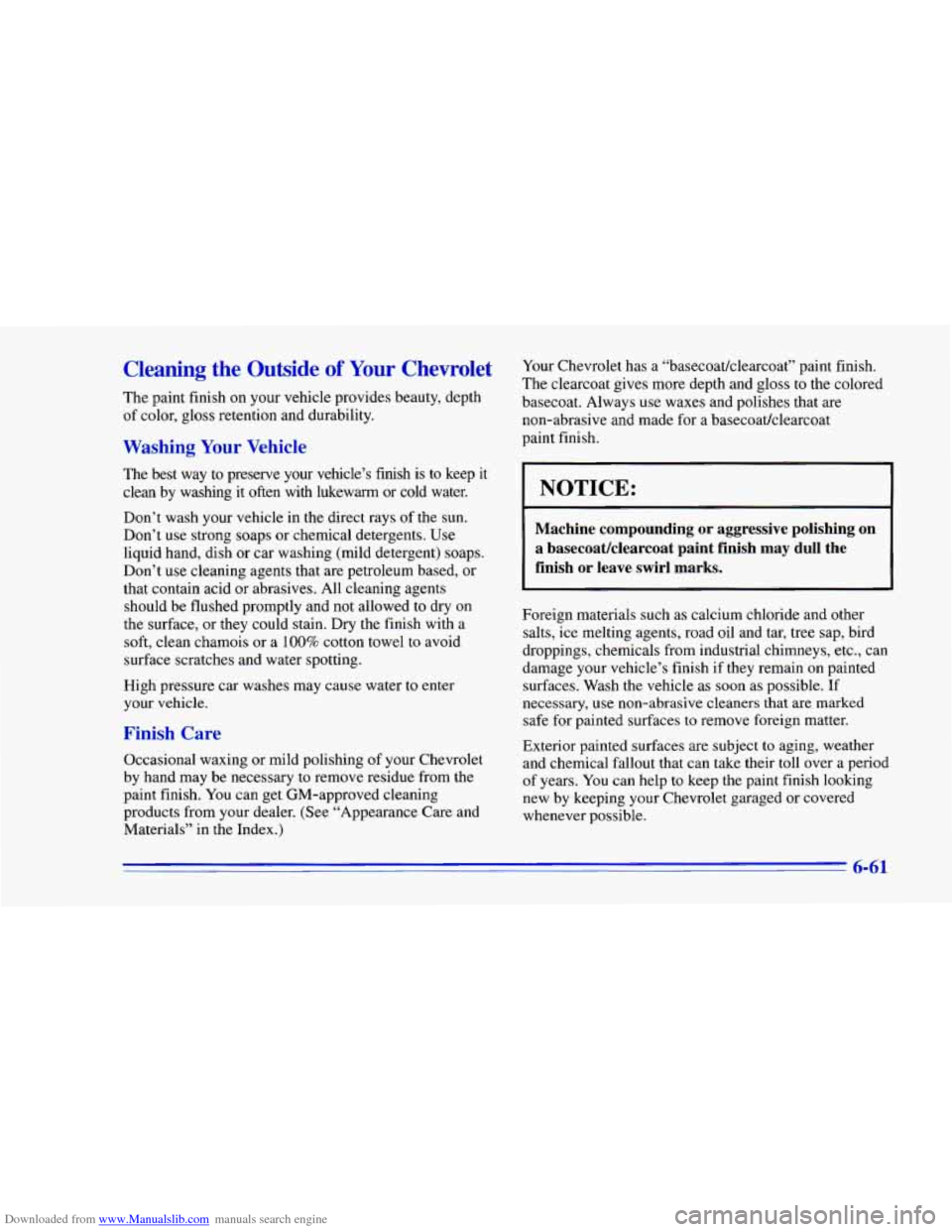

The paint finish on your vehicle provides beauty, depth
of color, gloss retention and durability.
Washing Your Vehicle
The best way to preserve your vehicle’s finish is to keep it
clean by washing it often with lukewarm or cold water.
Don’t wash your vehicle in the direct rays of the sun.
Don’t use strong soaps or chemical detergents.
Use
liquid hand, dish or car washing (mild detergent) soaps.
Don’t
use cleaning agents that are petroleum based, or
that contain acid or abrasives. All cleaning agents
should be flushed promptly and not allowed to dry on
the surface, or they could stain.
Dry the finish with a
soft, clean chamois or a 100% cotton towel to avoid
surface scratches and water spotting.
High pressure car washes may cause water to enter
your vehicle.
Finish Care
Occasional waxing or mild polishing of your Chevrolet
by hand may be necessary
to remove residue from the
paint finish. You can get GM-approved cleaning
products from your dealer. (See “Appearance Care and
Materials” in the Index.) Your
Chevrolet has
a “basecoat/clearcoat” paint finish.
The clearcoat gives more depth and gloss
to the colored
basecoat. Always use waxes and polishes that are
non-abrasive and made for a basecoatklearcoat
paint finish.
NOTICE:
Machine compounding or aggressive polishing on
a basecoat/clearcoat paint finish may dull the
finish or leave
swirl marks.
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird
droppings, chemicals from industrial chimneys, etc., can
damage your vehicle’s finish if they remain on painted
surfaces. Wash the vehicle as soon as possible. If
necessary, use non-abrasive cleaners that are marked
safe for painted surfaces to remove foreign matter.
Exterior painted surfaces are subject to aging, weather
and chemical fallout that can take their toll over a period
of years. You can help to keep the paint finish looking
new by keeping your Chevrolet garaged or covered
whenever possible.
6-61

Downloaded from www.Manualslib.com manuals search engine Cleaning Your Convertible Top

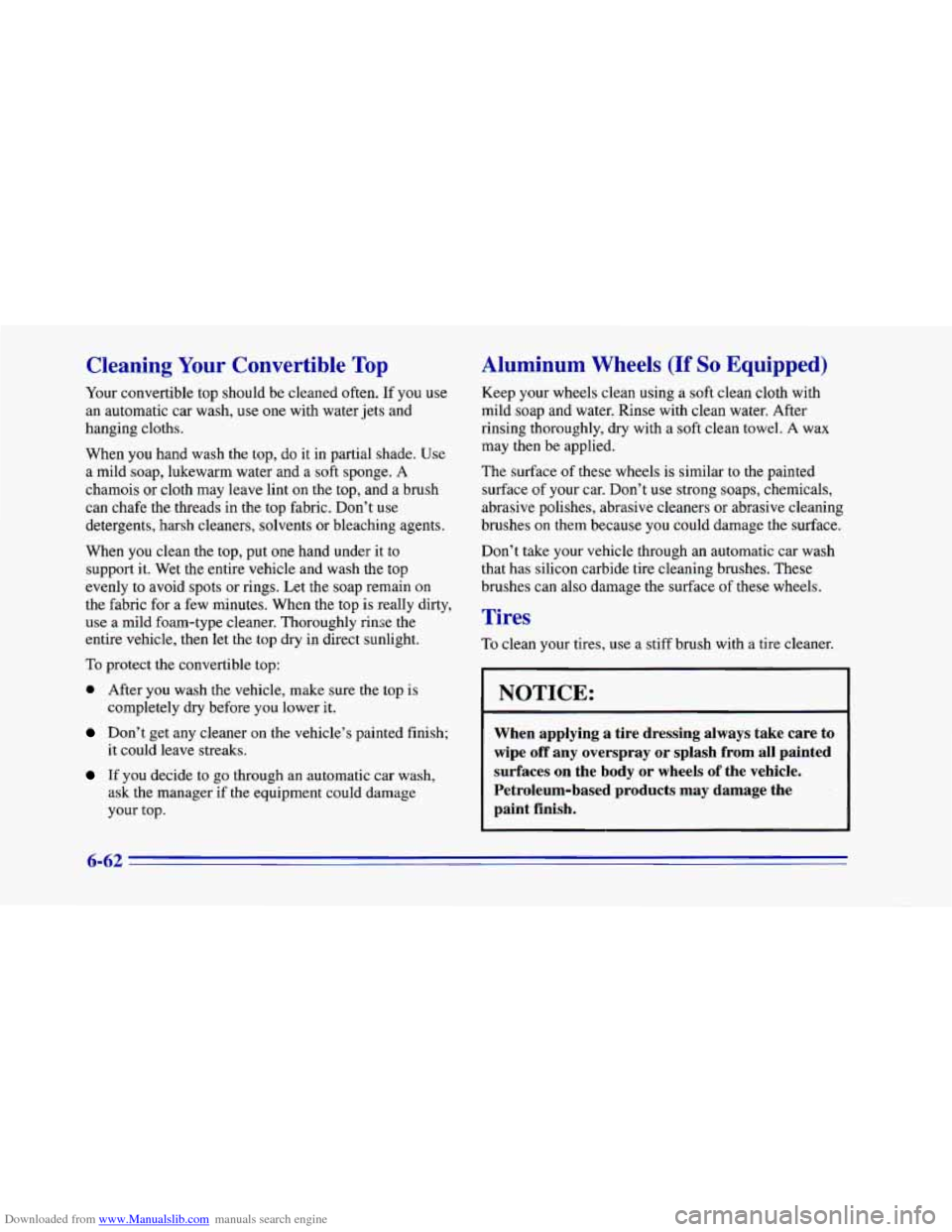

Your convertible top should be cleaned often. If you use
an automatic car wash, use
one with water jets and
hanging cloths.
When you hand wash the top,
do it in partial shade. Use
a mild soap, lukewarm water and a
soft sponge. A
chamois or cloth may leave lint on the top, and a brush
can chafe the threads in the top fabric. Don’t
use
detergents, harsh cleaners, solvents or bleaching agents.
When you clean the top, put one hand under it
to
support it. Wet the entire vehicle and wash the top
evenly to avoid spots or rings. Let the soap remain on
the fabric for a few minutes. When the top is really dirty,
use a mild foam-type cleaner. Thoroughly rinse the
entire vehicle, then let
the top dry in direct sunlight.
To protect the convertible top:
0 After you wash the vehicle, make sure the top is
Don’t get any cleaner on the vehicle’s painted finish;
completely
dry before you lower it.
it
could leave streaks.
If you decide to go through an automatic car wash,
ask the manager if the equipment could damage
your top.
Aluminum Wheels (If So Equipped)
Keep your wheels clean using a soft clean cloth with
mild soap and water. Rinse with clean water. After
rinsing thoroughly, dry with a soft clean towel. A wax
may then be applied.
The surface of these wheels is similar to the painted
surface of your car. Don’t
use strong soaps, chemicals,
abrasive polishes, abrasive cleaners or abrasive cleaning
brushes on them because you could damage the surface.
Don’t take your vehicle through an automatic car wash
that has silicon carbide tire cleaning brushes. These
brushes can also damage the surface of these wheels.
Tires
To clean your tires, use a stiff brush with a tire cleaner.
NOTICE:
When applying a tire dressing always take care to
wipe
off any overspray or splash from all painted
surfaces on the
body or wheels of the vehicle.
Petroleum-based products may damage the
paint finish.
6-62

Downloaded from www.Manualslib.com manuals search engine Sheet Metal Damage

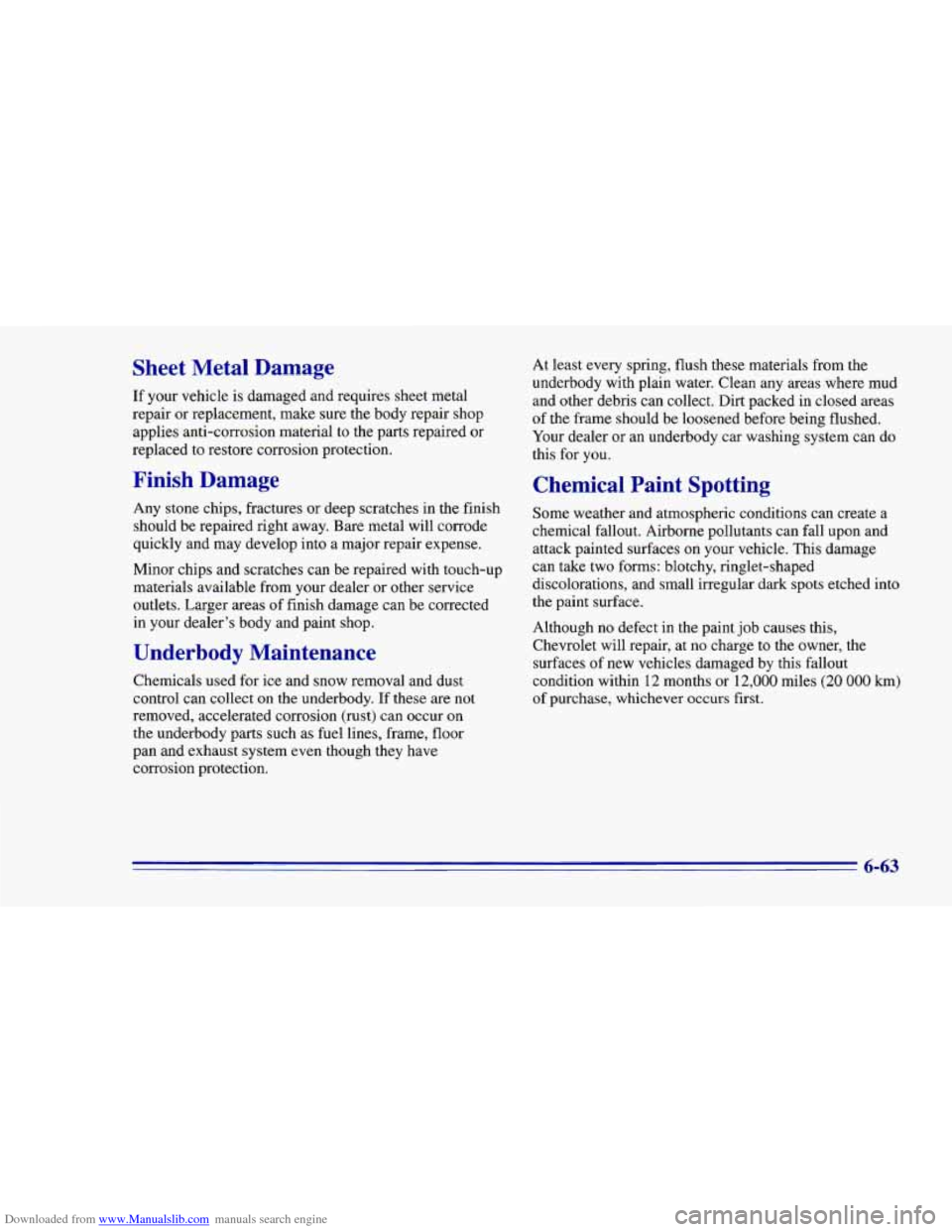

If your vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to the parts repaired or
replaced to restore corrosion protection.
Finish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right away. Bare metal will corrode
quickly and may develop into a major repair expense.
Minor chips and scratches can be repaired with touch-up
materials available from your dealer or other service
outlets. Larger areas of finish damage can be corrected
in your dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect
on the underbody. If these are not
removed, accelerated corrosion (rust) can occur
on
the underbody parts such as fuel lines, frame, floor
pan and exhaust system even though they have
corrosion protection. At
least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody car washing system can do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces on your vehicle. This damage
can take two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into
the paint surface.
Although no defect in the paint job causes this,
Chevrolet will repair,
at no charge to the owner, the
surfaces of new vehicles damaged by this fallout
condition within 12 months or 12,000 miles
(20 000 km)
of purchase, whichever occurs first.
6-63

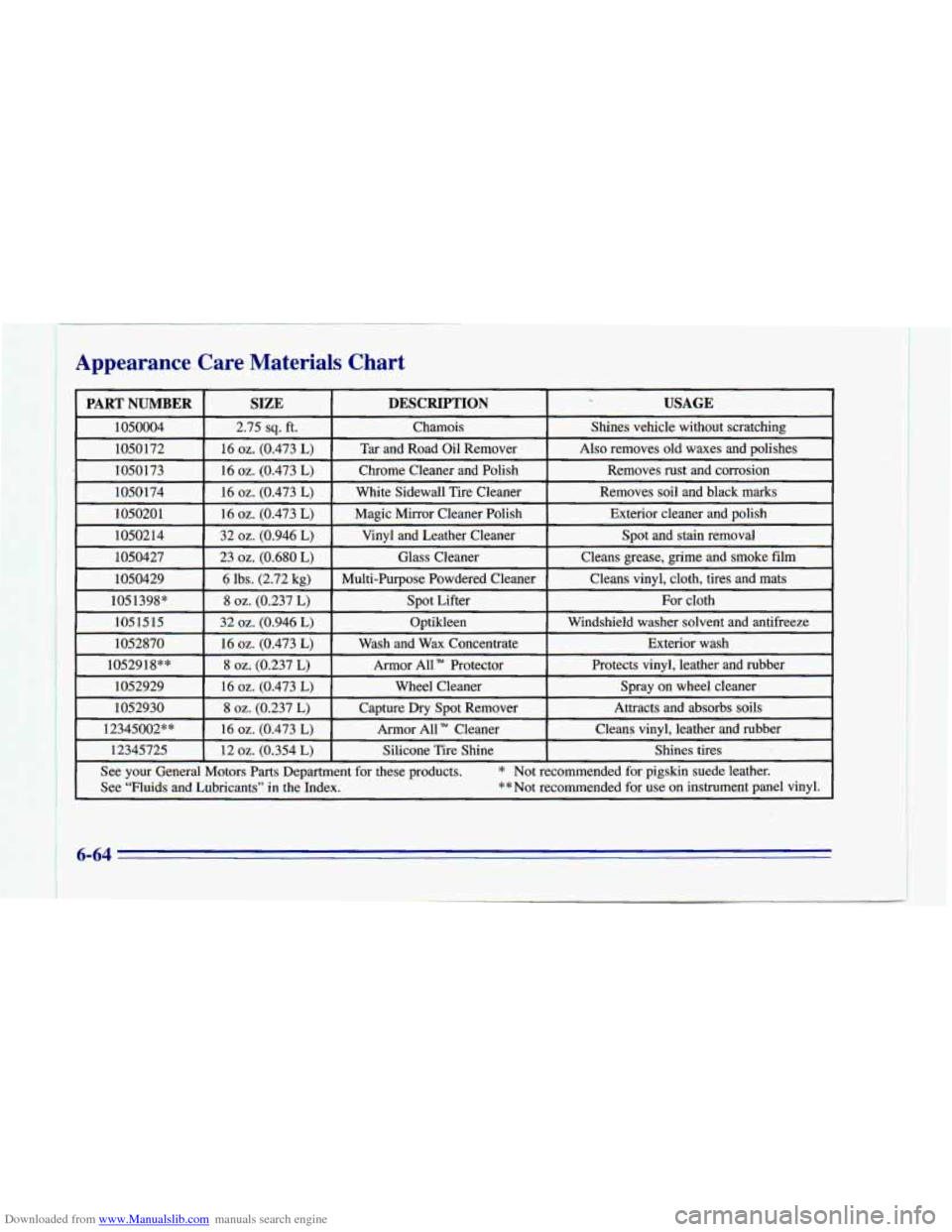

Downloaded from www.Manualslib.com manuals search engine Appearance Care Materials Chart
6-64

Downloaded from www.Manualslib.com manuals search engine Vehicle Identification Number (VIN) Service Parts Identification Label

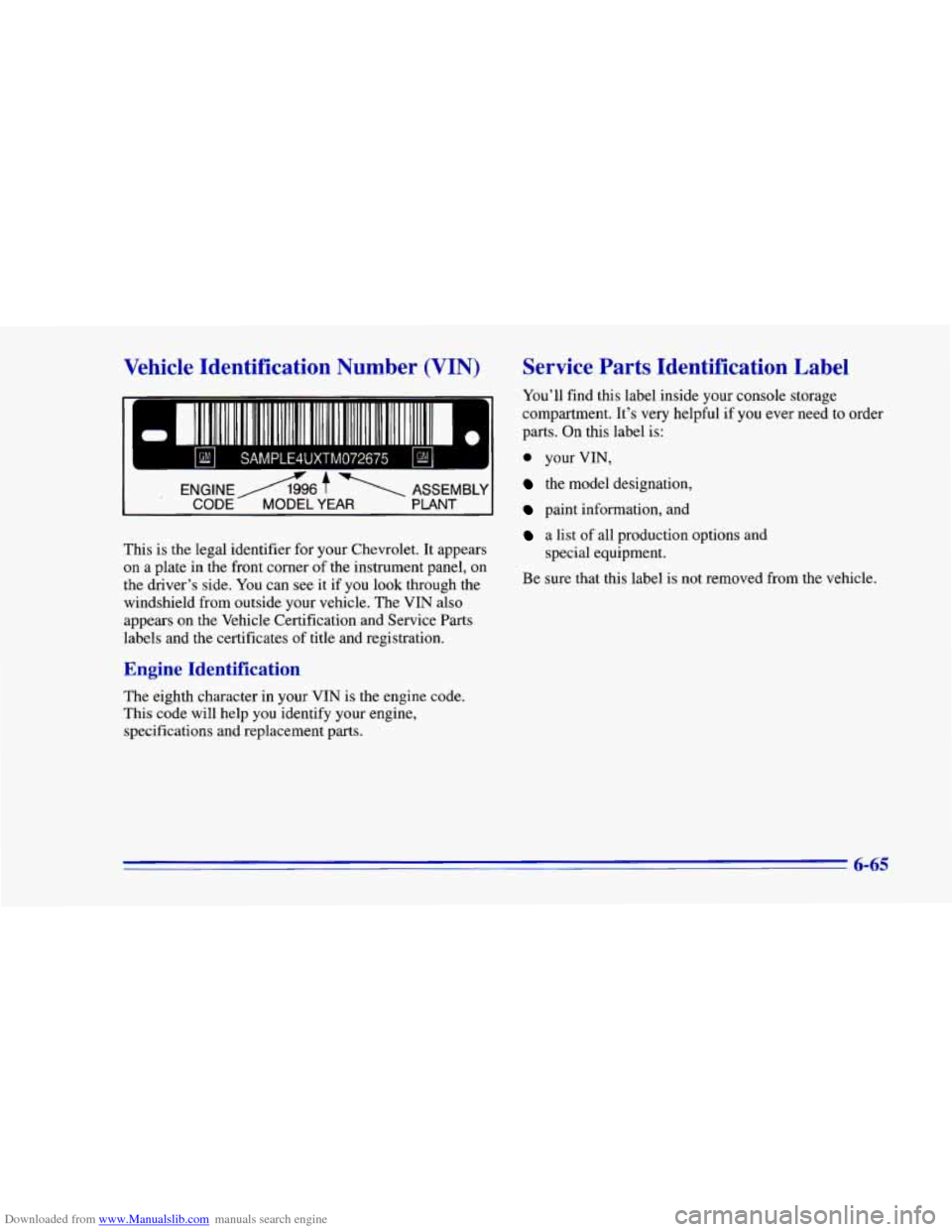

111 1111 111 111111 111 111111 I1 111111111111
SAMPLE4UXTM072675 I GM 1
I , ENGlNEA6 CODE MODEL YEAR f PLANT ASSEMBLY1
This is the legal identifier
for your Chevrolet. It appears
on a plate in the front corner
of the instrument panel, on
the driver’s side. You can see it if you look through the
windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications and replacement parts. You’ll find this label inside your console storage
compartment. It’s very helpful if
you ever
need to order
parts. On this label is:
0 your VIN,
the model designation,
paint information, and
a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.
6-65

Downloaded from www.Manualslib.com manuals search engine Electrical System

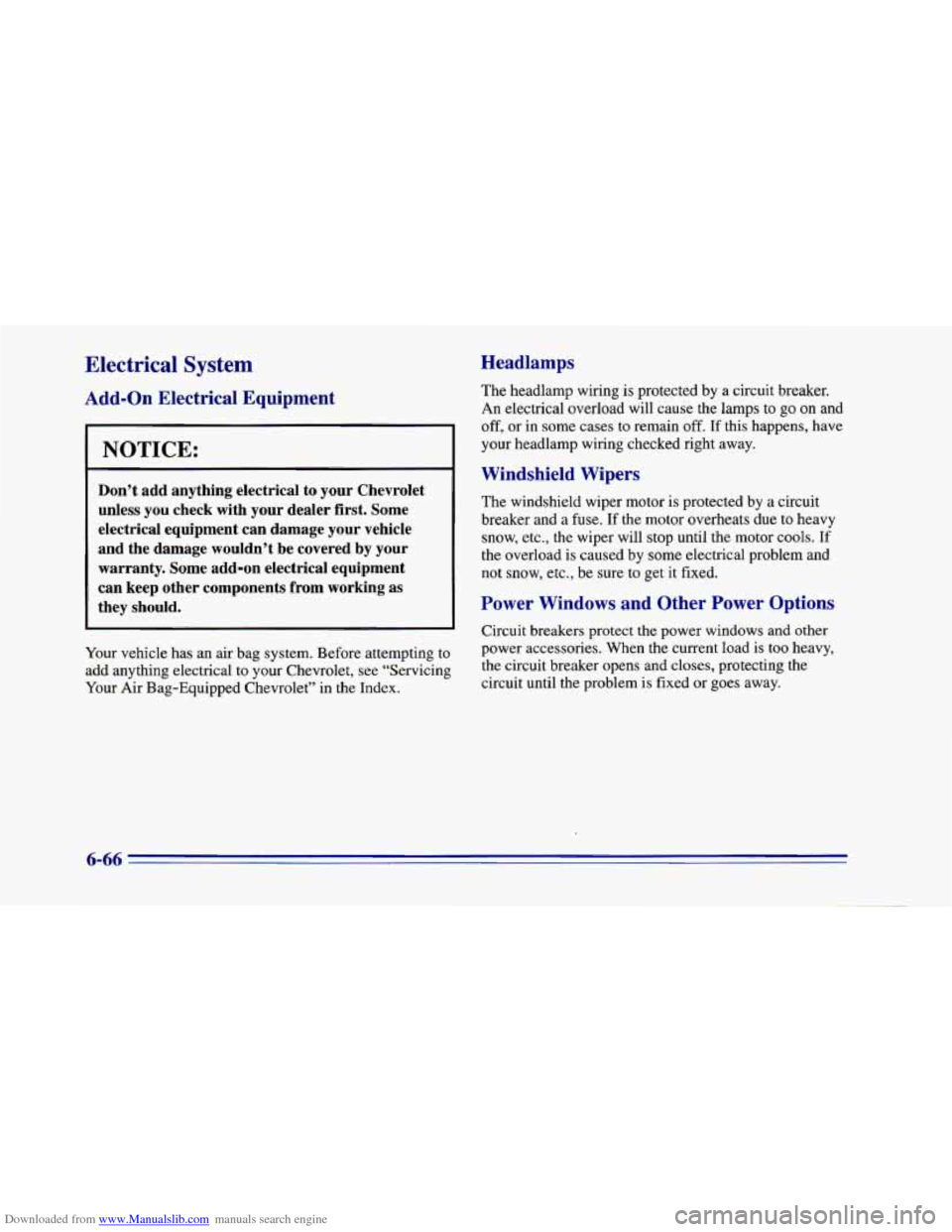

Add-on Electrical Equipment
I NOTICE:
Don’t add anything electrical to your Chevrolet
unless
you check with your dealer first. Some
electrical equipment can damage your vehicle and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
atid anything electrical to your Chevrolet, see “Servicing
Your Air Bag-Equipped Chevrolet”
in the Index.
Headlamps
The headlamp wiring is protected by a circuit breaker.
An electrical overload will cause the
lamps to go on and
off, or in some cases to remain off. If this happens, have
your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc.,
the wiper will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until
the problem is fixed or goes away.
6-66

Downloaded from www.Manualslib.com manuals search engine Fuses and Circuit Breakers

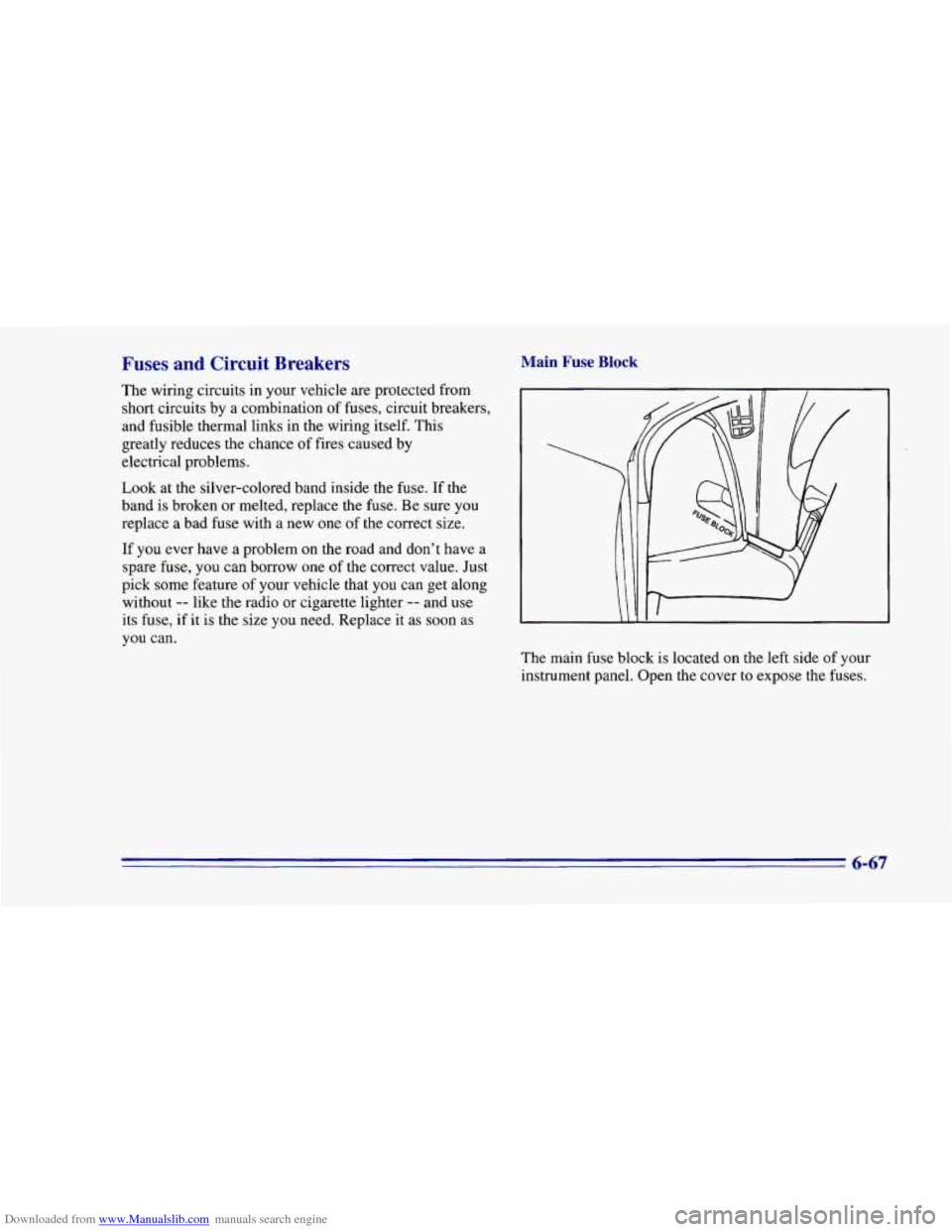

The wiring circuits in your vehicle are protected from
short circuits by a combination
of fuses, circuit breakers,
and fusible thermal links in the wiring itself. This
greatly reduces the chance
of fires caused by
electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
you
replace a bad fuse with a new one of the correct size.
Main Fuse Block
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one of the correct value. Just
pick some feature of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and use
its fuse, if it is the size you
need. Replace it as soon as
you can.
The main fuse block is located on the left side of your
instrument panel. Open the cover
to expose the fuses.
6-67

Downloaded from www.Manualslib.com manuals search engine 15n 141-1 13(1 WINDOWS BATT WIPER/WASH PCM ION €I IGN

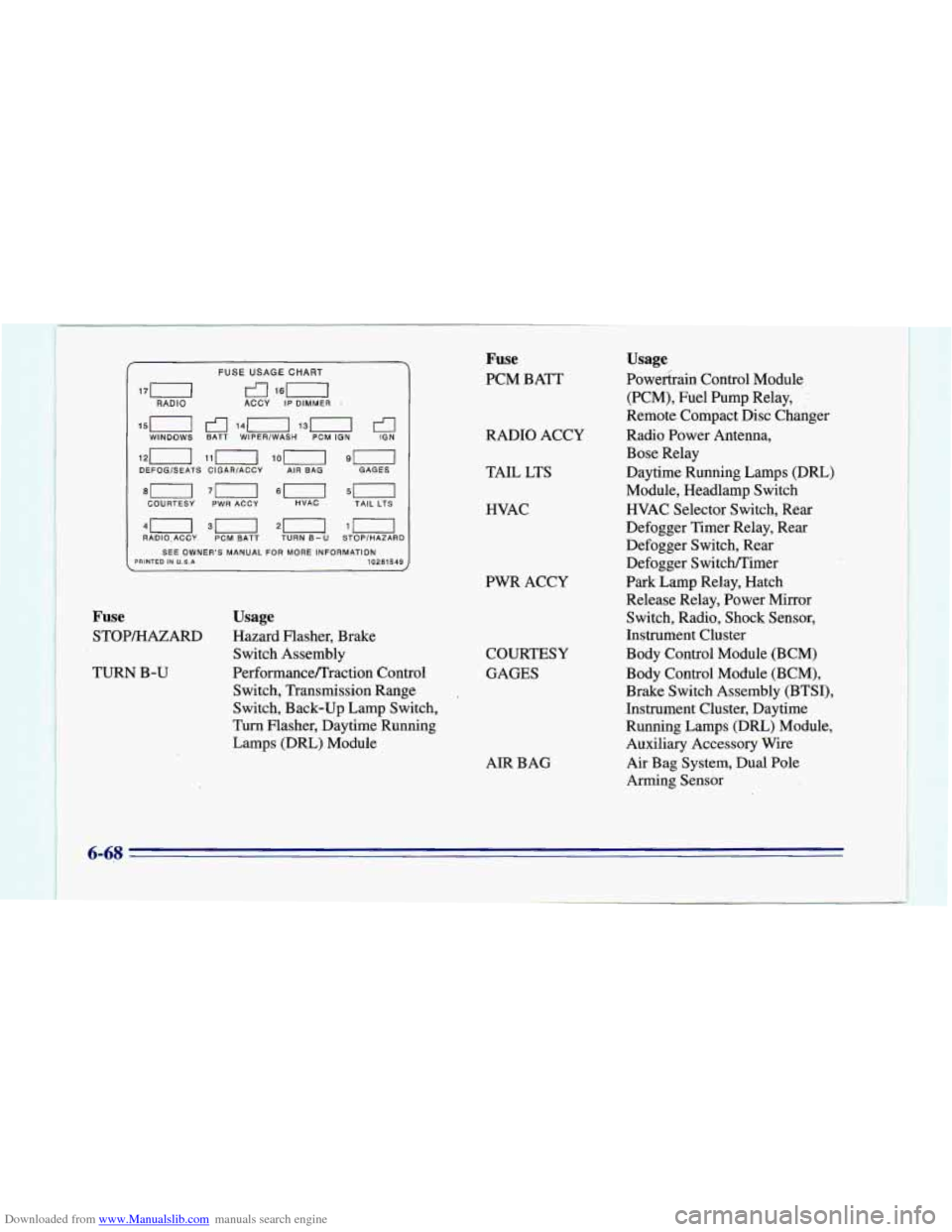

DEFOGSEATS CIGAR/ACCY AIR BAG GAGES
COURTESY
PWR ACCY HVAC TAIL LTS
40 30 20 $0 RADIO.ACCY PCM BATT TURN B-U STOP/HAZARD
SEE OWNER’S MANUAL
FOR MORE INFORMATION PRINTED IN U.S.A 10281549
FUSE USAGE CHART
170 rl 160 RADIO ACCY IP DIMMER 1
Fuse Usage
STOP/HAZARD Hazard
Flasher, Brake
Switch Assembly
Switch, Transmission Range
Switch, Back-up Lamp Switch,
Turn Flasher, Daytime Running
Lamps (DRL) Module
TURN
B-U Performance/Traction Control
Fuse
PCM BATT
RADIO ACCY
TAIL LTS
HVAC
PWR ACCY COURTESY
GAGES
AIR BAG
Usage
Powekrain Control Module
(PCM), Fuel Pump Relay,
Remote Compact Disc Changer
Radio Power Antenna,
Bose Relay
Daytime Running Lamps
(DRL)
Module, Headlamp Switch
HVAC Selector Switch, Rear
Defogger Timer Relay, Rear
Defogger Switch, Rear
Defogger Switch/Timer
Park Lamp Relay, Hatch
Release Relay, Power Mirror
Switch, Radio, Shock Sensor,
Instrument Cluster
Body Control Module (BCM)
Body Control Module (BCM),
Brake Switch Assembly’(BTS1).
Instrument Cluster, Daytime
Running Lamps (DRL) Module,
Auxiliary Accessory Wire
Air Bag System, Dual Pole
Arming Sensor
6-68

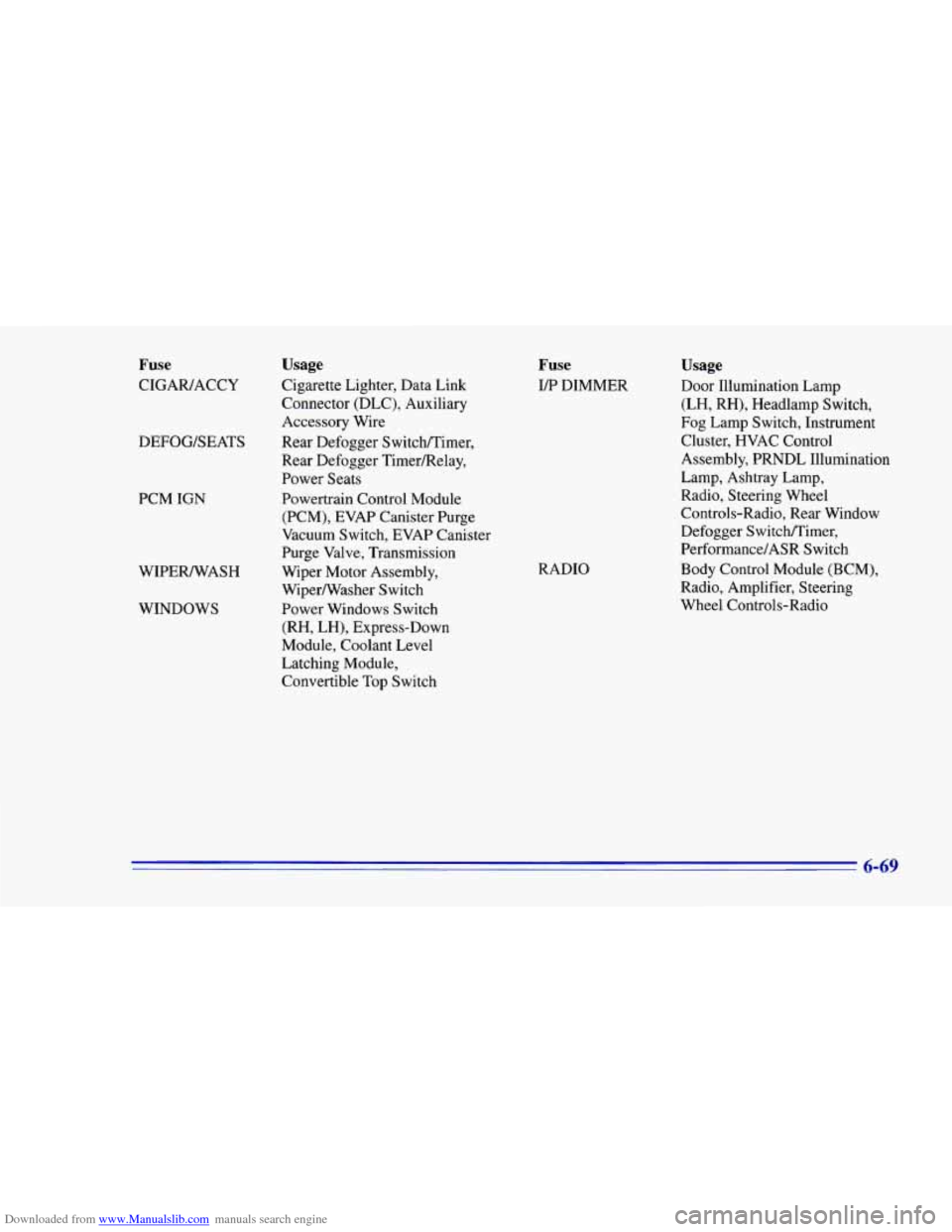

Downloaded from www.Manualslib.com manuals search engine Fuse
CIGAWACCY
DEFOG/SEATS
PCM
IGN
WIPEWASH WINDOWS
Usage
Cigarette Lighter, Data Link
Connector (DLC), Auxiliary
Accessory Wire
Rear Defogger Switchnimer,
Rear Defogger Timer/Relay,
Power Seats
Powertrain Control Module (PCM), EVAP Canister Purge
Vacuum Switch, EVAP Canister
Purge Valve, Transmission
Wiper Motor Assembly,
WiperNVasher Switch
Power Windows Switch
(RH, LH), Express-Down
Module, Coolant Level
Latching Module,
Convertible Top Switch
Fuse
Iff DIMMER
RADIO
Usage
Door Illumination Lamp
(LH, RH), Headlamp Switch,
Fog Lamp Switch, Instrument
Cluster, HVAC Control
Assembly, PRNDL Illumination
Lamp, Ashtray Lamp,
Radio, Steering Wheel
Controls-Radio, Rear Window
Defogger Switchmimer,
Performance/ASR Switch
Body Control Module (BCM),
Radio, Amplifier, Steering
Wheel Controls-Radio
6-69
