Fig. 7 Body Left Side Wiring (AJ-27)
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 81

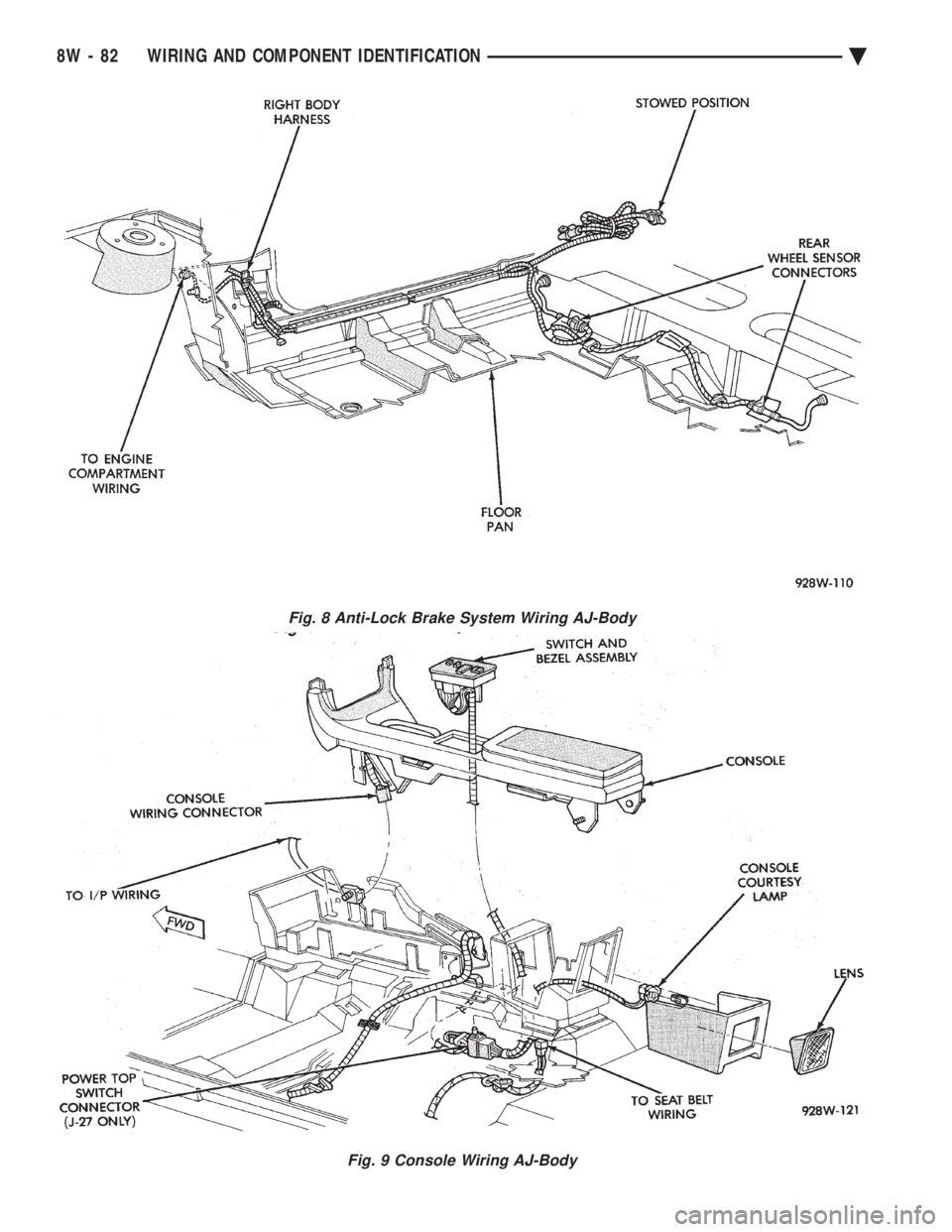

Fig. 8 Anti-Lock Brake System Wiring AJ-Body
Fig. 9 Console Wiring AJ-Body
8W - 82 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 10 Door Wiring (Body Side) AJ-Body
Fig. 11 Door Wiring AJ-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 83

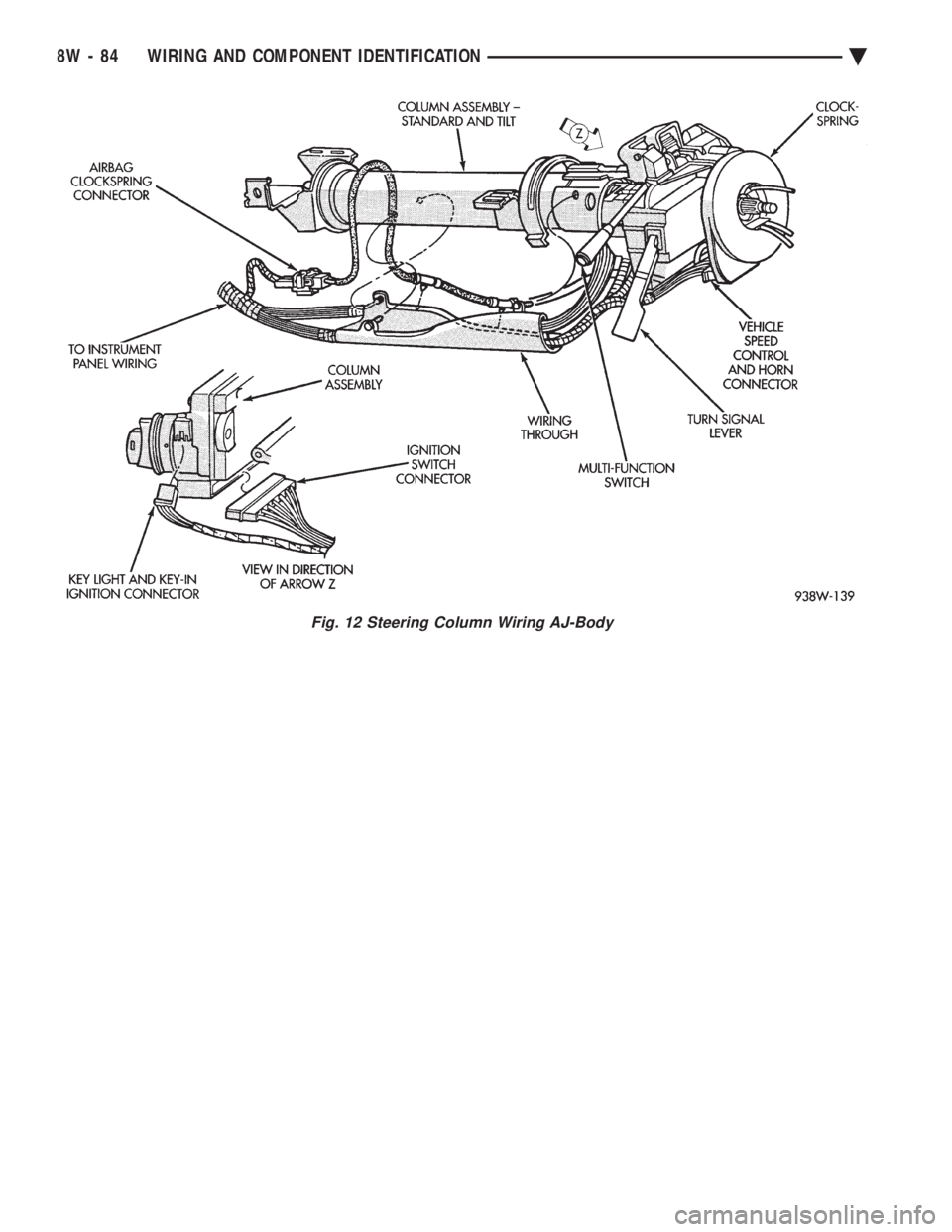

Fig. 12 Steering Column Wiring AJ-Body
8W - 84 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 13 Instrument Panel Wiring (Routing) AJ-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 85

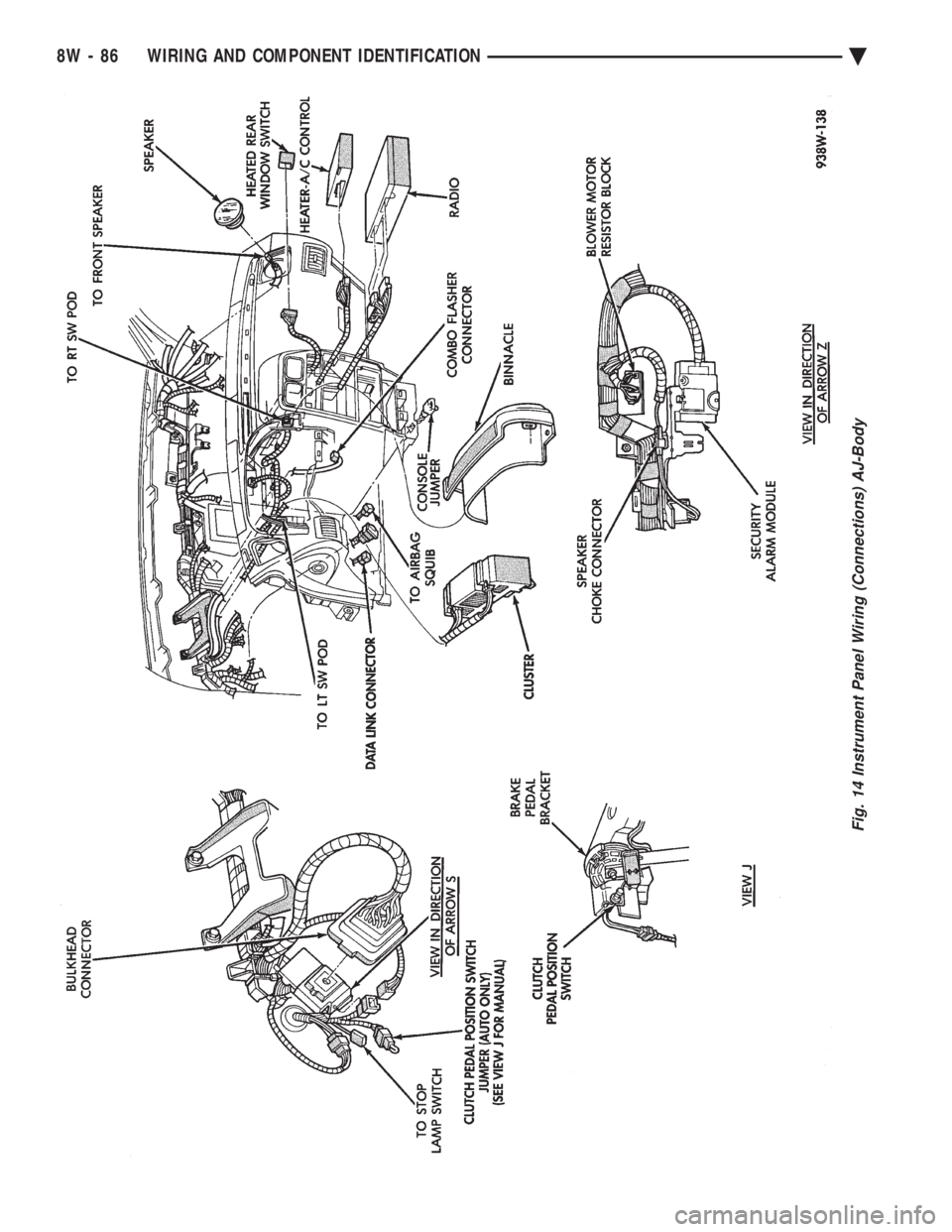

Fig. 14 Instrument Panel Wiring (Connections) AJ-Body
8W - 86 WIRING AND COMPONENT IDENTIFICATION Ä

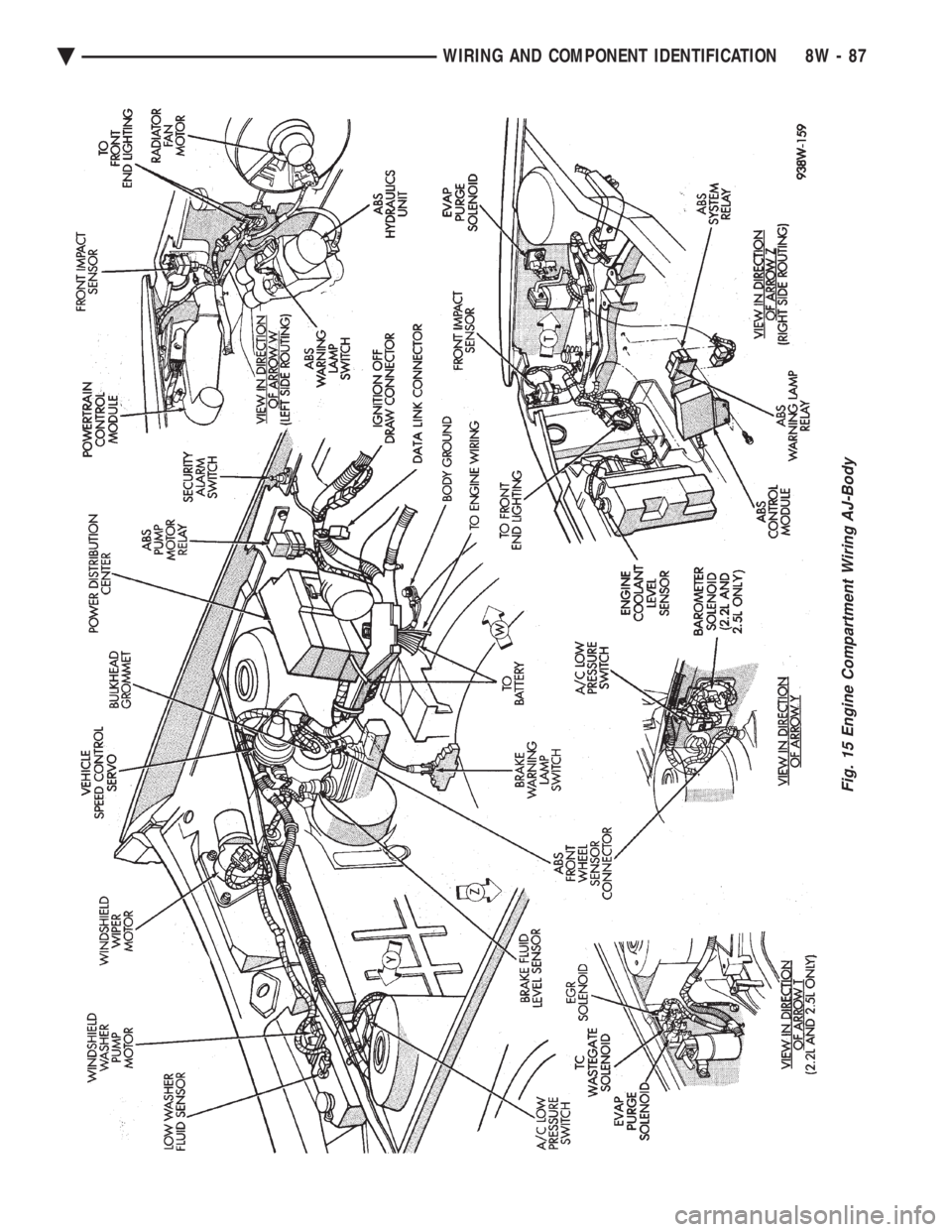

Fig. 15 Engine Compartment Wiring AJ-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 87

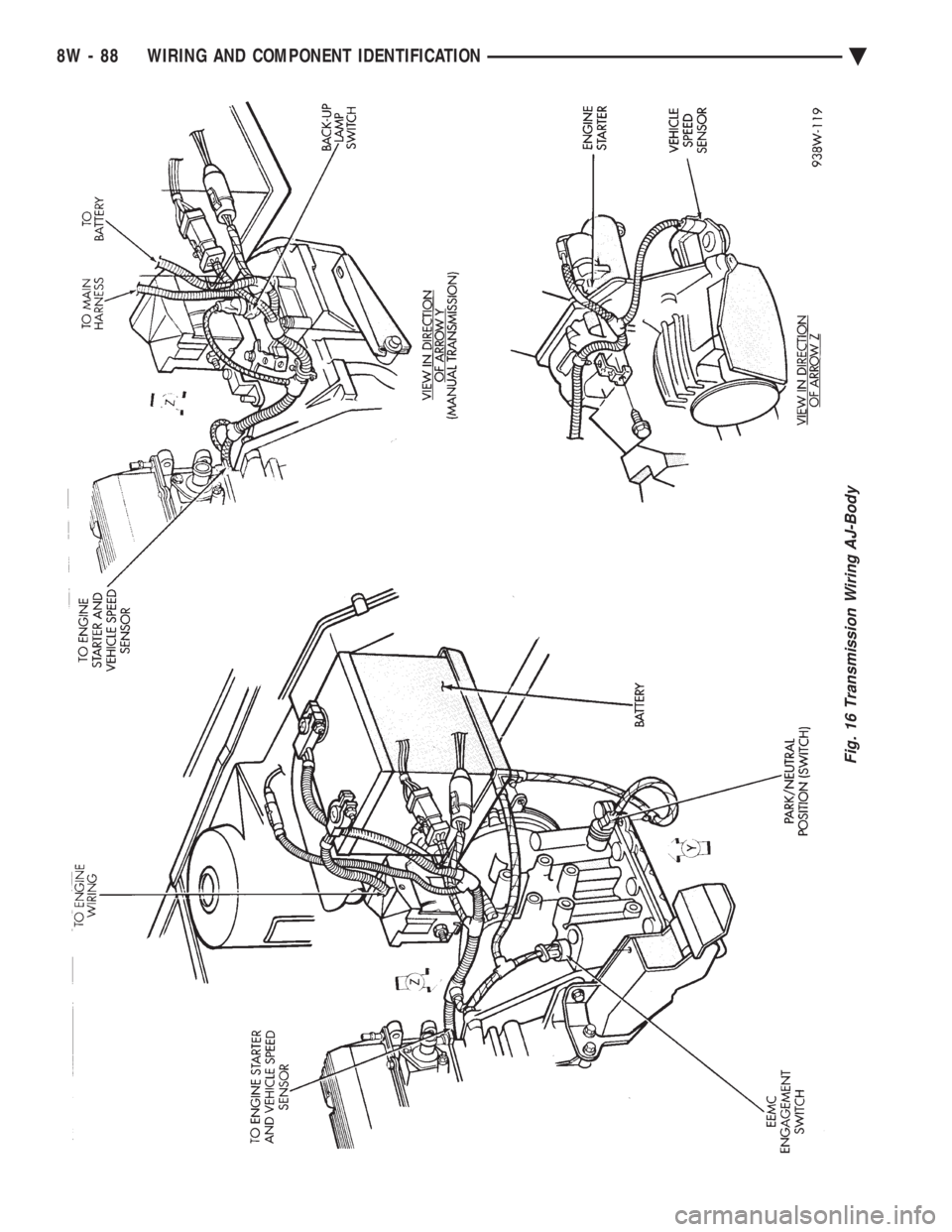

Fig. 16 Transmission Wiring AJ-Body
8W - 88 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 17 Transmission Wiring 41TE AJ-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 89

Fig. 18 Engine Wiring EFI AJ-Body
