CHEVROLET DYNASTY 1993 Service Manual

AG BODY
Caption Fig.
Anti Lock Brake System Wiring .....................6
Body Left Side Wiring ...........................5
Body Right Side Wiring ..........................4
Console Wiring ...............................9
Door Wiring .................................8
Door Wiring (Body Side) .........................7
Engine Compartment Wiring ......................14
Engine Wiring 2.5L EFI .........................17
Engine Wiring 3.0L ............................20
Engine Wiring Turbo III ..................... .18, 19
Front End Wiring .............................22Caption Fig.
Ground Strap Location .........................21
Instrument Panel Wiring (Connections) ...............11
Instrument Panel Wiring (Routing) ..................10
Liftgate Wiring ...............................2
Rear End Wiring ..............................1
Roof Wiring .................................3
Steering Column Wiring .........................12
Transmission Wiring ...........................15
Transmission Wiring 41TE .......................16
Underhood Lamp Wiring ........................13
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 61

Fig. 1 Rear End Wiring AG Body
8W - 62 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 2 Liftgate Wiring AG Body
Fig. 3 Roof Wiring AG Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 63

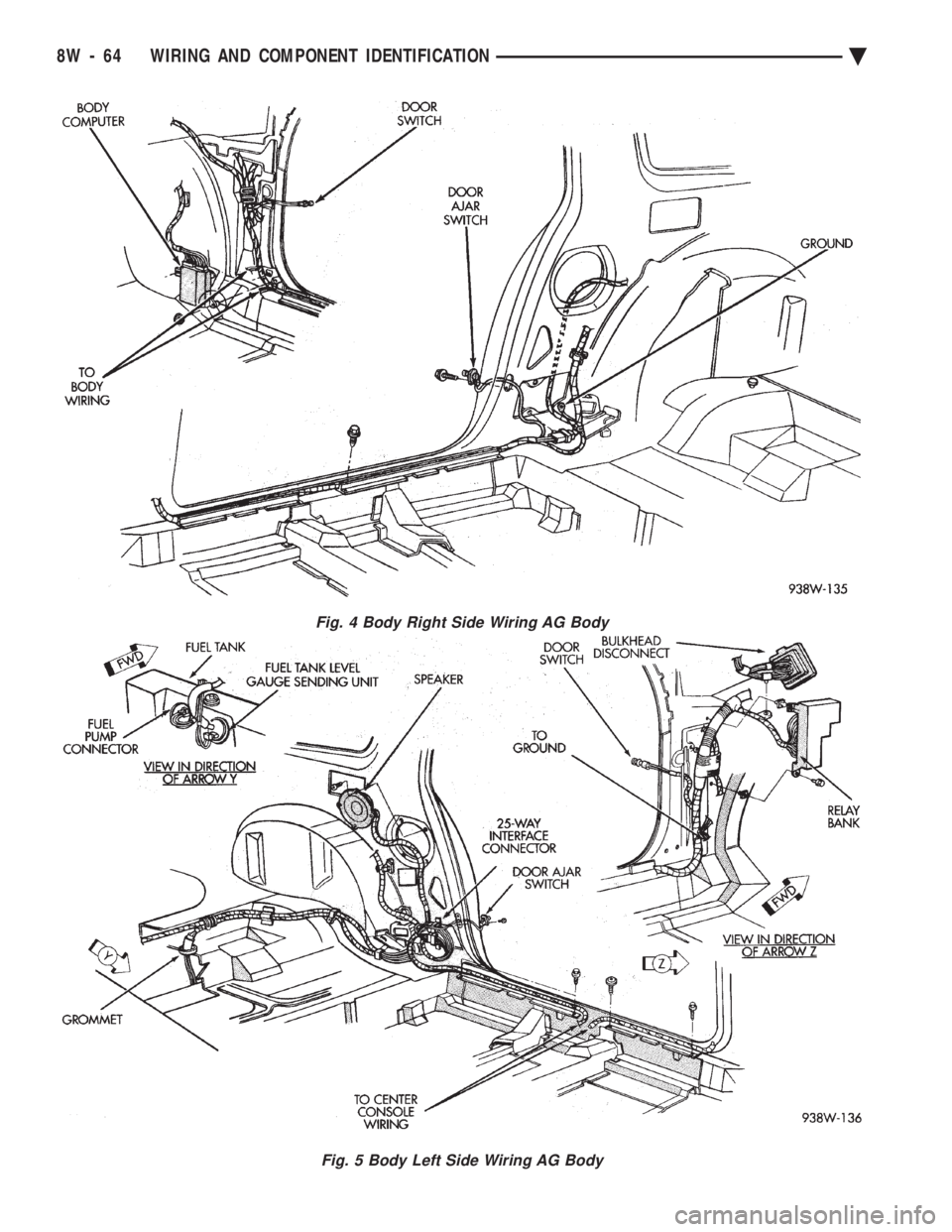

Fig. 4 Body Right Side Wiring AG Body
Fig. 5 Body Left Side Wiring AG Body
8W - 64 WIRING AND COMPONENT IDENTIFICATION Ä

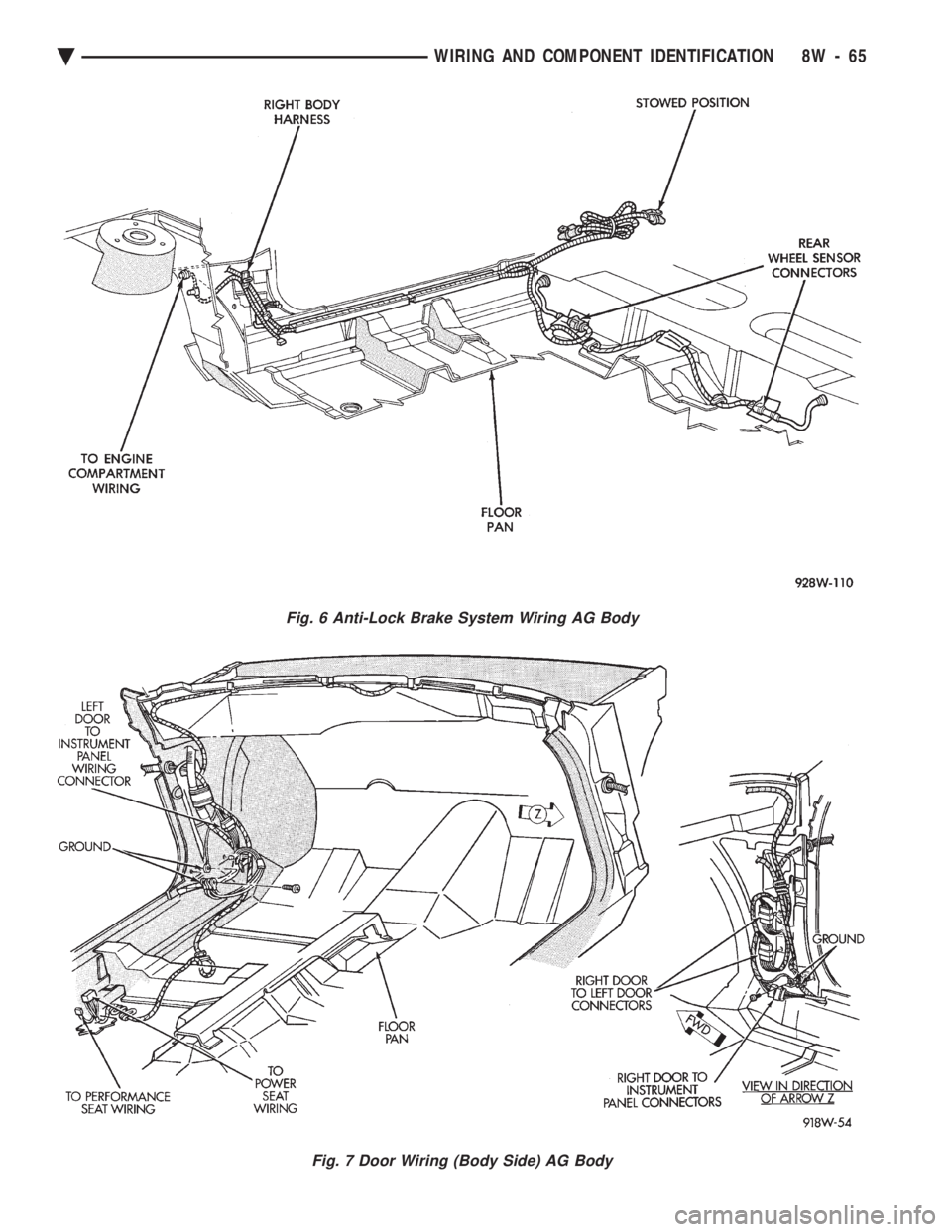

Fig. 6 Anti-Lock Brake System Wiring AG Body
Fig. 7 Door Wiring (Body Side) AG Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 65

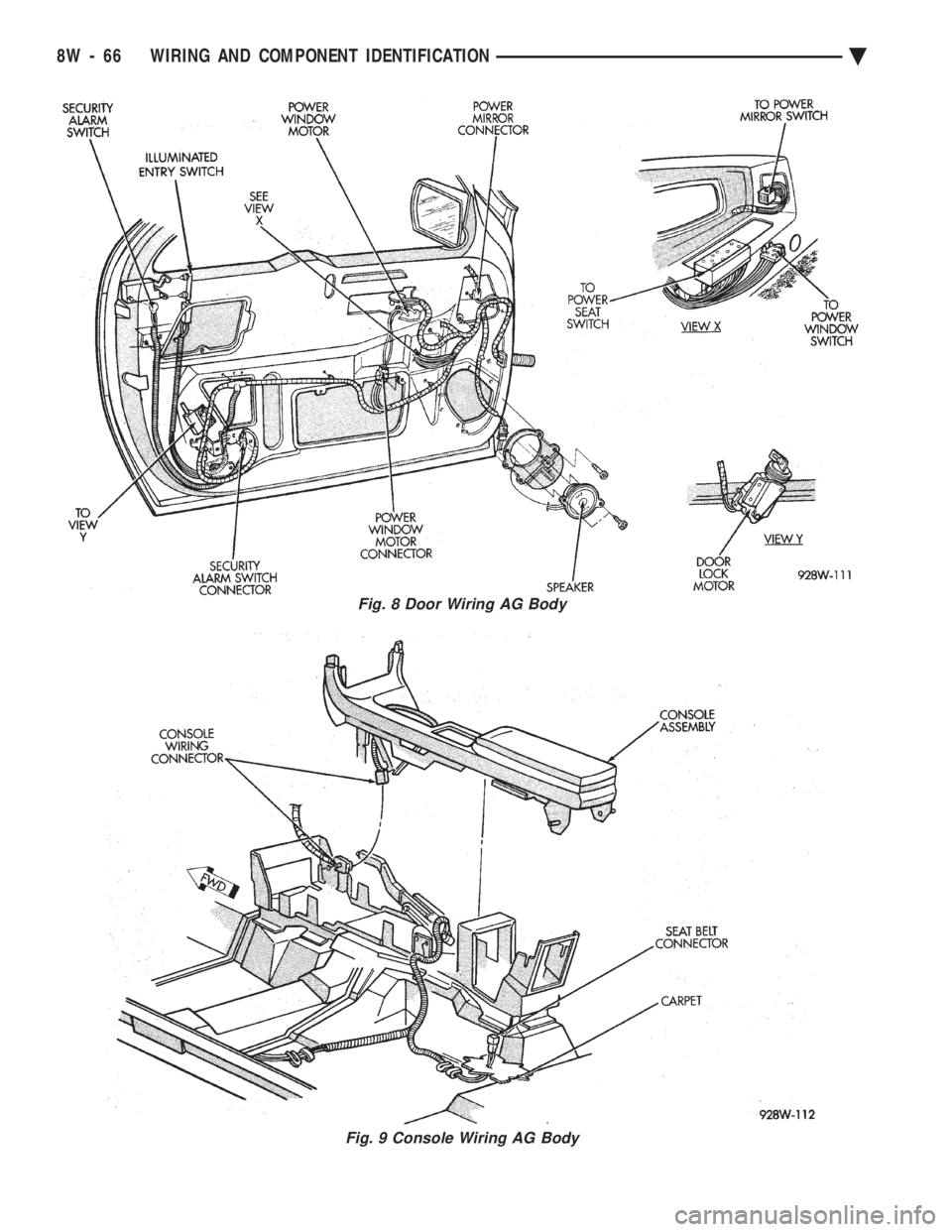

Fig. 8 Door Wiring AG Body
Fig. 9 Console Wiring AG Body
8W - 66 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 10 Instrument Panel Wiring (Routing) AG Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 67

Fig. 11 Instrument Panel Wiring (Connections) AG Body
8W - 68 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 12 Steering Column Wiring AG Body
Fig. 13 Underhood Lamp Wiring AG Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 69

Fig. 14 Engine Compartment Wiring AG Body
8W - 70 WIRING AND COMPONENT IDENTIFICATION Ä
