Fig. 13 Instrument Panel Wiring (Routing) AP-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 101

Fig. 14 Instrument Panel Wiring (Connections) AP-Body
8W - 102 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 15 Instrument Panel to Body Wiring AP-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 103

Fig. 16 Engine Compartment Wiring EFI AP-Body
8W - 104 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 17 Engine Compartment Wiring 3.0L AP-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 105

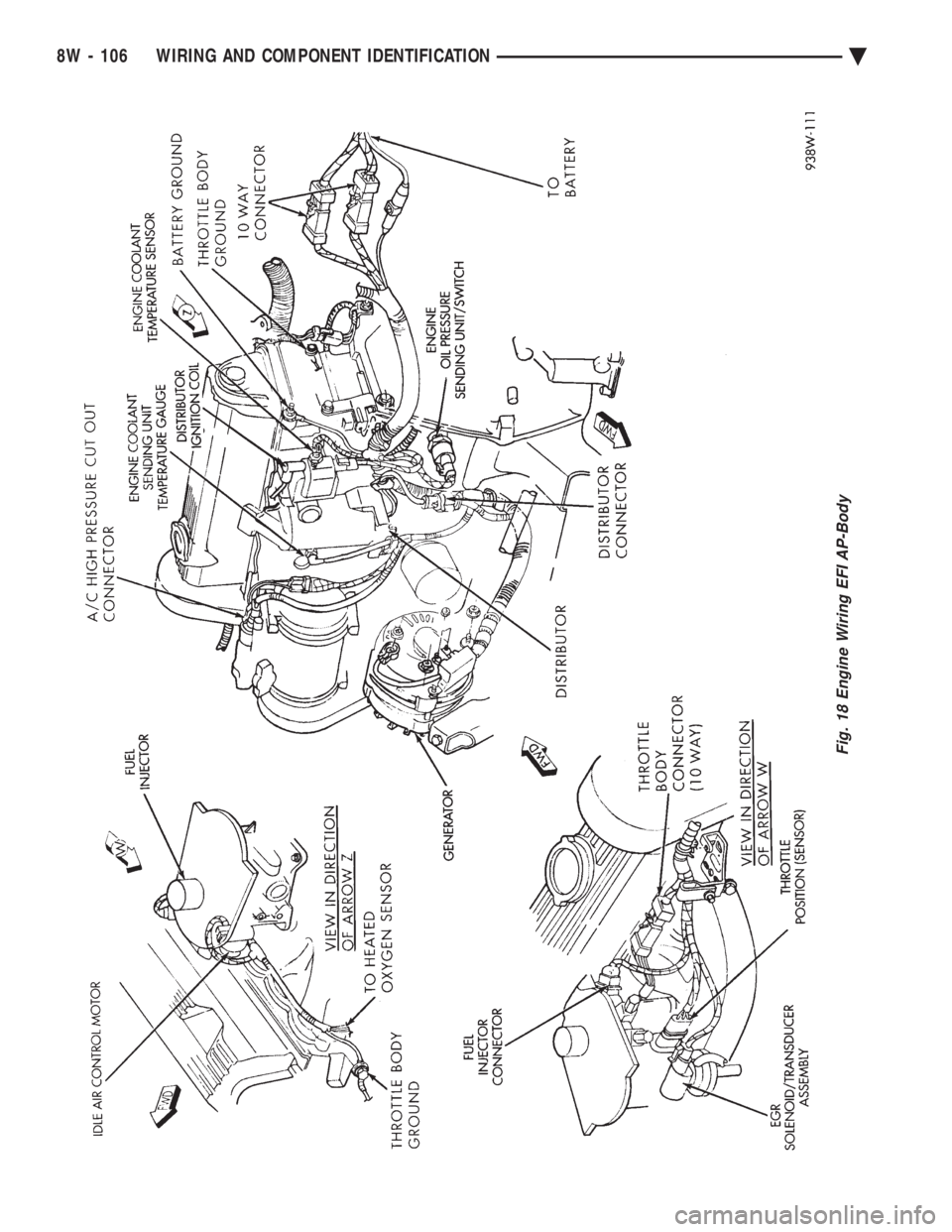

Fig. 18 Engine Wiring EFI AP-Body
8W - 106 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 19 Engine Wiring 3.0L AP-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 107

Fig. 20 Transmission Wiring AP-Body
8W - 108 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 21 Transmission Wiring 41TE AP-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 109

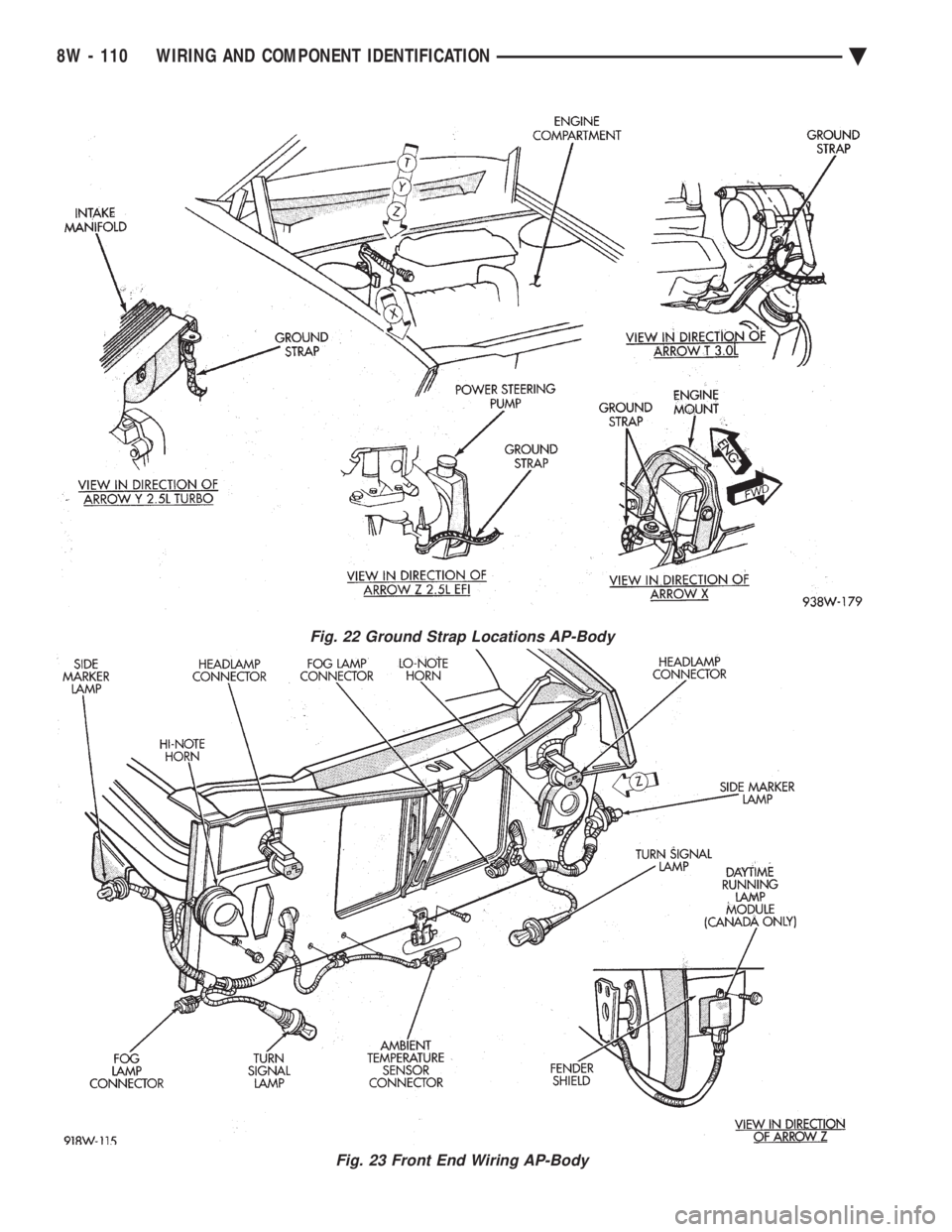

Fig. 22 Ground Strap Locations AP-Body
Fig. 23 Front End Wiring AP-Body
8W - 110 WIRING AND COMPONENT IDENTIFICATION Ä
