CHEVROLET DYNASTY 1993 Service Manual

Fig. 15 Transmission Wiring AG Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 71

Fig. 16 Transmission Wiring 41TE AG Body
8W - 72 WIRING AND COMPONENT IDENTIFICATION Ä

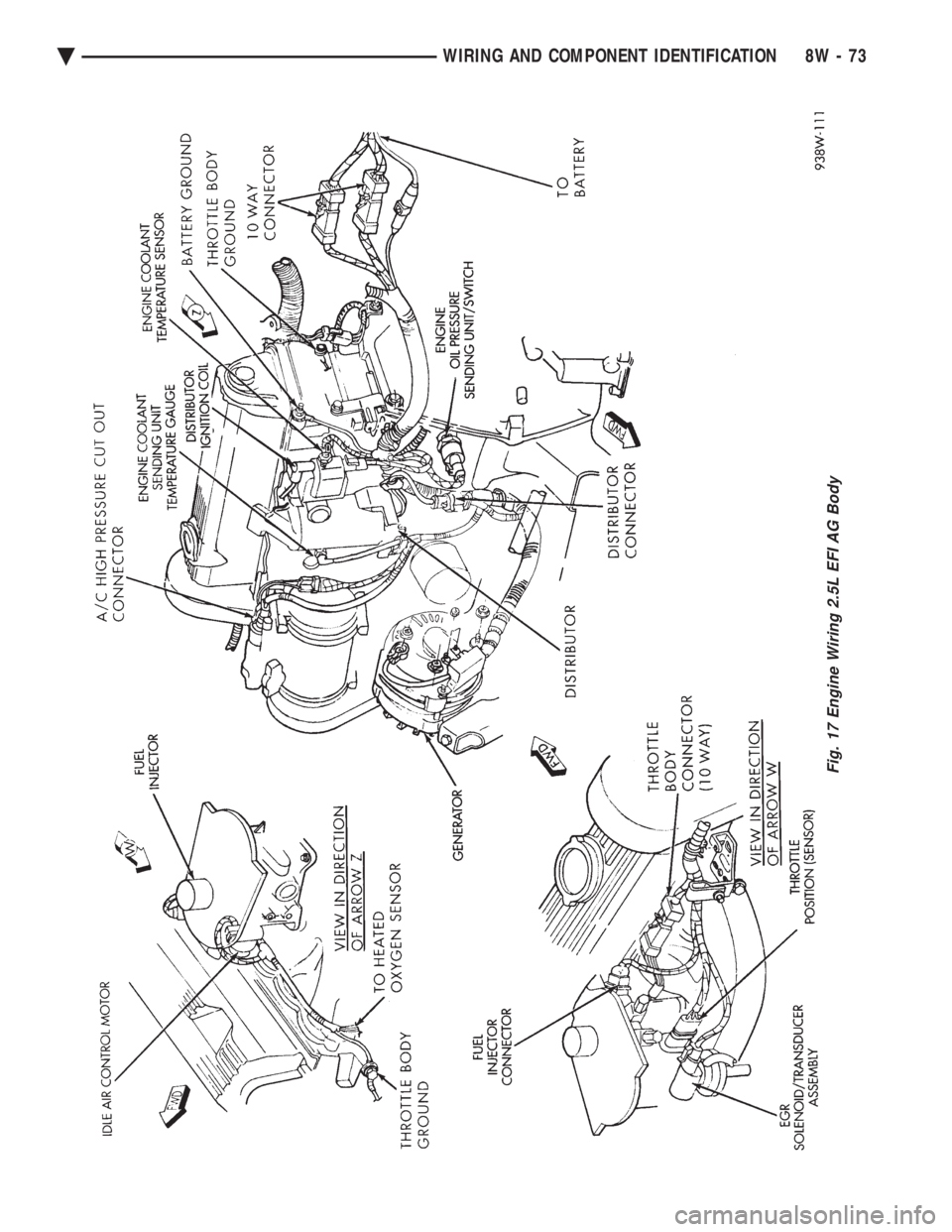

Fig. 17 Engine Wiring 2.5L EFI AG Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 73

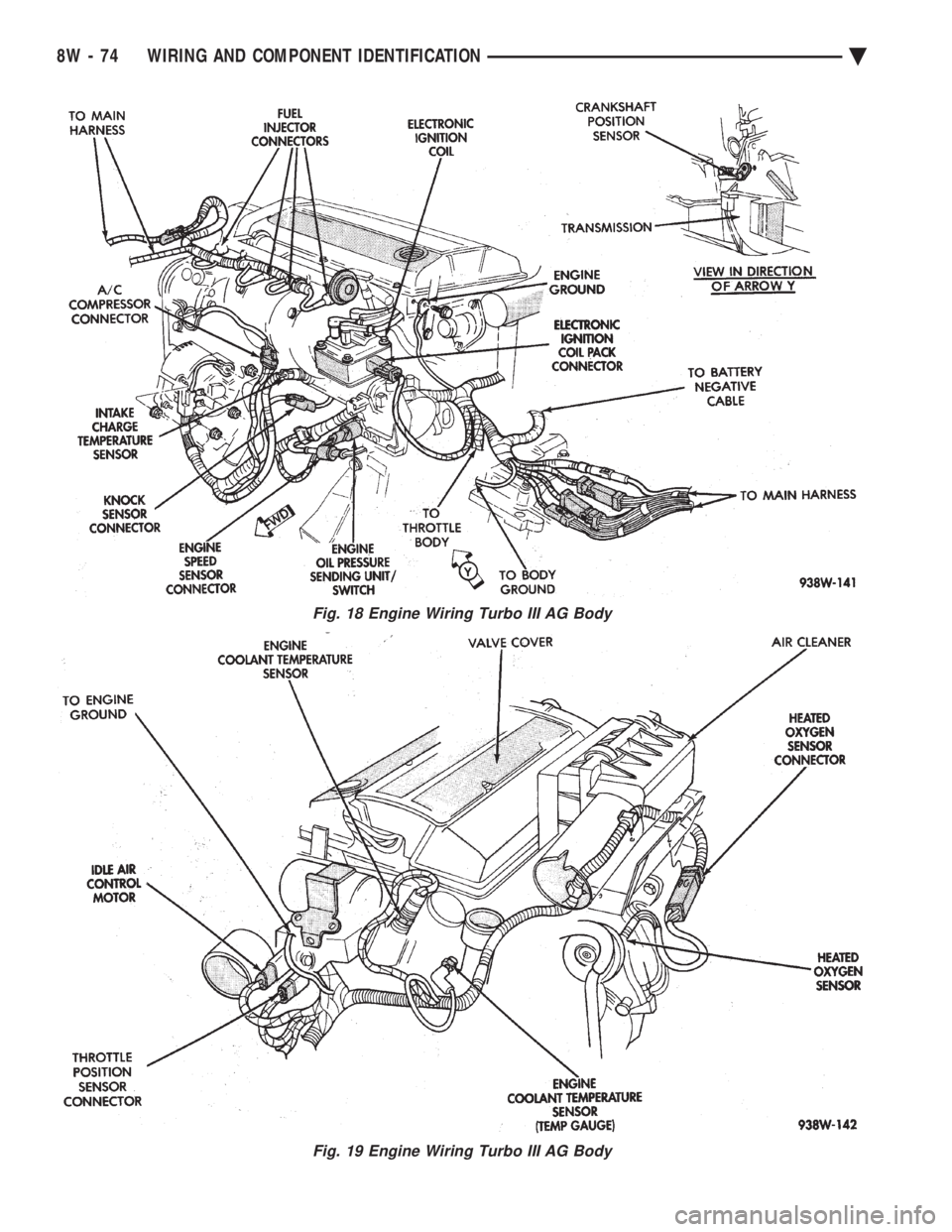

Fig. 18 Engine Wiring Turbo III AG Body
Fig. 19 Engine Wiring Turbo III AG Body
8W - 74 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 20 Engine Wiring 3.0L AG Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 75

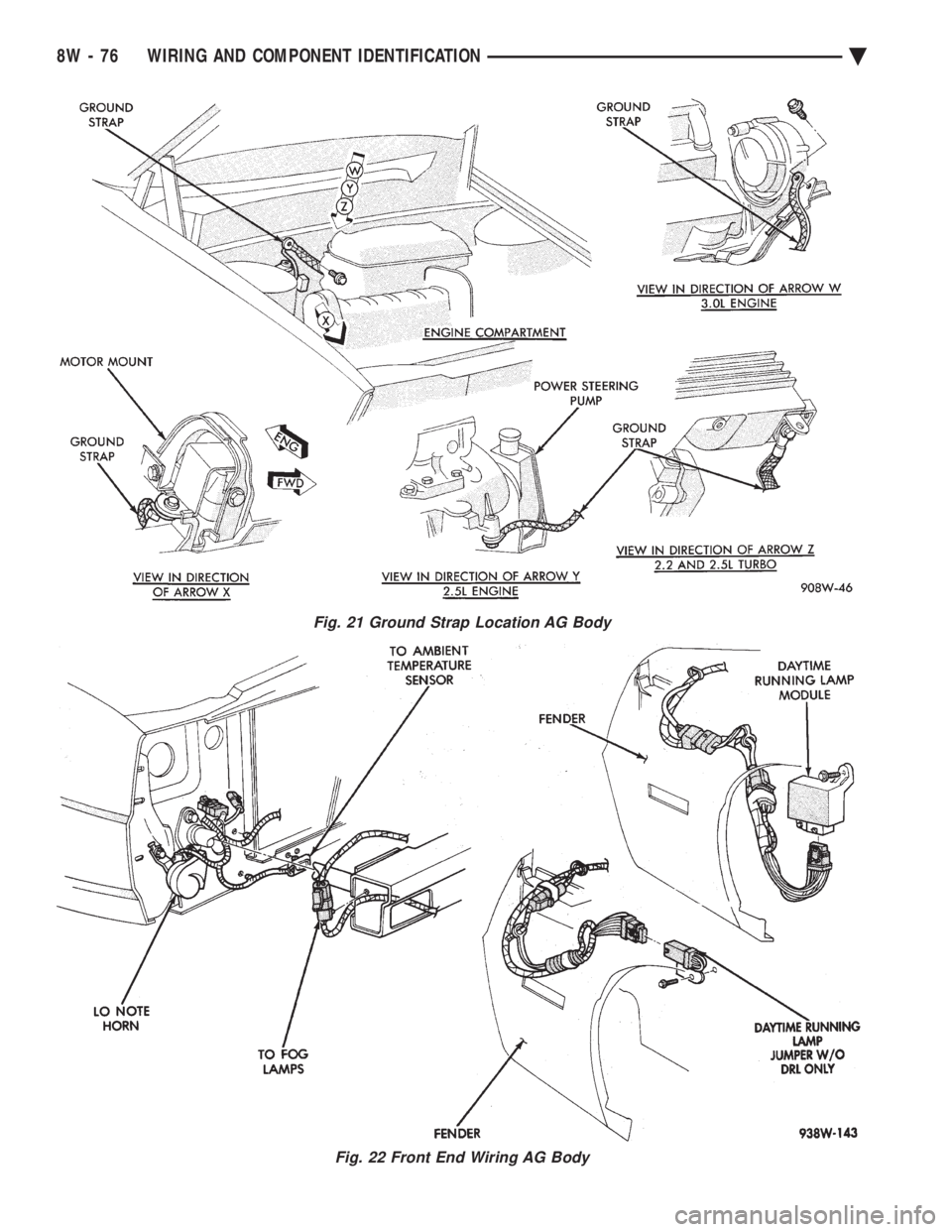

Fig. 21 Ground Strap Location AG Body
Fig. 22 Front End Wiring AG Body
8W - 76 WIRING AND COMPONENT IDENTIFICATION Ä

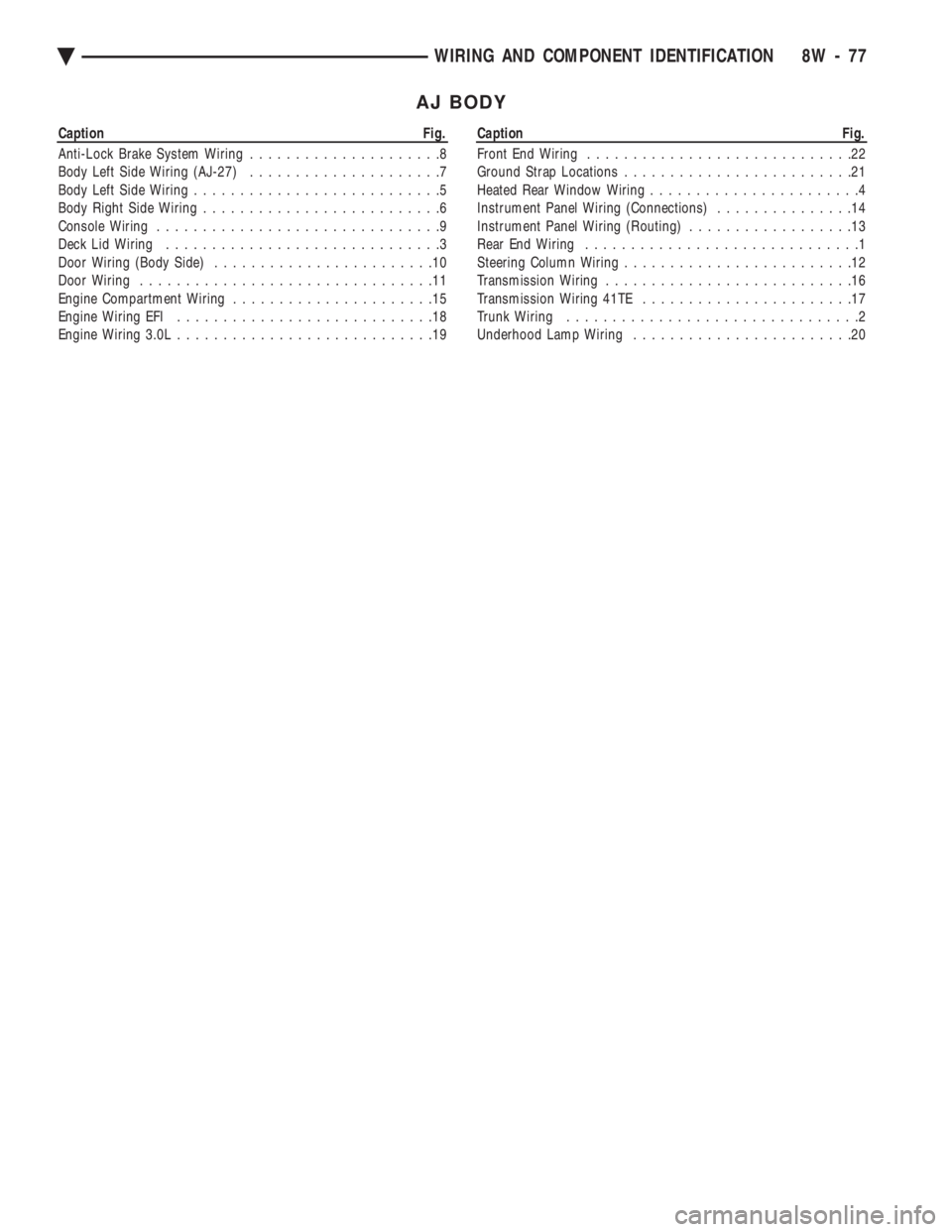

AJ BODY
Caption Fig.
Anti-Lock Brake System Wiring .....................8
Body Left Side Wiring (AJ-27) .....................7
Body Left Side Wiring ...........................5
Body Right Side Wiring ..........................6
Console Wiring ...............................9
Deck Lid Wiring ..............................3
Door Wiring (Body Side) ........................10
Door Wiring ................................11
Engine Compartment Wiring ......................15
Engine Wiring EFI ............................18
Engine Wiring 3.0L ............................19Caption Fig.
Front End Wiring .............................22
Ground Strap Locations .........................21
Heated Rear Window Wiring .......................4
Instrument Panel Wiring (Connections) ...............14
Instrument Panel Wiring (Routing) ..................13
Rear End Wiring ..............................1
Steering Column Wiring .........................12
Transmission Wiring ...........................16
Transmission Wiring 41TE .......................17
Trunk Wiring ................................2
Underhood Lamp Wiring ........................20
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 77

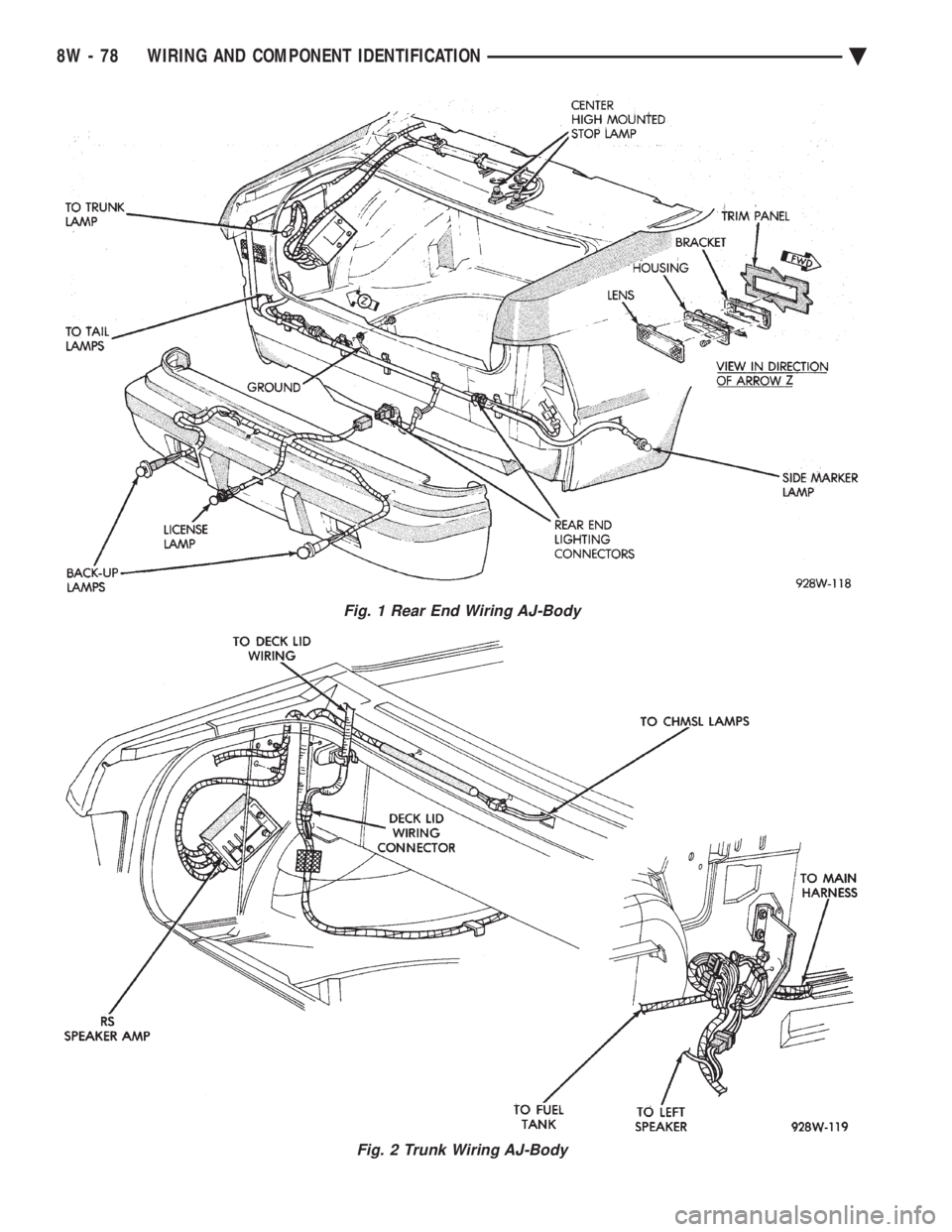

Fig. 1 Rear End Wiring AJ-Body
Fig. 2 Trunk Wiring AJ-Body
8W - 78 WIRING AND COMPONENT IDENTIFICATION Ä

Fig. 3 Deck Lid Wiring AJ-Body
Fig. 4 Heated Rear Window Wiring AJ-Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 79

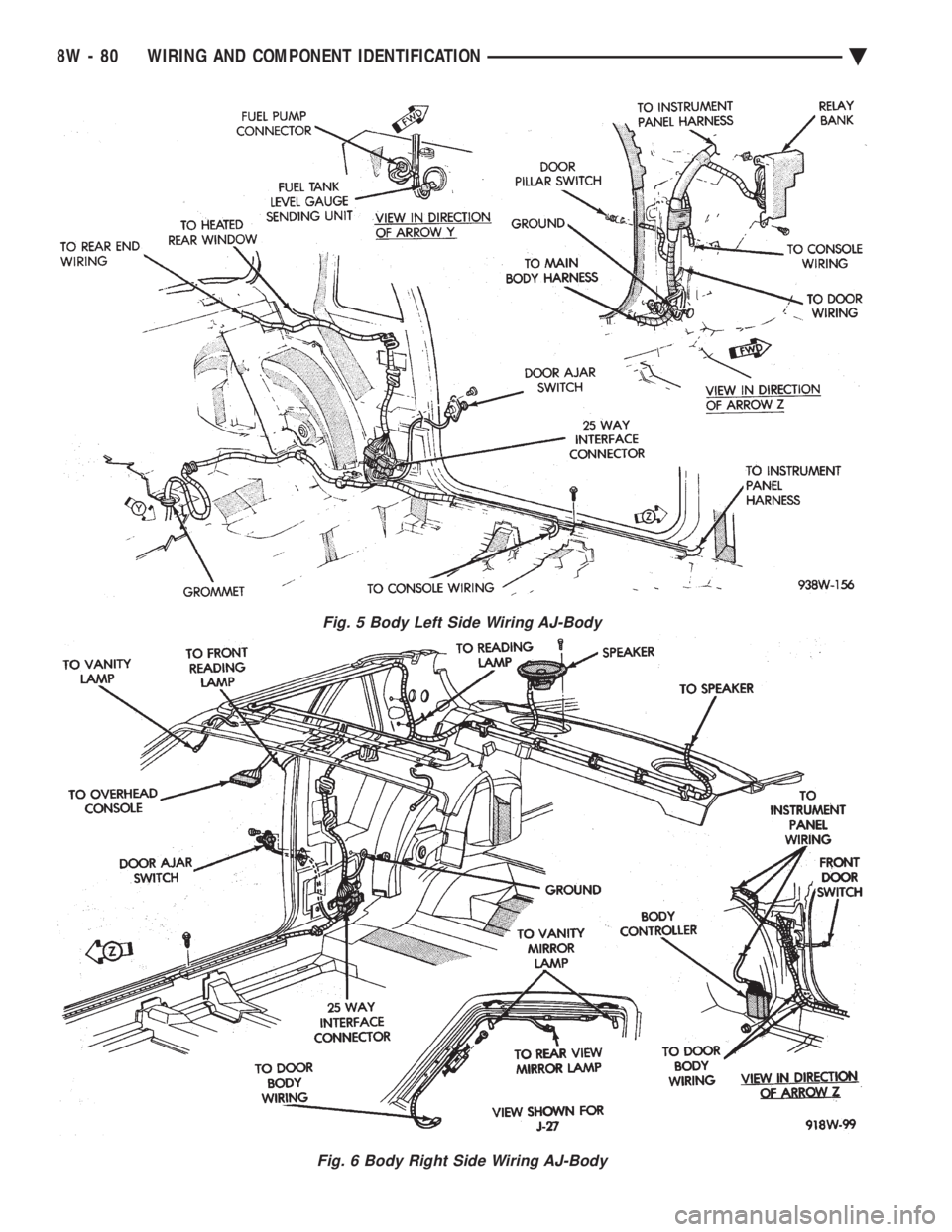

Fig. 5 Body Left Side Wiring AJ-Body
Fig. 6 Body Right Side Wiring AJ-Body
8W - 80 WIRING AND COMPONENT IDENTIFICATION Ä
