CHEVROLET KODIAK 2007 Owners Manual

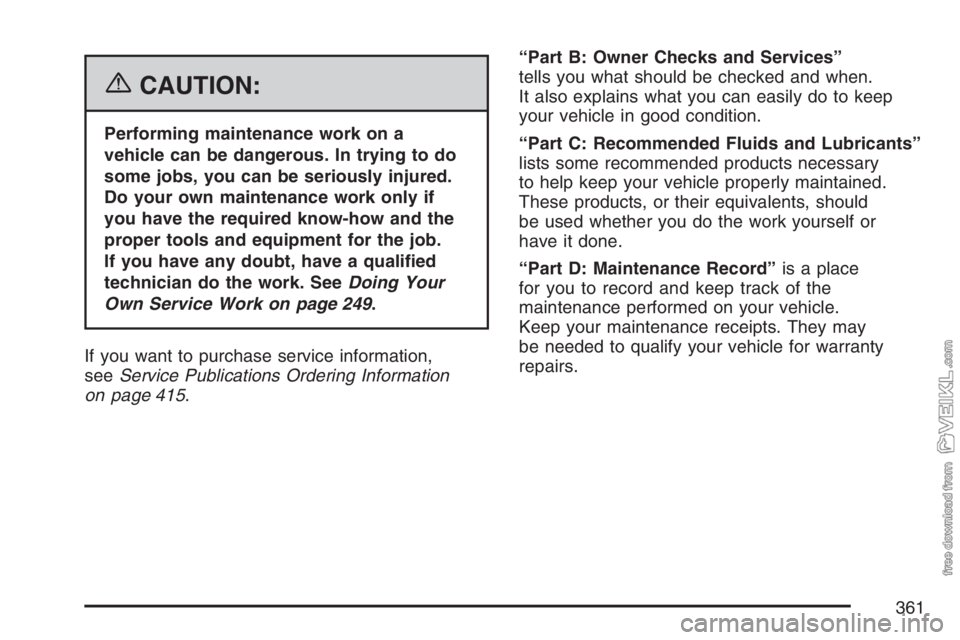

{CAUTION:
Performing maintenance work on a
vehicle can be dangerous. In trying to do
some jobs, you can be seriously injured.
Do your own maintenance work only if
you have the required know-how and the
proper tools and equipment for the job.
If you have any doubt, have a qualied
technician do the work. SeeDoing Your
Own Service Work on page 249.
If you want to purchase service information,
seeService Publications Ordering Information
on page 415.“Part B: Owner Checks and Services”
tells you what should be checked and when.
It also explains what you can easily do to keep
your vehicle in good condition.
“Part C: Recommended Fluids and Lubricants”
lists some recommended products necessary
to help keep your vehicle properly maintained.
These products, or their equivalents, should
be used whether you do the work yourself or
have it done.
“Part D: Maintenance Record”is a place
for you to record and keep track of the
maintenance performed on your vehicle.
Keep your maintenance receipts. They may
be needed to qualify your vehicle for warranty
repairs.
361

Part A: Scheduled Maintenance
Services
In this part are scheduled maintenance services
which are to be performed at the mileage intervals
specified.
Using the Maintenance Schedule
We at General Motors want to help keep
your vehicle in good working condition. But we do
not know exactly how you will drive it. You may
drive very short distances only a few times a week.
Or you may drive long distances all the time in
very hot, dusty weather. You may use your vehicle
in making deliveries or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may
need more frequent checks and replacements.
So please read the following and note how
you drive. If you have any questions on how to
keep your vehicle in good condition, see your
dealer.
This part tells you the maintenance services you
should have done and when to schedule them.When you go to your dealer for your service
needs, you will know that GM-trained and
supported service people will perform the work
using genuine GM parts.
The proper fluids and lubricants to use are listed
in Part C. Make sure whoever services your
vehicle uses these. All parts should be replaced
and all necessary repairs done before you or
anyone else drives the vehicle.
This schedule is for vehicles that:
•carry passengers and cargo within
recommended limits. You will find limits
on your vehicle’s Certification or Tire
Information label. SeeLoading Your Vehicle
on page 238.
•are driven on reasonable road surfaces within
legal driving limits.
•use the recommended fuel. SeeGasoline
Octane on page 251for gasoline engine
vehicles orWhat Fuel to Use on page 253
for diesel engine vehicles.
362

Scheduled Maintenance
Supplements
If your vehicle has a Caterpillar®diesel engine,
your owner’s manual is supplemented by the
Caterpillar
®Diesel Engine Operation &
Maintenance Manual. If your vehicle has an
Allison Transmission
®, your owner’s manual is
supplemented by an Allison Transmission®
Operator’s Manual. Always refer to these manuals
for related maintenance services.
Scheduled Maintenance
The services shown in this schedule up to
100,000 miles (166 000 km) should be repeated
after 100,000 miles (166 000 km) at the same
intervals for the life of this vehicle. The services
shown after 100,000 miles (166 000 km) should
be repeated at the same miles (km) after
those intervals for the life of this vehicle.Gasoline engine vehicles and some DURAMAX
®
diesel and Isuzu 6H diesel engine vehicles have a
computer that lets you know when to change the
engine oil. This is not based on mileage, but on
engine operation and engine temperature. When
the computer has calculated that the oil needs
changing, the Engine Oil Life System will indicate
that a change is necessary. SeeEngine Oil Life
System (Gasoline Engine) on page 276orEngine
Oil Life System (DURAMAX
®Diesel) on page 278
orEngine Oil Life System (Caterpillar®Diesel
Engine) on page 279.
The “Footnotes” at the end of this Maintenance
Schedule further explain maintenance services.
SeeService Publications Ordering Information
on page 415.
100 Miles (160 km)
❑Wheel stud nut service.(36)
1,000 Miles (1 600 km)
❑Wheel stud nut service.(36)
❑Rear axle air shift motor service.(10)
363

7,500 Miles (12 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever occurs
first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
12,000 Miles (20 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
364

15,000 Miles (24 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil
Life System Only: Change engine oil and
filter (or every 12 months, or every 750 hours
of engine operation, whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil
Life System Only: Check oil life system.
If engine oil and filter are changed, reset
system. See “Engine Oil (DURAMAX
®/Isuzu
Diesel)” in the Index.(2) (9)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner
filter. If necessary, replace the filter. If vehicle
is driven in dusty/dirty conditions, inspect
filter at every engine oil change. SeeEngine
Air Cleaner/Filter on page 280for more
information.❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the
filter. If vehicle is driven in dusty/dirty conditions,
inspect filter change indicator at every engine
oil change. SeeEngine Air Cleaner/Filter
on page 280for more information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel
filter (or every 750 hours of engine operation,
whichever occurs first).
❑Steering system service.(12)
❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
365

❑Check air brake relay valve operation and
check for leaks (or every month, or every
300 hours, whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Thermostatically controlled engine cooling
fan service.(3) (19)
❑Shields and underhood insulation
service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote
mounted air filter dry element pleated paper
air strainer service (or every 6 months or
every 1800 hours, whichever occurs first).
22,500 Miles (36 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Inspect door hinge pins and bushings and
replace as necessary.
❑Cooling system service. Clean the cooling
system filter cap with clean water, clean
the core, pressure test the cap and the
system for proper pressure capability, and
inspect condition of cooling and heater
hoses and clamps. Replace hoses if cracked,
swollen, or damaged.
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
366

❑Check air brake relay valve operation and
check for leaks (or every month, or every
300 hours, whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air brake system valve service (or every
3 months, or every 900 hours, whichever
occurs first).(37)
❑Air intake system service (or every 24 months,
whichever occurs first).(3) (4) (23)
❑Evaporative Control System service,
if equipped, (or every 24 months,
whichever occurs first).(2) (24) †
❑Rear axle air shift motor service.(10)24,000 Miles (40 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
❑Lubricate U-joints (or every 6 months,
whichever occurs first).
367

30,000 Miles (48 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil
Life System Only: Change engine oil and
filter (or every 12 months, or every 750 hours
of engine operation, whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil
Life System Only: Check oil life system.
If engine oil and filter are changed, reset
system. See “Engine Oil (DURAMAX
®/Isuzu
Diesel)” in the Index.(2) (9)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner
filter. If necessary, replace the filter. If vehicle
is driven in dusty/dirty conditions, inspect
filter at every engine oil change. SeeEngine
Air Cleaner/Filter on page 280for more
information.❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the
filter. If vehicle is driven in dusty/dirty conditions,
inspect filter change indicator at every engine
oil change. SeeEngine Air Cleaner/Filter
on page 280for more information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel
filter (or every 750 hours of engine operation,
whichever occurs first).
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Replace fuel filter(s) (or every 12 months,
whichever occurs first).(2)
❑Steering system service.(12)
❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheel bearing (grease type) service (and
whenever hubs are removed).(22) (36)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
368

❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months,
whichever occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever occurs
first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑C600, C700, and C800 Gasoline Engines Only:
Engine drive belts service (or every 12 months,
whichever occurs first.)(17)
❑Thermostatically controlled engine cooling
fan service.(3) (19)❑Shields and underhood insulation
service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote
mounted air filter dry element pleated paper
air strainer service (or every 6 months or
every 1800 hours, whichever occurs first).
36,000 Miles (55 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
369

37,500 Miles (60 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever occurs
first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
45,000 Miles (72 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil
Life System Only: Change engine oil and
filter (or every 12 months, or every 750 hours
of engine operation, whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil
Life System Only: Check oil life system.
If engine oil and filter are changed, reset
system. See “Engine Oil (DURAMAX
®/Isuzu
Diesel)” in the Index.(2) (9)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Gasoline Engine: Replace engine air cleaner
filter. SeeEngine Air Cleaner/Filter on
page 280for more information.
370
