Service and Appearance Care
6% CAUTION:
When you open the hood, you’ll see on
the 8-valve engine:
1. Battery
2. Automatic Transmission Dipstick
3. Oil Fill Cap
4. Brake Fluid Reservoir
5. Air Cleaner
6. Engine Coolant Reservoir
(if equipped)
7. Power Steering Reservoir
8. Radiator Pressure Cap
9. Electric Engine Fan
IO. Engine Oi I Dipstick
11. Windshield Washer Rescrvoir
12. Main Fuse Box
Things that burn can get on hot engine
parts and start a fire. These include
liquids like gasoline, oil, coolant,
brake fluid, windshield washer and
other fluids, and pXastic OT rubber.
You or others could be burned. Be
careful not to drop or spill things that
will burn onto a hot engine.
Before closing the hood, be sure all
the filler caps are on.
. . .160
ProCarManuals.com
Page 162 of 258
When you open the hood, you’ll see on
the 16-valve engine:
1. Battery
2. Automatic Transmission Dipstick
3. Oil Fill Cap
4. Brake Fluid Reservoir
5. Air Cleaner
6. Engine Coolant Reservoir (if equipped)
7. Power Steering Reservoir
8. Radiator Pressure Cap
9. Electric Engine Fan
IO. Engine Oil Dipstick
11. Windshield Washer Reservoir
12. Main Fuse Box
A CAUTION:
Things that bm can get on hot engiae
parts and start a fxe. These include
liquids like gasoline, oil, coolant,
brake fluid, windshield
washer and
other fluids, and plastic or rubber.
You
or others could be burned. Be
careful not to drop or spill things that
will bum onto a hot engine.
Before closing the hood, be sure all
the filler caps are on.
161 ... ProCarManuals.com
Page 163 of 258
Service and Appearance Care

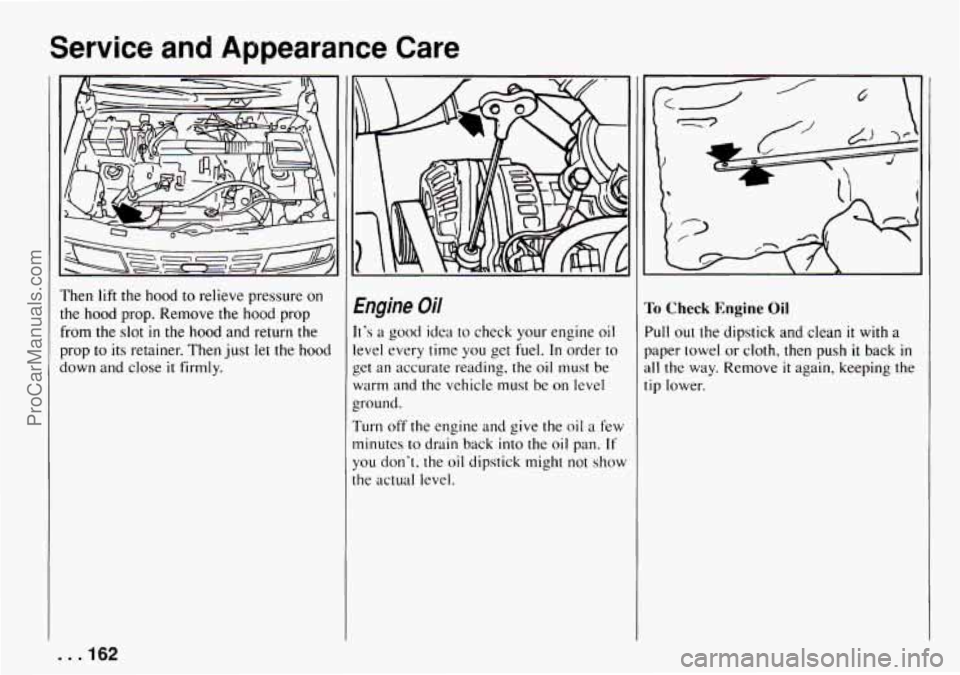

rhen lift the hood to relieve pressure on
he hood prop. Remove the hood prop
rom the slot
in the hood and return the
Jrop
to its retainer. Then just let the hood
[own and close
it firmly.
. .162
Engine Oil
It’s a good idea to check your engine oil
level every time you get fuel. In order to
get an accurate reading,
the oil must be
warm and the vehicle
must be on level
ground.
Turn off the engine and give
the oil a few
minutes
to drain back into the oil pan. If
you don’t, the oil dipstick might not show
the actual level.
To Check Engine Oil
Pull out the dipstick and clean it with a
paper towel or cloth, then push it back in
all the way. Remove it again, keeping the
tip lower.
ProCarManuals.com
Page 164 of 258
X-Valve Engine
When to Add Oil:
If the oil is at or below the ADD mark,
you’ll need
to add some oil. But you must
use
the right kind. This section explains
what kind
of oil to use. For crankcase
capacity, see “Capacities and
Specifications”
in the Index.
NOTICE:
Donl add too tnuch oil. If your
engine has
so much oil that the oil
level gets above the upper mark that
shows the proper operating range,
your engine
could be damaged.
IO-Valve Engine
Just fill it enough to put the level
somewhere
in the proper operating range.
Push
the dipstick all the way back in
when you‘re through.
What Kind of Oil to Use
Beginning midyear 1993, oils of the
proper quality for your vehicle will be
identified with this new “starburst”
symbol. The “starburst” symbol indicates
that the
oil has been certified by the
American Petroleum Institute (API), and
is preferred for use in your gasoline
engine.
You should look for this on the front of
the oil container, and use o& oils that
display this new symbol.
You should also use the proper viscosity
oil for your vehicle, as shown in the
following chart:
163 ... ProCarManuals.com
Page 165 of 258
Service and Appearance Care

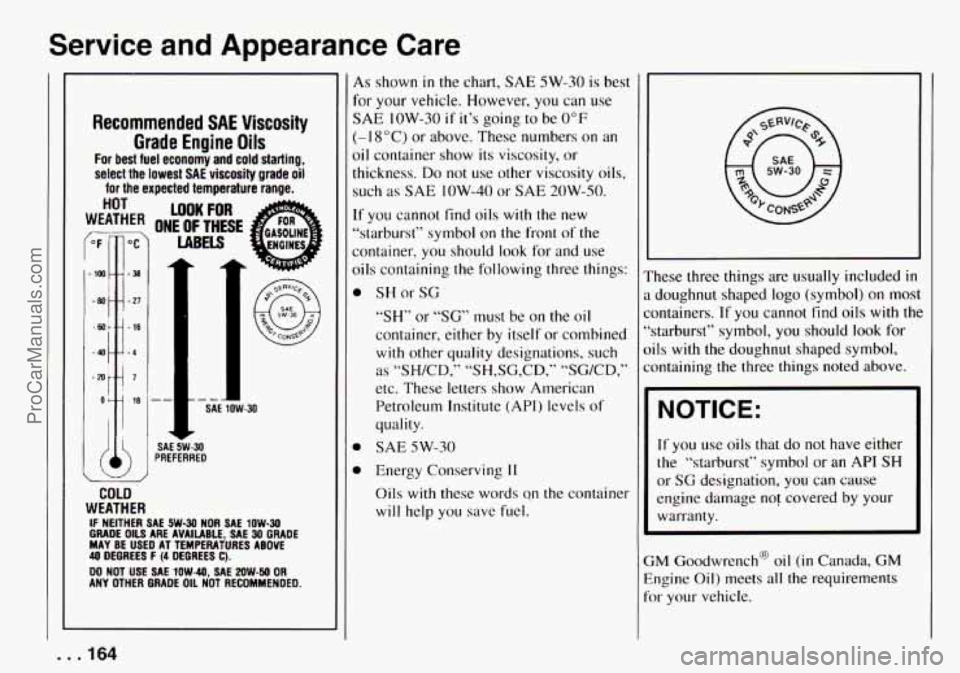

Recommended SAE Viscosity
Grade Engine Oils
For best fuel economy and cold starting,
select the
lowest SAE viscosity grade oil
for the expected temperature range.
HOT
WEATHER
-80 -27
SAE 5W-30 PREFERRED
COLD
WEATHER
IF NEITHER SAE 5W-30 NOR SAE 1OW-30 GRADE OILS ARE AVAILABLE, SAE 30 GRADE
MAY BE USED AT TEMPERATURES ABOVE 40 DEGREES F (4 DEGREES C).
DO NOT USE SAE 1OW-40, SAE 2OW-50 OR ANY OTHER GRAOE OIL NOT RECOMMENDED.
As shown in the chart, SAE SW-30 is best
for your vehicle. However, you can use
SAE IOW-30 if it’s going to be 0°F
(-1 8°C) or above. These numbers on an
oil container show its viscosity, or
thickness.
Do not use other viscosity oils,
such
as SAE IOW-40 or SAE 2OW-SO.
If you cannot find oils with the new
“starburst” symbol on the front of the
container,
you should look for and use
oils containing the following three things:
Ski or SG
“SH” or “SG” must be on the oil
container, either
by itself or combined
with other quality designations, such
as
“SHKD,” “SH,SG,CD,” “SGKD,”
etc. These letters show American
Petroleum Institute (API) levels of
quality.
SAE SW-30
Energy Conserving I1
Oils with these words on the container
will help you save fuel.
These three things are usually included in
1 doughnut shaped logo (symbol) on most
Zontainers.
If you cannot find oils with the
“starburst” symbol, you should
look for
lils with the doughnut shaped symbol,
;.ontaining the three things noted above.
NOTICE:
If you use oils that do not have either
the “starburst” symbol or
an API SH
or SG designation, you can cause
engine damage not covered
by your
warranty.
3M Goodwrench” oil (in Canada, GM
Engine Oil) meets
all the requirements
[or your vehicle.
. . .164 ProCarManuals.com
Page 166 of 258
Engine Oil Additives
Don’t add anything to your oil. Your Geo
dealer is ready to advise
if you think
something should be added.
When to Change Engine Oil
See if any one of these is true for you:
Most trips are less than 4 miles (6 km).
It’s below freezing outside and most
trips are less than 10 miles (1 6 km).
The engine is at low speed most of the
time (as
in door-to-door delivery, or
stop-and-go traffic).
You tow a trailer often.
Most trips are through dusty places.
The vehicle is frequently operated
If any one of these is true for your
vehicle, then you need to change your
and filter every
3,000 miles (5 000 km) or
3 months - whichever comes first.
If none of them is true, change oil and
filter every
7,500 miles (1 2 500 km) or
7.5 months - whichever comes first.
off-road.
Engine
Coolant Heater (Engine Block
Heater)
An engine coolant heater can be a big
help
if you have to park outside in very
cold weather,
0°F (-I 8°C) or colder. If
your vehicle has this option, see “Engine
Coolant Heater”
in the Index.
What to Do with Used Oil
Did you know that used engine oil
contains elements that may be unhealthy
for your skin and could even cause
cancer? Don’t let used oil stay on your
skin for very long. Clean your skin and
nails
with soap and water, or a good hand
cleaner. Wash or properly throw away
clothing or rags containing used engine
oil. (See the manufacturer’s warnings
about
the use and disposal of oil products.)
Used oil can
be a real threat to the
environment.
If you change your own oil,
be sure
to drain all free-tlowing oil from
the filter before disposal. Don’t ever
dispose of oil by putting
it in the trash,
pouring
it on the ground, into sewers, or
into streams or bodies
of water. Instead.
recycle
it by taking it to a place that
collects used
oil. If you have a problem
properly disposing.
of your used oil, ask
your dealer,
a service station or a local
recycling center for help.
Air Cleaner
Refer to the Maintenance Schedule to
detertnine when to replace the
air filter.
See “Scheduled Maintenance Services“
ir
the Index.
A CAUTION:
Operating the engine with the air
cleaner off can cause you or others to
be burned. The air cleaner not only.
cleans the air,
it stops flame if the
engine backfires.
If it isn’t there, and
the engine backfires, you could be
burned. Don’t drive with it
off, and
be careful working
on the engine
with the
air cleaner off.
165.
ProCarManuals.com
Page 167 of 258
Service and Appearance Care
16-Valve Engine
I NOTICE:
If the air cleaner is off, a backfire can
cause
a damaging engine fire. And,
dirt can easily get into your engine,
which
will damage it. Always have
the air cleaner
in place when you’re
driving.

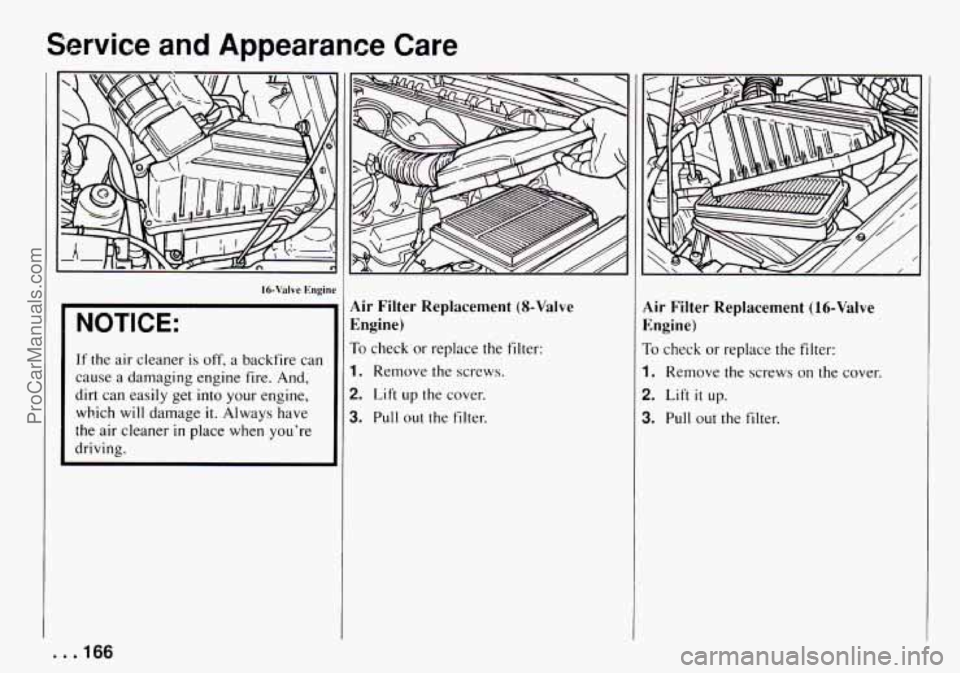

Air Filter Replacement (8-Valve
