CHEVROLET TRACKER 1994 Owners Manual

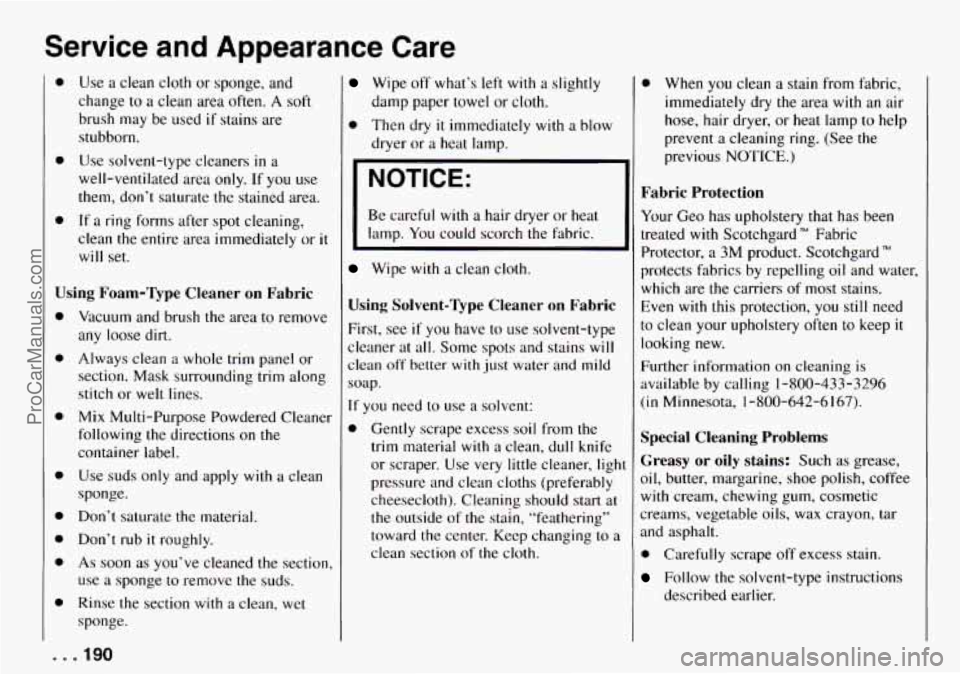

Service and Appearance Care
Use a clean cloth or sponge, and
change to
a clean area often. A soft
brush
may be used if stains are
stubborn.
Use solvent-type cleaners
in a
well-ventilated area only. If you use
them, don’t saturate the stained area.
If a ring forms after spot cleaning,
clean the entire area immediately or
it
will set.
Using Foam-Type Cleaner on Fabric
Vacuum and brush the area to remove
any loose dirt.
Always clean a whole trim panel or
section. Mask surrounding trim along
stitch or welt lines.
Mix Multi-Purpose Powdered Cleaner
following the directions on the
container label.
Use suds only and apply with a clean
sponge.
Don’t saturate the material.
Don’t rub
it roughly.
As soon as you’ve cleaned the section,
use a sponge to remove the suds.
Rinse the section
with a clean, wet
sponge.
Wipe off what’s left with a slightly
0 Then dry it immediately with a blow
damp
paper towel or cloth.
dryer or
a heat lamp.
I NOTICE:
I
Be careful with a hair dryer or heat
lamp. You could scorch the fabric.
Wipe with a clean cloth.
Using Solvent-Type Cleaner an Fabric
First, see if you have to use solvent-type
cleaner at all. Some spots and stains
will
clean off better with just water and mild
soap.
If you need to use a solvent:
0 Gently scrape excess soil from the
trim material with a clean, dull knife
or scraper. Use very
little cleaner, light
pressure and clean cloths (preferably
cheesecloth). Cleaning should start
at
the outside of the stain, “feathering”
toward the center. Keep changing
to a
clean section of the cloth.
0 When you clean a stain from fabric,
immediately dry the area
with an air
hose, hair dryer, or heat
lamp to help
prevent a cleaning ring.
(See the
previous
NOTICE.)
Fabric Protection
Your Geo has upholstery that has been
treated
with Scotchgard Fabric
Protector,
a 3M product. Scotchgard”
protects fabrics by repelling
oil and water,
which are the carriers of most
stains.
Even with this protection, you still need
to clean your upholstery often to keep
it
looking new.
Further information on cleaning
is
available by calling 1-800-433-3296
(in Minnesota, 1-800-642-6167).
Special Cleaning Problems
Greasy or
oily stains: Such as grease,
oil, butter, margarine, shoe polish, coffee
with cream, chewing gum, cosmetic
creams, vegetable oils, wax crayon, tar
and asphalt.
0 Carefully scrape off excess stain.
Follow the solvent-type instructions
described earlier.
. . .I90 ProCarManuals.com

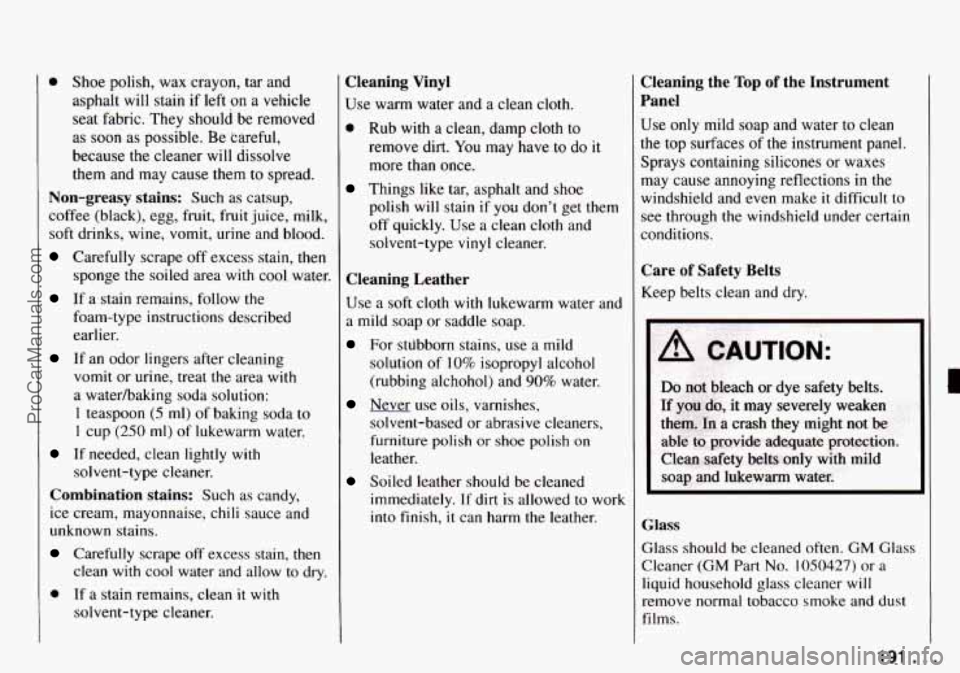

0 Shoe polish, wax crayon, tar and
asphalt will stain if left on a vehicle
seat fabric. They should be removed
as soon as possible. Be eareful,
because the cleaner
will dissolve
them and may cause them to spread.
Non-greasy stains: Such as catsup,
coffee (black), egg, fruit, fruit juice, milk,
soft drinks, wine, vomit, urine and blood.
Carefully scrape off excess stain, then
sponge the soiled area
with cool water.
If a stain remains, follow the
foam-type instructions described
earlier.
If an odor lingers after cleaning
vomit or urine, treat the area with
a waterhaking soda solution:
1 teaspoon (5 ml) of baking soda to
1 cup (250 ml) of lukewarm water.
solvent-type cleaner.
If needed, clean lightly with
Combination stains: Such as candy,
ice cream, mayonnaise, chili sauce and
unknown stains.
Carefully scrape off excess stain, then
0 If a stain remains, clean it with
clean with cool water and allow to dry.
solvent-type cleaner.
Cleaning Vinyl
Use warm water and a clean cloth.
0 Rub with a clean, damp cloth to
remove dirt.
You may have to do it
more than once.
Things like tar, asphalt and shoe
polish will stain
if yoa don’t get them
off quickly. Use a clean cloth and
solvent-type
vinyl cleaner.
Cleaning Leather
Use a soft cloth with lukewarm water and
a mild soap or saddle soap.
For stubborn stains, use a mild
solution of
10% isopropyl alcohol
(rubbing alchohol) and 90% water.
solvent-based or abrasive cleaners,
furniture polish
or shoe polish on
leather.
immediately.
If dirt is allowed to work
into finish,
it can harm the leather.
Never use oils, varnishes,
Soiled leather should be cleaned
ueaning the Top of the Instrument
Panel
Use only mild soap and water to clean
the top surfaces of the instrument panel.
Sprays containing silicones or waxes
may cause annoying reflections in the
windshield and even make it difficult to
see through the windshield under certain
conditions.
Care of Safety Belts
Keep belts clean and dry.
Do not; bleach or dye safety belts.
If you do, it may severely weaken
them, In a crash they might not be
able to provide adequate protection.
Clean safety belts only with mild
soap
and lukewarm water.
Glass
Glass should be cleaned often. GM Glass
Cleaner
(GM Part No. 1050427) or a
liquid household glass cleaner will
remove normal tobacco smoke and dust
films.
191 ... ProCarManuals.com

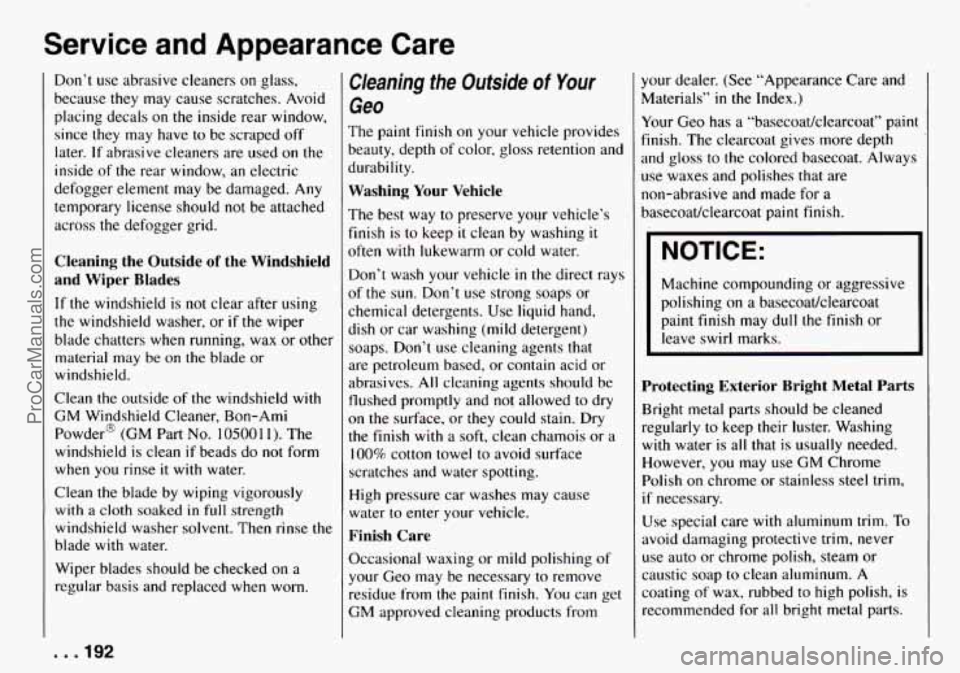

Service and Appearance Care
Don’t use abrasive cleaners on glass,
because they may cause scratches. Avoid
placing decals on the inside rear window,
since they
may have to be scraped off
later.
If abrasive cleaners are used on the
inside
of the rear window, an electric
defogger element may be damaged.
Any
temporary license should not be attached
across
the defogger grid.
Cleaning the Outside of the Windshield
and Wiper Blades
If the windshield is not clear after using
the windshield washer, or
if the wiper
blade chatters when running, wax or other
material may be on the blade
or
windshield.
Clean
the outside of the windshield with
GM Windshield Cleaner, Bon-Ami
Powder@
(GM Part No. 105001 1). The
windshield is clean
if beads do not form
when you rinse
it with water.
Clean the blade by wiping vigorously
with a cloth soaked in full strength
windshield washer solvent. Then rinse
the
blade with water.
Wiper blades should be checked on a
regular basis and replaced when worn.
Cleaning the Outside of Your
Geo
The paint finish on your vehicle provides
beauty, depth
of color, gloss retention and
durability.
Washing Your Vehicle
The best way to preserve your vehicle’s
finish is to keep
it clean by washing it
often with lukewarm or cold water.
Don’t wash your vehicle
in the direct rays
of the sun. Don’t use strong soaps or
chemical detergents. Use liquid hand,
dish or car washing (mild detergent)
soaps. Don’t use cleaning agents
that
are petroleum based, or contain acid or
abrasives. All cleaning agents should be
flushed promptly and not allowed to dry
on the surface, or they could stain. Dry
the finish
with a soft, clean chamois or a
100% cotton towel to avoid surface
scratches and water spotting.
High pressure car washes may cause
water to enter your vehicle.
Finish Care
Occasional waxing or mild polishing of
your Geo may be necessary to remove
residue from the paint finish. You can get
GM approved cleaning products from your dealer.
(See “Appearance Care and
Materials”
in the Index.)
Your Geo has a “basecoat/clearcoat” pain
finish. The clearcoat gives more depth
and gloss to the colored basecoat. Always
use waxes and polishes that are
non-abrasive and made for a
basecoatfclearcoat paint
finish.
NOTICE:
Machine compounding or aggressive
polishing on a basecoatfclearcoat
paint finish may dull the finish or
leave swirl marks.
Protecting Exterior Bright Metal Parts
Bright metal parts should be cleaned
regularly to keep their luster. Washing
with water is all that is usually needed.
However, you may use GM Chrome
Polish
on chrome or stainless steel trim,
if necessary.
Use special care
with aluminum trim. To
avoid damaging protective
trim, never
use auto or chrome polish, steam or
caustic soap to clean
aluminum. A
coating of wax, rubbed to high polish, is
recommended for
all. bright metal parts.
. . .I92
ProCarManuals.com

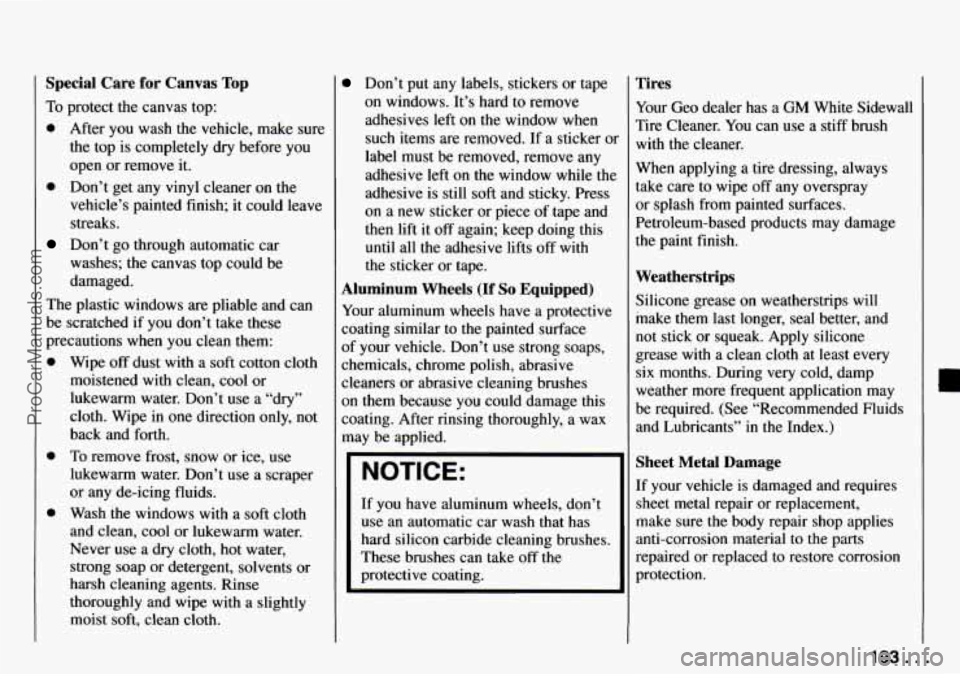

Special Care for Canvas Top
To protect the canvas top:
0 After you wash the vehicle, make sure
the top is completely dry before you
open or remove it.
vehicle’s painted finish; it could leave
streaks.
Don’t go through automatic car
washes; the canvas top could be
damaged.
The plastic windows are pliable and can
be scratched if you don’t take these
precautions when you clean them:
0 Don’t get any vinyl cleaner on the
0
0
0
Wipe off dust with a soft cotton cloth
moistened with clean, cool or
lukewarm water. Don’t use a “dry”
cloth. Wipe in one direction only, not
back and forth.
To remove frost, snow or ice, use
lukewarm water. Don’t use a scraper
or any de-icing fluids.
Wash the windows with a soft cloth
and clean, cool or lukewarm water.
Never use a dry cloth, hot water,
strong soap or detergent, solvents or
harsh cleaning agents. Rinse
thoroughly and wipe with a slightly
moist soft, clean cloth.
1
Don’t put any labels, stickers or tape
on windows. It’s hard to remove
adhesives left on the window when
such items are removed.
If a sticker or
label must be removed, remove any
adhesive left on the window while the
adhesive is still soft and sticky. Press
on a new sticker or piece of tape and
then lift it off again; keep doing this
until all the adhesive lifts off with
the sticker or tape.
Aluminum Wheels (If So Equipped)
Your aluminum wheels have a protective
zoating similar to the painted surface
3f your vehicle. Don’t use strong soaps,
:hemicals, chrome polish, abrasive
cleaners or abrasive cleaning brushes
on them because you could damage this
coating. After rinsing thoroughly, a wax
mi ay be applied.
NOTICE:
If you have aluminum wheels, don’t
use an automatic car wash that has
hard silicon carbide cleaning brushes.
These brushes can take
off the
protective coating.
Tires
Your Geo dealer has a GM White Sidewall
Tire Cleaner. You can use a stiff brush
with the cleaner.
When applying a tire dressing, always
take care to wipe
off any overspray
or splash from painted surfaces.
Petroleum-based products may damage
the paint finish.
Weatherstrips
Silicone grease on weatherstrips will
make them last longer, seal better, and
not stick or squeak. Apply silicone
grease with a clean cloth at least every
six months. During very cold, damp
weather more frequent application may
be required. (See “Recommended Fluids
and Lubricants” in the Index.)
Sheet Metal Damage
If your vehicle is damaged and requires
sheet metal repair or replacement,
make sure the body repair shop applies
anti-corrosion material
to the parts
repaired or replaced to restore corrosion
protection.
193 ... ProCarManuals.com

Service and Appearance Care

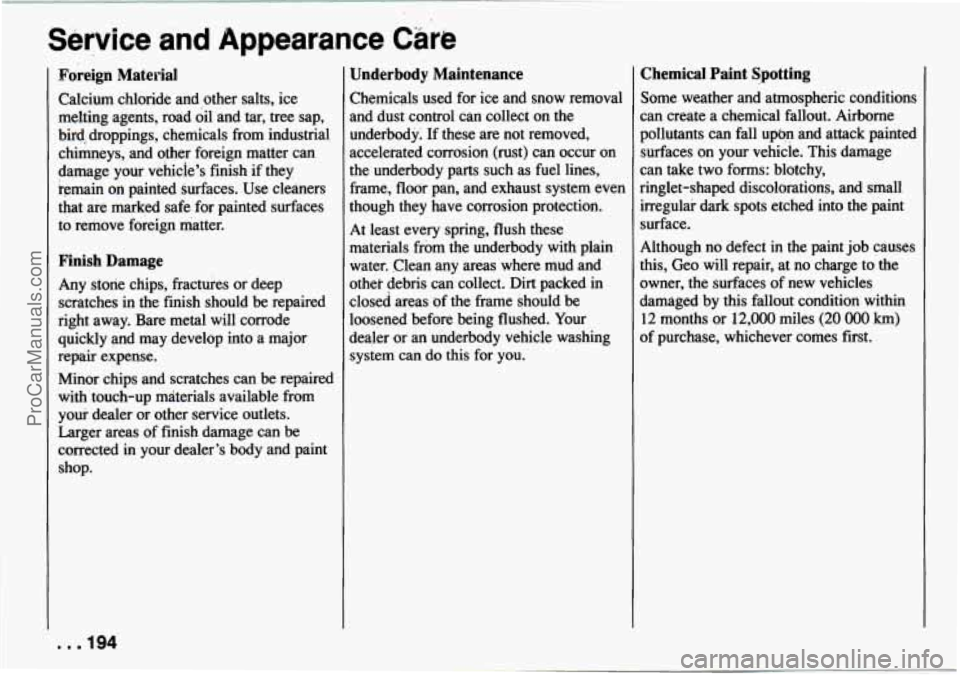

Foreign Material
Calcium chloride and other salts, ice
melting agents, road oil and tar,
tree sap,
bad$ droppings, chemicals from industrial
chimneys, and other foreign matter can
damage your vehicle’s finish if they
remain on painted Surfaces. Use cldners
that
&e marked safe for painted surfaces
to remove foreign matter.
Finish Damage
Any stone chips, fractui-es or deep
scratches in the finish should be repaired
right away. Bare metal will corrode
quickly and may develop into a major
repair expense.
Minor chips and scratches can be repaired
with touch-up materials available from
YOU^ dealer or other service outlets.
Larger areas
of finish damage can be
corrected in your dealer’s body and paint
shop.
Underbody Maintenance
Chemicals used for ice and snow removal
and dust control can collect on the
underbody;
If these are not removed,
accelerated corrosion (rust) can occur on
the underbody parts such as fuel lines,
frame,
floor pan, and exhaust system even
though they have corrosion protection.
At least every spring, flush these
materials
.from the underbody with plain
water. Clean any areas where mud and
othef deb& can collect.
Dirt packed in
closed areas
of the frame should be
loosened before
being flushed. Your
dealer or an underbody vehicle washing
system can do this
for you.
Chemical Paint Spotting
Some weather and atmospheric conditions
can create
a chemical fallout. Airborne
pollutants can fall up~n and attack painted
surfaces on your vehicle.
This damage
can take two forms: blotchy,
ringlet-shaped discolorations, and small
irregulai dark spots etched into the paint
surface.
Although no defect in the paint job causes
this, Geo
will repair, at no charge to the
owner, the surfaces of new vehicles
damaged by this fallout condition within
12 months or 12,000 miles (20
000 km)
of purchase, whichever comes first.
. . .I94
ProCarManuals.com

I Appearance Care Materials Chart
I PART NUMBER I SIZE DESCRIPTION USAGE I
*Not recommended for pigskin suede leather.
See your General Motors Dealer
for these products. See the Index under “Recommended Fluids and \
Lubricants” for other products.
195 ... ProCarManuals.com

Service and Appearance Care
Vehicle Identification
Number
(VZN)
rhis is the legal identifier for your Geo. I
lppears on a plate in the front corner of
he instrument panel, on the driver’s side.
fou can see it
if you look through the
windshield from outside your vehicle.
he VIN also appears
on the Vehicle
ktification and Service Parts labels and
he certificates
of title and registration.
Engine Identification
rhe eighth character in your VIN is the
:ngine code.
This code will help you
denti€y your engine, specifications, and
meplacement parts.
. .I96
9
1
I
il
1
t
Service Parts
Identification Label
You’ll find this label inside the glove box
m the door. It’s very helpful if you ever
need to order parts.
On this label is:
B -your VIN,
the model designation,
B paint information, and
a list of all production options and
special equipment.
Be sure that this label is not removed
From the vehicle.
Add-on Electrical
Equipment
NOTICE:
Don’t add anything electrical to your
Geo unless you check with your
dealer first. Some electrical equip-
ment can damage your vehicle and
the damage wouldn’t be covered by
your warranty. Some add-on electri-
cal equipment can keep other compo-
nents from working as they should.
I.
Fuses and Circuit
Breakers
The wiring circuits in your vehicle are
protected from short circuits by fuses,
circuit breakers and thermal
links in the
wiring itself. This greatly reduces the
chance
of fires caused by electrical
problems.
The main
fuse box is in your engine
compartment
OR the right side. It protects
all electrical loads.
ProCarManuals.com

For access to the main fuses, pull off the
cover.
A spare fuse is also inside the fuse
box.
bother fuse box is under the left side of
he instrument panel. The fuses here
Jrotect each separate circuit including
leadlights.
If you have electrical failure,
:heck here first. Look at the
silver-colored band inside the
fuse.
If the band is broken or melted,
replace the fuse. Be sure you replace a
bad fuse
with a new one of the correct
size.
If you ever have a problem on the road
and don’t have a spare fuse, you can
borrow one. Just pick some feature of
your vehicle that you can get along
without
- like the radio or cigarette
lighter
- and use its fuse, if it is the size
you need. Replace
it as soon as you can.
Before replacing a fuse,
turn every
vehicle electrical \witch off.
197. I ProCarManuals.com

Service and Appearance Care
Main Fuse Block
1 - Generator to Battery Circuit (60A)
2
- Circuits Only Active When
Ignition Switch is
in “ACC,” “ON”
or “START” (50A)
3
- Circuits Always Active (40A)
4 - Circuits Always Active (30A)
. . .198
nstrument Panel Fuse Block
- Right Headlight (15A)
~ - Left Headlight; High Beam Indicatol
Light
( 1 SA)
I- Taillights; Interior Light; Sidemarker Lights; Instrument Cluster Lights
( 1 SA)
. - Stop Lights; Horn (15A)
~ - Hazard Lights (15A)
I - Door Lock (Option) (20A)
’ - Lighter; Radio (20A)
1 - Ignition System; Warning and
1 - Turn Signal Lights; Back-up Lights
Indicator Lights
( 1 SA)
( 1 SA)
10 - Wiper/Washer ( 15A)
1 1 - Rear Defogger (1 5A)
12 - Heater
(25A)
13
- Rear Wheel Anti-Lock Main Relay
(20A)
14 - Electronic Fuel Injection Main
Relay
( 15A)
ProCarManuals.com

Replacement Bulbs
Back-up ........................................................ 1156
Dome
...................................................... 96051559
Center High-Mounted Stop
........................................... 921
Front Parking and
Turn Signal .................................... 1157 NA
Headlight (Halogen) ............................................... 9004
Heater
or Air Conditioning Control ............................... 96052599
Charging System
............................................ 9433 184
Engine Oil Pressure
.......................................... 9433 184
4WD
...................................................... 9433184
Headlight High Beam
......................................... 9433 184
Instrument Cluster
............................................. 9605 156
Rear Defogger Switch ......................................... 9606 1736
Rear Hazard and
Turn Signal ........................................ 1156
Rear Wipermasher Switch
..................................... 9606 1736
Indicator and Warning
Brake
..................................................... 9433184
CheckEngine
............................................... 9433184
SafetyBelt
................................................. 9433184
Turnsignal
................................................. 9433184
Licenseplate
..................................................... 194
Lighter
...................................................... 9433184
Rearparkingandstop
............................................. 1157
Sidemarker ......................................... ............ 194
199 ...
ProCarManuals.com
