CHEVROLET TRACKER 1994 Owners Manual

Service and Appearance Care
..........
Capacities and Specifications
Engine
Type .......................................... . * L4
Compression Ratio 8-Valve Engine
................................................. 8.9: 1
16-Valve Engine ................................................ 9.5: 1
Fuel Delivery
............................................. Fuel Injection
Piston Displacement
........................................ 97 CID (1.6L)
Valve Arrangement
.................................... In-Head “V” Type
Firingorder
.................................................. 1-342
AC Belt Tension ... Deflect
Belt 0.24-0.35 in. (6-9 mm) @I 22 lbs. (10 kg.) Pressure
Fan Belt Tension
Inspection
...... Deflect Belt 0.24-0.32 in. (6-8 mm) @ 22 lbs. (10 kg.) Pressure
Replacement
.... Deflect Belt 0.20-0.28 in. (5-7 mm) @ 22 lbs. (10 kg.) Pressure
Thermostat Temperature Specification
......................... 180°F (82°C)
Replacement Parts
Air Cleaner Filter
8-Valve Engine
.......................................... 13780-6 1 AAO
16-Valve Engine ......................................... 13780-58B20
Engine
Oil Filter .............................................. 9606241 5
Radiator Pressure Cap ............................................ 13 psi
Spark Plug ................................. R43XLS (0.028” - 0.032” Gap)
Battery
....................................................... 26-60s
Fuel Filter
.............................................. AC Type GF571
PCVValve
.................................................. 96058079
.. .200
ProCarManuals.com

Capacities (Approximate)
The following approximate capacities are given in U.S. and metric conversions.
Air Conditioning”
............. See the refrigerant information label under hood.
Automatic Transmission Drain and Refill
....................................... 3.0 qt. (2.8 L)**
Overhaul ............................................. 5.4 qt. (5.1 L)
Automatic Transmission ................................ 5.5 qt. (5.2 L)
Manual Transmission ................................... 5.6 qt. (5.3 L)
With Filter Change ..................................... 4.5 qt. (4.2 L)*
Without Filter Change .................................. 4.2 qt. (4.0 L)
Front Differential ........................................ 1.1 qt. (1 .O L)
Fuel Tank ............................................. 11.1 gal. (42 L)
Manual Transmission
Cooling System
Crankcase
Four-wheel Drive
.................................... 1.6 qt. ( 1.5 L) **
Two-Wheel Drive ..................................... 1.8 qt. (1.7 L) **
Rear Differential ........................................ 2.3 qt. (2.2 L)
Transfer Case ........................................... 1.8 qt. ( 1.7 L)
T Not all air conditioning refrigerants are the same. If the air conditioning system
in your vehicle needs refrigerant, be sure the proper refrigerant is used. If you’re
not sure, ask your Geo dealer.
* When changing the oil filter, additional oil may be needed. Recheck the oil level
after filling. See “Engine Oil”
in the Index.
** Recheck fluid level after filling. See “Automatic Transmission Fluid” or “Manual
Transmission Fluid”
in the Index.
201 ...
ProCarManuals.com

Service and Appearance Care
...
Wheel Nuts
Wheel Nut Torque ..................... . . 60 lb. ft. (80 N*m)
Vehicle Dimensions
Wheelbase ............................................ 86.6” (2 200 mm)
Tread Front
................................................ 54.9” (1 395 mm)
Rear
............................................... 55.1”(1400mm)
Length
.............................................. 142.5”(3620mm)
Height
................................................65.0” (1651mm)
Width ................................................ 64.2” (1 630 mm)
.. .202
ProCarManuals.com

.
IMPORTANT:
KEEP THE ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
This part covers the
maintenance required
for your
Geo . Your vehicle needs these
services to retain its safety.
dependability and emission
control performance
.
Maintenance Schec
Section
Introduction: A Word about Maintenance ........................
A .
B .
C .
D .
E .
Your Vehicle and the Environment .........................
How This Part Is Organized ............................
Scheduled Maintenance Services ........................
Using Your Maintenance Schedule .......................
Selecting the Right Schedule ............................
Schedule1 .......
Schedule11 ............................................
Owner Checks and Services .........
At Each Fuel Fill .......
At Least Once a Month .................. .......
At Least Twice a Year .........
AtLeastOnceaYear ..................................
Periodic Maintenance Inspections ...........................
Recommended Fluids and Lubricants ........................
MaintenanceRecord ......................................
................................
Explanation of Scheduled Maintenance Services ..............
....................
.........................
...................
ule
Protection
Plan
Have you purchased the GM Protection Plan? The Plan
supplements
your new car warranties .
See your GM dealer for details .
204
204
204
205
205
205
206
210
214
218
218 219
219 220
223
225
228
203 ...
ProCarManuals.com

Maintenance Schedule

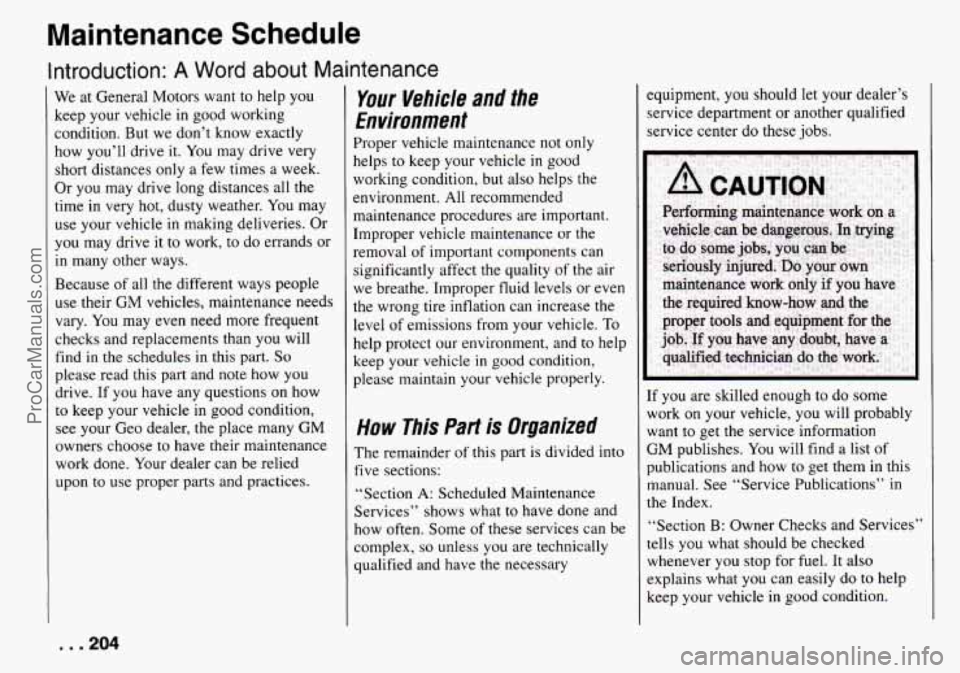

Introduction: A Word about Maintenance
We at General Motors want to help you
keep your vehicle
in good working
condition. But
we don’t know exactly
how you’ll drive it. You may drive very
short distances only a few times
a week.
Or you may drive long distances all the
time
in very hot, dusty weather. You may
use your vehicle
in making deliveries. Or
you may drive it to work, to do errands
or
in many other ways.
Because of all the different ways people
use
their GM vehicles, maintenance needs
vary.
You may even need more frequent
checks and replacements than you will
find in the schedules
in this part. So
please read this part and note how you
drive. If you
have any questions on how
to keep your vehicle
in good condition,
see your Geo dealer, the place many
GM
owners choose to have their maintenance
work done. Your dealer can be relied
upon to use proper parts and practices.
Your Vehicle and the
Environment
Proper vehicle maintenance not only
helps to keep your vehicle
in good
working condition, but also helps the
environment. All recommended
maintenance procedures are important.
Improper vehicle maintenance or the
removal of important components can
significantly affect the quality of the air
we breathe. Improper fluid levels or even
the wrong tire inflation can increase the
level of emissions from your vehicle.
To
help protect our environment, and to help
keep
your vehicle in good condition,
please maintain your vehicle properly.
How This Part is Organized
The remainder of this part is divided into
five sections:
“Section
A: Scheduled Maintenance
Services” shows what to have done and
how often. Some of these services can be
complex,
so unless you are technically
qualified and have the necessary equipment,
you should let your
dealer’s
service department or another qualified
service center do these jobs.
f you are skilled enough to do some
work on your vehicle, you will probably
want to get the service information
SM publishes. You will find a list of
wblications and how to get them in this
nanual. See “Service Publications”
in
he Index.
‘Section B: Owner Checks and Services”
ells you what should be checked
whenever you stop for fuel. It also
:xplains what you can easily do to help
:eep your vehicle in good condition.
. . .204
ProCarManuals.com

“Section C: Periodic Maintenance
Inspections” explains important inspections that your Geo dealer’s service
department or another qualified service
center should perform.
“Section
D: Recommended Fluids and
Lubricants” lists some products GM
recommends to help keep your vehicle
properly maintained. These products, or
their equivalents, should be used whether
you do the work yourself or have it done.
“Section
E: Maintenance Record”
provides a place for you to record the
maintenance performed on your vehicle.
Whenever any maintenance is performed,
be sure to write it down in this section.
This will help you determine when your
next maintenance should be done.
In
addition, it is a good idea to keep your
maintenance receipts. They may be
needed to qualify your vehicle for
warranty repairs.

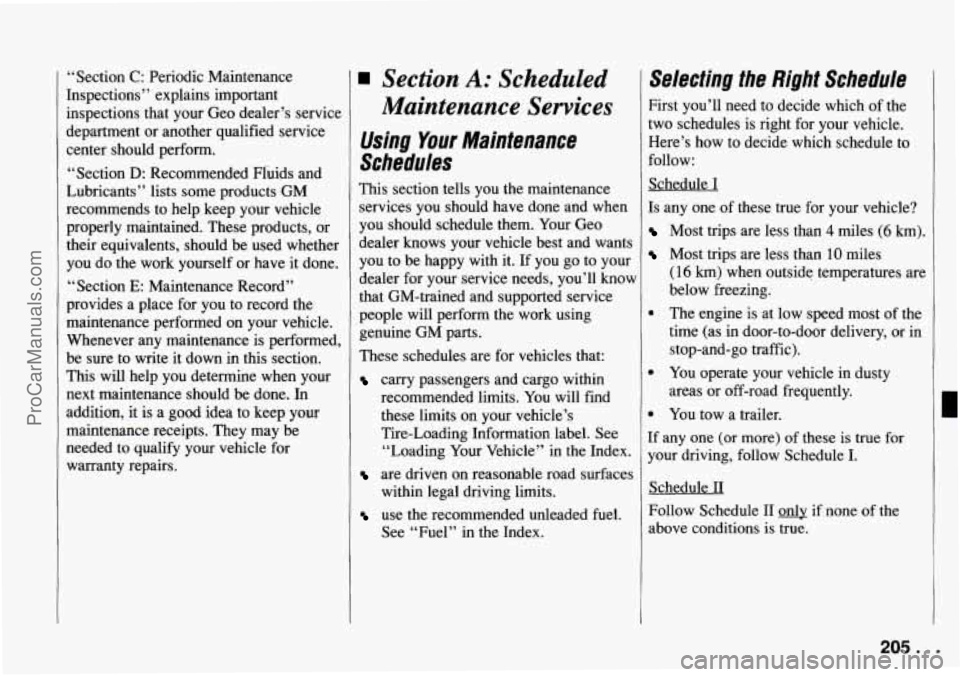

Section A: Scheduled
Maintenance Services
Using Your Maintenance
Schedules
This section tells you the maintenance
services you should have done and when
you should schedule them. Your Geo
dealer knows your vehicle best and wants
you to be happy with
it. If you go to your
dealer for your service needs, you’ll knoN
that GM-trained and supported service
people will perform the work using
genuine GM parts.
These schedules are for vehicles that:
carry passengers and cargo within
recommended limits. You will find
these limits on your vehicle’s
Tire-Loading Information label. See
“Loading Your Vehicle” in the Index.
are driven on reasonable road surfaces
within legal driving limits.
use the recommended unleaded fuel.
See “Fuel” in the Index.
I
Selecting the Right Schedule
First you’ll need to decide which of the
two schedules is right for your vehicle.
Here’s how to decide which schedule to
follow:
Schedule
I
Is any one of these true for your vehicle?
Most trips are less than 4 miles (6 km).
Most trips are less than 10 miles
(1
6 km) when outside temperatures are
below freezing.
The engine is at low speed most of the
time (as in door-to-door delivery, or in
stop-and-go traffic).
You operate your vehicle in dusty
areas or off-road frequently.
D You tow a trailer.
[f any one (or more) of these is true for
your driving, follow Schedule I.
Schedule
I1
Follow Schedule I1 on& if none of the
lbove conditions
is true.
205. . .
ProCarManuals.com

Maintenance Schedule
Section A: Scheduled Maintenance Services (Cont.)

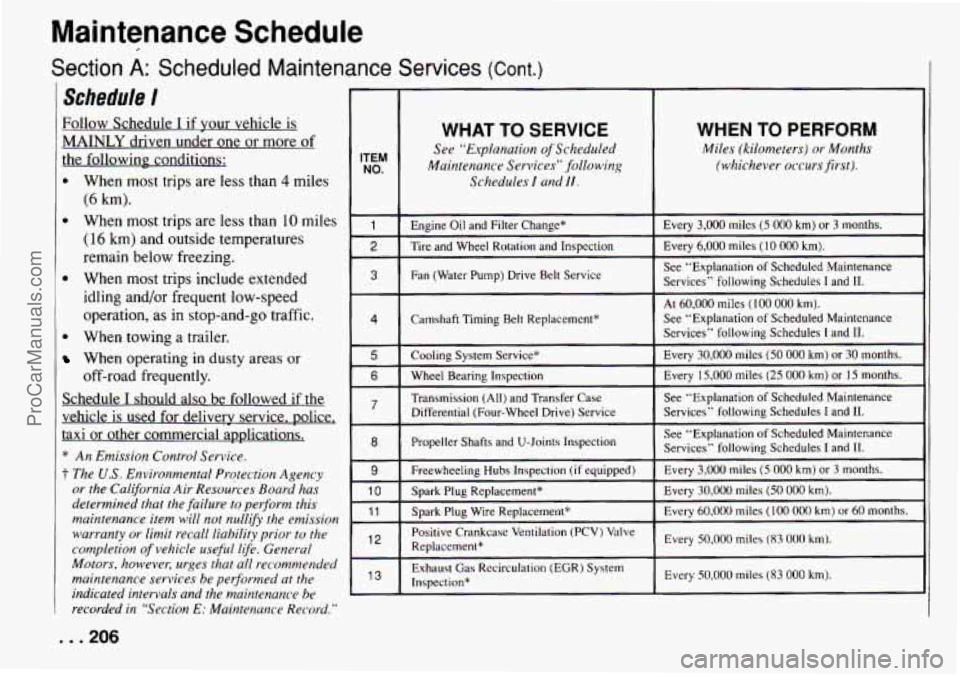

Schedule l
Follow Schedule I if your vehicle is
MAINLY driven under one or more of
the following conditions:
e
a
a
a
When most trips are less than 4 miles
(6 km).
When most trips are less than
10 miles
(16 km) and outside temperatures
remain below freezing.
When most trips include extended
idling and/or frequent low-speed
operation, as in stop-and-go traffic.
When towing
a trailer.
When operating in dusty areas or
off-road frequently.
Schedule
I should also be followed if the
taxi or other commercial applications.
* An Emission Control Service.
t The U.S. Environmental Protection Agency
or the California Air Resources Board has
determined that the failure to perform this
maintenance item will not
nullify the emission
warranty or limit recall liability prior
to the
completion
of vehicle useful lfc. General
Morors, howeve); urges that all recommended
maintenance services be performed at the
indicated intervals and the maintenance
be
recorded in “Section E: Maintenance Record.”
9%
. . .206
ITEM NO.
-
1
2
3
-
4
5
6
7
-
-
-
8
-
9
10
11
-
-
7
12
13
WHAT TO SERVICE
See “E,xplanation of Scheduled
Maintenance Services” following
Schedules
I und 11.
Engine OTI and Filter Change*
Tire and Wheel Rotation and Inspection
Fan (Water Pump) Drive Belt Service
Camshaft Timing Belt Replacement*
Cooling System Service”
Wheel Bearine Insuection
Transmission
(All) and Transfer Case
Differential (Four-wheel Drive) Service
Propeller Shafts and
U-Joints Inspection
Freewheeling Hubs Inspection
(if equipped)
Spark Plug Replacement*
Spark Plug Wire Replacement”
Positive Crankcase Ventilation (PCV) Valve
Reulacement*
Exhaust Gas Recirculation
(EGR) System
Inspection*
WHEN TO PERFORM
Miles (kilomerers) or Months
(whichever occursfirst).
Every 3,000 miles (5 000 km) or 3 months.
Every
6,000 miles (10 000 km).
See “Explanation of Scheduled Maintenance
Services” following Schedules
I and 11.
At 60,000 miles (100 000 km).
See “Explanation of Scheduled Maintenance
Services” following Schedules
I and 11.
Every 30,000 miles (50 000 krn) or 30 months.
Every 15,000 miles
(25 000 km) or 15 rnonlhs.
See “Explanation of Scheduled Maintenance
Services” following Schedules
I and 11.
See “Explanation of Scheduled Maintenance
Services” following Schedules
I and 11.
Every 3,000 miles (5 000 km) or 3 months.
Every 30,000 miles (50
000 km).
Every
60,000 miles (100 000 km) or 60 months.
Every 50.000 miles
(X3 000 km).
Every 50,000 miles (83 000 km).
ProCarManuals.com

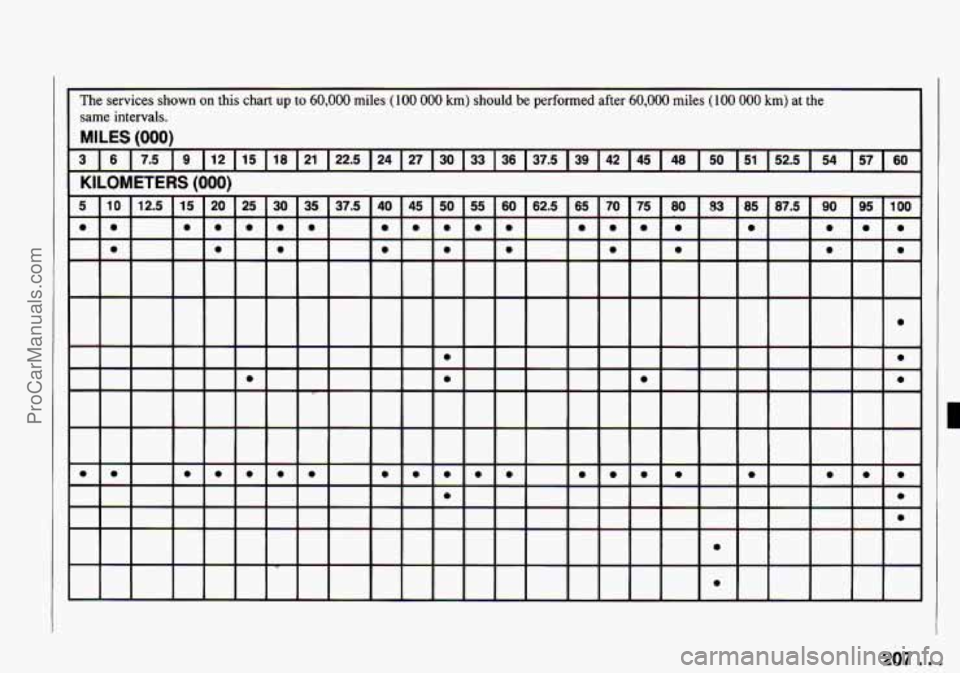

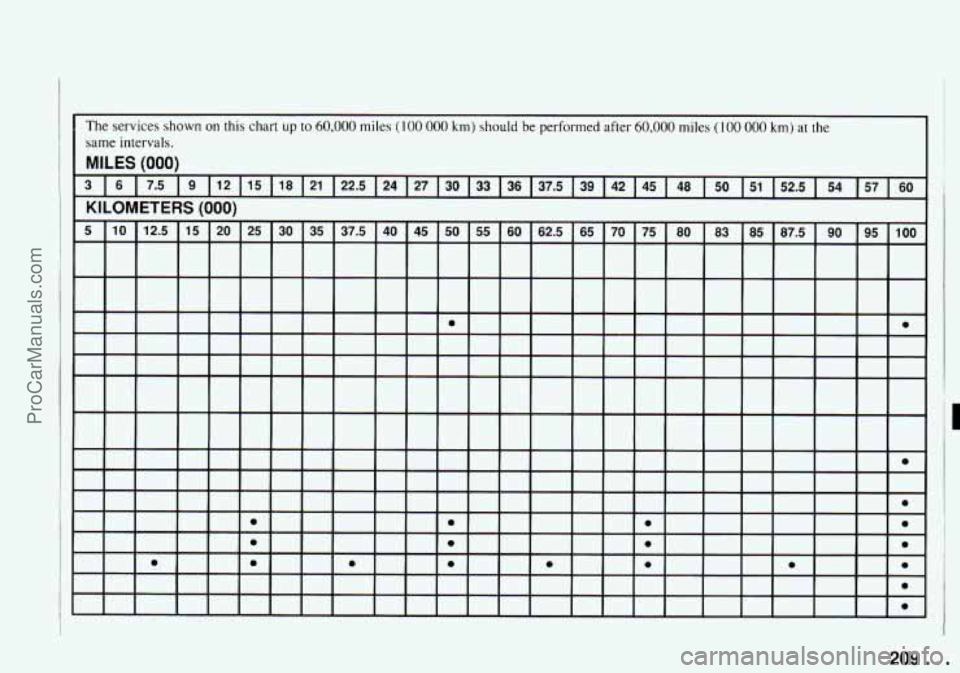

The services shown on this chart up to 60,000 miles (100 000 km) should be performed after 60,000 miles (100 000 km) at the
same intervals.
MILES (000)
KILOMETERS (000)
3 16 17.5 19 112 115 118 121 122.5 124 127 130 133 136 137.5 (39 142 145 I48 I50 151 152.5 I 54 157 160
207. . . ProCarManuals.com

Maintenance Schedule
Section A: Scheduled Maintenance Services (cont.)
Schedule / (Cont.)
* An Emission Control Service.
t The US. Environmental Protection Agency
or the California Air Resources Board has
determined that the failure to perform this
maintenance item will
not nullify the emission
warranty or limit recall liability prior to the
completion
of vehicle useful life. General
Motors, however, urges that all recommended
maintenance services be performed at the
indicated intervals and the maintenance be
recorded in “Section E: Maintenance Record.”
WHAT TO SERVICE
See “Explanation of Scheduled
Schedules
I and 11.
ITEM NO. Maintenance Services” following
WHEN TO PERFORM
Miles (kilometers) or Months
(whichever occurs first).
14
Air Cleaner Filter Replacement* See “Explanation of Scheduled
Maintenance
Services” following Schedules
I and 11.
15 I Fuel Tank, Cap and Lines Inspection*t I
See “Explanation of Scheduled Maintenance
Services” following Schedules
I and 11.
16
Every
80,000 miles (133 000 km). Heated
Oxygen Sensor Replacement*
18 Every
100,000 miles
(166 000 km).
Fuel Injector Inspection”
17 Every
30,000 miles (50 000 km)
or 30 months. Fuel Filter Replacement*
l9 I
Evaporative Emissions Canister
Replacement* I Every 100,000 miles (166 000 km).
Engine Control Module (ECM) and 2o Associated Sensors Inspection* Every 100,000 miles (1 66 000 km).
21 Every
100,000 miles (166 000 kml
Three Wav Catalvtic Converter Inspection* 22
Every 60,000 miles (100 000 km). Emission
System Hoses Inspection*
~~ I - \--- ~~
23 I Engine Timing and Distributor Check* I Every 60,000 miles (100 000 km).
24
Every 60,000 miles (100 000 km). Brake Fluid
Service 28
Every 60,000 miles (100 000 km) or 60 months.
Wiring Harness and Connectors Inspection* 27
Every 7,500 miles (12 500 km) or 7.5 months.
Power Steering System Inspection 26
Every 15,000 miles (25 000 km).
Valve Lash (Clearance) Inspection* 25
Every 15,000 miles (25 000 km).
Engine Idle Speed Check*?
. . ,208
ProCarManuals.com

The services shown on this chart up to 60,000 miles (100 000 km) should be performed after 60,000 miles (100 000 km) at the
same intervals.
I MILES (000)
209. . ProCarManuals.com
