SEAT BELT LEFT FIRST REAR OUTBOARD ± LWB
THREE DOOR
REMOVAL
(1) Remove first and second rear seats. Refer to
Owner's manual for proper procedures.
(2) Remove shoulder harness height adjuster knob
by pulling it straight away from adjuster.
(3) Slide floor anchor cover from over the anchor
bolt.
(4) Remove floor anchor bolt (Fig. 88).
(5) Remove anchor from floor.
(6) Open clam shell cover from over seat belt turn-
ing loop.
(7) Remove bolt holding turning loop to shoulder
belt height adjuster (Fig. 88).
(8) Remove turning loop from C-pillar.
(9) Remove C-pillar upper trim cover.
(10) Remove lower quarter trim panel.
(11) Route seat belt webbing and turning loop
through access hole in lower quarter trim panel.
(12) Remove bolt holding seat belt retractor to
quarter panel.
(13) Lift retractor upward and disengage arrow
head retainer holding retractor to quarter panel (Fig.
88).
(14) Remove seat belt from vehicle.
INSTALLATION
For installation, reverse the above procedures.
Tighten all seat belt anchor bolts to 39 N´m (29 ft.
lbs.) torque.
SEAT BELT LEFT FIRST REAR OUTBOARD ± SWB
THREE DOOR
REMOVAL
(1) Remove first and second rear seats. Refer to
Owner's manual for proper procedures.
(2) Remove shoulder harness height adjuster knob
by pulling it straight away from adjuster.
(3) Slide floor anchor cover from over the anchor
bolt.
(4) Remove floor anchor bolt (Fig. 88).
(5) Remove anchor from floor.
(6) Open clam shell cover from over seat belt turn-
ing loop.
(7) Remove bolt attaching turning loop to shoulder
belt height adjuster.
(8) Remove turning loop from C-pillar.
(9) Remove B-pillar upper trim cover.
(10) Remove C-pillar upper trim cover.
(11) Remove lower quarter trim panel.
(12) Route seat belt webbing and turning loop
through access hole in lower quarter trim panel.(13) Remove bolt holding seat belt retractor to
quarter panel.
(14) Lift retractor upward and disengage arrow
head retainer holding retractor to quarter panel (Fig.
88).
(15) Remove seat belt from vehicle.
INSTALLATION
For installation, reverse the above procedures.
Tighten all seat belt anchor bolts to 39 N´m (29 ft.
lbs.) torque.
SEAT BELT SECOND REAR OUTBOARD ± SWB
REMOVAL
(1) Remove second rear seat from vehicle. Refer to
Owner's Manual for proper procedures.
(2) Slide lower anchor cover from over the anchor
shoulder-nut.
(3) Remove lower anchor shoulder-nut.
(4) Remove lower anchor from wheelhouse (Fig.
89).
(5) Remove D-pillar trim panel.
(6) Route seat belt webbing and turning loop
through access hole in quarter trim.
(7) Remove bolts attaching seat belt guide loop to
inner quarter panel.
(8) Remove anchor bolt attaching retractor to
inner quarter panel.
(9) Remove second rear seat belt retractor from
vehicle (Fig. 89).

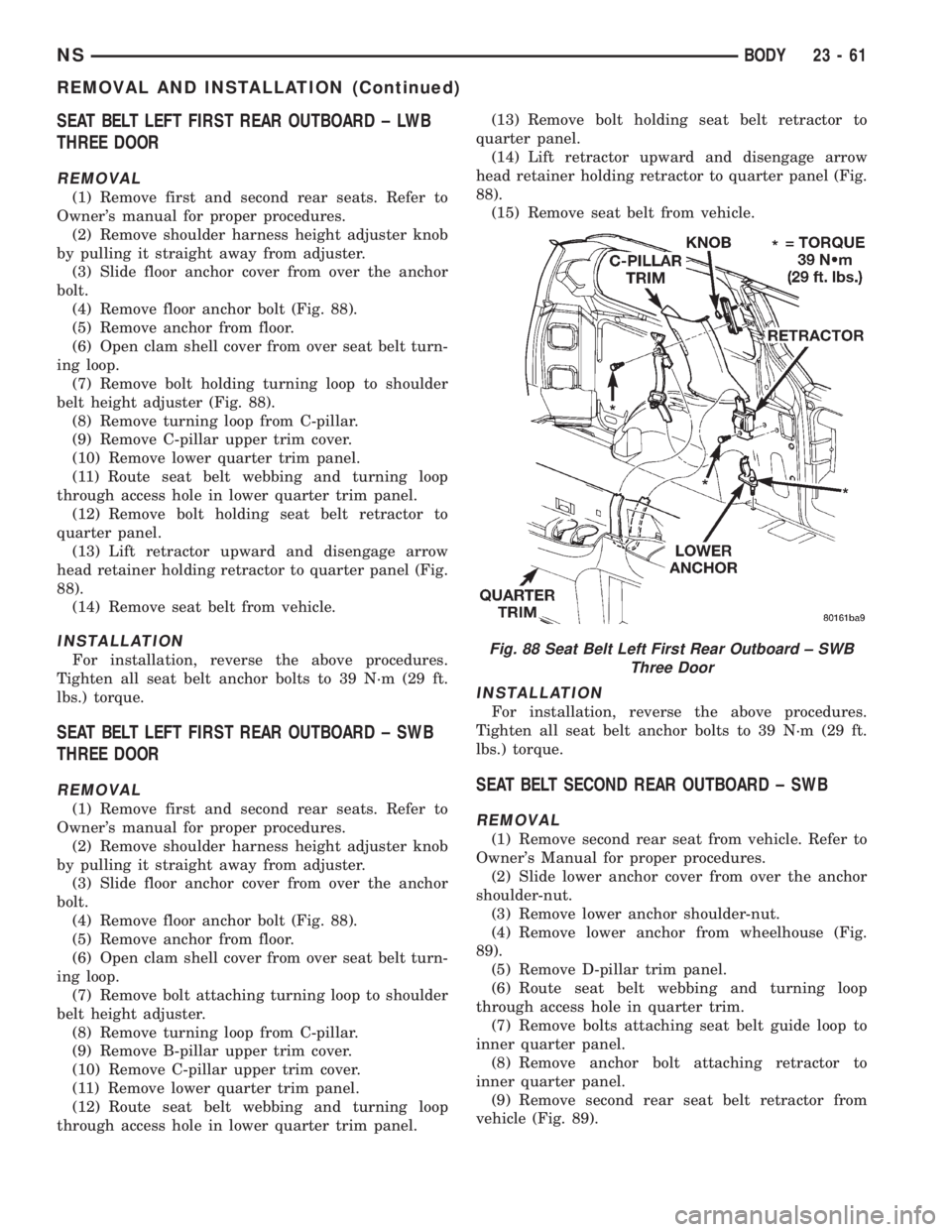

Fig. 88 Seat Belt Left First Rear Outboard ± SWB
Three Door
NSBODY 23 - 61
REMOVAL AND INSTALLATION (Continued)

INSTALLATION
For installation, reverse the above procedures.
Tighten all seat belts to 39 N´m (29 ft. lbs.) torque.
SEAT BELT SECOND RIGHT REAR OUTBOARD ±
LW B
REMOVAL
(1) Remove second rear seat from vehicle. Refer to
Owner's Manual for proper procedures.
(2) Slide lower anchor cover from over the anchor
shoulder-nut.
(3) Remove lower anchor shoulder-nut (Fig. 90).
(4) Remove lower anchor from wheelhouse.
(5) Fold upper turning loop extension cover down-
ward to gain access to anchor bolt.
(6) Remove bolt holding turning loop to extension
bracket above quarter glass (Fig. 90).
(7) Remove turning loop from extension bracket.
(8) Remove D-pillar trim panel.
(9) Remove quarter trim bolster.
(10) Route seat belt webbing and turning loop
through access hole in quarter trim.
(11) Remove bolt attaching retractor to inner quar-
ter panel (Fig. 90).
(12) Remove screw attaching retractor to inner
quarter panel.
(13) Remove second rear seat belt retractor from
vehicle.
INSTALLATION
(1) Position second rear seat belt retractor in vehicle.
(2) Install screw attaching retractor to inner quar-
ter panel.
(3) Install bolt to attach retractor to inner quarter
panel.
(4) Route seat belt webbing and turning loop
through access hole in quarter trim.
(5) Install quarter trim bolster.
(6) Install D-pillar trim panel.
(7) Position turning loop to extension bracket.
(8) Install bolt to hold turning loop to extension
bracket above quarter glass. Tightening specifications
for all seat belt bolts is 39 N´m (29 ft. lbs.) torque.
(9) Install upper turning loop extension cover.
(10) Position lower anchor to wheelhouse.
(11) Install lower anchor shoulder-nut.
(12) Install lower anchor cover over the anchor
shoulder-nut.
(13) Install second rear seat to vehicle. Refer to
Owner's Manual for proper procedures.
SECOND RIGHT REAR OUTBOARD SEAT BELT ±
LWB W/REAR HVAC
REMOVAL
(1) Remove second rear seat from vehicle. Refer to
Owner's Manual for proper procedures.
(2) Slide lower anchor cover from over the anchor
shoulder-nut.
(3) Remove lower anchor shoulder-nut.
(4) Remove lower anchor from wheelhouse.
(5) Fold upper turning loop extension cover down-
ward to gain access to anchor bolt.

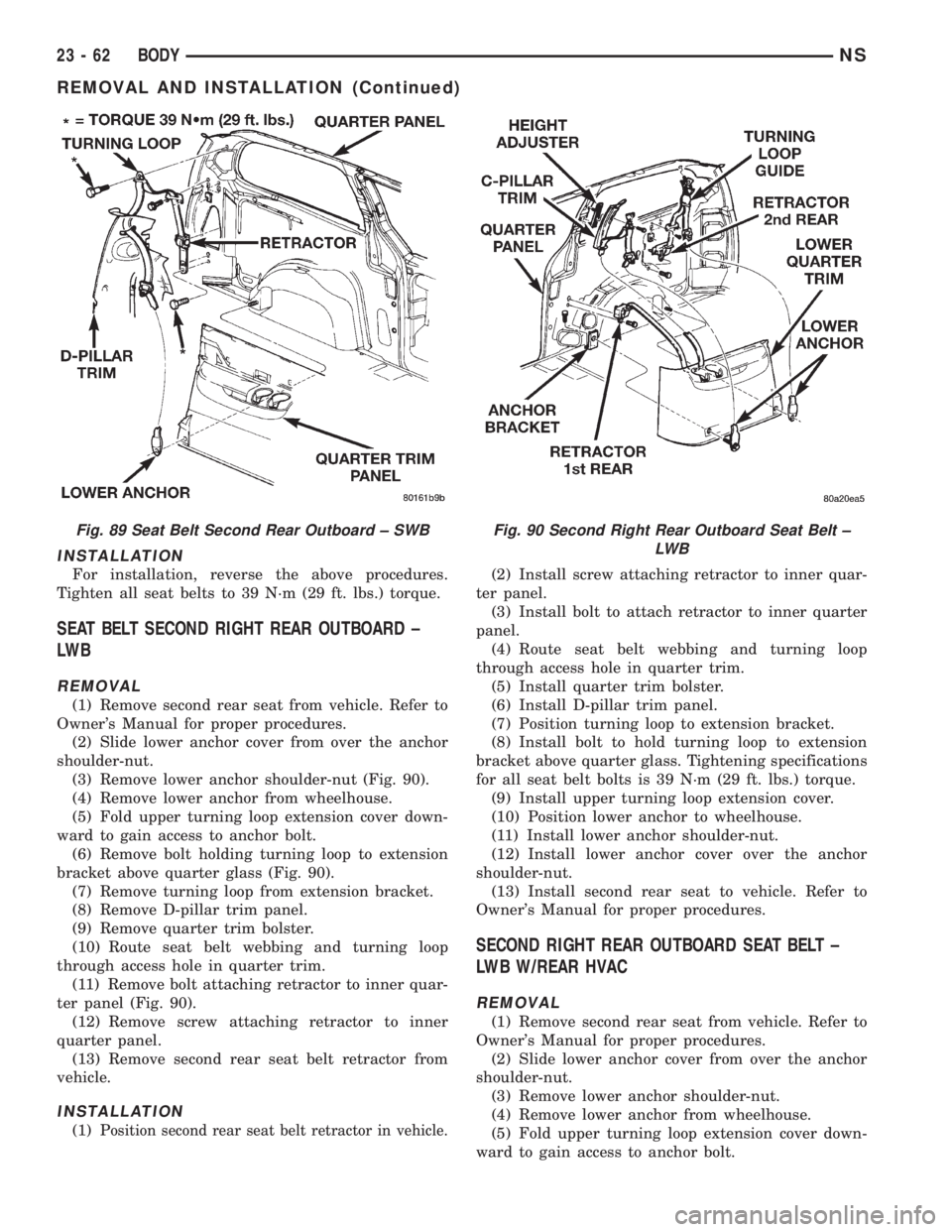

Fig. 89 Seat Belt Second Rear Outboard ± SWBFig. 90 Second Right Rear Outboard Seat Belt ±
LW B
23 - 62 BODYNS
REMOVAL AND INSTALLATION (Continued)

(6) Remove bolt attaching turning loop to exten-
sion bracket above quarter glass.
(7) Remove turning loop from extension bracket.
(8) Remove D-pillar trim panel.
(9) Remove quarter trim bolster.
(10) Remove quarter trim panel as necessary to
gain access to HVAC unit.
(11) Route seat belt webbing and turning loop
through access hole in quarter trim.
(12) Loosen HVAC unit enough to gain access to
seat belt retractor fasteners.
(a) Remove bracket around HVAC unit (Fig. 91).
(b) Remove air duct (Fig. 92).
(c) Remove fasteners holding HVAC unit to
inner quarter panel (Fig. 93).
(d) Remove screws attaching upper evaporator
housing to lower evaporator housing.
(e) Remove coolant line retaining bracket hold-
down bolt.
(13) Remove bolts attaching seat belt guide loop to
inner quarter panel.
(14) Pull outward on HVAC unit and remove bolt
holding retractor to inner quarter panel.
(15) Remove screw attaching retractor to inner
quarter panel.
(16) Remove second rear seat belt retractor from
vehicle.
INSTALLATION
(1) Position second rear seat belt retractor to vehi-
cle.
(2) I
nstall screw attaching retractor to inner
quarter panel.
(3) Pull outward on HVAC unit and install bolt
attaching retractor to inner quarter panel.
(4) Install bolts attaching seat belt guide loop to
inner quarter panel.
(5) Install coolant line retaining bracket holdown
bolt.(6) Install screws holding upper evaporator hous-
ing to lower evaporator housing.
(7) Install fasteners attaching HVAC unit to inner
quarter panel.
(8) Install air duct.
(9) Install bracket around HVAC unit.
(10) Route seat belt webbing and turning loop
through access hole in quarter trim.
(11) Install quarter trim panel as necessary to gain
access to HVAC unit.
(12) Install quarter trim bolster.
(13) Install D-pillar trim panel.
(14) Position turning loop to extension bracket.
(15) Install bolt attaching turning loop to exten-
sion bracket above quarter glass.
(16) Pull upper turning loop extension cover
upward over anchor bolt.
(17) Install lower anchor shoulder-nut.
(18) S
lide lower anchor cover over anchor shoulder-
nut.
(19) Install second rear seat from vehicle. Refer to
Owner's Manual for proper procedures.

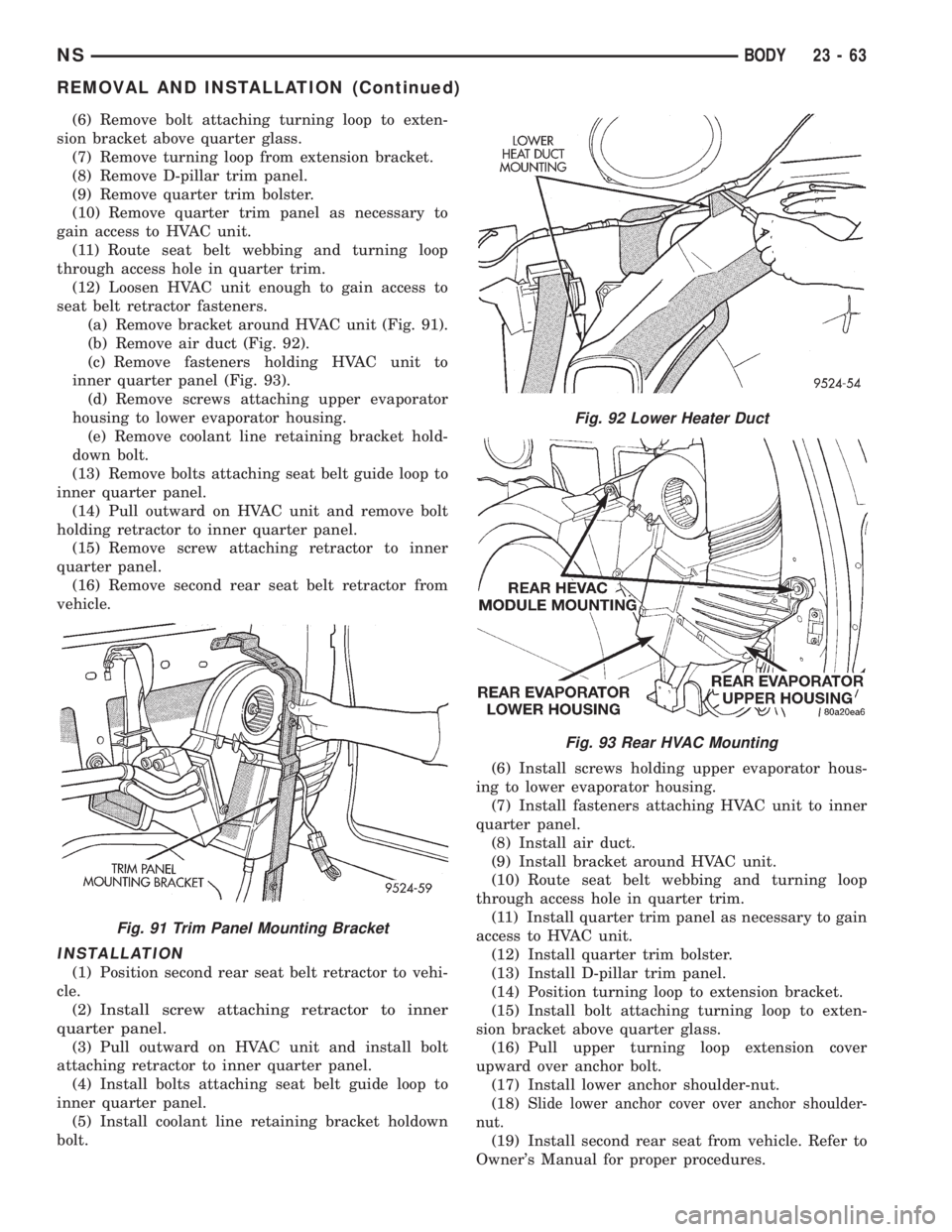

Fig. 91 Trim Panel Mounting Bracket
Fig. 92 Lower Heater Duct
Fig. 93 Rear HVAC Mounting
NSBODY 23 - 63
REMOVAL AND INSTALLATION (Continued)

SHOULDER BELT HEIGHT ADJUSTER±BOR
C-PILLAR
REMOVAL
(1) Remove B or C-pillar trim cover.
(2) Remove screws holding shoulder belt height
adjuster to pillar.
(3) Remove height adjuster from vehicle (Fig. 94).
INSTALLATION
For installation, reverse the above procedures.
Tighten seat belt anchor bolts to 39 N´m (29 ft. lbs.)
torque.
SHOULDER BELT HEIGHT ADJUSTER KNOB
REMOVAL
(1) Disengage clips holding clam shell cover to seat
belt turning loop and open cover.
(2) Using a Snap-onttrim tool, pry knob from
shoulder belt height adjuster (Fig. 95).
INSTALLATION
(1) Place shoulder belt height adjuster knob in
position on height adjuster.
(2) Push knob on until retainers engage.
SIDE VIEW MIRROR
REMOVAL
(1) Release front door latch and open door.
(2) Remove screw holding molding to base of side
view mirror (Fig. 96).
(3) Remove molding from mirror.
(4) Remove bolts holding bottom of side view mir-
ror to A-pillar.
(5) Remove bolt attaching top of side view mirror
to A-pillar (Fig. 96).
(6) If equipped, disconnect power side view mirror
wire connector from instrument panel harness.
(7) Remove side view mirror from vehicle.
INSTALLATION
(1) Connect power side view mirror wire connector
into instrument panel harness, if equipped.
(2) Place side view mirror in position on vehicle
(Fig. 96).
(3) Install bolt to hold top of side view mirror to
A-pillar.
(4) Install bolts to hold bottom of side view mirror
to A-pillar.
(5) Place molding in position on mirror.
(6) Install screw to hold molding to base of side
view mirror.
SLIDING DOOR
CAUTION: Apply several layers of masking tape to
the body around the rear end of the upper roller
channel and the forward edge of the quarter panel,
to avoid damaging the paint.

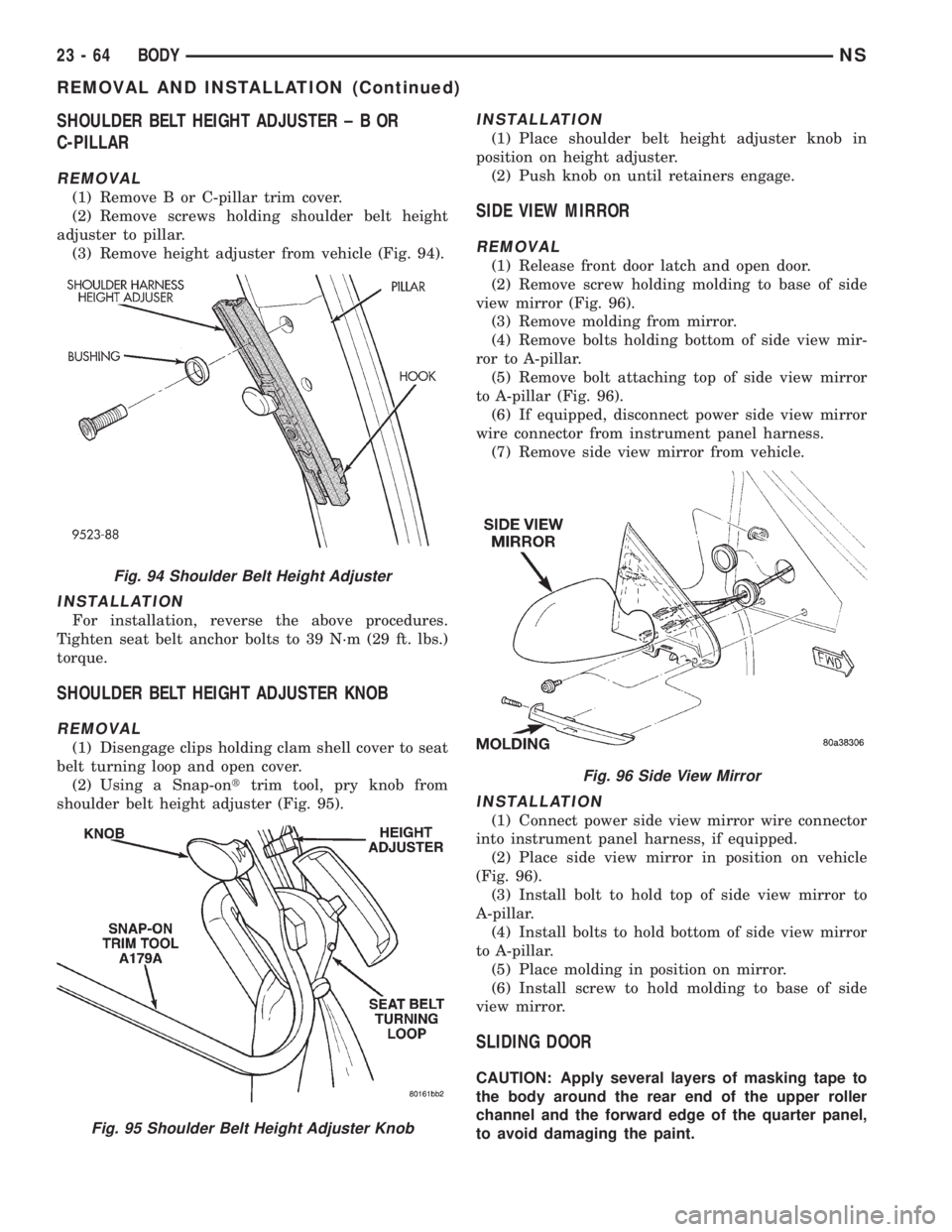

Fig. 94 Shoulder Belt Height Adjuster
Fig. 95 Shoulder Belt Height Adjuster Knob
Fig. 96 Side View Mirror
23 - 64 BODYNS
REMOVAL AND INSTALLATION (Continued)

REMOVAL
(1) Apply masking tape to outside surface of quar-
ter panel below the center roller channel, rearward of
the door opening.
(2) Release sliding door latch and open door.
(3) Apply masking tape to door jamb area, rear-
ward of the upper roller channel.
(4) Remove screw holding upper roller arm stop
bumper to upper roller arm (Fig. 97).
(5) Remove stop bumper from upper roller arm.
(6) Remove center stop bumper trim cover from
sliding door (Fig. 98).
(7) Remove center stop from sliding door.
(8) Remove sliding door sill plate.
(9) Remove hold open latch striker (Fig. 99).
(10) Open quarter glass.
(11) Remove center roller channel end cover (Fig.
100).
(12) Support sliding door on a suitable lifting
device with a padded upper surface. The door must
be moveable with lifting device in place.
CAUTION: Do not allow the center hinge roller to
contact the quarter glass. Glass can break.
(13) Roll door rearward until lower rollers disen-
gage from lower channel.
(14) Roll the door rearward until the upper (Fig.
101) and center hinge rollers exit the upper and cen-
ter channels (Fig. 102).
(15) Remove sliding door from vehicle.
INSTALLATION
(1) Place sliding door in position on lifting device.
(2) Position door rearward of the sliding door open-
ing.
CAUTION: Do not allow the center hinge roller to
contact the quarter glass. Glass can break.(3) Engage the center hinge rollers into the center
channels (Fig. 102).
(4) Roll door forward until lower rollers engage
into rear of lower channel.
(5) Engage the upper hinge into the upper chan-
nels (Fig. 101).
(6) Install hold open latch striker (Fig. 99).
(7) Install sliding door sill plate.

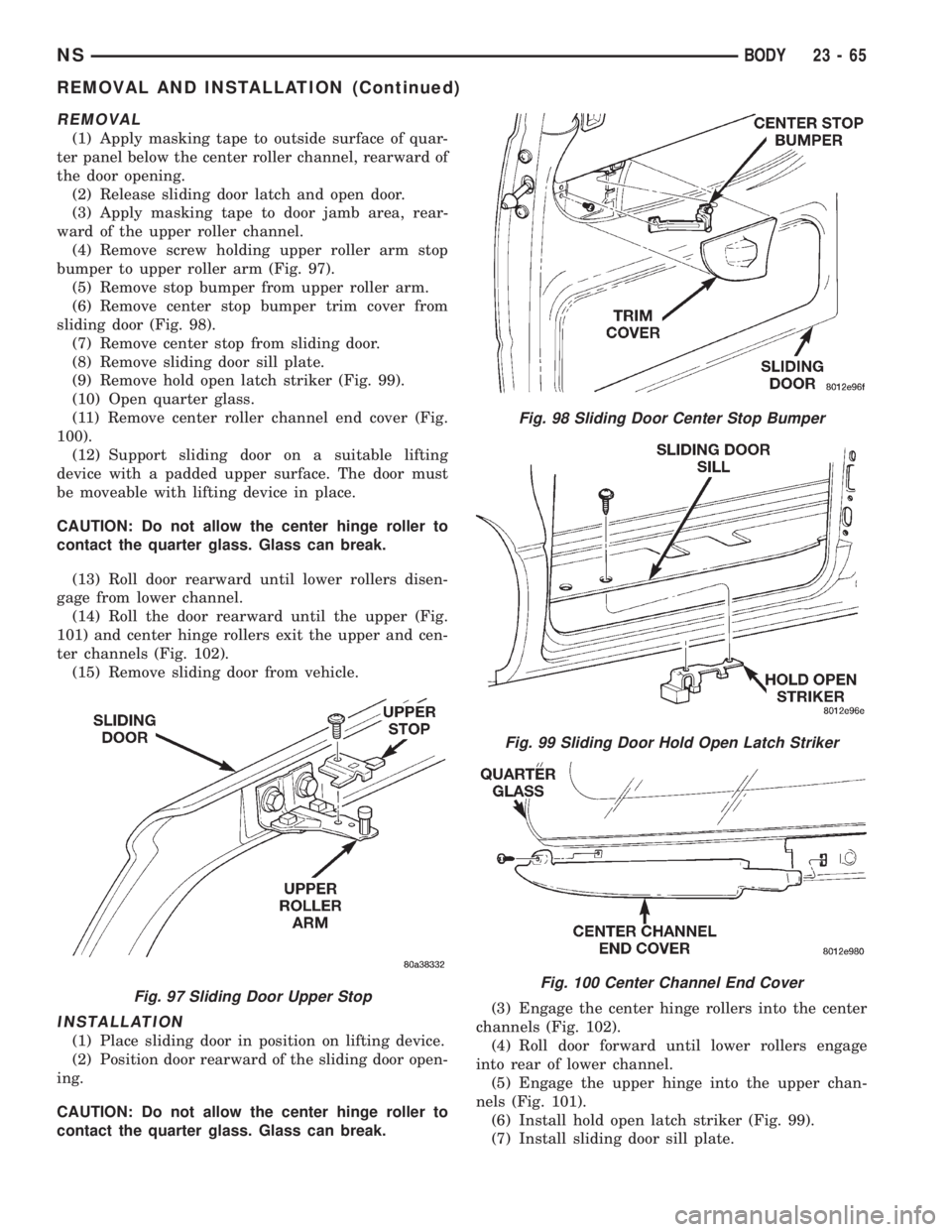

Fig. 97 Sliding Door Upper Stop
Fig. 98 Sliding Door Center Stop Bumper
Fig. 99 Sliding Door Hold Open Latch Striker
Fig. 100 Center Channel End Cover
NSBODY 23 - 65
REMOVAL AND INSTALLATION (Continued)

(8) Install center roller channel end cover (Fig.
100).
(9) Install center stop on sliding door (Fig. 98).
(10) Install center stop bumper trim cover on slid-
ing door.
(11) Place upper roller stop bumper in position on
upper roller arm.
(12) Install screw to hold upper roller arm stop
bumper to upper roller arm (Fig. 97).
(13) Remove masking tape from body surfaces.
(14) Verify door operation and fit. Adjust as neces-
sary.
SLIDING DOOR CENTER HINGE
REMOVAL
(1) Open sliding door to the mid point of its travel.
(2) Support sliding door on a suitable lifting
device.(3) Mark outline of center hinge of inner door
panel to aid installation.
(4) Remove bolts holding center hinge to sliding
door.
(5) Remove center hinge from sliding door.
(6) Roll center hinge to rear of roller channel.
(7) Separate center hinge from vehicle.
INSTALLATION
NOTE: Center hinge has an adjustable bolt for
up/down alignment. Refer to Siding Door Center
Hinge Adjustment.
(1) Place center hinge in position on vehicle.
(2) Roll center hinge forward in roller channel.
(3) Place center hinge in position on sliding door
and align marks.
(4) Install bolts to hold center hinge to sliding
door.
(5) Verify sliding door alignment and operation.
SLIDING DOOR CENTER STOP TRIM COVER
REMOVAL
(1) Using a trim stick (C-4755), disengage clips
holding center stop trim cover from door trim panel.
(2) Remove trim cover from vehicle (Fig. 103).
INSTALLATION
For installation, reverse the above procedures.

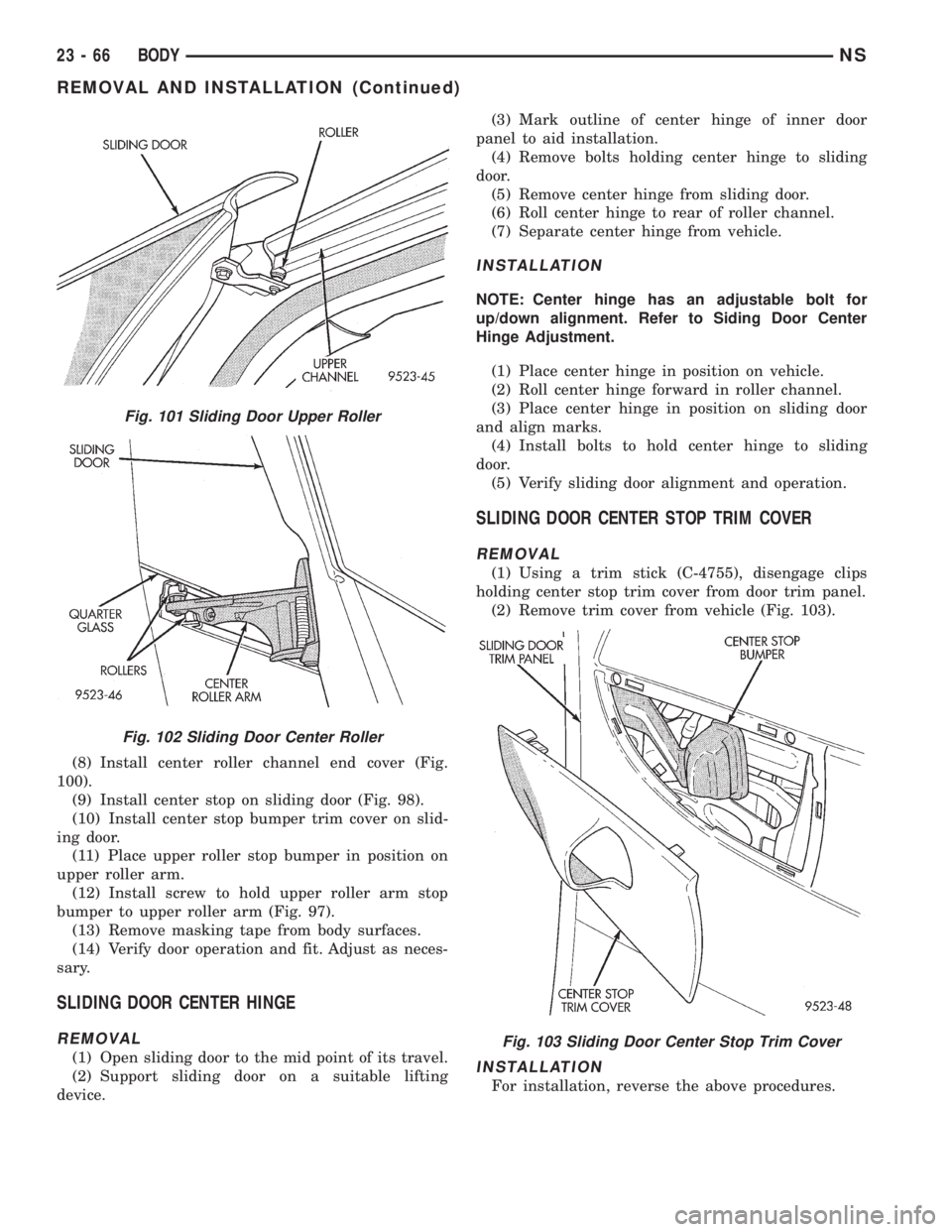

Fig. 101 Sliding Door Upper Roller
Fig. 102 Sliding Door Center Roller
Fig. 103 Sliding Door Center Stop Trim Cover
23 - 66 BODYNS
REMOVAL AND INSTALLATION (Continued)

SLIDING DOOR CENTER STRIKER ASSEMBLY
REMOVAL
(1) Remove sliding door trim panel.
(2) Remove screws attaching center striker assem-
bly to door end frame (Fig. 104).
(3) Remove center striker assembly from door
through access hole.
INSTALLATION
(1) Place center striker in position on door through
access hole.
(2) Install screws to attach center striker to door
end frame.
(3) Install sliding door trim panel.
SLIDING DOOR HOLD OPEN LATCH
REMOVAL
(1) Open sliding door.
(2) Remove sliding door sill plate.
(3) Remove nuts holding hold open latch to lower
roller arm (Fig. 105).
(4) Separate hold open latch from lower arm.
(5) Disconnect cable from hold open latch.
(6) Remove hold open latch from vehicle.
INSTALLATION
(1) Place hold open latch in position on vehicle.
(2) Connect cable to hold open latch.
(3) Place hold open latch in position on lower arm.
(4) Install nuts to hold the hold open latch to
lower roller arm.
(5) Install sliding door sill plate.
(6) Verify sliding door operation.
SLIDING DOOR HOLD OPEN LATCH STRIKER
REMOVAL
(1) Open sliding door, do not latch open.
(2) Remove sliding door sill plate.
(3) Remove screws holding sliding door hold open
latch striker to door sill (Fig. 106).
(4) Remove hold open latch striker from vehicle.
INSTALLATION
(1) Place hold open latch striker in position on
vehicle.
(2) Install screws to hold sliding door hold open
latch striker to door sill.
(3) Install sliding door sill plate.
(4) Verify sliding door operation.

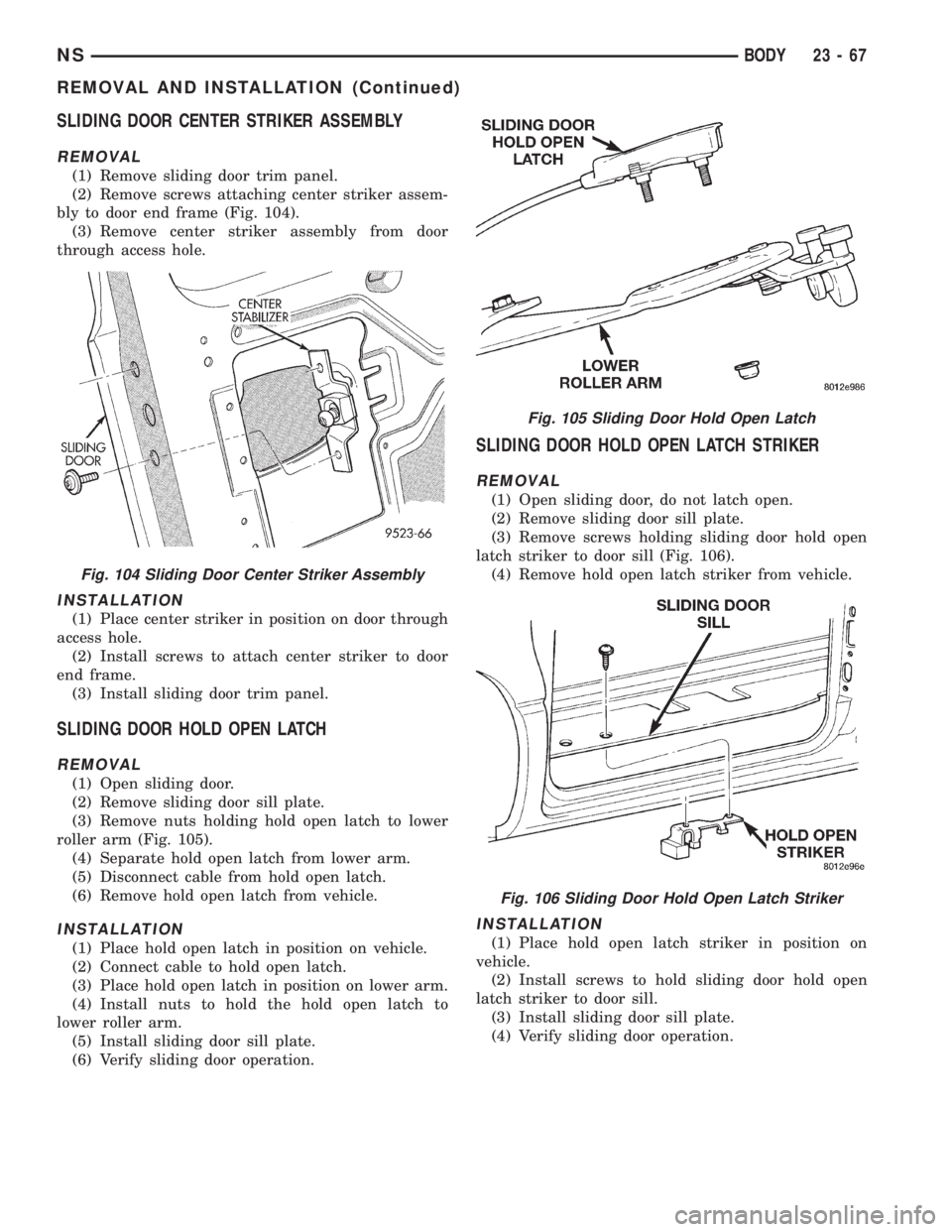

Fig. 104 Sliding Door Center Striker Assembly
Fig. 105 Sliding Door Hold Open Latch
Fig. 106 Sliding Door Hold Open Latch Striker
NSBODY 23 - 67
REMOVAL AND INSTALLATION (Continued)

SLIDING DOOR INSIDE LATCH HANDLE
REMOVAL
(1) Remove sliding door upper molding as neces-
sary to gain access to upper door handle fastener.
(2) Remove sliding door trim panel.
(3) Remove screws holding bottom of inside latch
handle to sliding door (Fig. 107).
(4) Remove screw holding top of inside latch han-
dle to sliding door.
(5) Disengage cable end from clip on bellcrank
assembly.
(6) Disengage cable end from bellcrank assembly.
(7) Remove latch handle from sliding door.
(8) Remove push-in fastener holding cable end to
latch handle.
(9) Disengage cable casing end from latch handle
(Fig. 108).
(10) Disengage cable end from latch handle.
(11) Remove handle from vehicle.
INSTALLATION
(1) Place inside latch handle in position on vehicle.
(2) Engage cable end into latch handle.
(3) Engage cable casing end into latch handle.
(4) Install push-in fastener to hold cable into latch
handle.
(5) Place latch handle in position on sliding door.
(6) Install screw to hold top of inside latch handle
to sliding door.
(7) Install screws to hold bottom of inside latch
handle to sliding door.
(8) Engage cable end into bellcrank assembly.
(9) Engage clip to hold cable end into bellcrank
assembly.
(10) Verify sliding door operation. Adjust as neces-
sary.(11) Install sliding door trim panel.
(12) Install sliding door upper molding.
SLIDING DOOR INSIDE LATCH HANDLE
BELLCRANK
REMOVAL
(1) Remove sliding door trim panel.
(2) Remove watershield as necessary to gain access
to latch bellcrank.
(3) Remove latch/lock control cover.
(4) Disengage clip holding inside release bellcrank
link to latch/lock control.
(5) Separate bellcrank link from latch/lock control.
(6) Disengage clip holding release handle latch
cable to bellcrank.
(7) Remove cable from bellcrank.
(8) Remove screw holding bellcrank to inner door
panel (Fig. 109).
(9) Remove bellcrank from vehicle.
Fig. 107 Sliding Door Inside Handle
Fig. 108 Sliding Door Handle Cable
Fig. 109 Inside Latch Handle Bellcrank
23 - 68 BODYNS
REMOVAL AND INSTALLATION (Continued)

INSTALLATION
(1) Position bellcrank on vehicle.
(2) Install screw holding bellcrank to inner door
panel.
(3) Position cable from bellcrank.
(4) Engage clip to hold release handle latch cable
to bellcrank.
(5) Position bellcrank link on latch/lock control.
(6) Engage clip to hold inside release bellcrank
link to latch/lock control.
(7) Install latch/lock control cover.
(8) Install watershield.
(9) Install sliding door trim panel.
SLIDING DOOR INSIDE LATCH RELEASE
MECHANISM
REMOVAL
(1) Remove sliding door inside latch handle.
(2) Remove push-in fastener holding cable end to
release mechanism (Fig. 108).
(3) Disengage cable end from release mechanism.
(4) Disengage latch cable from assist handle.
(5) Remove screws holding release mechanism to
handle (Fig. 110).
(6) Remove release mechanism from handle.
(7) Rotate latch release button away from mecha-
nism until flats on button pivots align with slots in
mechanism (Fig. 111).
(8) Remove button from release mechanism.
INSTALLATION
(1) Position button on release mechanism.
(2) Align and engage flats on button pivots into
slots in mechanism (Fig. 111).
(3) Rotate latch release button into mechanism.(4) Place release mechanism in position on handle.
(5) Install screws to hold release mechanism to
handle (Fig. 110).
(6) Engage latch cable into handle.
(7) Engage cable end from release mechanism.
(8) Install push-in fastener holding cable end to
release mechanism.
(9) Install sliding door inside latch handle.
SLIDING DOOR LATCH STRIKER
REMOVAL
(1) Open sliding door.
(2) Mark outline of striker on C-pillar door jamb
face to aid installation.
(3) Remove screws holding striker to C-pillar (Fig.
112).
(4) Remove striker from vehicle.
INSTALLATION
(1) Place striker in position on vehicle.
(2) Align striker to outline marks on C-pillar.
(3) Install screws to hold striker to C-pillar.
(4) Verify sliding door alignment and operation.

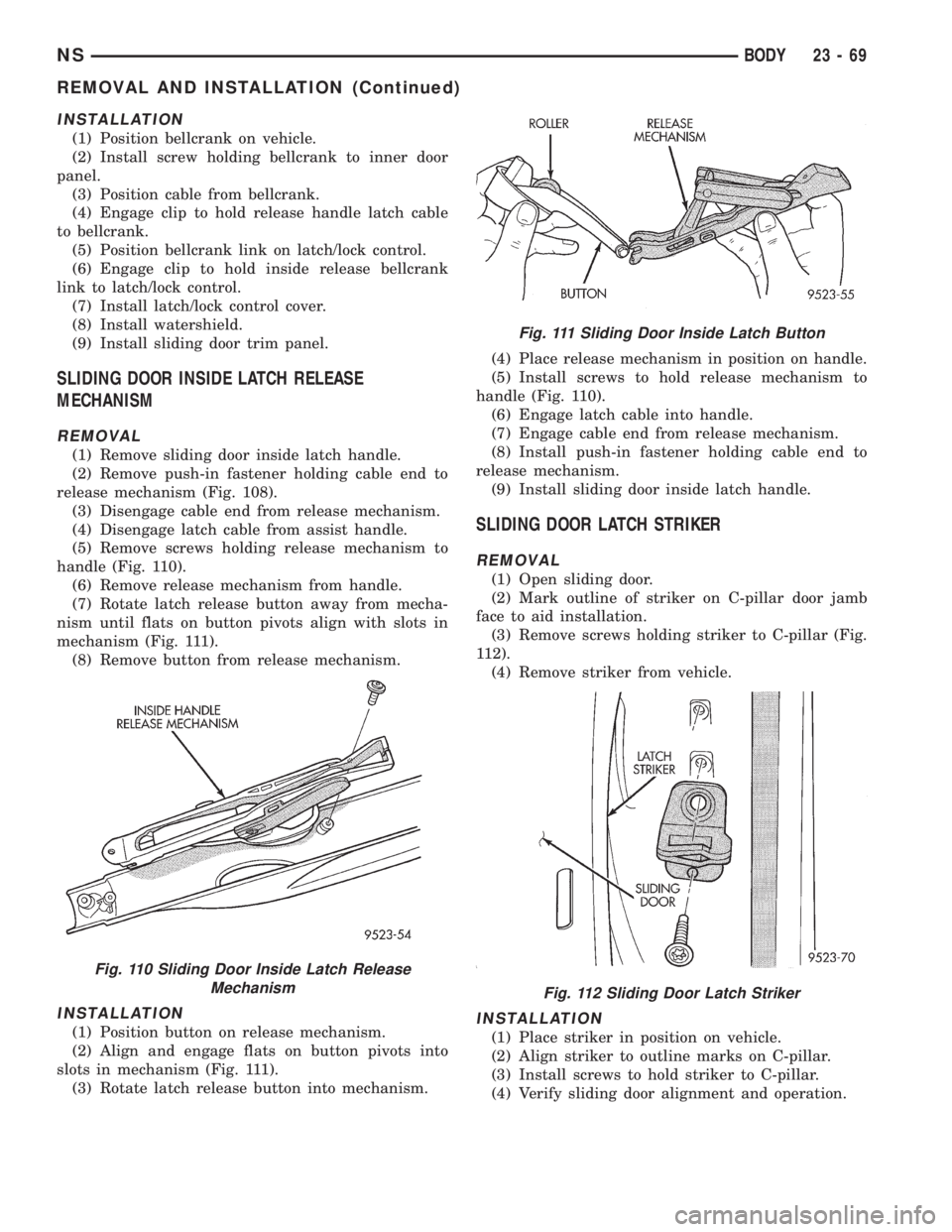

Fig. 110 Sliding Door Inside Latch Release
Mechanism
Fig. 111 Sliding Door Inside Latch Button
Fig. 112 Sliding Door Latch Striker
NSBODY 23 - 69
REMOVAL AND INSTALLATION (Continued)

SLIDING DOOR LATCH/LOCK CONTROL
REMOVAL
(1) Remove sliding door trim panel.
(2) Remove sliding door stop bumper.
(3) Remove sound pad, if equipped.
(4) Remove latch/lock control cover (Fig. 113).
(5) With sliding door ajar, disengage clip holding
rear latch link to latch/lock control (Fig. 114) (Fig.
115).
(6) Place a flat head screw driver between metal
clip ears and bottom of link.
NOTE: Rotate screw driver to remove link.
CAUTION: Replace the latch/lock control if any of
the metal clips on the latch/lock control are bent or
broken. DO NOT attempt to repair the clips to retain
the links.
(7) Remove rear latch link from latch/lock control.
(8) Disengage clip holding outside door handle link
to latch/lock control (Fig. 115).
(9) Remove outside door handle link from latch/
lock control.
(10) Disengage clip holding inside door handle
bellcrank link to latch/lock control (Fig. 115).
(11) Separate inside door handle bellcrank link
from latch/lock control.
(12) Disengage clip holding lock cylinder link to
latch/lock control.
(13) Remove lock cylinder link from control.
(14) Disengage clip holding inside lock link to
latch/lock control.
(15) Remove inside lock link from control.
(16) Disengage lock tabs holding hold open latch
cable case to latch/lock control.
(17) Remove hold open latch cable ball end from
latch/lock control.
(18) Loosen bolts holding latch/lock control to slid-
ing door.
(19) If equipped, disconnect wire connector from
power door lock motor.
(20) Remove latch/lock from vehicle.
INSTALLATION
(1) Position latch/lock locking lever in unlocked
position.
(2) Engage rigging cam (Fig. 114).
(3) Place latch/lock in position on vehicle.
(4) If equipped, engage wire connector into power
door lock motor.
(5) Insert bolt heads into slots in sliding door
inner panel.
(6) Tighten bolts to hold latch/lock control to slid-
ing door.(7) Engage hold open latch cable ball end into
latch/lock control.
(8) Engage lock tabs to hold the hold open latch
cable case to latch/lock control.
(9) Insert lock cylinder link into control.
(10) Engage clip to hold lock cylinder link to latch/
lock control.
(11) Insert inside lock link into control.
(12) Engage clip to hold inside lock link to latch/
lock control.
(13) Lift clip for inside door handle bellcrank link
to top of slot in mechanism (Fig. 114).
(14) Engage clip to hold bellcrank link to latch/lock
control.
(15) Lower clip for outside door handle link to bot-
tom of slot in mechanism and engage link to clip
(Fig. 114).
NOTE: Move link rearward until movement stops
before engaging link to clip.
(16) Place rear latch link in position on control by
moving link rearward until movement stops.
(17) Engage clip to hold rear latch release link to
latch/lock control.
(18) Push inside lock link button downward to dis-
engage rigging cam.
(19) Verify sliding door operation.
(20) Install latch/lock cover.
(21) Install sound pad, if equipped.
(22) Install sliding door stop bumper.
(23) Install sliding door trim panel.

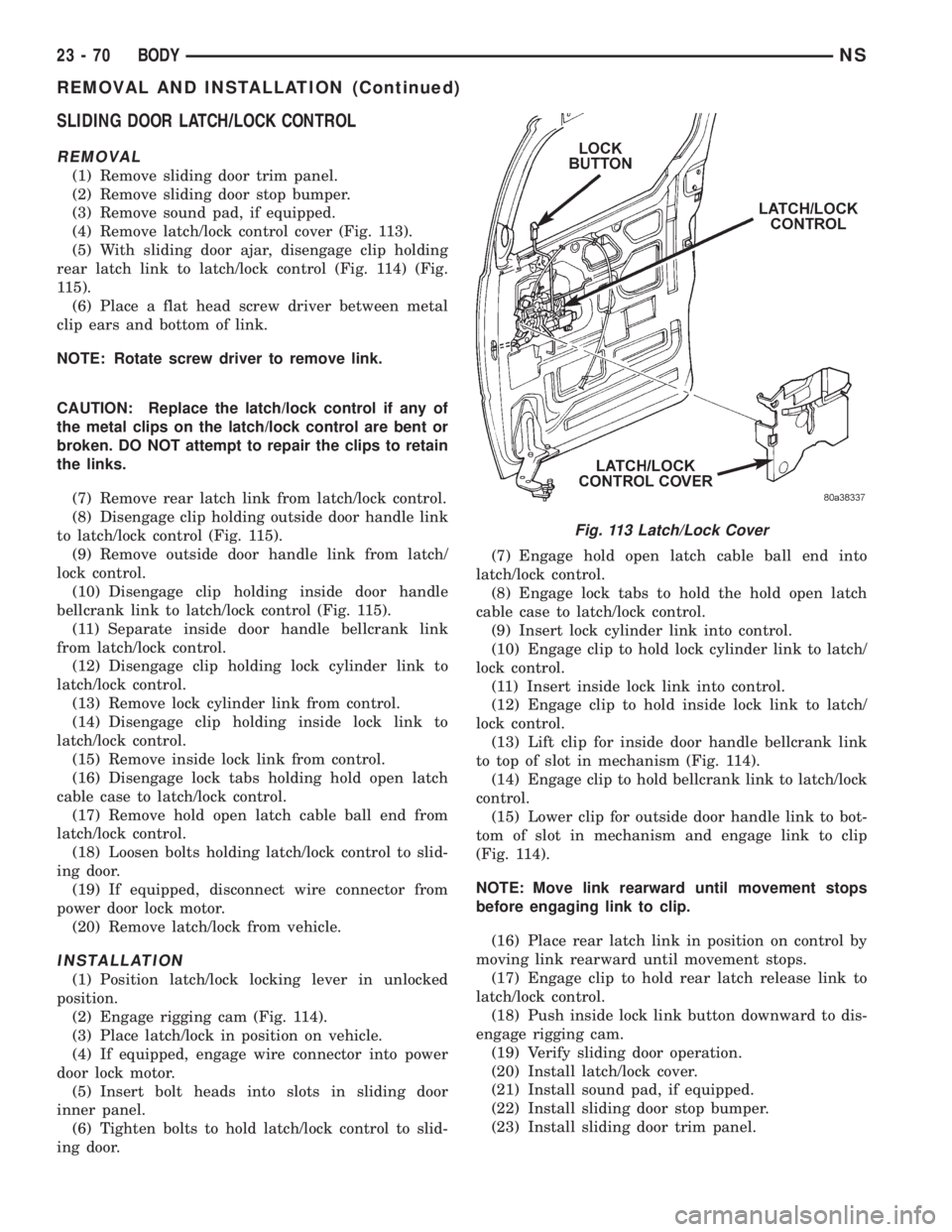

Fig. 113 Latch/Lock Cover
23 - 70 BODYNS
REMOVAL AND INSTALLATION (Continued)
