sensor CHRYSLER VOYAGER 2000 Diagnostic Manual

Symptom:
P-0134 1/1 O2 SENSOR STAYS AT CENTER
When Monitored and Set Condition:
P-0134 1/1 O2 SENSOR STAYS AT CENTER
When Monitored: With the engine running for more than 2 minutes and engine
temperature greater than 76 degrees C (170 degrees F).
Set Condition: The Upstream Oxygen Sensor Signal voltage is between 0.35 volt and 0.55
volt for 1.5 minutes.
POSSIBLE CAUSES
O2 SENSOR 1/1 GROUND CIRCUIT OPEN
O2 SENSOR 1/1 SIGNAL CIRCUIT OPEN
1/1 O2 SENSOR WIRING HARN INTER DEFECT
1/1 O2 SENSOR WIRING HARN OBS DEFECT
O2 SENSOR 1/1 DEFECTIVE
PCM DEFECTIVE
TEST ACTION APPLICABILITY
1 Ignition Off
Start the engine and allow it to reach normal operating temperature.
With the DRB in actuator tests, set RPM to 1500.
In sensors, read the Upstream Oxygen Sensor State.
Is the Upstream O2 Sensor level switching?All
Ye s®Go To 2
No®Go To 4
2 Ignition Off
Start the engine and allow it to reach normal operating temperature.
Using the DRB, set the engine speed to 1500 RPM.
With the DRB, read the Upstream O2 Sensor level.
Wiggle Upstream O2 Sensor Connector and Harness.
While wiggling the Harness, monitor the DRB display.
At any time was the Upstream O2 Sensor state locked at center?All
Ye s®Repair the open Harness or Connector that caused the O2 Sensor
state to stay at center.
Perform Powertrain Verification Test VER-5A.
No®Go To 3
60
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
3 Ignition Off
Using the schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Test Complete.
4 Ignition Off
Disconnect the Upstream O2 Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.
Using an Ohmmeter, measure the resistance between the Upstream O2 Sensor
Ground Circuit and a good engine ground.
Is the resistance above 5.0 ohms?All
Ye s®Repair the open Upstream O2 sensor Ground Circuit.
Perform Powertrain Verification Test VER-5A.
No®Go To 5
5 Ignition Off
Disconnect the Upstream O2 Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Upstream O2 Sensor Signal Circuit and B(+).
Ignition on, engine not running.
Using the DRB in sensors, read the Upstream Oxygen Sensor voltage.
Is the voltage above 1.0 volt?All
Ye s®Replace the Upstream O2 Sensor.
Perform Powertrain Verification Test VER-5A.
No®Go To 6
6 Ignition Off
Disconnect the Upstream O2 Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Disconnect the PCM Connector.
Note: Check connectors - Clean/repair as necessary.
Using an ohmmeter, measure the resistance of the Upstream O2 Sensor Signal
Circuit from the O2 Sensor Connector to the PCM Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 7
No®Repair the open Upstream O2 Sensor Signal Circuit.
Perform Powertrain Verification Test VER-5A.
7 If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-5A.
61
DRIVEABILITY
P-0134 1/1 O2 SENSOR STAYS AT CENTER ÐContinued
ProCarManuals.com

Symptom:
P-0135 O2S HEATER FAILURE
When Monitored and Set Condition:
P-0135 O2S HEATER FAILURE
When Monitored: With the ignition key off, after the engine cools down.
Set Condition: No sensor output signal is received when the PCM powers up the sensor
heater.
POSSIBLE CAUSES
1/1 O2 SENSOR CONNECTOR DAMAGED
1/1 O2 SENSOR GND CIRCUIT OPEN
ASD RELAY OUTPUT CIRCUIT OPEN
1/1 O2 SENSOR FAILURE
1/1 O2 SENSOR HEATER ELEMENT FAILURE
1/1 O2S HEATER FAILURE DOES NOT REOCCUR
TEST ACTION APPLICABILITY
1 With the DRB, read the DTCs.
Is the GLOBAL GOOD TRIP counter displayed and equal to zero?All
Ye s®Go To 2
No®Go To 3
2 Turn Ignition On (Engine Off), wait three minutes.
With the DRB , monitor the O2 Sensor voltage for a few minutes until the voltage
stabilizes between .4 and .6 volts.
With the DRB, actuate the O2 Heater Test.
Monitor O2 voltage for up to two minutes.
Is the O2 Sensor voltage still between .4 and .6 volts?All
Ye s®Go To 4
No®Go To 3
3 At this time the 1/1 O2S HEATER FAILURE does not exist or is an intermittent
problem.
With the DRB, read the FREEZE FRAME DATA.
With this screen, attempt to duplicate the condition that has set this fault.
While using FREEZE FRAME DATA pay particular attention to the fault setting
conditions, such as speed, temp, load, and map vacuum.
Does the 1/1 O2S HEATER FAILURE reoccur?All
Ye s®Go To 4
No®1/1 O2S Heater failure no longer exists.
Perform VERIFICATION TEST VER-5A3.
62
DRIVEABILITY
ProCarManuals.com

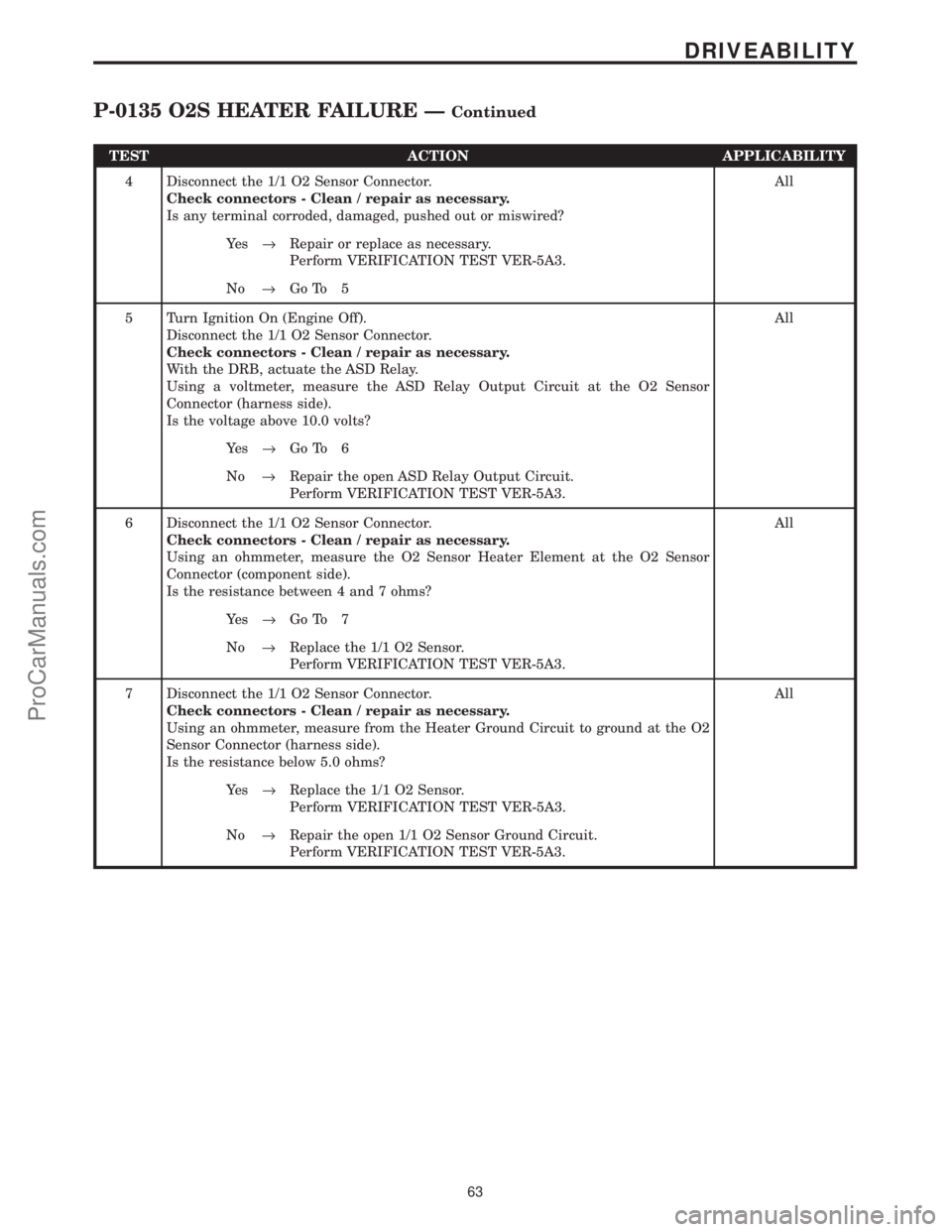

TEST ACTION APPLICABILITY
4 Disconnect the 1/1 O2 Sensor Connector.
Check connectors - Clean / repair as necessary.
Is any terminal corroded, damaged, pushed out or miswired?All
Ye s®Repair or replace as necessary.
Perform VERIFICATION TEST VER-5A3.
No®Go To 5
5 Turn Ignition On (Engine Off).
Disconnect the 1/1 O2 Sensor Connector.
Check connectors - Clean / repair as necessary.
With the DRB, actuate the ASD Relay.
Using a voltmeter, measure the ASD Relay Output Circuit at the O2 Sensor
Connector (harness side).
Is the voltage above 10.0 volts?All
Ye s®Go To 6
No®Repair the open ASD Relay Output Circuit.
Perform VERIFICATION TEST VER-5A3.
6 Disconnect the 1/1 O2 Sensor Connector.
Check connectors - Clean / repair as necessary.
Using an ohmmeter, measure the O2 Sensor Heater Element at the O2 Sensor
Connector (component side).
Is the resistance between 4 and 7 ohms?All
Ye s®Go To 7
No®Replace the 1/1 O2 Sensor.
Perform VERIFICATION TEST VER-5A3.
7 Disconnect the 1/1 O2 Sensor Connector.
Check connectors - Clean / repair as necessary.
Using an ohmmeter, measure from the Heater Ground Circuit to ground at the O2
Sensor Connector (harness side).
Is the resistance below 5.0 ohms?All
Ye s®Replace the 1/1 O2 Sensor.
Perform VERIFICATION TEST VER-5A3.
No®Repair the open 1/1 O2 Sensor Ground Circuit.
Perform VERIFICATION TEST VER-5A3.
63
DRIVEABILITY
P-0135 O2S HEATER FAILURE ÐContinued
ProCarManuals.com

Symptom:
P-0137 1/2 O2 SENSOR VOLTAGE SHORTED TO GROUND
When Monitored and Set Condition:
P-0137 1/2 O2 SENSOR VOLTAGE SHORTED TO GROUND
When Monitored: With the ignition key off, after the O2 Sensor cools down; and after the
next key on provided that it is a cold start (coolant temperature less than 38 degrees C
(100.4 degrees F) and ambient temperature within 13.7 degrees C (7.2 degrees F) of coolant
temperature.
Set Condition: The Downstream O2 Sensor Signal voltage is below 0.156 volt prior to O2
Sensor Heater test (cool down period), and O2 voltage less than 0.156 volt after the key on
in the subsequent start.
POSSIBLE CAUSES
1/2 02 SENSOR VOLTAGE LOW
1/2 O2S SIGNAL CIRCUIT SHORT TO GROUND
1/2 O2S SIGNAL CKT SHORT TO GROUND CIRCUIT
1/2 O2 SENSOR DEFECTIVE
PCM DEFECTIVE (1/2 O2S)
TEST ACTION APPLICABILITY
1 Ignition Off
Turn ignition on.
With the DRB, monitor the Downstream O2 Sensor voltage for a few minutes.
Wait three minutes or until the voltage stabilizes (between 0.4 and 0.6 volt).
With the DRB, monitor the Downstream O2 Sensor voltage.
Is the Downstream O2 Sensor voltage below 0.156 volt?All
Ye s®Go To 2
No®The condition required to set this trouble code is not present at
this time.
Perform Powertrain Verification Test VER-5A.
2 Ignition Off
Disconnect the Downstream O2 Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Key on.
With the DRB, monitor the Downstream O2 Sensor voltage.
Is the Downstream O2 Sensor voltage below 0.156 volts?All
Ye s®Go To 3
No®Replace the Downstream O2 Sensor.
Perform Powertrain Verification Test VER-5A.
64
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
3 Ignition Off
Disconnect the Downstream O2 Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Disconnect the PCM Connectors.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the resistance between the Downstream O2 Sensor
Signal Circuit and a good ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Downstream O2S Signal Circuit for a short to ground.
Perform Powertrain Verification Test VER-5A.
No®Go To 4
4 Ignition Off
Disconnect the Downstream O2 Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Disconnect the PCM Connectors.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the resistance between the Downstream O2 Sensor
Signal Circuit and the Sensor Ground Circuit.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Downstream O2 Sensor Signal Circuit for a short to
the Sensor Ground Circuit.
Perform Powertrain Verification Test VER-5A.
No®Go To 5
5 If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.All
Repair
Replace PCM.
Perform Powertrain Verification Test VER-5A.
65
DRIVEABILITY
P-0137 1/2 O2 SENSOR VOLTAGE SHORTED TO GROUND ÐContinued
ProCarManuals.com

Symptom:
P-0138 1/2 O2 SENSOR SHORTED TO VOLTAGE
When Monitored and Set Condition:
P-0138 1/2 O2 SENSOR SHORTED TO VOLTAGE
When Monitored: With the engine running for more than 2 minutes and coolant
temperature above 76 degrees C (170 degrees F).
Set Condition: The Downstream Oxygen Sensor Signal voltage is above 1.2 volts.
POSSIBLE CAUSES
1/2 O2 SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
1/2 O2 SEN HARNESS INTERMITTENT SHORT TO VOLTAGE
1/2 O2 SENSOR CONNECTOR OBSERVABLE DEFECT (A)
1/2 O2 SENSOR CONNECTOR OBSERVABLE DEFECT (B)
1/2 O2 SENSOR HARNESS OBSERVABLE DEFECT
1/2 O2 SENSOR DEFECTIVE
TEST ACTION APPLICABILITY
1 Start the engine.
With the DRB, read the Downstream O2 Sensor voltage.
Is the Downstream O2 Sensor voltage above 1.2 volts?All
Ye s®Go To 2
No®Go To 5
2 Ignition Off
Disconnect the Downstream O2 Sensor.
Note: Check connectors - Clean/repair as necessary.
Start the engine.
With the DRB, read the Downstream O2 Sensor Voltage.
Is the Upstream O2 Sensor voltage above 1.2 volts?All
Ye s®Repair the Downstream O2 Sensor Signal Circuit for a short to
voltage. If ok, replace the PCM.
Perform Powertrain Verification Test VER-5A.
No®Go To 3
3 Ignition Off
Disconnect the Downstream O2 Sensor.
Note: Check connectors - Clean/repair as necessary.
Is any Terminal damaged, pushed out or miswired?All
Ye s®Repair or replace as necessary.
Perform Powertrain Verification Test VER-5A.
No®Go To 4
66
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
4 If there are no potential causes remaining, the Downstream O2 Sensor is assumed to
be defective.
View repair options.All
Repair
Replace the Upstream O2 Sensor.
Perform Powertrain Verification Test VER-5A.
5 Start the engine.
Wiggle Downstream O2 Sensor Connector and Harness.
While wiggling the Harness, watch the Downstream O2 Sensor voltage.
Did the O2 Sensor voltage go above 1.2 volts at any time?All
Ye s®Repair the Harness or Connector that has the intermittent short
to voltage.
Perform Powertrain Verification Test VER-5A.
No®Go To 6
6 Ignition Off
Using the schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Go To 7
7 Ignition Off
Disconnect the Downstream O2 Sensor.
Note: Check connectors - Clean/repair as necessary.
Inspect connectors.
Is any Terminal damaged, pushed out or miswired?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Test Complete.
67
DRIVEABILITY
P-0138 1/2 O2 SENSOR SHORTED TO VOLTAGE ÐContinued
ProCarManuals.com

Symptom:
P-0139 1/2 O2S SLOW RESPONSE
When Monitored and Set Condition:
P-0139 1/2 O2S SLOW RESPONSE
When Monitored: With the engine running, engine at normal operating temperature,
ambient air temperature greater than þ7ÉC (20ÉF) and vehicle odometer is greater than
6437 Kilometers (4000 miles).
Set Condition: The Oxygen Sensor Signal voltage does not exceed 0.53 volts and does not
fall below 0.35 volts once during the drive cycle.
POSSIBLE CAUSES
ENGINE MECHANICAL PROBLEM
1/2 O2 SENSOR GROUND CKT HIGH RESISTANCE
1/2 O2 SENSOR GROUND CKT POOR CONNECTION
1/2 O2 SENSOR SIGNAL CKT HIGH RESISTANCE
1/2 O2 SENSOR SIGNAL CKT POOR CONNECTION
1/2 O2 SENSOR SLOW RESPONSE
EXHAUST LEAK
1/2 O2S SLOW RESPONSE DOES NOT REOCCUR
TEST ACTION APPLICABILITY
1 With the DRB, read the DTCs.
Is the GLOBAL GOOD TRIP counter displayed and equal to zero?All
Ye s®Go To 5
No®Go To 2
2 Turn Ignition On (Engine Off).
During the following voltage drop measurement, wiggle wires between O2S Connec-
tor and PCM Connector.
Using a voltmeter, backprobe O2S (Sensor Ground) Circuit between O2S Connector
(Sensor Ground) and PCM Connector (Sensor Ground).
While wiggling wires, is the voltage drop reading below 0.10 VDC?All
Ye s®Go To 3
No®Repair poor connection (high resistance) on O2 Sensor Ground
Circuit.
Perform VERIFICATION TEST VER-5A3.
68
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
3 Turn Ignition On (Engine Off).
During the following voltage drop measurement, wiggle wires between O2S Connec-
tor and PCM Connector.
Using a voltmeter, backprobe O2S (Signal) Circuit between O2S Connector (O2S
Signal) and PCM Connector (O2S Signal).
While wiggling wires, is the voltage drop reading below 0.10 VDC?All
Ye s®Go To 4
No®Repair poor connection (high resistance) on O2S Signal Circuit.
Perform VERIFICATION TEST VER-5A3.
4 At this time the 1/2 O2S SLOW RESPONSE does not exist or is an intermittent
problem.
With the DRB, read the FREEZE FRAME DATA.
With this screen, attempt to duplicate the condition that has set this fault.
While using FREEZE FRAME DATA pay particular attention to the fault setting
conditions, such as speed, temp, load, and map vacuum.
Does the 1/2 O2S SLOW RESPONSE reoccur?All
Ye s®Go To 5
No®The 1/2 O2S SLOW RESPONSE no longer exists.
Perform VERIFICATION TEST VER-5A3.
5 The following are possible causes for O2 Sensor Slow Response: exhaust leak, fuel
contamination, O2 sensor failure, electrical wiring connectors, electrical mechanical,
and O2 heater failure.
Start the Engine.
NOTE: Check the exhaust for excessive smoke caused by oil or coolant
consumption.
Is there an oil or coolant consumption condition present?All
Ye s®Repair engine mechanical as necessary and replace O2 Sensor.
Perform VERIFICATION TEST VER-5A3.
No®Go To 6
6 The following are possible causes for O2 Sensor Slow Response: exhaust leak, fuel
contamination, O2 sensor failure, electrical wiring connectors, electrical mechanical,
and O2 heater failure.
Start the Engine.
Check the Exhaust System for leaks between the Engine and the catalyst.
Are there any leaks?All
Ye s®Repair or replace leaking Exhaust System as necessary.
Perform VERIFICATION TEST VER-5A3.
No®Go To 7
7 The following are possible causes for O2 Sensor Slow Response: exhaust leak, fuel
contamination, O2 sensor failure, electrical wiring connectors, electrical mechanical,
and O2 heater failure.
Turn Ignition On (Engine Off).
Using a voltmeter, backprobe O2S (Signal) Circuit between O2S Connector (O2S
Signal) and PCM Connector (O2S Signal).
Is the voltage drop reading below 0.10 VDC?All
Ye s®Go To 8
No®Repair poor connection (high resistance) on O2S Signal Circuit.
Perform VERIFICATION TEST VER-5A3.
69
DRIVEABILITY
P-0139 1/2 O2S SLOW RESPONSE ÐContinued
ProCarManuals.com
