CHRYSLER VOYAGER 2001 Service Manual

TEST ACTION APPLICABILITY
2 With the DRB select PASSIVE RESTRAINTS, AIRBAG and MONITOR DISPLAY.
Using the DRB, read the WARNING LAMP MONITOR screen.
Select the LAMP STATUS displayed on the DRB monitors screen.
Does the DRB show the LAMP STATUS: OK?All
YES
Go To 3
NO
Replace Instrument Cluster circuit board.
Perform AIRBAG VERIFICATION TEST - VER 1.
3WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Occupant Restraint Controller in accordance with
Service Instructions. WARNING: make sure the battery is discon-
nected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
172
AIRBAG
ORC, WARNING INDICATOR CIRCUIT OPEN - ACTIVE ÐContinued

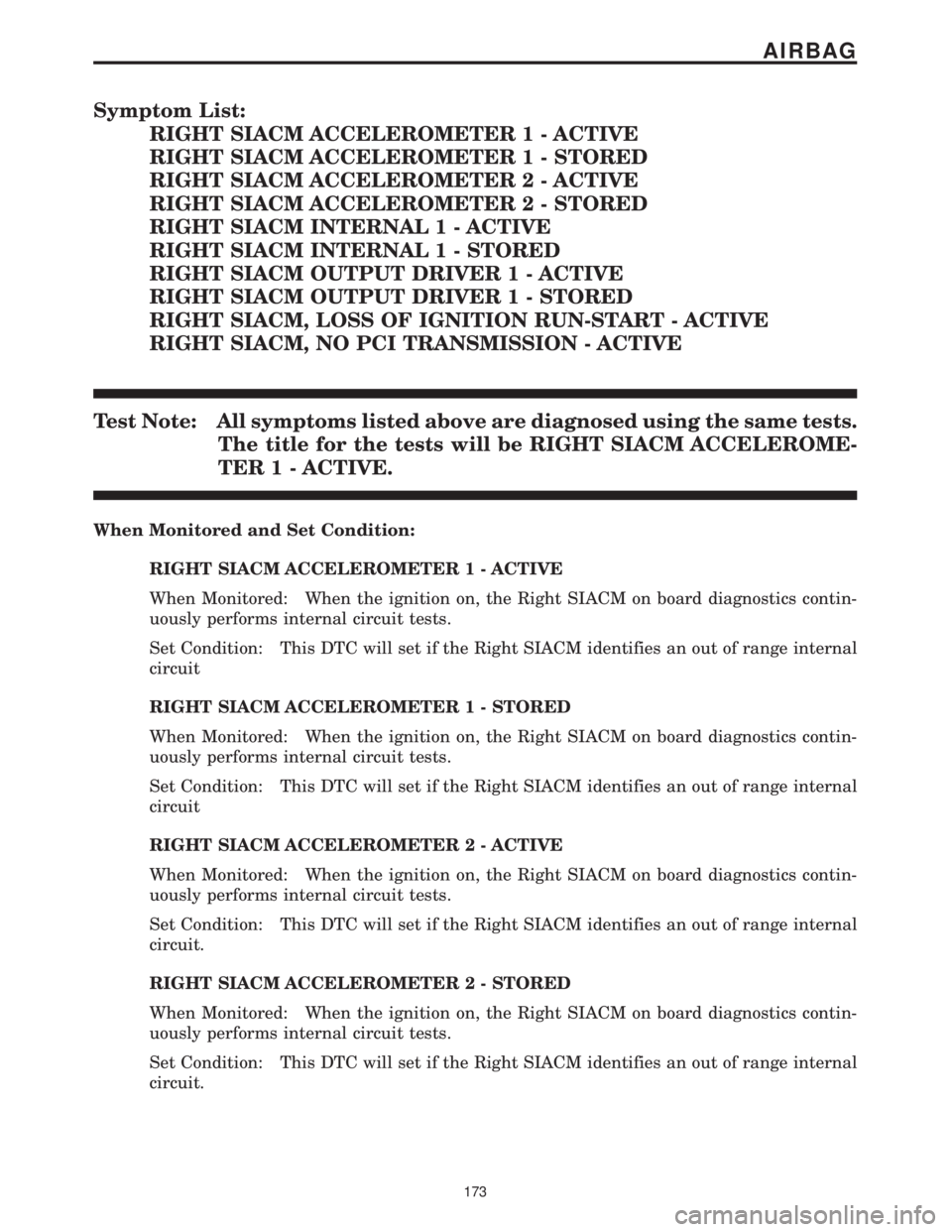

Symptom List:
RIGHT SIACM ACCELEROMETER 1 - ACTIVE
RIGHT SIACM ACCELEROMETER 1 - STORED
RIGHT SIACM ACCELEROMETER 2 - ACTIVE
RIGHT SIACM ACCELEROMETER 2 - STORED
RIGHT SIACM INTERNAL 1 - ACTIVE
RIGHT SIACM INTERNAL 1 - STORED
RIGHT SIACM OUTPUT DRIVER 1 - ACTIVE
RIGHT SIACM OUTPUT DRIVER 1 - STORED
RIGHT SIACM, LOSS OF IGNITION RUN-START - ACTIVE
RIGHT SIACM, NO PCI TRANSMISSION - ACTIVE
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be RIGHT SIACM ACCELEROME-
TER 1 - ACTIVE.
When Monitored and Set Condition:
RIGHT SIACM ACCELEROMETER 1 - ACTIVE
When Monitored: When the ignition on, the Right SIACM on board diagnostics contin-
uously performs internal circuit tests.
Set Condition: This DTC will set if the Right SIACM identifies an out of range internal
circuit
RIGHT SIACM ACCELEROMETER 1 - STORED
When Monitored: When the ignition on, the Right SIACM on board diagnostics contin-
uously performs internal circuit tests.
Set Condition: This DTC will set if the Right SIACM identifies an out of range internal
circuit
RIGHT SIACM ACCELEROMETER 2 - ACTIVE
When Monitored: When the ignition on, the Right SIACM on board diagnostics contin-
uously performs internal circuit tests.
Set Condition: This DTC will set if the Right SIACM identifies an out of range internal
circuit.
RIGHT SIACM ACCELEROMETER 2 - STORED
When Monitored: When the ignition on, the Right SIACM on board diagnostics contin-
uously performs internal circuit tests.
Set Condition: This DTC will set if the Right SIACM identifies an out of range internal
circuit.
173
AIRBAG

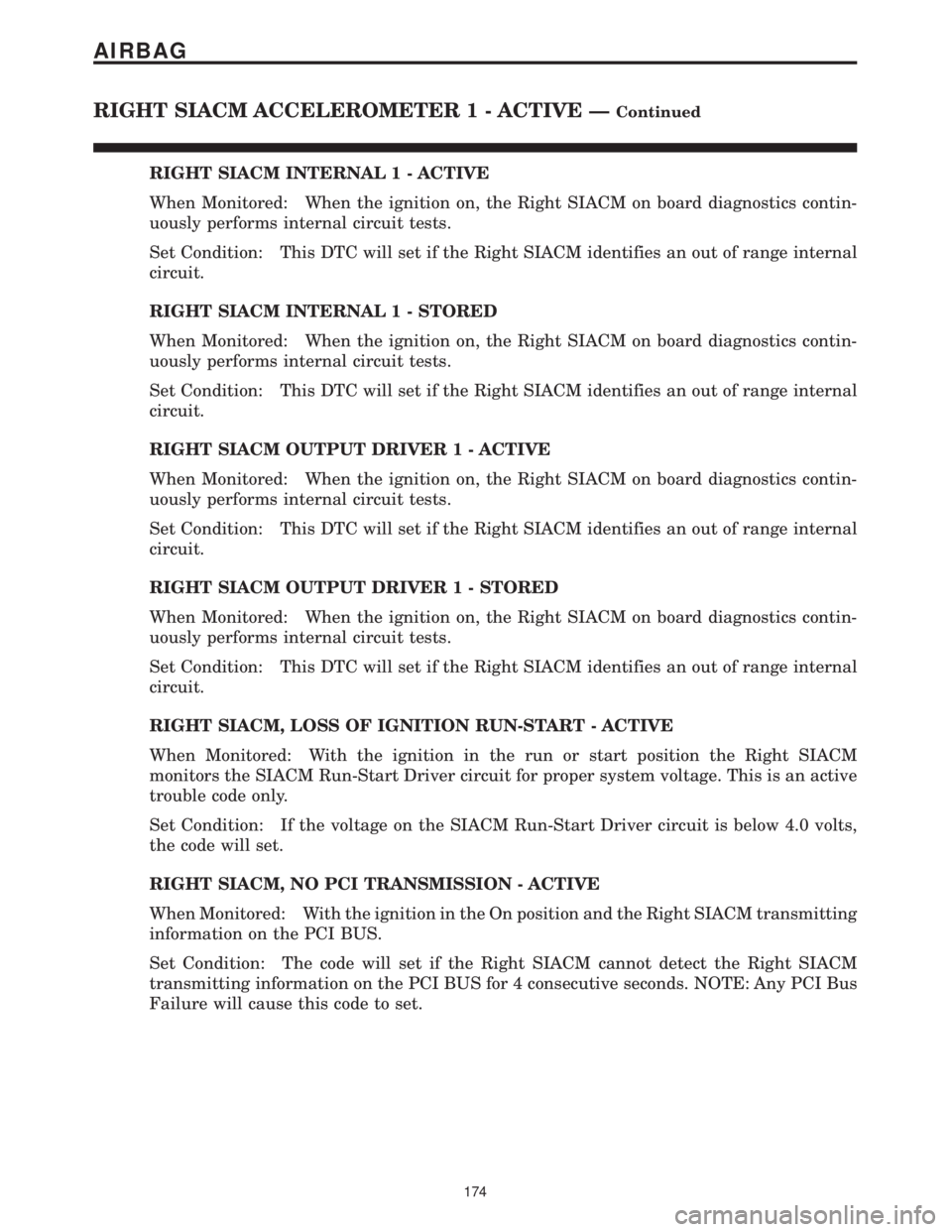

RIGHT SIACM INTERNAL 1 - ACTIVE
When Monitored: When the ignition on, the Right SIACM on board diagnostics contin-
uously performs internal circuit tests.
Set Condition: This DTC will set if the Right SIACM identifies an out of range internal
circuit.
RIGHT SIACM INTERNAL 1 - STORED
When Monitored: When the ignition on, the Right SIACM on board diagnostics contin-
uously performs internal circuit tests.
Set Condition: This DTC will set if the Right SIACM identifies an out of range internal
circuit.
RIGHT SIACM OUTPUT DRIVER 1 - ACTIVE
When Monitored: When the ignition on, the Right SIACM on board diagnostics contin-
uously performs internal circuit tests.
Set Condition: This DTC will set if the Right SIACM identifies an out of range internal
circuit.
RIGHT SIACM OUTPUT DRIVER 1 - STORED
When Monitored: When the ignition on, the Right SIACM on board diagnostics contin-
uously performs internal circuit tests.
Set Condition: This DTC will set if the Right SIACM identifies an out of range internal
circuit.
RIGHT SIACM, LOSS OF IGNITION RUN-START - ACTIVE
When Monitored: With the ignition in the run or start position the Right SIACM
monitors the SIACM Run-Start Driver circuit for proper system voltage. This is an active
trouble code only.
Set Condition: If the voltage on the SIACM Run-Start Driver circuit is below 4.0 volts,
the code will set.
RIGHT SIACM, NO PCI TRANSMISSION - ACTIVE
When Monitored: With the ignition in the On position and the Right SIACM transmitting
information on the PCI BUS.
Set Condition: The code will set if the Right SIACM cannot detect the Right SIACM
transmitting information on the PCI BUS for 4 consecutive seconds. NOTE: Any PCI Bus
Failure will cause this code to set.
174
AIRBAG

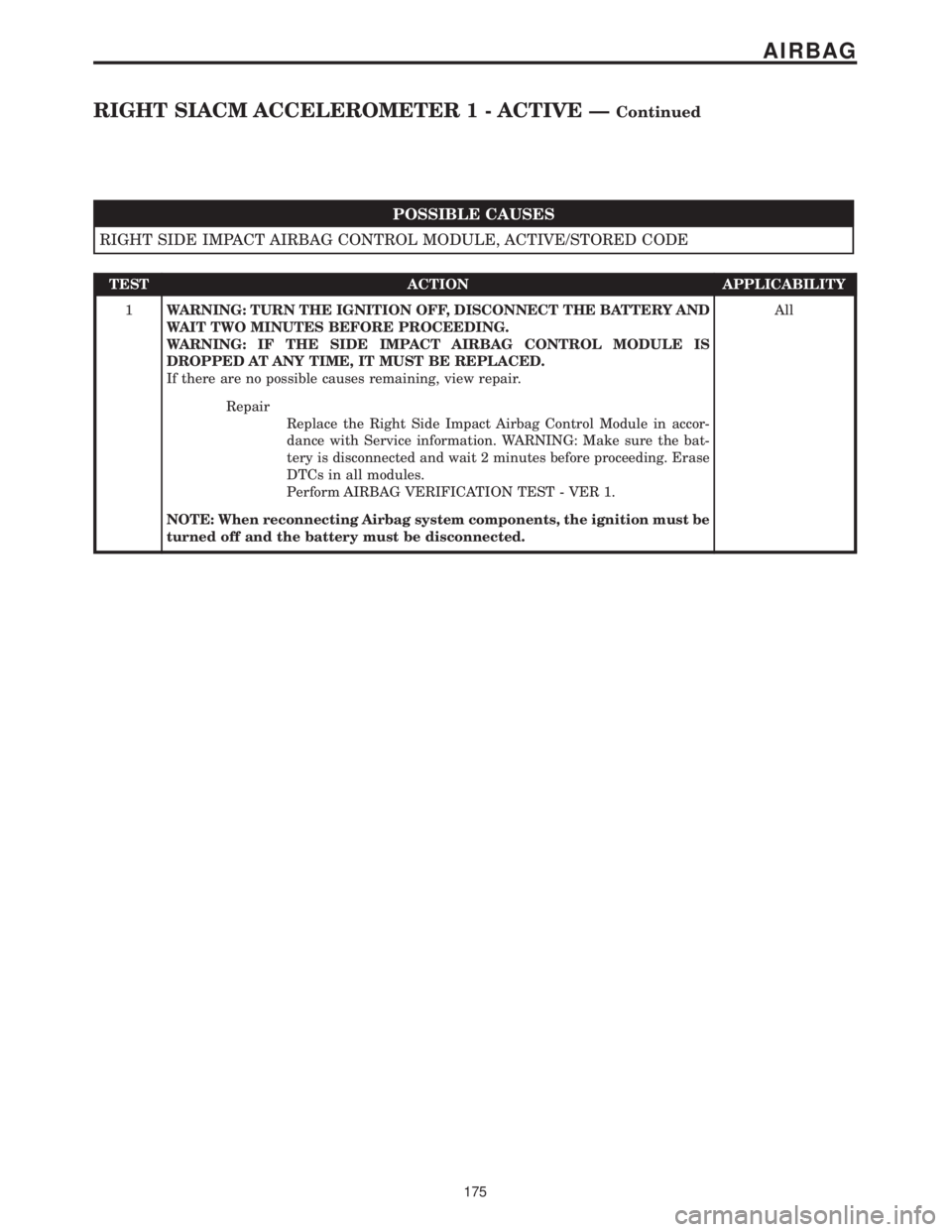

RIGHT SIACM ACCELEROMETER 1 - ACTIVE ÐContinued

POSSIBLE CAUSES
RIGHT SIDE IMPACT AIRBAG CONTROL MODULE, ACTIVE/STORED CODE
TEST ACTION APPLICABILITY
1WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE SIDE IMPACT AIRBAG CONTROL MODULE IS
DROPPED AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Right Side Impact Airbag Control Module in accor-
dance with Service information. WARNING: Make sure the bat-
tery is disconnected and wait 2 minutes before proceeding. Erase
DTCs in all modules.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
175
AIRBAG
RIGHT SIACM ACCELEROMETER 1 - ACTIVE ÐContinued

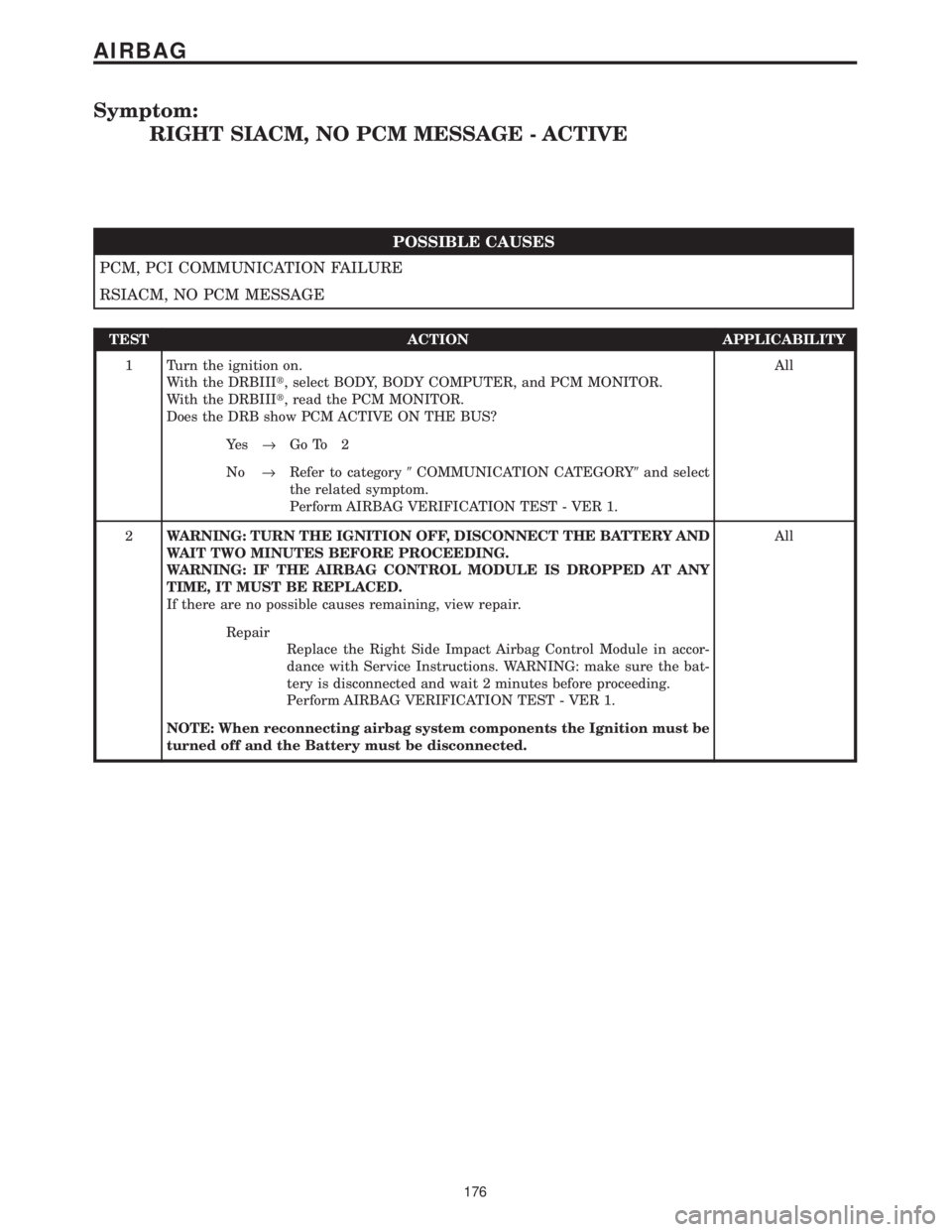

Symptom:
RIGHT SIACM, NO PCM MESSAGE - ACTIVE
POSSIBLE CAUSES
PCM, PCI COMMUNICATION FAILURE
RSIACM, NO PCM MESSAGE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, select BODY, BODY COMPUTER, and PCM MONITOR.
With the DRBIIIt, read the PCM MONITOR.
Does the DRB show PCM ACTIVE ON THE BUS?All
Ye s®Go To 2
No®Refer to category9COMMUNICATION CATEGORY9and select
the related symptom.
Perform AIRBAG VERIFICATION TEST - VER 1.
2WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE AIRBAG CONTROL MODULE IS DROPPED AT ANY
TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Right Side Impact Airbag Control Module in accor-
dance with Service Instructions. WARNING: make sure the bat-
tery is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
176
AIRBAG

Symptom:
RIGHT SIACM, SEAT SQUIB CIRCUIT OPEN - ACTIVE
When Monitored and Set Condition:
RIGHT SIACM, SEAT SQUIB CIRCUIT OPEN - ACTIVE
When Monitored: With the ignition is On, the Right SIACM monitors the resistance of
the Right Seat Squib circuits.
Set Condition: The Right SIACM has detected an open circuit or high resistance on the
Right Seat Squib circuits.
POSSIBLE CAUSES
RIGHT SEAT AIRBAG CIRCUIT OPEN
RIGHT SEAT SQUIB LINE 1 CIRCUIT OPEN
RIGHT SEAT SQUIB LINE 2 CIRCUIT OPEN
RISACM, RIGHT SEAT SQUIB CIRCUIT OPEN
TEST ACTION APPLICABILITY
1NOTE: Ensure that the battery is fully charged.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED CURTAIN AIRBAG
FACE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL INTO
THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN SERI-
OUS OR FATAL INJURY.
Remove the seat back cover and partially remove the material to gain access to the
Seat Airbag connector.
Disconnect the Right Seat Airbag connector located inside the right seat.
Do not disconnect the airbag connectors at the base of the seat.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 Passenger cable, and appropriate jumper to the
Right Seat Airbag connector.
Turn Ignition On, then reconnect the Battery.
With the DRBIIIt, read the active Right SIACM DTC's.
Does the DRBIIItdisplay RIGHT SEAT SQUIB CIRCUIT OPEN?All
Ye s®Go To 2
No®Replace Right Seat Airbag.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
177
AIRBAG

TEST ACTION APPLICABILITY
2WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Remove the seat back cover and partially remove the material to gain access to the
Seat Airbag connector.
Disconnect the Right Seat Airbag Module Squib connector located inside the right
seat.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Right Side Impact Airbag Control Module connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Right Side Impact Airbag
Control Module connector.
Measure the resistance of the Right Seat Squib Line 1 circuit between the Right Seat
Airbag connector and 8443 SIACM adaptor.
Is the resistance below 1.0 ohms?All
Ye s®Go To 3
No®Repair open or high resistance in the Right Seat Squib Line 1
circuit.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
3WARNING: Turn Ignition Off, Disconnect the Battery and wait 2 minutes
before proceeding.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Remove the seat back cover and partially remove the material to gain access to the
Seat Airbag connector.
Disconnect the Right Seat Airbag Module Squib connector located inside the right
seat.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Right Side Impact Airbag Control Module Connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Right Side Impact Airbag
Connector.
Measure the resistance of the Right Seat Squib Line 2 circuit between the Right
SIACM connector and the Right Seat Squib connector.
Is the resistance below 1.0 ohms?All
Ye s®Repair open or high resistance in Right Seat Squib Line 2 circuit.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 4
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
178
AIRBAG

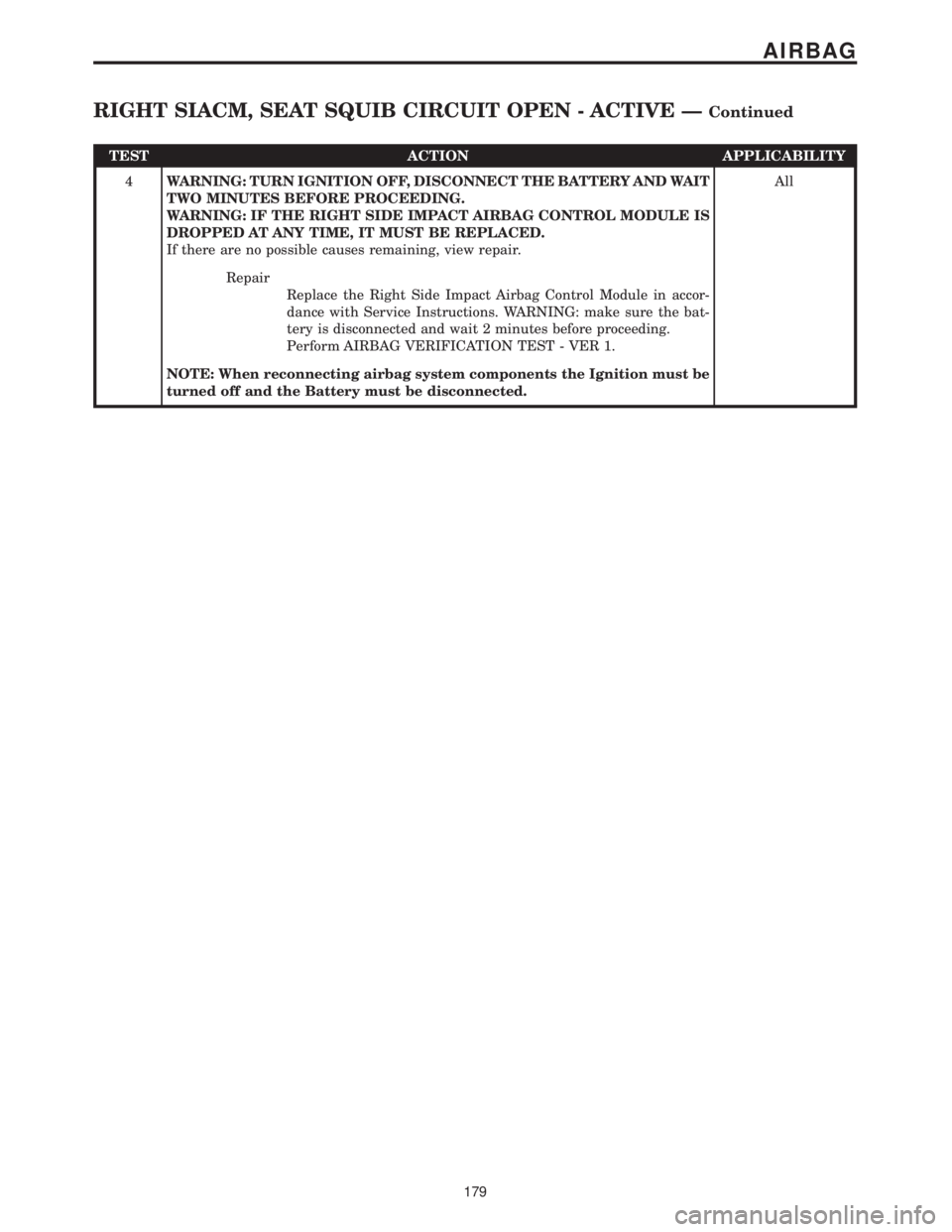

RIGHT SIACM, SEAT SQUIB CIRCUIT OPEN - ACTIVE ÐContinued

TEST ACTION APPLICABILITY
4WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE RIGHT SIDE IMPACT AIRBAG CONTROL MODULE IS
DROPPED AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Right Side Impact Airbag Control Module in accor-
dance with Service Instructions. WARNING: make sure the bat-
tery is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
179
AIRBAG
RIGHT SIACM, SEAT SQUIB CIRCUIT OPEN - ACTIVE ÐContinued

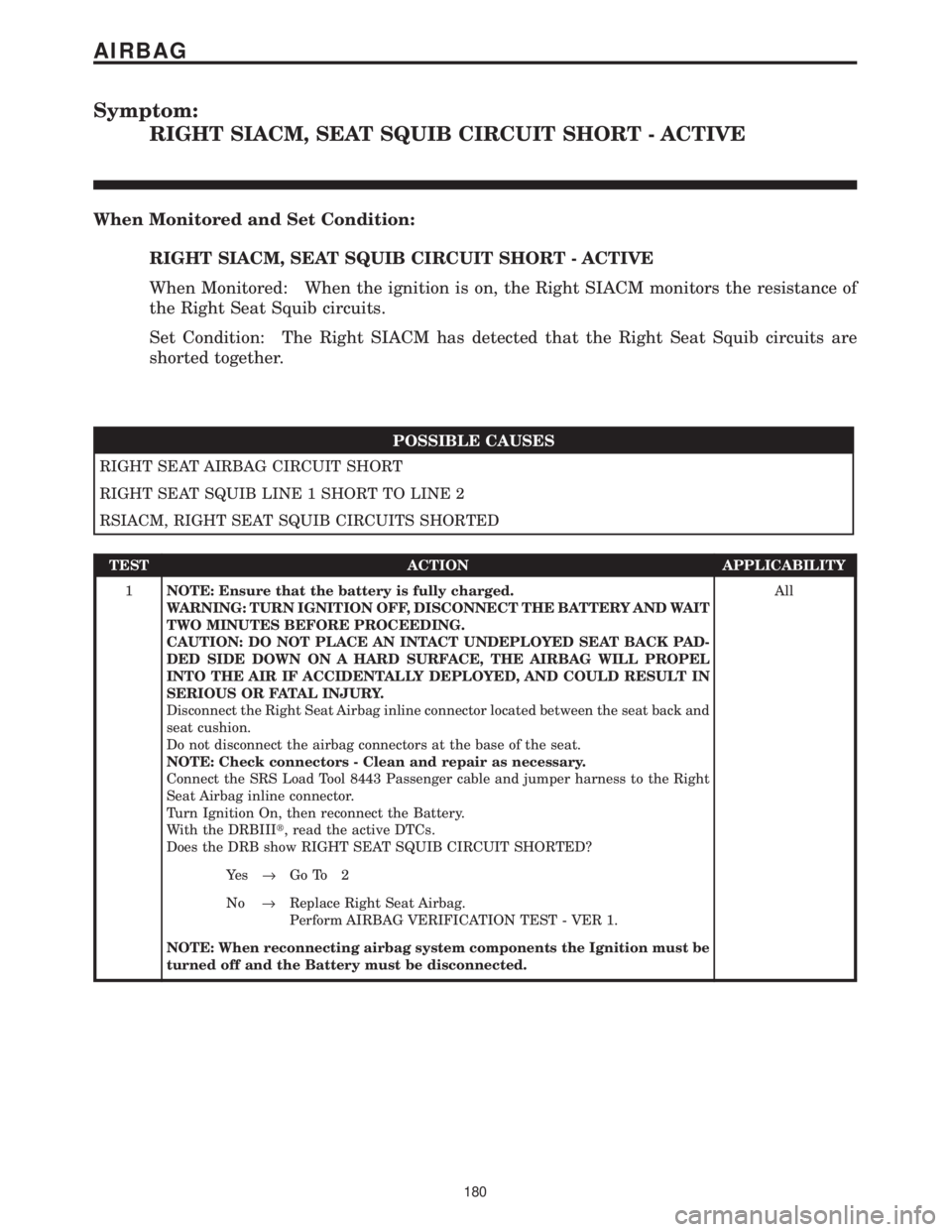

Symptom:
RIGHT SIACM, SEAT SQUIB CIRCUIT SHORT - ACTIVE
When Monitored and Set Condition:
RIGHT SIACM, SEAT SQUIB CIRCUIT SHORT - ACTIVE
When Monitored: When the ignition is on, the Right SIACM monitors the resistance of
the Right Seat Squib circuits.
Set Condition: The Right SIACM has detected that the Right Seat Squib circuits are
shorted together.
POSSIBLE CAUSES
RIGHT SEAT AIRBAG CIRCUIT SHORT
RIGHT SEAT SQUIB LINE 1 SHORT TO LINE 2
RSIACM, RIGHT SEAT SQUIB CIRCUITS SHORTED
TEST ACTION APPLICABILITY
1NOTE: Ensure that the battery is fully charged.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
CAUTION: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Right Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 Passenger cable and jumper harness to the Right
Seat Airbag inline connector.
Turn Ignition On, then reconnect the Battery.
With the DRBIIIt, read the active DTCs.
Does the DRB show RIGHT SEAT SQUIB CIRCUIT SHORTED?All
Ye s®Go To 2
No®Replace Right Seat Airbag.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
180
AIRBAG

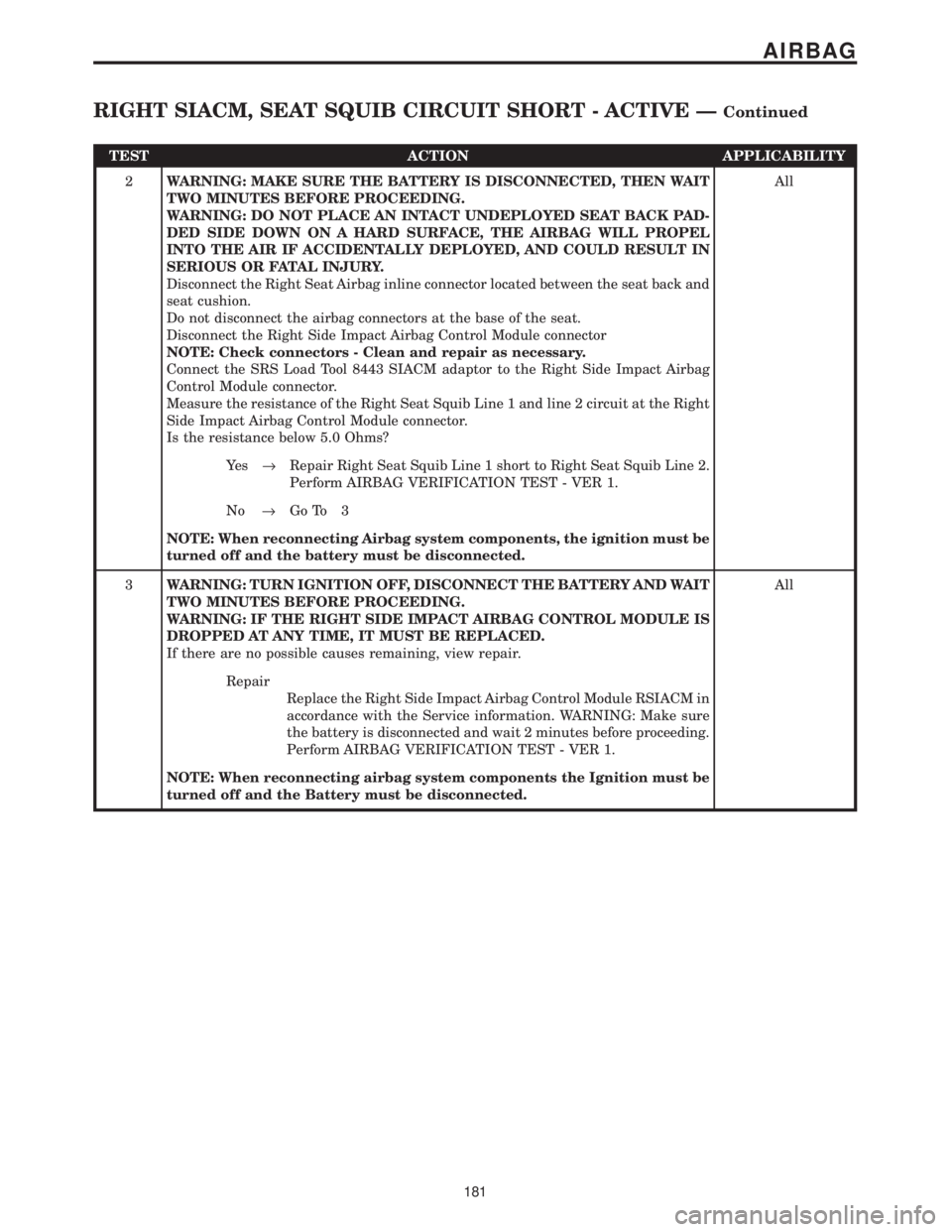

TEST ACTION APPLICABILITY
2WARNING: MAKE SURE THE BATTERY IS DISCONNECTED, THEN WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Right Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Right Side Impact Airbag Control Module connector
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Right Side Impact Airbag
Control Module connector.
Measure the resistance of the Right Seat Squib Line 1 and line 2 circuit at the Right
Side Impact Airbag Control Module connector.
Is the resistance below 5.0 Ohms?All
Ye s®Repair Right Seat Squib Line 1 short to Right Seat Squib Line 2.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
3WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE RIGHT SIDE IMPACT AIRBAG CONTROL MODULE IS
DROPPED AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Right Side Impact Airbag Control Module RSIACM in
accordance with the Service information. WARNING: Make sure
the battery is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
181
AIRBAG
RIGHT SIACM, SEAT SQUIB CIRCUIT SHORT - ACTIVE ÐContinued
