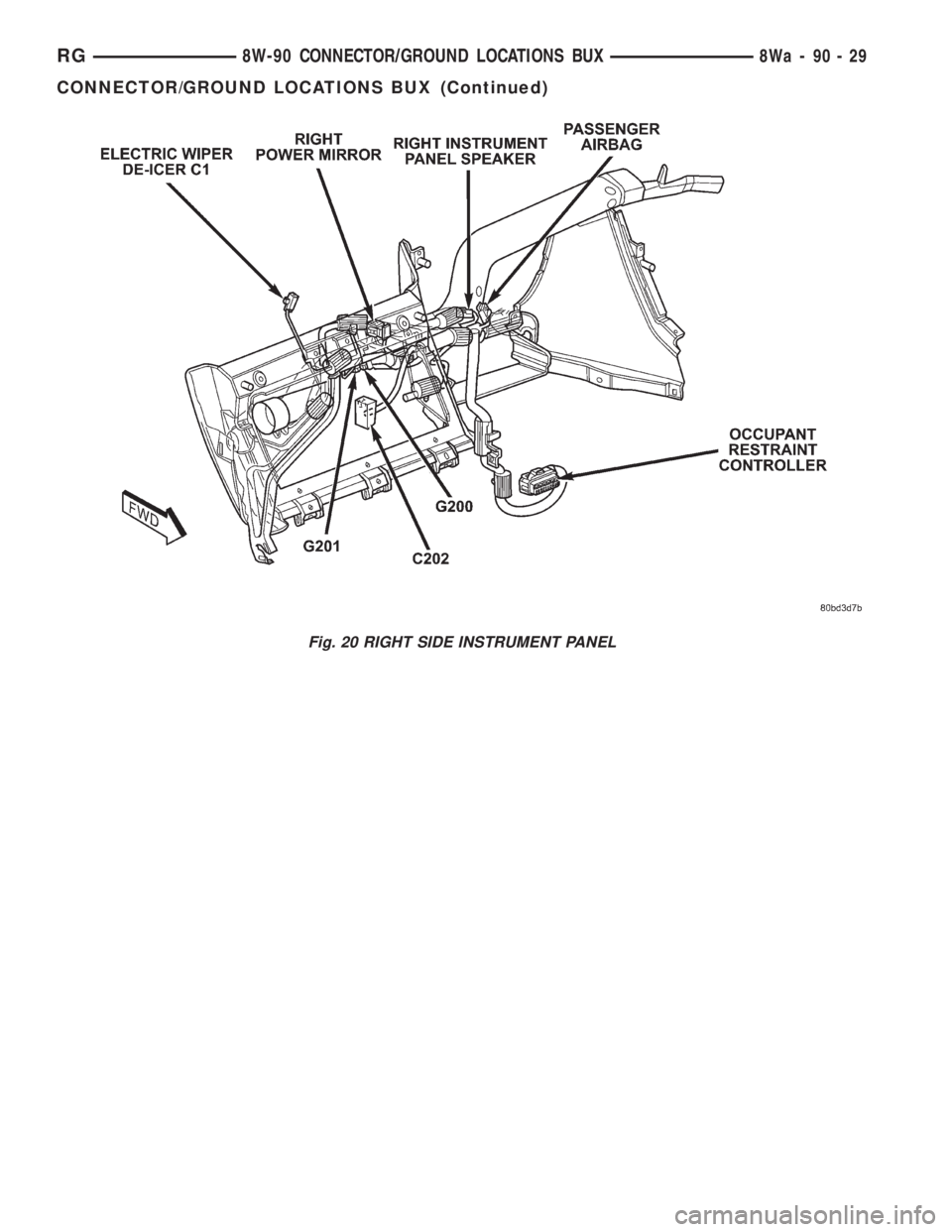

Fig. 20 RIGHT SIDE INSTRUMENT PANEL
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-29
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Fig. 21 CENTER INSTRUMENT PANEL RHD
8Wa - 90 - 30 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG
CONNECTOR/GROUND LOCATIONS BUX (Continued)

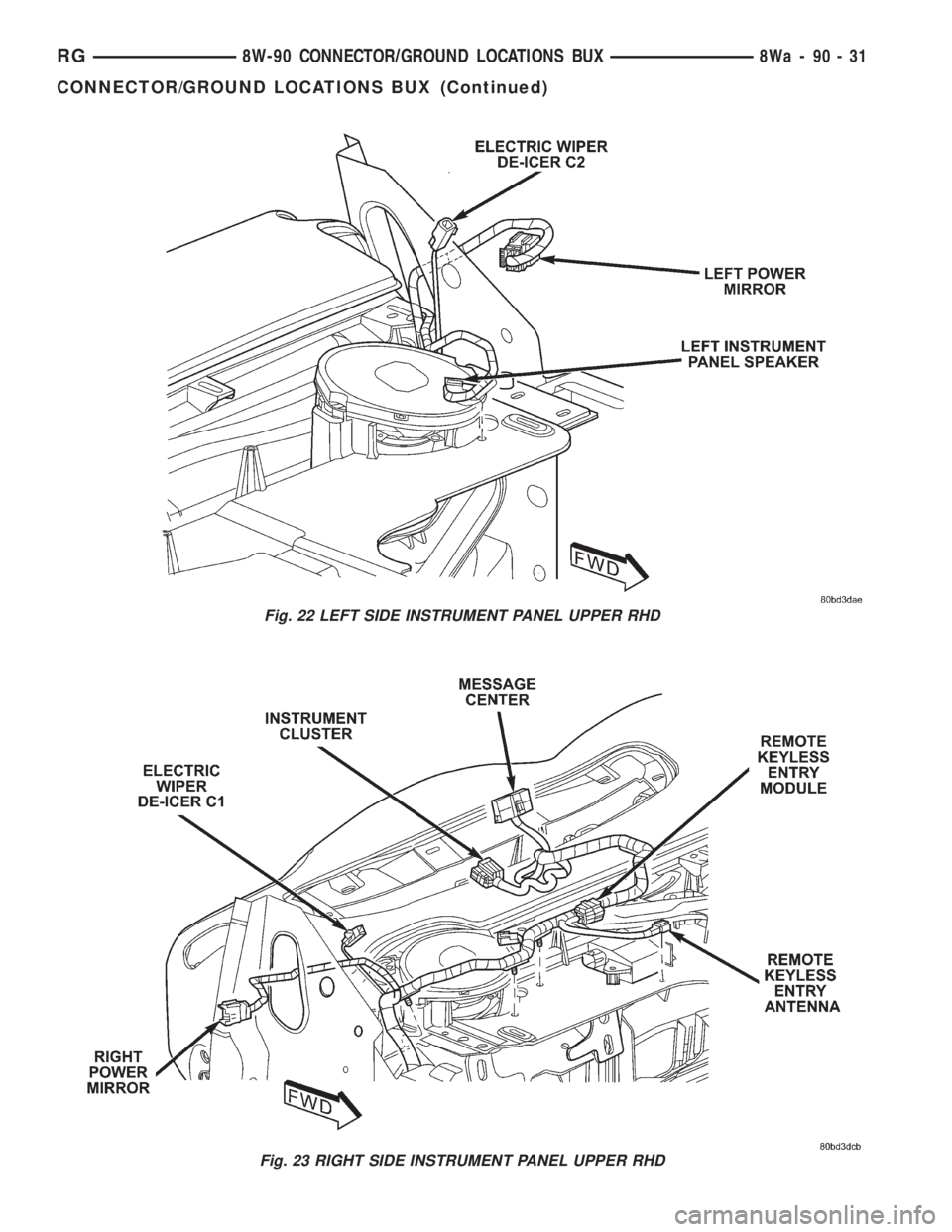

Fig. 22 LEFT SIDE INSTRUMENT PANEL UPPER RHD
Fig. 23 RIGHT SIDE INSTRUMENT PANEL UPPER RHD
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-31
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Fig. 24 LEFT SIDE INSTRUMENT PANEL LOWER RHD
Fig. 25 RIGHT SIDE INSTRUMENT PANEL LOWER RHD
8Wa - 90 - 32 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG
CONNECTOR/GROUND LOCATIONS BUX (Continued)

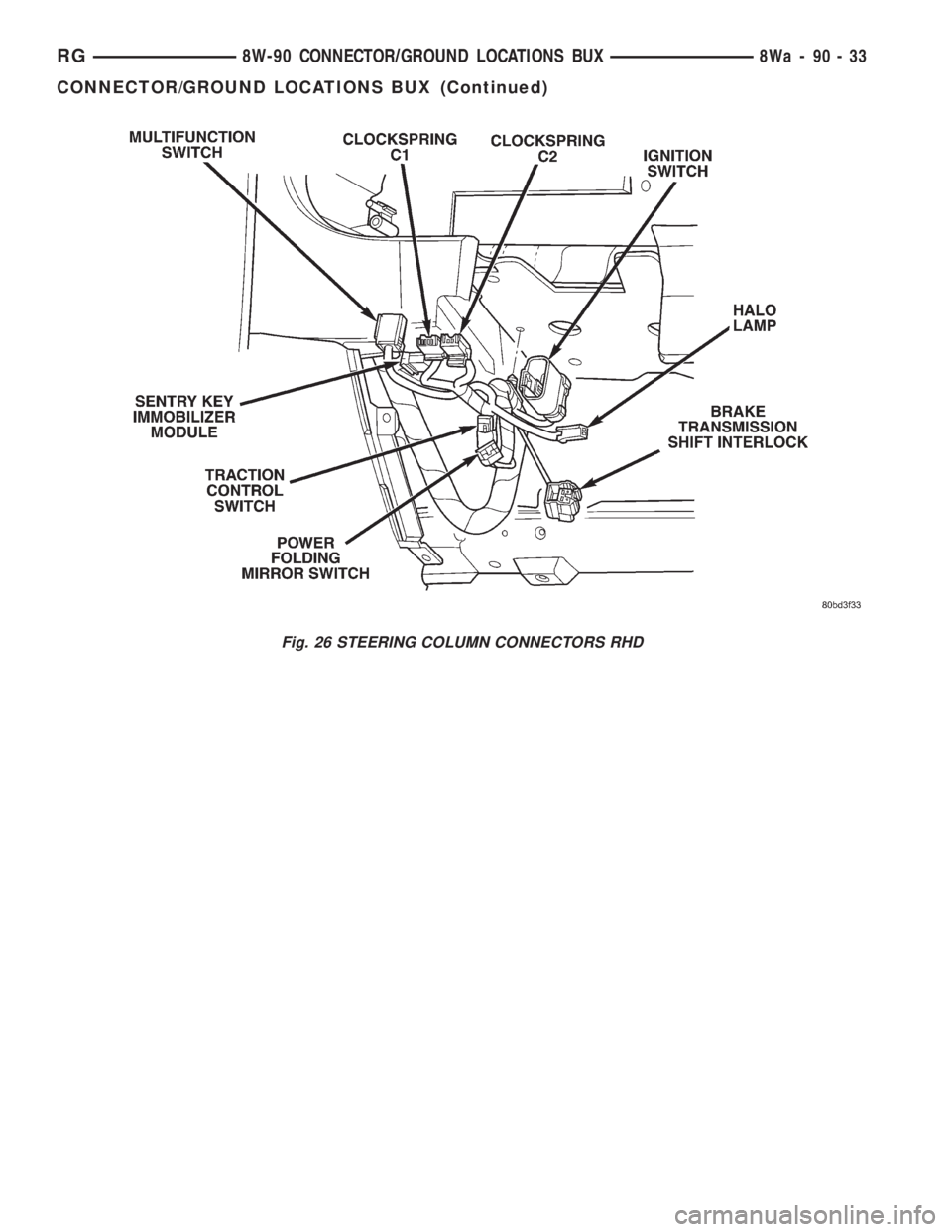

Fig. 26 STEERING COLUMN CONNECTORS RHD
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-33
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Fig. 27 LEFT SIDE BODY LHD
8Wa - 90 - 34 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG
CONNECTOR/GROUND LOCATIONS BUX (Continued)

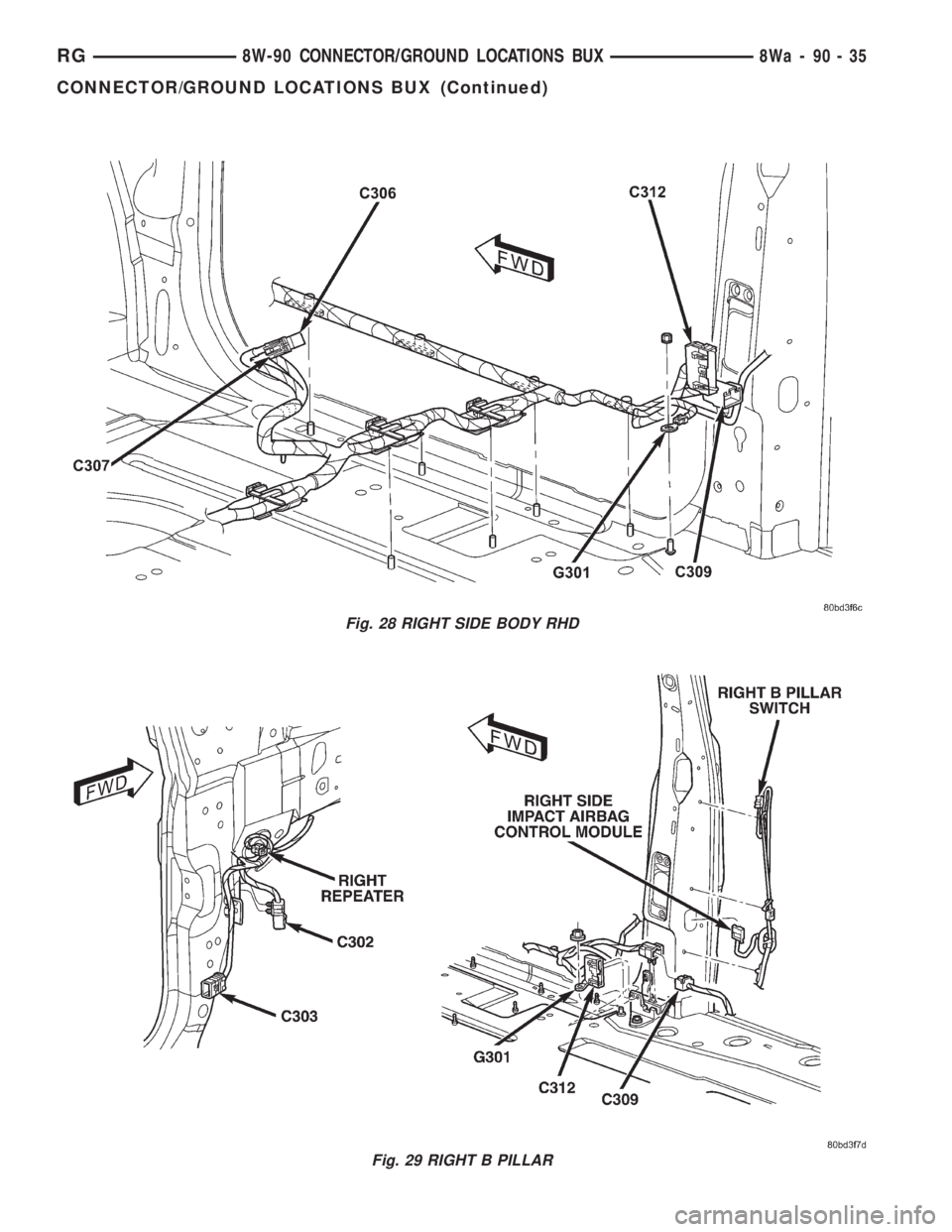

Fig. 28 RIGHT SIDE BODY RHD
Fig. 29 RIGHT B PILLAR
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-35
CONNECTOR/GROUND LOCATIONS BUX (Continued)

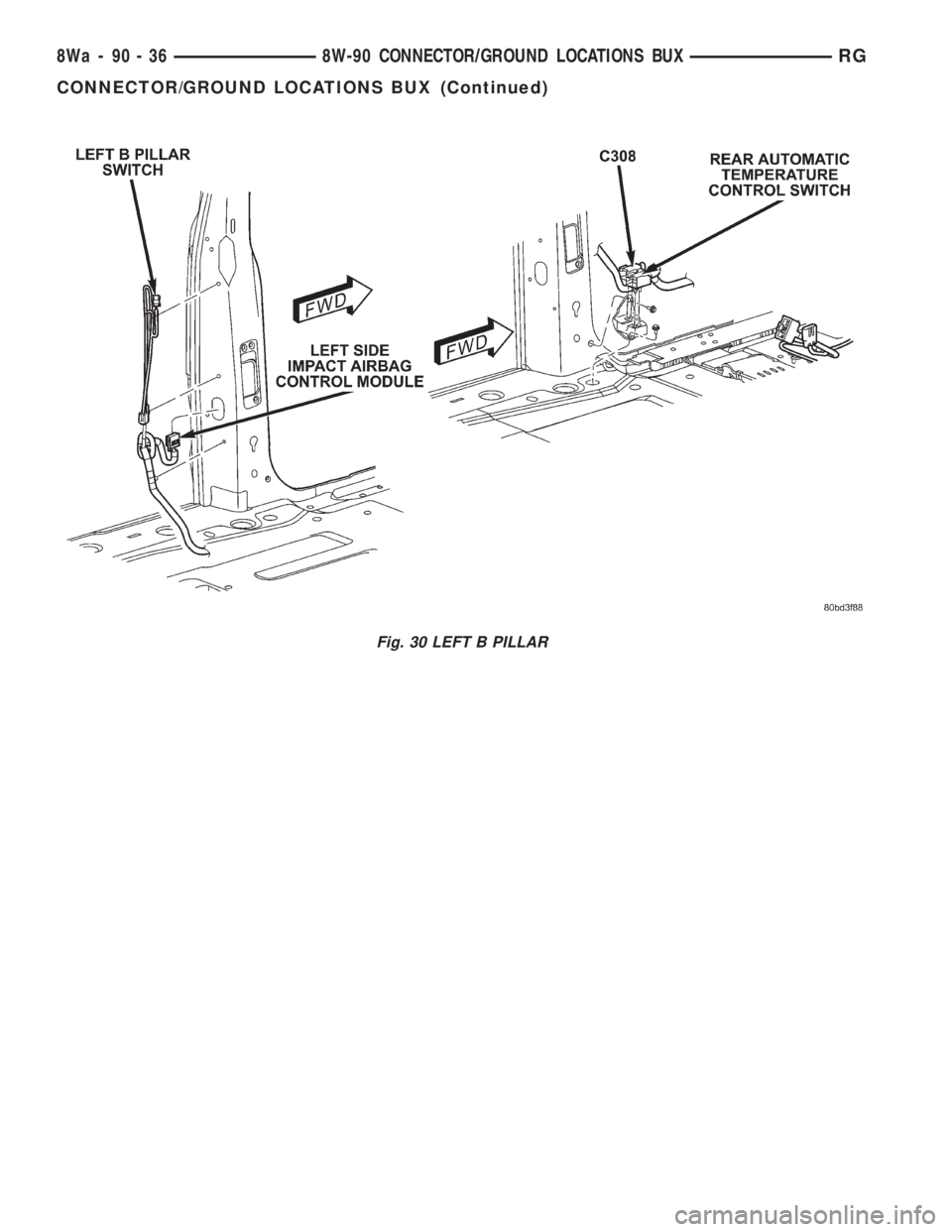

Fig. 30 LEFT B PILLAR
8Wa - 90 - 36 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Fig. 31 LEFT SIDE KICK PANEL LHD
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-37
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Fig. 32 RIGHT SIDE KICK PANEL RHD
8Wa - 90 - 38 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG
CONNECTOR/GROUND LOCATIONS BUX (Continued)
