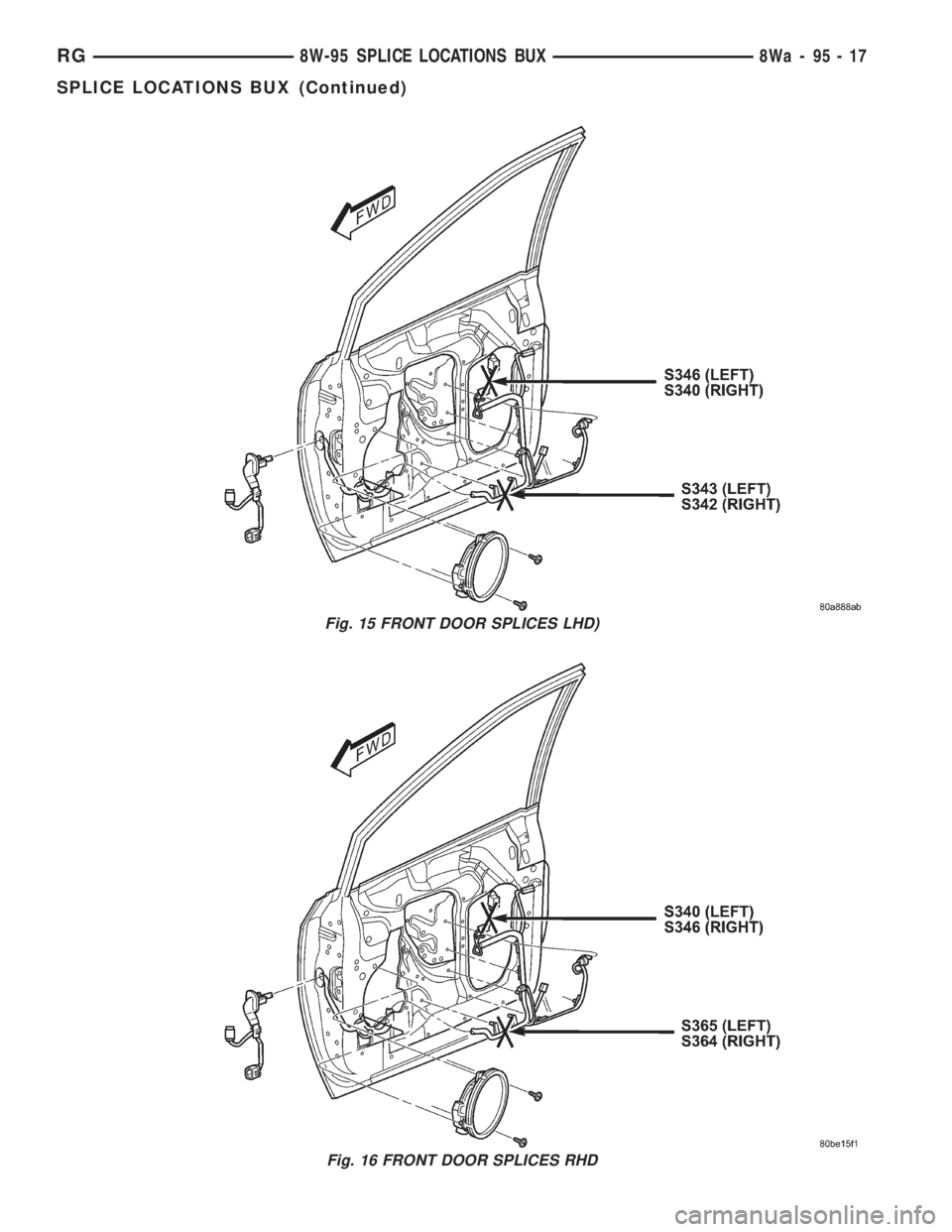

CHRYSLER VOYAGER 2001  Service Manual Fig. 15 FRONT DOOR SPLICES LHD)
Fig. 16 FRONT DOOR SPLICES RHD
RG8W-95 SPLICE LOCATIONS BUX8Wa-95-17
SPLICE LOCATIONS BUX (Continued)

Page 2622 of 4284

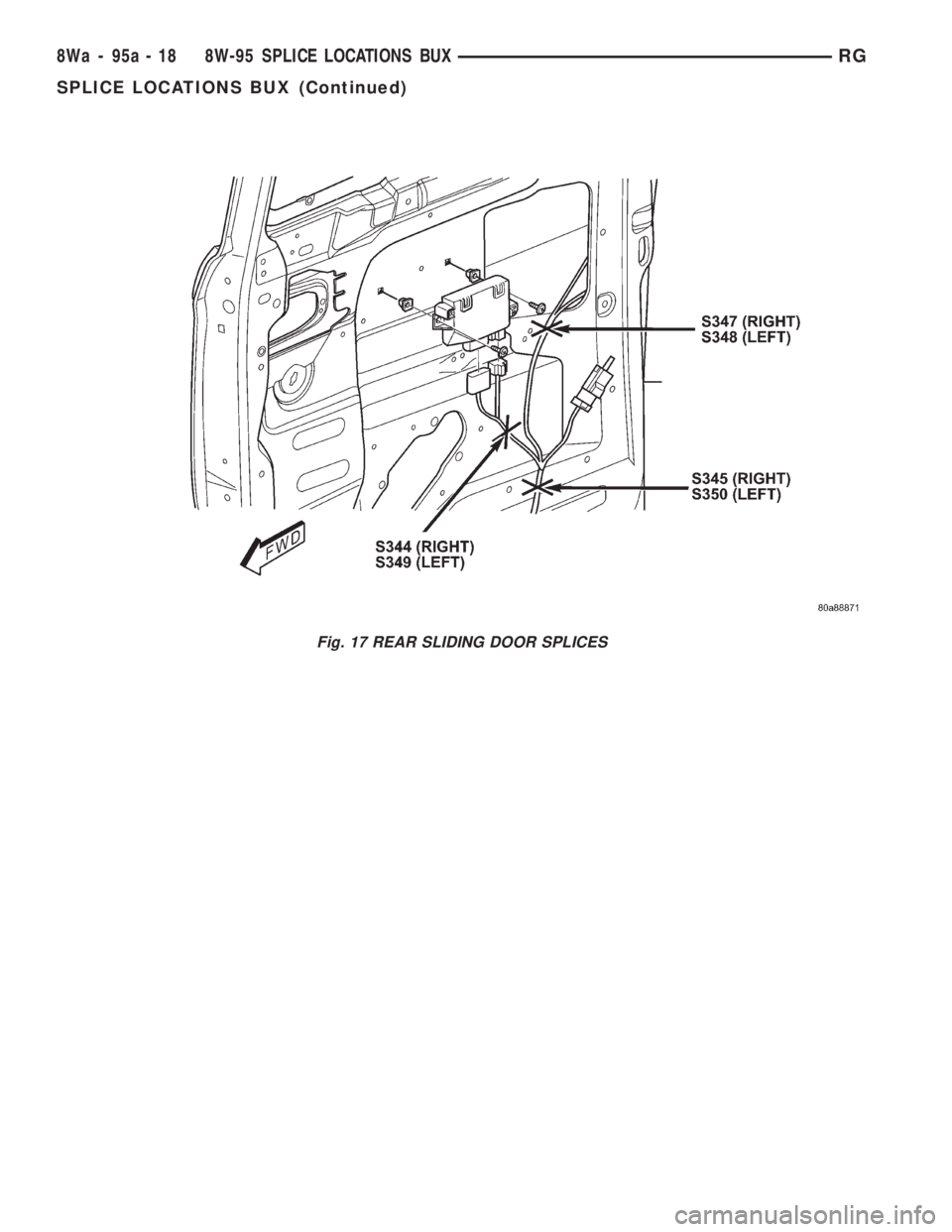

CHRYSLER VOYAGER 2001  Service Manual Fig. 17 REAR SLIDING DOOR SPLICES
8Wa - 95a - 18 8W-95 SPLICE LOCATIONS BUXRG
SPLICE LOCATIONS BUX (Continued)

Page 2623 of 4284

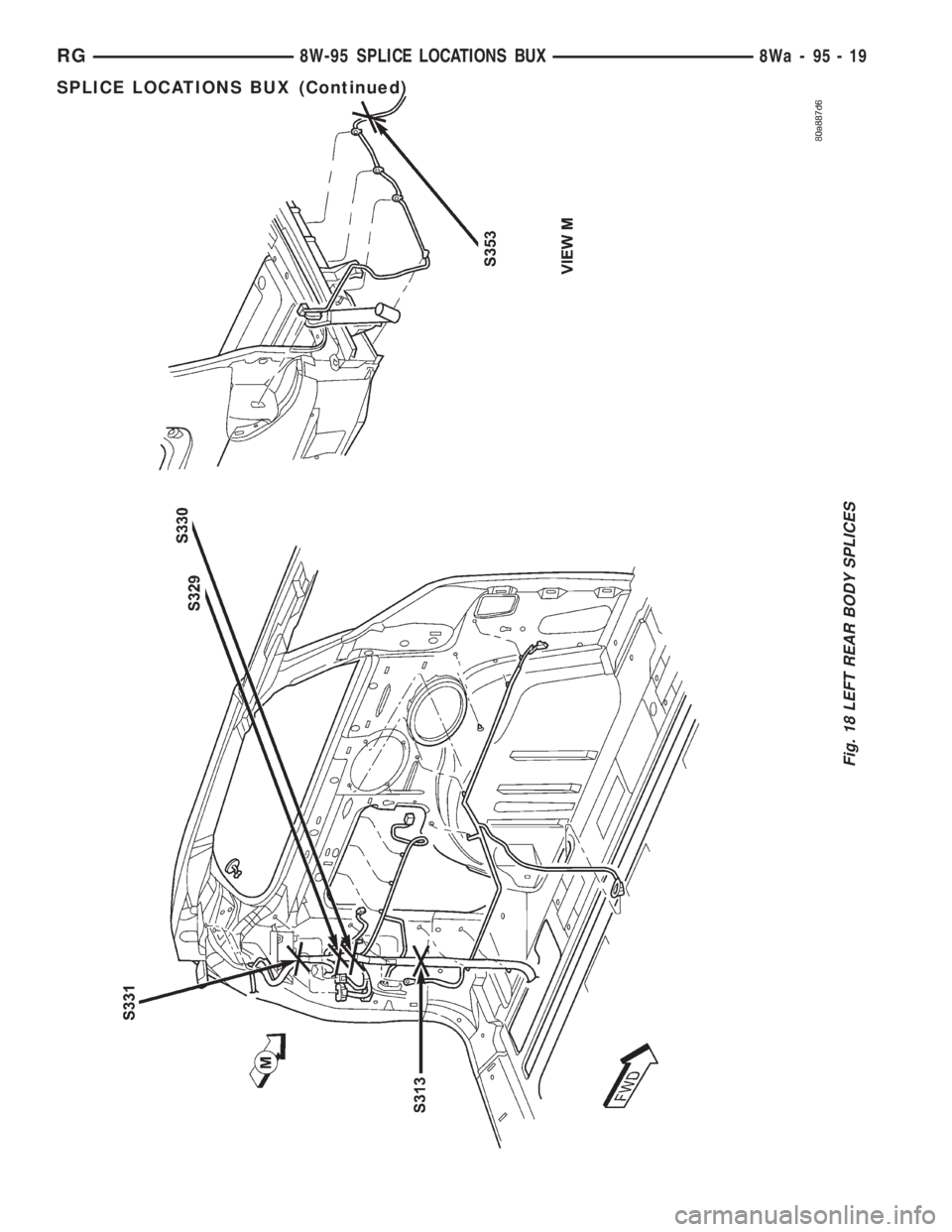

CHRYSLER VOYAGER 2001  Service Manual Fig. 18 LEFT REAR BODY SPLICES
RG8W-95 SPLICE LOCATIONS BUX8Wa-95-19
SPLICE LOCATIONS BUX (Continued)

Page 2624 of 4284

CHRYSLER VOYAGER 2001  Service Manual Fig. 19 LIFTGATE SPLICES
8Wa - 95 - 20 8W-95 SPLICE LOCATIONS BUXRG
SPLICE LOCATIONS BUX (Continued)

Page 2625 of 4284
