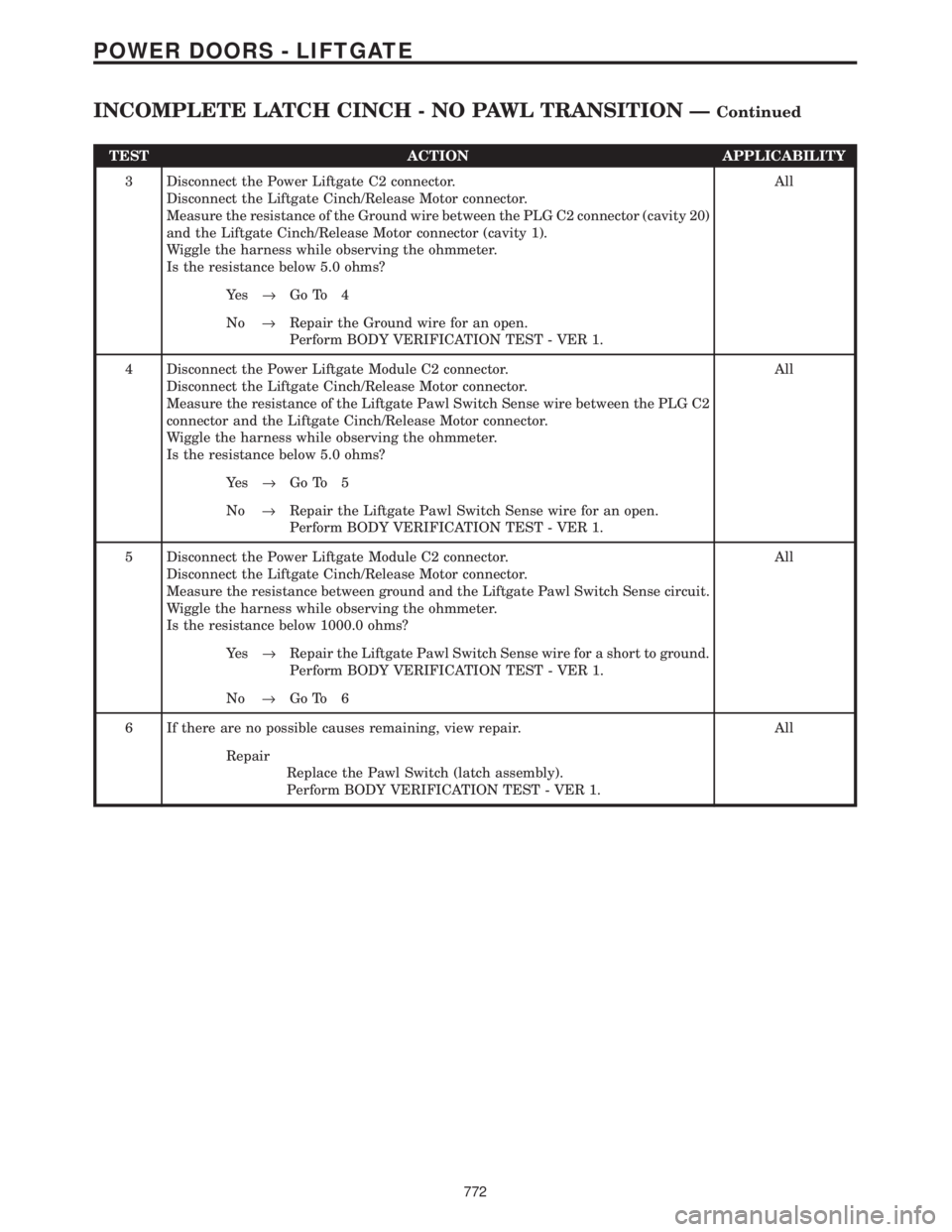

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
3 Disconnect the Power Liftgate C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Ground wire between the PLG C2 connector (c

Page 802 of 4284

CHRYSLER VOYAGER 2001  Service Manual Symptom:
INCOMPLETE LATCH CINCH - OVERCURRENT
When Monitored and Set Condition:
INCOMPLETE LATCH CINCH - OVERCURRENT
When Monitored: Whenever the power liftgate is performing a cinching operation.
Set

Page 803 of 4284

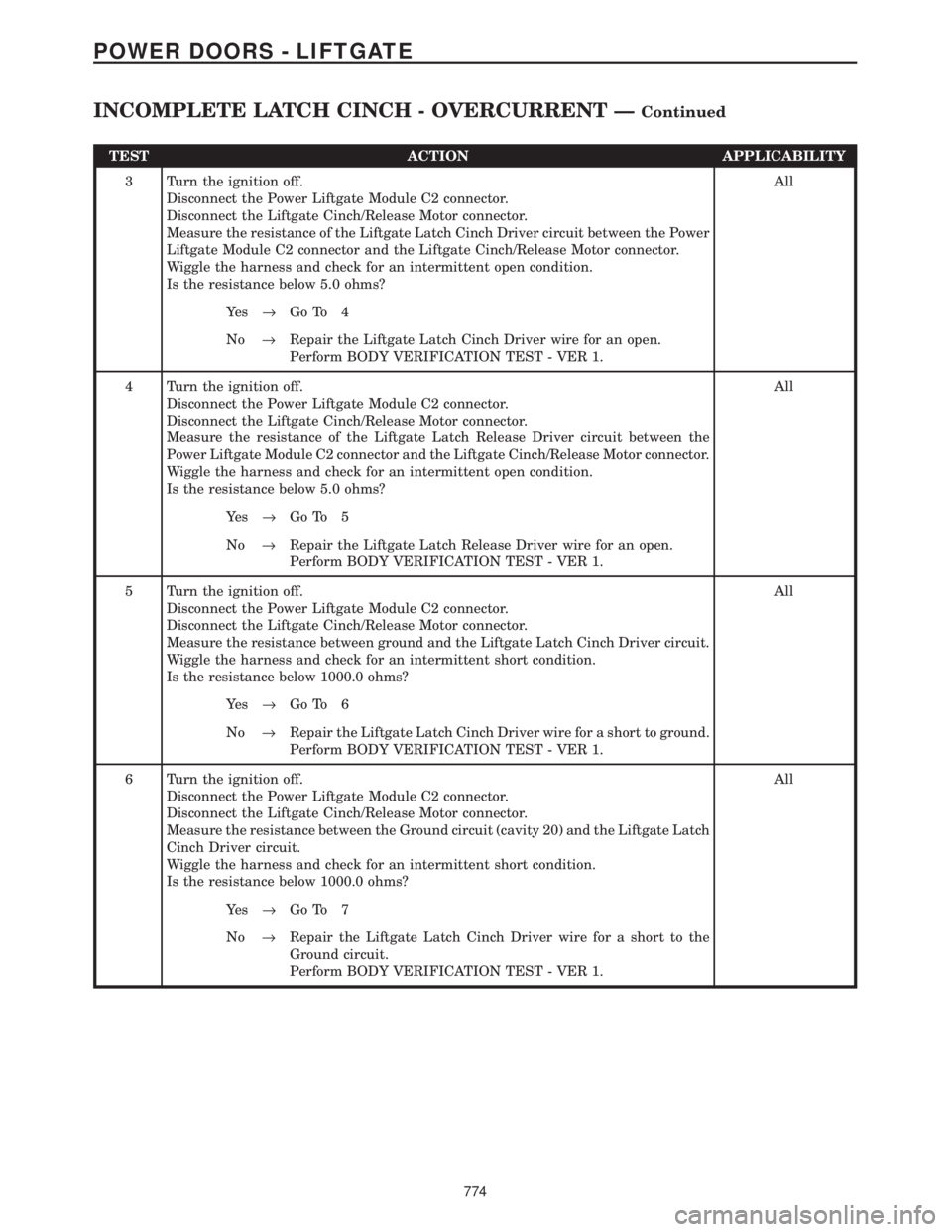

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Liftgate Latc

Page 804 of 4284

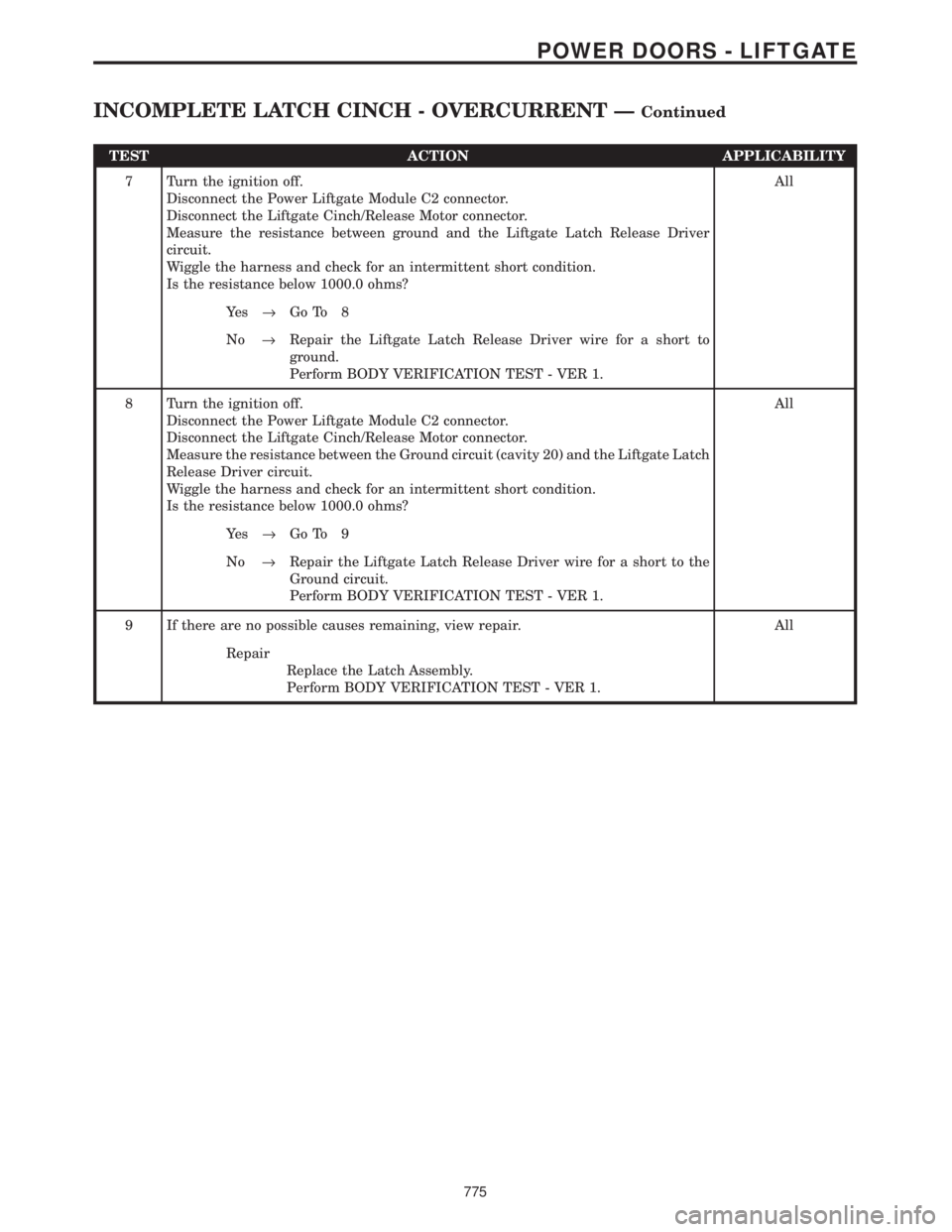

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
7 Turn the ignition off.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance between ground and t

Page 805 of 4284

CHRYSLER VOYAGER 2001  Service Manual Symptom:
INCOMPLETE LATCH CINCH - PAWL SWITCH FAILURE
When Monitored and Set Condition:
INCOMPLETE LATCH CINCH - PAWL SWITCH FAILURE
When Monitored: During the liftgate close operation.
Set Condition:

Page 806 of 4284

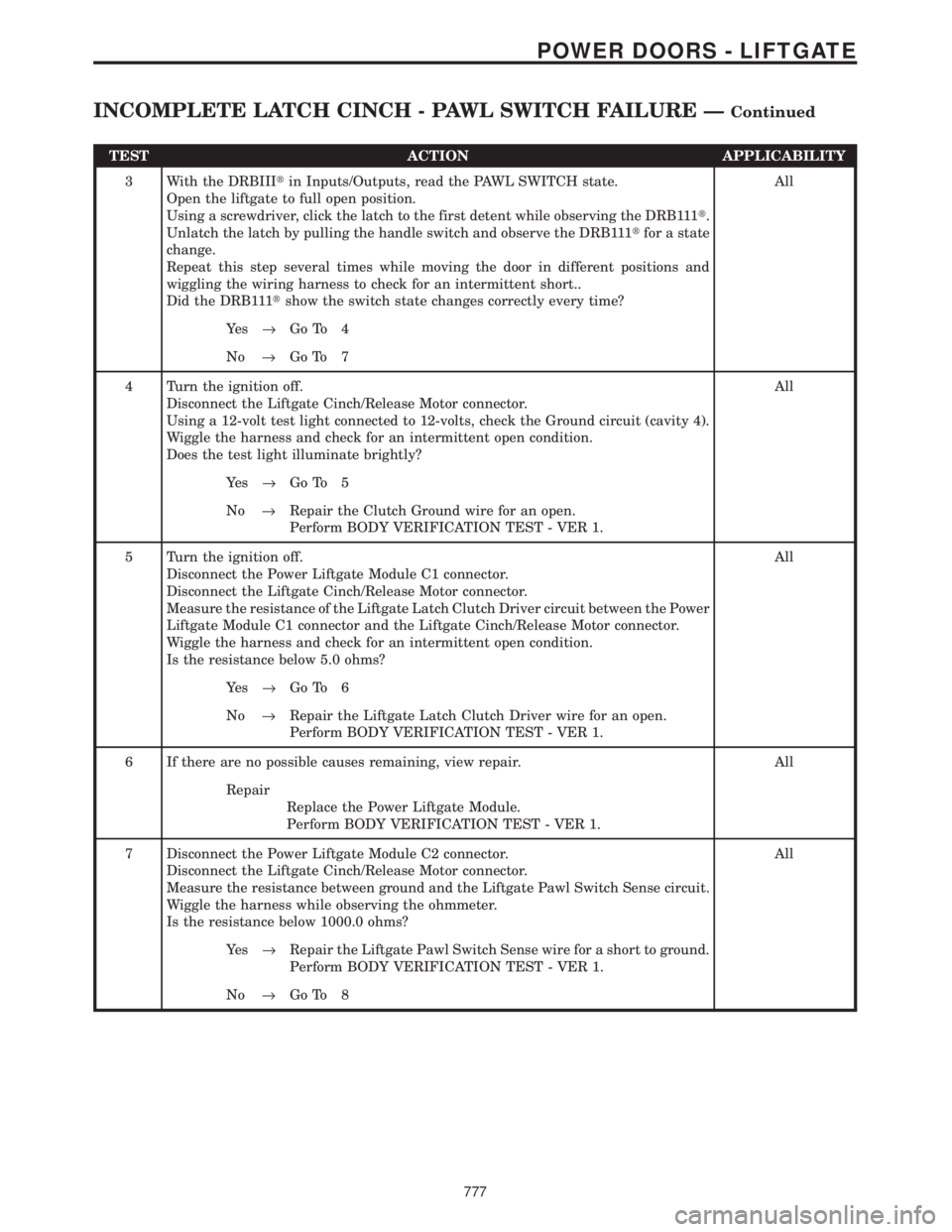

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
3 With the DRBIIItin Inputs/Outputs, read the PAWL SWITCH state.
Open the liftgate to full open position.
Using a screwdriver, click the latch to the first detent while obser

Page 807 of 4284

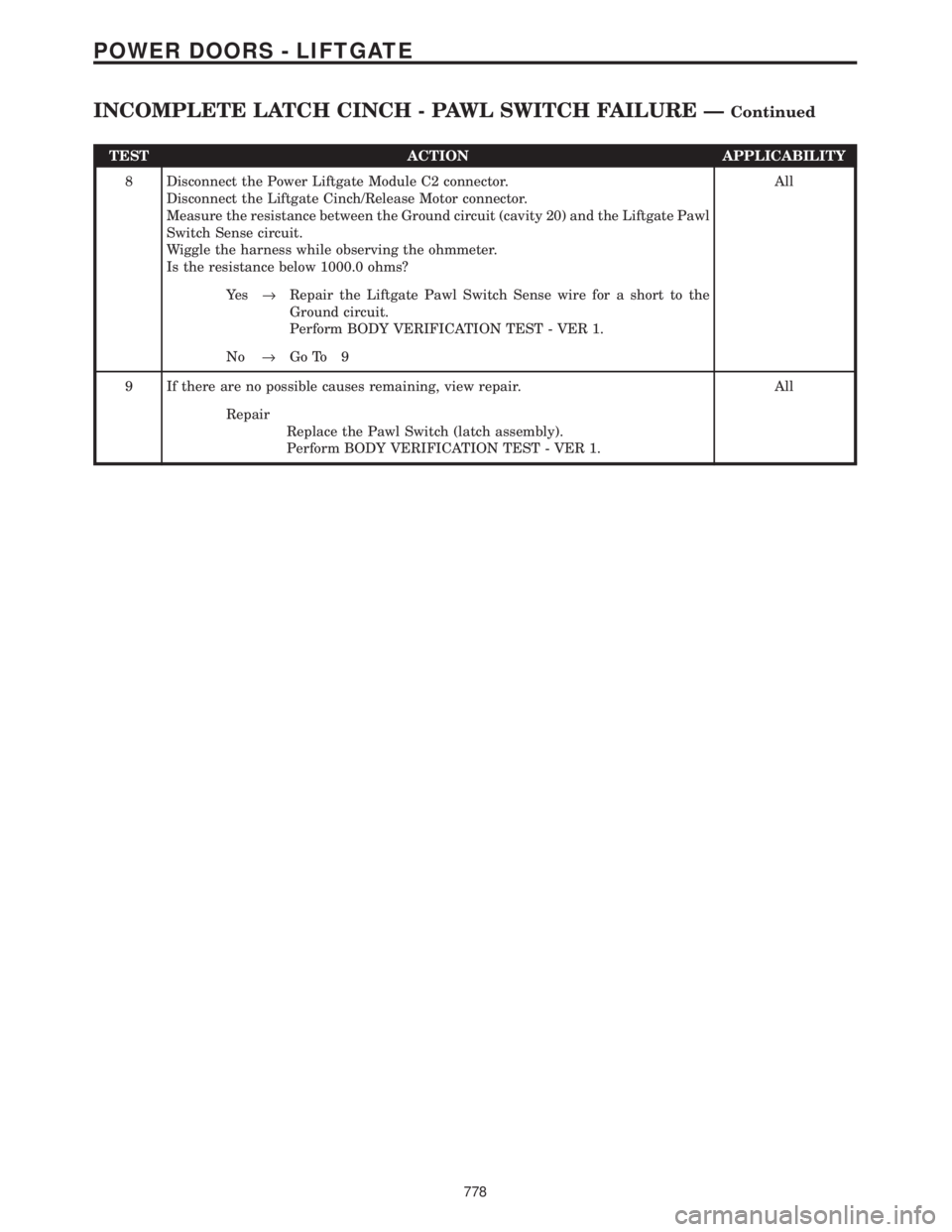

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
8 Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance between the Ground circuit (cavity 20) and

Page 808 of 4284

CHRYSLER VOYAGER 2001  Service Manual Symptom:
INCOMPLETE LATCH CINCH - RATCHET SWITCH FAILURE
When Monitored and Set Condition:
INCOMPLETE LATCH CINCH - RATCHET SWITCH FAILURE
When Monitored: Whenever the power liftgate is operating in t

Page 809 of 4284

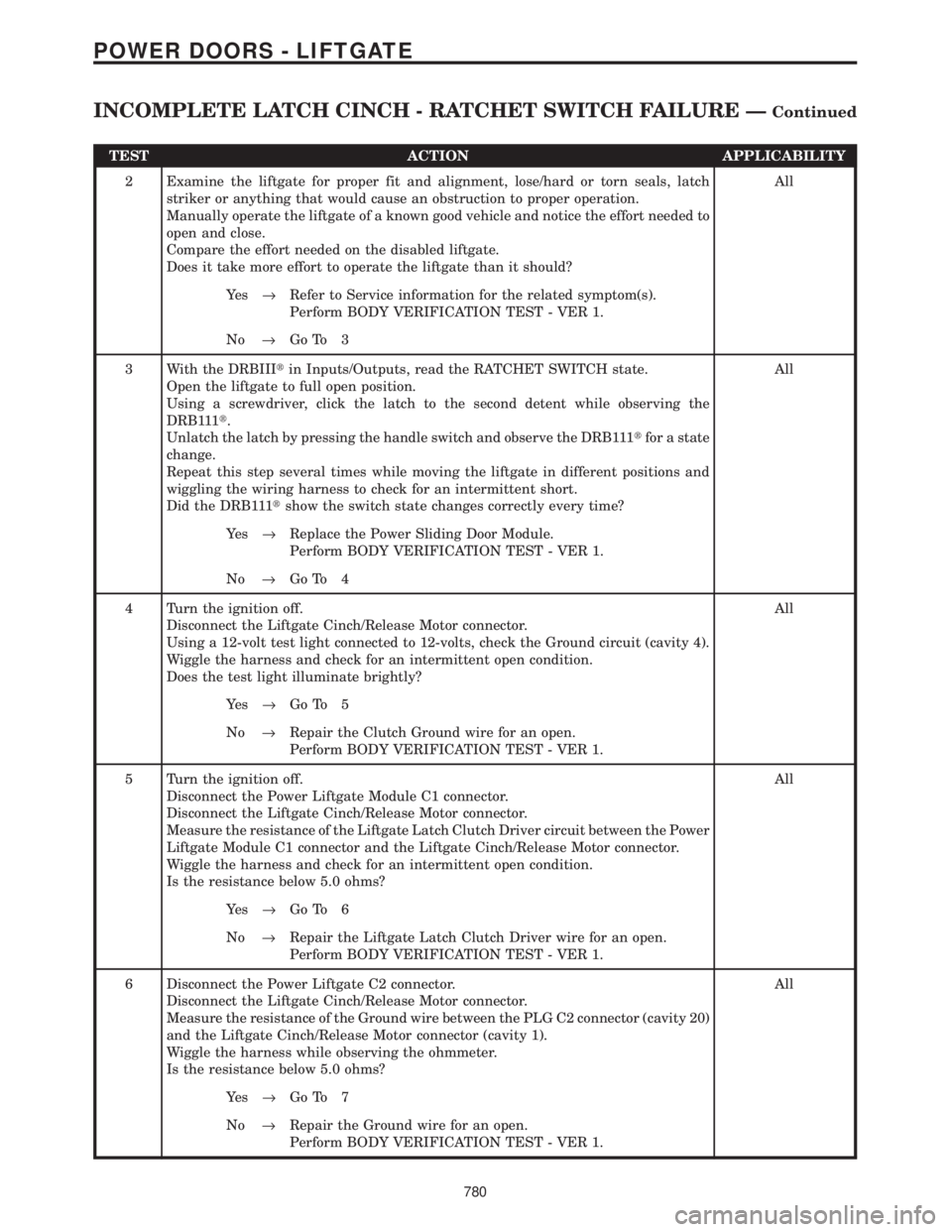

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
2 Examine the liftgate for proper fit and alignment, lose/hard or torn seals, latch
striker or anything that would cause an obstruction to proper operation.
Manually operate

Page 810 of 4284

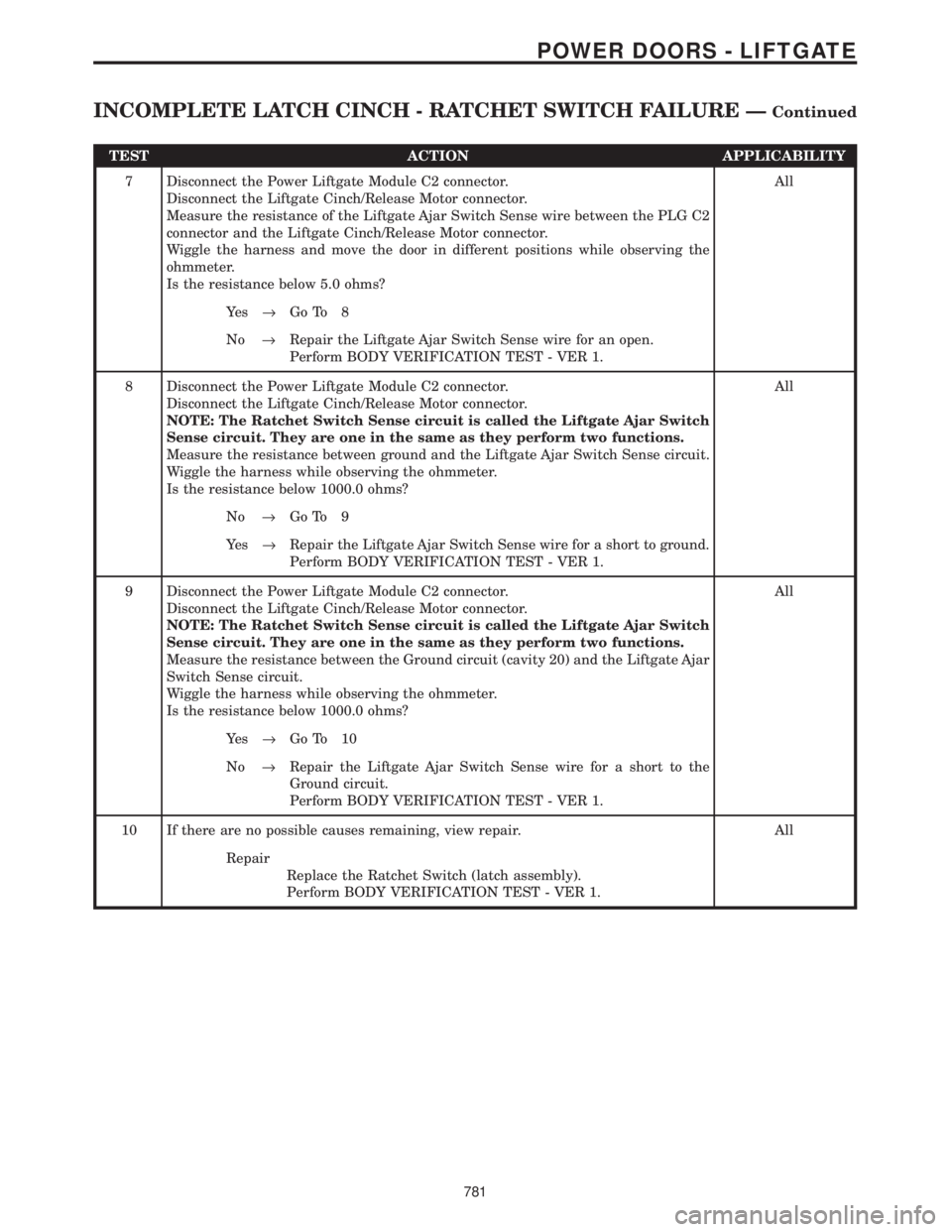

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
7 Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Liftgate Ajar Switch Sense wire betw
