Page 821 of 4284

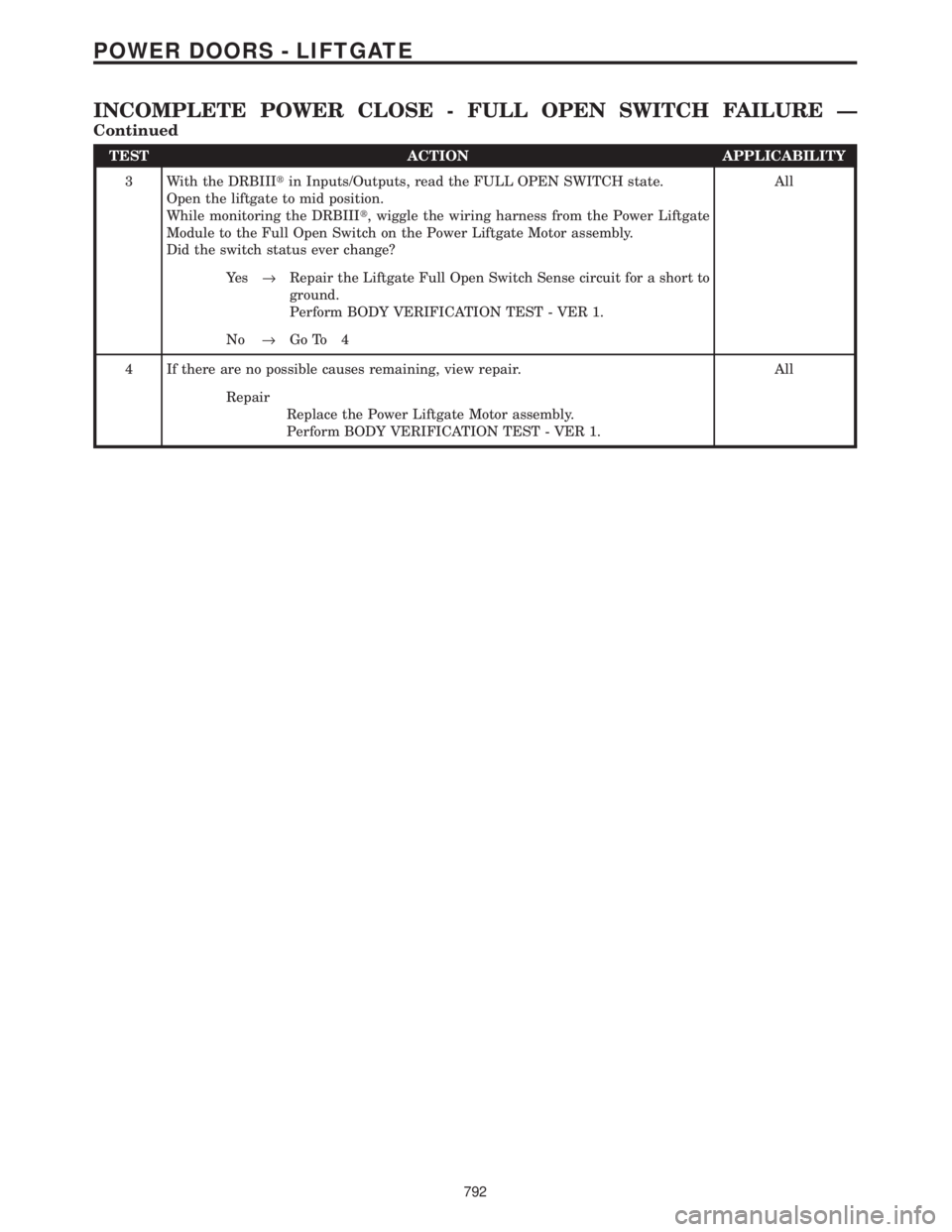

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
3 With the DRBIIItin Inputs/Outputs, read the FULL OPEN SWITCH state.
Open the liftgate to mid position.
While monitoring the DRBIIIt, wiggle the wiring harness from the Powe

Page 822 of 4284

CHRYSLER VOYAGER 2001  Service Manual Symptom:
INCOMPLETE POWER CLOSE - MISSING HALL SIGNAL
When Monitored and Set Condition:
INCOMPLETE POWER CLOSE - MISSING HALL SIGNAL
When Monitored: Anytime the power liftgate is in the closing cycle.

Page 823 of 4284

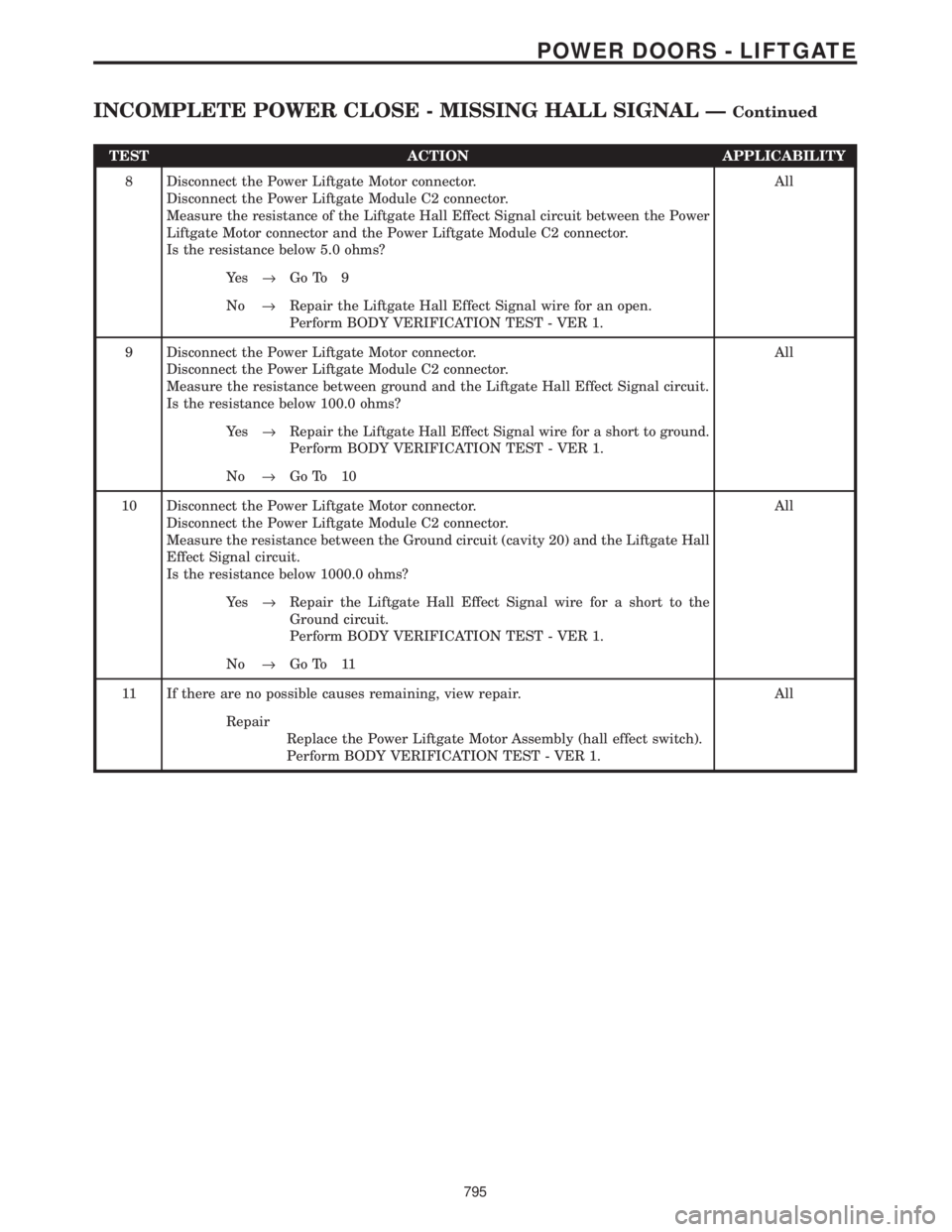

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
2 Examine the liftgate for proper alignment, worn or binding hinges, weak liftgate prop
assembly, loose/ hard weatherstrip, and gear teeth on the power liftgate motor
assembl

Page 824 of 4284

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
8 Disconnect the Power Liftgate Motor connector.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance of the Liftgate Hall Effect Signal circuit between

Page 825 of 4284

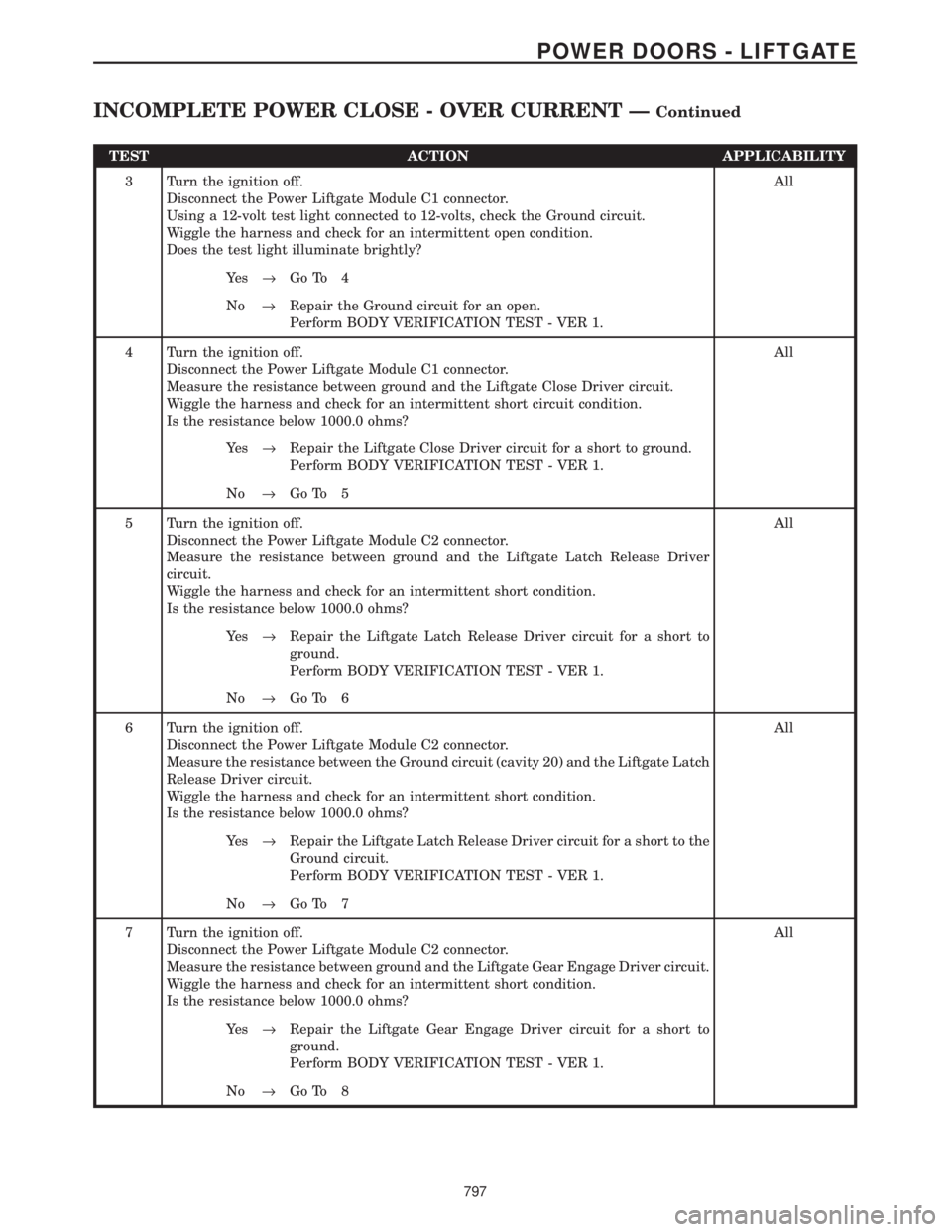

CHRYSLER VOYAGER 2001  Service Manual Symptom:
INCOMPLETE POWER CLOSE - OVER CURRENT
When Monitored and Set Condition:
INCOMPLETE POWER CLOSE - OVER CURRENT
When Monitored: Anytime the liftgate is in a closing operation.
Set Condition: Th

Page 826 of 4284

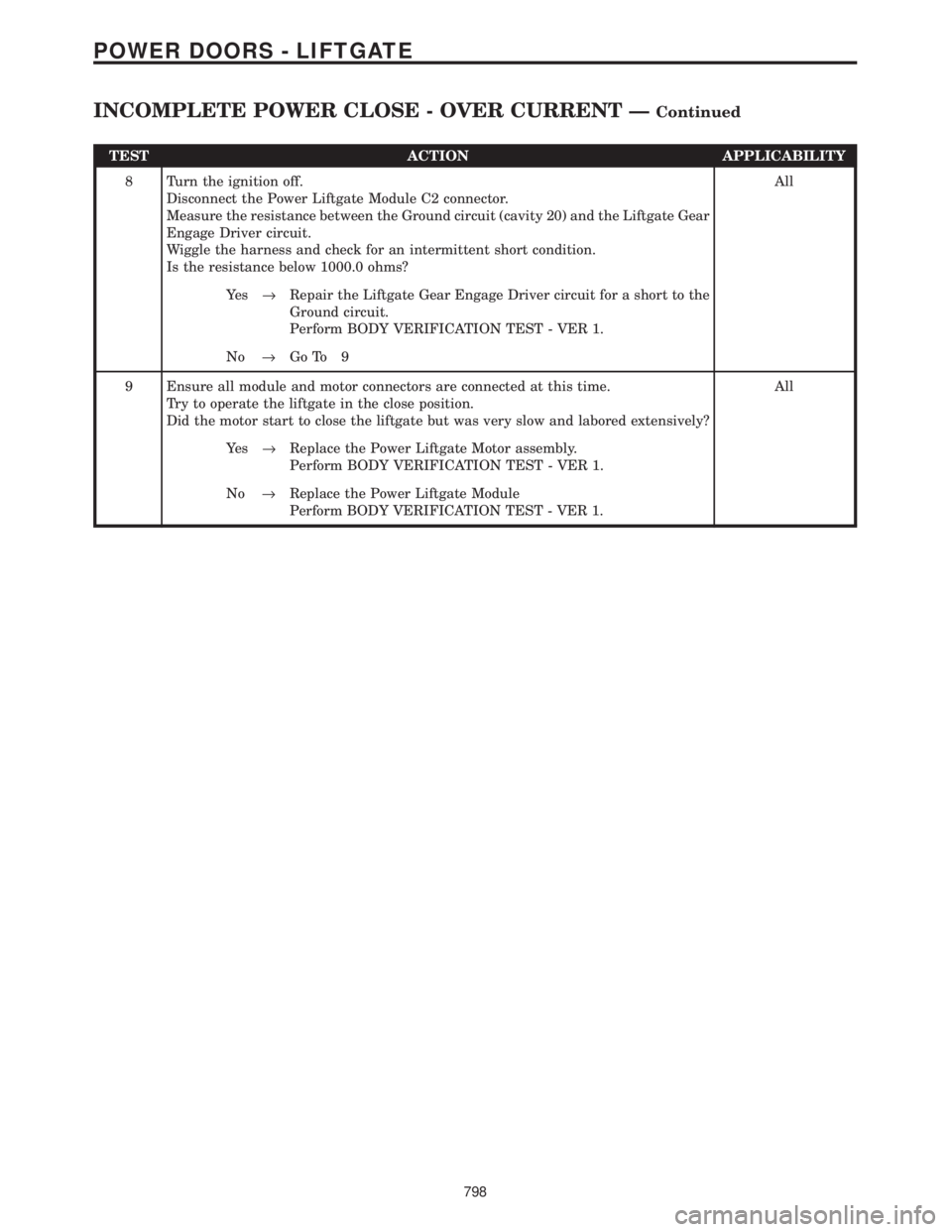

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Power Liftgate Module C1 connector.
Using a 12-volt test light connected to 12-volts, check the Ground circuit.
Wiggle the harness and

Page 827 of 4284

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
8 Turn the ignition off.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between the Ground circuit (cavity 20) and the Liftgate Gear
Engage Driver

Page 828 of 4284

CHRYSLER VOYAGER 2001  Service Manual Symptom:
INCOMPLETE POWER CLOSE - TIME OUT
When Monitored and Set Condition:
INCOMPLETE POWER CLOSE - TIME OUT
When Monitored: During Power Liftgate close cycle.
Set Condition: The power close operati

Page 829 of 4284

CHRYSLER VOYAGER 2001  Service Manual Symptom:
INCOMPLETE POWER OPEN - FULL OPEN SWITCH FAILURE
When Monitored and Set Condition:
INCOMPLETE POWER OPEN - FULL OPEN SWITCH FAILURE
When Monitored: During the Power Liftgate open cycle.
Set C

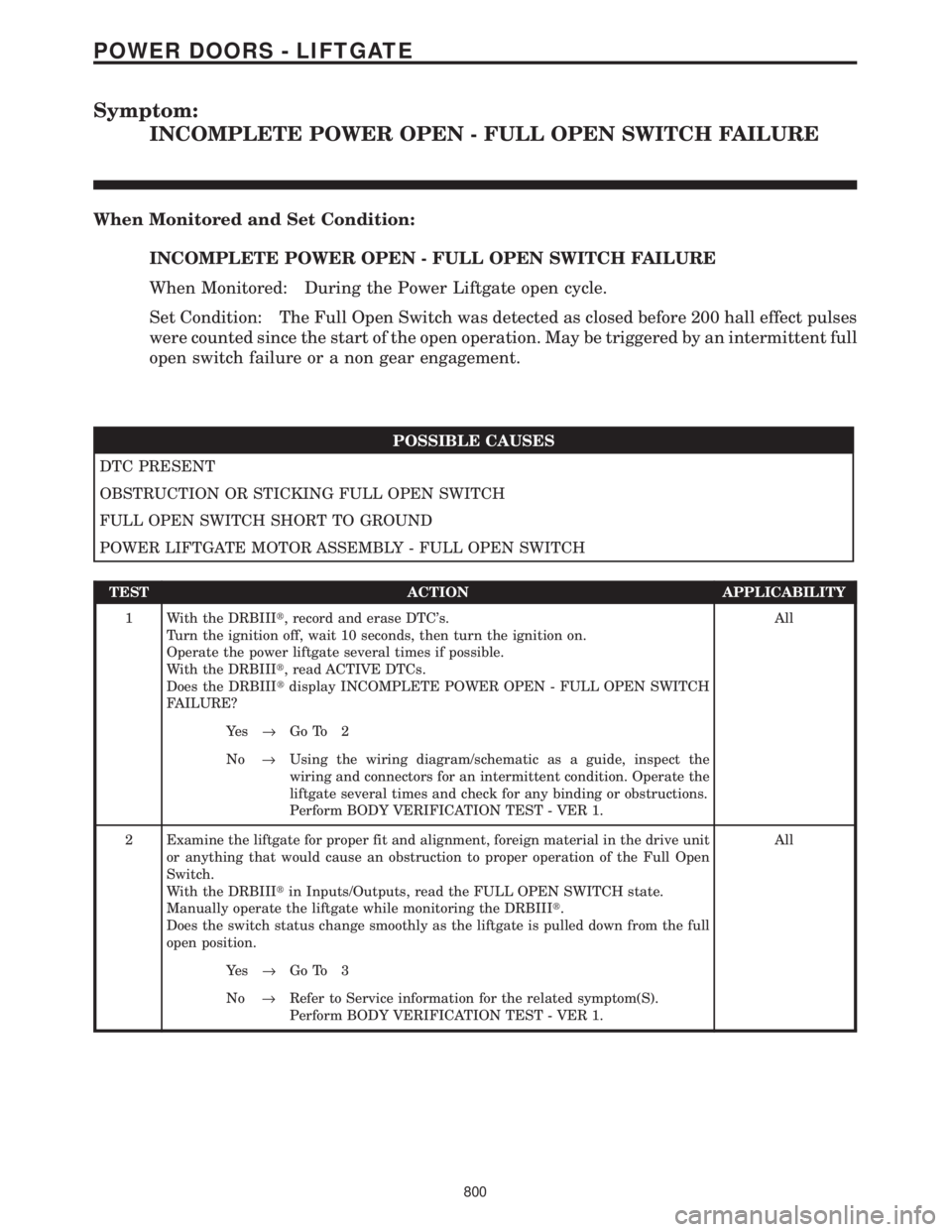

Page 830 of 4284

CHRYSLER VOYAGER 2001  Service Manual TEST ACTION APPLICABILITY
3 With the DRBIIItin Inputs/Outputs, read the FULL OPEN SWITCH state.
Open the liftgate to mid position.
While monitoring the DRBIIIt, wiggle the wiring harness from the Powe
