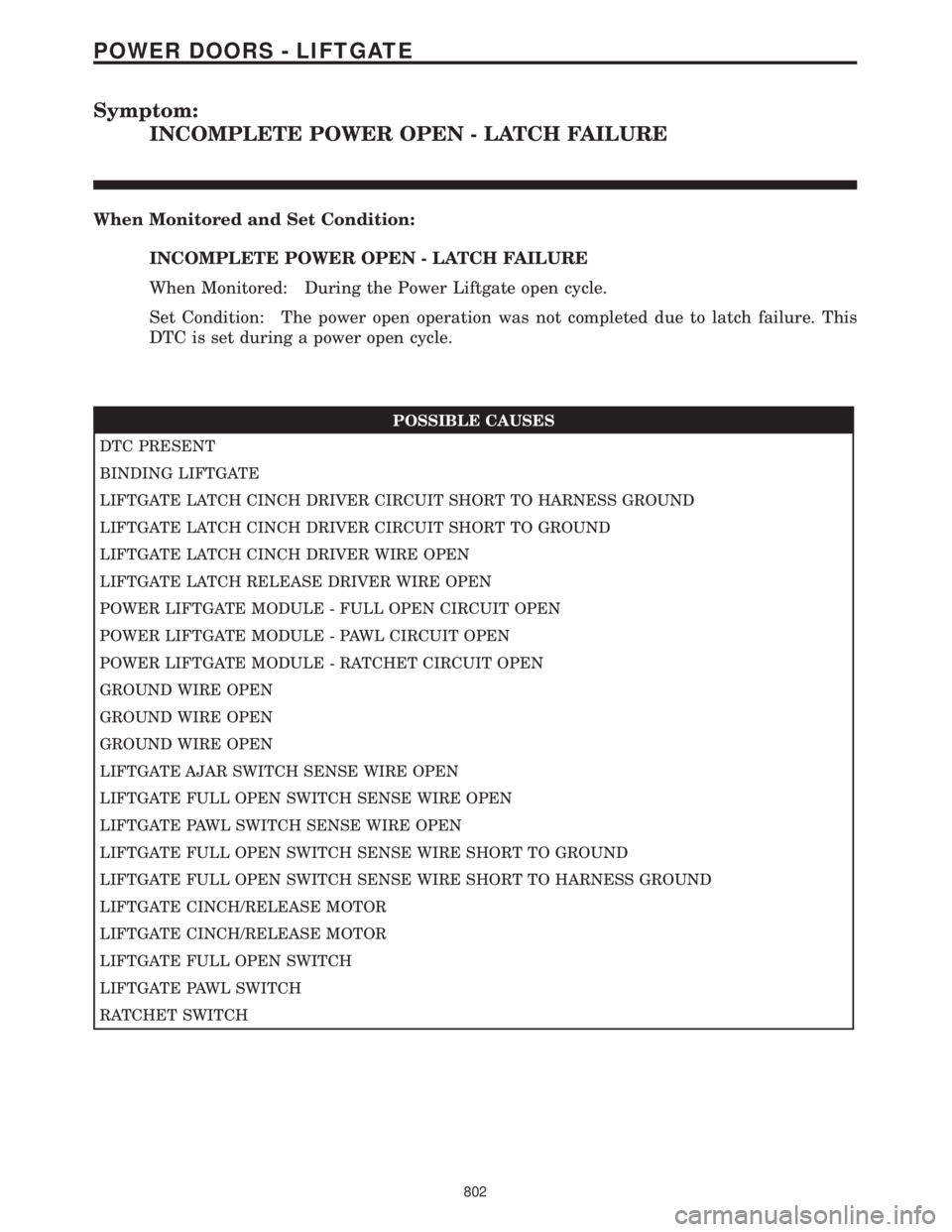

Symptom:
INCOMPLETE POWER OPEN - LATCH FAILURE
When Monitored and Set Condition:
INCOMPLETE POWER OPEN - LATCH FAILURE
When Monitored: During the Power Liftgate open cycle.
Set Condition: The power open operation was not completed due to latch failure. This
DTC is set during a power open cycle.
POSSIBLE CAUSES
DTC PRESENT
BINDING LIFTGATE
LIFTGATE LATCH CINCH DRIVER CIRCUIT SHORT TO HARNESS GROUND
LIFTGATE LATCH CINCH DRIVER CIRCUIT SHORT TO GROUND
LIFTGATE LATCH CINCH DRIVER WIRE OPEN
LIFTGATE LATCH RELEASE DRIVER WIRE OPEN
POWER LIFTGATE MODULE - FULL OPEN CIRCUIT OPEN
POWER LIFTGATE MODULE - PAWL CIRCUIT OPEN
POWER LIFTGATE MODULE - RATCHET CIRCUIT OPEN
GROUND WIRE OPEN
GROUND WIRE OPEN
GROUND WIRE OPEN
LIFTGATE AJAR SWITCH SENSE WIRE OPEN
LIFTGATE FULL OPEN SWITCH SENSE WIRE OPEN
LIFTGATE PAWL SWITCH SENSE WIRE OPEN
LIFTGATE FULL OPEN SWITCH SENSE WIRE SHORT TO GROUND
LIFTGATE FULL OPEN SWITCH SENSE WIRE SHORT TO HARNESS GROUND
LIFTGATE CINCH/RELEASE MOTOR
LIFTGATE CINCH/RELEASE MOTOR
LIFTGATE FULL OPEN SWITCH
LIFTGATE PAWL SWITCH
RATCHET SWITCH
802
POWER DOORS - LIFTGATE

TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE POWER OPEN - LATCH FAILURE?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
liftgate several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
2 Examine the liftgate for proper alignment, worn or binding hinges, weak liftgate prop
assembly, loose/ hard weatherstrip, and gear teeth on the Power Liftgate Motor
assembly for wear or anything that would cause an obstruction to proper operation.
If necessary manually operate the power liftgate on a known good vehicle and notice
the effort needed to open and close for comparison.
Especially notice the effort needed to unlatch and close the liftgate.
Were there any mechanical problems found?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 With the DRBIIItin Inputs/Outputs, read the PAWL, RATCHET and FULL OPEN
switch state.
While observing the FULL OPEN switch state, manually lower the liftgate from full
open to part open. The switch should toggle from CLOSED to OPEN.
Open the Liftgate to full open position. While observing the PAWL switch state, click
the latch with a screwdriver to the first detent. The PAWL should toggle from
CLOSED to OPEN.
Open the Liftgate to the full open position. While observing the RATCHET switch
state, click the latch with a screwdriver to the second detent. The RATCHET should
toggle from CLOSED to OPEN.
Repeat the above steps several times.
Select which switch failed:All
FULL OPEN Switch
Go To 4
PAWL Switch
Go To 10
RATCHET Switch
Go To 14
All switches operated properly.
Go To 18
803
POWER DOORS - LIFTGATE
INCOMPLETE POWER OPEN - LATCH FAILURE ÐContinued

TEST ACTION APPLICABILITY

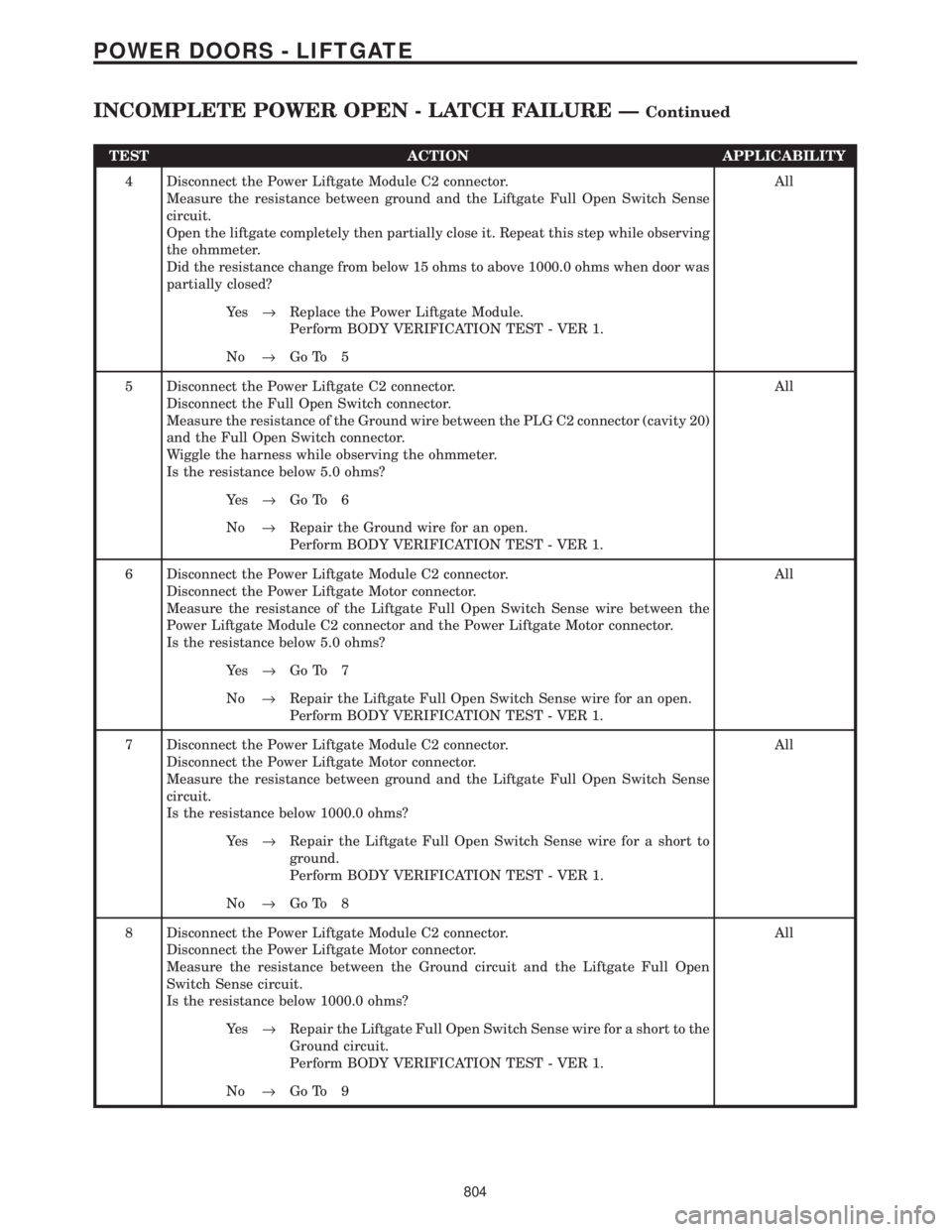

4 Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between ground and the Liftgate Full Open Switch Sense
circuit.
Open the liftgate completely then partially close it. Repeat this step while observing
the ohmmeter.
Did the resistance change from below 15 ohms to above 1000.0 ohms when door was
partially closed?All
Ye s®Replace the Power Liftgate Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 5
5 Disconnect the Power Liftgate C2 connector.
Disconnect the Full Open Switch connector.
Measure the resistance of the Ground wire between the PLG C2 connector (cavity 20)
and the Full Open Switch connector.
Wiggle the harness while observing the ohmmeter.
Is the resistance below 5.0 ohms?All
Ye s®Go To 6
No®Repair the Ground wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
6 Disconnect the Power Liftgate Module C2 connector.
Disconnect the Power Liftgate Motor connector.
Measure the resistance of the Liftgate Full Open Switch Sense wire between the
Power Liftgate Module C2 connector and the Power Liftgate Motor connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 7
No®Repair the Liftgate Full Open Switch Sense wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
7 Disconnect the Power Liftgate Module C2 connector.
Disconnect the Power Liftgate Motor connector.
Measure the resistance between ground and the Liftgate Full Open Switch Sense
circuit.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Liftgate Full Open Switch Sense wire for a short to
ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 8
8 Disconnect the Power Liftgate Module C2 connector.
Disconnect the Power Liftgate Motor connector.
Measure the resistance between the Ground circuit and the Liftgate Full Open
Switch Sense circuit.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Liftgate Full Open Switch Sense wire for a short to the
Ground circuit.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 9
804
POWER DOORS - LIFTGATE
INCOMPLETE POWER OPEN - LATCH FAILURE ÐContinued

TEST ACTION APPLICABILITY

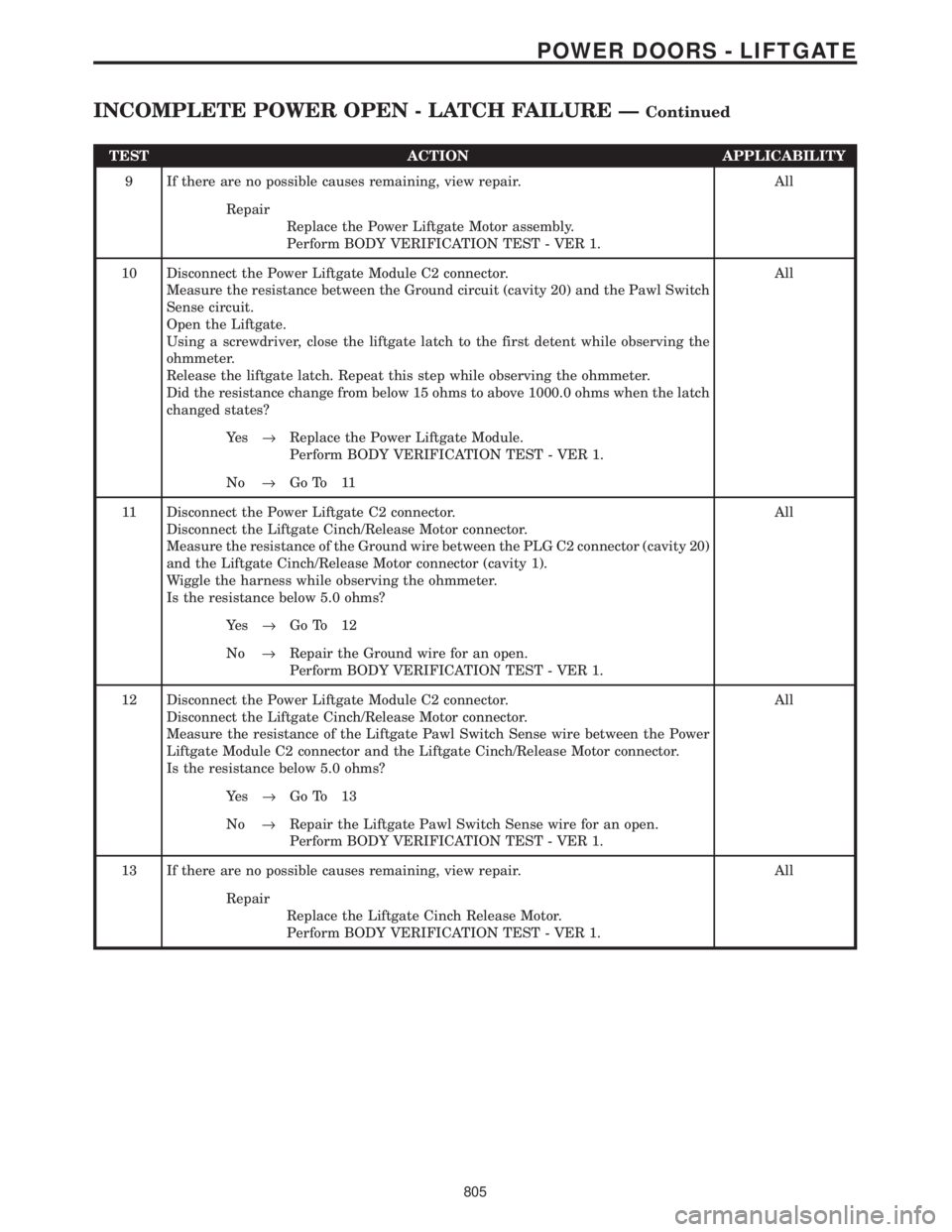

9 If there are no possible causes remaining, view repair. All
Repair
Replace the Power Liftgate Motor assembly.
Perform BODY VERIFICATION TEST - VER 1.
10 Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between the Ground circuit (cavity 20) and the Pawl Switch
Sense circuit.
Open the Liftgate.
Using a screwdriver, close the liftgate latch to the first detent while observing the
ohmmeter.
Release the liftgate latch. Repeat this step while observing the ohmmeter.
Did the resistance change from below 15 ohms to above 1000.0 ohms when the latch
changed states?All
Ye s®Replace the Power Liftgate Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 11
11 Disconnect the Power Liftgate C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Ground wire between the PLG C2 connector (cavity 20)
and the Liftgate Cinch/Release Motor connector (cavity 1).
Wiggle the harness while observing the ohmmeter.
Is the resistance below 5.0 ohms?All
Ye s®Go To 12
No®Repair the Ground wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
12 Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Liftgate Pawl Switch Sense wire between the Power
Liftgate Module C2 connector and the Liftgate Cinch/Release Motor connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 13
No®Repair the Liftgate Pawl Switch Sense wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
13 If there are no possible causes remaining, view repair. All
Repair
Replace the Liftgate Cinch Release Motor.
Perform BODY VERIFICATION TEST - VER 1.
805
POWER DOORS - LIFTGATE
INCOMPLETE POWER OPEN - LATCH FAILURE ÐContinued

TEST ACTION APPLICABILITY

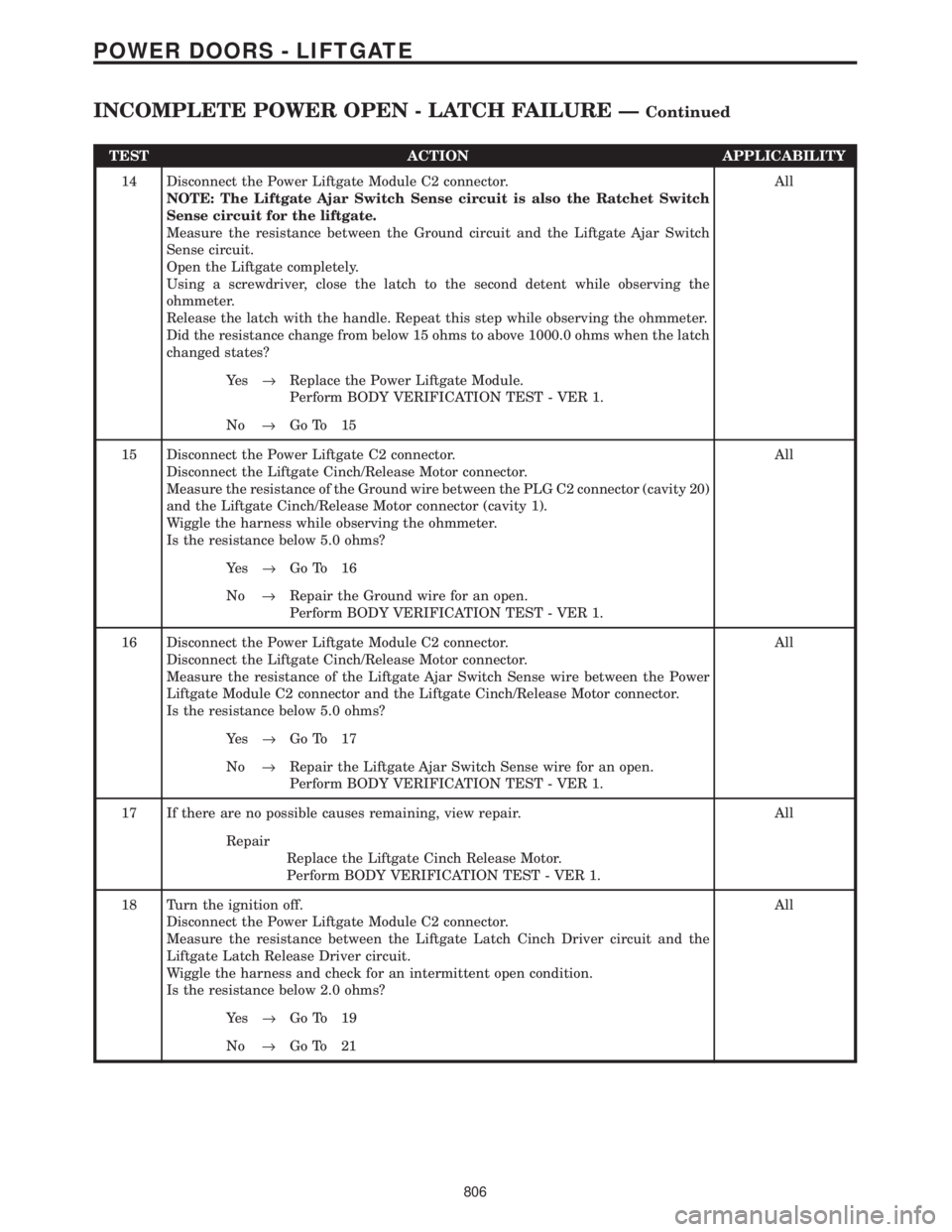

14 Disconnect the Power Liftgate Module C2 connector.
NOTE: The Liftgate Ajar Switch Sense circuit is also the Ratchet Switch
Sense circuit for the liftgate.
Measure the resistance between the Ground circuit and the Liftgate Ajar Switch
Sense circuit.
Open the Liftgate completely.
Using a screwdriver, close the latch to the second detent while observing the
ohmmeter.
Release the latch with the handle. Repeat this step while observing the ohmmeter.
Did the resistance change from below 15 ohms to above 1000.0 ohms when the latch
changed states?All
Ye s®Replace the Power Liftgate Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 15
15 Disconnect the Power Liftgate C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Ground wire between the PLG C2 connector (cavity 20)
and the Liftgate Cinch/Release Motor connector (cavity 1).
Wiggle the harness while observing the ohmmeter.
Is the resistance below 5.0 ohms?All
Ye s®Go To 16
No®Repair the Ground wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
16 Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Liftgate Ajar Switch Sense wire between the Power
Liftgate Module C2 connector and the Liftgate Cinch/Release Motor connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 17
No®Repair the Liftgate Ajar Switch Sense wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
17 If there are no possible causes remaining, view repair. All
Repair
Replace the Liftgate Cinch Release Motor.
Perform BODY VERIFICATION TEST - VER 1.
18 Turn the ignition off.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between the Liftgate Latch Cinch Driver circuit and the
Liftgate Latch Release Driver circuit.
Wiggle the harness and check for an intermittent open condition.
Is the resistance below 2.0 ohms?All
Ye s®Go To 19
No®Go To 21
806
POWER DOORS - LIFTGATE
INCOMPLETE POWER OPEN - LATCH FAILURE ÐContinued

TEST ACTION APPLICABILITY

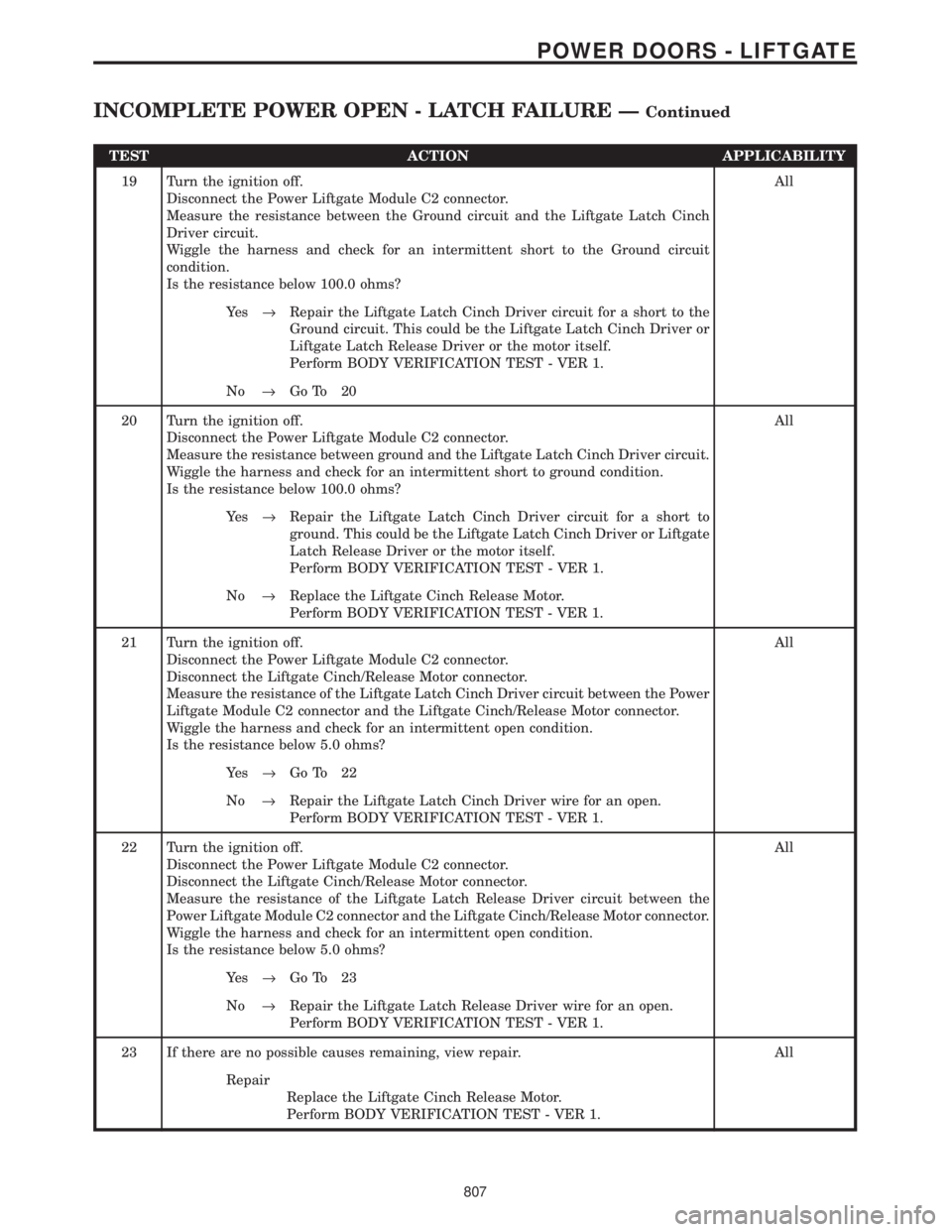

19 Turn the ignition off.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between the Ground circuit and the Liftgate Latch Cinch
Driver circuit.
Wiggle the harness and check for an intermittent short to the Ground circuit
condition.
Is the resistance below 100.0 ohms?All
Ye s®Repair the Liftgate Latch Cinch Driver circuit for a short to the
Ground circuit. This could be the Liftgate Latch Cinch Driver or
Liftgate Latch Release Driver or the motor itself.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 20
20 Turn the ignition off.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between ground and the Liftgate Latch Cinch Driver circuit.
Wiggle the harness and check for an intermittent short to ground condition.
Is the resistance below 100.0 ohms?All
Ye s®Repair the Liftgate Latch Cinch Driver circuit for a short to
ground. This could be the Liftgate Latch Cinch Driver or Liftgate
Latch Release Driver or the motor itself.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Liftgate Cinch Release Motor.
Perform BODY VERIFICATION TEST - VER 1.
21 Turn the ignition off.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Liftgate Latch Cinch Driver circuit between the Power
Liftgate Module C2 connector and the Liftgate Cinch/Release Motor connector.
Wiggle the harness and check for an intermittent open condition.
Is the resistance below 5.0 ohms?All
Ye s®Go To 22
No®Repair the Liftgate Latch Cinch Driver wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
22 Turn the ignition off.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Cinch/Release Motor connector.
Measure the resistance of the Liftgate Latch Release Driver circuit between the
Power Liftgate Module C2 connector and the Liftgate Cinch/Release Motor connector.
Wiggle the harness and check for an intermittent open condition.
Is the resistance below 5.0 ohms?All
Ye s®Go To 23
No®Repair the Liftgate Latch Release Driver wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
23 If there are no possible causes remaining, view repair. All
Repair
Replace the Liftgate Cinch Release Motor.
Perform BODY VERIFICATION TEST - VER 1.
807
POWER DOORS - LIFTGATE
INCOMPLETE POWER OPEN - LATCH FAILURE ÐContinued

Symptom:
INCOMPLETE POWER OPEN - MISSING HALL SIGNAL
When Monitored and Set Condition:
INCOMPLETE POWER OPEN - MISSING HALL SIGNAL
When Monitored: During Power Liftgate opening cycle.
Set Condition: If the Power Liftgate Module detects a missing hall effect signal for longer
than 300 ms. during an opening operation, this code will set. This is a redundant safety
feature in the software and will set if the obstacle detection feature becomes inoperative
due to a hall sensor/connection malfunction.
POSSIBLE CAUSES
DTC PRESENT
POWER LIFTGATE MODULE - HALL EFFECT OPEN
BINDING LIFTGATE
HALL EFFECT GROUND CIRCUIT OPEN
LIFTGATE HALL EFFECT SUPPLY WIRE OPEN
LIFTGATE HALL EFFECT SUPPLY WIRE SHORT TO GROUND
LIFTGATE HALL EFFECT SUPPLY WIRE SHORT TO HARNESS GROUND
LIFTGATE HALL EFFECT SIGNAL WIRE OPEN
LIFTGATE HALL EFFECT SIGNAL WIRE SHORT TO GROUND
LIFTGATE HALL EFFECT SIGNAL WIRE SHORT TO HARNESS GROUND
POWER LIFTGATE MOTOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the Power Liftgate several times from stop to stop if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE POWER OPEN - MISSING HALL SIG-
NAL?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
liftgate several times and check for any binding conditions.
Perform BODY VERIFICATION TEST - VER 1.
808
POWER DOORS - LIFTGATE

TEST ACTION APPLICABILITY
2 Examine the liftgate for proper alignment, worn or binding hinges, weak liftgate prop
assembly, loose/ hard weatherstrip, and gear teeth on the Power Liftgate Motor
assembly for wear or anything that would cause an obstruction to proper operation.
If necessary manually operate the power liftgate on a known good vehicle and notice
the effort needed to open and close for comparison.
Especially notice the effort needed to unlatch and close the liftgate.
Were there any mechanical problems found?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Operate the liftgate from the full closed position and put an obstacle in it's path to
make it reverse.
Did the door reverse back to the closed position?All
Ye s®Go To 4
No®Replace the Power Liftgate Module.
Perform BODY VERIFICATION TEST - VER 1.
4 Disconnect the Power Liftgate Motor connector.
Using a 12-volt test light connected to 12-volts, check the Ground circuit.
Does the test light illuminate brightly?All
Ye s®Go To 5
No®Repair the hall effect ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
5 Disconnect the Power Liftgate Motor connector.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance of the Liftgate Hall Effect Supply circuit between the Power
Liftgate Motor connector and the Power Liftgate Module C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 6
No®Repair the Liftgate Hall Effect Supply wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
6 Disconnect the Power Liftgate Motor connector.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between ground and the Liftgate Hall Effect Supply circuit.
Is the resistance below 100.0 ohms?All
Ye s®Repair the Door Motor Hall Effect Supply wire for a short to
ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 7
809
POWER DOORS - LIFTGATE
INCOMPLETE POWER OPEN - MISSING HALL SIGNAL ÐContinued

TEST ACTION APPLICABILITY

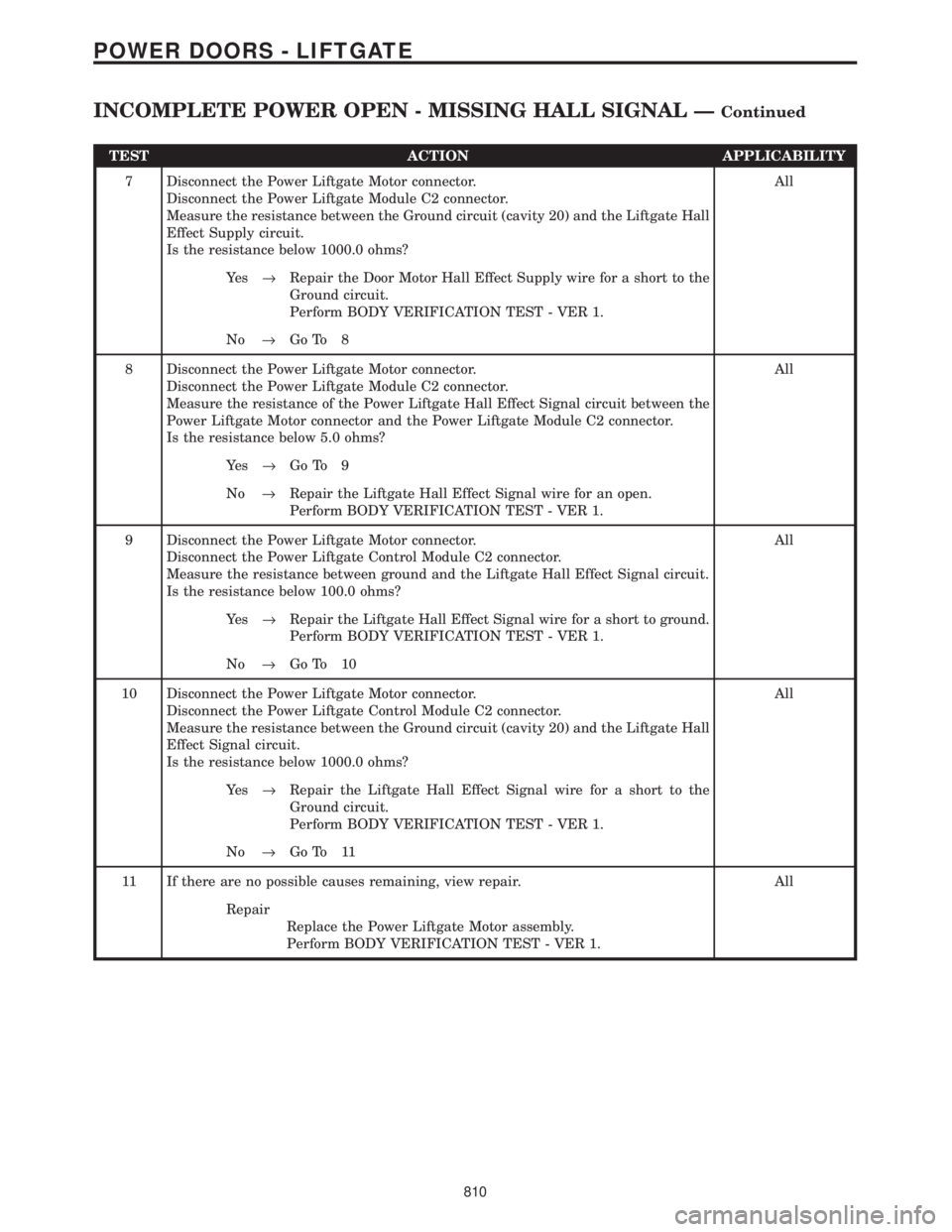

7 Disconnect the Power Liftgate Motor connector.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between the Ground circuit (cavity 20) and the Liftgate Hall
Effect Supply circuit.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Door Motor Hall Effect Supply wire for a short to the
Ground circuit.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 8
8 Disconnect the Power Liftgate Motor connector.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance of the Power Liftgate Hall Effect Signal circuit between the
Power Liftgate Motor connector and the Power Liftgate Module C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 9
No®Repair the Liftgate Hall Effect Signal wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
9 Disconnect the Power Liftgate Motor connector.
Disconnect the Power Liftgate Control Module C2 connector.
Measure the resistance between ground and the Liftgate Hall Effect Signal circuit.
Is the resistance below 100.0 ohms?All
Ye s®Repair the Liftgate Hall Effect Signal wire for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 10
10 Disconnect the Power Liftgate Motor connector.
Disconnect the Power Liftgate Control Module C2 connector.
Measure the resistance between the Ground circuit (cavity 20) and the Liftgate Hall
Effect Signal circuit.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Liftgate Hall Effect Signal wire for a short to the
Ground circuit.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 11
11 If there are no possible causes remaining, view repair. All
Repair
Replace the Power Liftgate Motor assembly.
Perform BODY VERIFICATION TEST - VER 1.
810
POWER DOORS - LIFTGATE
INCOMPLETE POWER OPEN - MISSING HALL SIGNAL ÐContinued

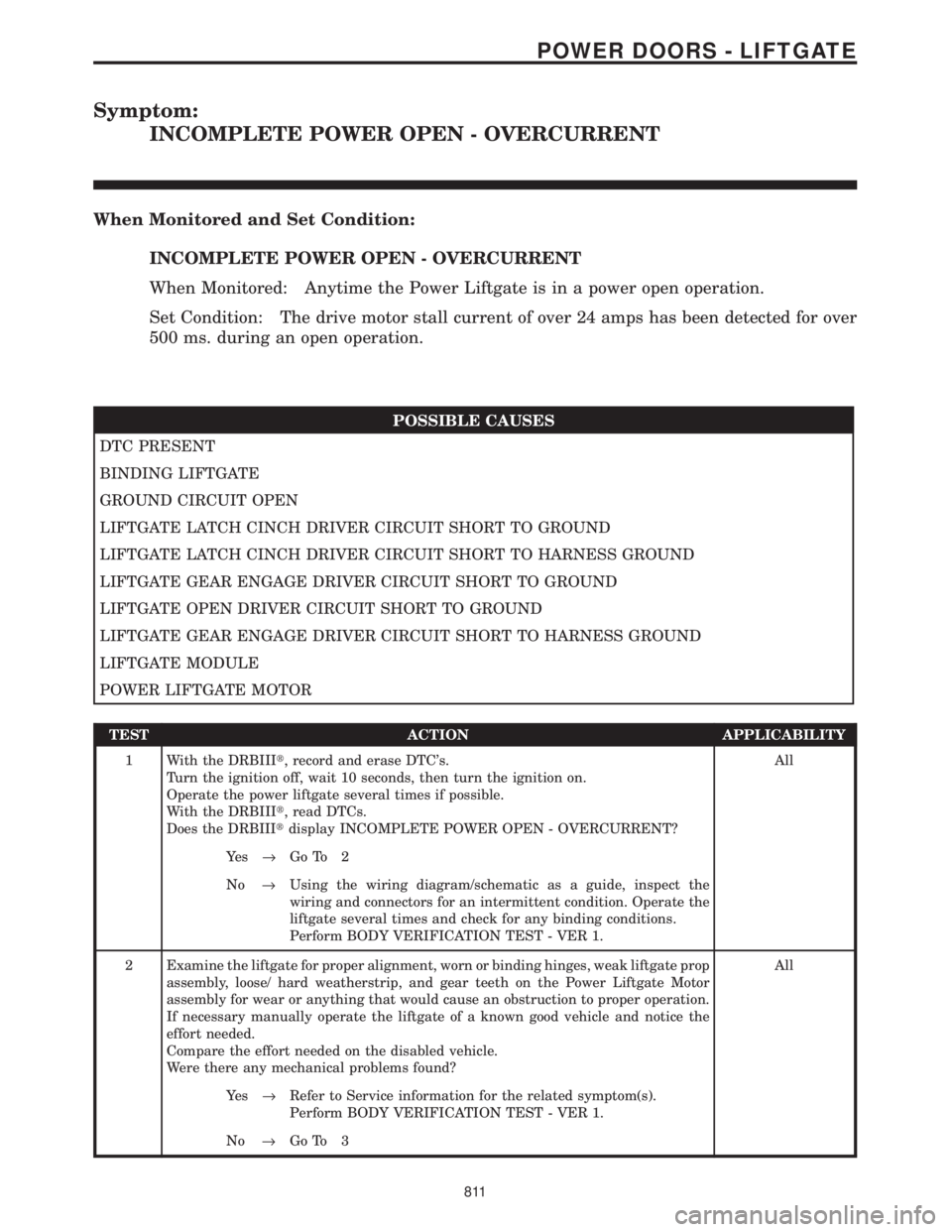

Symptom:
INCOMPLETE POWER OPEN - OVERCURRENT
When Monitored and Set Condition:
INCOMPLETE POWER OPEN - OVERCURRENT
When Monitored: Anytime the Power Liftgate is in a power open operation.
Set Condition: The drive motor stall current of over 24 amps has been detected for over
500 ms. during an open operation.
POSSIBLE CAUSES
DTC PRESENT
BINDING LIFTGATE
GROUND CIRCUIT OPEN
LIFTGATE LATCH CINCH DRIVER CIRCUIT SHORT TO GROUND
LIFTGATE LATCH CINCH DRIVER CIRCUIT SHORT TO HARNESS GROUND
LIFTGATE GEAR ENGAGE DRIVER CIRCUIT SHORT TO GROUND
LIFTGATE OPEN DRIVER CIRCUIT SHORT TO GROUND
LIFTGATE GEAR ENGAGE DRIVER CIRCUIT SHORT TO HARNESS GROUND
LIFTGATE MODULE
POWER LIFTGATE MOTOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay INCOMPLETE POWER OPEN - OVERCURRENT?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
liftgate several times and check for any binding conditions.
Perform BODY VERIFICATION TEST - VER 1.
2 Examine the liftgate for proper alignment, worn or binding hinges, weak liftgate prop
assembly, loose/ hard weatherstrip, and gear teeth on the Power Liftgate Motor
assembly for wear or anything that would cause an obstruction to proper operation.
If necessary manually operate the liftgate of a known good vehicle and notice the
effort needed.
Compare the effort needed on the disabled vehicle.
Were there any mechanical problems found?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
811
POWER DOORS - LIFTGATE
