CHRYSLER VOYAGER 2004 Service Manual

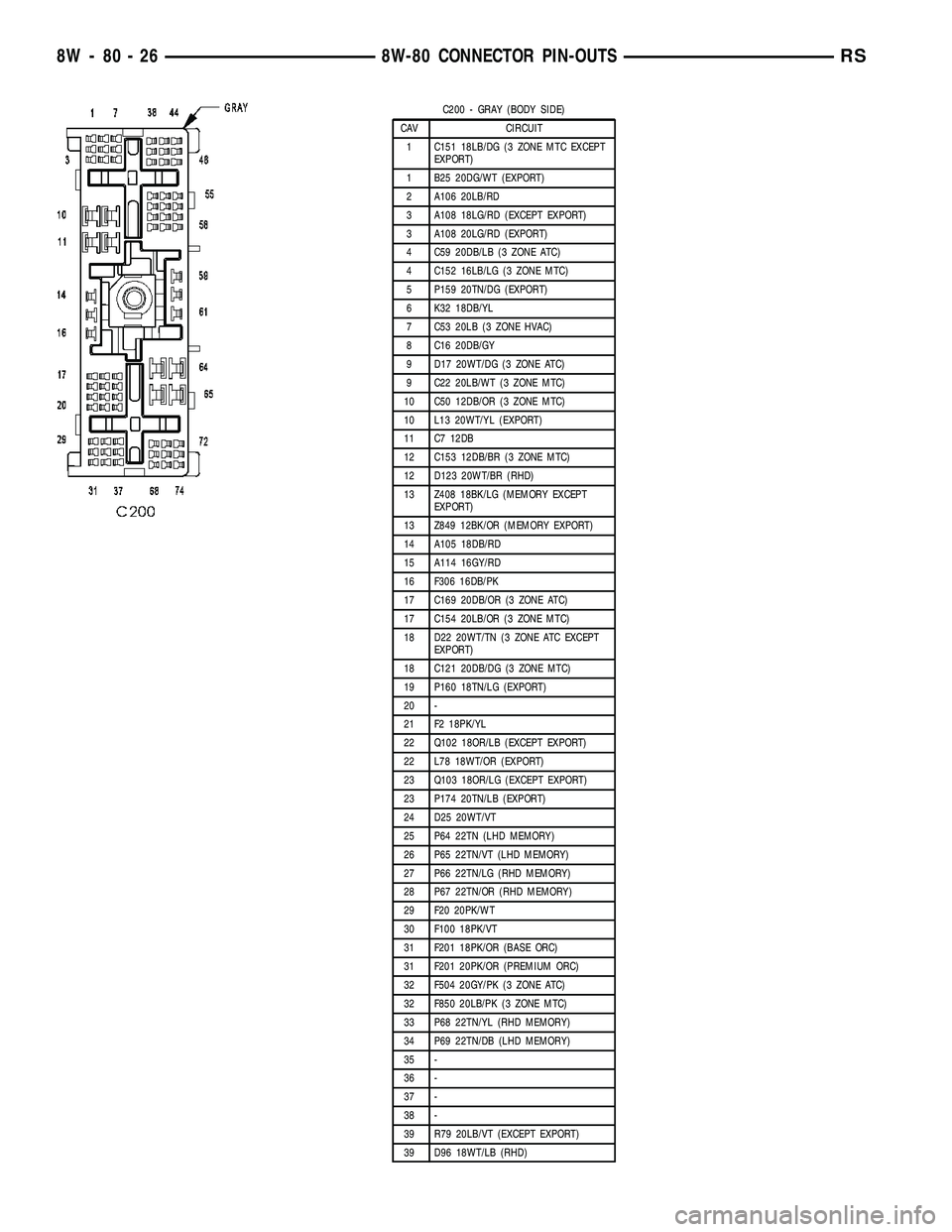

C200 - GRAY (BODY SIDE)
CAV CIRCUIT
1 C151 18LB/DG (3 ZONE MTC EXCEPT
EXPORT)
1 B25 20DG/WT (EXPORT)
2 A106 20LB/RD
3 A108 18LG/RD (EXCEPT EXPORT)
3 A108 20LG/RD (EXPORT)
4 C59 20DB/LB (3 ZONE ATC)
4 C152 16LB/LG (3 ZONE MTC)
5 P159 20TN/DG (EXPORT)
6 K32 18DB/YL
7 C53 20LB (3 ZONE HVAC)
8 C16 20DB/GY
9 D17 20WT/DG (3 ZONE ATC)
9 C22 20LB/WT (3 ZONE MTC)
10 C50 12DB/OR (3 ZONE MTC)
10 L13 20WT/YL (EXPORT)
11 C7 12DB
12 C153 12DB/BR (3 ZONE MTC)
12 D123 20WT/BR (RHD)
13 Z408 18BK/LG (MEMORY EXCEPT
EXPORT)
13 Z849 12BK/OR (MEMORY EXPORT)
14 A105 18DB/RD
15 A114 16GY/RD
16 F306 16DB/PK
17 C169 20DB/OR (3 ZONE ATC)
17 C154 20LB/OR (3 ZONE MTC)
18 D22 20WT/TN (3 ZONE ATC EXCEPT
EXPORT)
18 C121 20DB/DG (3 ZONE MTC)
19 P160 18TN/LG (EXPORT)
20 -
21 F2 18PK/YL
22 Q102 18OR/LB (EXCEPT EXPORT)
22 L78 18WT/OR (EXPORT)
23 Q103 18OR/LG (EXCEPT EXPORT)
23 P174 20TN/LB (EXPORT)
24 D25 20WT/VT
25 P64 22TN (LHD MEMORY)
26 P65 22TN/VT (LHD MEMORY)
27 P66 22TN/LG (RHD MEMORY)
28 P67 22TN/OR (RHD MEMORY)
29 F20 20PK/WT
30 F100 18PK/VT
31 F201 18PK/OR (BASE ORC)
31 F201 20PK/OR (PREMIUM ORC)
32 F504 20GY/PK (3 ZONE ATC)
32 F850 20LB/PK (3 ZONE MTC)
33 P68 22TN/YL (RHD MEMORY)
34 P69 22TN/DB (LHD MEMORY)
35 -
36 -
37 -
38 -
39 R79 20LB/VT (EXCEPT EXPORT)
39 D96 18WT/LB (RHD)
8W - 80 - 26 8W-80 CONNECTOR PIN-OUTSRS

C200 - GRAY (BODY SIDE)
CAV CIRCUIT
40 R80 20VT/LB (EXCEPT EXPORT)
40 Z109 18BK/GY (RHD)
41 R81 20LB/WT (EXCEPT EXPORT)
41 A645 20RD/VT (RHD)
42 R82 20WT/LB (EXCEPT EXPORT)
42 G945 20VT/DG (RHD)
43 A128 18RD/OR (EXCEPT TOWN AND
COUNTRY)
44 P70 20TN/LB (RHD MEMORY)
45 P71 20TN/DG (LHD MEMORY)
46 P72 20TN/GY (RHD MEMORY)
47 P73 20TN/YL (LHD MEMORY)
48 P74 20TN/DB (RHD MEMORY)
49 P75 20TN/LG (LHD MEMORY)
50 P112 22TN/OR (AUTOMATIC DAY/
NIGHT MIRROR/EXCEPT EXPORT)
51 P114 22TN/WT (AUTOMATIC DAY/
NIGHT MIRROR/EXCEPT EXPORT)
51 P171 20TN/YL (EXPORT)
52 P7 20LG/DG (HEATED SEATS)
53 R57 18LG/GY (EXCEPT HEATED SEATS/
BASE ORC)
53 P8 20LG/WT (HEATED SEATS/PRE-
MIUM ORC)
54 C154 20LB/OR (3 ZONE HVAC)
55 X156 20GY/LB (EXCEPT LOWLINE
1/PREMIUM ORC)
55 R59 18LG/TN (LOWLINE 1/BASE ORC)
56 X154 20GY/YL (EXCEPT LOWLINE 1)
57 P162 18LG/DG (EXPORT)
58 T751 20YL
59 X15 16GY/DG (HIGHLINE)
60 A701 18BR/RD
61 X3 20DG/VT
62 X53 20DG
62 X153 20DG/YL (LOWLINE 2)
63 X54 20GY
63 X154 20GY/YL (LOWLINE 2)
64 X55 20DG/BR
64 X155 20DG/LB (LOWLINE 2)
65 X56 20GY/BR
65 X156 20GY/LB (LOWLINE 2)
66 C54 20LB/YL (3 ZONE HVAC)
67 V37 20VT
68 X51 20DG/DB
69 X52 20GY/DB
70 X57 20GY/OR (LWB EXCEPT HIGHLINE/
EXCEPT EXPORT)
70 X57 20DG/OR (SWB/LWB HIGHLINE/
EXPORT)
71 X58 20GY/OR
72 X153 20DG/YL (EXCEPT LOWLINE 1)
73 K900 20DB/DG
74 X155 20DG/LB (EXCEPT LOWLINE 1)
RS8W-80 CONNECTOR PIN-OUTS8W-80-27

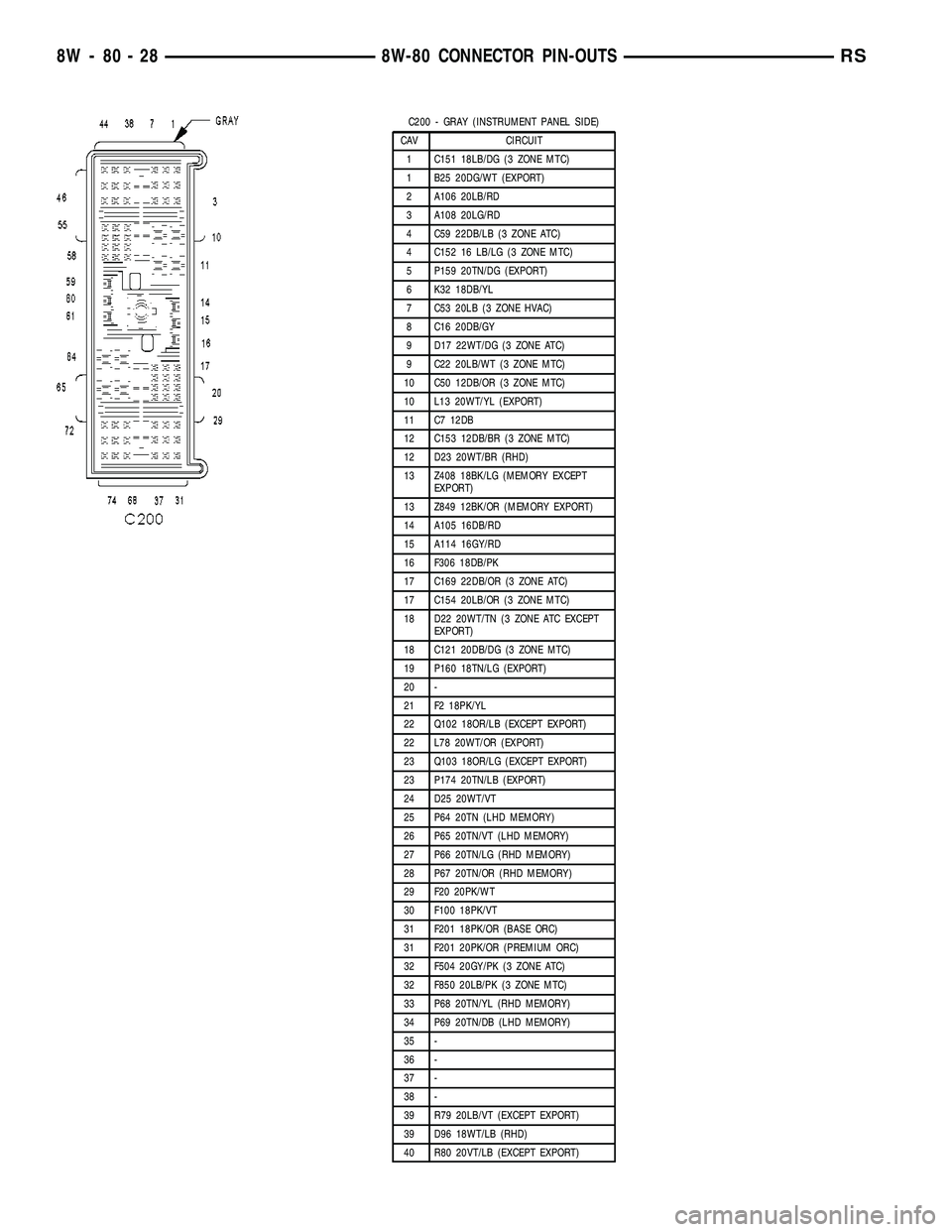

C200 - GRAY (INSTRUMENT PANEL SIDE)
CAV CIRCUIT
1 C151 18LB/DG (3 ZONE MTC)
1 B25 20DG/WT (EXPORT)
2 A106 20LB/RD
3 A108 20LG/RD
4 C59 22DB/LB (3 ZONE ATC)
4 C152 16 LB/LG (3 ZONE MTC)
5 P159 20TN/DG (EXPORT)
6 K32 18DB/YL
7 C53 20LB (3 ZONE HVAC)
8 C16 20DB/GY
9 D17 22WT/DG (3 ZONE ATC)
9 C22 20LB/WT (3 ZONE MTC)
10 C50 12DB/OR (3 ZONE MTC)
10 L13 20WT/YL (EXPORT)
11 C7 12DB
12 C153 12DB/BR (3 ZONE MTC)
12 D23 20WT/BR (RHD)
13 Z408 18BK/LG (MEMORY EXCEPT
EXPORT)
13 Z849 12BK/OR (MEMORY EXPORT)
14 A105 16DB/RD
15 A114 16GY/RD
16 F306 18DB/PK
17 C169 22DB/OR (3 ZONE ATC)
17 C154 20LB/OR (3 ZONE MTC)
18 D22 20WT/TN (3 ZONE ATC EXCEPT
EXPORT)
18 C121 20DB/DG (3 ZONE MTC)
19 P160 18TN/LG (EXPORT)
20 -
21 F2 18PK/YL
22 Q102 18OR/LB (EXCEPT EXPORT)
22 L78 20WT/OR (EXPORT)
23 Q103 18OR/LG (EXCEPT EXPORT)
23 P174 20TN/LB (EXPORT)
24 D25 20WT/VT
25 P64 20TN (LHD MEMORY)
26 P65 20TN/VT (LHD MEMORY)
27 P66 20TN/LG (RHD MEMORY)
28 P67 20TN/OR (RHD MEMORY)
29 F20 20PK/WT
30 F100 18PK/VT
31 F201 18PK/OR (BASE ORC)
31 F201 20PK/OR (PREMIUM ORC)
32 F504 20GY/PK (3 ZONE ATC)
32 F850 20LB/PK (3 ZONE MTC)
33 P68 20TN/YL (RHD MEMORY)
34 P69 20TN/DB (LHD MEMORY)
35 -
36 -
37 -
38 -
39 R79 20LB/VT (EXCEPT EXPORT)
39 D96 18WT/LB (RHD)
40 R80 20VT/LB (EXCEPT EXPORT)
8W - 80 - 28 8W-80 CONNECTOR PIN-OUTSRS

C200 - GRAY (INSTRUMENT PANEL SIDE)
CAV CIRCUIT
40 Z109 20BK/GY (RHD)
41 R81 20LB/WT (EXCEPT EXPORT)
41 A645 20RD/VT (RHD)
42 R82 20WT/LB (EXCEPT EXPORT)
42 G945 20VT/DG (RHD)
43 A128 18RD/OR (EXCEPT EXPORT)
44 P70 20TN/LB (RHD MEMORY)
45 P71 20TN/DG (LHD MEMORY)
46 P72 20TN/LG (RHD MEMORY)
47 P73 20TN/YL (RHD MEMORY)
48 P74 20TN/DB (RHD MEMORY)
49 P75 20TN/LG (LHD MEMORY)
50 P112 22TN/OR (AUTOMATIC DAY/
NIGHT MIRROR/EXCEPT EXPORT)
51 P114 22TN/WT (AUTOMATIC DAY/
NIGHT MIRROR/EXCEPT EXPORT)
52 P7 20LG/DG (HEATED SEATS)
53 R57 18LG/GY (EXCEPT HEATED SEATS/
BASE ORC)
53 P8 20LG/WT (HEATED SEATS/PRE-
MIUM ORC)
54 C154 20LB/OR (3 ZONE HVAC)
55 X156 20GY/LB (EXCEPT LOWLINE
1/PREMIUM ORC)
55 R59 18LG/GY (LOWLINE 1/BASE ORC)
56 X154 20GY/YL (EXCEPT LOWLINE 1)
57 P162 20LG/DG (EXPORT)
58 T751 20YL
59 X15 16GY/DG (HIGHLINE)
60 A701 18BR/RD
61 X3 20DG/VT
62 X153 20DG/YL (LOWLINE 2)
63 X54 20GY
64 X155 20DG/LB (LOWLINE 2)
65 X156 20GY/BR (LOWLINE 2)
66 C54 20LB/YL (3 ZONE HVAC)
67 V37 22VT
68 X51 22DG/DB
69 X52 22GY/DB
70 X57 20DG/OR (SWB/LWB HIGHLINE
EXPORT)
71 X58 20GY/OR
72 X153 20DG/YL (PREMIUM 8 SPEAKER)
73 K900 20DB/DG
74 X155 22DG/LB (EXCEPT LOWLINE 1)
RS8W-80 CONNECTOR PIN-OUTS8W-80-29

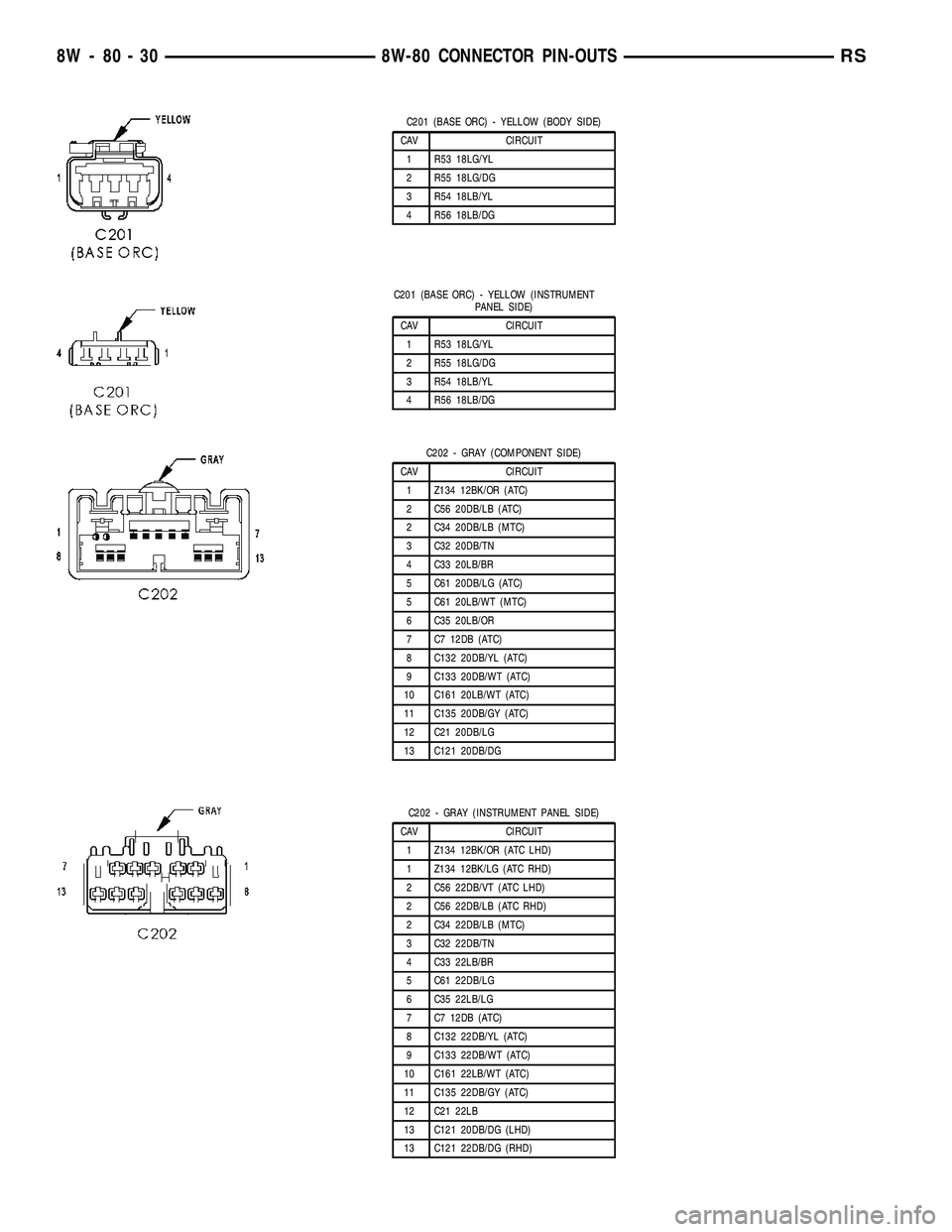

C201 (BASE ORC) - YELLOW (BODY SIDE)
CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3 R54 18LB/YL
4 R56 18LB/DG
C201 (BASE ORC) - YELLOW (INSTRUMENT
PANEL SIDE)
CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3 R54 18LB/YL
4 R56 18LB/DG
C202 - GRAY (COMPONENT SIDE)
CAV CIRCUIT
1 Z134 12BK/OR (ATC)
2 C56 20DB/LB (ATC)
2 C34 20DB/LB (MTC)
3 C32 20DB/TN
4 C33 20LB/BR
5 C61 20DB/LG (ATC)
5 C61 20LB/WT (MTC)
6 C35 20LB/OR
7 C7 12DB (ATC)
8 C132 20DB/YL (ATC)
9 C133 20DB/WT (ATC)
10 C161 20LB/WT (ATC)
11 C135 20DB/GY (ATC)
12 C21 20DB/LG
13 C121 20DB/DG
C202 - GRAY (INSTRUMENT PANEL SIDE)
CAV CIRCUIT
1 Z134 12BK/OR (ATC LHD)
1 Z134 12BK/LG (ATC RHD)
2 C56 22DB/VT (ATC LHD)
2 C56 22DB/LB (ATC RHD)
2 C34 22DB/LB (MTC)
3 C32 22DB/TN
4 C33 22LB/BR
5 C61 22DB/LG
6 C35 22LB/LG
7 C7 12DB (ATC)
8 C132 22DB/YL (ATC)
9 C133 22DB/WT (ATC)
10 C161 22LB/WT (ATC)
11 C135 22DB/GY (ATC)
12 C21 22LB
13 C121 20DB/DG (LHD)
13 C121 22DB/DG (RHD)
8W - 80 - 30 8W-80 CONNECTOR PIN-OUTSRS

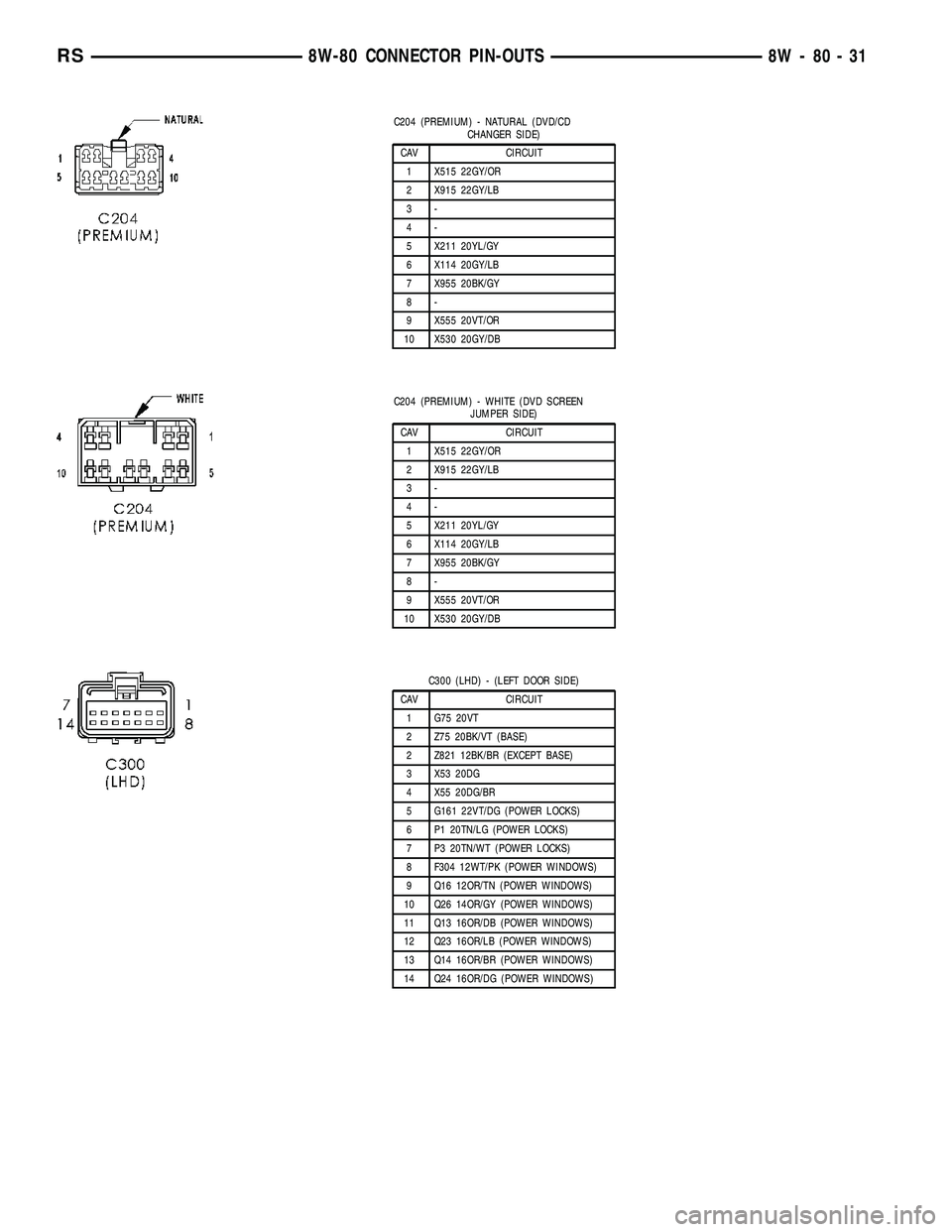

C204 (PREMIUM) - NATURAL (DVD/CD
CHANGER SIDE)
CAV CIRCUIT
1 X515 22GY/OR
2 X915 22GY/LB
3-
4-
5 X211 20YL/GY
6 X114 20GY/LB
7 X955 20BK/GY
8-
9 X555 20VT/OR
10 X530 20GY/DB
C204 (PREMIUM) - WHITE (DVD SCREEN
JUMPER SIDE)
CAV CIRCUIT
1 X515 22GY/OR
2 X915 22GY/LB
3-
4-
5 X211 20YL/GY
6 X114 20GY/LB
7 X955 20BK/GY
8-
9 X555 20VT/OR
10 X530 20GY/DB
C300 (LHD) - (LEFT DOOR SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z75 20BK/VT (BASE)
2 Z821 12BK/BR (EXCEPT BASE)
3 X53 20DG
4 X55 20DG/BR
5 G161 22VT/DG (POWER LOCKS)
6 P1 20TN/LG (POWER LOCKS)
7 P3 20TN/WT (POWER LOCKS)
8 F304 12WT/PK (POWER WINDOWS)
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
RS8W-80 CONNECTOR PIN-OUTS8W-80-31

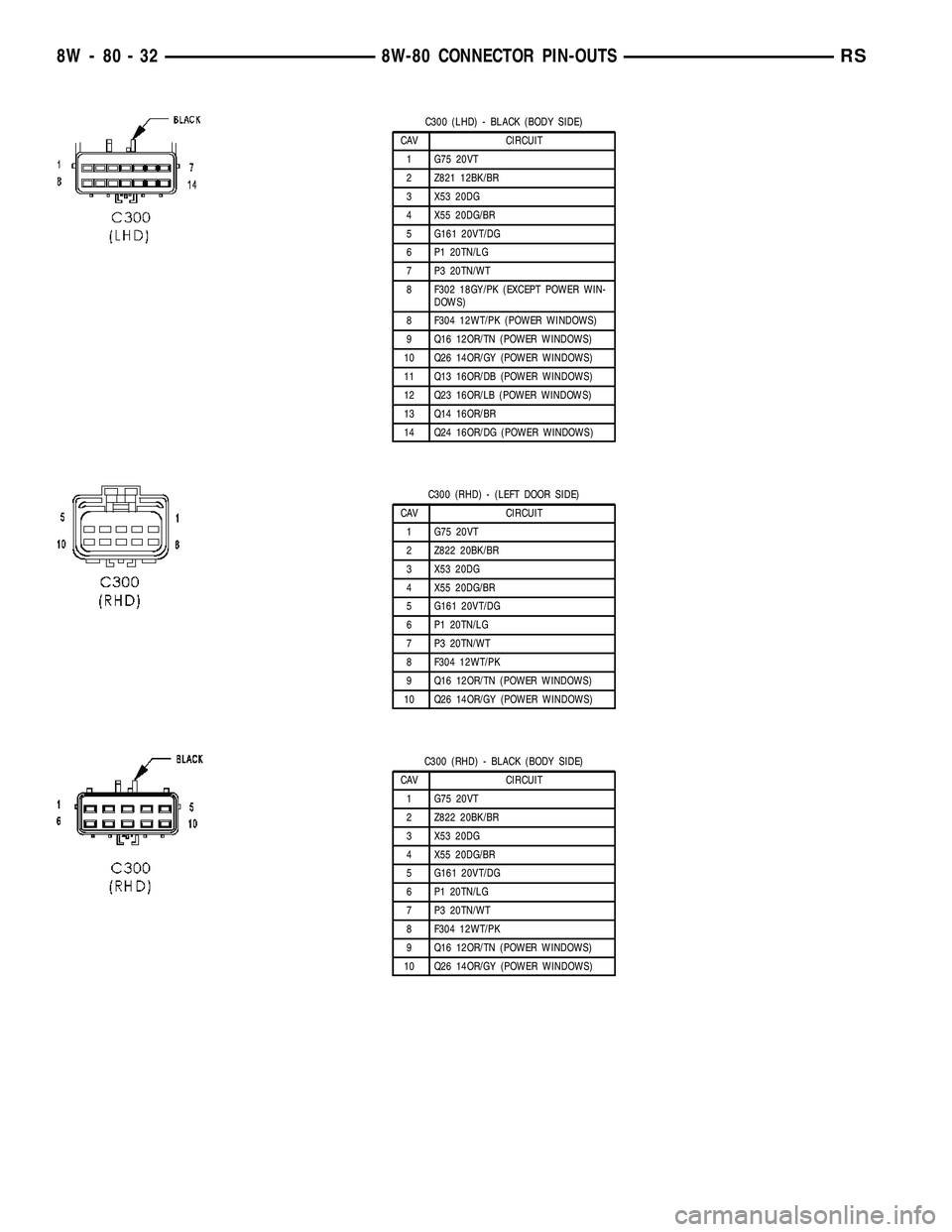

C300 (LHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z821 12BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F302 18GY/PK (EXCEPT POWER WIN-
DOWS)
8 F304 12WT/PK (POWER WINDOWS)
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR
14 Q24 16OR/DG (POWER WINDOWS)
C300 (RHD) - (LEFT DOOR SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z822 20BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
C300 (RHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z822 20BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
8W - 80 - 32 8W-80 CONNECTOR PIN-OUTSRS

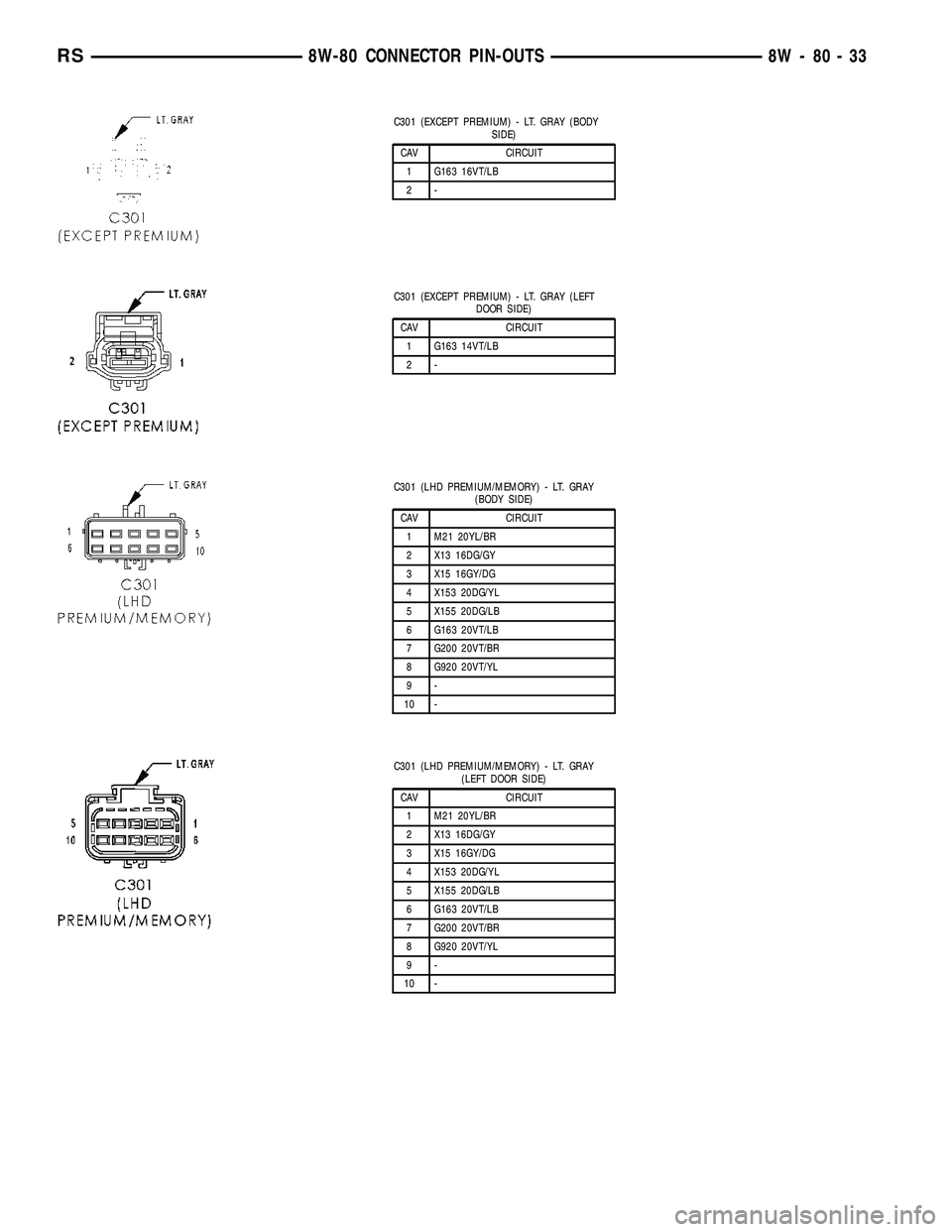

C301 (EXCEPT PREMIUM) - LT. GRAY (BODY
SIDE)
CAV CIRCUIT
1 G163 16VT/LB
2-
C301 (EXCEPT PREMIUM) - LT. GRAY (LEFT
DOOR SIDE)
CAV CIRCUIT
1 G163 14VT/LB
2-
C301 (LHD PREMIUM/MEMORY) - LT. GRAY
(BODY SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY
3 X15 16GY/DG
4 X153 20DG/YL
5 X155 20DG/LB
6 G163 20VT/LB
7 G200 20VT/BR
8 G920 20VT/YL
9-
10 -
C301 (LHD PREMIUM/MEMORY) - LT. GRAY
(LEFT DOOR SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY
3 X15 16GY/DG
4 X153 20DG/YL
5 X155 20DG/LB
6 G163 20VT/LB
7 G200 20VT/BR
8 G920 20VT/YL
9-
10 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-33

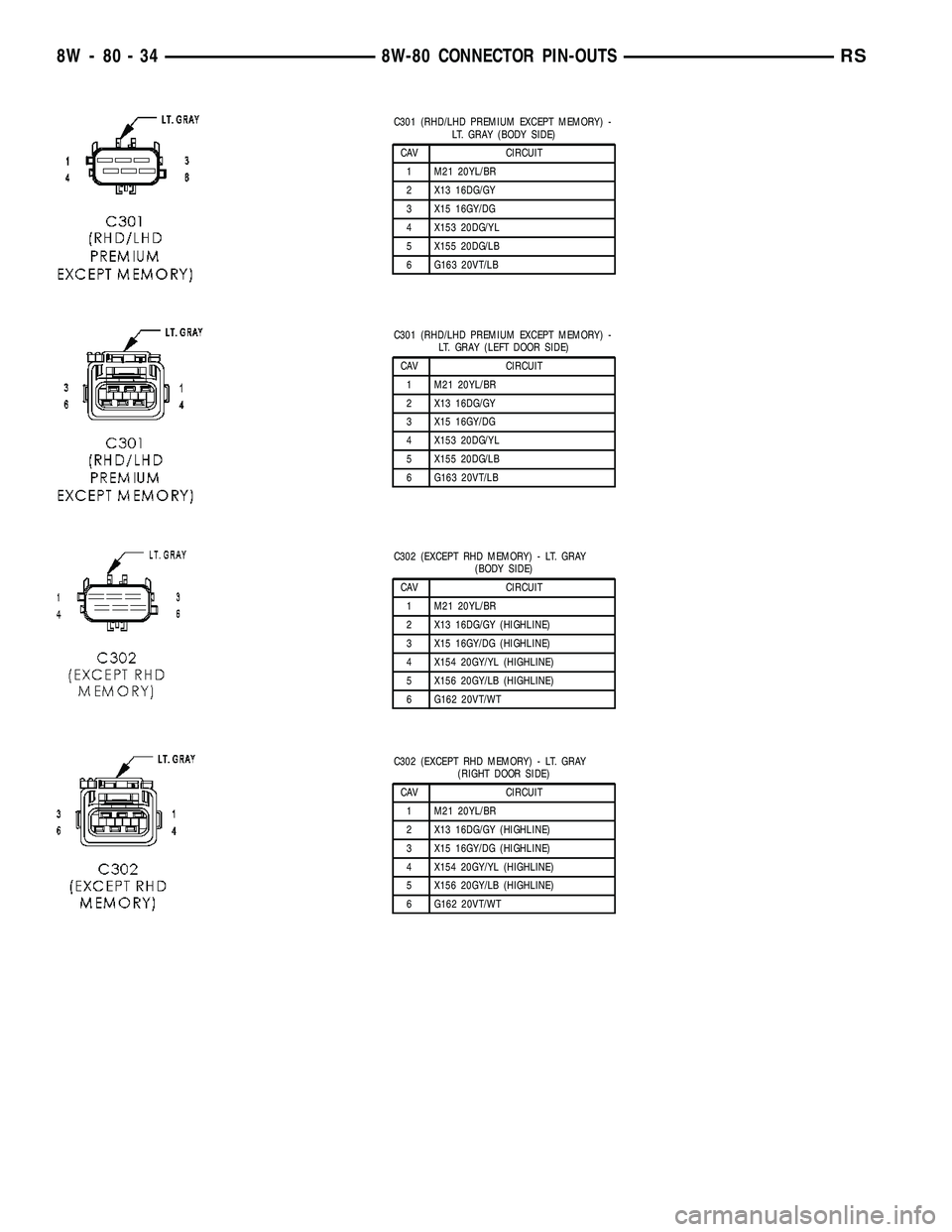

C301 (RHD/LHD PREMIUM EXCEPT MEMORY) -
LT. GRAY (BODY SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY
3 X15 16GY/DG
4 X153 20DG/YL
5 X155 20DG/LB
6 G163 20VT/LB
C301 (RHD/LHD PREMIUM EXCEPT MEMORY) -
LT. GRAY (LEFT DOOR SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY
3 X15 16GY/DG
4 X153 20DG/YL
5 X155 20DG/LB
6 G163 20VT/LB
C302 (EXCEPT RHD MEMORY) - LT. GRAY
(BODY SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY (HIGHLINE)
3 X15 16GY/DG (HIGHLINE)
4 X154 20GY/YL (HIGHLINE)
5 X156 20GY/LB (HIGHLINE)
6 G162 20VT/WT
C302 (EXCEPT RHD MEMORY) - LT. GRAY
(RIGHT DOOR SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY (HIGHLINE)
3 X15 16GY/DG (HIGHLINE)
4 X154 20GY/YL (HIGHLINE)
5 X156 20GY/LB (HIGHLINE)
6 G162 20VT/WT
8W - 80 - 34 8W-80 CONNECTOR PIN-OUTSRS

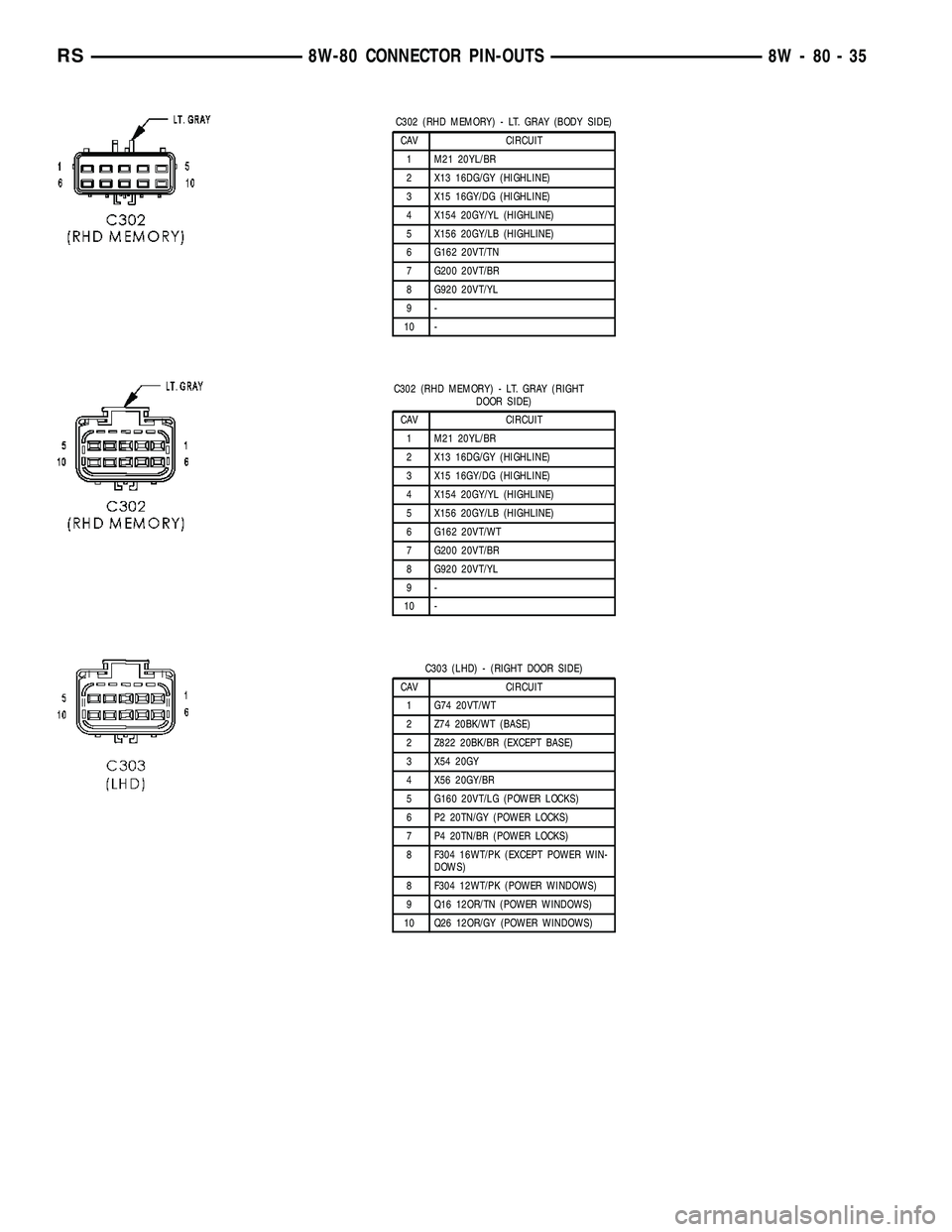

C302 (RHD MEMORY) - LT. GRAY (BODY SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY (HIGHLINE)
3 X15 16GY/DG (HIGHLINE)
4 X154 20GY/YL (HIGHLINE)
5 X156 20GY/LB (HIGHLINE)
6 G162 20VT/TN
7 G200 20VT/BR
8 G920 20VT/YL
9-
10 -
C302 (RHD MEMORY) - LT. GRAY (RIGHT
DOOR SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY (HIGHLINE)
3 X15 16GY/DG (HIGHLINE)
4 X154 20GY/YL (HIGHLINE)
5 X156 20GY/LB (HIGHLINE)
6 G162 20VT/WT
7 G200 20VT/BR
8 G920 20VT/YL
9-
10 -
C303 (LHD) - (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z74 20BK/WT (BASE)
2 Z822 20BK/BR (EXCEPT BASE)
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG (POWER LOCKS)
6 P2 20TN/GY (POWER LOCKS)
7 P4 20TN/BR (POWER LOCKS)
8 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)
8 F304 12WT/PK (POWER WINDOWS)
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 12OR/GY (POWER WINDOWS)
RS8W-80 CONNECTOR PIN-OUTS8W-80-35
