CHRYSLER VOYAGER 2004 Service Manual

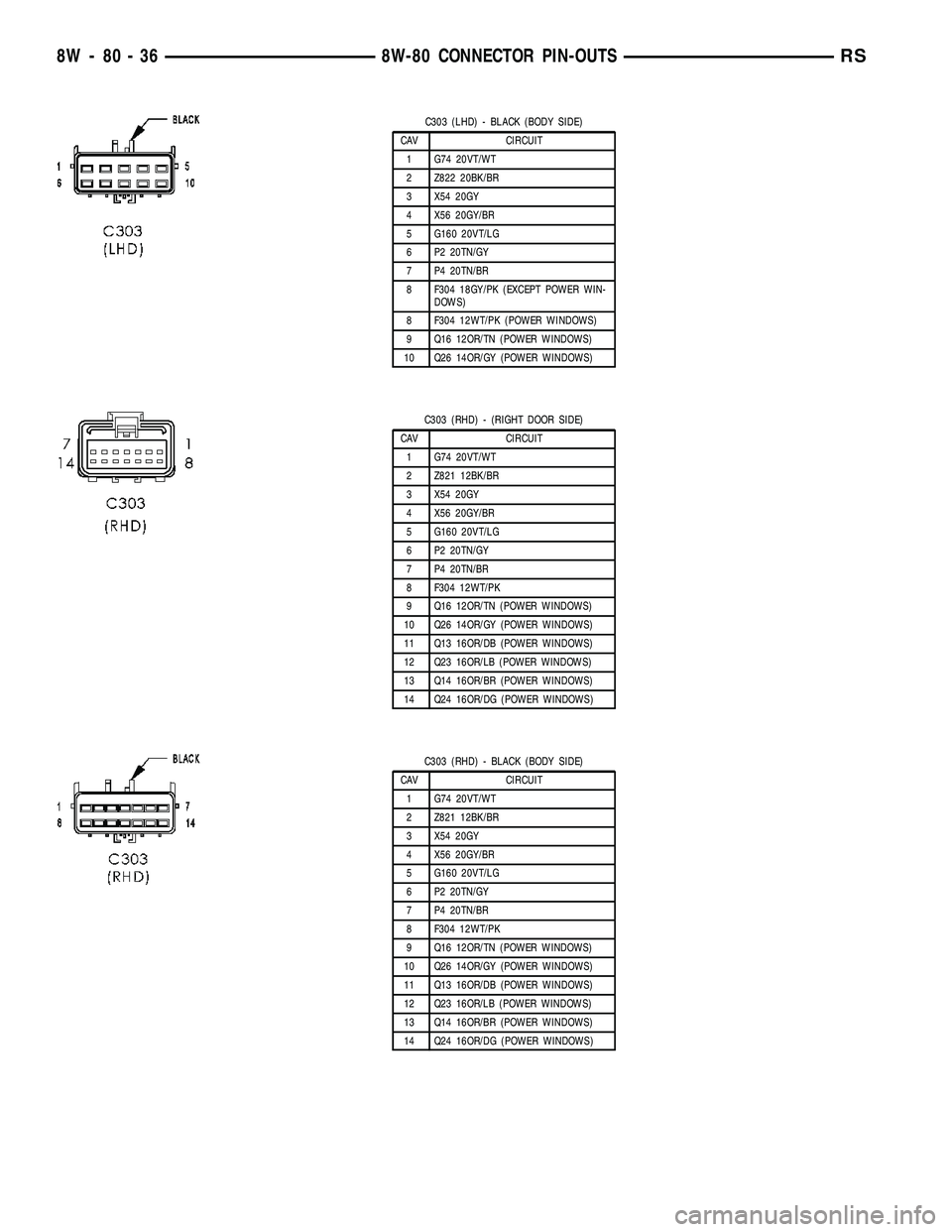

C303 (LHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z822 20BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 18GY/PK (EXCEPT POWER WIN-
DOWS)
8 F304 12WT/PK (POWER WINDOWS)
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
C303 (RHD) - (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z821 12BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
C303 (RHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z821 12BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
8W - 80 - 36 8W-80 CONNECTOR PIN-OUTSRS

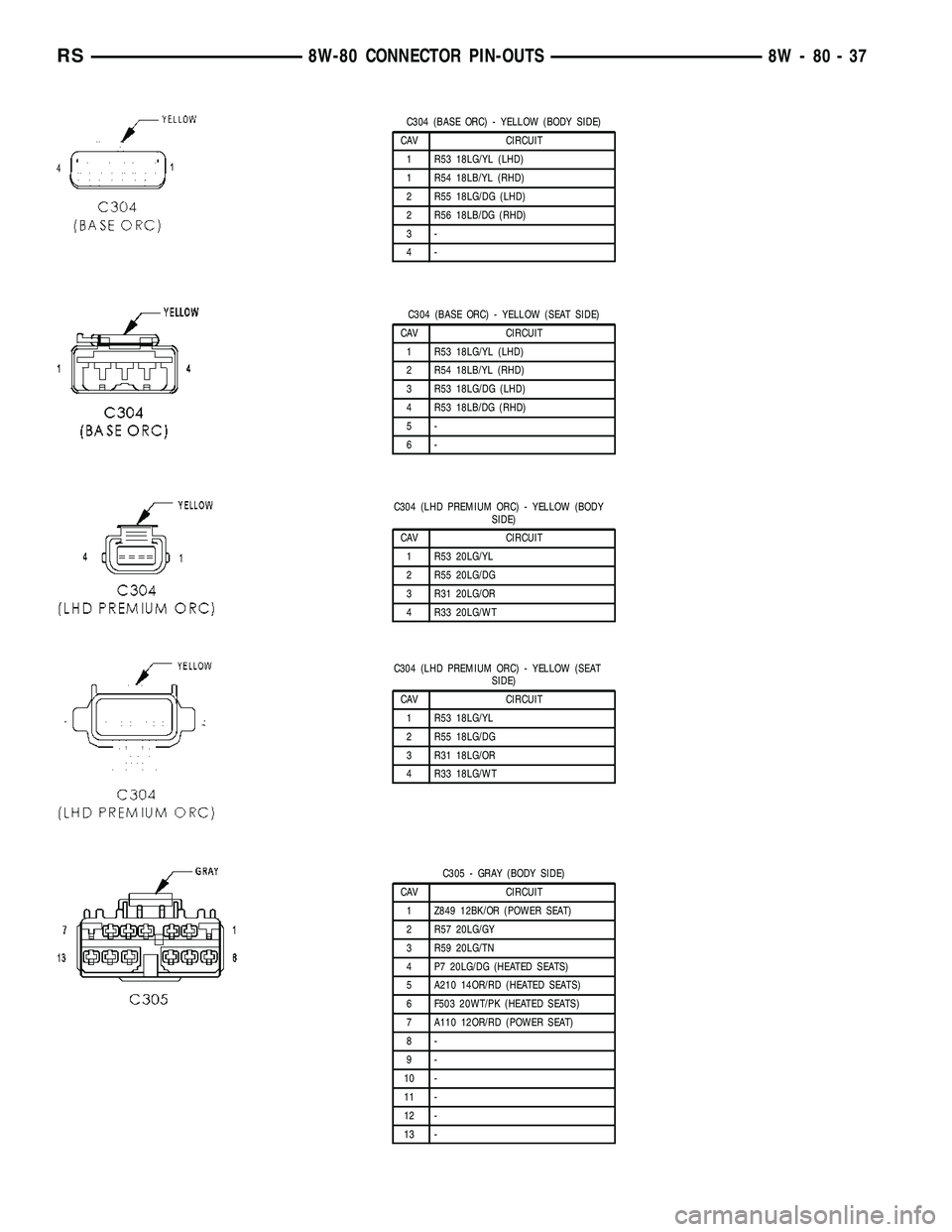

C304 (BASE ORC) - YELLOW (BODY SIDE)
CAV CIRCUIT
1 R53 18LG/YL (LHD)
1 R54 18LB/YL (RHD)
2 R55 18LG/DG (LHD)
2 R56 18LB/DG (RHD)
3-
4-
C304 (BASE ORC) - YELLOW (SEAT SIDE)
CAV CIRCUIT
1 R53 18LG/YL (LHD)
2 R54 18LB/YL (RHD)
3 R53 18LG/DG (LHD)
4 R53 18LB/DG (RHD)
5-
6-
C304 (LHD PREMIUM ORC) - YELLOW (BODY
SIDE)
CAV CIRCUIT
1 R53 20LG/YL
2 R55 20LG/DG
3 R31 20LG/OR
4 R33 20LG/WT
C304 (LHD PREMIUM ORC) - YELLOW (SEAT
SIDE)
CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3 R31 18LG/OR
4 R33 18LG/WT
C305 - GRAY (BODY SIDE)
CAV CIRCUIT
1 Z849 12BK/OR (POWER SEAT)
2 R57 20LG/GY
3 R59 20LG/TN
4 P7 20LG/DG (HEATED SEATS)
5 A210 14OR/RD (HEATED SEATS)
6 F503 20WT/PK (HEATED SEATS)
7 A110 12OR/RD (POWER SEAT)
8-
9-
10 -
11 -
12 -
13 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-37

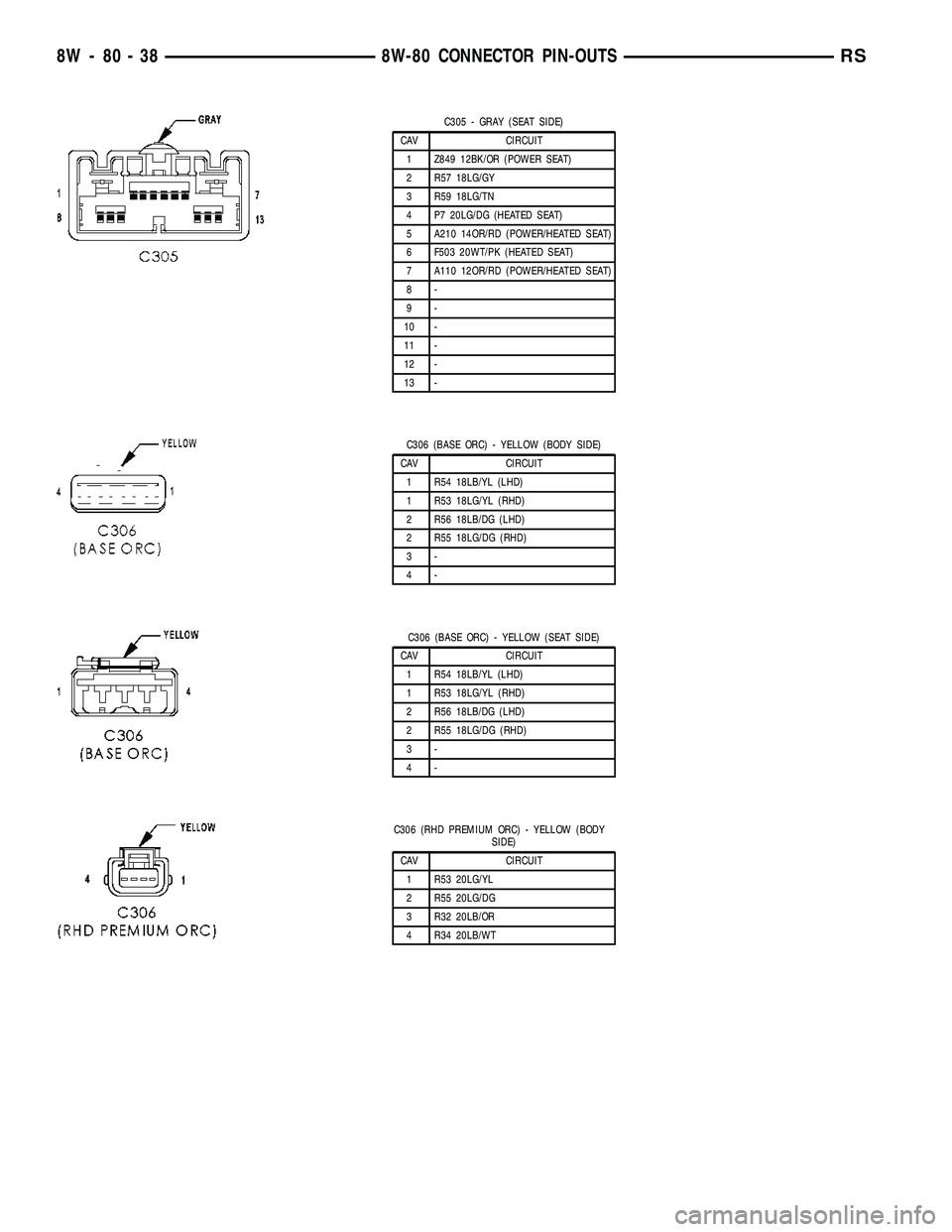

C305 - GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z849 12BK/OR (POWER SEAT)
2 R57 18LG/GY
3 R59 18LG/TN
4 P7 20LG/DG (HEATED SEAT)
5 A210 14OR/RD (POWER/HEATED SEAT)
6 F503 20WT/PK (HEATED SEAT)
7 A110 12OR/RD (POWER/HEATED SEAT)
8-
9-
10 -
11 -
12 -
13 -
C306 (BASE ORC) - YELLOW (BODY SIDE)
CAV CIRCUIT
1 R54 18LB/YL (LHD)
1 R53 18LG/YL (RHD)
2 R56 18LB/DG (LHD)
2 R55 18LG/DG (RHD)
3-
4-
C306 (BASE ORC) - YELLOW (SEAT SIDE)
CAV CIRCUIT
1 R54 18LB/YL (LHD)
1 R53 18LG/YL (RHD)
2 R56 18LB/DG (LHD)
2 R55 18LG/DG (RHD)
3-
4-
C306 (RHD PREMIUM ORC) - YELLOW (BODY
SIDE)
CAV CIRCUIT
1 R53 20LG/YL
2 R55 20LG/DG
3 R32 20LB/OR
4 R34 20LB/WT
8W - 80 - 38 8W-80 CONNECTOR PIN-OUTSRS

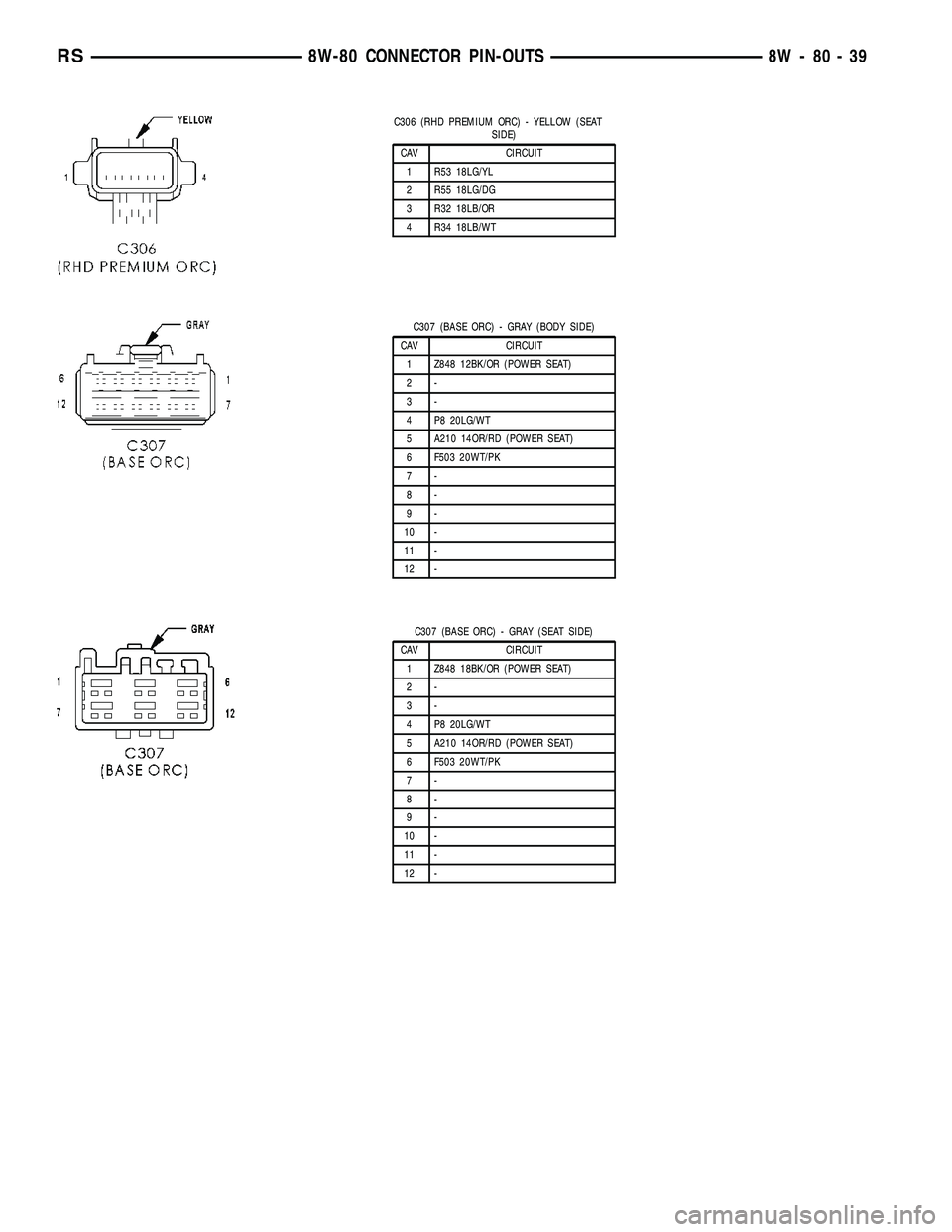

C306 (RHD PREMIUM ORC) - YELLOW (SEAT
SIDE)
CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3 R32 18LB/OR
4 R34 18LB/WT
C307 (BASE ORC) - GRAY (BODY SIDE)
CAV CIRCUIT
1 Z848 12BK/OR (POWER SEAT)
2-
3-
4 P8 20LG/WT
5 A210 14OR/RD (POWER SEAT)
6 F503 20WT/PK
7-
8-
9-
10 -
11 -
12 -
C307 (BASE ORC) - GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z848 18BK/OR (POWER SEAT)
2-
3-
4 P8 20LG/WT
5 A210 14OR/RD (POWER SEAT)
6 F503 20WT/PK
7-
8-
9-
10 -
11 -
12 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-39

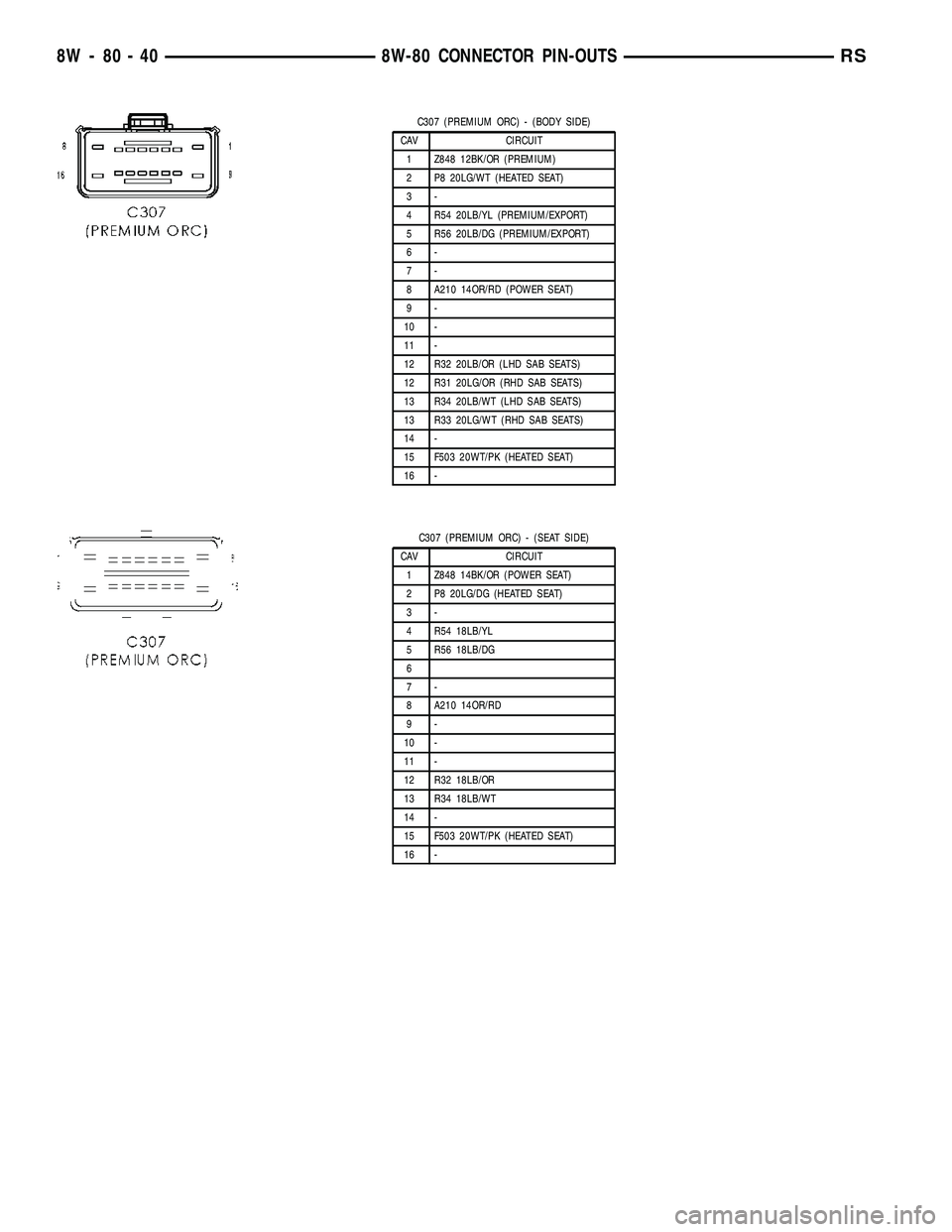

C307 (PREMIUM ORC) - (BODY SIDE)
CAV CIRCUIT
1 Z848 12BK/OR (PREMIUM)
2 P8 20LG/WT (HEATED SEAT)
3-
4 R54 20LB/YL (PREMIUM/EXPORT)
5 R56 20LB/DG (PREMIUM/EXPORT)
6-
7-
8 A210 14OR/RD (POWER SEAT)
9-
10 -
11 -
12 R32 20LB/OR (LHD SAB SEATS)
12 R31 20LG/OR (RHD SAB SEATS)
13 R34 20LB/WT (LHD SAB SEATS)
13 R33 20LG/WT (RHD SAB SEATS)
14 -
15 F503 20WT/PK (HEATED SEAT)
16 -
C307 (PREMIUM ORC) - (SEAT SIDE)
CAV CIRCUIT
1 Z848 14BK/OR (POWER SEAT)
2 P8 20LG/DG (HEATED SEAT)
3-
4 R54 18LB/YL
5 R56 18LB/DG
6
7-
8 A210 14OR/RD
9-
10 -
11 -
12 R32 18LB/OR
13 R34 18LB/WT
14 -
15 F503 20WT/PK (HEATED SEAT)
16 -
8W - 80 - 40 8W-80 CONNECTOR PIN-OUTSRS

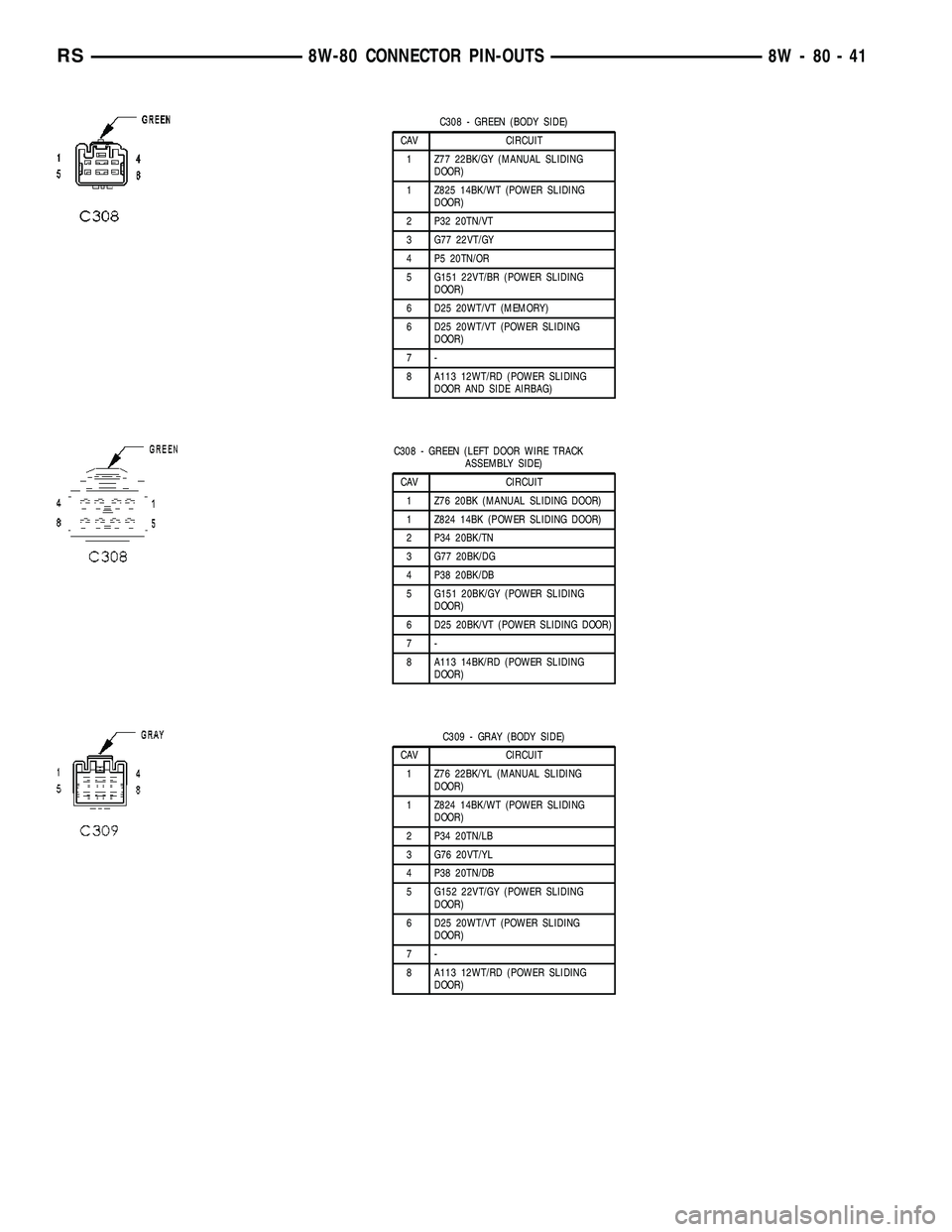

C308 - GREEN (BODY SIDE)
CAV CIRCUIT
1 Z77 22BK/GY (MANUAL SLIDING
DOOR)
1 Z825 14BK/WT (POWER SLIDING
DOOR)
2 P32 20TN/VT
3 G77 22VT/GY
4 P5 20TN/OR
5 G151 22VT/BR (POWER SLIDING
DOOR)
6 D25 20WT/VT (MEMORY)
6 D25 20WT/VT (POWER SLIDING
DOOR)
7-
8 A113 12WT/RD (POWER SLIDING
DOOR AND SIDE AIRBAG)
C308 - GREEN (LEFT DOOR WIRE TRACK
ASSEMBLY SIDE)
CAV CIRCUIT
1 Z76 20BK (MANUAL SLIDING DOOR)
1 Z824 14BK (POWER SLIDING DOOR)
2 P34 20BK/TN
3 G77 20BK/DG
4 P38 20BK/DB
5 G151 20BK/GY (POWER SLIDING
DOOR)
6 D25 20BK/VT (POWER SLIDING DOOR)
7-
8 A113 14BK/RD (POWER SLIDING
DOOR)
C309 - GRAY (BODY SIDE)
CAV CIRCUIT
1 Z76 22BK/YL (MANUAL SLIDING
DOOR)
1 Z824 14BK/WT (POWER SLIDING
DOOR)
2 P34 20TN/LB
3 G76 20VT/YL
4 P38 20TN/DB
5 G152 22VT/GY (POWER SLIDING
DOOR)
6 D25 20WT/VT (POWER SLIDING
DOOR)
7-
8 A113 12WT/RD (POWER SLIDING
DOOR)
RS8W-80 CONNECTOR PIN-OUTS8W-80-41

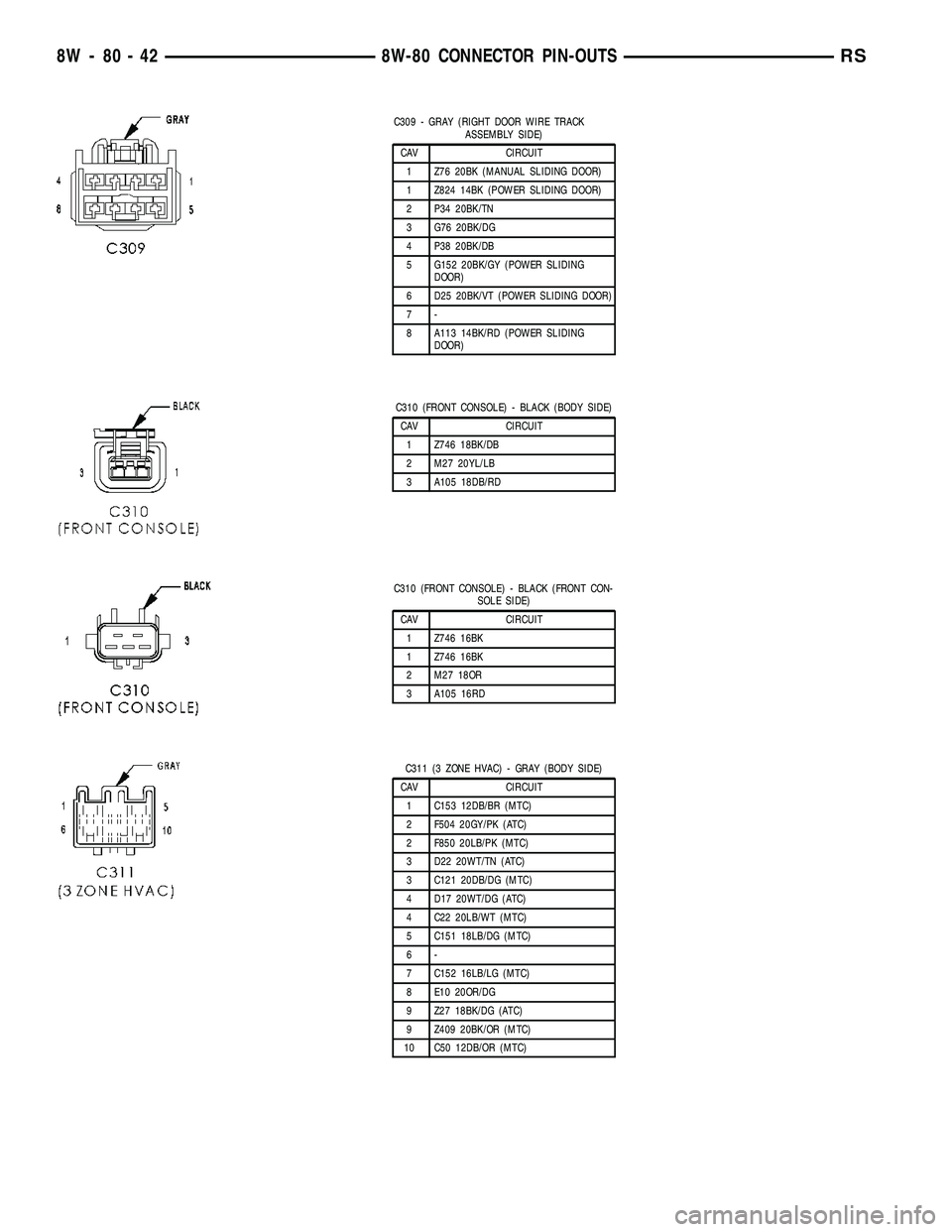

C309 - GRAY (RIGHT DOOR WIRE TRACK
ASSEMBLY SIDE)
CAV CIRCUIT
1 Z76 20BK (MANUAL SLIDING DOOR)
1 Z824 14BK (POWER SLIDING DOOR)
2 P34 20BK/TN
3 G76 20BK/DG
4 P38 20BK/DB
5 G152 20BK/GY (POWER SLIDING
DOOR)
6 D25 20BK/VT (POWER SLIDING DOOR)
7-
8 A113 14BK/RD (POWER SLIDING
DOOR)
C310 (FRONT CONSOLE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 Z746 18BK/DB
2 M27 20YL/LB
3 A105 18DB/RD
C310 (FRONT CONSOLE) - BLACK (FRONT CON-
SOLE SIDE)
CAV CIRCUIT
1 Z746 16BK
1 Z746 16BK
2 M27 18OR
3 A105 16RD
C311 (3 ZONE HVAC) - GRAY (BODY SIDE)
CAV CIRCUIT
1 C153 12DB/BR (MTC)
2 F504 20GY/PK (ATC)
2 F850 20LB/PK (MTC)
3 D22 20WT/TN (ATC)
3 C121 20DB/DG (MTC)
4 D17 20WT/DG (ATC)
4 C22 20LB/WT (MTC)
5 C151 18LB/DG (MTC)
6-
7 C152 16LB/LG (MTC)
8 E10 20OR/DG
9 Z27 18BK/DG (ATC)
9 Z409 20BK/OR (MTC)
10 C50 12DB/OR (MTC)
8W - 80 - 42 8W-80 CONNECTOR PIN-OUTSRS

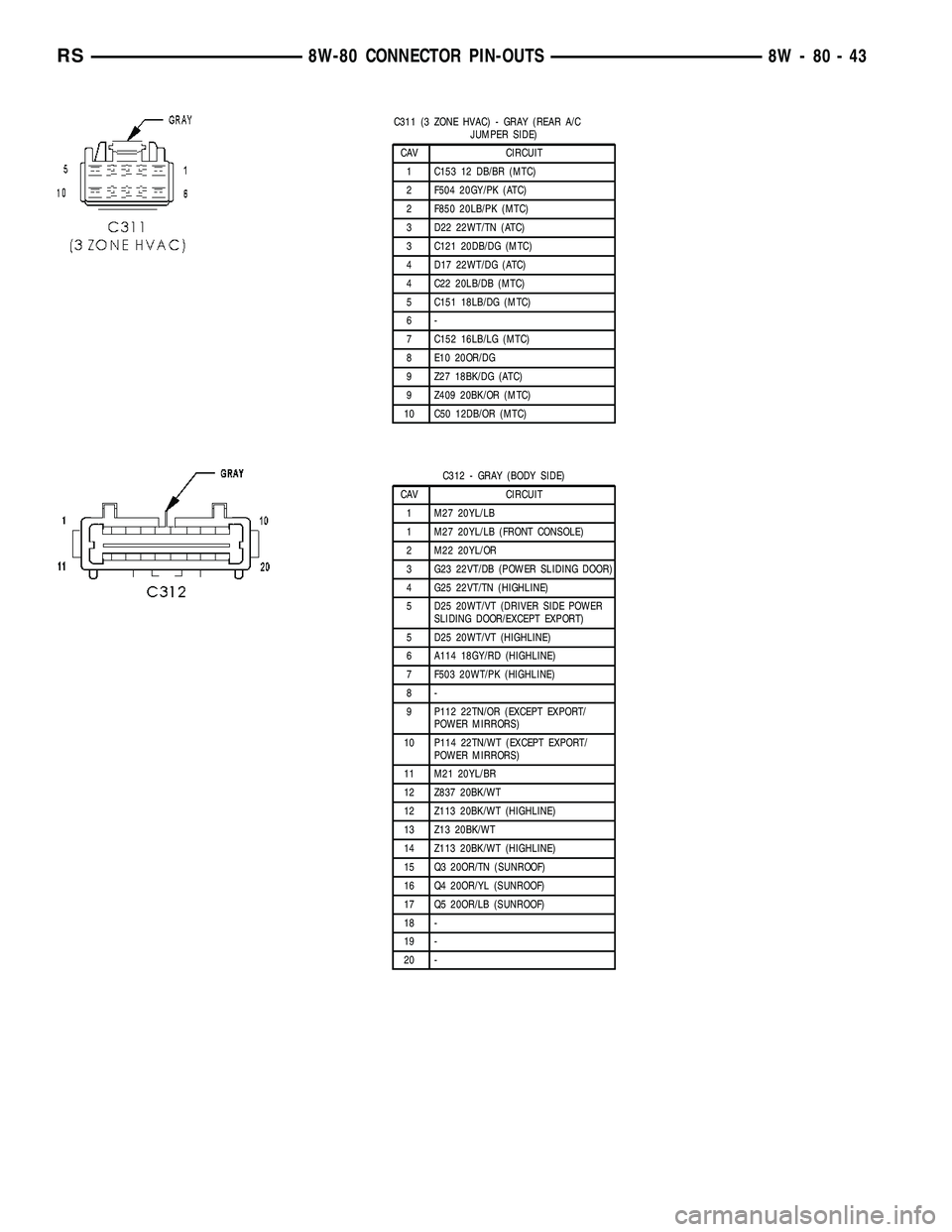

C311 (3 ZONE HVAC) - GRAY (REAR A/C
JUMPER SIDE)
CAV CIRCUIT
1 C153 12 DB/BR (MTC)
2 F504 20GY/PK (ATC)
2 F850 20LB/PK (MTC)
3 D22 22WT/TN (ATC)
3 C121 20DB/DG (MTC)
4 D17 22WT/DG (ATC)
4 C22 20LB/DB (MTC)
5 C151 18LB/DG (MTC)
6-
7 C152 16LB/LG (MTC)
8 E10 20OR/DG
9 Z27 18BK/DG (ATC)
9 Z409 20BK/OR (MTC)
10 C50 12DB/OR (MTC)
C312 - GRAY (BODY SIDE)
CAV CIRCUIT
1 M27 20YL/LB
1 M27 20YL/LB (FRONT CONSOLE)
2 M22 20YL/OR
3 G23 22VT/DB (POWER SLIDING DOOR)
4 G25 22VT/TN (HIGHLINE)
5 D25 20WT/VT (DRIVER SIDE POWER
SLIDING DOOR/EXCEPT EXPORT)
5 D25 20WT/VT (HIGHLINE)
6 A114 18GY/RD (HIGHLINE)
7 F503 20WT/PK (HIGHLINE)
8-
9 P112 22TN/OR (EXCEPT EXPORT/
POWER MIRRORS)
10 P114 22TN/WT (EXCEPT EXPORT/
POWER MIRRORS)
11 M21 20YL/BR
12 Z837 20BK/WT
12 Z113 20BK/WT (HIGHLINE)
13 Z13 20BK/WT
14 Z113 20BK/WT (HIGHLINE)
15 Q3 20OR/TN (SUNROOF)
16 Q4 20OR/YL (SUNROOF)
17 Q5 20OR/LB (SUNROOF)
18 -
19 -
20 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-43

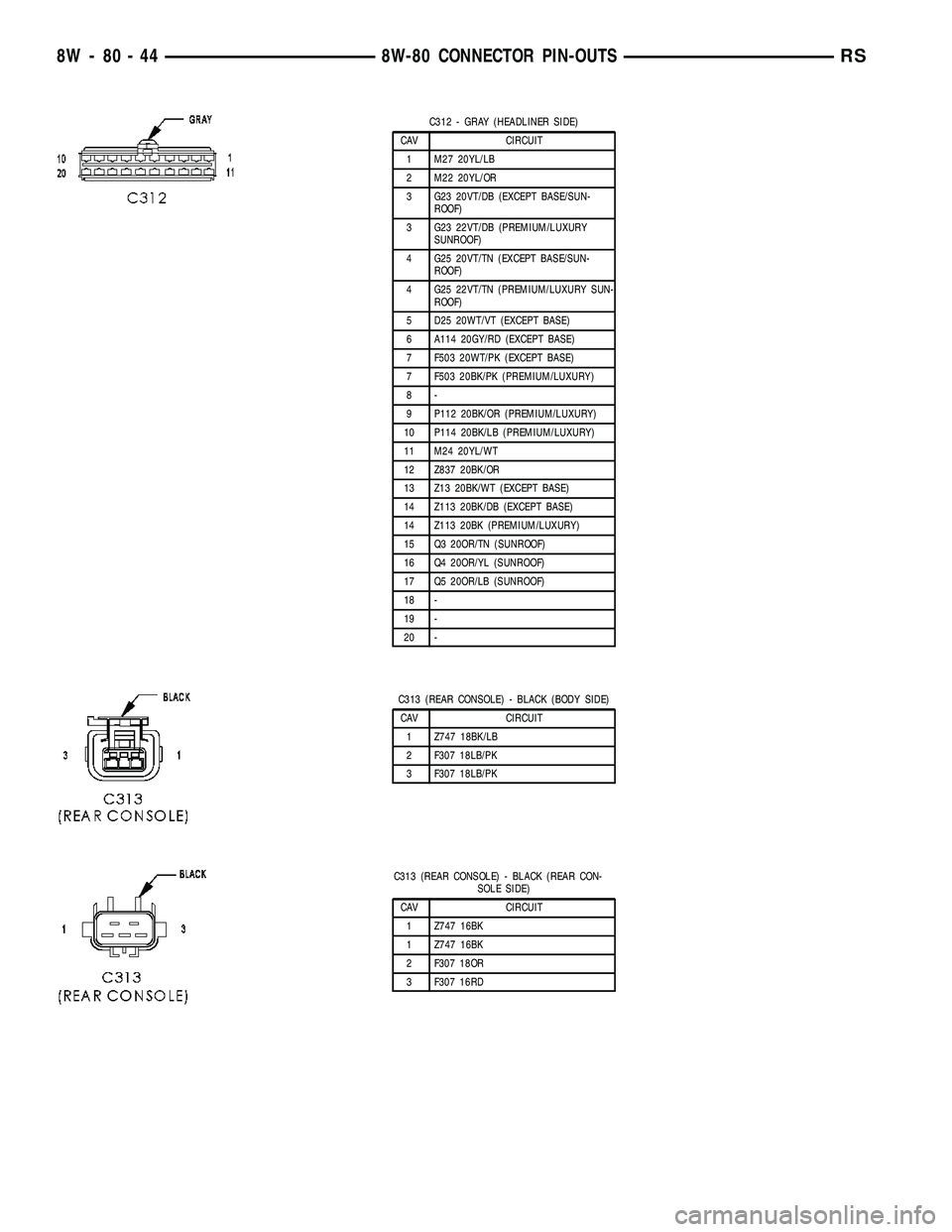

C312 - GRAY (HEADLINER SIDE)
CAV CIRCUIT
1 M27 20YL/LB
2 M22 20YL/OR
3 G23 20VT/DB (EXCEPT BASE/SUN-
ROOF)
3 G23 22VT/DB (PREMIUM/LUXURY
SUNROOF)
4 G25 20VT/TN (EXCEPT BASE/SUN-
ROOF)
4 G25 22VT/TN (PREMIUM/LUXURY SUN-
ROOF)
5 D25 20WT/VT (EXCEPT BASE)
6 A114 20GY/RD (EXCEPT BASE)
7 F503 20WT/PK (EXCEPT BASE)
7 F503 20BK/PK (PREMIUM/LUXURY)
8-
9 P112 20BK/OR (PREMIUM/LUXURY)
10 P114 20BK/LB (PREMIUM/LUXURY)
11 M24 20YL/WT
12 Z837 20BK/OR
13 Z13 20BK/WT (EXCEPT BASE)
14 Z113 20BK/DB (EXCEPT BASE)
14 Z113 20BK (PREMIUM/LUXURY)
15 Q3 20OR/TN (SUNROOF)
16 Q4 20OR/YL (SUNROOF)
17 Q5 20OR/LB (SUNROOF)
18 -
19 -
20 -
C313 (REAR CONSOLE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 Z747 18BK/LB
2 F307 18LB/PK
3 F307 18LB/PK
C313 (REAR CONSOLE) - BLACK (REAR CON-
SOLE SIDE)
CAV CIRCUIT
1 Z747 16BK
1 Z747 16BK
2 F307 18OR
3 F307 16RD
8W - 80 - 44 8W-80 CONNECTOR PIN-OUTSRS

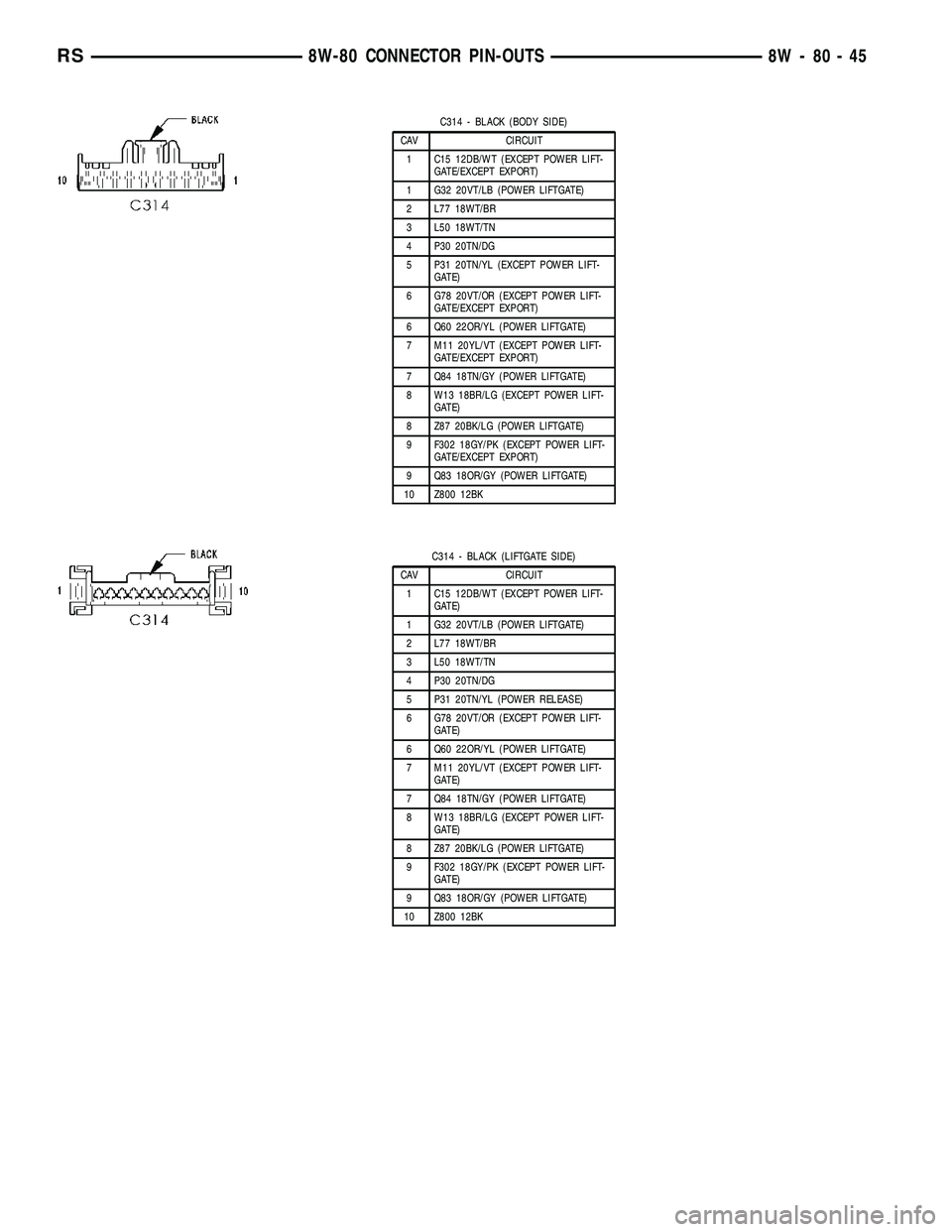

C314 - BLACK (BODY SIDE)
CAV CIRCUIT
1 C15 12DB/WT (EXCEPT POWER LIFT-
GATE/EXCEPT EXPORT)
1 G32 20VT/LB (POWER LIFTGATE)
2 L77 18WT/BR
3 L50 18WT/TN
4 P30 20TN/DG
5 P31 20TN/YL (EXCEPT POWER LIFT-
GATE)
6 G78 20VT/OR (EXCEPT POWER LIFT-
GATE/EXCEPT EXPORT)
6 Q60 22OR/YL (POWER LIFTGATE)
7 M11 20YL/VT (EXCEPT POWER LIFT-
GATE/EXCEPT EXPORT)
7 Q84 18TN/GY (POWER LIFTGATE)
8 W13 18BR/LG (EXCEPT POWER LIFT-
GATE)
8 Z87 20BK/LG (POWER LIFTGATE)
9 F302 18GY/PK (EXCEPT POWER LIFT-
GATE/EXCEPT EXPORT)
9 Q83 18OR/GY (POWER LIFTGATE)
10 Z800 12BK
C314 - BLACK (LIFTGATE SIDE)
CAV CIRCUIT
1 C15 12DB/WT (EXCEPT POWER LIFT-
GATE)
1 G32 20VT/LB (POWER LIFTGATE)
2 L77 18WT/BR
3 L50 18WT/TN
4 P30 20TN/DG
5 P31 20TN/YL (POWER RELEASE)
6 G78 20VT/OR (EXCEPT POWER LIFT-
GATE)
6 Q60 22OR/YL (POWER LIFTGATE)
7 M11 20YL/VT (EXCEPT POWER LIFT-
GATE)
7 Q84 18TN/GY (POWER LIFTGATE)
8 W13 18BR/LG (EXCEPT POWER LIFT-
GATE)
8 Z87 20BK/LG (POWER LIFTGATE)
9 F302 18GY/PK (EXCEPT POWER LIFT-
GATE)
9 Q83 18OR/GY (POWER LIFTGATE)
10 Z800 12BK
RS8W-80 CONNECTOR PIN-OUTS8W-80-45
