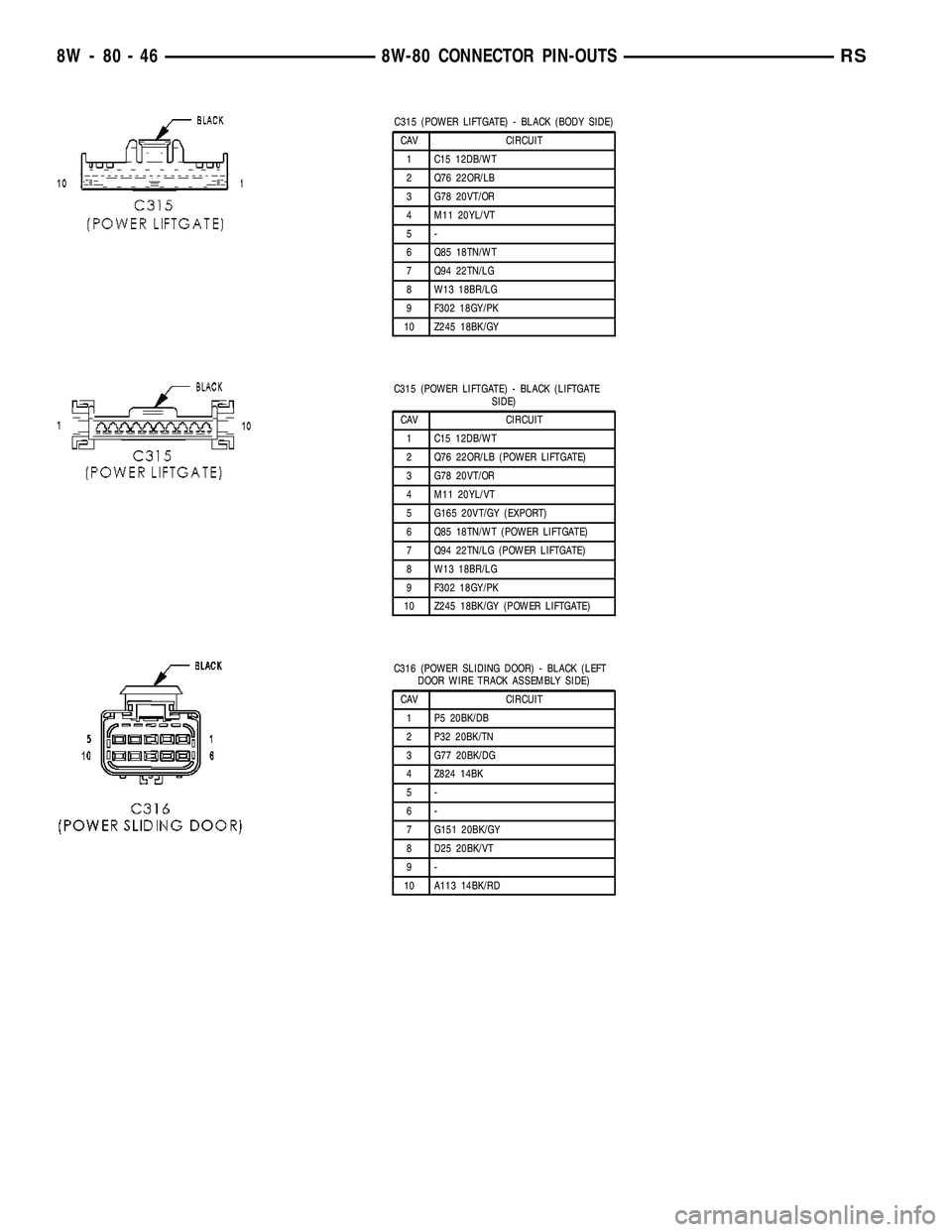

C315 (POWER LIFTGATE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 C15 12DB/WT
2 Q76 22OR/LB
3 G78 20VT/OR
4 M11 20YL/VT
5-
6 Q85 18TN/WT
7 Q94 22TN/LG
8 W13 18BR/LG
9 F302 18GY/PK
10 Z245 18BK/GY
C315 (POWER LIFTGATE) - BLACK (LIFTGATE
SIDE)
CAV CIRCUIT
1 C15 12DB/WT
2 Q76 22OR/LB (POWER LIFTGATE)
3 G78 20VT/OR
4 M11 20YL/VT
5 G165 20VT/GY (EXPORT)
6 Q85 18TN/WT (POWER LIFTGATE)
7 Q94 22TN/LG (POWER LIFTGATE)
8 W13 18BR/LG
9 F302 18GY/PK
10 Z245 18BK/GY (POWER LIFTGATE)
C316 (POWER SLIDING DOOR) - BLACK (LEFT
DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 P5 20BK/DB
2 P32 20BK/TN
3 G77 20BK/DG
4 Z824 14BK
5-
6-
7 G151 20BK/GY
8 D25 20BK/VT
9-
10 A113 14BK/RD
8W - 80 - 46 8W-80 CONNECTOR PIN-OUTSRS

C316 (POWER SLIDING DOOR) - BLACK (LEFT
SLIDING DOOR SIDE)
CAV CIRCUIT
1 P5 20TN/OR
2 P32 20TN/VT
3 G77 20TN/OR
4 Z825 14BK/WT
5-
6-
7 G151 20VT/BR
8 D25 20WT/VT
9-
10 A113 14WT/RD
C317 (POWER SLIDING DOOR) - BLACK (RIGHT
DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z824 14BK
5-
6-
7 G152 20BK/GY
8 D25 20BK/VT
9-
10 A113 14BK/RD
C317 (POWER SLIDING DOOR) - BLACK (RIGHT
SLIDING DOOR SIDE)
CAV CIRCUIT
1 P38 20TN/DB
2 P34 20TN/LB
3 G76 20TN/OR
4 Z824 14BK/WT
5-
6-
7 G152 20VT/GY
8 D25 20WT/VT
9-
10 A113 14WT/RD
RS8W-80 CONNECTOR PIN-OUTS8W-80-47

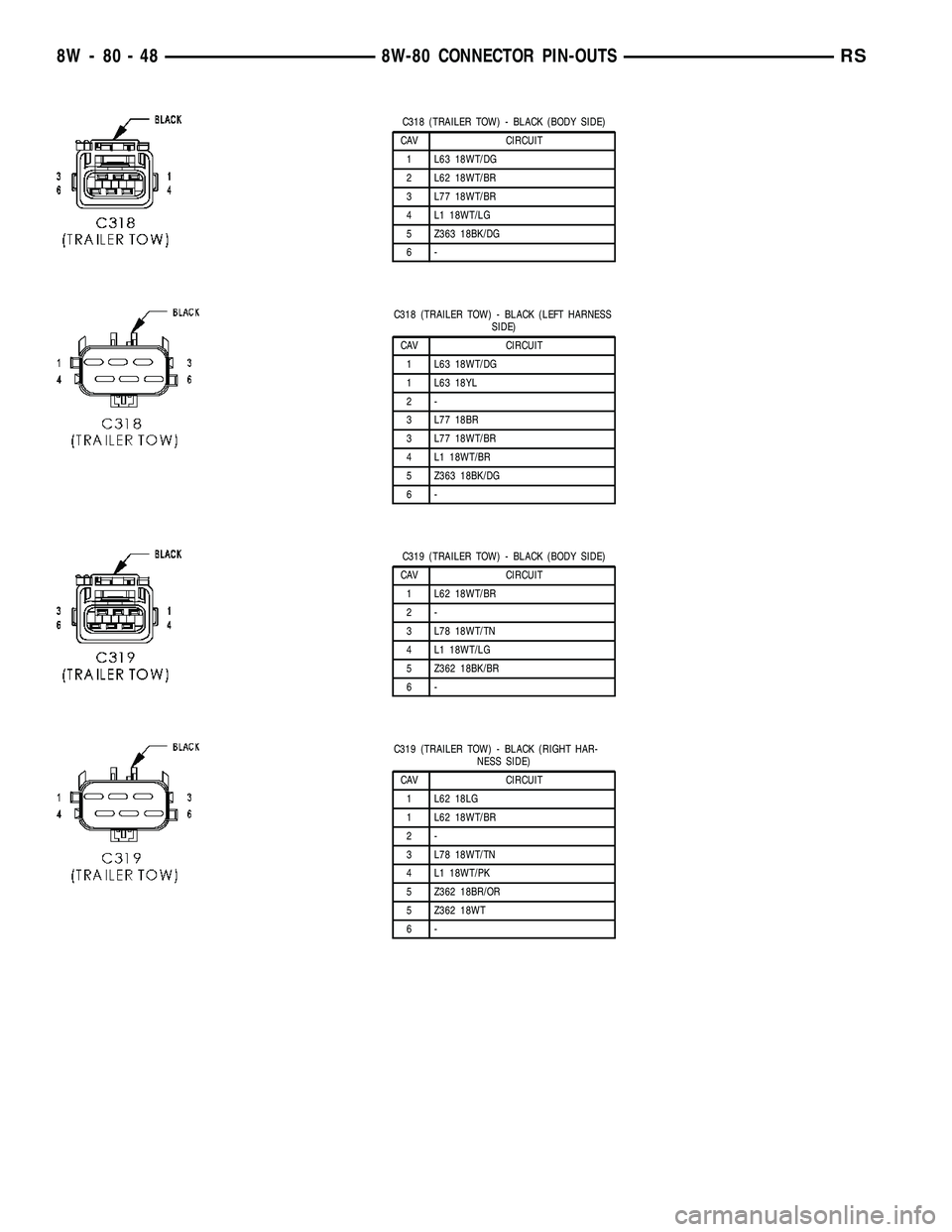

C318 (TRAILER TOW) - BLACK (BODY SIDE)
CAV CIRCUIT
1 L63 18WT/DG
2 L62 18WT/BR
3 L77 18WT/BR
4 L1 18WT/LG
5 Z363 18BK/DG
6-
C318 (TRAILER TOW) - BLACK (LEFT HARNESS
SIDE)
CAV CIRCUIT
1 L63 18WT/DG
1 L63 18YL
2-
3 L77 18BR
3 L77 18WT/BR
4 L1 18WT/BR
5 Z363 18BK/DG
6-
C319 (TRAILER TOW) - BLACK (BODY SIDE)
CAV CIRCUIT
1 L62 18WT/BR
2-
3 L78 18WT/TN
4 L1 18WT/LG
5 Z362 18BK/BR
6-
C319 (TRAILER TOW) - BLACK (RIGHT HAR-
NESS SIDE)
CAV CIRCUIT
1 L62 18LG
1 L62 18WT/BR
2-
3 L78 18WT/TN
4 L1 18WT/PK
5 Z362 18BR/OR
5 Z362 18WT
6-
8W - 80 - 48 8W-80 CONNECTOR PIN-OUTSRS

C320 - DK. GRAY (POWER SEAT SIDE)
CAV CIRCUIT
1 Z849 14BK/OR
2 A210 14OR/RD
C320 - DK. GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z849 14BK/OR
2 A210 14OR/RD
C321 - DK. GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z848 18BK/OR
2 A210 14OR/RD
C321 - DK. GRAY (POWER SEAT SIDE)
CAV CIRCUIT
1 Z848 14BK/OR
2 A210 14OR/RD
C322 (MEMORY) - BLACK (BODY SIDE)
CAV CIRCUIT
1 P69 22TN/DB (LHD)
1 P66 22TN/LG (RHD)
2-
3 P64 22TN (LHD)
3 P67 22TN/OR (RHD)
4-
5-
6 P65 22TN/VT (LHD)
6 P68 22TN/YL (RHD)
7 D25 20WT/VT
7 D25 20WT/VT (EXCEPT EXPORT)
8 P73 20TN/YL (LHD)
RS8W-80 CONNECTOR PIN-OUTS8W-80-49

C322 (MEMORY) - BLACK (BODY SIDE)
CAV CIRCUIT
8 P70 20TN/LB (RHD)
9 P75 20TN/LG (LHD)
9 P74 20TN/DB (RHD)
10 P71 20TN/DG (LHD)
10 P72 20TN/GY (RHD)
11 -
12 -
13 -
14 -
C322 (MEMORY) - BLACK (POWER SEAT SIDE)
CAV CIRCUIT
1 P69 22TN/WT (LHD)
1 P66 22WT (RHD)
2-
3 P64 22TN/OR (LHD)
3 P67 22OR (RHD)
4-
5-
6 P65 22TN/YL (LHD)
6 P68 22YL (RHD)
7 D25 20WT/VT
8 P73 18TN/LB (LHD)
8 P70 18LB (RHD)
9 P75 18DB (LHD)
9 P74 18TN/DB (RHD)
10 P71 18TN/GY (LHD)
10 P72 18GY (RHD)
11 -
12 -
13 -
14 -
C324 (MANUAL SLIDING DOOR) - BLACK (LEFT
DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G77 20BK/DG
4 Z76 20BK
8W - 80 - 50 8W-80 CONNECTOR PIN-OUTSRS

C324 (MANUAL SLIDING DOOR) - BLACK (LEFT
MANUAL SLIDING DOOR SIDE)
CAV CIRCUIT
1 P5 20BK/DB
2 P32 20BK/TN
3 G77 20BK/DG
4 Z77 20BK
C325 (MANUAL SLIDING DOOR) - BLACK
(RIGHT DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z76 20BK
C325 (MANUAL SLIDING DOOR) - BLACK
(RIGHT MANUAL SLIDING DOOR SIDE)
CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z76 20BK

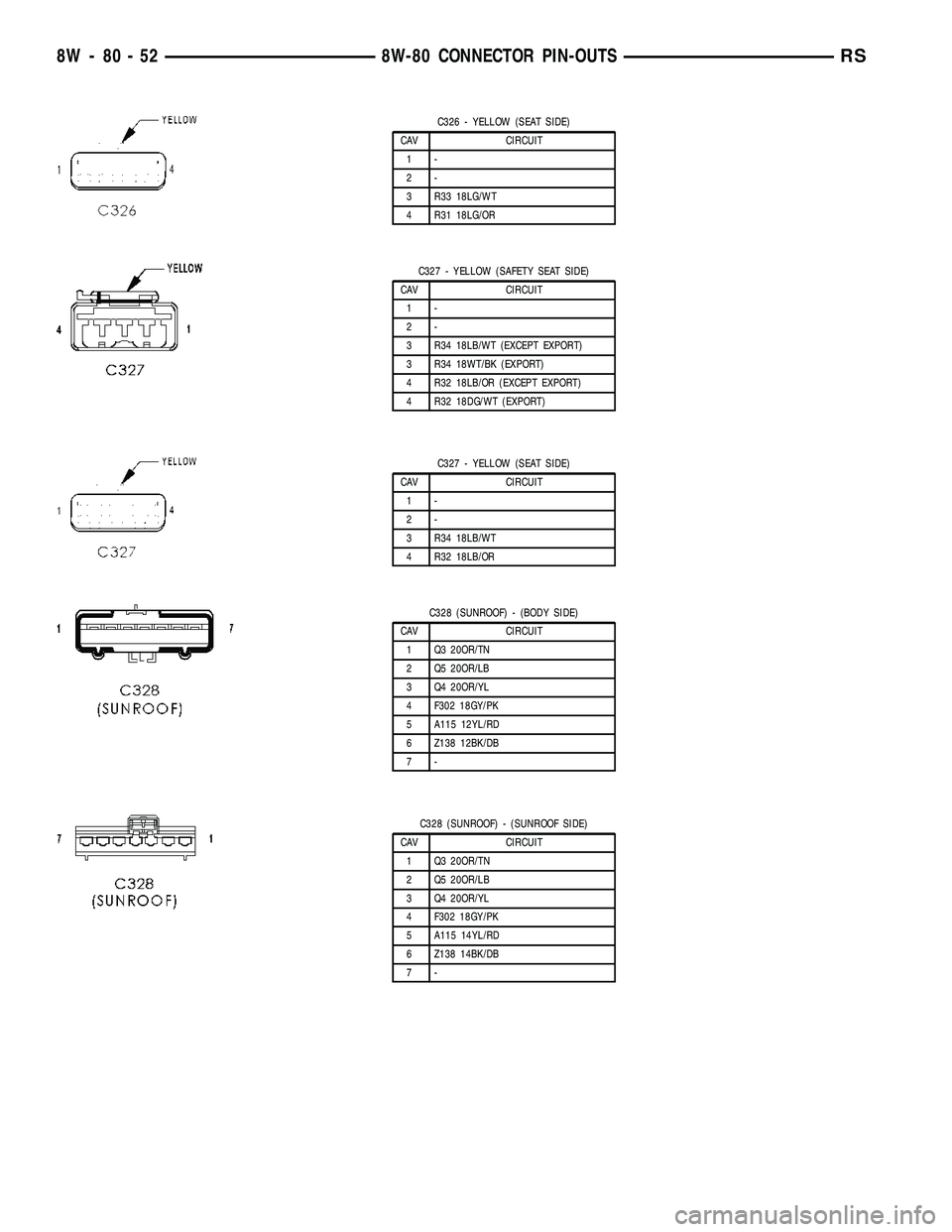

C326 - YELLOW (SAFETY SEAT SIDE)
CAV CIRCUIT
1-
2-
3 R33 18LG/WT (EXCEPT EXPORT)
3 R33 18WT/BK (EXPORT)
4 R31 18LG/OR (EXCEPT EXPORT)
4 R31 18DG/WT (EXPORT)
RS8W-80 CONNECTOR PIN-OUTS8W-80-51

C326 - YELLOW (SEAT SIDE)
CAV CIRCUIT
1-
2-
3 R33 18LG/WT
4 R31 18LG/OR
C327 - YELLOW (SAFETY SEAT SIDE)
CAV CIRCUIT
1-
2-
3 R34 18LB/WT (EXCEPT EXPORT)
3 R34 18WT/BK (EXPORT)
4 R32 18LB/OR (EXCEPT EXPORT)
4 R32 18DG/WT (EXPORT)
C327 - YELLOW (SEAT SIDE)
CAV CIRCUIT
1-
2-
3 R34 18LB/WT
4 R32 18LB/OR
C328 (SUNROOF) - (BODY SIDE)
CAV CIRCUIT
1 Q3 20OR/TN
2 Q5 20OR/LB
3 Q4 20OR/YL
4 F302 18GY/PK
5 A115 12YL/RD
6 Z138 12BK/DB
7-
C328 (SUNROOF) - (SUNROOF SIDE)
CAV CIRCUIT
1 Q3 20OR/TN
2 Q5 20OR/LB
3 Q4 20OR/YL
4 F302 18GY/PK
5 A115 14YL/RD
6 Z138 14BK/DB
7-
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSRS

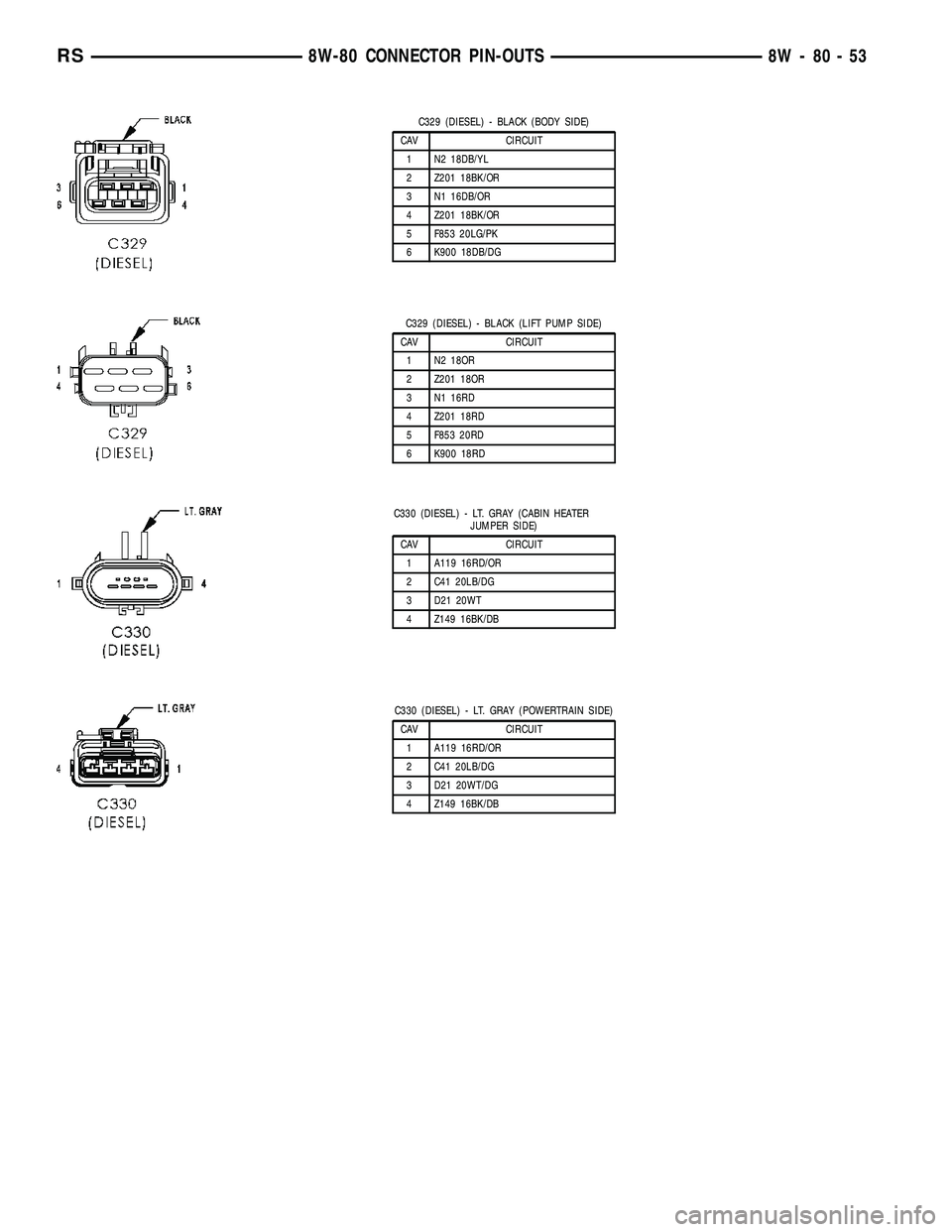

C329 (DIESEL) - BLACK (BODY SIDE)
CAV CIRCUIT
1 N2 18DB/YL
2 Z201 18BK/OR
3 N1 16DB/OR
4 Z201 18BK/OR
5 F853 20LG/PK
6 K900 18DB/DG
C329 (DIESEL) - BLACK (LIFT PUMP SIDE)
CAV CIRCUIT
1 N2 18OR
2 Z201 18OR
3 N1 16RD
4 Z201 18RD
5 F853 20RD
6 K900 18RD
C330 (DIESEL) - LT. GRAY (CABIN HEATER
JUMPER SIDE)
CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT
4 Z149 16BK/DB
C330 (DIESEL) - LT. GRAY (POWERTRAIN SIDE)
CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT/DG
4 Z149 16BK/DB
RS8W-80 CONNECTOR PIN-OUTS8W-80-53

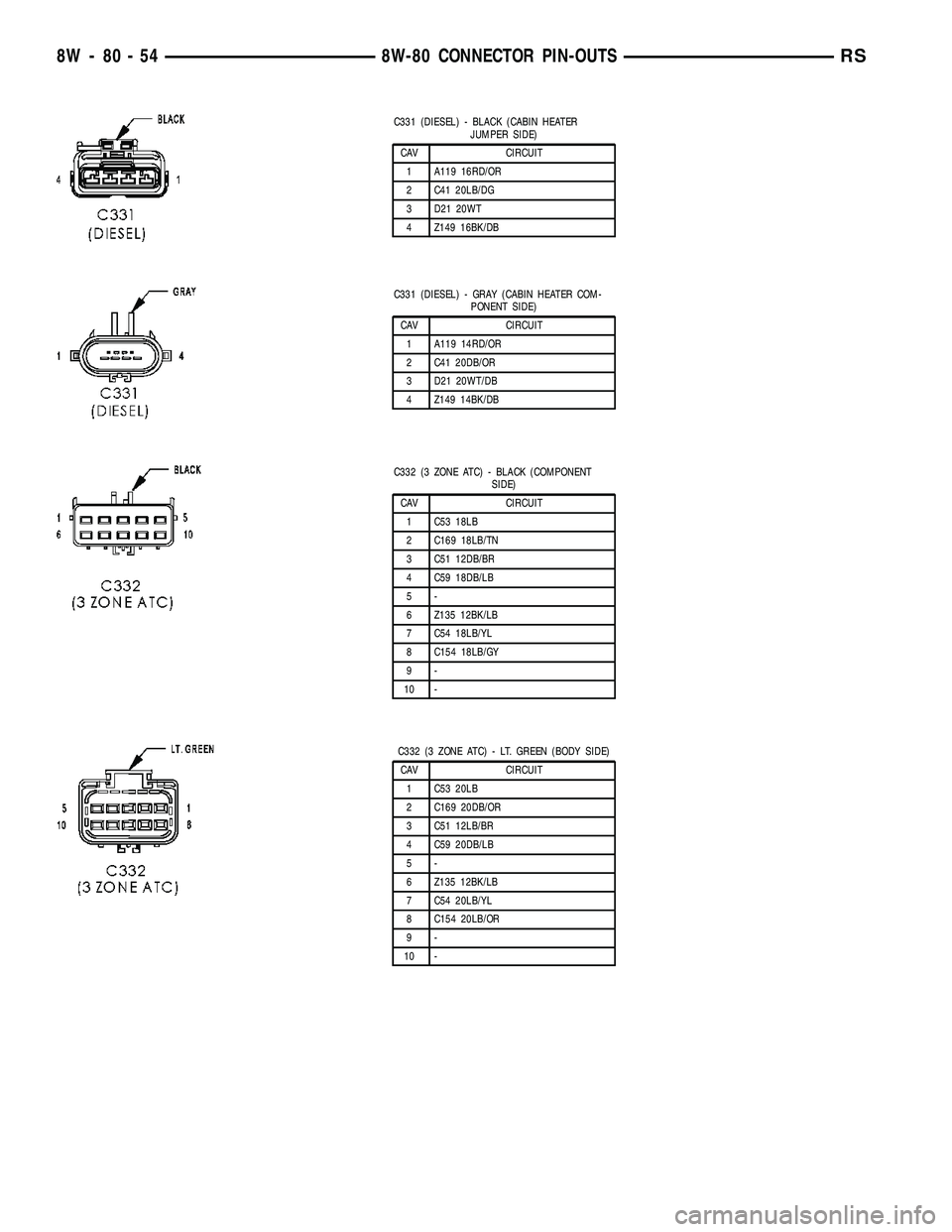

C331 (DIESEL) - BLACK (CABIN HEATER
JUMPER SIDE)
CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT
4 Z149 16BK/DB
C331 (DIESEL) - GRAY (CABIN HEATER COM-
PONENT SIDE)
CAV CIRCUIT
1 A119 14RD/OR
2 C41 20DB/OR
3 D21 20WT/DB
4 Z149 14BK/DB
C332 (3 ZONE ATC) - BLACK (COMPONENT
SIDE)
CAV CIRCUIT
1 C53 18LB
2 C169 18LB/TN
3 C51 12DB/BR
4 C59 18DB/LB
5-
6 Z135 12BK/LB
7 C54 18LB/YL
8 C154 18LB/GY
9-
10 -
C332 (3 ZONE ATC) - LT. GREEN (BODY SIDE)
CAV CIRCUIT
1 C53 20LB
2 C169 20DB/OR
3 C51 12LB/BR
4 C59 20DB/LB
5-
6 Z135 12BK/LB
7 C54 20LB/YL
8 C154 20LB/OR
9-
10 -
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSRS

C333 (EXCEPT EXPORT) - (ASSEMBLY SIDE)
CAV CIRCUIT
1-
2 Z246 18BK/YL (MEMORY)
3 A108 18LG/RD (MEMORY)
4-
5 D25 18WT/VT (MEMORY)
6-
7 Q102 18OR/LB
8 Q103 18OR/LG
C333 (EXCEPT EXPORT) - DK. GRAY (BODY
SIDE)
CAV CIRCUIT
1-
2 Z246 18BK/YL (MEMORY)
3 A108 18LG/RD (MEMORY)
4-
5 D25 20WT/VT (MEMORY)
6-
7 Q102 18OR/LB
8 Q103 18OR/LG
CABIN HEATER ASSIST C1 (DIESEL) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 D21 20WT/DB SCI TRANSMIT
3- -
4- -
5 C41 20DB/OR CABIN HEATER ASSIST CONTROL
6 18RD DOSING PUMP CONTROL
CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A119 14RD/OR FUSED B(+)
2 Z149 14BK/DB GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-55
