CHRYSLER VOYAGER 2005 Service Manual

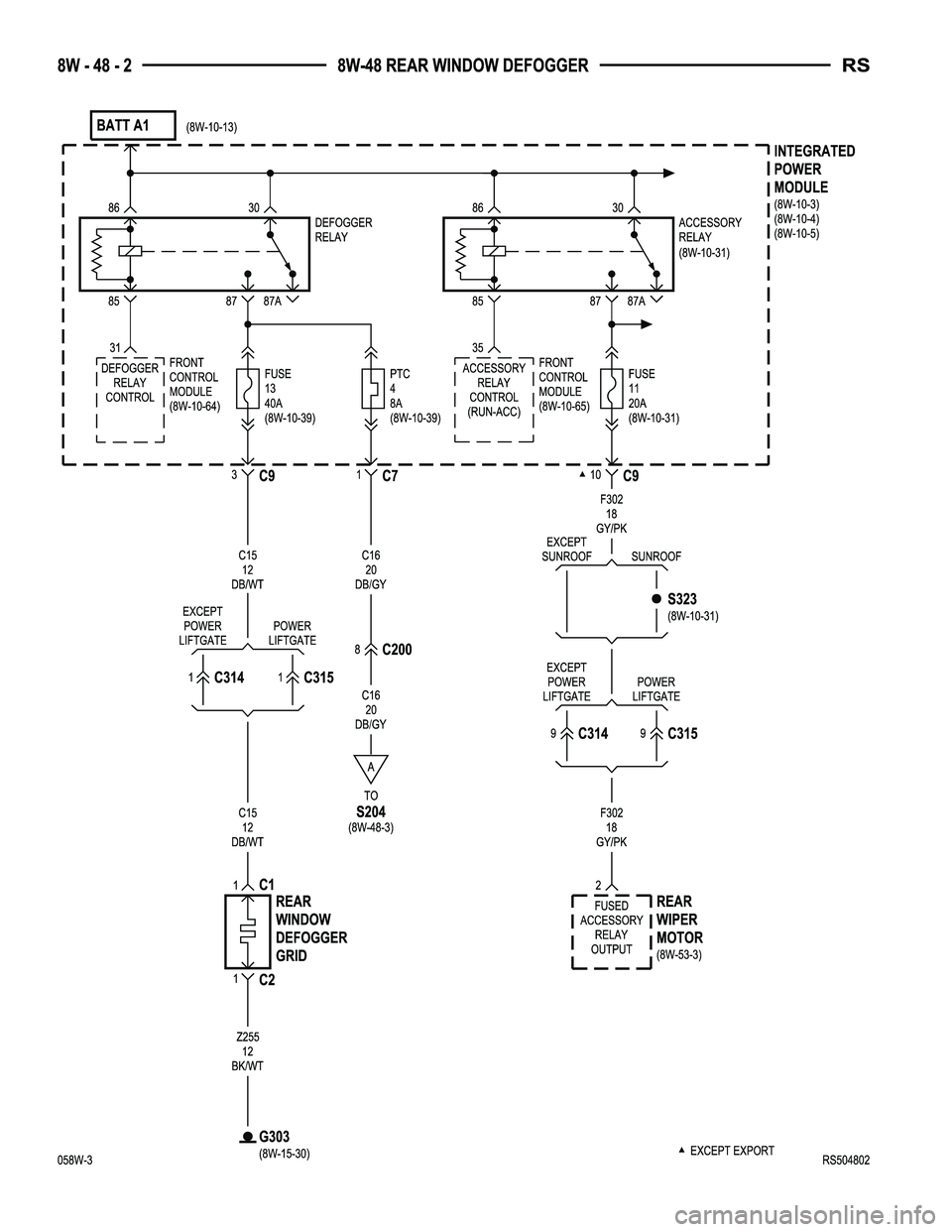

8W-48 REAR WINDOW DEFOGGER
Component Page
Accessory Relay..................... 8W-48-2
Defogger Relay...................... 8W-48-2
Front Control Module................. 8W-48-2
Fuse 11............................ 8W-48-2
Fuse 13............................ 8W-48-2

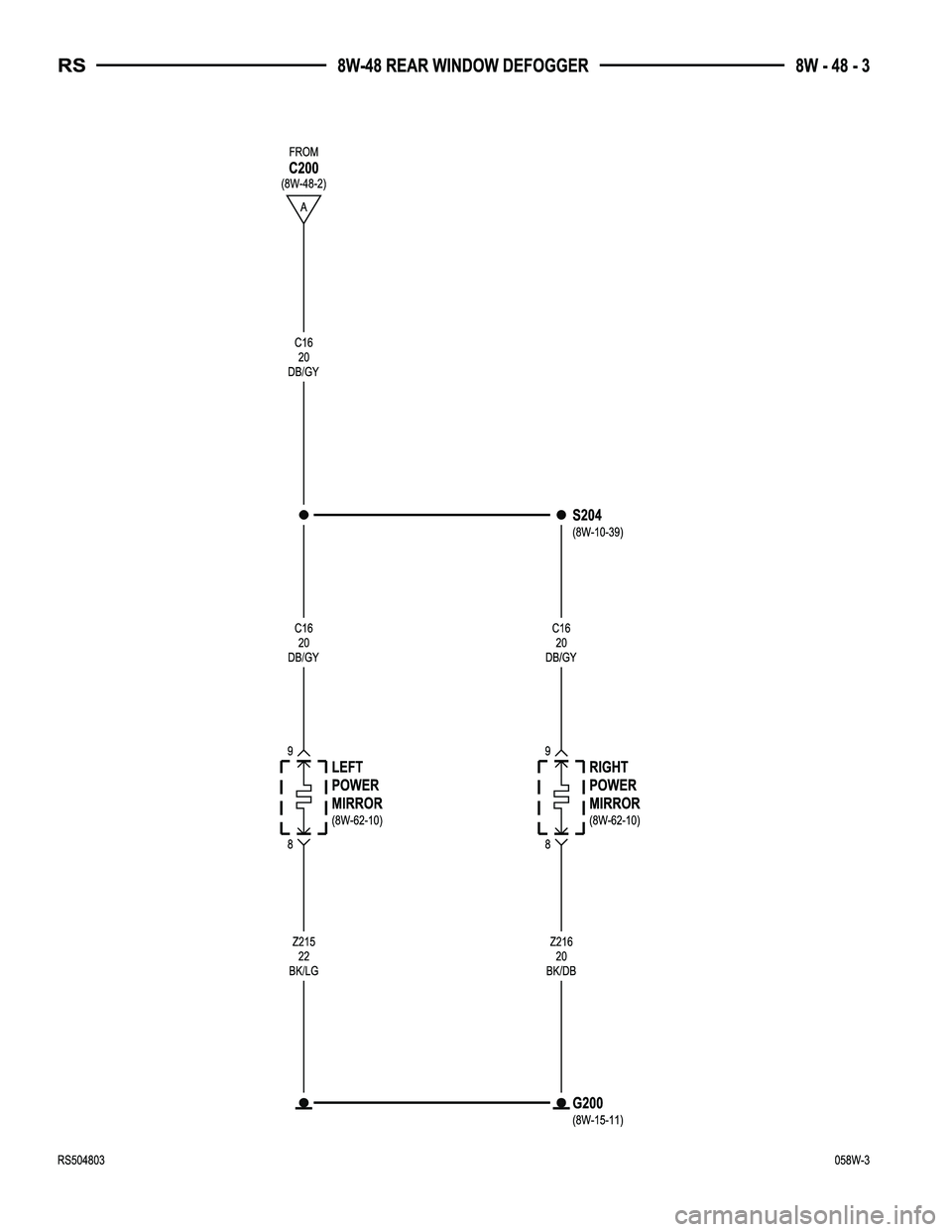

G200.............................. 8W-48-3
G303.............................. 8W-48-2Component Page
Integrated Power Module.............. 8W-48-2
Left Power Mirror................... 8W-48-3
PTC4............................. 8W-48-2
Rear Window Defogger Grid............ 8W-48-2
Rear Wiper Motor.................... 8W-48-2
Right Power Mirror.................. 8W-48-3
RS8W-48 REAR WINDOW DEFOGGER8W-48-1

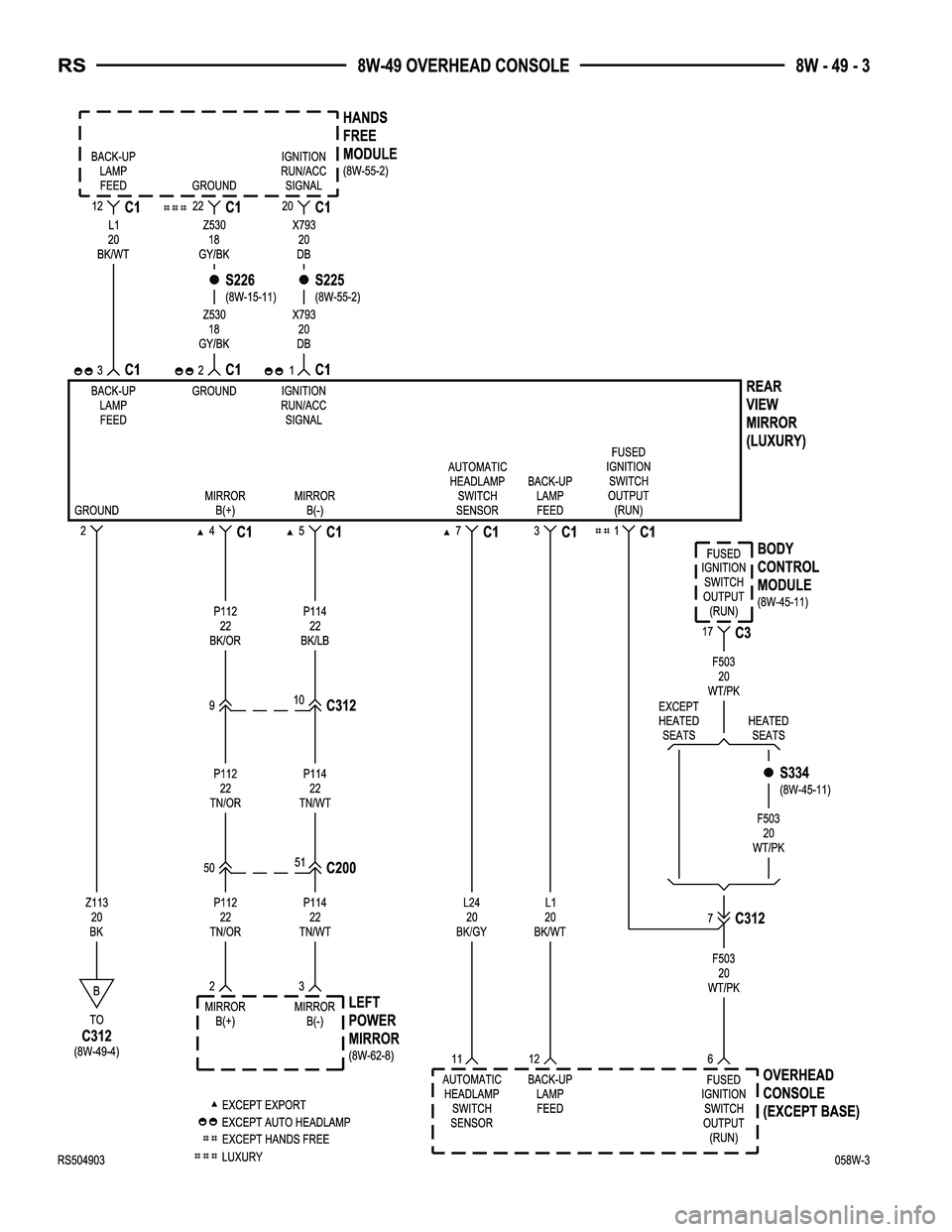

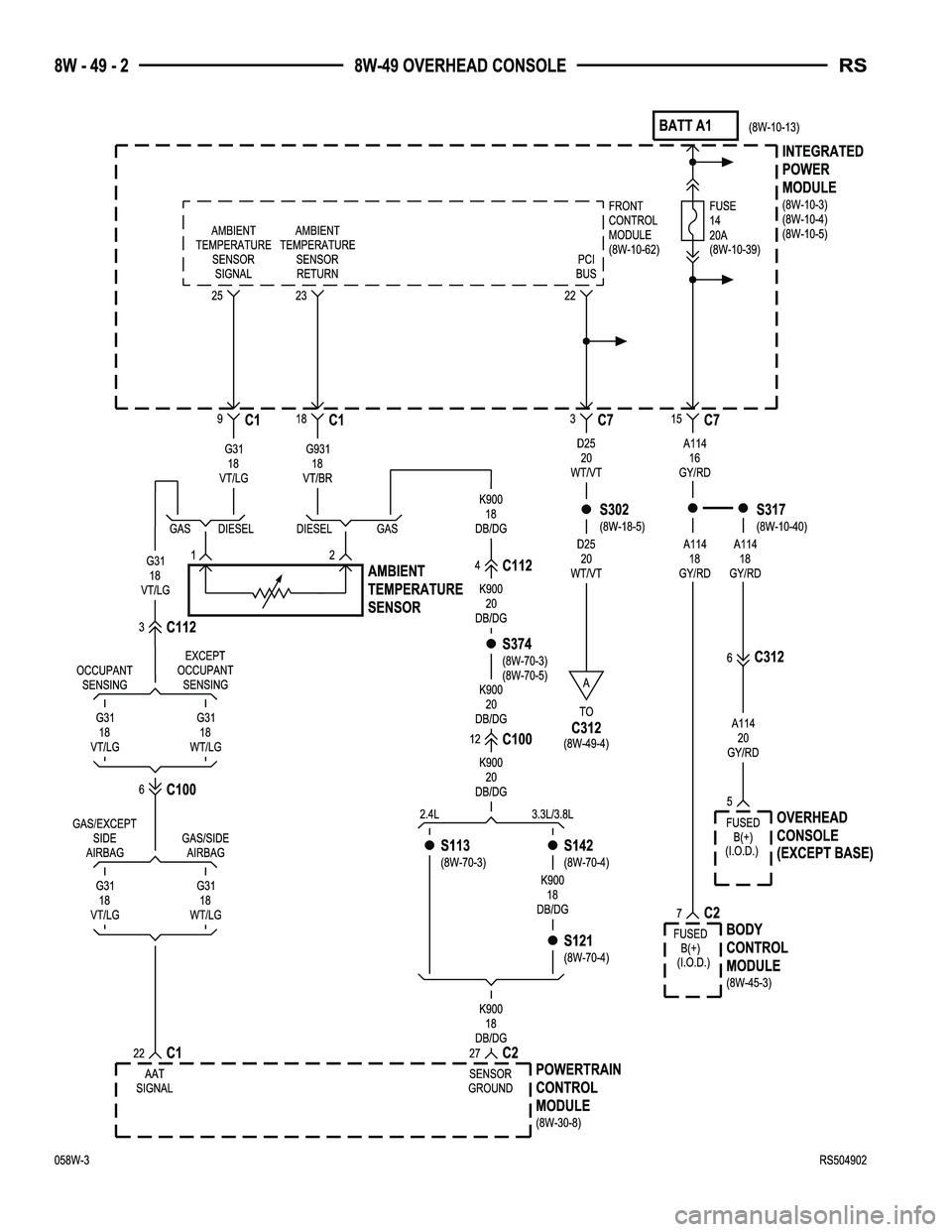

8W-49 OVERHEAD CONSOLE
Component Page
Ambient Temperature Sensor........... 8W-49-2
Body Control Module............. 8W-49-2, 3, 4
Front Control Module................. 8W-49-2
Front Reading Lamps/Switch........... 8W-49-4
Fuse 14............................ 8W-49-2
G301.............................. 8W-49-4Component Page
Hands Free Module.................. 8W-49-3
Integrated Power Module.............. 8W-49-2
Left Power Mirror................... 8W-49-3
Overhead Console................ 8W-49-2, 3, 4
Powertrain Control Module............ 8W-49-2
Rear View Mirror.................. 8W-49-3, 4
RS8W-49 OVERHEAD CONSOLE8W-49-1
