ECONOMY MODE
after the engine has stopped, with
the   key   in   the   ignition   position,   certain
functions (windscreen wiper

, electric
windows,
  courtesy   lamps,   audio
equipment,

  etc.)   can   only   be   used   for   a
cumulative

  duration   of   thirty   minutes,   to
prevent

  discharging   of   the   battery.
Once
  the   thirty   minutes   have   elapsed,
the active functions are put on standby
and

  the   battery   warning   lamp   flashes
accompanied

  by   a   message   in   the
screen.
T

o   resume   the   use   of   these   functions
immediately

,   start   the   engine   and   let   it
run

  for   a   few   minutes.
The
  time   available   will   then   be   double
the

  time   for   which   the   engine   was   left
running.

  However,   this   time   will   always
be

  between   five   and   thirty   minutes.
A


flat   battery   will   prevent   the
engine

  from   starting.
Battery
QUICk HELP
8

170
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
The temporary tyre repair kit consists of  a   compressor   and   a   bottle
(containing

  a   sealant).
Using the kit
1. Tick  the   deflated   wheel   on   the  speed
  limitation   sticker   then   affix
the

  sticker   to   the   vehicle's   steering
wheel

  to   remind   you   that   a   wheel   is
in

  temporary   use.
2.

Clip the bottle
1 on the
compressor 2.
3.

Connect the bottle
1 to the valve of
the
  tyre   to   be   repaired.
4.

T
ake   care   to   unwind   the
compressor

  pipe   before   connecting
it

  to   the   bottle.
5.

Connect the power lead to one of
the

  vehicle's   12V   sockets.
6.

Switch
  on   the   compressor   by
pressing button

A until the tyre
pressure
  reaches   2.0   bars.   If   this
pressure cannot be reached, the
tyre

  cannot   be   repaired.
7.

Remove
  and   store   the   compressor.
8.

Drive
  immediately,   for   a   few   miles
(kilometres),

  at   reduced   speed,
to
  fill   the   puncture.
9.

Adjust
  the   pressure   using   the
compressor

  in   accordance   with   the
recommendation


for

the

vehicle

and

check

  that   the   leak   is   filled   correctly
(no

  further   loss   of   pressure).
10.

Drive
  at   reduced   speed   (50 mph
[80

  km/h]).
The
  tyre   must   be
examined

  and   repaired   by   a
specialist

  as   soon   as   possible.
a
fter use, the bottle can be stored in
a   plastic   bag,   supplied   in   the   kit,   to  avoid staining your vehicle with traces
of
  fluid.
Warning:
  the   bottle   of   gel   contains
ethylene-glycol, a product which
is

  harmful   if   swallowed   and   which
causes

  irritation   to   the   eyes.
Keep
  it   out   of   reach   of   children.
a

fter use, do not discard the bottle into
the
  environment,   take   it   to   a   CITROËN
dealer or to an specialised waste
disposal

  site.
Replacement
  bottles   of   sealant   are
available

  from   CITROËN   dealers.
TEMPORARY PUNCTURE
REP

AIR KIT
The kit is located in one of the two storage   compartments   located
under

  the   front   seats.
Vehicles
  supplied   with   a   temporary
puncture

  repair   kit   do   not   have   a   spare
wheel

  or   tooling   (jack,   wheelbrace,   ...).
Changing a wheel

171
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
1. Parking the vehicle
- The  occupants   must   get   out   of   the  vehicle
  and   wait   in   a   safe   location.
-

If
  possible,   park   the   vehicle   on
level, stable and non-slippery
ground.
-


Apply
  the   parking   brake,   switch
of

f   the   ignition   and   engage   first   or
reverse

  gear. -
 Place   a   chock   under   the   wheel  diagonally opposite the one to be
changed.
CHANGING A WHEEL
2. T

ools
The tools are stowed in a storage area
closed  by   a   flap   under   a   front   seat.
-

If
  necessary,   move   the   seat   forward
to

  access   the   storage   compartment
from

  the   rear.
-

Remove
  the   flap   then   take   out   the
jack

  and   the   tool   carrier.
-

Remove
  the   tools   needed   from   the
carrier

.
1.

Jack.
2.


Wheelbrace.
3.


Chock.
4.


Spanner for the Modutop roof bars
and

  rear   lamps.
5.

Alloy
  wheel   trim   removal   tool.
6.

T
owing   eye.
If

the

vehicle

is

fitted

with

a

towbar,

it


is

sometimes

necessary

to

raise

the


vehicle

slightly

to

make

it

easier

to


remove

the

spare

wheel

from

its

carrier

.
On

certain

types

of

ground

and/
or if considerable loads are being
transported, call a CITR
o
Ë
n
dealer or
a

qualified

workshop.
The

jack

and

tools

are

specific

to

your

vehicle.


Do

not

use

them

for

other

purposes.
QUICk HELP
8
Changing a wheel

172
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
3. Spare wheel
- Unscrew the bolt using the
wheelbrace until the carrier is
lowered  fully.
-
o
pen the rear doors to gain access
to

the

spare

wheel. -
 Detach   the   carrier   from   the   hook  and place the spare wheel near the
wheel
  to   be   changed.
Changing a wheel

173
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
4. Procedure
- Place  the   foot   of   the   jack   in   contact  with the ground directly below the
jacking
  point   closest   to   the   wheel   to
be

  changed.
-

Extend
  the   jack   until   its   head
comes

  into   contact   with   the   jacking
point used; the vehicle's contact
area

A   must   be   engaged   with   the
head

  of   the   jack.
-

Raise the vehicle until there is
sufficient

  space   between   the   wheel
and the ground, so that


(not punctured) spare wheel can be
easily
  fitted.
-

Resume
  and   complete   the
unscrewing

  of   the   wheel   bolts.
-

Remove
  the   bolts   and   remove   the
wheel.
-

 Remove

the

wheel

trim.
-

Loosen the wheel bolts and start
unscrewing


them. Ensure
  that   the   jack   is   stable,   the   foot  of
  the   jack   must   be   in   contact   with   the
ground,

  and   directly   below   the   jacking
point

  used.
If the ground is slippery or loose, the
jack
  may   slip   or   drop   -   Risk   of   injury!
Ensure
  that   the   jack   is   positioned   only
at

  one   of   the   jacking   points   under   the
vehicle,

  making   sure   that   the   vehicle's
contact surface is centred on the head
of

  the   jack.
Otherwise
  there   is   a   risk   of   damage
to

  the   vehicle   and/or   of   the   jack
dropping -

  Risk   of   injury!
Do
  not   extend   the   jack   until   you   have
started unscrewing the bolts on the
wheel to be changed and have placed
the

  chock   under   the   wheel   diagonally
opposite.
QUICk HELP
8
Changing a wheel

174
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
- Position the wheel on the hub and
start  tightening   the   bolts   by   hand.
-

Carry out an initial tightening of the
bolts

  using   the   wheelbrace.
5. Fitting the spare wheel
- Lower  the   vehicle   completely   by  folding
  the   jack,   then   remove   the
jack.
-


T
ighten the bolts again using the
wheelbrace,
  tighten   them   fully
without

  forcing   them.
-

Place the wheel to be repaired in
the

  carrier. -
 Secure   the   carrier   on   the   hook   then  raise the carrier by tightening the
bolt
  with   the   wheelbrace.
-

Fully
  tighten   the   bolt,   then   check
that

  the   wheel   is   held   flat   against
the

  floor.
If this is not the case, repeat the
operation.
n

ever go underneath a vehicle
that
  is   supported   only   by   a   jack
(use

  a   stand).
n

ever use a power driver in place of
the
  wheelbrace.
Changing a wheel

175
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
FITTING THE WHEEL TRIM
The tyre valve must be centred in the wheel
  trim   cut-out.
This
  position   is   essential   for   fitting   the
wheel

  trim   correctly   on   the   steel   wheel.
(If

the valve is not correctly aligned with
the
  cut-out,   the   anti-rotation   system
will be in contact with the heads of the
wheel

  bolts   and   risks   being   damaged
if

  the   user   persists   in   fitting   the   wheel
trim

  in   this   incorrect   position). -

Ensure that all of the clips are
engaged except the last one
(opposite

  the   valve   hole).
-

Strike
  the   wheel   trim   with   the   palm
of your hand, opposite the valve
in

  the   area   of   the   last   fixing   clip
(always

  in   the   direction   of   clipping).
-

Ensure that the outer edge of
the

  wheel   trim   is   not   deformed   or
pushed

  into   the   wheel.
●

Correct
position for the edge of
the
  wheel   trim.
●

Incorrect
position for the edge of
the
  wheel   trim.
6. Refitting the repaired wheel
The wheel is refitted as described in step  5,   not   forgetting   to   refit   the   wheel
trim.
Refer

  to   the   "Instruments   and
controls" section of chapter 3,
"T

yre   under-inflation   detection"
part,

  for   recommendations   after
changing

  a   wheel   fitted   with   a   tyre
under-inflation

  detection   sensor.
Refer
  to   the   "Identification
markings"

  section   of   chapter   9   to
locate

  the   tyre   label.
The spare wheel is not designed
to
  be   used   over   long   distances.
Have the tightening of the bolts
and

  the   tyre   pressure   checked   by
a

  CITROËN   dealer   or   a   qualified
workshop

  as   soon   as   possible.
Have the original wheel repaired
and
  refitted   by   a   CITROËN   dealer
or

  a   qualified   workshop   as   soon   as
possible.
QUICk HELP
8
Changing a wheel

176
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015

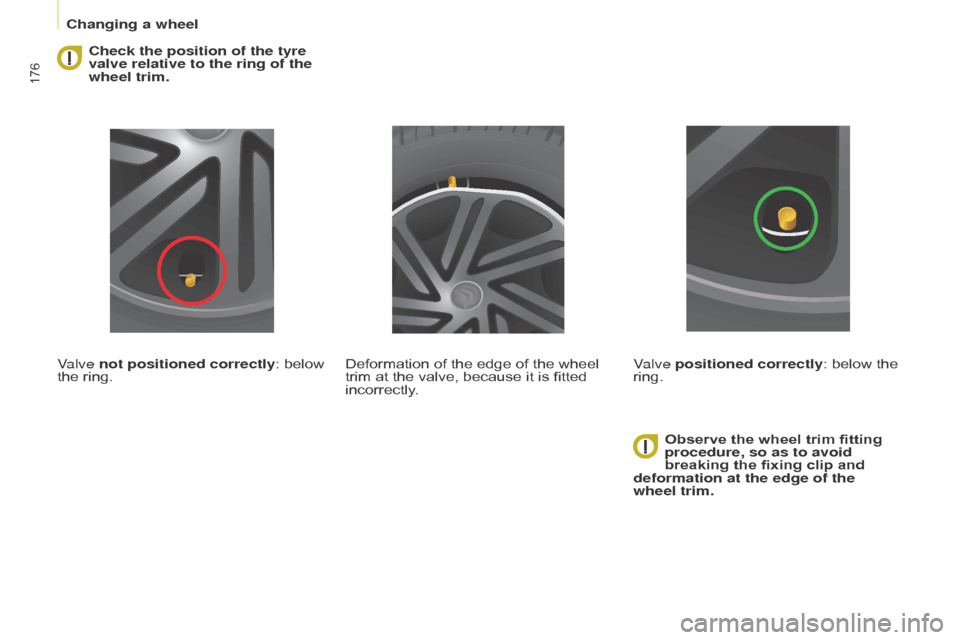

Check the position of the tyre
valve relative to the ring of the
wheel trim.
Valve not positioned correctly:
  below
the


ring. Observe the wheel trim fitting
procedure, so as to avoid
breaking the fixing clip and
deformation at the edge of the
wheel trim.
Deformation
  of   the   edge   of   the   wheel
trim

  at   the   valve,   because   it   is   fitted
incorrectly

.Valve positioned correctly:
  below   the
ring.
Changing a wheel

177
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
REMOVABLE SNOW SCREEN
(
BLANKING COVER )
According to country, the removable snow screen is installed on the lower
part
  of   the   front   bumper   to   prevent   the
accumulation

  of   snow   at   the   radiator
cooling

  fan.
Fitting Removal
- offer up the snow screen facing its
centring pin A   on   the   front   bumper.
-

Put it in place by pressing at each
clip

B   located   in   the   four   corners.
Do

not

forget

to

remove

the

snow screen when the exterior
temperature


is

higher

than

10°C

(no


risk

of

snowfall)

and

when

towing. -
Pass a screwdriver into the hole
located
  near   each   of   the   clips.
-

Use the screwdriver as a lever to
unclip the four clips

B   in   turn.
QUICk HELP
8
Snow screen

178
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
SNOW CHAINS
In wintry conditions, snow chains
improve  traction   as   well   as   the
behaviour

  of   the   vehicle   when   braking.
 The

  snow   chains   must   be   fitted
only

  to   the   driving   wheels.
They

must

  never   be   fitted   to   "space-
saver"
  type   spare   wheels.
 T

ake   account   of   the   legislation   in
force in your country on the use
of

  snow   chains   and   the   maximum
running

  speed   authorised.Advice on installation
F

If
  you   have   to   fit   the   chains   during
a

  journey,   stop   the   vehicle   on   a   flat
surface

  on   the   side   of   the   road.
F

Apply
  the   parking   brake   and
position

  any   wheel   chocks   to
prevent

  movement   of   your   vehicle.
F

Fit the chains following the
instructions provided by the
manufacturer

.
F

Move of
f gently and drive for a
few
  moments,   without   exceeding
30

  mph   (50   km/h).
F

Stop
  your   vehicle   and   check   that
the snow chains are correctly
tightened.It

  is   recommended   that   before   you
leave,

  you   practise   fitting   the   snow
chains

  on   a   level   and   dry   surface.
Use only the chains designed to be
fitted
  to   the   type   of   wheel   fitted   to   your
vehicle:
For

  more   information   on   snow   chains,
contact a CITR

o Ë n dealer or a
qualified
  workshop.
o
riginal
tyre size Maximum
  link
size.
195/65

  R159
  mm
195/70
  R15
205/65
  R15
215/55
  R16
215/50
  R17
avoid driving with chains on roads
that have been cleared of snow

,
to
  avoid   damaging   your   vehicle's   tyres
and

  the   road   surface.   If   your   vehicle
is

  fitted   with   alloy   wheels,   check   that
no

  part   of   the   chain   or   its   fixings   is   in
contact

  with   the   wheel   rim.
Snow chains
