CITROEN BERLINGO VAN 2019 Handbook (in English)

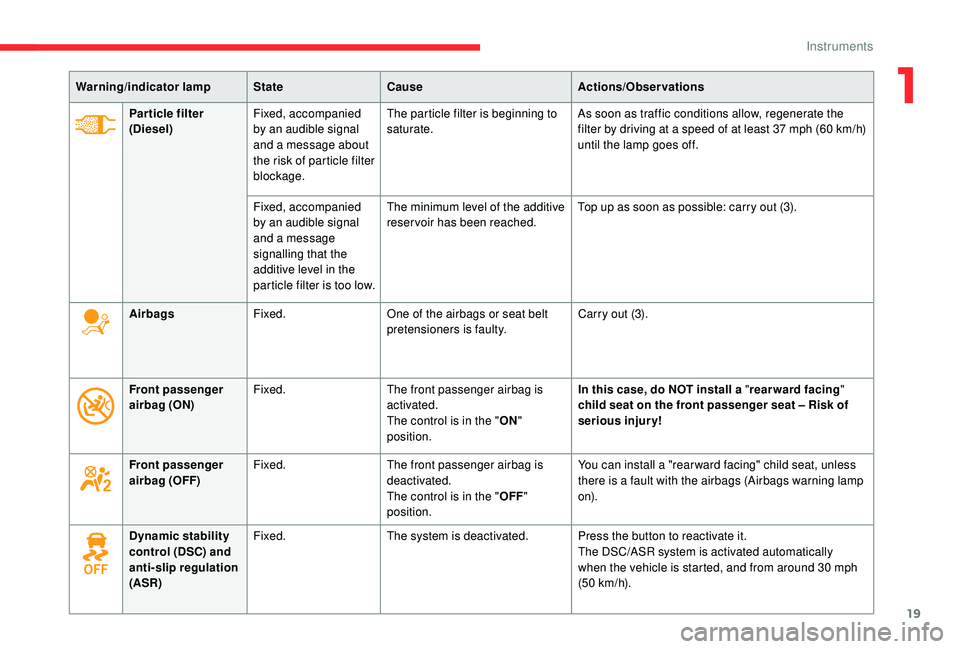

19
Warning/indicator lampStateCause Actions/Observations
Par ticle filter
(Diesel) Fixed, accompanied
by an audible signal
and a message about
the risk of particle filter
blockage. The particle filter is beginning to
saturate.
As soon as traffic conditions allow, regenerate the
filter by driving at a speed of at least 37
mph (60 km/h)
until the lamp goes off.
Fixed, accompanied
by an audible signal
and a message
signalling that the
additive level in the
particle filter is too low. The minimum level of the additive
reservoir has been reached.
Top up as soon as possible: carry out (3).
Airbags Fixed. One of the airbags or seat belt
pretensioners is faulty. Carry out (3).
Front passenger
airbag (ON) Fixed.
The front passenger airbag is
activated.
The control is in the "ON"
position. In this case, do NOT install a "
rearward facing"
child seat on the front passenger seat – Risk of
serious injury!
Front passenger
airbag (OFF) Fixed.
The front passenger airbag is
deactivated.
The control is in the "OFF"
position. You can install a "rear ward facing" child seat, unless
there is a fault with the airbags (Airbags warning lamp
o n).
Dynamic stability
control (DSC) and
anti-slip regulation
(ASR) Fixed.
The system is deactivated. Press the button to reactivate it.
The DSC/ASR system is activated automatically
when the vehicle is started, and from around 30
mph
(50


km/h).
1
Instruments

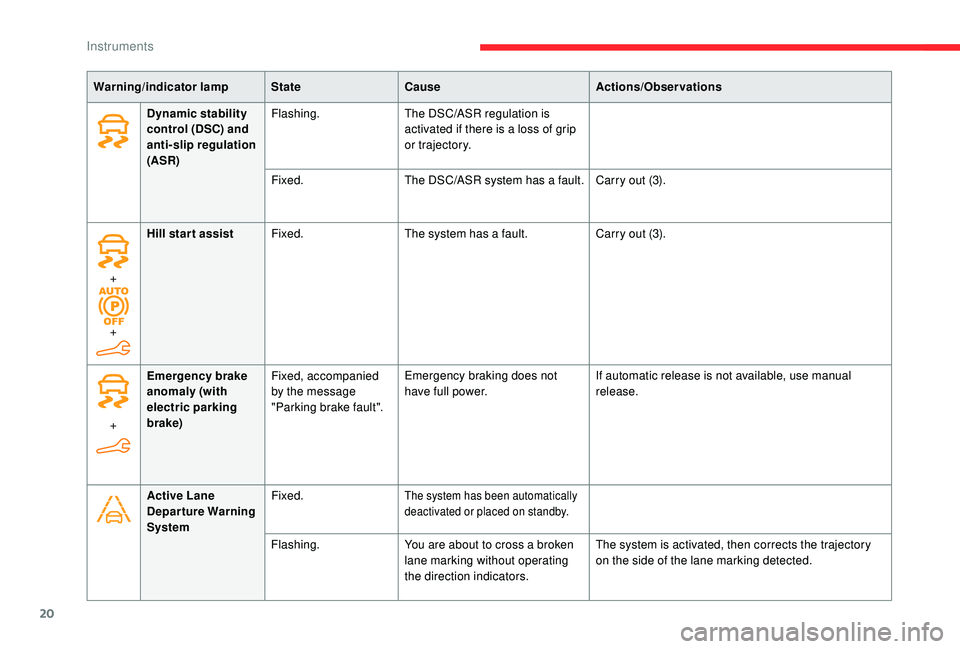

20
Warning/indicator lampStateCause Actions/Observations
Dynamic stability
control (DSC) and
anti-slip regulation
(ASR) Flashing.
The DSC/ASR regulation is
activated if there is a loss of grip
or trajectory.
Fixed. The DSC/ASR system has a fault. Carry out (3).
+ Emergency brake
anomaly (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault".
Emergency braking does not
have full power.
If automatic release is not available, use manual
release.
Active Lane
Departure Warning
System Fixed.
The system has been automatically
deactivated or placed on standby.
Flashing.
You are about to cross a broken
lane marking without operating
the direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+

+ Hill start assist
Fixed. The system has a fault. Carry out (3).
Instruments

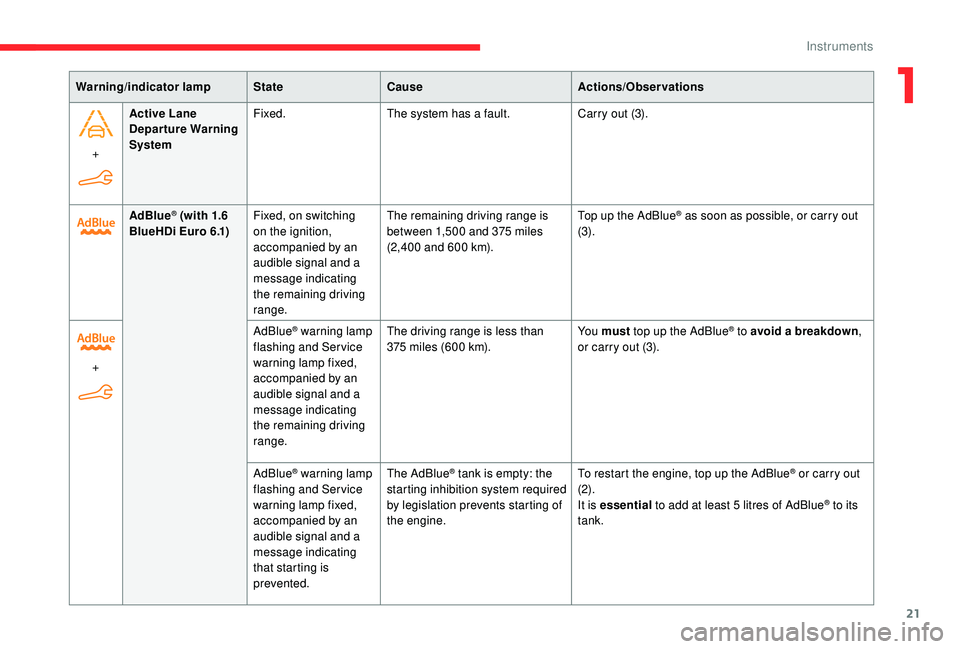

21
+Active Lane
Departure Warning
System
Fixed.
The system has a fault. Carry out (3).
Warning/indicator lamp
StateCause Actions/Observations
AdBlue
® (with 1.6
BlueHDi Euro 6.1) Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 1,500 and 375 miles
(2,400 and 600 km).
Top up the AdBlue® as soon as possible, or carry out
(3).
+ AdBlue
® warning lamp
flashing and Service
warning lamp fixed,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The driving range is less than
375
miles (600 km).Yo u must
top up the AdBlue® to avoid a breakdown ,
or carry out (3).
AdBlue
® warning lamp
flashing and Service
warning lamp fixed,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue® tank is empty: the
starting inhibition system required
by legislation prevents starting of
the engine. To restart the engine, top up the AdBlue® or carry out
(2).
It is essential to add at least 5

litres of AdBlue
® to its
tank.
1
Instruments

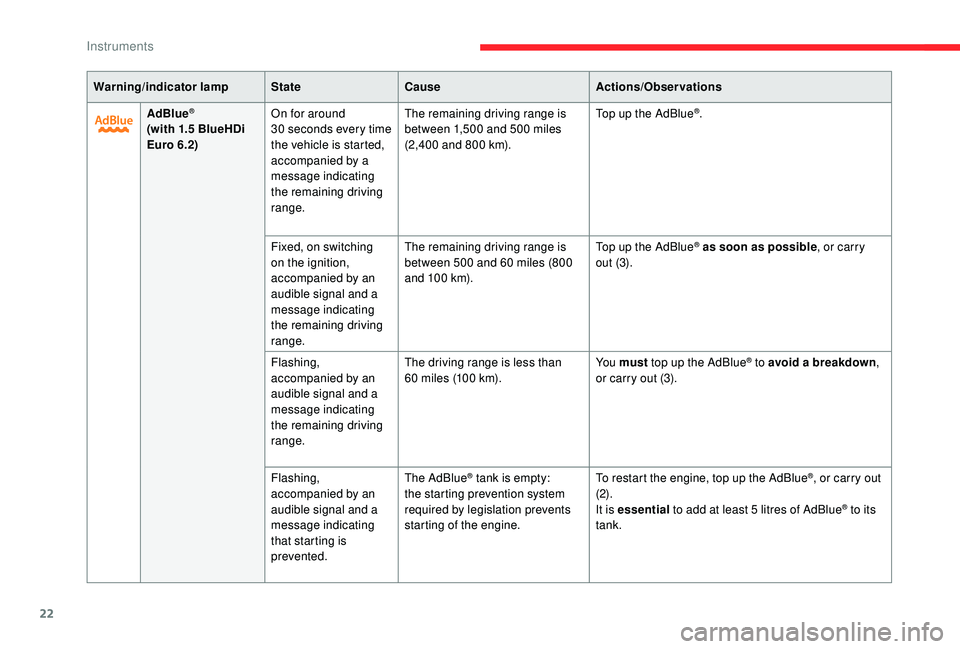

22
Warning/indicator lampStateCause Actions/Observations
AdBlue
®
(with 1.5 BlueHDi
Euro 6.2) On for around
30
seconds every time
the vehicle is started,
accompanied by a
message indicating
the remaining driving
range. The remaining driving range is
between 1,500 and 500
miles
(2,400 and 800 km).Top up the AdBlue
®.
Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 500 and 60 miles (800
and 100 km).
Top up the AdBlue
® as soon as possible
, or carry
out (3).
Flashing,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The driving range is less than
60

miles (100

km). Yo u must
top up the AdBlue
® to avoid a breakdown ,
or carry out (3).
Flashing,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue
® tank is empty:
the starting prevention system
required by legislation prevents
starting of the engine. To restart the engine, top up the AdBlue®, or carry out
(2).
It is essential to add at least 5

litres of AdBlue
® to its
tank.
Instruments

23
Warning/indicator lampStateCause Actions/Observations
+
+ SCR emissions
control system
Fixed when the
ignition is switched on,
accompanied by an
audible signal and a
message. A fault with the SCR emissions
control system has been
detected.
This alert disappears once the exhaust emissions
return to normal levels.
AdBlue
® warning
lamp flashing, on
switching on the
ignition, associated
with the fixed Ser vice
and engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. Depending on the message
displayed, you can continue
driving for up to 685
miles
(1,100
km) before the engine
starting prevention system is
triggered. Carry out (3) as soon as possible to avoid running
out of fuel
.
AdBlue
® warning
lamp flashing, on
switching on the
ignition, associated
with the fixed Ser vice
and engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message. An engine immobiliser prevents
the engine from restarting (over
the authorised driving limit after
confirmation of a fault with the
emissions control system).
To restart the engine, carry out (2).
1
Instruments

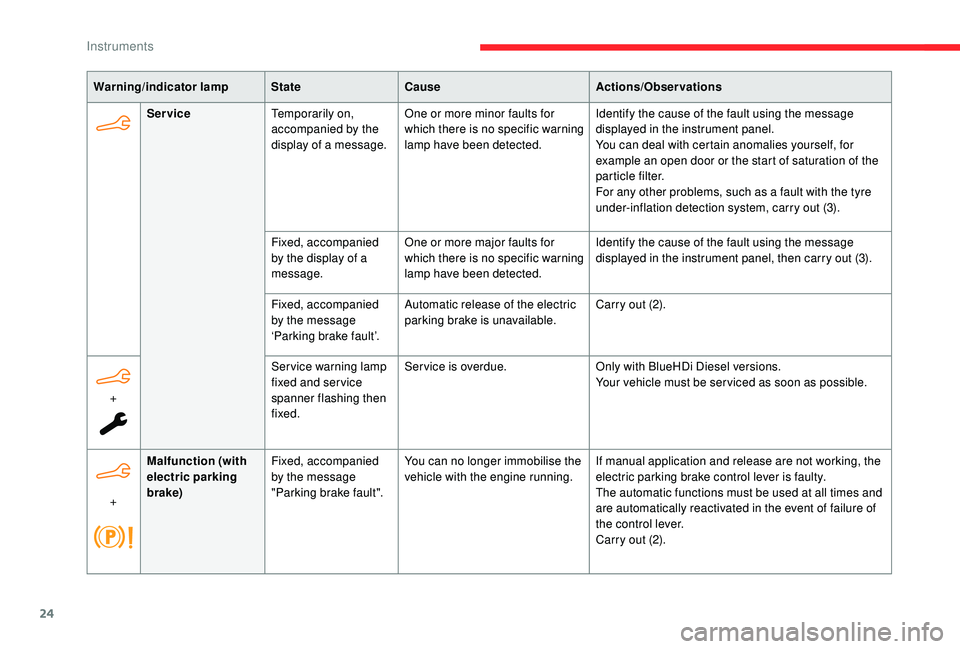

24
Warning/indicator lampStateCause Actions/Observations
Service Temporarily on,
accompanied by the
display of a message. One or more minor faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with certain anomalies yourself, for
example an open door or the start of saturation of the
particle filter.
For any other problems, such as a fault with the tyre
under-inflation detection system, carry out (3).
Fixed, accompanied
by the display of a
message. One or more major faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel, then carry out (3).
+ Service warning lamp
fixed and ser vice
spanner flashing then
fixed.Service is overdue.
Only with BlueHDi Diesel versions.
Your vehicle must be ser viced as soon as possible.
Fixed, accompanied
by the message
‘Parking brake fault’.
Automatic release of the electric
parking brake is unavailable.
Carry out (2).
+ Malfunction (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault". You can no longer immobilise the
vehicle with the engine running.
If manual application and release are not working, the
electric parking brake control lever is faulty.
The automatic functions must be used at all times and
are automatically reactivated in the event of failure of
the control lever.
Carry out (2).
Instruments

25
Warning/indicator lampStateCause Actions/Observations
+
+ Malfunction (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault". The parking brake is faulty:
manual and automatic functions
may not be working. When stationary, to immobilise your vehicle:
F

P
ull and hold the control lever for approximately
7 to 15
seconds, until the lamp comes on in the
instrument panel.
If this procedure does not work, make your vehicle
safe:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, select P, then put the
supplied chocks against one of the wheels.
Then carry out (2).
Rear foglamp Fixed. The lamp is on.
+
Malfunction of the
braking systems
(with Post Collision
Safety Brake
(PCSB)) Fixed.
Carry out (3) quickly.
+ Malfunction of
the airbags or
pyrotechnic
pretensioning
systems (with Post
Collision Safety
Brake (PCSB)) Fixed.
Carry out (3) quickly.
1
Instruments

26
Warning/indicator lampStateCause Actions/Observations
Green warning/indicator lamps
Stop & Star tFixed.When the vehicle stops, the Stop & Start puts
the engine into STOP mode.
Flashing
temporarily. STOP mode is momentarily unavailable or
START mode is automatically triggered.
Hill Assist Descent
Control Fixed.
The system has been activated, but the
conditions for regulation are not met (gradient,
speed too high, gear engaged).
Flashing. The function is starting regulation. The vehicle is being braked; the brake lamps
come on during the descent.
Eco mode Fixed.ECO mode is active. Certain parameters are adjusted with a view
to reducing fuel consumption.
Automatic wiping Fixed.Automatic front wiping is activated.
Front foglamps Fixed.The front foglamps are on.
Sidelamps Fixed.The lamps are on.
Direction
indicators Flashing with
audible signal.The direction indicators are on.
Instruments

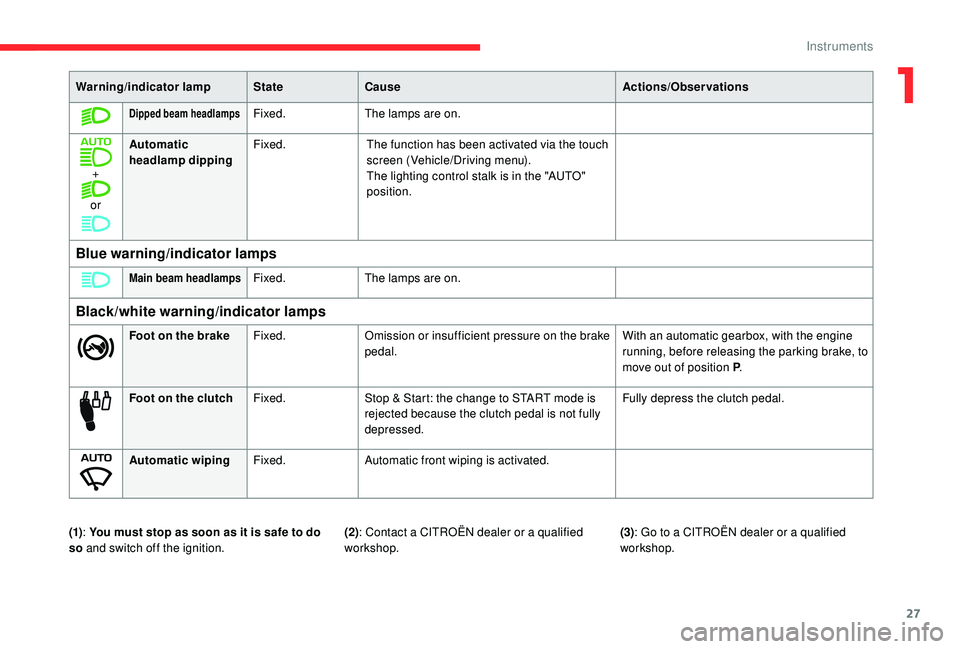

27
Warning/indicator lampStateCause Actions/Observations
Dipped beam headlampsFixed.The lamps are on.
+
or Automatic
headlamp dipping
Fixed.
The function has been activated via the touch
screen (Vehicle/Driving menu).
The lighting control stalk is in the "AUTO"
position.
Blue warning/indicator lamps
Main beam headlampsFixed.The lamps are on.
Black/white warning/indicator lamps
Foot on the brake Fixed.Omission or insufficient pressure on the brake
pedal. With an automatic gearbox, with the engine
running, before releasing the parking brake, to
move out of position P
.
Foot on the clutch Fixed.Stop & Start: the change to START mode is
rejected because the clutch pedal is not fully
depressed. Fully depress the clutch pedal.
Automatic wiping Fixed.Automatic front wiping is activated.
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a CITROËN dealer or a qualified
workshop.
(2): Contact a CITROËN dealer or a qualified
workshop.
1
Instruments

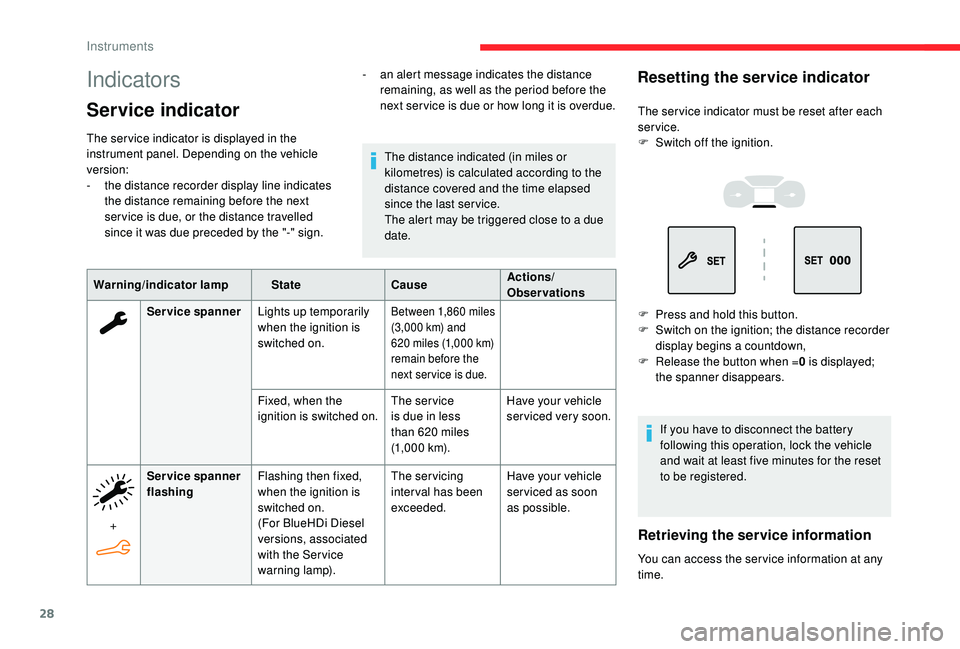

28
Indicators
Service indicator
The ser vice indicator is displayed in the
instrument panel. Depending on the vehicle
version:
-
t
he distance recorder display line indicates
the distance remaining before the next
ser vice is due, or the distance travelled
since it was due preceded by the "-" sign.
Warning/indicator lamp StateCauseActions/
Observations
The distance indicated (in miles or
kilometres) is calculated according to the
distance covered and the time elapsed
since the last ser vice.
The alert may be triggered close to a due
date.
Service spanner Lights up temporarily
when the ignition is
switched on.
Between 1,860 miles
( 3,000 km) and
620
miles (1,000 km)
remain before the
next ser vice is due.
Fixed, when the
ignition is switched on. The service
is due in less
than 620
miles
(1,000


km).Have your vehicle
serviced very soon.
+ Service spanner
flashing
Flashing then fixed,
when the ignition is
switched on.
(For BlueHDi Diesel
versions, associated
with the Ser vice
warning lamp). The servicing
inter val has been
exceeded.
Have your vehicle
ser viced as soon
as possible.
Resetting the service indicator- an alert message indicates the distance
remaining, as well as the period before the
next ser vice is due or how long it is overdue. The ser vice indicator must be reset after each
service.
F

S
witch off the ignition.
F

P
ress and hold this button.
F

S
witch on the ignition; the distance recorder
display begins a countdown,
F

R
elease the button when =0 is displayed;
the spanner disappears.
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the reset
to be registered.
Retrieving the service information
You can access the ser vice information at any
time.
Instruments
