CITROEN BERLINGO VAN 2019 Handbook (in English)

49
Alarm
Self-protection function
The system checks for the disconnection
of any of its components.
The alarm is triggered if the battery,
button or siren wiring is disconnected or
damaged.
For all work on the alarm system,
contact a CITROËN dealer or a qualified
workshop.
Exterior perimeter monitoring
The system checks whether the vehicle is
opened.
The alarm is triggered if anyone tries to open
one of the doors or the bonnet.
Interior volumetric monitoring
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.If your vehicle is fitted with Additional
heating/ventilation, interior volumetric
monitoring
is not compatible with this system.
For more information on Additional
heating/ventilation , refer to the
corresponding section.
Anti-tilt monitoring Locking the vehicle with full
alarm system
Activation
Following an instruction to lock the
vehicle, the exterior perimeter monitoring
is activated after 5
seconds and the
interior volumetric and anti-tilt monitoring
after 45


seconds.
If an opening (door, tailgate or bonnet)
is not closed properly, the vehicle is
not locked but the exterior perimeter
monitoring will be activated after
45
seconds at the same time as the
interior volumetric and anti-tilt monitoring.
In the case of a steep slope, the door
may be driven by its own weight and
as a consequence may open or close
violently
.
Take care not to leave the vehicle on a
steep slope with the door(s) open without
supervision. If this advice is not followed,
injuries or damage may occur if a person
or an object is trapped or caught.
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted or
moved.When the vehicle is parked, the alarm will
not be triggered if the vehicle is knocked. F

S
witch off the engine and exit the vehicle.
F

L
ock the vehicle using the remote control or
the "
K
eyless Entry and Starting" system.
The monitoring system is active: the red
indicator lamp in the button flashes every
second and the direction indicators come on for
about 2

seconds.
System which protects and provides a deterrent
against theft and break-ins.
2
Access

50
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-tilt
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-
l
eaving a pet in the vehicle,
-

l
eaving a window or sunroof partially open,
-
w

ashing your vehicle,
-
c

hanging a wheel,
-

h
aving your vehicle towed,
-
t

ransport by ship.
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
30

seconds.
Depending on the country of sale, certain
monitoring functions remain active until the alarm
has been triggered eleven times consecutively.
When the vehicle is unlocked using the remote
control or the "
K

eyless Entry and Starting"
system, rapid flashing of the red indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the ignition
is switched on, the flashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
F u nlock the vehicle using the key (integral to
the remote control) in the driver's door lock,
F

o
pen the door; the alarm is triggered,
F

s
witch on the ignition; the alarm stops; the
indicator lamp in the button goes off.
Deactivation
F Press the unlocking button on the remote control.
or
F

U
nlock the vehicle with the "Keyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the button goes off and the
direction indicators flash for about 2
seconds.
When the vehicle automatically locks
itself again (as happens if a door or the
boot is not opened within 30
seconds of
unlocking), the monitoring system is also
reactivated automatically.
Deactivating the interior
volumetric and anti-tilt monitoring
F Switch off the ignition and within 10 s econds
press the alarm button until its red indicator
lamp is on fixed.
F

G
et out of the vehicle.
F

I
mmediately lock the vehicle using the
remote control or the "Keyless Entry and
Starting" system.
Only the exterior perimeter monitoring is
activated; the red indicator lamp in the button
flashes every second.
To be taken into account, the deactivation
must be carried out after every time the
ignition is switched off.
Reactivating the interior
volumetric and anti-tilt monitoring
F Deactivate the perimeter monitoring by unlocking the vehicle with the remote
control or the "Keyless Entry and Starting"
system.
The indicator lamp in the button goes off.
F

R
eactivate all monitoring by locking the
vehicle with the remote control or the
"Keyless Entry and Starting" system.
The red indicator lamp in the button once again
flashes every second.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral to the remote control) in the driver's
door lock.
Access

51

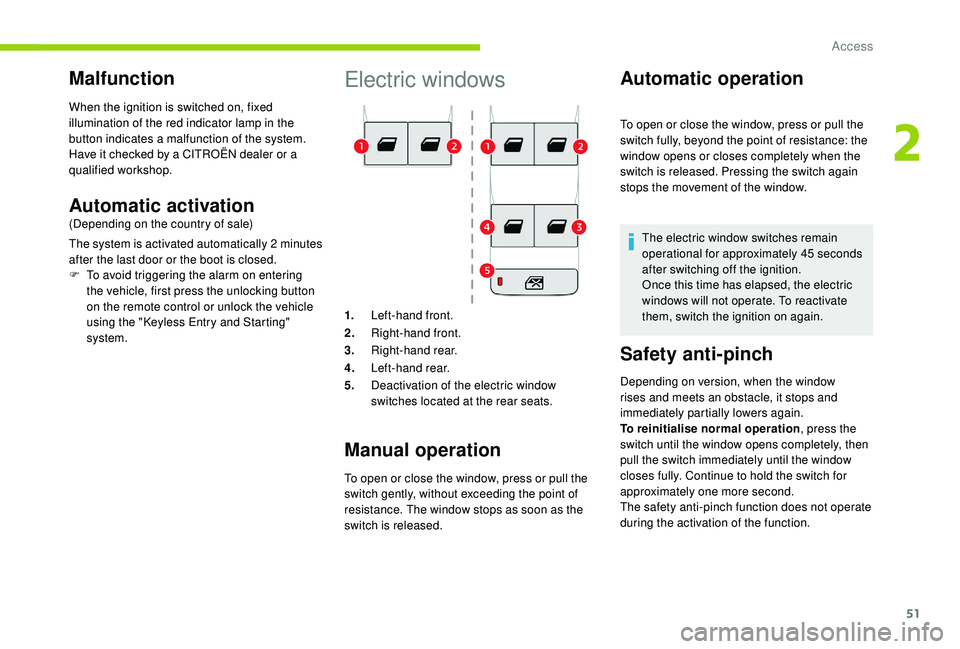

Electric windows
1.Left-hand front.
2. Right-hand front.
3. Right-hand rear.
4. Left-hand rear.
5. Deactivation of the electric window
switches located at the rear seats.
Manual operation
To open or close the window, press or pull the
switch gently, without exceeding the point of
resistance. The window stops as soon as the
switch is released.
Automatic operation
To open or close the window, press or pull the
switch fully, beyond the point of resistance: the
window opens or closes completely when the
switch is released. Pressing the switch again
stops the movement of the window.
The electric window switches remain
operational for approximately 45


seconds
after switching off the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate
them, switch the ignition on again.
Safety anti-pinch
Depending on version, when the window
rises and meets an obstacle, it stops and
immediately partially lowers again.
To reinitialise normal operation , press the
switch until the window opens completely, then
pull the switch immediately until the window
closes fully. Continue to hold the switch for
approximately one more second.
The safety anti-pinch function does not operate
during the activation of the function.
Malfunction
When the ignition is switched on, fixed
illumination of the red indicator lamp in the
button indicates a malfunction of the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
Automatic activation
(Depending on the country of sale)
The system is activated automatically 2

m
inutes
after the last door or the boot is closed.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the "
K

eyless Entry and Starting"
system.
2
Access

52
Deactivating the rear
controls for the rear electric
windows
The red indicator lamp in the button comes
on, accompanied by a message confirming
activation of the system. It remains on for as
long as the deactivation is maintained.
Use of the rear electric windows from the
driver's controls remains possible. For your children's safety, press control 5 to
deactivate the switches at the rear electric
windows, irrespective of their positions.
Reinitialising the electric
windows
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For each window:
-
b
ring the window down completely,
then bring it back up. It will go up by a
few centimetres each time. Per form the
operation until the window is fully closed,
-

c
ontinue to pull the switch for at least one
second after reaching the window closed
position. In the event of contact (pinching) during
operation of the windows, you must
reverse the movement of the window. To
do this, press the switch concerned.
When operating the passenger electric
window switches, the driver must ensure
that nothing is preventing correct closing
of the windows.
The driver must ensure that the
passengers use the electric windows
c o r r e c t l y.
Be particularly aware of children when
operating the windows.
Be aware of passengers or other persons
present when closing the windows using
the electronic key or the "Keyless Entry
and Starting" system.
Tilting rear door windows
Opening
F Turn the lever outwards.
F
P ush it fully to secure the window in the
open position.
Closing
F Pull the lever to release the window.
F T urn the lever fully inwards to secure the
window in the closed position.
Access

53

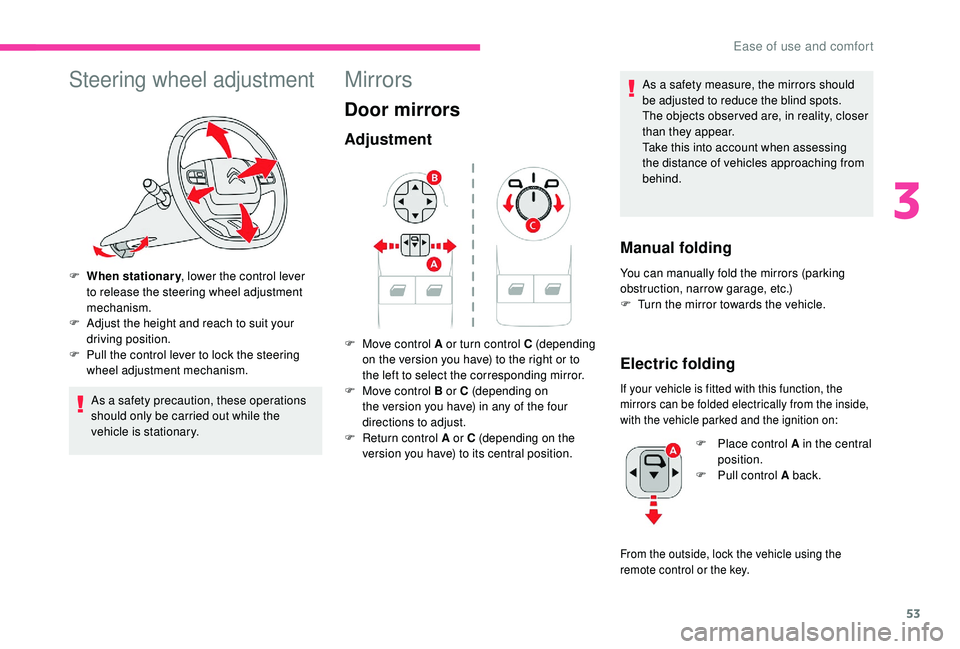

Steering wheel adjustment
F When stationary, lower the control lever
to release the steering wheel adjustment
mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these operations
should only be carried out while the
vehicle is stationary.
Mirrors
Door mirrors
Adjustment
As a safety measure, the mirrors should
be adjusted to reduce the blind spots.
The objects obser ved are, in reality, closer
than they appear.
Take this into account when assessing
the distance of vehicles approaching from
behind.
Manual folding
You can manually fold the mirrors (parking
obstruction, narrow garage, etc.)
F

T
urn the mirror towards the vehicle.
Electric folding
If your vehicle is fitted with this function, the
mirrors can be folded electrically from the inside,
with the vehicle parked and the ignition on:
F Move control A or turn control C (depending on the version you have) to the right or to
the left to select the corresponding mirror.
F

M
ove control B or C (depending on
the version you have) in any of the four
directions to adjust.
F

R
eturn control A or C (depending on the
version you have) to its central position. F

P
lace control A in the central
position.
F

P
ull control A back.
From the outside, lock the vehicle using the
remote control or the key.
3
Ease of use and comfort

54

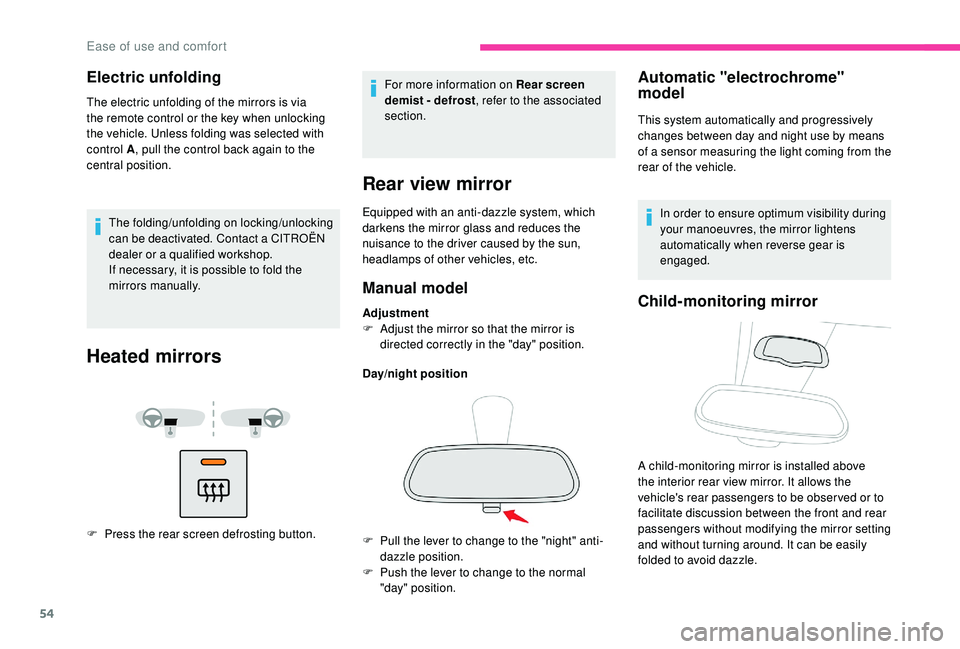

Electric unfolding
The electric unfolding of the mirrors is via
the remote control or the key when unlocking
the vehicle. Unless folding was selected with
control A, pull the control back again to the
central position.
The folding/unfolding on locking/unlocking
can be deactivated. Contact a CITROËN
dealer or a qualified workshop.
If necessary, it is possible to fold the
mirrors manually.
Heated mirrors
F Press the rear screen defrosting button. For more information on Rear screen
demist - defrost
, refer to the associated
section.
Rear view mirror
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps of other vehicles, etc.
Manual model
Adjustment
F A djust the mirror so that the mirror is
directed correctly in the "day" position.
Day/night position
Automatic "electrochrome"
model
F Pull the lever to change to the "night" anti- dazzle position.
F

P
ush the lever to change to the normal
"day" position. This system automatically and progressively
changes between day and night use by means
of a sensor measuring the light coming from the
rear of the vehicle.
In order to ensure optimum visibility during
your manoeuvres, the mirror lightens
automatically when reverse gear is
engaged.
Child-monitoring mirror
A child-monitoring mirror is installed above
the interior rear view mirror. It allows the
vehicle's rear passengers to be obser ved or to
facilitate discussion between the front and rear
passengers without modifying the mirror setting
and without turning around. It can be easily
folded to avoid dazzle.
Ease of use and comfort

55

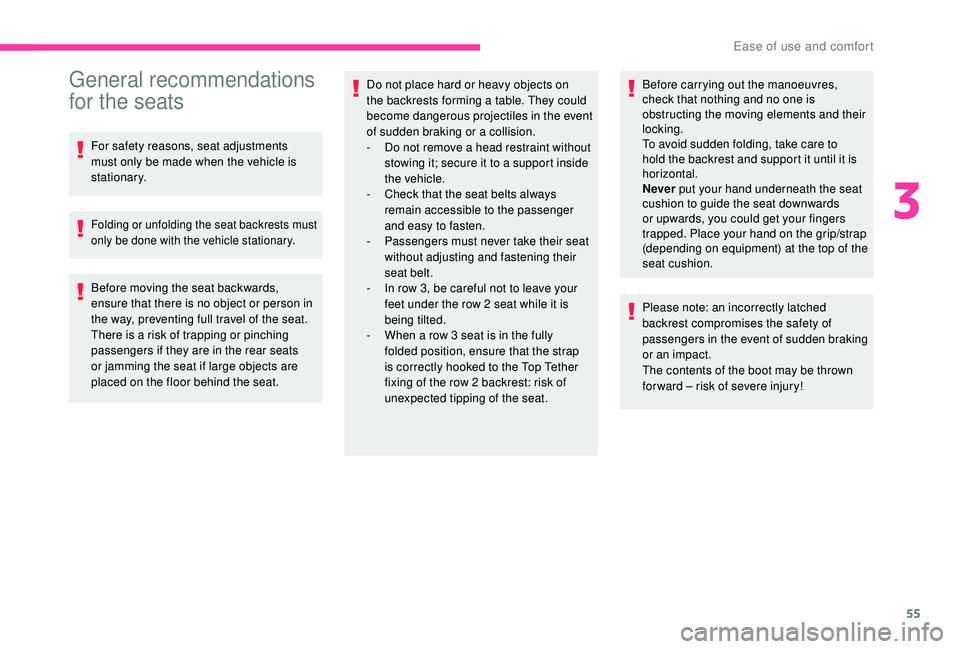

General recommendations
for the seats
For safety reasons, seat adjustments
must only be made when the vehicle is
stationary.
Folding or unfolding the seat backrests must
only be done with the vehicle stationary.
Before moving the seat backwards,
ensure that there is no object or person in
the way, preventing full travel of the seat.
There is a risk of trapping or pinching
passengers if they are in the rear seats
or jamming the seat if large objects are
placed on the floor behind the seat.Do not place hard or heavy objects on
the backrests forming a table. They could
become dangerous projectiles in the event
of sudden braking or a collision.
-

D
o not remove a head restraint without
stowing it; secure it to a support inside
the vehicle.
-
C
heck that the seat belts always
remain accessible to the passenger
and easy to fasten.
-
P
assengers must never take their seat
without adjusting and fastening their
seat belt.
- I n row 3, be careful not to leave your
feet under the row 2 seat while it is
being tilted.
-

W
hen a row 3 seat is in the fully
folded position, ensure that the strap
is correctly hooked to the Top Tether
fixing of the row 2 backrest: risk of
unexpected tipping of the seat. Before carrying out the manoeuvres,
check that nothing and no one is
obstructing the moving elements and their
locking.
To avoid sudden folding, take care to
hold the backrest and support it until it is
horizontal.
Never put your hand underneath the seat
cushion to guide the seat downwards
or upwards, you could get your fingers
trapped. Place your hand on the grip/strap
(depending on equipment) at the top of the
seat cushion.
Please note: an incorrectly latched
backrest compromises the safety of
passengers in the event of sudden braking
or an impact.
The contents of the boot may be thrown
for ward – risk of severe injury!
3
Ease of use and comfort

56

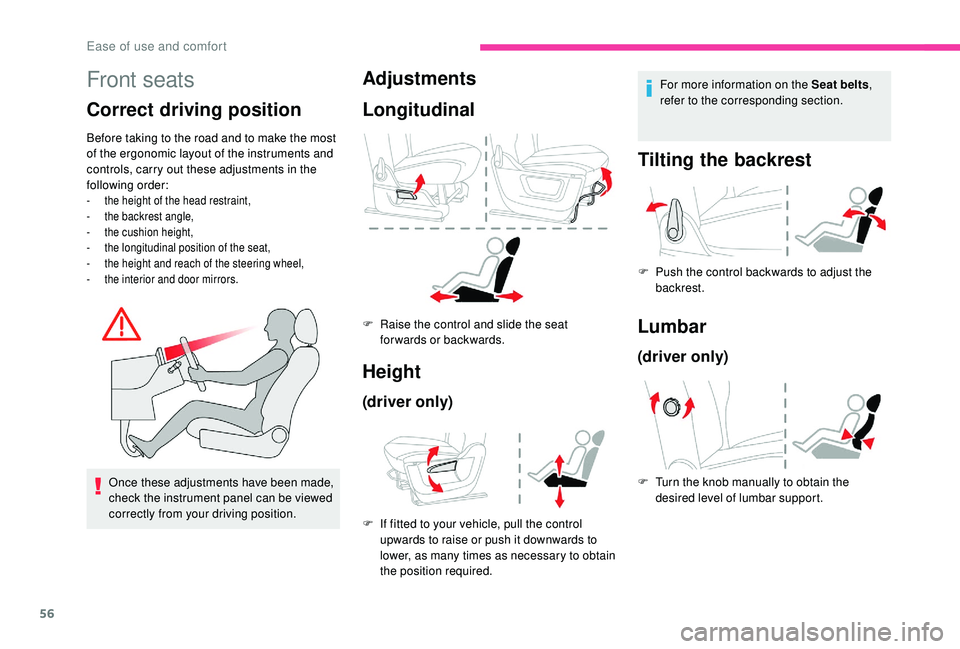

Front seats
Correct driving position
Before taking to the road and to make the most
of the ergonomic layout of the instruments and
controls, carry out these adjustments in the
following order:
- the height of the head restraint,
- t he backrest angle,
-

t
he cushion height,
-

t
he longitudinal position of the seat,
-
t

he height and reach of the steering wheel,
-

t
he interior and door mirrors.
Once these adjustments have been made,
check the instrument panel can be viewed
correctly from your driving position.
Adjustments
Longitudinal
F Raise the control and slide the seat forwards or backwards.
Height
(driver only)
F If fitted to your vehicle, pull the control upwards to raise or push it downwards to
lower, as many times as necessary to obtain
the position required. For more information on the Seat belts
,
refer to the corresponding section.
Tilting the backrest
F Push the control backwards to adjust the backrest.
Lumbar
(driver only)
F Turn the knob manually to obtain the desired level of lumbar support.
Ease of use and comfort

57

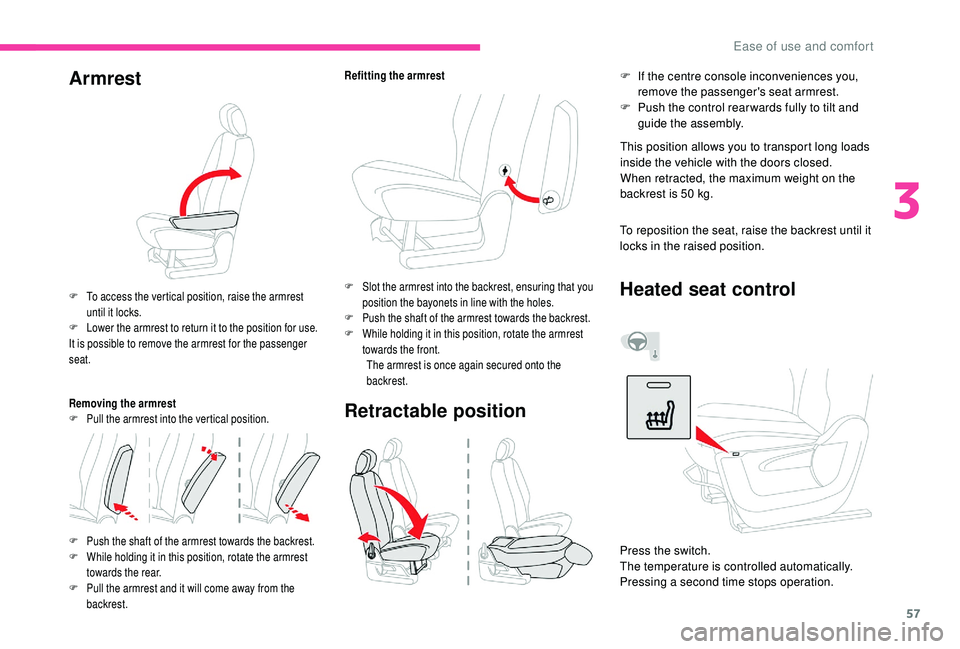

Armrest
F To access the vertical position, raise the armrest until it locks.
F

L
ower the armrest to return it to the position for use.
It is possible to remove the armrest for the passenger
seat.
Removing the armrest
F

P
ull the armrest into the vertical position.
F

P
ush the shaft of the armrest towards the backrest.
F

W
hile holding it in this position, rotate the armrest
towards the rear.
F

P
ull the armrest and it will come away from the
backrest. Refitting the armrest
F
S lot the armrest into the backrest, ensuring that you
position the bayonets in line with the holes.
F

P
ush the shaft of the armrest towards the backrest.
F

W
hile holding it in this position, rotate the armrest
towards the front. The armrest is once again secured onto the
backrest.
Retractable position
This position allows you to transport long loads
inside the vehicle with the doors closed.
When retracted, the maximum weight on the
backrest is 50
kg.
To reposition the seat, raise the backrest until it
locks in the raised position. F
I
f the centre console inconveniences you,
remove the passenger's seat armrest.
F
P
ush the control rear wards fully to tilt and
guide the assembly.
Heated seat control
Press the switch.
The temperature is controlled automatically.
Pressing a second time stops operation.
3
Ease of use and comfort

58

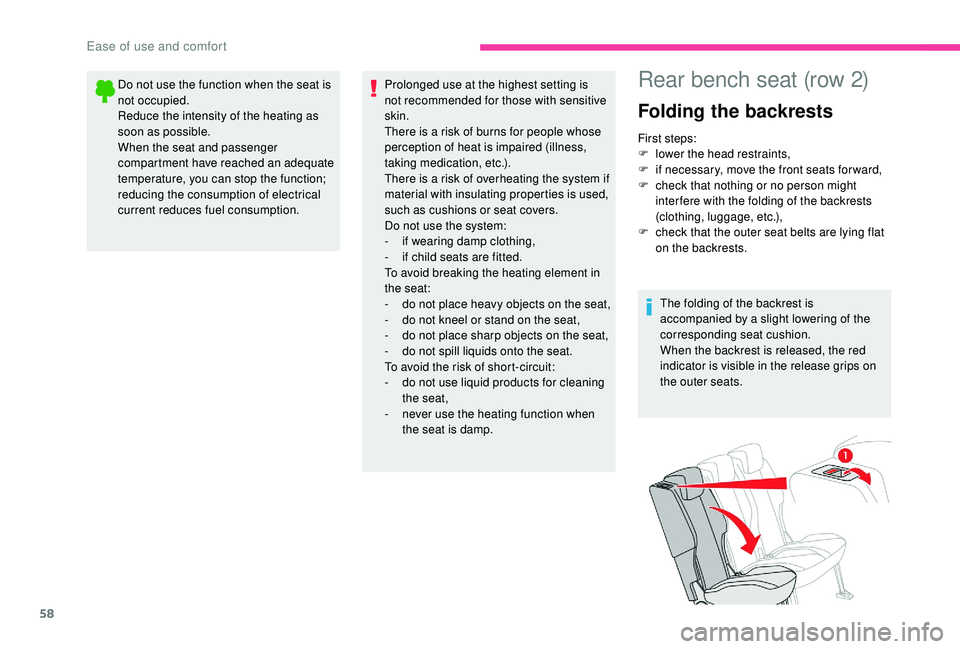

Do not use the function when the seat is
not occupied.
Reduce the intensity of the heating as
soon as possible.
When the seat and passenger
compartment have reached an adequate
temperature, you can stop the function;
reducing the consumption of electrical
current reduces fuel consumption.Prolonged use at the highest setting is
not recommended for those with sensitive
skin.
There is a risk of burns for people whose
perception of heat is impaired (illness,
taking medication, etc.).
There is a risk of overheating the system if
material with insulating properties is used,
such as cushions or seat covers.
Do not use the system:
-

i
f wearing damp clothing,
-

i
f child seats are fitted.
To avoid breaking the heating element in
the seat:
-

d
o not place heavy objects on the seat,
-

d
o not kneel or stand on the seat,
-

d
o not place sharp objects on the seat,
-

d
o not spill liquids onto the seat.
To avoid the risk of short-circuit:
-

d
o not use liquid products for cleaning
the seat,
-
n

ever use the heating function when
the seat is damp.Rear bench seat (row 2)
Folding the backrests
First steps:
F l ower the head restraints,
F

i
f necessary, move the front seats for ward,
F

c
heck that nothing or no person might
inter fere with the folding of the backrests
(clothing, luggage, etc.),
F

c
heck that the outer seat belts are lying flat
on the backrests.
The folding of the backrest is
accompanied by a slight lowering of the
corresponding seat cushion.
When the backrest is released, the red
indicator is visible in the release grips on
the outer seats.
Ease of use and comfort
