Screen Citroen C1 2016 1.G Owner's Guide

89
C1_en_Chap04_conduite_ed01-2016
Speed limiter (VTi 68 engine)
System which prevents the vehicle from exceeding the speed programmed by the driver.
T he   speed   limiter   is   switched on
 m
anually:
 t

his   can   be   done   whatever   the   speed   of   the
v

ehicle.   However,   if   you   are   driving   at   less   than
2

0   mph   (30   km/h),   the   programmed   speed   will
b

e   fixed   at   20   mph   (30   km/h).
The
  speed   limiter   is   paused by operation of the
control.
The
  programmed   speed   can   be   exceeded
t

emporarily   by   pressing   the   accelerator   firmly
b

eyond   the   point   of   resistance.
To
  return   to   the   programmed   speed,   simply
r

elease   the   accelerator   pedal   until   the   vehicle
r

eturns   to   the   programmed   speed   limit.
The
  programmed   limit   speed   is   erased
w

hen   switching   off   the   ignition.
Steering mounted controls
The controls are grouped together on this control   stalk   at   the   steering   wheel.
1.
 S

peed   limiter   on   /   off:   by   pressing   the   end
o

f   the   control   stalk.
2.
 P

rogramming   the   speed
 D

ecrease   the   setting:   by   pushing   the
c

ontrol   stalk   down.
3.
 R

estore   speed   limiter
 I

ncrease   the   setting:   by   pushing   the   control
s

talk   up.
4.
 P

ause   speed   limiter:   by   pulling   the   control
s

talk   towards   you.
Displays in the instrument panel
The information is grouped together in the instrument   panel   screen.
5.
 S

peed   limiter   on   /   pause   indication.
6.
 S

peed   value   setting.
The speed limiter cannot, in any circumstances,   replace   the   need   to   observe s

peed   limits,   nor   can   it   replace   the   need   for
 v

igilance   on   the   part   of   the   driver.
If you choose to display other information (trip  A
  for   example),   the   speed   limiter
i

nformation   is   automatically   displayed   again
a

fter   about   6   seconds.
4
Driving

92
C1_en_Chap04_conduite_ed01-2016

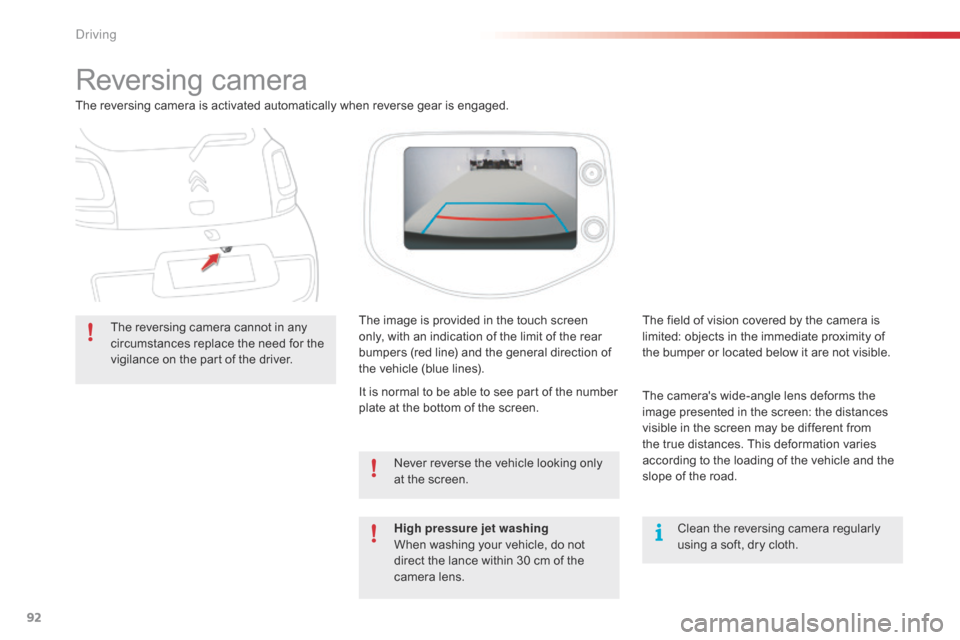

Reversing camera
The reversing camera is activated automatically when reverse gear is engaged.
T he   reversing   camera   cannot   in   any
c

ircumstances   replace   the   need   for   the
v

igilance   on   the   part   of   the   driver.The
  image   is   provided   in   the   touch   screen
o

nly,   with   an   indication   of   the   limit   of   the   rear
b

umpers   (red   line)   and   the   general   direction   of
t

he   vehicle   (blue   lines).Clean
  the   reversing   camera   regularly
u

sing   a   soft,   dry   cloth.
The
  field   of   vision   covered   by   the   camera   is
l

imited:   objects   in   the   immediate   proximity   of
t

he   bumper   or   located   below   it   are   not   visible.
The
  camera's   wide-angle   lens   deforms   the
i

mage   presented   in   the   screen:   the   distances
v

isible   in   the   screen   may   be   different   from
t

he   true   distances.   This   deformation   varies
a

ccording   to   the   loading   of   the   vehicle   and   the
s

lope   of   the   road.
High pressure jet washing
When
  washing   your   vehicle,   do   not
d

irect   the   lance   within   30   cm   of   the
c

amera   lens.
Never
  reverse   the   vehicle   looking   only
a

t   the   screen.
It
  is   normal   to   be   able   to   see   part   of   the   number
p

late   at   the   bottom   of   the   screen.
Driving

94
C1_en_Chap04_conduite_ed01-2016
Deactivation
Operating faultDisplays in the instrument panel
The detection may be impeded:
-  i f   the   ground   markings   are   worn,
-

i
f   there   is   little   contrast   between   the   markings   on   the   ground   and   the   road   sur face,
-

i
f   the   windscreen   is   dirty,
-

i
n   certain   extreme   weather   conditions:   fog,   heavy   showers,   bright   sunlight   or   direct
e

xposure   to   the   sun   (low   sun,   leaving   a   tunnel...)   and   shadows.F

P
ress   this   button   again.
The   status   of   the   system   remains   in   the
m

emory   when   the   ignition   is   switched   off.
In the event of a malfunction, this (orange) w
arning   lamp   comes   on   in   the   instrument   panel.
Contact a CITROËN dealer or a qualified workshop   without   delay.
Display

in

the

instrument

panel
Comments
The

function

has

been

activated

(green

indicator).
The

system

has

identified

a

marking

on

the

ground

(green

i

ndicator).
The

system

is

alerting

you

that

a

road

marking

is

being

crossed
 (

green

and

orange

warning).
The

display

of

this

warning

is

accompanied

by

an

audible

signal.
Driving

101
C1_en_Chap05_eclairage-visibilite_ed01-2016
Automatic illumination of
headlamps
Switching on
F Turn  the   ring   to   the   "AUTO "   position.
Using

a

sunshine

sensor,

if

a

low

level

of

a

mbient

light

level

is

detected,

the

sidelamps

a

nd

dipped

beam

headlamps

come

on

a

utomatically,

without

any

action

by

the

driver.
When

the

ambient

light

returns

to

a

sufficient

l

evel

or

the

wipers

are

switched

off,

the

lighting

i

s

switched

off

automatically.
The

sensor

is

located

at

the

base

of

the

w

indscreen.
Switching off
F Turn   the   ring   to   another   position.
In   foggy   weather   or   in   snow,   the
s

unshine   sensor   may   detect   sufficient
l

ight.   The   lighting   will   not   come   on
au

tomatically.
Do not cover the sunshine sensor, the
associated
  functions   will   no   longer   be
c

ontrolled.
5
Lighting and visibility

104
C1_en_Chap05_eclairage-visibilite_ed01-2016
Wiper control stalk
Manual controls
The wipers are controlled directly by the driver.
Windscreen wipers
Wiping speed control stalk: raise or lower the stalk   to   the   desired   position.
Single
  wipe.
Park.
Intermittent
  wipe.
Normal
  wipe   (moderate   rain).
Fast
  wipe   (heavy   rain).
Do

not

operate

the

wipers

on

a

dry

w

indscreen.

Under

extremely

hot

or

c

old

conditions,

ensure

that

the

wiper

b

lades

are

not

stuck

to

the

windscreen

b

efore

operating

the

wipers.
In

wintry

conditions,

remove

snow,

ice

o

r

frost

present

on

the

windscreen,
 a
round

the

wiper

arms

and

blades

and
 t
he

windscreen

seal,

before

operating

t

he

wipers.
For
  a   single   wipe   of   the   windscreen,   raise   and
r

elease   the   control   stalk.
Lighting and visibility

105
C1_en_Chap05_eclairage-visibilite_ed01-2016
Rear wiperRear screenwash
Wiper off, turn the control stalk towards you to o
perate   the   rear   screenwash,   accompanied   by
s

everal   sweeps   of   the   rear   wiper.
Windscreen wash
Turn the ring to this position for a steady   wipe.
Pushing

the   stalk   away   from   you   operates   the
w

ash

during   wiping.
Pull

the

wiper

stalk

towards

you.
 T
he windscreen

wash,

then

the

windscreen

w

ipers,

operate

for

a

pre-determined

time.
Do not use the front or rear screenwash
when the screenwash reservoir is
empty.
  You   risk   damaging   the   pump.
5
Lighting and visibility

110
C1_en_Chap06_securite_ed01-2016
Active City Brake
Active City B rake  i s  a  d riving  a ssistance  s ystem  t
hat   aims   to   avoid   a   frontal   collision   or   reduce
t

he   speed   of   an   impact   if   the   driver   does   not
r

eact   or   reacts   too   late   (brake   application   too
l

ate). This
  system   is   designed   to   improve
d

riving   safety.
It
  remains   the   driver's   responsibility   to
c

ontinuously   monitor   the   state   of   the
t

raffic   and   to   assess   the   distances   and
r

elative   speeds   of   other   vehicles.
Active
  City   Brake   can   in   no
c

ircumstances   replace   the   need   for
v

igilance   on   the   part   of   the   driver.
Never
  look   at   the   laser   sensor   through
a

n   optical   instrument   (magnifying   glass,
m

icroscope...)   at   a   distance   of   less   than
1

0   centimetres:   risk   of   eye   injury.Automatic
  braking   occurs   later   than   if
d

one   by   the   driver,   so   as   to   intervene
o

nly   when   there   is   a   high   risk   of
c

ollision.Principle
Using a laser sensor and a camera located at the   top   of   the   windscreen,   this   system   detects
a

  vehicle   running   in   the   same   direction   or
s

tationary   ahead   of   your   vehicle.
When
  necessary,   the   vehicle's   braking   system
i

s   operated   automatically   to   reduce   the   speed
o

f   impact   or   to   help   avoid   a   collision   with   the
v

ehicle
 a
head.
Conditions for activation
Active City Brake only operates if the following
c onditions   are   met:
●

t
he   engine   is   running,
●

t
he   vehicle   is   in   a   for ward   gear,
●

t
o   trigger the pre-collision alert :
-

t
he   speed   is   between   9   and   87   mph
(

15 and   140   km/h),
-

t
he   difference   in   speed   between   your
v

ehicle   and   the   one   ahead   is   more   than
a

bout   9   mph   (15   km/h),
●

f
or   braking assistance :
-

t
he   speed   is   between   about   18   and
5

0 mph   (30   and   80   km/h),
-

t
he   difference   in   speed   between   your
v

ehicle   and   the   one   ahead   is   more   than
a

bout   18   mph   (30   km/h),
●

f
or   automatic pre-collision braking:
-

t
he   speed   is   between   about   6   and
5

0 mph   (10   and   80   km/h),
-

t
he   difference   in   speed   between   your
v

ehicle   and   the   one   ahead   is   more   than
a

bout   6   mph   (10   km/h),
●

t
he   braking   assistance   systems   (ABS,
E

BFD,   EBA)   are   not   faulty,
●

t
he   trajectory   control   systems   (TRC,   DSC)
a

re   not   deactivated   or   faulty,
●

t
he   vehicle   is   not   in   a   tight   corner,
●

t
he   system   has   not   been   triggered   during
t

he   previous   10   seconds.
Safety

114
C1_en_Chap06_securite_ed01-2016
Operating faults
Sensor fault
The operation of the laser sensor may suffer inter ference   from   accumulations   of   dirt   or
m

isting   of   the   windscreen   or   the   presence   of
a

n   object   causing   an   obstruction   (e.g.:   bonnet
ope

n). In
  this   case   you   are   warned   by   the
d

isplay   of   this   flashing   warning   lamp
i

n   the   instrument   panel.
Use
  the   windscreen   demisting   and   regularly
c

lean   the   area   of   the   windscreen   in   front   of   the
sen

sor.Do
  not   stick   or   other wise   fix   any   object
o

n   the   windscreen   in   front   of   the   sensor.
System fault
In the event of a malfunction of the   system,   you   are   warned   by   the
d

isplay   of   this   flashing   warning   lamp
i

n   the   instrument   panel.
Have

the

system   checked   by   a   CITROËN
d

ealer

or

a   qualified   workshop.
In

the   event   of   an   impact   to   the
w

indscreen   at   the   sensor,   deactivate
t

he
  system   and   contact   a   CITROËN
d

ealer   or   a   qualified   workshop to   have
y

our   windscreen   replaced.
Never
  try   to   remove,   adjust   or   test   the
sen

sor.
Only
  a   CITROËN   dealer   or   a   qualified
w

orkshop   is   able   to   work   on   the   system.
Safety

116
C1_en_Chap06_securite_ed01-2016
Seat belt not fastened /
unfastened warning lamps
1. Front  seat   belts   not   fastened   /   unfastened  w
arning   lamp,   in   the   instrument   panel.
2.
 L

eft
h
and
r
ear
s
eat
b
elt
u
nfastened
w
arning
l

amp,   in   the   seat   belts   and   passenger's
f

ront   airbag   display   screen.
3.
 R

ight   hand   rear   seat   belt   unfastened
w

arning   lamp,   in   the   seat   belts   and
p

assenger's   front   airbag   display   screen.Rear seat belt warning lamp(s)
The warning lamp(s) 2 and/or 3 come on in the seat   belts   and   passenger's   front   airbag   warning
l

amp   display   screen   when   one   or   more   rear
p

assengers
 u
nfasten
 t
heir
 sea
t
 b
elt.
From
  about   12   mph   (20   km/h)   and   for   about
30
  seconds,   illumination   of   the   warning   lamp   is
a

ccompanied   by   an   audible   signal.
Beyond
  this   time,   if   the   seat   belt   is   still   not
f

astened,   the   tone   of   the   audible   signal
c

hanges   and   remains   active   for   about   a   further
9

0   seconds.
If

you

place

a

load

on

the

front

p

assenger

seat,

this

may

cause

the

w

arning

lamp

to

come

on.
Front seat belt(s) warning lamp
The warning lamp 1 comes on in the instrument p anel   if   the   front   seat   belt   is   not   fastened   or   is
u

nfastened.
From
  about   12   mph   (20   km/h)   and   for   about
30
  seconds,   illumination   of   the   warning   lamp   is
a

ccompanied   by   an   audible   signal.
Beyond
  this   time,   if   the   seat   belt   is   still   not
f

astened,   the   tone   of   the   audible   signal
c

hanges   and   remains   active   for   about   a   further
9

0   seconds.
Safety

119
C1_en_Chap06_securite_ed01-2016
Deactivating the passenger's
front airbag
Only the passenger's front airbag can be deactivated.
F

W
ith the ignition off ,
  insert   the   key   in   the
p

assenger   airbag   deactivation   switch.
F

T
urn it to the "OFF"
 p
osition.
F

R
emove   the   key   keeping   the   switch   in   the
n

ew   position.When
  the   ignition   is   on,   this   warning
l

amp   comes   in   the   seat   belt   and
p

assenger's   front   airbag   display
s

creen.   It   stays   on   while   the   airbag   is
d

eactivated. To
  assure   the   safety   of   your   child,
t

he   passenger's   front   airbag   must   be
d

eactivated   when   you   install   a   rear ward
f

acing   child   seat   on   the   front   passenger
sea

t.
Other wise,   the   child   would   risk   being
s

eriously   injured   or   killed   if   the   airbag
w

ere   deployed.
Reactivating the passenger's
front airbag
When you remove a rear ward facing child seat, w
ith the ignition off , turn the switch to the
"ON"


position   to   reactivate   the   airbag   and   so
a

ssure   the   safety   of   your   front   passenger   in   the
e

vent   of   an   impact.
When
  the   ignition   is   switched   on,   this
w

arning   lamp   comes   on   in   the   seat
b

elt   and   passenger's   front   airbag
d

isplay   screen.   It   stays   on   while   the
f

ront   airbag   is   activated.
Operating fault
Illumination of this warning lamp in the   instrument   panel   indicates   a   fault
w

ith   the   airbags.
Contact

a
  CITROËN   dealer   or   a   qualified
w

orkshop
  without   delay   to   have   the   system
c

hecked.

The   airbags   may   no   longer   be
d

eployed

in   the   event   of   a   serious   impact.
In

this

case,   do   not   install   a   child   seat   or   seat
a

n

adult

on   the   front   passenger   seat.
6
Safety
