Rear head restraints*
The rear head restraints can be removed and have   two   positions:
-

h
igh,   position   for   use.
-

l
ow,   storage   position. To
  raise   the   head   restraint,   pull   it   upwards.
To
  lower   it,   press   lug   A   then   the   head   restraint.
To
  remove   it:
-

t
ilt   the   seat   back   slightly,
-

m
ove   the   head   restraint   to   the   high
p

osition,
-

p
ress   lug   A   pulling   the   head   restraint
u

pwards   at   the   same   time.To
  refit   it:
-

t
ilt   the   seat   back   slightly,
-

e
ngage   the   rods   of   the   head   restraint   in   the
o

penings.
*
  Depending   on   version.
To
  put   the   head   restraint   in   the   low   position,
p

ress   lug   A.
3
Ease of use and comfort

50
C1_en_Chap03_ergonomie-confort_ed01-2016
Mirrors
Manual door mirrors
F Operate  the   lever   in   four   directions   to  a
djust   the   mirror.
Electric door mirrors
Adjustment
F Move control A   to   the   right   or   to   the   left   to  s
elect   the   corresponding   mirror.
F

M
ove control B   in   all   four   directions   to
adj

ust.
F

R
eturn control A   to   the   central   position.
The
  objects   observed   are,   in   reality,
c

loser   than   they   appear.
Take
  this   into   account   in   order   to
c

orrectly   judge   the   distance   of   vehicles
a

pproaching   from   behind.
Demisting - Defrosting
Use the heated rear window switch.
R
efer

to

the   "Rear   screen   demist   -   defrost"
s

ection.
Folding / Unfolding
When parking, the mirrors can be folded m anually.
The
  initial   adjustments   are   retained
w

hen
 u
nfolding.
Ease of use and comfort

51
C1_en_Chap03_ergonomie-confort_ed01-2016
Steering wheel adjustment
(with   power   steering)
F When stationary ,   hold   the   steering   wheel   then   lower t
he   lever   to   release   the   adjustment   mechanism.
F Adjust  the   steering   wheel   to   the   desired   height
and   then   raise   the   lever   to   lock   the   adjustment m

echanism.
For safety reasons, these operations
must   not   be   carried   out   while   driving.
Once
  these   adjustments   have   been   made,
 e

nsure   that   you   can   see   the   instrument
 p

anel   clearly   from   your   driving   position.
Manual rear view mirror
The rear view mirror has two positions:
-  d ay   (normal),
-

n
ight   (anti-dazzle).
To
  change   from   one   to   the   other,   push   or   pull
t

he   lever   on   the   lower   edge   of   the   mirror.
Correct driving position
Before taking to the road and to make the most of  t he  e rgonomics  o f  y our  d riving  p osition,  c arry
o

ut   these   adjustments   in   the   following   order:
-

b
ackrest   angle,
-

c
ushion   height,
-

l
ongitudinal   position   of   the   seat,
-

h
eight   of   the   steering   wheel,
-

t
he   interior   and   door   mirrors.
3
Ease of use and comfort

52
C1_en_Chap03_ergonomie-confort_ed01-2016

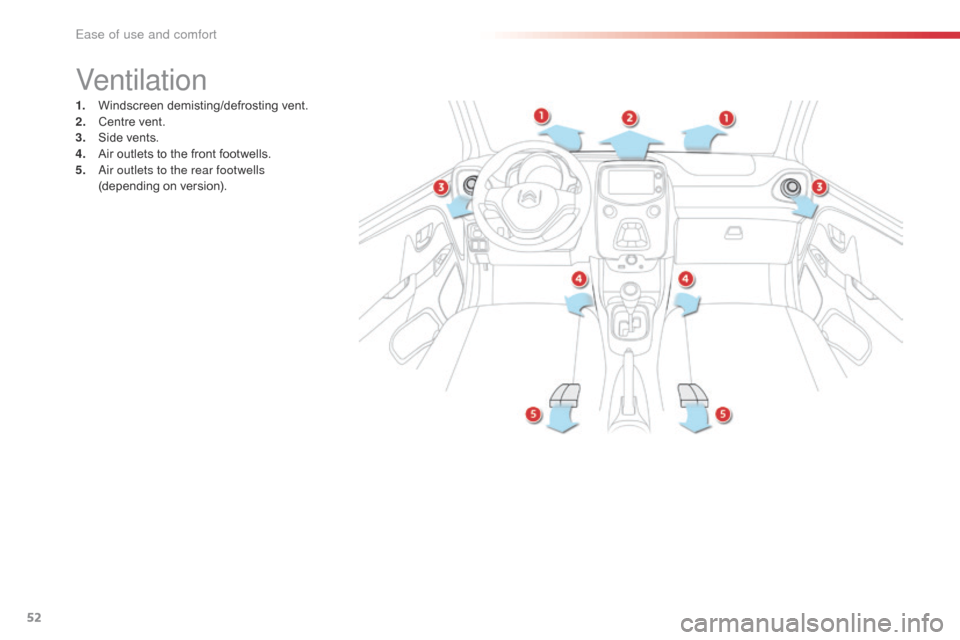

Ventilation
1. Windscreen demisting/defrosting v ent.
2. C entre   vent.
3.
 S

ide   vents.
4.
 A

ir   outlets   to   the   front   footwells.
5.
A

ir outlets to the rear footwells
(depending
 o

n
 v
ersion).
Ease of use and comfort

53
C1_en_Chap03_ergonomie-confort_ed01-2016
Recommendations for use
If the interior temperature remains very high after a prolonged period parked in the sun, first ventilate   the   passenger   compartment   for   a   few   minutes.
For
  an   even   air   distribution,   make   sure   that   you   do   not   block   the   outside   air   inlet   grille,   the
v

ents,   the   air   passages   and   the   air   outlets   to   the   footwells.
Ensure
  that   the   passenger   compartment   filter,   located   behind   the   glove   box   in   the   heater
u

nit,   is   in   good   condition.   Have   the   filter   elements   replaced   regularly.   If   you   drive   in   dusty
c

onditions,   change   them   twice   as   often.
Operate
  the   air   conditioning   system   for   5   to   10   minutes,   once   or   twice   a   month,   to   keep   it   in
p

er fect   working   order.
In
  order   to   ensure   that   your   air   conditioning   system   continues   to   operate   correctly,   you   are
a

dvised   to   have   it   checked   regularly.
If
  the   system   does   not   produce   cold   air,   do   not   use   it   and   contact   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
The
  air   conditioning   system   does   not   contain   chlorine   and   does   not   present   any   danger   to
t

he   ozone   layer.
The
  condensation   created   by   the   air   conditioning   results   in   a   flow   of   water   under   the   vehicle
w

hen   stationary   which   is   per fectly   normal.
3
Ease of use and comfort

54
C1_en_Chap03_ergonomie-confort_ed01-2016
Heating
The heating system only operates with the engine running.F
T
urn   the   control   from   blue
(

cold)   to   red   (hot)   to   adjust   the
t

emperature   to   your   wishes.
Temperature adjustment
Air flow adjustment
F Turn  the   knob   from   position   1 to
4   to   obtain   the   desired   flow   of
a

i r.
Avoid
  driving   for   too   long   without
v

entilation   (risk   of   misting   and
d

eterioration   of   air   quality).
Air distribution adjustment
Centre vent and side air vents.
C entre   vent,   side   vents   and   footwells.
Footwells.
Windscreen
  and   footwells.
Windscreen.
The
  air   distribution   can   be   varied   by
p

lacing   the   control   in   an   intermediate
p

osition.
Ease of use and comfort

55
C1_en_Chap03_ergonomie-confort_ed01-2016
Manual air conditioning
The air conditioning system only operates with the engine running.
F
T
urn   the   control   knob   from
b

lue   (cold)   to   red   (hot)   to
a

djust   the   temperature   to   your
r

equirements.
Temperature adjustment
Air flow adjustment
F Turn  the   control   knob   from  p
osition 1 to position 4 to obtain
a
  comfortable   air   flow.
If you put the air flow control in
position


0 (system   off),   the   temperature   is   no
l

onger

controlled.   However,   a   slight   flow   of   air
c

an

still

be

felt,   resulting   from   the   movement   of
t

he

vehicle.
Air distribution adjustment
Centre and side vents.
C entre   and   side   air   vents,   footwells.
Footwells.
Windscreen
  and   footwells.
Windscreen.
3
Ease of use and comfort

56
C1_en_Chap03_ergonomie-confort_ed01-2016
Air intake / Air recirculation
The recirculation of interior air insulates the
passenger  compartment   from   exterior   odours
a

nd   smoke.
Return
  to   exterior   air   intake   as   soon   as   possible
t

o   prevent   deterioration   of   the   air   quality   and
t

he   formation   of   mist.
Air conditioning On / Off
The air conditioning is designed to operate effectively in all seasons,
with
  the   windows   closed.
It

enables
  you   to:
-

l

ower
  the   temperature,   in   summer,
-

i

ncrease   the   effectiveness   of   the   demisting
i

n

winter,   above   3°C.
Switching on
F Press  this   button,   the   associated   indicator  l
amp   comes   on.
The
  air   conditioning   does   not   operate
w

hen   the   air   flow   adjustment   is   set   to
o

f f.
Switching off
F Press   the   button   again,   the   associated  i
ndicator   lamp   switches   off.
F

M

ove

the

manual

control

to

the

l

eft for the "Recirculation of
interior

air"

position.
F

M

ove

the

manual

control

to

the

r

ight

to

return

to

the

"Exterior

air

i

ntake"

position.
Ease of use and comfort

57
C1_en_Chap03_ergonomie-confort_ed01-2016
Manual override
It is possible to adjust one or more functions manually   while   leaving   the   other   functions   in
a

utomatic   mode.
The "AUTO"


symbol   switches   off.
To
  return   to   automatic   mode,   press   the   "AUTO"
button.
Switching
  to   manual   mode   may   not   be   suitable
(

temperature,   humidity,   odour,   condensation)
a

nd   does   not   provide   optimum   comfort.
Automatic air conditioning
F Press the "AUTO" button.
The "AUTO"
symbol   comes   on.
The

air

conditioning

system

only

operates

with

the

engine

running.
By

pressing   the   "AUTO"

button   again,   you   can
c

hoose

from   one   of   the   following   settings   in
t

urn:Automatic programme
Allows optimum operation of the s ystem.
Offers
  temperature   control   while
r

estricting   air   flow.
Dynamic
  air   distribution   mainly
t

owards   the   side   air   vents.
We

recommend

that

you

use

this

mode.

I

t

provides

optimised

automatic

control

of

a

ll

of

the

following

functions:

passenger

c

ompartment

temperature,

air

flow,

air

d

istribution

and

air

intake,

in

accordance

with
 t
he

comfort

value

that

you

have

chosen.
This

system

is

designed

to

operate

effectively

i

n

all

seasons,

with

the

windows

and

fabric

roof

c

losed.
For

your

comfort,

when

the

engine

is

switched

o

ff,

the

settings

are

retained

until

the

engine

is

s

witched

on

again.
To

prevent

too

great

a

distribution

of

cold

air

w

hen

the

engine

is

cold,

the

air

flow

will

only

r

each

its

optimum

level

gradually.
3
Ease of use and comfort

58
C1_en_Chap03_ergonomie-confort_ed01-2016
For maximum cooling or heating of the cabin,   it   is   possible   to   go   beyond   the
m

inimum   14   or   maximum   28   value.
F

P
ress   the   temperature   adjustment
b

utton   down   or   up   until   "LO" or
"HI"


is   displayed.
A

setting   around   21

gives   optimum   comfort.
H

owever,   depending   on   your   requirements,
a s

etting   between   18   and   24   is   normal.
On

entering   the   vehicle,   if   the   interior   is   very
c

old

or   hot,   there   is   no   need   to   change   the
v

alue

displayed   in   order   to   reach   the   required
l

evel

of   comfort.   The   system   corrects   the
t

emperature   difference   automatically   and   as
q

uickly   as   possible.
Temperature adjustment
F Press
  this   button   downward   to  r
educe   the   value   and   upward   to
inc

rease
 it
.
The

value
  indicated   in   the   screen   corresponds
t

o

a

level

of   comfort   and   not   to   a   temperature   in
d

egrees

Celsius   or   Fahrenheit.
Air flow adjustment
F Press this button to increase air
f low.
The

air

flow   symbol,   the   fan,   fills   progressively.
F

P
ress   this   button   to   decrease   air
f

low.
Air distribution adjustment
- the   centre   and   side   air   vents,
-  t he   centre   vent,   side   air   vents   and
f

ootwells,
-

t
he   footwells,
-

t
he   windscreen   and   footwells,
-

t
he   centre   vent,   side   air   vents   and
w

indscreen,
-

t
he   windscreen.F

P
ress   this   button   repeatedly   to
d

irect   the   air   to:
Air intake / Air recirculation
Avoid prolonged recirculation of interior a
ir   (risk   of   condensation   or   deterioration
o

f   the   air   quality).
F

P
ressing   this   buttons   isolates   the
p

assenger   compartment   from   the
o

utside   air.

T
he   air   recirculation   symbol   is
d

isplayed.
Air

recirculation   enables   the   passenger
 c

ompartment   to   be   isolated   from   exterior   odours
 a

nd

smoke.
Press

this   button   again   or   press   the   "AUTO"

button
  to   resume   automatic   management   of   the
 i

ntake

of   air.   The   air   recirculation   symbol   goes   off.
Ease of use and comfort
