Screen Citroen C4 CACTUS 2016 1.G Repair Manual

159

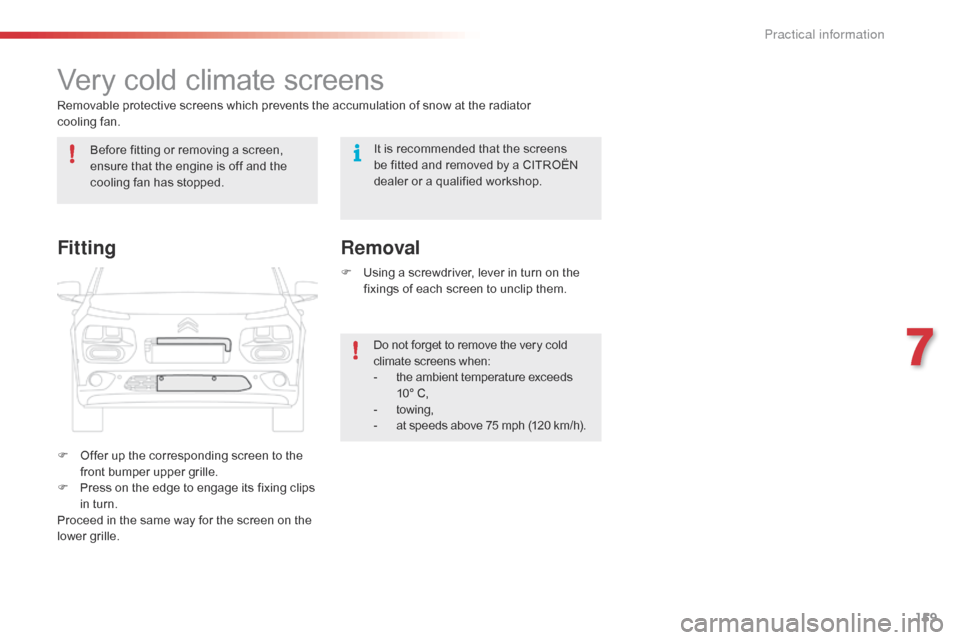

Very cold climate screens
Removable protective screens which prevents the accumulation of snow at the radiator
c ooling   fan.
F

O
ffer   up   the   corresponding   screen   to   the
f

ront   bumper   upper   grille.
F

P
ress   on   the   edge   to   engage   its   fixing   clips
i

n   turn.
Proceed
  in   the   same   way   for   the   screen   on   the
l

ower   grille. F

U
sing   a   screwdriver,   lever   in   turn   on   the
f

ixings   of   each   screen   to   unclip   them.
Do
  not   forget   to   remove   the   very   cold
 c

limate   screens   when:
-
 t

he   ambient   temperature   exceeds
 1

0°   C,
-
 tow

ing,
-
 a

t   speeds   above   75   mph   (120   km/h).
Removal
Fitting
Before fitting or removing a screen, e
nsure   that   the   engine   is   off   and   the
c

ooling   fan   has   stopped. It
  is   recommended   that   the   screens  b
e   fitted   and   removed   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
7
Practical information

161
Load reduction mode
System which manages the use of certain functions   according   to   the   level   of   charge
r

emaining   in   the   battery.
When
  the   vehicle   is   being   driven,   the   load
r

eduction   function   temporarily   deactivates
c

ertain   functions,   such   as   the   air   conditioning,
t

he   heated   rear   screen...
The
  deactivated   functions   are   reactivated
a

utomatically   as   soon   as   conditions   permit.System
  which   manages   the   duration   of   use   of  c
ertain functions to conserve a sufficient level
of
  charge   in   the   battery.
After
  the   engine   has   stopped,   you   can
s

till   use   functions   such   as   the   audio   and
t

elematics   system, windscreen   wipers,   dipped
b

eam   headlamps, courtesy   lamps,   etc.   for
a

  maximum   combined   duration   of   about
f

orty minutes.
Energy economy mode
Switching to economy mode
A message then appears in the instrument p
anel   screen   indicating   that   the   vehicle   has
s

witched   to   economy   mode   and   the   active
f

unctions   are   put   on   standby.
If
  a   telephone   call   is   being   made   at   this   time,   it
w

ill   be   maintained   for   around   10   minutes   with
t

he   Bluetooth   hands-free   system   of   your   audio
s

ystem.
Exiting economy mode
These functions are reactivated automatically n ext   time   the   vehicle   is   driven.
In
  order   to   restore   the   use   of   these   functions
i

mmediately,   start   the   engine   and   let   it   run:
-

f
or   less   than   ten   minutes,   to   use   the
e

quipment   for   approximately   five   minutes,
-

f
or   more   than   ten   minutes,   to   use   the
e

quipment   for   up   to   approximately
t

hirty minutes.
Let
  the   engine   run   for   the   duration   specified   to
e

nsure   that   the   battery   charge   is   sufficient.
Do
  not   repeatedly   and   continuously   restart   the
e

ngine   in   order   to   charge   the   battery.
A
  flat   battery   prevents   the   engine   from
s

tarting.
For
  more   information   on   the   battery,
r

efer   to   the   corresponding   section.
7
Practical information

162
Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
T hese   accessories   and   parts   are   all   suitable   for   your   vehicle   and   benefit   from   CITROËN's   recommendation   and   warranty.
"Comfort"
Door deflectors, side sun blinds, insulated module,   coat   hanger   fixed   to   head   restraint,
m

obile   reading   lamp,   front   and   rear   parking
s

ensors,   portable   ashtray,   scented   air
f

reshener,   blind   for   sunroof...
"Transport systems"
Boot carpet, boot liner, boot net, boot spacers,
transverse  roof   bars,   ski   carrier,   roof   box,
t

owbar,
t
owbar
w
iring
h
arnesses,
b
icycle
c
arrier
f

or   mounting   on   the   towbar   and   on   the   roof
b

ars,   towbars   with   fixed   and   quickly   detachable
t

owball...
"Styling"
Aluminium foot rest, alloy wheels, front spoiler, r ear   diffuser,   exterior   expressive   stickers...
"Security and safety":
Anti-intrusion alarm, vehicle tracking system, first   aid   kit,   fire   extinguisher,   warning   triangle,
h

igh   visibility   vest,   wheel   security   bolts,   snow
c

hains,   non-slip   covers,   front   foglamp   kit,   dog
g

uard,   pet   seat   belt,   seat   belt   cutter/glass
h

ammer...
"Protection"
Mats*, seat covers, mud flaps, vehicle cover...
I
f

a

towbar

and

wiring

harness

are
 f
itted

outside

the

CITROËN

dealer
 n
etwork,

the

installation

must

be

done

s

trictly

in

line

with

the

manufacturer's

r

ecommendations. *

T
o   avoid   any   risk   of   jamming   the   pedals:
-

e
nsure   that   mats   are   correctly   positioned
a

nd   secured,
-

n
ever   fit   one   mat   on   top   of   another.
"Multimedia"
Bluetooth hands-free kits, portable satellite navigation   system,   driving   assistance   systems,
s

martphone   carriers,   DVD   player,   CD   player,
2

30   V   socket,   semi-integral   satellite   navigation
s

ystem,   rear   multimedia   carrier,   navigation
m

apping   updates,   aftermarket   digital   radio...
By
  visiting   a   CITROËN   dealer   you   can   also
o

btain   cleaning   and   maintenance   products
(

interior   and   exterior)   -   including   ecological
p

roducts   in   the   "TECHNATURE"   range,
p

roducts   for   topping   up   (screenwash...),   paint
t

ouch-up   pens   and   aerosols   for   the   exact
c

olour   of   your   vehicle,   refills   (sealant   cartridge
f

or   the   temporary   puncture   repair   kit...)...
Practical information

164

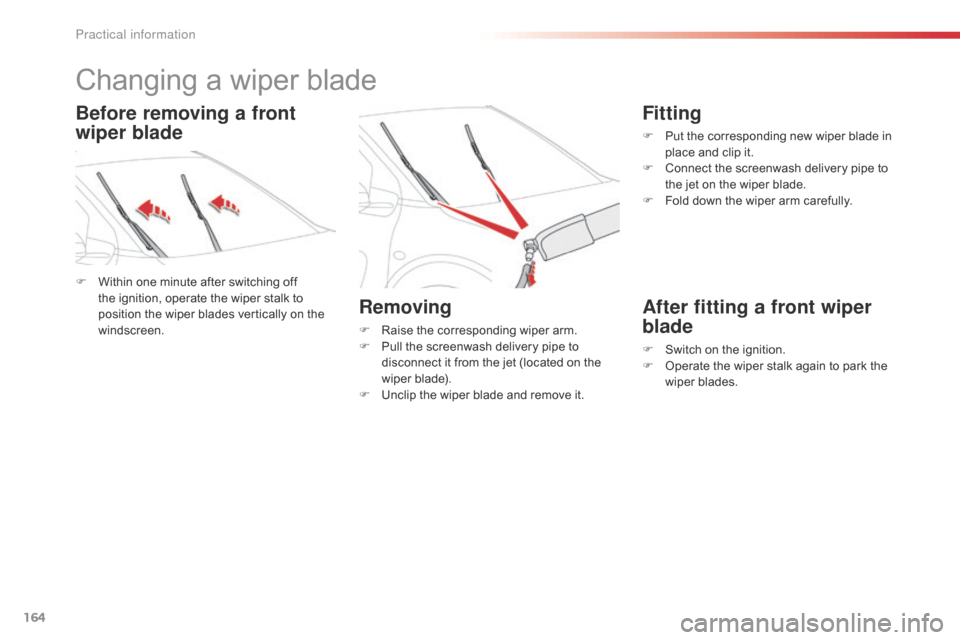

Changing a wiper blade
F Within  one   minute   after   switching   off  t
he   ignition,   operate   the   wiper   stalk   to
p

osition   the   wiper   blades   vertically   on   the
w

indscreen.
Removing
F Raise   the   corresponding   wiper   arm.
F  P ull   the   screenwash   delivery   pipe   to
d

isconnect   it   from   the   jet   (located   on   the
w

iper   blade).
F

U
nclip   the   wiper   blade   and   remove   it.
Fitting
F Put  the   corresponding   new   wiper   blade   in  p
lace   and   clip   it.
F

C
onnect   the   screenwash   delivery   pipe   to
t

he   jet   on   the   wiper   blade.
F

F
old   down   the   wiper   arm   carefully.
After fitting a front wiper
blade
F Switch  on   the   ignition.
F  O perate   the   wiper   stalk   again   to   park   the
w

iper   blades.
Before removing a front
wiper blade
Practical information

169
1. Screenwash  fluid   reservoir.
2. C oolant   header   tank.
3.
 B

rake   fluid   reservoir.
4.
 B

attery.
5.
 F

usebox.
6.
 A

ir   filter.
7.
 E

ngine   oil   dipstick.
8.
 E

ngine   oil   filler   cap.
9.
 R

emote   earth   point.

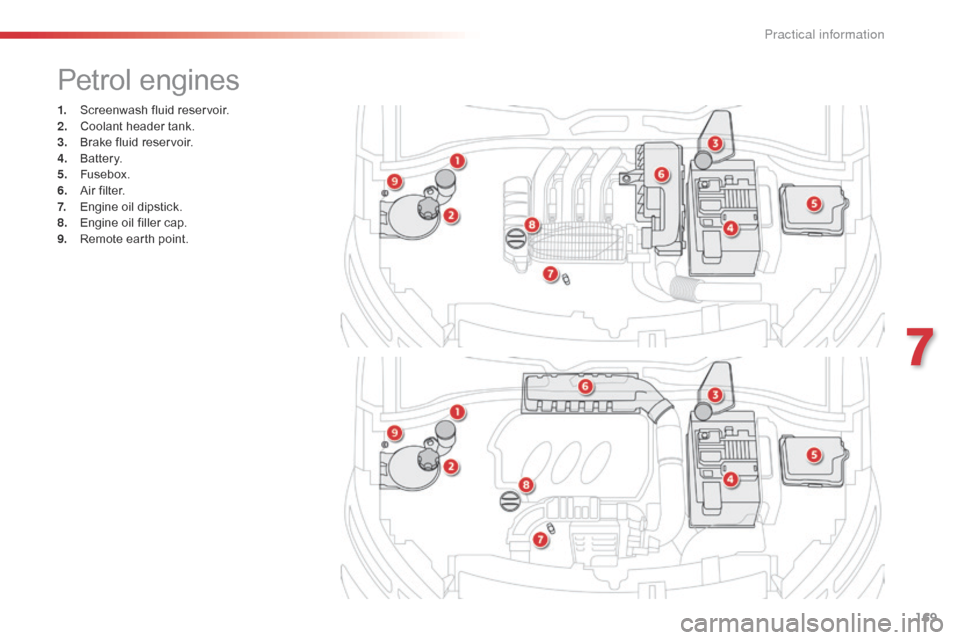

Petrol engines
7
Practical information

170
1. Screenwash  fluid   reservoir.
2. C oolant   header   tank.
3.
 B

rake   fluid   reservoir.
4.
 B

attery.
5.
 F

usebox.
6.
 A

ir   filter.
7.
 E

ngine   oil   dipstick.
8.
 E

ngine   oil   filler   cap.
9.
 P

riming
 pu
mp*.
10.
 R

emote   earth   point.

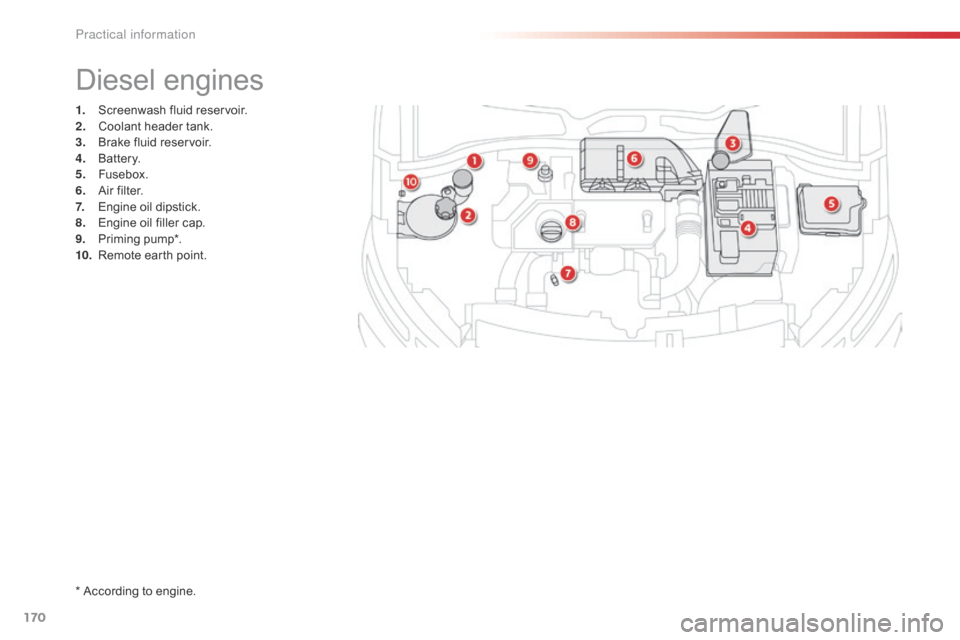

Diesel engines
* According to engine.
Practical information

173

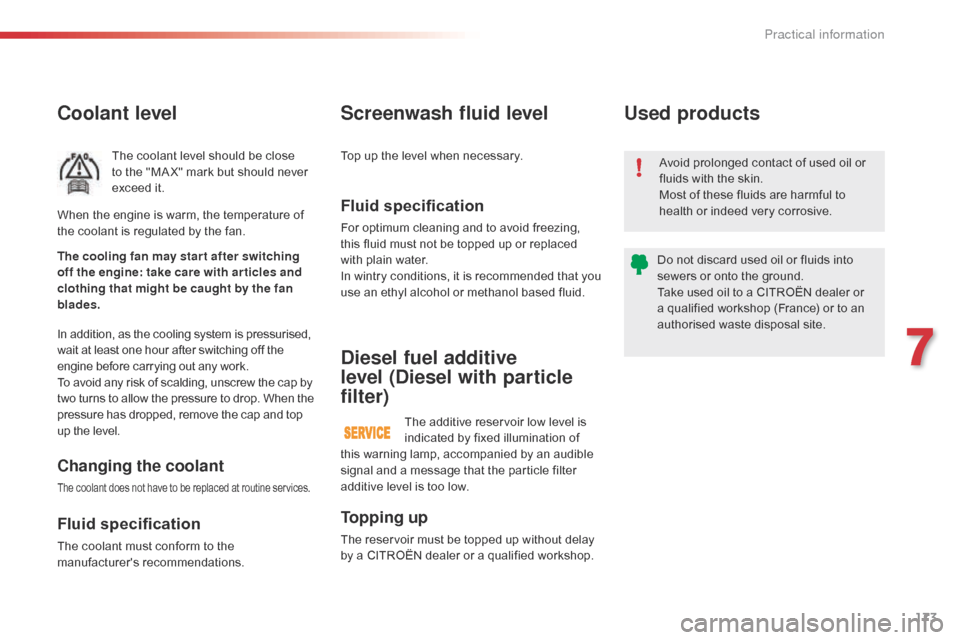

Coolant level
The coolant level should be close to   the   "MA X"   mark   but   should   never
e

xceed   it.
In

addition,   as   the   cooling   system   is   pressurised,
 w

ait

at

least   one   hour   after   switching   off   the
 e

ngine

before   carrying   out   any   work.
To

avoid

any   risk   of   scalding,   unscrew   the   cap   by
 t

wo

turns

to   allow   the   pressure   to   drop.   When   the
 p

ressure

has   dropped,   remove   the   cap   and   top
 u

p

the

level.
Changing the coolant
The coolant does not have to be replaced at routine services.
The cooling fan may star t after switching
off the engine: take care with ar ticles and
clothing that might be caught by the fan
blades. When   the   engine   is   warm,   the   temperature   of
t

he   coolant   is   regulated   by   the   fan.
Fluid specification
The coolant must conform to the ma
nufacturer's r ecommendations.
Fluid specification
For optimum cleaning and to avoid freezing, this   fluid   must   not   be   topped   up   or   replaced
w

ith   plain   water.
In

w
intry
c
onditions,
i
t
i
s
r
ecommended
t
hat
y
ou
u

se   an   ethyl   alcohol   or   methanol   based   fluid.
Screenwash fluid level
Top up the level when necessary.
To p p i n g u p
The reservoir must be topped up without delay by   a   CITROËN   dealer   or   a   qualified   workshop.
Diesel fuel additive
level (Diesel with particle
filter)
The additive reservoir low level is indicated   by   fixed   illumination   of
A
void   prolonged   contact   of   used   oil   or
f

luids   with   the   skin.
Most   of   these   fluids   are   harmful   to
h

ealth   or   indeed   very   corrosive.
Do   not   discard   used   oil   or   fluids   into
s

ewers   or   onto   the   ground.
Take   used   oil   to   a   CITROËN   dealer   or
a

  qualified   workshop   (France)   or   to   an
a

uthorised   waste   disposal   site.
Used products
this warning lamp, accompanied by an audible s
ignal   and   a   message   that   the   particle   filter
a

dditive   level   is   too   low.
7
Practical information

208
Dashboard fuses
The two fuseboxes are placed in the lower dashboard,   at   the   glove   box. Fuse
N° Rating
(A) Functions
F01 10Brake   pedal   (switch   2),   Stop   &   Start.
F02 5Headlamp   beam   height   adjuster,   additional   heater   (Diesel),
p

arking   sensors,   diagnostic   socket,   door   mirrors   (electric
a

djustment),   Grip   Control.
F03 10Diesel   additive   pump,   electric   power   steering,   clutch   pedal  (
sw i tc h).
F04 5Rain
  and   sunshine   sensor.
F06 10Brake
  pedal   (switch   1),   diagnostic   socket.
F08 5Top
  of   steering   column   contacts   with   steering   mounted   controls.
F10 15Emergency
  call   /   Assistance   call.
F12 5Stop
  &   Start,   ABS,   ESC.
F13 5Parking
  sensors,   reversing   camera
F14 10Electronic
  gearbox,   switch   panel   (below   the   touch   screen
t

ablet),   air   conditioning,   touch   screen   tablet.
F16 1512
  Volt   socket.
F18 20Radio.
Access to the fuses
F Unclip  the   cover   by   pulling   at   top   left,   then  r
ight.
Left hand fusebox
In the event of a breakdown

209

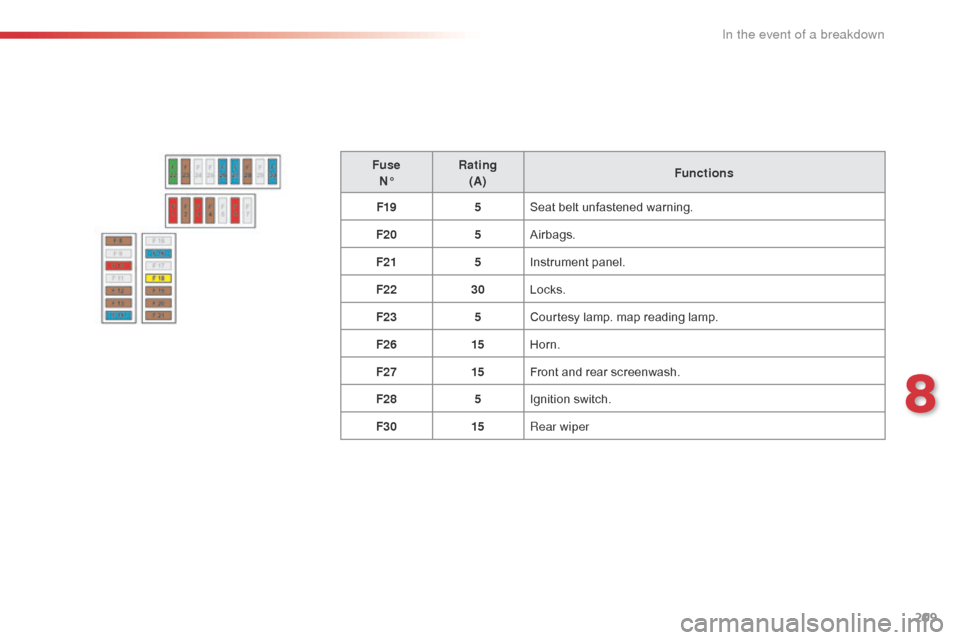

FuseN° Rating
(A) Functions
F19 5Seat
  belt   unfastened   warning.
F20 5Airbags.
F21 5Instrument
  panel.
F22 30Locks.
F23 5Courtesy
  lamp.   map   reading   lamp.
F26 15Horn.
F27 15Front
  and   rear   screenwash.
F28 5Ignition
 s

witch.
F30 15Rear wiper
8
In the event of a breakdown

210
Right hand fuse box
FuseN° Rating
(A) Functions
F30 10Heated
  mirrors.
F31 25Heated
  rear   screen.
F34 30Front
  electric   windows.
F38 20Trailer
  inter face   unit.
F40 25Trailer
  inter face   unit.
In the event of a breakdown
