Fitting a steel or "space-
saver" spare wheel
If
your

vehicle

is

fitted

with

al
-
loy

wheels,

when

tightening

the

bolts


on

fitting

it

is

normal

to

notice


that

the

washers

do

not

come


into

contact

with

the

steel

or


"space-saver"

spare

wheel.

The


wheel

is

secured

by

the

conical

  contact   of   each   bolt.List of operations
F
 Remove
 the
 bolts
 and
 store
 them
 in
 a

clean

place.
F

Remove


the

wheel. F
 Put   the   wheel   in   place   on   the   hub.
F  Screw  in  the  bolts  by  hand  to  the
stop.
F


Pre-tighten

the

security

bolt

using

the wheelbrace

1
fitted

with

the

se
-
curity
  socket   4.
F

Pre-tighten

the

other

bolts

using

the

wheelbrace

1   only.
Fitting a wheel
Take care to  position  the  jack  only at
 one  of  the  jacking  points  A
or B
under

the

vehicle,

ensuring

that the


head

of

the

jack

is

centred under


the

contact

surface

of

the vehicle.


Otherwise,

there

is

a

risk of


damage

to

the

vehicle

and/or the

  jack   dropping   -   Risk   of   injury!
PRACTICAL INFORMATION

1111
200
C4-2_en_Chap11_info-pratique_ed01-2014

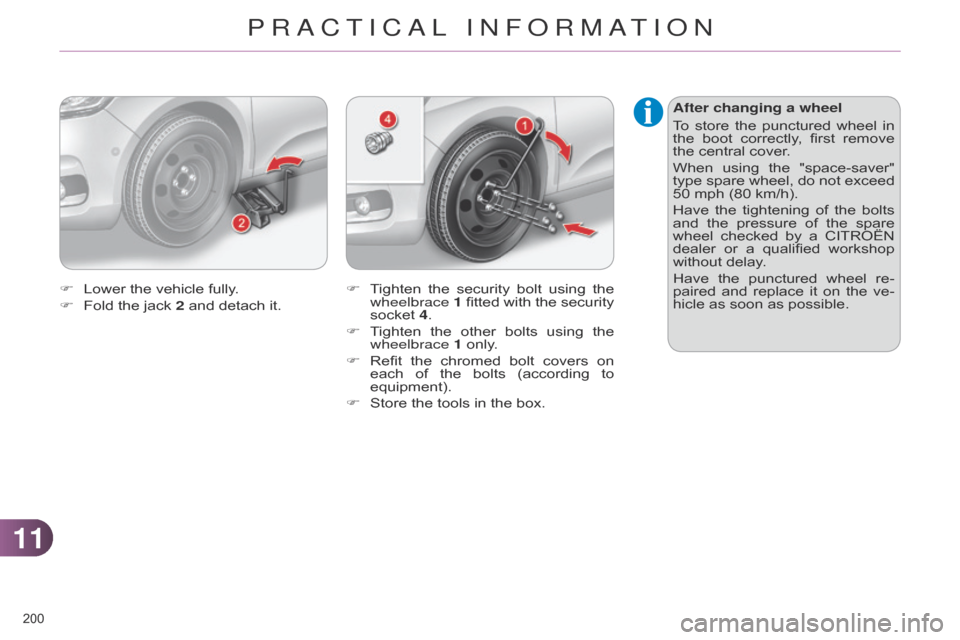

After changing a wheel
To
store

the

punctured

wheel

in

the


boot

correctly
,
first

remove

the

  central   cover.
When

using

the

"space-saver"

type


spare

wheel,

do

not

exceed

50

  mph   (80   km/h).
Have

the

tightening

of

the

bolts

and


the

pressure

of

the

spare

wheel


checked

by

a

CITROËN

dealer


or

a

qualified

workshop

without

  delay.
Have

the

punctured

wheel

re
-
paired

and

replace

it

on

the

ve
-
hicle
  as   soon   as   possible.
F

T

ighten

the


security


bolt


using


the


wheelbrace 1


fitted


with


the


security


socket


4.
F

T

ighten

the


other


bolts


using


the


wheelbrace

1

only.
F

Refit


the


chromed


bolt


covers


on


each


of


the


bolts


(according


to


equipment).
F


Store


the

tools

in

the

box.
F

Lower


the

vehicle

fully.
F

Fold


the

jack

2

and

detach

it.
PRACTICAL INFORMATION

1111
201
C4-2_en_Chap11_info-pratique_ed01-2014

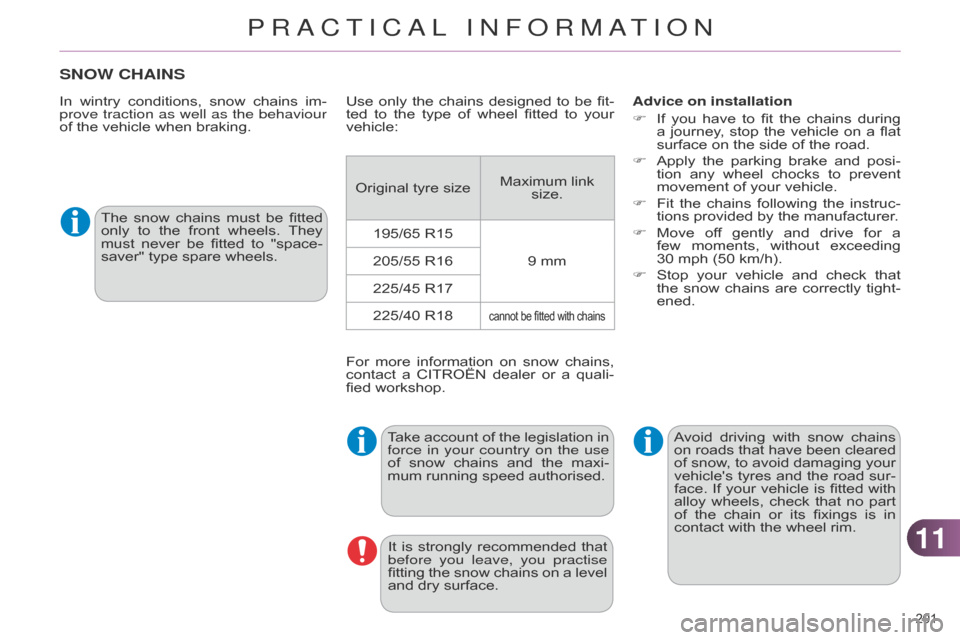

SNOW CHAINS
In wintry conditions,  snow  chains  im -
prove traction as well as the behaviour
of
  the   vehicle   when   braking. Advice on installation
F

If

you

have

to

fit

the

chains

during

a


journey
,
stop

the

vehicle

on

a

flat

surface

  on   the   side   of   the   road.
F

Apply

the

parking

brake

and

posi
-
tion

any

wheel

chocks

to

prevent

movement

  of   your   vehicle.
F

Fit

the

chains

following

the

instruc
-
tions
  provided   by   the   manufacturer.
F

Move

of
f
gently

and

drive

for

a

few


moments,

without

exceeding

30 mph

  (50   km/h).
F

Stop

your

vehicle

and

check

that

the


snow

chains

are

correctly

tight
-
ened.
The

snow

chains

must

be

fitted

only


to

the

front

wheels.

They

must


never

be

fitted

to

"space-
saver"

  type   spare   wheels.
Take

account

of

the

legislation

in

force in your country on the use
of


snow

chains

and

the

maxi
-
mum
  running   speed   authorised.Avoid

driving

with

snow

chains

on


roads

that

have

been

cleared

of


snow
,
to

avoid

damaging

your

vehicle's


tyres

and

the

road

sur
-
face.

If

your

vehicle

is

fitted

with

alloy


wheels,

check

that

no

part

of


the

chain

or

its

fixings

is

in

contact

  with   the   wheel   rim.
Use
 only  the  chains  designed  to  be  fit -
ted  to  the  type  of  wheel  fitted  to  your
vehicle:
Original

  tyre   sizeMaximum
  link
size.
195/65

  R159
  mm
205/55
  R16
225/45
  R17
225/40
  R18
cannot be fitted with chains
For more information  on  snow  chains,  contact
 a  CITROËN  dealer  or  a  quali -
fied
  workshop.
It

is

strongly

recommended

that

before you leave, you practise
fitting


the

snow

chains

on

a

level

and

  dry   surface.
PRACTICAL INFORMATION

1111
202
C4-2_en_Chap11_info-pratique_ed01-2014
CHANGING A BULB
The headlamps are  fitted  with  polycarbonate
 glass  with  a  pro -
tective
  coating:
F

do not clean them using a
dry or abrasive cloth,

nor
with a detergent or solvent
product,
F

use

a

sponge

and

soapy

wa
-
ter
  or   a   pH   neutral   product,
F

when

using

a

high

pressure

washer


on

persistent

marks,

do


not

keep

the

lance

direct
-
ed

towards

the

lamps

or

their

edges


for

too

long,

so

as

not

to


damage

their

protective

coating

  and   seals.
Changing

a

bulb

should

only

be

done


after

the

headlamp

has

been


switched

of
f
for

several

minutes

  (risk   of   serious   burns).
F

Do

not

touch

the

bulb

directly

with


your

fingers,

use

a

lint-
free

  cloth.
It

is

imperative

to

use

only

anti-
ultraviolet


(UV)

type

bulbs

to

avoid

  damaging   the   headlamp.
Always

replace

a

failed

bulb

with

a


new

bulb

with

the

same

type

and

  specification. Risk of electrocution
Xenon

bulbs

(D1S-35W)

must

be replaced


by

a

CITROËN

dealer or

  a   qualified   workshop.
Front lamps
1. Direction indicators (H21 clear).
2.
Dipped beam headlamps

(H7 - 55W).
3.

Main beam headlamps
(H1 - 55W).
4.


Daytime running lamps/
sidelamps (P21/5W XL).
5.


Foglamps (H1
1 - 55W).
1.
Directional dipped/main beam
headlamps (D1S-35W).
2.

Direction indicators
(PY21W


amber).
3.

Daytime running lamps/
sidelamps (P21/5W XL).
4.


Foglamps (H1

1-55W). Model with halogen headlamps
Model with xenon and directional
headlamps
Bulbs with  lugs,  type  H1,  H7...  take
 care  to  position  them  cor -
rectly
  to   ensure   the   best   lighting.
PRACTICAL INFORMATION

1111
203
C4-2_en_Chap11_info-pratique_ed01-2014
Amber coloured bulbs,  such  as  the
 direction  indicators,  must  be
replaced


with

bulbs

of

identical

specifications

  and   colour.
When

refitting,

close

the

protec
-
tive cover carefully to preserve
the
  sealing   of   the   headlamp.
Changing direction indicator bulbs
Model with halogen headlamps
Rapid

flashing


of


the


direction


indicator


warning


lamp


(right


or


left)


indicates


the


failure


of


a


bulb


on

that

side.
Access to bulbs
F

Remove


the


air


deflector


by


unclip

-
ping

each


of


its


three


attachment


points.
F


Unclip


the


bonnet


release


cable


at


its


two

fixings.
F
 Move

the

cable

down.
After
 changing
 the
 failed
 bulb,
 remember to


put


everything


back


in


place


(cable


and air


deflector).
Depending

on


the


engine


and


only


on


the


left


hand


side,


you


must


first


carry


out


the


following


operations


for


access


to


the

protective

covers

on

the

bulbs.
F

T

urn

the


bulb


holder


a


quarter


of


a


turn


and

extract

it.
F

Pull


out

the

bulb

and

change

it.
To

reassemble,


carry


out


these


opera

-
tions

in

reverse

order. Model with Xenon headlamps
F

Remove

the

protective

cover

by

pullin

g   on   its   tongue.
F

Disconnect
  the   electrical   connector.
F

Separate

the

springs

to

release

the

bulb.
F


Pull
  the   bulb   out   and   replace   it.
To

reassemble,

carry

out

these

opera
-
tions

in   reverse   order.
PRACTICAL INFORMATION

1111
204
C4-2_en_Chap11_info-pratique_ed01-2014
Changing dipped beam headlamp
bulbs (only on models with halogen
headlamps)Changing daytime running lamp/
sidelamp bulbs
F

Remove

the

protective

cover

by

pullin

g   on   the   tab.
F

Disconnect
  the   bulb   connector.
F

T
urn
the

bulb

holder

a

quarter

of

a

turn

  and   extract   it.
F

Pull
  the   bulb   and   change   it.
To

refit,

carry

out

these

operations

in

reverse

  order.
F

Remove

the

protective

cover

by

pullin

g   on   the   tab.
F

Disconnect
  the   bulb   connector.
F

Spread

the

springs

to

release

the

bulb.
F


Extract
  the   bulb   and   change   it.
To

reassemble,

carry

out

these

operations in

  reverse   order. Changing main beam headlamp
bulbs (only on models with halogen
headlamps)
F

Remove

the

protective

cover

by

pullin

g   on   the   tab.
F

Disconnect
  the   bulb   connector.
F

Squeeze

the

springs

to

release

the

bulb.
F


Pull
  out   the   bulb   and   replace   it.
To

reassemble,

carry

out

these

operations in

  reverse   order.
PRACTICAL INFORMATION

1111
205
C4-2_en_Chap11_info-pratique_ed01-2014
F Introduce a  flat  screwdriver  in  the  hole
  in   the   finisher.
F

Pull

and

lever

to

unclip

the

bumper

finisher


(the

parking

sensor

stays

with

  the   finisher).
F

Remove

the

two

module

fixing

screws and

  remove   it   from   its   housing.
F

Disconnect
  the   bulb   holder   connector.
F

T
urn
the

bulb

holder

a

quarter

of

a

turn

  and   extract   it.
F

Pull
  the   bulb   and   change   it.
To

refit,

carry

out

these

operations

in

reverse

  order.
To

replace

these

bulbs

you

may

also contact


a

CITROËN

dealer

or

a

qualified workshop. Changing foglamp bulbs
Changing the side spotlamps
For

 the
 replacement
 of
 this
 type
 of
 LED
 lamp,
 contact
 a
 CITROËN
 dealer
 or
 a

qualified


workshop.
Changing integrated direction
indicator side repeaters
F
 Insert
 a
 screwdriver
 towards
 the
 centre of the repeater between the
repeater

and

the

base

of

the

mirror.
F

T

ilt

the


screwdriver


to


extract


the


re

-
peater

and

remove

it.
F

Disconnect


the

repeater

connector.
To

reassemble,


carry


out


these


operations in


reverse

order.
Contact a  CITROËN  dealer  or  a  qualified workshop
  to   obtain   replacement   repeaters.
PRACTICAL INFORMATION

1111
206
C4-2_en_Chap11_info-pratique_ed01-2014

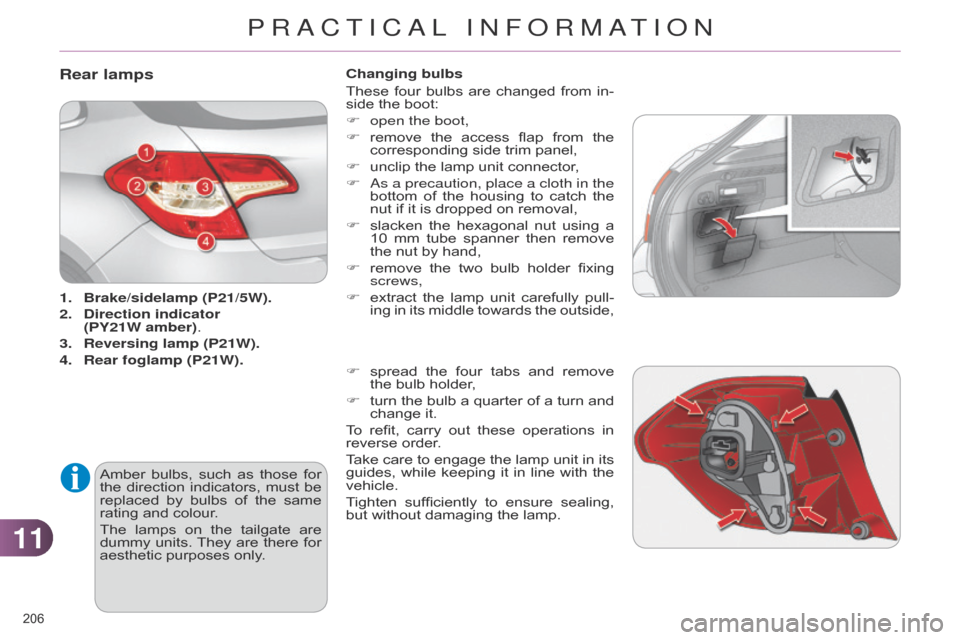

Rear lamps
1. Brake/sidelamp (P21/5W).
2.
Direction
indicator
(PY21W amber).
3.

Reversing lamp (P21W).
4.


Rear
foglamp (P21W).
Amber

bulbs,

such

as

those

for

the


direction

indicators,

must

be

replaced


by

bulbs

of

the

same

rating

  and   colour.
The

lamps

on

the

tailgate

are

dummy


units.

They

are

there

for

aesthetic

  purposes   only.Changing bulbs
These

four

bulbs

are

changed

from

in
-
side   the   boot:
F
open the boot,
F

remove

the

access

flap

from

the

corresponding

  side   trim   panel,
F
unclip
  the   lamp   unit   connector,
F a s a precaution, place a cloth in the
bottom
of

the

housing

to

catch

the

nut

  if   it   is   dropped   on   removal,
F
slacken

the

hexagonal

nut

using

a

10


mm

tube

spanner

then

remove

the

  nut   by   hand,
F
remove

the

two

bulb

holder

fixing

screws,
F
 extract  the  lamp  unit  carefully  pull -
ing  in  its  middle  towards  the  outside,
F

spread

the

four

tabs

and

remove

the

  bulb   holder,
F

turn

the

bulb

a

quarter

of

a

turn

and

change

  it.
To

refit,

carry

out

these

operations

in

reverse

  order.
Take

care

to

engage

the

lamp

unit

in

its

guides,


while

keeping

it

in

line

with

the

vehicle.
T

ighten
sufficiently

to

ensure

sealing,

but

  without   damaging   the   lamp.
PRACTICAL INFORMATION

1111
207
C4-2_en_Chap11_info-pratique_ed01-2014

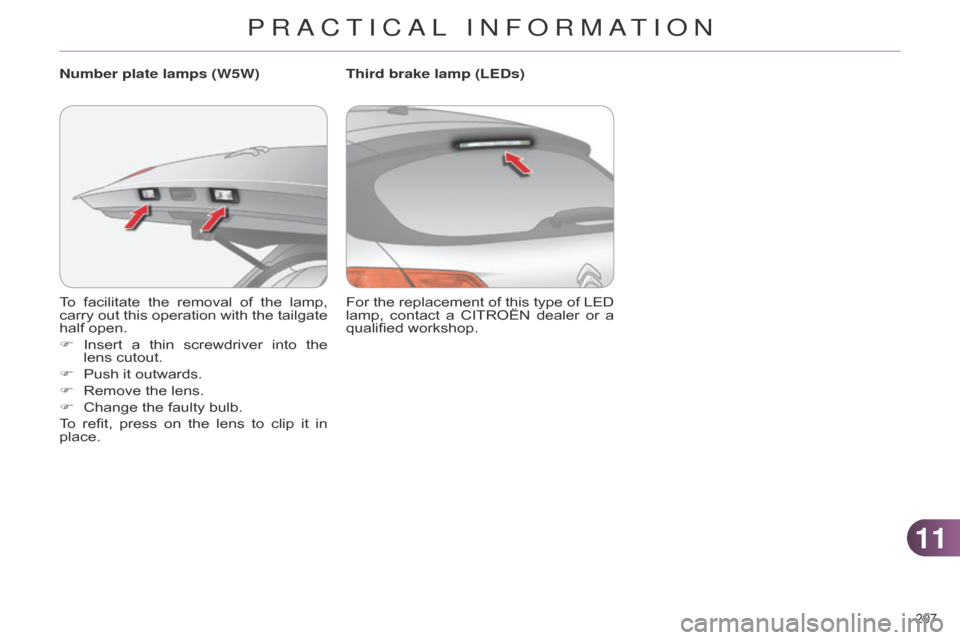

To facilitate the  removal  of  the  lamp,  carry
 out  this  operation  with  the  tailgate
half

  open.
F

Insert

a

thin

screwdriver

into

the

lens

  cutout.
F

Push
  it   outwards.
F

Remove
  the   lens.
F

Change
  the   faulty   bulb.
To

refit,

press

on

the

lens

to

clip

it

in

place. Number plate lamps (W5W)
For
 the  replacement  of  this  type  of  LED  lamp,
 contact  a  CITROËN  dealer  or  a
qualified

  workshop.
Third brake lamp (LEDs)
PRACTICAL INFORMATION

1111
208
C4-2_en_Chap11_info-pratique_ed01-2014
CHANGING A FUSE
Access to the tools
The extraction tweezer  is  attached  to
 the  back  of  the  dashboard  fusebox
cover

.
For
  access   to   it:
F

unclip

the

cover

by

pullin
g
at

the

top

right,

  then   left,
F

disengage

the

cover

completely

and

  turn   it   over,
F

remove

the

carrier
,
on

the

back

of

which

  the   tweezer   is   fitted.
Changing a fuse
Before changing a fuse:
F
the

cause

of

the

failure

must

be

identified

  and   rectified,
F

all

electrical

consumers

must

be

switched

  off,
F

the

vehicle

must

be

immobilised

with

  the   ignition   off,
F

identify

the

failed

fuse

using

the

ta
-
bles

and

diagrams

in

the

following

pages. Good
Failed
T

o   replace   a   fuse,   you   must:
F

use

the

special

tweezer

to

extract

the


fuse

from

its

housing

and

check

the

  condition   of   its   filament.
F

always

replace

the

failed

fuse

with

a


fuse

of

the

same

rating

(same

col
-
our);

the

use

of

a

fuse

of

dif
ferent
rating


fuse

may

cause

malfunctions

(risk

  of   fire).
If the fault recurrs soon after replac-
ing

the

fuse,

have

the

electrical

system

checked


by

a

CITROËN

dealer

or

a

qualified

  workshop. Installing electrical
accessories
Your

vehicle's

electrical

sys
-
tem

is

designed

to

operate

with

standard

  or   optional   equipment.
Before

installing

other

electrical equipment


or

accessories

on your vehicle, contact a CITR

o Ë n

dealer

  or   a   qualified   workshop.
CITR
o Ë n will not accept respon-
sibility

for

the

cost

incurred

in repairing


your

vehicle

or

for

recti
-
fying

malfunctions

resulting

from the

installation of accessories not
supplied

and

not

recommended by


CITROËN

and

not

installed

in accordance


with

its

instructions, in


particular

when

the

combined consumption


of

all

of

the

addition
-
al

equipment

connected

exceeds 10

  milliamperes.
The

replacement

of

a

fuse

not

mentioned


in

the

tables

below

may


cause

a

serious

malfunc
-
tion

of

your

vehicle.

Contact

a

CITROËN


dealer

or

a

qualified

workshop. T

weezer
PRACTICAL INFORMATION
