Citroen C4 PICASSO 2016 2.G Repair Manual

59
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016
Lost electronic key
Visit a CITROËN dealer with the vehicle's registration certificate, your personal identification documents and if possible the key code label.
T he   CITROËN   dealer   will   be   able   to   retrieve   the   key   code   and   the   transponder   code   required   to   order   a   new   key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you   being   aware   of   it.
Do
  not   repeatedly   press   the   buttons   of   your   electronic   key   out   of   range   and   out   of   sight   of   your   vehicle.   You   run   the   risk   of   stopping   it   from
w

orking   and   the   remote   control   would   have   to   be   reinitialised.
The
  electronic   key   cannot   operate   as   a   remote   control   when   it   is   in   the   reader   or   even   when   the   ignition   is   switched   on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
A s   a   safety   precaution   (with   children   on   board),   take   the   electronic   key   with   you   when   you   leave   the   vehicle,   even   for   a   short   time.
Electrical interference
The electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
D on't   forget   to   turn   the   wheel   to   lock   the   steering   column.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and started.
2
Access

60
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016
Manual central locking
Central locking
F Press this button to operate the central locking   of   the   vehicle   (doors   and   boot)   from
i

nside   the   vehicle.
F

P
ressing   the   button   again   unlocks   the
v

ehicle
 c
ompletely.
Automatic central locking
of doors (anti-intrusion
security)
The doors and boot lock automatically when driving,   as   soon   as   the   speed   exceeds   6   mph
(

10   km/h).
To activate or deactivate this function (activated
by
  default):
F

w
ith   the   ignition   on,   press   this   button   until   a
m

essage   appears   in   the   instrument   panel.
When locking / deadlocking from the
outside
If

the

vehicle

is

locked

or

deadlocked

f

rom the outside, the button is not
active.
F

A

fter

normal

locking,

pull

one

of
 t

he

interior

door

handles

to

unlock
 t

he vehicle.
F

A

fter

deadlocking,

you

have

to

use
 t

he remote control, the Keyless Entry
and

Starting

system

or

the

integral
 k

ey

to

unlock

the

vehicle. If one of the doors or the boot is
open,
  automatic   central   locking   does
n

ot   complete:   the   sound   of   the   locks
r

ebounding   can   be   heard.
Transporting long or voluminous
objects
If you want to drive with the boot open
but
  the   vehicle's   side   doors   locked,
p

ress   the   central   locking   control   button
t

o   lock   the   doors.
Driving
  with   the   doors   locked   may   make
a

ccess   to   the   passenger   compartment
b

y   the   emergency   services   more
d

ifficult   in   an   emergency.
Access

61
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016
Doors
Opening
From outside
F After  unlocking   the   vehicle   using   the  r
emote control or the Keyless Entry and
Starting
  system,   pull   the   door   handle.
From inside
F Pull the front or rear door lever to open the door. If
  a   door   is   not   properly   closed:
-
w
ith the engine running
, this
warning   lamp   and   a   message
ap

pear in the instrument panel
(type 1) for a few seconds,
-
wh
en driving
(speed above
6   mph   (10   km/h)),   this
w

arning   lamp   and   a   message,
a

ccompanied by an audible
signal,   appear   in   the   instrument
p

anel (type 1 and type 2) for a
few   seconds.
Closing
2
Access

62
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016

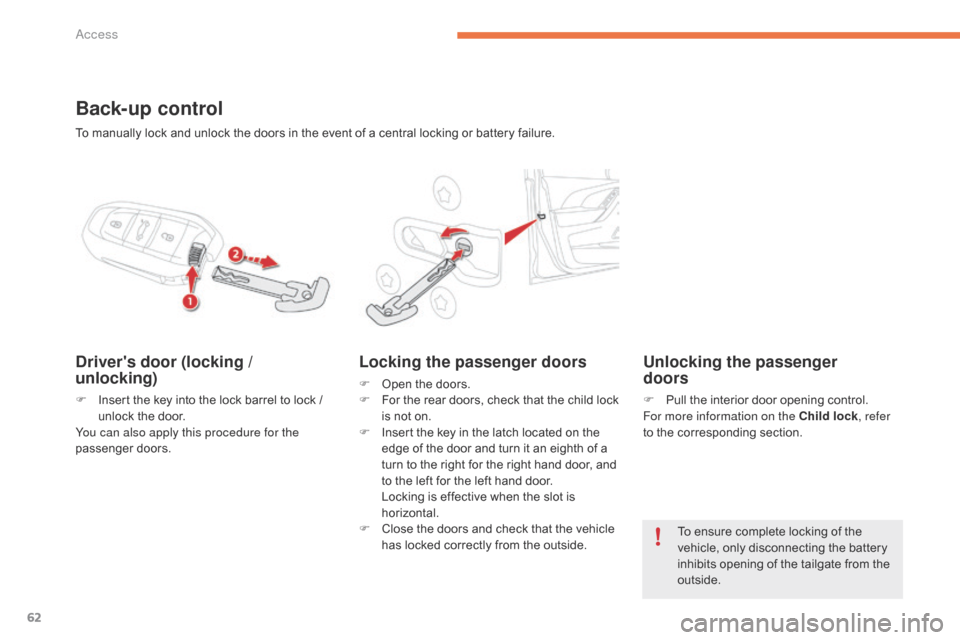

Back-up control
Driver's door (locking /
unlocking)
F Insert  the   key   into   the   lock   barrel   to   lock   /  u
nlock   the   door.
You can also apply this procedure for the
passenger
 do

ors.
Locking the passenger doors
F Open  the   doors.
F  F or   the   rear   doors,   check   that   the   child   lock
i

s   not   on.
F

I
nsert   the   key   in   the   latch   located   on   the
e

dge   of   the   door   and   turn   it   an   eighth   of   a
t

urn   to   the   right   for   the   right   hand   door,   and
t

o   the   left   for   the   left   hand   door.
 L

ocking   is   effective   when   the   slot   is
h

orizontal.
F

C
lose   the   doors   and   check   that   the   vehicle
h

as   locked   correctly   from   the   outside.
Unlocking the passenger
doors
F Pull  the   interior   door   opening   control.
For more information on the Child lock , refer
to
  the   corresponding   section.
To

manually

lock

and

unlock

the

doors

in

the

event

of

a

central

locking

or

battery

failure.
To  ensure   complete   locking   of   the
v

ehicle,   only   disconnecting   the   battery
i

nhibits   opening   of   the   tailgate   from   the
o

utside.
Access

63
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016

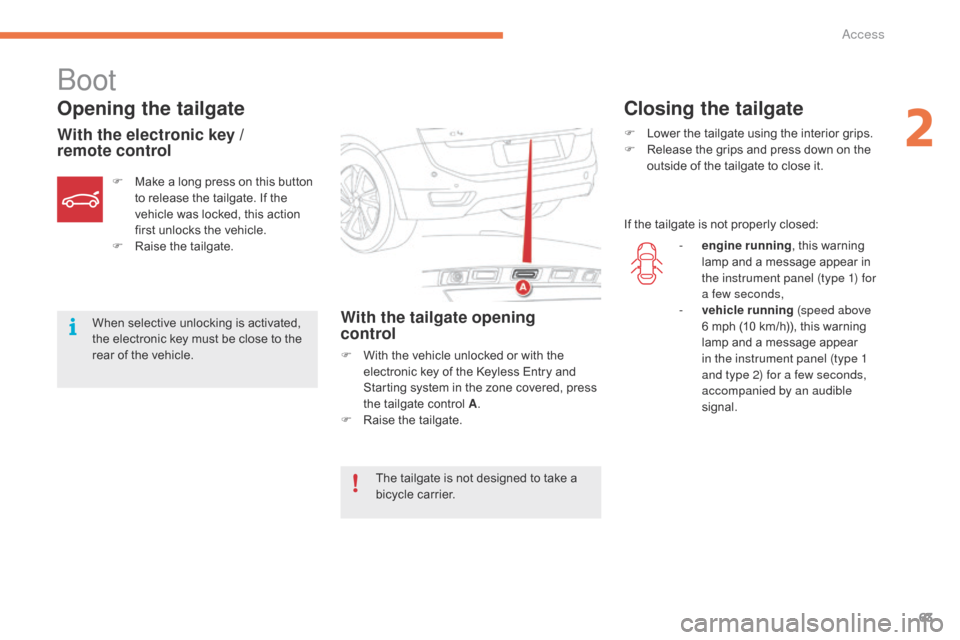

Boot
Opening the tailgate
With the electronic key /
remote controlWith the tailgate opening
control
F With  the   vehicle   unlocked   or   with   the  e
lectronic   key   of   the   Keyless   Entry   and
S

tarting   system   in   the   zone   covered,   press
t

he   tailgate   control   A.
F

Ra
ise
 t
he
 t
ailgate.
F

M

ake

a

long

press

on

this

button

t

o

release

the

tailgate.

If

the

v

ehicle

was

locked,

this

action

f

irst

unlocks

the

vehicle.
F

Ra

ise
 t

he
 t

ailgate.
When

selective

unlocking

is

activated,

t

he

electronic

key

must

be

close

to

the
 r
ear

of

the

vehicle.
Closing the tailgate
F Lower
  the   tailgate   using   the   interior   grips.
F  R elease   the   grips   and   press   down   on   the
o

utside   of   the   tailgate   to   close   it.
If
  the   tailgate   is   not   properly   closed:
The

tailgate

is

not

designed

to

take

a

b

icycle

carrier. -

e
ngine running,
  this   warning
l

amp   and   a   message   appear   in
t

he instrument panel (type 1) for
a few seconds,
-

v
ehicle running (speed above
6
  mph   (10   km/h)),   this   warning
l

amp   and   a   message   appear
i

n the instrument panel (type 1
and type 2) for a few seconds,
accompanied by an audible
signal.
2
Access

64
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016
Motorised tailgate
General points
Never place a finger in the locking mechanism   of   the   motorised   tailgate   -
R

isk   of   serious   injury!
Anti-pinch
The motorised tailgate includes a system for   detecting   obstacles,   which   automatically
i

nterrupts and reverses the movement by a few
degrees,
  to   allow   the   obstacle   to   be   cleared.
Note that this anti-pinch system does not
operate
  at   the   end   of   the   closing   movement
(

around   1   cm   before   complete   closure).
The

motorised

operation

of

the

tailgate

can
 b
e

activated

or

deactivated

by

selecting
 "
M
otorised tailgate " in the Driving menu of
the

touch

screen

tablet.
Bicycle carrier / Towbar
The tailgate is not designed to be fitted with a b icycle   carrier.
If a bicycle carrier is fitted to a towbar with a
wiring
  harness   connected   to   a   towbar   socket,
t

he   motorised   operation   of   the   tailgate   is
a

utomatically
 d
eactivated.
If
  using   a   towbar   or   bicycle   carrier   not   approved
b

y CITROËN, it is essential to deactivate the
motorised
  operation   of   the   tailgate.
Tailgate

operation

commands

must

be

made

w

ith

the

vehicle

stationary.
Ensure

that

there

is

enough

free

space

to

allow

t

he

motorised

tailgate

to

open. To

avoid

the

risk

of

injury

through

p

inching

or

trapping,

before

and

during

o

peration

of

the

tailgate:
-

e

nsure that there is no person close
to the rear of the vehicle,
-
w
atch the behaviour of rear
passengers,
 par

ticularly
 c

hildren.
Access

65
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016
or
Opening the tailgate with the
electronic key / remote control (A)
Opening the tailgate with the
"Keyless Entry and Starting"
system "B"
Opening the tailgate
F Make  a   long   press   on   the   remote  c
ontrol   button.
F

P

ress button B   on   the   tailgate,   with   the
e

lectronic   key   in   the   zone   covered.
When
  selective   locking   is   activated,   the
e

lectronic   key   must   be   near   the   rear   of
t

he
  vehicle.
By

default,   the   tailgate   opens
c

ompletely or alternatively to the
memorised
 p

osition.
F

A

fter

complete   unlocking   of   the   vehicle,
p

ress control B   on   the   tailgate.
The instruction is confirmed by an audible
signal.
Motorised closing
There are two possibilities:
F  P ress   and   release   the   exterior   control   B.
or
The
  motorised   tailgate   has   an   anti-
pinch
  system   that   interrupts   closing   if   it
e

ncounters   an   obstacle.
F

P
ress and then release button C .
There

are

several

ways

of

operating

the
 m
otorised t
ailgate:
-

u

sing

the

Keyless

Entry

and

Starting

e

lectronic

key

(A) ,
-

u

sing

the

exterior

control

on

the

t

ailgate  (B),
-

u

sing

the

interior

control

on

the

tailgate

(C) ,
-

b

y a movement of your foot, if your vehicle
has

the

hands-free

tailgate

access

f

unction.
Motorised opening
For more information on Hands-free tailgate
access ,
  refer   to   the   corresponding   section.
Operation
Operation of the tailgate can be interrupted   at   any   time:
-

b
y   pressing
o

ne of these
two


buttons,
or
-

b
y   pressing   the   exterior   control   B.
After interruption of an operation,
another press on one of the controls
resumes the movement, with the
exception
  of   a   press   on   the   remote
c

ontrol button, which only allows
opening.
2
Access

66
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016
Memorising an
opening position
Where height is restricted (garage with a low c
eiling,   ...)   it   is   possible   to   limit   and   memorise
t

he   opening   angle   of   the   motorised   tailgate.
This
  memorisation   is   done   as   follows:
-

o
pen   the   tailgate   to   the   desired   position,
-

p
ress button C   or   the   exterior   control   B for
more
  than   3   seconds.
Memorisation
  of   the   maximum   opening   position
o

f   the   tailgate   is   confirmed   by   an   audible   signal.
To
  cancel   the   memorised   position:
-

s
top   the   tailgate   in   an   intermediate
p

osition,
-

p
ress button C   or   the   exterior   control   B for
more
  than   3   seconds.
Cancellation of the memorised position is
confirmed
  by   an   audible   signal.
Manual operation
The motorised tailgate can be opened and closed manually, even if motorised operation is
activated.
However, any manual intervention must be
done
  with   the   tailgate   stopped.
Repeated

opening

and

closing

of

the
 t
ailgate

can

cause

overheating

of

its
 e
lectric

motor,

after

which

opening

and

c

losing

will

not

be

possible.
Allow 10 minutes for the motor to cool
down

before

operating

the

tailgate

ag

ain.
If you are not able to wait, operate it
manually.
Detection of obstacles
Should an obstacle (person or object) be en countered, the anti-pinch system interrupts
the
  closing   movement   and   raises   the   tailgate   a
f

ew   centimetres   to   clear   the   obstacle. When
  opening   and   closing   a   motorised   tailgate
m

anually,   there   is   no   assistance   from   gas-filled
s

truts.   Resistance   to   opening   and   closing   is
t

herefore   entirely   normal.
Access

67
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016

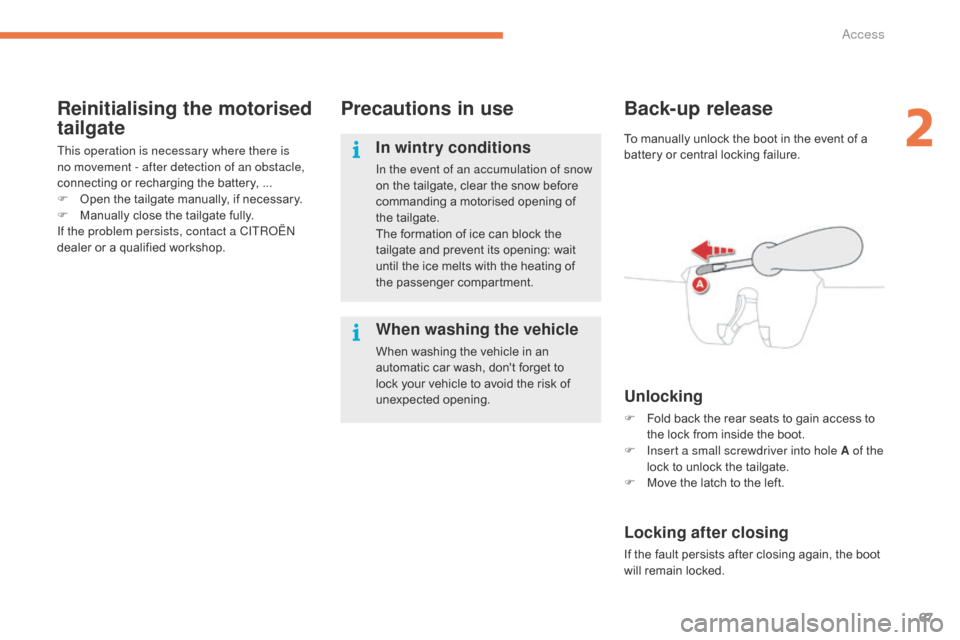

Reinitialising the motorised
tailgate
This operation is necessary where there is
no movement - after detection of an obstacle,
connecting  or   recharging   the   battery,   ...
F

O
pen   the   tailgate   manually,   if   necessary.
F

M
anually   close   the   tailgate   fully.
If the problem persists, contact a CITROËN
dealer
  or   a   qualified   workshop.
Precautions in use
In wintry conditions
In the event of an accumulation of snow
on  the   tailgate,   clear   the   snow   before
c

ommanding   a   motorised   opening   of
t

he   tailgate.
The
  formation   of   ice   can   block   the
t

ailgate   and   prevent   its   opening:   wait
u

ntil   the   ice   melts   with   the   heating   of
t

he
 p
assenger
 c
ompartment.
When washing the vehicle
When washing the vehicle in an automatic   car   wash,   don't   forget   to
l

ock   your   vehicle   to   avoid   the   risk   of
u

nexpected
 ope
ning.
Back-up release
Unlocking
F Fold  back   the   rear   seats   to   gain   access   to  t
he   lock   from   inside   the   boot.
F

I
nsert a small screwdriver into hole A of the
lock
  to   unlock   the   tailgate.
F

M
ove   the   latch   to   the   left.
Locking after closing
If the fault persists after closing again, the boot will   remain   locked.
To
  manually   unlock   the   boot   in   the   event   of   a
b

attery   or   central   locking   failure.
2
Access

68
C4-Picasso-II_en_Chap02_ouvertures_ed01-2016
Hands-free tailgate access
The tailgate my be equipped with a hands-free function, to allow you to open or close the tailgate when   your   hands   are   full.
For more information on the Motorised tailgate ,
  refer   to   the   corresponding   section.
"Hands-free" opening
F With your hands full and the remote control on   your   person   in   the   recognition   zone A,
pass your foot rapidly below the rear
b u m p e r.
The
  instruction   is   confirmed   by   flashing   of   the
d

irection   indicators   and   an   audible   signal.
The
  tailgate   opens   to   the   memorised   position.
Passing your foot below the bumper again while the   tailgate   is   opening   stops   the   movement. P

assing   your   foot   below   the   bumper   for   a   third
 t

ime   reverses   the   direction   of   movement.
"Hands-free" closing
F With your hands full and the remote control on   your   person   in   the   recognition   zone A,
pass your foot rapidly below the rear
b u m p e r.
The
  instruction   is   confirmed   by   flashing   of   the
d

irection   indicators   and   an   audible   signal.
Deactivation
Hands-free tailgate access is activated by default.
T his function can be activated or deactivated
by
  selecting   "Hands-free failgate access " in
the Driving


menu   of   the   touch   screen   tablet.
Ensure that you are steady on your feet
before

passing

a

foot

rapidly

below

the

r

ear

bumper.
Take

care

not

to

touch

the

exhaust

s

ystem,

which

may

be

hot

-

Risk

of

b

urns!
If

the

vehicle

is

locked,

it

is

unlocked

b

efore

opening

the

tailgate.
Automatic locking
To have the vehicle lock itself after closing the t ailgate   by   passing   a   foot   below   the   bumper,
a

ctivate " Hands-free tailgate access self-
locking " in the Driving menu of the touch
screen
 t

ablet.
Passing your foot below the bumper again while the   tailgate   is   closing   stops   the   movement. P

assing   your   foot   below   the   bumper   for   a   third
 t

ime   reverses   the   direction   of   movement.
Access
