Citroen C5 2008 (RD/TD) / 2.G Owner's Manual

114
III
2
2
1
221
1
I N T E R I O R L I G H T I N G
1. Interior lamps
Move control 1 to one of the 3 fol-lowing positions:
Automatic lighting of the interior lampsOn entering the vehicle:
They come on as soon as the vehicle is unlocked or a door is opened.
They go out 30 seconds after the doors are closed or when ignition is switched on.

115
III
A
B
I N T E R I O R L I G H T I N G
Ambient dashboard lighting
Your vehicle is equipped with warm and welcoming ambient lighting.
A soft orange light is emitted.
Operation
When starting the engine, lights located along the dashboard are activated.
With the ignition on and the head-lamps on, button A allows you to activate or deactivate the ambient dashboard lighting.
Ambient central console lighting
These lights are located on the roof console, near the front interior lamp. They light up the central con-sole.
Operation
These lights are activated when the instrument panel comes on. They are deactivated when the instrument panel goes out.
The intensity of the lighting varies along with that of the instrument panel. Press buttons B to increase or reduce the intensity of the light-ing.
Door opening controls lighting
They are located on the front and rear interior door opening controls.
The rear door opening controls lighting is deactivated if child safety is activated.

116
III
I N T E R I O R L I G H T I N G
Pavement lighting
With the door open, this lights up the ground next to the vehicle.
Floor lighting
In the front and the rear of the vehi-cle, when a door is opened, this lights up the interior of the vehicle.
Welcome lighting
The welcome lighting is made up of:The interior (roof) lamps.The fl oor lighting.
The pavement lighting when a door is open.

117
III
CB
A
I N T E R I O R C O M F O R T
Air conditioned glovebox
To open the glovebox, pull on the handle and lower the lid.
The glovebox has a manually clos-able air conditioning vent B.
It has 2 or 3 sockets C to connect audio/video equipment.
It has automatic lighting.
It gives you access to the fusebox underneath the dashboard.
Driver's oddments tray
To open the driver's oddments tray, pull the handle towards you.W h i l s t d r i v i n g , t h e glovebox should be kept closed.
Front armrest
The armrest gives you extra com-fort in your driving position.
To optimise your driving position, lift the control A and push the arm-rest forwards.
The armrest returns to its initial position when you push it rear-wards.
Cup-holder in front armrest
Lift up the armrest to access the cup-holder.

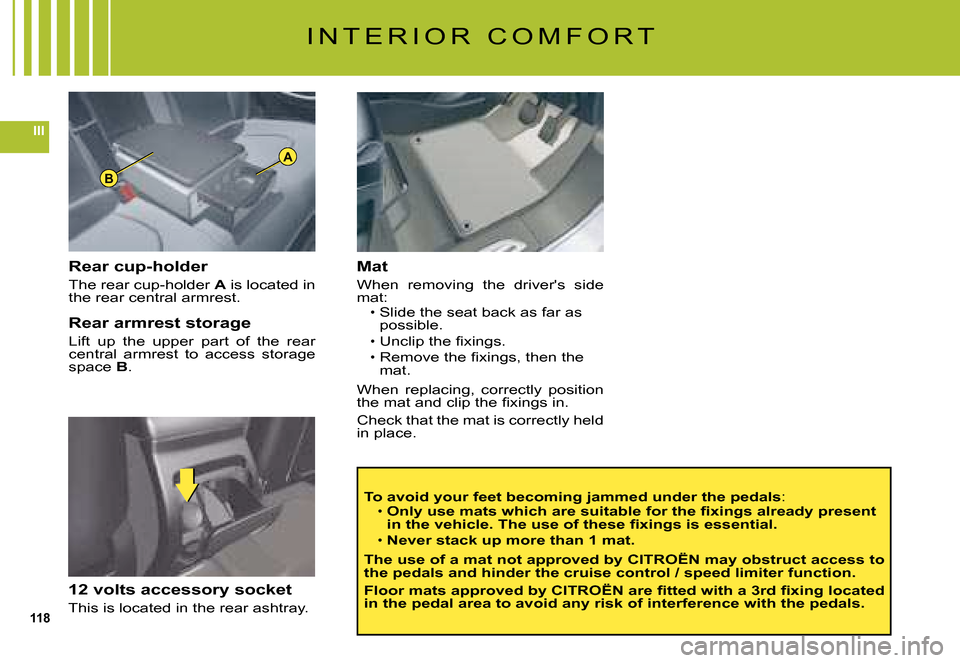

118
III
B
A
I N T E R I O R C O M F O R T
To avoid your feet becoming jammed under the pedals:Only use mats which are suitable for the fi xings already present in the vehicle. The use of these fi xings is essential.
Never stack up more than 1 mat.
The use of a mat not approved by CITROËN may obstruct acc ess to the pedals and hinder the cruise control / speed limiter function.
Floor mats approved by CITROËN are fi tted with a 3rd fi x ing located in the pedal area to avoid any risk of interference with the pedals.

119
IIIA
BDCD
Sun visor
To prevent dazzle from ahead, fold the visor downwards.
They can be disengaged from their central fi xing and pivoted over to the side windows if required.
Sun visor with illuminated mirror
Illuminates automatically on opening the mirror cover fl ap (ignition on).
Rear door blinds
Pull on tongue A and position the blind on hook B.
Rear blind (saloon)
Pull the grip C to unroll the blind. Fasten the blind to fi xings D.

120
III
2
1
43
B O O T ( S A L O O N )
1 Battery for vehicles with V6 HDi engine.
2 Pull strap (spare wheel storage).
3 Boot lamp.
4 6 CD changer.
Luggage securing rings
Use the 4 securing rings on the boot fl oor to secure your luggage.
For safety reasons, in case of the need for sharp braking, you are advised to place heavy objects as far forward in the boot as possible.

121
III
1
2
3
1243
5
1
2
3
B O O T ( T O U R E R )
1 Luggage-cover blind
(see details on following page)
2 Luggage securing rings
Use the 4 stowing rings pro-vided on the boot fl oor to secure your loads.
Note : For safety reasons in the event of sharp braking, you are advised to place heavy objects as far forwards as possible.
3 Hooks
These allow a cargo net to be fi tted (see details on following page).
1 Boot lamp
2 12 V accessories socket (100 W maximum)
Cigar-lighter type 12 volts socket. It is located on the rear right-hand trim, and is supplied from the ignition position.
3 Loading assistance
You can change the height of the vehicle in order to make loading or unloading easier.
4 Hook
Allows you to hook shopping bags.
5 Storage net
or
6 CD changer
1 Hook
Allows you to hook shopping bags.
2 Torch
To recharge, return it to its storage position.
3 Storage net
or
Battery compartment (for vehicles with V6 2.7 HDi engine).

122
III1AB
C
To install :
Position the left-hand end of the luggage-cover blind in its housing A behind the rear benchseat.A
Squeeze the blind’s control 1 and position it in place in its housing Bto the right-hand side.
Release the control to secure the luggage-cover blind.
Unroll it until it locks into place on the boot pillar.




L U G G A G E - C O V E R B L I N D ( T O U R E R )
To remove :
Press gently on the handle (PRESS). The luggage-cover blind rolls up automatically.
Squeeze control 1 and lift up the luggage-cover blind to the right then to the left to remove it.


To fold up :
Press gently on the handle (PRESS). The luggage-cover blind rolls up automatically.
The moveable section C can be folded up along the backrest of the rear benchseat.


123
III
33
44
1
1
22
The cargo net can be used behind the rear seats (row 2) when the luggage-cover blind is not fi tted, or behind the front seats (row 1).
Note : when using behind the front seats, the backrests and the seat cushions must be folded down (see section on rear seats).
CARGO NET (TOURER)
To install :
Fold down the backrests of the rear seats.
Position the cargo net roller over the two rails 1 located behind the rear seats (2/3 benchseat). The two notches 2 must be posi-tioned over the two rails.


Slide the 2 rails 1 into the notches 2 and push the roller (lengthwise) from right to left to lock it in.Put the backrests of the rear seats back into place.


To use in row 1 :
Fold down the backrests of the rear seats.
Open the cov-ers 3 of the corresponding high fi xing locations.


To use in row 2 :
Open the cov-ers 4 of the c o r r e s p o n d -ing high fi xing locations.
From the rear benchseat, unroll the cargo net by pushing it to disengage the retaining notches.
Position one of the ends of the cargo net’s metal bar in the corre-sponding fi xing location. Ensure that the notch is correctly lodged in the rail located inside the loca-tion 4.
Position the other notch in the 2nd fi xing location and pull the metal bar towards you.




Unroll the cargo net and posi-tion one of the ends of the net’s metal bars in the corresponding fi xing location. Ensure that the notch is correctly lodged in the rail located inside the location 3.
Pull on the cargo’s net’s metal bar to position the other notch in the 2nd fi xing location.
