In the event of a steep descent or
u n d e r e x c e s s i v e a c c e l e r a t i o n , t h e
speed limiter (which does not act
on the brakes) may not be able to
p r e v e n t t h e v e h i c l e f r o m e x c e e d i n g
the programmed speed.
U s e o f a fl o o r m a t o t h e r t h a n t h a t
recommended by CITROËN may
affect the normal operation of the
accelerator pedal and hamper the
operation of the speed limiter.
Floor mats approved by CITROËN
a r e fi t t e d w i t h a 3 r d fi x i n g l o c a t e d i n
the pedal area to avoid any risk of
interference with the pedals.
Suspension/Resumption
Press on button 3 .
This action causes the information
"PAUSE" to appear in zone A of the
instrument panel.
This action does not cancel the
m e m o r i s e d m a x i m u m s p e e d w h i c h
remains displayed in zone A of the
instrument panel. Overriding the programmed
speed
The accelerator pedal has an end-
o f - t r a v e l s w i t c h . I n o r d e r t o e x c e e d
t h e m e m o r i s e d m a x i m u m s p e e d a t
any time, you can press the pedal
all the way down. While the speed
i s b e i n g e x c e e d e d , t h e s p e e d d i s -
played in zone
A w i l l fl a s h . Y o u h a v e
only to release the accelerator pedal
t o r e t u r n b e l o w t h e m a x i m u m s p e e d ,
to restore the function.
T h e s p e e d w i l l a l s o fl a s h i f t h e s p e e d
limiter is not able to prevent the vehi-
c l e f r o m e x c e e d i n g t h e p r o g r a m m e d
speed (e.g. on a steep descent or
u n d e r e x c e s s i v e a c c e l e r a t i o n ) .
To reactivate the speed limiter, re-
lease the accelerator to slow to a
speed lower than the programmed
speed. Return to normal driving
Either press on button 5 .
Or select the speed limiter function.
Or stop the engine.
Operating fault
If there is a malfunction, a mes-
sage is displayed accompanied by
an audible signal and lighting of the
SERVICE warning lamp.
Have it checked by a CITROËN
dealer.
Page 172 of 336
IX
151
D R I V I N G
CRUISE CONTROL
S y s t e m w h i c h a u t o m a t i c a l l y m a i n -
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (40 km/h) and you
must be in at least:
- 4 t h g e a r f o r m a n u a l g e a r b o x e s ,
- 2 n d g e a r f o r a u t o m a t i c g e a r b o x e s . Displays on the instrument
panel
The programmed information is
grouped together in zone
A of the
instrument panel.
Programming
Press button 4 to select cruise
control mode " CRUISE ".
Steering mounted controls
The cruise control switches are lo-
cated on the left-hand side of the
steering wheel. T h e s e l e c t i o n i s c o n fi r m e d b y t h e
display of the function in zone
A of
the instrument panel.
When the function is selected, no
cruising speed has yet been
memorised . Once the desired speed has been
reached using the accelerator, press
button
1 or button 2 . The cruising
speed is then memorised and cruise
control is activated. The cruising
speed is displayed in zone A of the
instrument panel, and "ON" is dis-
played.
Adjustment of the memorised
speed while cruise control is
in operation
You can adjust the memorised speed, displayed in zone A , by pressing:
- Button 1 to increase the speed.
- Button 2 to reduce the speed.
S u c c e s s i v e p r e s s e s w i l l m o d i f y t h e
cruise speed in steps of 1 mph and a
continuous press in steps of 5 mph.
You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The vehicle speed may vary slightly
from that memorised.
If during cruise control the system
cannot keep to the cruise speed
(e.g. on a steep descent), then the
s p e e d fl a s h e s . I f n e c e s s a r y , b r a k e t o
curb your speed.
Page 173 of 336
IX
!
152
D R I V I N G
Cruise control must only be
u s e d w h e r e t h e t r a f fi c c o n d i -
tions permit driving at a con-
stant speed .
Do not use it on congested
roads or when the weather or the
road conditions are poor .
The driver must remain attentive
and in complete control of the ve-
hicle .
You are recommended to keep your
feet within range of the pedals .
Overriding the programmed
speed
While cruise control is in operation,
it is always possible to go above the
programmed speed simply by press-
i n g t h e a c c e l e r a t o r p e d a l ( f o r e x a m -
ple to overtake another vehicle).
The speed displayed in zone
A
fl a s h e s .
You only have to release the ac-
celerator pedal to return to the pro-
grammed speed.
Suspension/Resumption
Either by pressing the brake
pedal or the clutch pedal.
Or by pressing button 3 .
O r b y t h e E S P o r A S R s y s t e m s
being active.
F o r v e h i c l e s w i t h a m a n u a l g e a r b o x ,
cruise control is deactivated if the
gear lever is in neutral. Reactivation
-
By recalling the memorised
speed
After deactivation, press button 3 .
Your vehicle automatically returns
to the memorised cruising speed.
The memorised speed and "ON"
are displayed in zone A .
If the memorised cruising speed is higher than the current speed,
the vehicle will accelerate strong-
ly to reach the current speed.
- By selecting the current speed
Press button 1 or 2 once the de-
sired speed has been reached.
The new speed and "ON" will
appear in zone A .
Return to normal driving
Either press on button 5 .
Or select the cruise control function.
Or stop the engine.
The speed that was chosen is no
longer memorised.
"PAUSE" will be displayed in zone A
of the instrument panel.
These actions do not cancel the
cruising speed which remains dis-
played on the instrument panel. Operating fault
If there is a malfunction, a mes-
sage is displayed accompanied by
an audible signal and lighting of the
SERVICE warning lamp.
Have it checked by a CITROËN
dealer.
Page 174 of 336
IX
153
D R I V I N G
LANE DEPARTURE WARNING SYSTEM
S y s t e m w h i c h d e t e c t s t h e i n v o l u n -
t a r y c r o s s i n g o f l o n g i t u d i n a l t r a f fi c
lane markings on the ground (solid
or broken line).
S e n s o r s , fi t t e d b e l o w t h e f r o n t b u m -
per, trigger a warning if the vehicle
drifts over a lane marking (speed
higher than 50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads.
Activation
Press button A , the indicator
lamp comes on.
Deactivation
Press button A again, the indica-
tor lamp switches off.
The status of the system remains
in the memory when the ignition is
switched off. Detection
You are warned by the vibration of
the driver's seat cushion:
- on the right-hand side, if the
marking on the ground has been
crossed on the right,
- on the left-hand side, if the mark- ing on the ground has been
crossed on the left.
No warning is transmitted while the
direction indicator is active and for
a p p r o x i m a t e l y 2 0 s e c o n d s a f t e r t h e
direction indicator is switched off.
A warning may be transmitted if a direc-
tion marking (e.g. arrow) or non-stan-
d a r d m a r k i n g ( e . g . g r a f fi t i ) i s c r o s s e d . Operating fault
In the event of a malfunction, the
service warning lamp comes on,
accompanied by an audible signal
and a message on the multifunction
screen.
Consult a CITROËN dealer.
The lane departure warning sys-
tem cannot, in any circumstances,
replace the need for vigilance and
responsibility on the part of the
driver.
The detection may be impeded:
- if the sensors are dirty (mud, snow...),
- if the markings on the ground are worn,
- if there is little contrast between the markings on the ground and
the road surface.
Page 175 of 336
IX
154
D R I V I N G
PARKING SPACE SENSOR
S y s t e m w h i c h m e a s u r e s t h e p a r k -
ing space available between two
vehicles or obstacles. It measures
the size of the space and gives you
information on:
- t h e p o s s i b i l i t y o f fi t t i n g i n t o a f r e e space, depending on the dimen-
sions of your vehicle and the
distances necessary for your
manoeuvring,
- t h e l e v e l o f d i f fi c u l t y o f t h e m a - noeuvre to be performed.
The system does not measure spac-
es which are clearly much smaller or
larger than the size of the vehicle. Displays on the instrument
panel
The parking space sensor function
warning lamp can have three differ-
ent states:
-
off: the function is not selected,
- o n fi x e d : the function is selected
but the conditions for measuring
are not yet met (direction indi-
cator not operating, speed too
high) or the measurement is ter-
minated,
- fl a s h i n g : measurement is in
progress or the message is be-
ing displayed. You can select the "parking space
sensor" function by pressing button
A.
T h e fi x e d l i g h t i n g o f t h e w a r n i n g l a m p
indicates that the function is selected.
During the measurement, the mes-
sage "Measurement in progress -
V m a x 2 0 k m / h ( 1 2 m p h ) " i s d i s p l a y e d
on the instrument panel screen.
Page 176 of 336
IX
155
D R I V I N G
Operation
Y o u h a v e i d e n t i fi e d a p a r k i n g s p a c e :
Press button A to select the function.
Activate the direction indicator
on the side where the space is to
be measured.
During measurement, go for-
ward the length of the space, at
a speed less than 12 mph (ap-
p r o x . 2 0 k m / h ) , t o p r e p a r e f o r
your manoeuvre.
The system then measures the size
of the space.
The system informs you of the
l e v e l o f d i f fi c u l t y o f t h e m a n o e u -
vre via a message on the instru-
ment panel screen accompanied
by a gong.
Depending on the message is-
sued by the system, you may or
may not be able to perform the
manoeuvre. The function displays the following
types of message:
Parking YES
P a r k i n g d i f fi c u l t
Parking NO The function deselects itself auto-
matically:
- when you engage reverse gear,
- when you switch off the ignition,
- if measurement is not requested,
- w i t h i n fi v e m i n u t e s o f s e l e c t i o n o f
the function,
- i f t h e v e h i c l e s p e e d e x c e e d s t h e t h r e s h o l d o f 4 5 m p h ( a p p r o x .
70 km/h) for one minute.
If the lateral distance between your
vehicle and the parking space is too
large, the system may not be able to
measure the space.
The function remains available after
each measurement and thus can
measure more than one space dur-
ing your search.
In bad weather conditions or in
winter, make sure that the sensors
are not covered by dirt, or by ice or
snow.
The parking space sensor function
deactivates the front parking ses-
nors during space measurement
when you are in forward gear.
If there is a malfunction, have the
system checked by a CITROËN
dealer.
Page 177 of 336
IX
156
D R I V I N G The parking sensors system cannot,
in any circumstances, replace the
need for vigilance and responsibility
on the part of the driver.
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING SENSORS
S y s t e m c o n s i s t i n g o f p r o x i m i t y s e n -
sors, installed in the front and/or rear
bumper.
It detects any obstacle (person, vehi-
cle, tree, barrier...) located in front of
or behind the vehicle, however, it will
not be able to detect obstacles locat-
ed immediately below the bumper.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the start of
the manoeuvre but may no longer
be detected when the vehicle moves
nearer to it. The parking sensors are
switched
on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible
signal and/or displaying of the vehi-
cle on the multifunction screen.
T h e p r o x i m i t y i n f o r m a t i o n i s i n d i c a t -
ed by:
- an audible signal which be- comes more rapid as the vehicle
approaches the obstacle,
- a diagram on the multifunction display, with blocks which move
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; front or rear and right
or left.
When the distance between the ve-
hicle and the obstacle is less than
a p p r o x i m a t e l y t h i r t y c e n t i m e t r e s ,
the audible signal becomes con-
tinuous and/or the "Danger" symbol
appears, depending on the multi-
function screen version.
The parking sensors are switched
off :
- w h e n y o u e x i t r e v e r s e g e a r ,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been station- ary for more than three seconds in
forward gear. Deactivation
Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN).
Page 178 of 336
IX
157
D R I V I N G
Reactivation
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that the
sensors may be dirty.
When the speed of the vehicle is
below about 6 mph (10 km/h), some
sources of noise (motorcycle, lorry,
pneumatic drill, ...) may trigger the
audible parking sensor signals.
Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
"HYDRACTIVE III +" ELECTRONIC SUSPENSION
The suspension automatically and
instantly adjusts to different driving
s t y l e s a n d t o t h e p r o fi l e o f t h e r o a d ,
providing the best compromise be-
tween occupant comfort and vehicle
road holding.
The system alternates between soft
a n d fi r m s u s p e n s i o n s e t t i n g s , m a x i -
mising comfort at the same time as
constantly ensuring the highest level
of safety. It also automatically cor-
rects ride height, according to the
vehicle load and driving conditions.
In addition, the "Hydractive III +" sys-
tem allows you to choose between
two modes of suspension.
A change of suspension mode can
be made either when the vehicle is
moving or when stationary, by press-
ing button A . Display on the instrument
panel
The suspension mode selected is
displayed on the instrument panel
screen.
Normal mode
This mode favours soft
d a m p i n g f o r m a x i m u m c o m -
fort.
If the speed authorised for a
p a r t i c u l a r p o s i t i o n i s e x c e e d -
ed, the vehicle reverts automatically
to the normal road position.
SPORT mode
This mode favours dynamic
driving.
The warning lamp on but-
ton A comes on in addition
to the message on the in-
strument panel screen.
SPORT mode is retained when you
switch off the engine.
Page 179 of 336
IX
157
D R I V I N G
Reactivation
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that the
sensors may be dirty.
When the speed of the vehicle is
below about 6 mph (10 km/h), some
sources of noise (motorcycle, lorry,
pneumatic drill, ...) may trigger the
audible parking sensor signals.
Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
"HYDRACTIVE III +" ELECTRONIC SUSPENSION
The suspension automatically and
instantly adjusts to different driving
s t y l e s a n d t o t h e p r o fi l e o f t h e r o a d ,
providing the best compromise be-
tween occupant comfort and vehicle
road holding.
The system alternates between soft
a n d fi r m s u s p e n s i o n s e t t i n g s , m a x i -
mising comfort at the same time as
constantly ensuring the highest level
of safety. It also automatically cor-
rects ride height, according to the
vehicle load and driving conditions.
In addition, the "Hydractive III +" sys-
tem allows you to choose between
two modes of suspension.
A change of suspension mode can
be made either when the vehicle is
moving or when stationary, by press-
ing button A . Display on the instrument
panel
The suspension mode selected is
displayed on the instrument panel
screen.
Normal mode
This mode favours soft
d a m p i n g f o r m a x i m u m c o m -
fort.
If the speed authorised for a
p a r t i c u l a r p o s i t i o n i s e x c e e d -
ed, the vehicle reverts automatically
to the normal road position.
SPORT mode
This mode favours dynamic
driving.
The warning lamp on but-
ton A comes on in addition
to the message on the in-
strument panel screen.
SPORT mode is retained when you
switch off the engine.
Page 180 of 336
IX
158
D R I V I N G

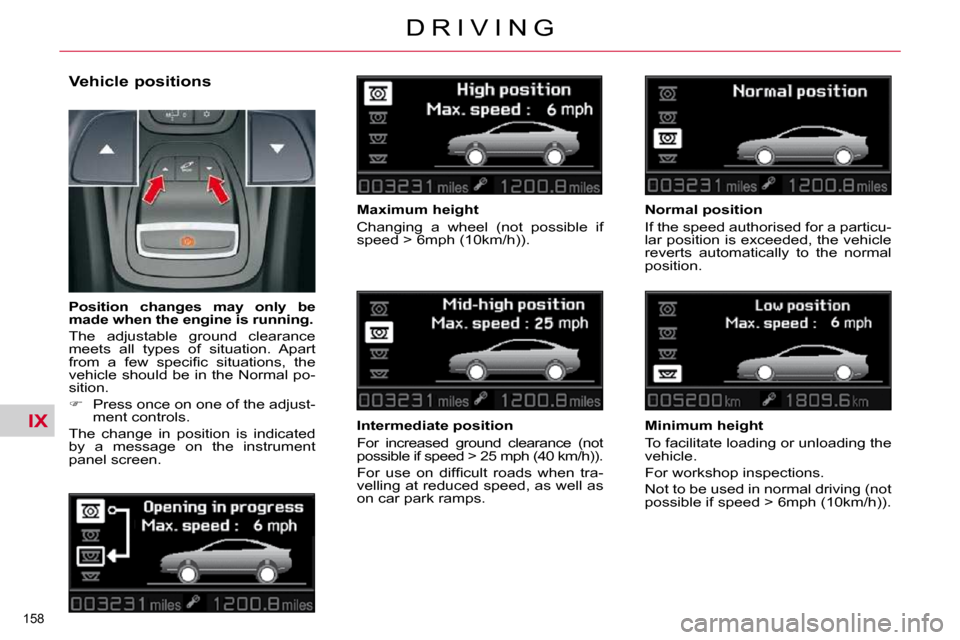

Vehicle positions
Maximum height
Changing a wheel (not possible if
speed > 6mph (10km/h)).
Intermediate position
For increased ground clearance (not
possible if speed > 25 mph (40 km/h)).
F o r u s e o n d i f fi c u l t r o a d s w h e n t r a -
velling at reduced speed, as well as
on car park ramps.
Position changes may only be
made when the engine is running.
The adjustable ground clearance
meets all types of situation. Apart
f r o m a f e w s p e c i fi c s i t u a t i o n s , t h e
vehicle should be in the Normal po-
sition.
Press once on one of the adjust-
ment controls.
The change in position is indicated
by a message on the instrument
panel screen.
Normal position
If the speed authorised for a particu-
l a r p o s i t i o n i s e x c e e d e d , t h e v e h i c l e
reverts automatically to the normal
position.
Minimum height
To facilitate loading or unloading the
vehicle.
For workshop inspections.
Not to be used in normal driving (not
possible if speed > 6mph (10km/h)).
